Jahnavi bandla* and S. Ganapaty1
Department of Pharmaceutical Analysis and QA, Faculty of Pharmacy, Vishnu Institute of Pharmaceutical Education and Research, Narsapur, Medak-502 313, India
1
Department of Pharmacognosy and Phytochemistry, GITAM Institute of Pharmacy GITAM University, Rushikonda, Visakhapatnam-530 045, India

*Corresponding Author:
Jahnavi bandla
Department of Pharmaceutical Analysis and QA, Faculty of Pharmacy, Vishnu Institute of Pharmaceutical Education and Research, Narsapur, Medak-502 313, India
E-mail: [email protected]
Date of Submission 02 March 2017
Date of Revision 14 April 2018
Date of Acceptance 28 October 2018
Indian J Pharm Sci 2018;80(6):1170-1176

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

A stability indicating reversed-phase high-performance liquid chromatography method was developed and validated for simultaneous quantification of sofosbuvir and ledipasvir in tablets. The chromatographic separation was done in an isocratic mode using the Discovery C18 (250×4.6 mm, 5 µ particle size) column. The mobile phase 0.1 % ortho phosphoric acid and acetonitrile 45:55 (% v/v) at a flow rate of 1.0 ml/min and at ambient temperature was used. The wavelength used for detection was 270 nm. The retention time for sofosbuvir was found to 2.08 min and that of ledipasvir was 3.06 min. Sofosbuvir and ledipasvir were linear in the concentration ranges of 100 to 600 µg/ml and 22.5 to 135 µg/ml, respectively. The developed method was validated and found to be accurate, specific and robust. Both the drugs were subjected to the stressed conditions like acidic, basic, oxidative, photolytic and thermal conditions. The degradation results were found satisfactory. This method could be applied for the simultaneous estimation of sofosbuvir and ledipasvir in tablets.

Keywords

Sofosbuvir, ledipasvir, stability indicating, RP-HPLC, method development, validation

Sofosbuvir [1-4], isopropyl (2S)-2- [ [ [(2R,3R,4R,5R)- 5-(2,4-dioxopyrimidin-1-yl)-4-fluoro-3-hydroxy- 4-methyl-tetrahydrofuran-2-yl]methoxy-phenoxyphosphoryl] amino]propanoate (Figure 1A), is a white crystalline solid, slightly soluble in water and has a pKa value of 9.38. It is an antiviral drug acts by inhibiting NS5B polymerase, used in the treatment of hepatitis C. Ledipasvir [5-7], methyl N- [(2S)-1- [(6S)-6- [5- [9,9-Difluoro-7- [2- [(1S,2S,4R)-3- [(2S)- 2-(methoxycarbonylamino)-3-methyl butanoyl]-3- azabicyclo [2.2.1]heptan-2-yl]-3H-benzimidazol-5- yl]fluoren-2-yl]-1H-imidazol-2-yl]-5-azaspiro [2.4] heptan-5-yl]-3-methyl-1-oxobutan-2-yl]carbamate (Figure 1B), is white to off-white crystalline solid, slightly soluble in water and has pKa values of 4.0 and 5.0. It is also an antiviral drug acts by inhibiting viral phosphoprotein NS5A, which is involved in viral replication, assembly and secretion. It is used to treat chronic hepatitis C. Literature survey [8,9] reveals that, only ultra-performance liquid chromatography-tandem mass spectrometer method and liquid chromatography with tandem mass spectrometry method were developed for the simultaneous determination of sofosbuvir and ledipasvir. As no reversed-phase high-performance liquid chromatography (RP-HPLC) method has been reported, the present method aimed to develop and validate a stability indicating RP-HPLC method for the simultaneous estimation of sofosbuvir and ledipasvir in bulk and pharmaceutical dosage form.

IJPS-Chemical-Structure

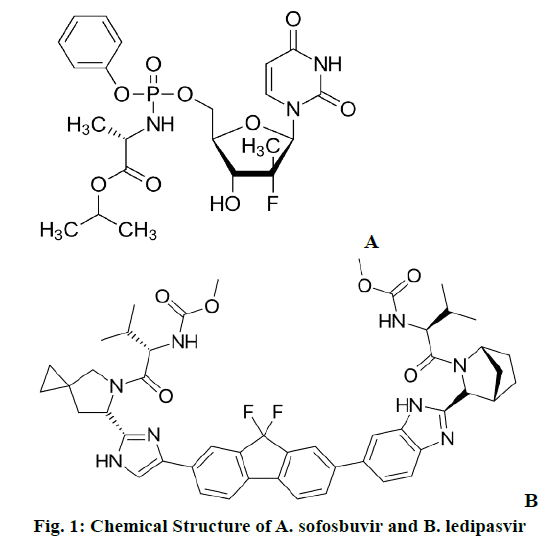

Figure 1: Chemical Structure of A. sofosbuvir and B. ledipasvir

Sofosbuvir and ledipasvir were supplied as gift samples by Mylan Pharmaceuticals Pvt. Ltd., India with purity 99.9 %, on dried basis. Placebo was also procured from Mylan Pharmaceuticals Pvt. Ltd., India. O-phosphoric acid (OPA), hydrogen peroxide, hydrochloric acid and sodium hydroxide used were of AR grade and were purchased from Merck Specialties Pvt. Ltd., India and S. D. Fine-Chem Limited, Mumbai. Acetonitrile and water used were of HPLC grade. Tablets (Hepcinat LP) were procured from a local pharmacy. The chromatographic system used was Waters HPLC Alliance 2695 with a PDA detector and equipped with Empower 2 software. The other instruments used were pH meter (EI), digital balance (Infra Instruments), ultrasonic bath (Wadegati), hot air oven (Cisco).

OPA (0.1 %) was prepared by diluting 0.1 ml of 85 % OPA in 100 ml of distilled water and pH was adjusted to 2.8 with dilute sodium hydroxide. 0.1 % OPA buffer and acetonitrile in the ratio 45:55 % v/v was used as mobile phase. Mixture of water and acetonitrile in the ratio 50:50 % v/v was used as diluent. Standard solutions were (400 μg/ml sofosbuvir and 90 μg/ml ledipasvir) prepared by accurately weighed amount of sofosbuvir (40 mg) and ledipasvir (9 mg) standard drugs were dissolved in 10 ml of diluent. One milliliter of standard stock solution was diluted to 10 ml with diluent. Average weight was calculated for 20 tablets (Hepcinat LP) and an amount equivalent to 40 mg of sofosbuvir was taken into 10 ml volumetric flask. The sample was dissolved in 10 ml of diluent. The above solution was filtered using 0.22 μm filter paper and an aliquot of 1 ml of the solution was diluted to 10 ml with the diluent.

System suitability parameters were noted by injecting the standard solution five times into HPLC system. The results were summarized in Table 1. The specificity study was conducted using placebo method. Placebo solution was injected twice into the column and its interference with that of standard solution was observed [10-12].

Parameter Sofosbuvir Ledipasvir
Mobile phase Retention time (min)
Specificity
Precision *(% RSD)
Accuracy **(% recovery)
Linearity range (µg/ml)
Regression Eqn., y=mx+c
Slope, m
Intercept, c
Regression coefficient, r2
Correlation coefficient, r
Limit of detection (µg/ml)
Limit of quantitation (µg/ml)
Ruggedness (% RSD)
Robustness
Stability
USP Plate count
USP tailing factor
USP resolution
0.1 % OPA and ACN (45:55 % v/v)
2.08
Specific, No interference
0.6
99.90
100-600
y=3152.7x+15759
3152.7
15759
0.9997
0.9998
0.22
0.65
0.7
Robust
Stable
2596
1.52
-
0.1 % OPA and ACN (45:55 % v/v)
3.06
Specific, No interference
0.6
99.90
22.5-135.0
y=9980.3x+4608.3
9980.3
4608.3
0.9997
0.9998
0.061
0.186
0.5
Robust
Stable
2462
1.41
4.7

Table 1: System suitability, validation parameter and linearity results

Precision (% RSD) of the method was determined by injecting six sample solutions and peak areas were noted. For determination of accuracy of the method, samples were prepared by spiking method at 50, 100 and 150 % of the target concentration. The average percent recoveries of sofosbuvir and ledipasvir were determined.

A series of standard solutions (25 to 150 %) were prepared and peak areas were noted. A graph was plotted “peak area” versus “concentration” in linearity section. The results and linearity plots are shown in Table 1 and Figure 2A and B. Limit of detection (LOD) and limit of quantification (LOQ) were determined by using the formula mentioned in ICH guideline.

IJPS-Linearity-plot

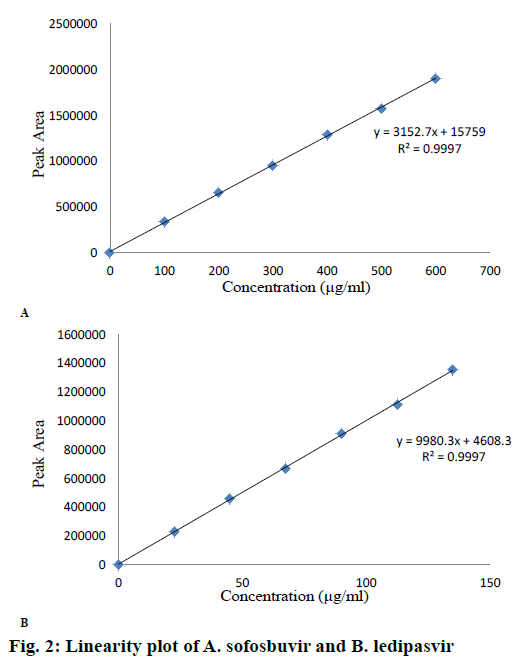

Figure 2: Linearity plot of A. sofosbuvir and B. ledipasvir

Ruggedness (% RSD) was conducted by analyzing the samples on different days. Robustness was evaluated by varying the optimum conditions with ±5 % of organic phase, ±0.2 ml/min of flow rate and ±5° of the column oven temperature. System suitability parameters were checked and if any parameter fails, the variations were narrowed and the allowable ranges of variations were established. The results were summarized in Table 2. The stability of drugs in solution was determined by analyzing the samples during the course of experimentation on the same day and also after storage of drug solution for 24 h. The results were summarized in Table 3.

Drug Parameters Variation of organic phase (%v)
50 55 60
Sofosbuvir Retention time (min)
Tailing factor
% RSD
USP Plate Count
2.07
1.54
0.2
2542
2.08
1.52
0.4
2596
2.11
1.54
0.3
2538
Ledipasvir Retention time (min)
Tailing factor
% RSD
USP Plate Count
USP Resolution
2.91
1.46
0.4
3095
4.4
3.07
1.41
0.3
2462
4.7
3.45
1.41
0.3
3163
6.4
Drug Parameters Variation in flow rate (ml/min)
0.8 1.0 1.2
Sofosbuvir Retention time (min)
Tailing factor
% RSD
USP Plate Count
2.08
1.52
0.7
2465
2.08
1.52
0.4
2596
1.88
1.62
0.4
2413
Ledipasvir Retention time (min)
Tailing factor
% RSD
USP Plate Count
USP Resolution
3.09
1.41
0.6
2469
4.7
3.07
1.41
0.3
2462
4.7
2.79
1.44
0.6
2550
4.7
Drug Parameters Variation in column oven temperature (°)
20 25 30
Sofosbuvir   Retention time (min)
Tailing factor
% RSD
USP Plate Count
2.08
1.52
0.3
2511
2.08
1.52
0.4
2596
2.08
1.53
0.7
2561
Ledipasvir Retention time (min)
Tailing factor
% RSD
USP Plate Count
USP Resolution
3.09
1.45
0.5
3053
5.0
3.07
1.41
0.3
2462
4.7
3.09
1.41
0.9
2498
4.7

Table 2: Robustness results

Drug Parameter Day 1 Day 2
Sofosbuvir Ledipasvir % Assay*
% RSD**
% Assay*
% RSD**
100.45
0.6
100.20
0.6
99.90
0.7
99.92
0.5

Table 3: Solution stability results

Forced degradation studies [13-15] were performed under different stress conditions using standard stock solution (Table 4). Each 1 ml of standard solution was taken into three 10 ml volumetric flasks. Then 1 ml of hydrochloric acid (2 N), 1 ml of sodium hydroxide (2 N) and 1 ml of hydrogen peroxide (20 %) was added to each volumetric flask and refluxed for 30 min at 60°. These solutions were diluted to obtain concentration of standard solutions and their chromatograms were recorded to assess the stability of sample (Figure 3A-C).

  Stress condition Sofosbuvir Ledipasvir % Area of degradation peak
% Assay Peak Purity Angle Peak Purity Threshold % Degradation % Assay Peak Purity Angle Peak Purity Threshold % Degradation
Acidic (2 N HCl, refluxed for 30 min at 60°) 95.04   0.240   0.295   4.90   96.75   0.400   0.435   3.65   1.31
Basic (2 N NaOH, refluxed for 30 min at 60°) 96.91   0.215   0.346   3.03   97.14   0.194   0.384   3.26   0.67
Oxidative (20 % H2O2, refluxed for 30 min at 60°) 98.64   0.303   0.338   1.30   98.15   0.194   0.384   2.25   0.11
Photolytic (UV light 200 Wts/h or 7 d) 99.46 0.347 0.392 0.48 99.46 0.221 0.341 0.94 -
Thermal (refluxed at 105° for 6 h)   99.24   0.345   0.396   0.70   99.31   0.231   0.351   1.09   -

Table 4: Forced degradation data

IJPS-oxidation-degradation

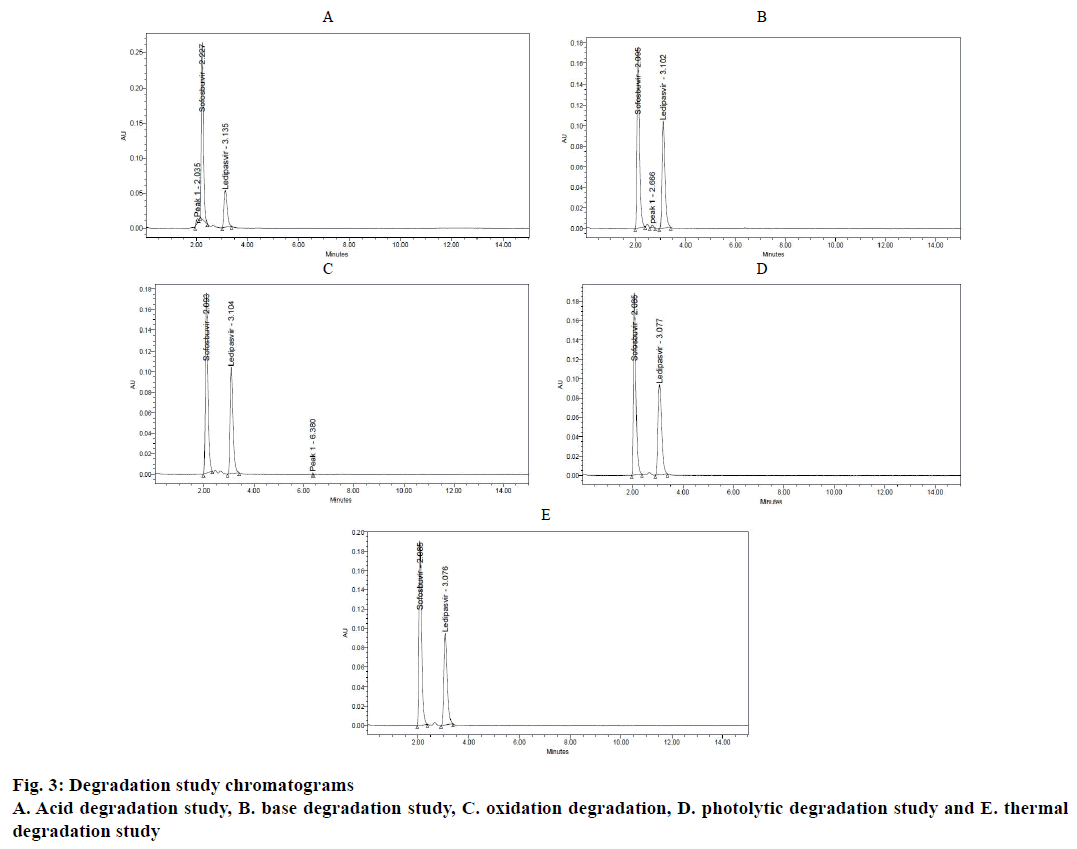

Figure 3: Degradation study chromatograms
A. Acid degradation study, B. base degradation study, C. oxidation degradation, D. photolytic degradation study and E. thermal degradation study

To assess the stress testing for thermal conditions standard solution was placed in oven at 105° for 6 h and for the photolytic conditions, the drug solution was exposed to UV light by keeping in UV chamber for 7 d or 200 Watt h/m2 in photo stability chamber. Then the resultant solutions were diluted to obtain concentration of standard solution and their chromatograms were recorded to assess the stability of sample (Figure 3D and E). The results are summarized in Table 2.

The objective of proposed study was to develop a stability indicating RP-HPLC method for the simultaneous quantitation of sofosbuvir and ledipasvir in bulk drug and tablet form. Initially, various mobile phase compositions were tried to elute the drug. Mobile phase ratio and flow rate were selected based on peak parameters, run time and resolution [16-19]. The standard solution in diluent (acetonitrile:water, 50:50v/v) was prepared and scanned in the UV range. 270 nm was selected as detection wavelength based on the overlay UV spectrum (Figure 4). The separation was done using Discovery C18, 250×4.6 mm, 5 μ column. The mobile phase 0.1 % OPA and acetonitrile (45:55 v/v) run in isocratic mode and flow rate 1.0 ml/min was selected. The retention times of sofosbuvir and ledipasvir were found to be at 2.08 and 3.06 min, respectively (Figure 5A-B).

IJPS-spectra-sofosbuvir

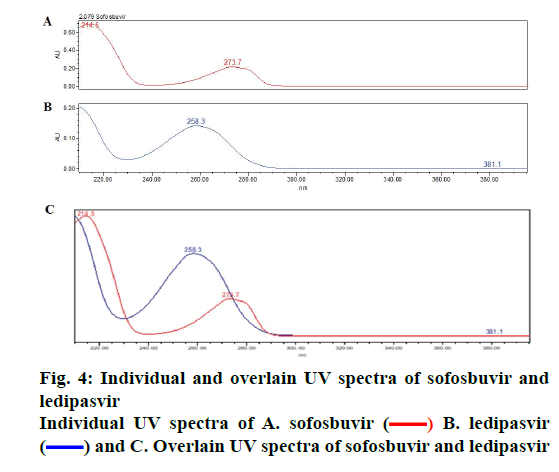

Figure 4: Individual and overlain UV spectra of sofosbuvir and ledipasvir
Individual UV spectra of A. sofosbuvir (image) B. ledipasvir (image) and C. Overlain UV spectra of sofosbuvir and ledipasvir

IJPS-sample-analytes

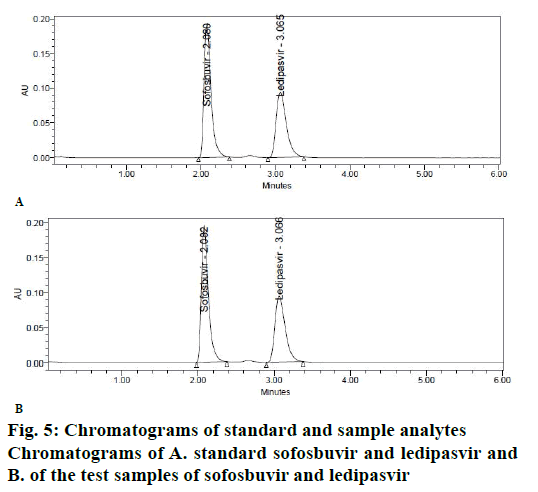

Figure 5: Chromatograms of standard and sample analytes
Chromatograms of A. standard sofosbuvir and ledipasvir and B. of the test samples of sofosbuvir and ledipasvir

The calibration curve of peak area versus concentration was plotted with the optimized chromatographic conditions, stock solution of sofosbuvir and ledipasvir using mobile phase and various concentration ranges of 100 to 600 μg/ml and 22.5 to 135 μg/ml were prepared and the chromatograms were recorded. The linearity plots were drawn by taking concentration on x-axis and peak area on y-axis. Correlation coefficients 0.999 indicate that the concentrations of sofosbuvir and ledipasvir have given good linearity and obey Beer-Lamberts law. The method was accurate and was confirmed by recovery studies, percent recovery of sofosbuvir was found to be 99.90 % and that of ledipasvir was found to be 99.90 %. For precision study, 10 μl of six sample solutions were injected. The % RSD value for sofosbuvir and ledipasvir was found to be 0.6 and 0.6, respectively, indicating the method to be precise. The LOD for sofosbuvir and ledipasvir were found to be 0.22 and 0.061 μg/ml, respectively and LOQ for sofosbuvir and ledipasvir were found to be 0.65 and 0.186 μg/ml, respectively. Ruggedness of the proposed method was determined and the % RSD reported was found to be less than 2. The robustness was determined and the values indicated that the method was quite robust. The results from the solution stability study confirmed that drugs were stable up to 24 h. Forced degradation studies indicated that the samples were stable under different stress conditions such as acidic, basic, oxidative, photolytic and thermal conditions. The net degradation was found to be within the limits.

In the proposed study, stability-indicating RPHPLC method was developed for the simultaneous determination of sofosbuvir and ledipasvir in bulk drug and tablet form. The method was validated according to ICH guidelines and was found to be linear, precise, accurate, specific and robust. From the degradation studies conducted it is concluded that sofosbuvir and ledipasvir were more stable at more concentrations of acid, base, peroxide, thermal and UV stress study. The run time was 6 min, which enables rapid quantitation of many samples in quality control analysis of tablet formulations.

Acknowledgements

The authors thank the Mylan Laboratories Pvt. Ltd., Hyderabad for providing sofosbuvir and ledipasvir as gift samples. They also thank the Spectrum labs, Hyderabad for providing required facilities to carry out this work.

Conflict of interest

There is no conflict of interest, financial or otherwise associated with this project.
