Ionic gelation controlled drug delivery systems for gastric-mucoadhesive microcapsules of captopril

Corresponding Author:

M. A. Altaf
Department of Pharmaceutics, N. G. S. M Institute of Pharmaceutical Sciences, Mangalore-575 005, India
E-mail: altafpharm@rediffmail.com

Abstract

A new oral drug delivery system was developed utilizing both the concepts of controlled release and mucoadhesiveness, in order to obtain a unique drug delivery system which could remain in stomach and control the drug release for longer period of time. Captopril microcapsules were prepared with a coat consisting of alginate and a mucoadhesive polymer such as hydroxy propyl methyl cellulose, carbopol 934p, chitosan and cellulose acetate phthalate using emulsification ionic gelation process. The resulting microcapsules were discrete, large, spherical and free flowing. Microencapsulation efficiency was 41.7-89.7% and high percentage efficiency was observed with (9:1) alginate-chitosan microcapsules. All alginate-carbopol 934p microcapsules exhibited good mucoadhesive property in the in vitro wash off test. Drug release pattern for all formulation in 0.1 N HCl (pH 1.2) was diffusion controlled, gradually over 8 h and followed zero order kinetics.

Keywords

Captopril, controlled release, ionic gelation, microcapsules, mucoadhesion and oral drug delivery systems, sodium alginate.

Microencapsulation by various polymers and their applications are described in standard textbook [1]. Microencapsulation and the resulting microcapsules have gained good acceptance as a process to achieve controlled release and drug targeting. Mucoadhesive is a topic of current interest in the design of drug delivery systems to prolong the residence time of the dosage form at the site of application or absorption and to facilitate intimate contact of the dosage form with the underlying absorption surface to improve and enhance the bioavailability of drug [2]. This study describes the formulation and evaluation of gastric-mucoadhesive microcapsules of captopril employing various mucoadhesive polymers designed for oral controlled release. Captopril is an angiotensin converting enzyme inhibitor used in the treatment of hypertension and congestive cardiac failure, which requires controlled release owing to its short biological half-life of 3 h and the drug, is unstable in the alkaline pH of the intestine, where as stable in acidic pH and specifically absorbed from the stomach [3,4].

Based on the above reasons there is a clear need to localize the developed formulation at the target area of GIT. Microcapsules containing captopril were prepared employing sodium alginate in combination with four mucoadhesive polymers like hydroxypropylmethylcellulose, carbopol 934p, cellulose acetate phthalate and chitosan. Emulsification-ionic gelation process was used to prepare the microcapsules [4].

Core coating material (sodium alginate) and the mucoadhesive polymers were dissolved in distilled water (32 ml) to form a homogeneous polymer solution. Core material (captopril 1 g) was added to the polymer solution and mixed thoroughly to form a smooth viscous dispersion. The resulting dispersion was then added in a thin stream to a 300 ml of arachis oil contained in a 500 ml beaker with stirring at 400 rpm using a mechanical stirrer. The stirring was continued for 5 min to emulsify the added dispersion as fine droplets. Calcium chloride (10% w/v) solution (40 ml) was then added slowly while stirring for ionic gelation (or curing) reaction. Stirring was continued for 15 min to complete the curing reaction and to produce spherical microcapsules. Mixture was then centrifuged and the product thus separated was washed repeatedly with water and dried at 450 for 12 h. Based on the above procedure various formulations were developed as given in Table 1.

Table 1: Composition and Characteristics of Captopril Gastric-Mucoadhesive Microcapsules

Drug content estimation was done by a reported method by El-Kamel et al. [5], 20 mg of the microcapsules were stirred in 3 ml of sodium citrate solution (1% w/v) until complete dissolution occurs. One milliliter of methanol was added to sodium citrate solution to gel the solubilized calcium alginate and further solubilise captopril. This solution was then fi ltered to obtain drug solution. The fi ltrate is suitably diluted with 0.1N HCl and absorbance was taken at 212 nm.

Microencapsulating effi ciency was calculated using the formula; microencapsulation effi ciency is equal to the ratio of estimated percentage of drug content by theoretical percentage of drug content into 100. Dissolution studies were performed for microcapsules containing quantity equivalent to 100 mg of drug fi lled in capsules by using USP 23 TDT-06T (Electro lab-paddle method) at 50 rpm. The media used were 900 ml of 0.1 N HCl (pH 1.2), maintained at 37±0.5o, 5 ml of samples were withdrawn at different time intervals and replace with 5 ml of dissolution medium. The samples were filtered and assayed spectrophotometrically at 212 nm [6-8], after appropriate dilutions. Dissolution testing was also performed for 100 mg pure drug.

The mucoadhesive property of the microcapsules was evaluated by an in vitro adhesion testing method, known as wash off method. The mucoadhesive property of microcapsules was compared with that of a non-adhesive material, ethylene vinyl acetate microcapsules. A piece of sheep stomach mucosa (2×2 cm) was mounted onto glass slide (3×1 inch) with cyanoacrylate glue. One more glass slides were connected with a support. Fifty microcapsules were counted and spread over the wet rinsed tissue specimen and immediately there after the support was hung on the arm of a USP tablet disintegrating test machine [9,10]. By operating the disintegration machine the tissue specimen was given a slow regular up and down moment. The slides move up and down in the test fluid at 37±0.5o. The number of microcapsules adhering to the tissue was counted at 2 h intervals up to 8 h. The test was performed in acidic media (0.1N HCl pH 1.2).

Microcapsules of captopril with a coat consisting of alginate and a mucoadhesive polymer (1:1) and (9:1) ratio namely hydroxy propyl methyl cellulose, carbopol 934p, chitosan and cellulose acetate phthalate could be prepared by emulsification ionic gelation process. The prepared microcapsules were found to be discrete, large, spherical and free fl owing. The size of all the formulated microcapsules was found to be in the range of 40.5 μm to 65 μm.

Based on the amount of drug loaded in microcapsules, microencapsulation effi ciency was calculated. There was no significant difference observed in drug loading. As the proportion of alginate was raised from 1 to 9, there was significant increase in the microencapsulation effi ciency of microcapsules.

In vitro wash off test was performed to understand the mucoadhesive property of microcapsules. Here the time of detachment of microcapsules from sheep stomach mucosa was measured in 0.1N HCl (pH 1.2). All the formulated microcapsules demonstrated good mucoadhesive property compare to non-mucoadhesive polymer (ethylene vinyl acetate). The following stages have occurred during mucoadhesion. Initially, an intimate contact between the mucus gel and the swelling of mucoadhesive polymer that is (wetting), which makes the polymer strands to relax this is followed by the penetration of the mucoadhesive polymer into the mucus gel network and fi nally the formation of secondary chemical bonds between the mucus and the mucoadhesive polymer [11,12].

In vitro release studies were carried out in 0.1 N HCl (pH 1.2) which indicated that there was a slow and controlled release of drug for all the formulations (Figs. 1 and 2). Alginate-cellulose acetate phthalate microcapsules demonstrated sustained release compared to all other alginate polymer combinations. The order of drug release was found to be zero order for all the formulations. Drug release data was better fit to Higuchi’s diffusion model and the release of drug from all the formulations is diffusion rate limitedp [13]. The order of increasing release rate observed with microcapsules was alginatecellulose acetate phthalate microcapsules<alginatechitosan microcapsules<alginate-carbopol 934p microcapsules<alginate-hydroxypropylmethylcellulose microcapsules.

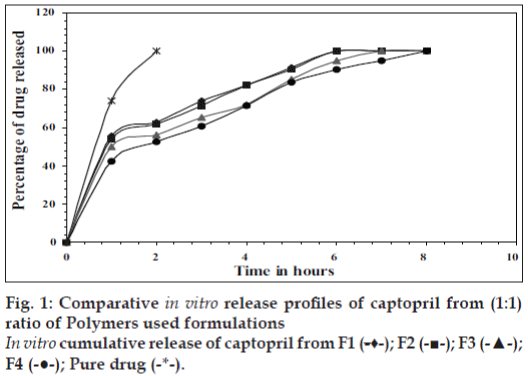

Fig. 1: Comparative in vitro release profi les of captopril from (1:1) ratio of Polymers used formulations
In vitro cumulative release of captopril from F1 (-♦-); F2 (-■-); F3 (-▲-); F4 (-●-); Pure drug (-*-).

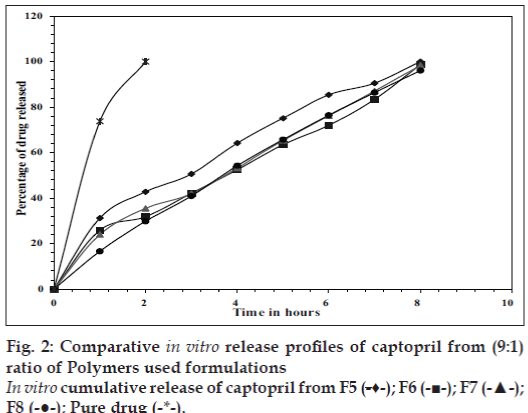

Fig. 2: Comparative in vitro release profi les of captopril from (9:1) ratio of Polymers used formulations
In vitro cumulative release of captopril from F5 (-♦-); F6 (-■-); F7 (-▲-); F8 (-●-); Pure drug (-*-).

Thus, large sized spherical microcapsules with a coat consisting of alginate and a mucoadhesive polymer (hydroxypropylmethylcellulose, Carbopol 934p, Chitosan and cellulose acetate phthalate) could be prepared by emulsifi cation ionic gelation process. The microcapsules exhibited good mucoadhesive property in vitro-wash off tests. Captopril releases from these mucoadhesive microcapsules slow and extended over longer period of time. Drug release was diffusion controlled and followed zero order kinetics. Alginate- Carbopol 934p microcapsules and alginate-chitosan microcapsules were found suitable for oral controlled release.

Acknowledgements

The authors are grateful to Lupin Labs, Mumbai, India for the gift sample of Captopril. They would like to thank Principal and Staff of NGSM Institute of Pharmaceutical Sciences Mangalore. Principal, President and Staff of RMES College of Pharmacy Gulbarga for providing the facilities to carry out the research work.

References

1. Benita S. Microencapsulation: Methods and industrial applications. NewYork: Marcel Dekker; 1996. p. 1-8.
2. Mathiowitz E, Chickering DE 3rd, Lehr CM. editors. Bioadhesive drugdelivery systems: Fundamentals, novel approaches and developments.New York: Marcel Dekker; 1999. p. 76-102.
3. Oates JA. Antihypertensive agents and the therapy of hypertension.In: Hardman JG, Limbard LE, Molinoff PB, Ruddon RW GilmanAG, editors. Goodman and Gilman’s the pharmacological basis oftherapeutics. 9th ed. New York: McGraw Hill; 1996. p. 781.
4. Abubakr ON and Zhang JS. Recent progress in sustained/controlled oraldelivery of captopril: An overview. Int J Pharm 2000;194:139-46.
5. El-Kamel AH, Al-Gohary OM, Hosny EA. Alginate-diltiazemhydrochloride beads: Optimization of formulation factors, in vitro andin vivo availability. J Microencapsul 2003;20:211-24.
6. Kim CK and Lee EJ. The controlled release of blue dextran fromalginate beads. Int J Pharm 1992;79:11-9.
7. Indian Pharmacopoeia, 4th ed, Vol. 2, New Delhi: Controller ofPublications. Govt of India; 1996. p. 136.
8. Huang YB, Tsai YH, Chang JS, Liu JC, Tsai MJ, Wu PC. Effectof antioxidants and anti-irritants on the stability, skin irritation andpenetration capacity of captopril gel. Int J Pharm 2002;241:345-51.
9. Hari PR, Chandy T, Sharma CP. Chitosan/calcium alginate658 Indian Journal of Pharmaceutical Sciences September - October 2008microcapsules for intestinal delivery of nitrofurantoin. J Microencapsul1996;13:319-29.
10. Chowdary KP, Rao YS. Preparation and evaluation of mucoadhesivemicrocapsules of indomethacin. Indian J Pharm Sci 2003;65:49.
11. Seta Y, Higuchi F, Otsuka T, Kawahara Y, Nishimura K, Okad R, etal. Preparation and pharmacological evaluation of captopril sustainedreleasedosage forms using oily semisolid matrix. Int J Pharm1988;41:255-62.
12. Mortazavi SA, Carpenter BG, Smart JD. An investigation of the rheological behaviour of the mucoadhesive/mucosal interface. Int JPharm 1982;83:221-5.
13. Tapia C, Costa E, Moris M, Sapag-Hagar J, Valenzuela F, BasualtoC. Study of the influence of the pH media dissolution, degreeof polymerization, and degree of swelling of the polymers on themechanism of release of diltiazem from matrices based on mixtures ofchitosan/alginate. Drug Develop Ind Pharm 2002;28:217-24.
