*Corresponding Author:
S. Sakhare
Department of Pharmaceutics, Government College of Pharmacy, Karad-415 124, India
E-mail: sfurti_28@rediffmail.com
Date of Submission 22 December 2016
Date of Revision 02 June 2017
Date of Acceptance 29 January 2018
Indian J Pharm Sci 2018;80(2):282-290

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

Owing to multifarious potentialities and fine aroma chemicals, Ocimum basilicum possessed medicinal properties like antibiotic, antistress, diaphoretic, diuretic, antipyretic, stomachic, antimicrobial and insecticidal. The main aim of this study was to isolate and characterize mucilage obtained from Ocimum basilicum seeds as a pharmaceutical excipient. Phytochemical characterization of the isolated mucilage was performed and presence of carbohydrates, fats and oils was detected using identification tests. Compressibility performance of the isolated mucilage was evaluated using the Heckel plot study, which showed that the isolated mucilage has poor compressibility properties. Results indicated that the mucilage could be a potential superdisintegrant for formulating fast disintegrating tablets of metoprolol tartarate. The way of addition of mucilage, concentration and the method of preparation all were found to influence fast disintegrating tablet performance. From these results it is possible to conclude that Ocimum basilicum seed mucilage could be used in direct compression with other excipients and in wet granulation technology as a superdisintegrant.

Keywords

Ocimum basilicum, extraction, mucilage, disintegrant

Herbal products appear to be more preferred over synthetic ones due to their accessibility, biocompatibility, low cost and low toxicity potential. Mucilage’s and gums obtained from natural sources are most widely used as pharmaceutical excipients due to their binding, diluent and disintegrant properties in tablets, due to suspending and gelling properties in gels and due to thickening properties in oral liquids [1-3]. Mucilage’s are used for their binding, thickening, stabilizing, humidifying, disintegrating and releasecontrolling properties in medicines [3,4].

Ocimum basilicum is highly valued for its medicinal and aromatic properties in the traditional as well as modern medicinal system. Ocimum includes aromatic herbs, under shrubs and shrubs yielding essential oils of various aroma chemicals, which are of tremendous value in pharmaceutical, modern perfumery and food processing industry. The plant of O. basilicum is stomachic, stimulant, carminative, antipyretic, diaphoretic, expectorant, diuretic and also useful in heart, brain and blood diseases, asthma, inflammations and enlarged spleen [5].

Essential oil of O. basilicum is of economic significance due to its widespread utilization in food, cosmetics and pharmaceutical industries. It is used as a folklore medicine to promote digestion, to stimulate respiratory circulation, and to alleviate mental fatigue and cold symptoms. It is also applied externally on the skin to treat acne. Many studies investigated the potential of basil essential oil as an antimicrobial agent [6]. Basil seed gum mainly consisted of some high molecular weight polysaccharides (2320 kDa), which was composed of glucose, galactose, mannose, arabinose, xylose and rhamnose [7]. Basil seed gum appears to be a very interesting raw material for the preparation of edible films and coatings. These films could serve as a potential alternative for synthetic packaging, mainly for the purpose of storing foods with low or intermediate moisture such as nuts [8]. O. basilicum has been found to be a highly effective coagulating agent for the treatment of textile waste water [9]. The present investigation involved isolation of mucilage from O. basilicum seeds followed by phytochemical screening and physicochemical analysis. Further the mucilage was evaluated for tableting performance using the Heckel plot study. Since this mucilage was reported as a superdisintegrant [10] in formulation of tablets, the present investigation also explored optimization of concentration of mucilage in formulation of metoprolol tartarate tablets in comparison with synthetic superdisintegrants and to study the effect of method of manufacturing.

Materials and Methods

The O. basilicum seeds were procured from Green Pharmacy, Pune. Metoprolal tartarate was obtained as a gift sample from Lupin Laboratories Ltd., Pune. All other reagents were of analytical grade and purchased from Loba Chemie Pvt. Ltd., Mumbai.

Isolation and purification of O. basilicum mucilage

O. basilicum seeds were cleaned by washing with distilled water followed by soaking in 500 ml of distilled water with intermittent stirring for 12-14 h until they became soft. The soft seed material was subjected to slow stirring using an overhead stirrer (Remi, India) and seedless white-colored mucilaginous material was collected by filtering through muslin cloth. The so collected mucilage was purified by precipitation with 250 ml of 95 % ethanol. The mucilage precipitate was dried in the oven at 50-55° for 4-5 h. Dried mucilage was scraped with a spatula, powdered in a mortar and pestle, sieved through a mesh no. 60 and stored in a desiccator for further studies.

Characterization of isolated O. basilicum mucilage

To check the efficiency of the method of isolation, the product yield was determined. The yield of the extracted soluble part of mucilage was determined by weighing the dried extracted mucilage. Yield = 100×mass of extracted gum (g)/mass of seed (g).

The following properties of the mucilage were studied to confirm its nature. The solubility of the separated mucilage was studied in various solvents. One part of dry mucilage was shaken with different solvents and the solubility was determined. Loss on drying is the loss of mass expressed as percent w/w. The test for loss on drying determines both water and volatile matter in the crude material. An accurately weighed quantity (5 g) of mucilage was taken in a tarred porcelain and was kept in an oven to dry the sample at 110° for 2 h until a constant weight was obtained. Then it was cooled in a desiccator to room temperature, weighed and recorded. Percent loss on drying was calculated using the following Eqn., loss on drying (%) = loss in weight of the sample/weight of sample×100.

Ash values are indicative of the quality and purity of a crude drug, especially in the powdered form. The objective of ashing vegetable drugs is to remove all traces of organic matter, which may otherwise interfere in analytical determination. On incineration, crude drugs normally leave an ash usually consisting of carbonates, phosphates and silicates of sodium, potassium, calcium and magnesium. A higher limit of acid-insoluble ash is imposed, especially in cases where silica may be present or when the calcium oxalate content of the drug is very high. Specified quantity of mucilage was taken in a tarred silica crucible. It was then incinerated at a temperature not exceeding 450° for 4 h, until free from carbon, cooled and weighed. The percent ash was calculated with reference to air-dried drug using the following Eqn., total ash value (%) = weight of total ash/weight of crude drug taken×100.

Water-soluble ash value

The specified quantity of ash was boiled with 25 ml of water. The insoluble matter was filtered and collected on an ash less filter paper, washed with hot water and ignited in a tarred crucible at a temperature not exceeding 450° for 4 h. The insoluble matter was cooled in a desiccator, weighed and subtracted from the total weight of ash. The difference in weight represented weight of water-soluble ash. The percent water-soluble ash was calculated with reference to the air-dried drug using the following Eqn., water-soluble ash value (%) = weight of total ash–weight of water-insoluble ash/ weight of crude drug taken×100.

Acid-insoluble ash value

Acid-insoluble ash value was determined by boiling the specified quantity of ash for 5 min with 25 ml of 2 M HCl. The insoluble matter was filtered and collected on an ash less filter paper, washed with hot water and ignited in a tarred crucible at a temperature not exceeding 450° for 4 h. The insoluble matter was cooled in desiccators and weighed. The percent acidinsoluble ash was calculated with reference to the airdried drug using the following Eqn., acid-insoluble ash value (%) = weight of acid-insoluble ash/weight of crude drug taken×100.

Fourier-transform infrared spectroscopy (FTIR) spectroscopy

The FTIR spectrum of the O. basilicum mucilage was recorded on an FTIR (Alpha-E, and Bruker) spectrometer. The base line correction was done by blank background measurement, and then the spectrum of dried mucilage was run. By running the IR spectra of drug and polymer it will help in identifying the groups and also help in detecting if any interaction occurs between the reagents.

Powder X-ray diffractometer (PXRD) analysis of mucilage

PXRD study was performed to confirm the nature of sample. The XRD used for the present study was from Seifert & Co. D 2070, Ahrensburg. The target material of the instrument was copper (Cu) and nickel was used as the filter and a voltage of 35 kV and a current of 30 mA was used. PXRD patterns were traced for O. basilicum mucilage, which will help in identifying the nature of mucilage.

Differential scanning calorimetry (DSC) analysis of mucilage

The DSC scan of O. basilicum mucilage of about 5 mg was performed in dry N2 atmosphere by using Shimadzu (Tokyo, Japan) at scanning range of 10°/min from 50-300°. It will help in understanding if any polymorphic transition occurs.

Determination of swelling index of O. basilicum mucilage

Swelling index gives an idea about the mucilage content of the seed; hence it is useful in the evaluation of crude drugs containing mucilage. The swelling index is the volume in milliliter occupied by 1 g of drug; including any adhering mucilage after it has been swollen in an aqueous liquid for 4 h. One gram of mucilage was taken in a 25 ml ground glass stoppered cylinder graduated over a height of 120 to 130 mm in 0.5 divisions. To this 25 ml of distilled water was added and this was shaken vigorously every 10 min for 1 h and then allowed to stand for 24 h. The volume occupied by the disintegrating agent including adhering mucilage was measured. The swelling index was calculated from the mean of three determinations.

The particle size and size distribution of O. basilicum mucilage was carried out by optical microscopy method [8]. The physics of compression is of primary importance in the formulation development. These are extremely useful derived parameters to assess the impact of change in drug powder properties as new batches become available [9].

The O. basilicum mucilage was evaluated for the precompression parameters such as measurement of angle of repose, bulk density, tapped density, compressibility index, flow rate and Hausner ratio. The angle of repose of the powder was determined by fixed funnel method to assess the flow property of the powder. Bulk and tapped density were determined using digital bulk density apparatus. The compressibility index and the Hausner ratio are determined by measuring both the bulk volume and tapped volume of a powder [11].

Heckel plot study of O. basilicum mucilage

In both engineering and pharmaceutical sciences, the relationship between volume and applied pressure during compression is the main approach to deriving a mathematical representation of the compression pressure. The most recognized expression in both engineering and pharmaceutical science is the tablet porosity-applied pressure function according to Heckel [12]. Compaction behaviour of raw materials, crystals, and spherical agglomerates were analysed by Heckel Eqn. [13,14]. Tablet porosity can be measured either on an ejected tablet or on a powder column under load, i.e. in die. The compression of a powder can be described in terms of a first-order reaction where the pores are the reactant and the densification the product. Based on this assumption, the following expression was derived: In (1/E) = KP+A, where, E= tablet porosity, P= applied pressure, A= constant suggested to reflect particle rearrangement= slope of the linear part of the relationship, which is suggested to reflect the deformation of particles during compression.

The reciprocal of the slope value is often calculated and considered to represent the yield stress or yield pressure (Py) for the particles, i.e.: In (1/E) = (P/Py)+A. The yield pressure is defined as the stress at which particle plastic deformation is initiated [12]. The Heckel plot Eqn. is widely used to calculate the volume reduction of material when pressure is applied during compression [13,14]. The Heckel plot study of O. basilicum mucilage was carried out as follows: the dried isolated mucilage powder was taken. Accurately weighed 500 mg of dry powder was compressed on hydraulic pressure using 13 mm flat faced punches and die. Pressure was set at the 25, 34.28, 51.42, 68.57, 85.71, 102.85 and 120 kg/cm2. Thickness and diameter of compressed powder was measured. After releasing the tablet elastic recovery (ER) was calculated. Immediately after compression, crushing strength was measured by using tablet strength tester to determine the tablet strength (φ) [13,14].

Preparation of metoprolol tartarate fast disintegrating tablets (FDT) by direct compression technique

Pure drug metoprolol tartarate, O. basilicum seed mucilage, Avicel pH 102, talc, magnesium stearate and sodium saccharin were passed through sieve no. 60 separately. Accurately weighed quantity of drug, mucilage and Avicel pH 102 were mixed together. After proper mixing talc (glidant), magnesium stearate (lubricant) and sodium saccharin (sweetener) were added. Powder blends of different concentrations of mucilage were prepared as shown in Table 1. The prepared powder blends were then evaluated for pre-compression parameters. After pre-compression analysis tablets were prepared on KBR press using 8 mm die at 1 ton of compression forces. Similar procedure was followed for the tablets prepared using synthetic superdisintegrants i.e. croscarmellose sodium (CCS) and sodium starch glycolate (SSG). The formulation batches are shown in Table 1.

Formulation code Drug
(mg)
Avicel pH102 (mg) Mucilage
(mg)
CCS
(mg)
SSG
(mg)
Talc
(mg)
Magnesium
stearate
(mg)
Sodium saccharin
(mg)
F1 100 87 45 - - 8 5 5
F2 100 82 50 - - 8 5 5
F3 100 77 55 - - 8 5 5
F4 100 72 60 - - 8 5 5
F5 100 122 - 10 - 8 5 5
F6 100 122 - - 10 8 5 5

Table 1: Batches of FDTS of metoprolol tartarate using O. basilicum mucilage and synthetic superdisintegrants (total weight= 250 mg)

Preparation of tablets by wet granulation technique

Accurately weighed quantity of drug, Avicel pH 102 and mucilage as shown in Table 2, was taken and dry mixed together to achieve homogenized mixing (intragranular disintegrant addition). Then water was added to form wet mass of the powder mixture. This wetted mass was passed through a sieve no. 22 and then dried in an oven. Thus granules of uniform size range were obtained. The prepared granules are then dry-mixed with disintegrant, mucilage (extragranular disintegrant addition). Then common excipients like lubricant, glidant and sweeteners were added in this final mixing operation. Then prepared granules were taken for tablet production by pre-compression evaluation. Two batches were prepared by changing mucilage concentration on KBR press using flat punches and 8 mm die.

Formulation code Drug
(mg)
Avicel
pH 102
(mg)
Mucilage
(mg)
Talc
(mg)
Magnesium
stearate
(mg)
Sodium saccharin
(mg)
F7 100 92 40 (20 mg intra, 20 mg extra) 8 5 5
F8 100 112 20 (10 mg intra, 10 mg extra) 8 5 5

Table 2: Tablet batches by wet granulation technique

Pre-compression and post-compression evaluation

The powder blends and granules were evaluated for the measurement of angle of repose, bulk density, tapped density, compressibility index, flow rate and Hausner ratio. As these are extremely useful derived parameters for the study of pharmaceutical powders. The tablets prepared by direct compression and wet granulation technique were evaluated for various quality control parameters like thickness, hardness, weight uniformity, friability, disintegration time, wetting time, water absorption ratio, content uniformity and in vitro dissolution studies [11,15-17].

Wetting time and water absorption ratio was determined by folding a piece of tissue paper twice was placed in a small Petri dish containing 6 ml of water. A tablet was placed on the paper and the time taken for complete wetting of tablet was noted. Three tablets from each formulation were randomly selected and the average wetting time was noted. The wetted tablets were taken and water absorption ratio was calculated by using following Eqn., R = 100 (wa-wa)/wb, where, wb= weight of tablet before water absorption, wa= weight of tablet after water absorption [18].

In vitro dissolution study

Prepared FDTs were placed in 900 dissolution medium (phosphate buffer pH 6.8) at 50 rpm rotation speed. Temperature was maintained at 37°±0.50. About 5 ml aliquots from each vessel were pipetted out at interval of each one minute. Samples were withdrawn at the end of 10 min and were filtered through Whatman filter paper no. 41 and analysed over Shimadzu UV-1601 spectrophotometer at 223 nm [17].

Results and Discussion

The dried and coarsely powdered seeds of O. basilicum yielded high percent (30 % w/w) of dried mucilage. The results of phytochemical evaluation showed the presence of carbohydrate and mucilage was substantiated with the positive result upon the treatment with listed reagents (Table 3). It was also observed that mucilage showed positive results with Dragendorff’s and Hagers reagents means it contains alkaloids as shown in Table 3. Table 4 showed the results of solubility, loss on drying and ash values. O. basilicum mucilage was found to be soluble in distilled water and insoluble in other solvents. The ash value showed that the extraneous matter or organic matter was completely removed. It is also a useful parameter in the evaluation of crude drugs. It can also be inferred that the mucilage is non-toxic.

Name of test Reagents Observation Inference
Mucilage test Rheudenium red Red colour Mucilage present
Mucilage test Aq.KOH/Water Powder Swell Mucilage present
Molish’s test Alpha Napthol+alcohol+Con.H2SO4 Violet Ring at junction Carbohydrates present
Pentose sugar HCl+crystal of phloroglucinol Red colour Pentose sugar present
Hexose sugar Tollen’s phloroglucinol
Cobalt chloride
Yellow-red colour
greenish blue
purplish blue
Hexose sugar, glucose, fructose present
Non reducing sugar Fehling’s and Benedict’s test No change in colour Non reducing sugar present
Starch Iodine Blue colour Starch present
Alkaloids Dragendorff’s Orange brown ppt. Alkaloid present
Alkaloids Hager’s Yellow ppt. Alkaloid present

Table 3: Phytochemical examination of isolated mucilage

Test Observation
Solubility Soluble in distilled water, practically insoluble in ethanol, acetone and chloroform
Loss on drying 14.66 %
Total ash 7.8 %
Acid insoluble ash 1 %
Water soluble ash 0.4 %

Table 4: Phytochemical screening of mucilage

The quality of the plant-derived-drug can also be determined by ash left after ignition. This parameter helped to judge the identity and purity of plantderived drugs. It is a commonly applied parameter for detection of impurities, adulteration and substitution of drug. Inorganic variables like phosphates, silicates, and carbonates are removed by treating with acid. O. basilicum mucilage showed low levels of total ash and acid insoluble ash, which indicated low levels of contamination during collection and handling [14].

The O. basilicum mucilage showed (Figure 1) broad peak at 1014 cm–1 thus there may be presence of alcohols and ether bond i.e. -C-O. The characteristic absorption in between 1631.29-1667.24 cm–1 shows the presence of alkenes and aromatic rings. (>C=C< alkenes), (―C―C― aromatic rings). From the PXRD study of O. basilicum mucilage (Figure 2) peak was obtained at two theta value with intensity 2012.9813. Absence of sharp and intense peak confirms that O. basilicum mucilage is amorphous in nature.

IJPS-FTIR-spectrum

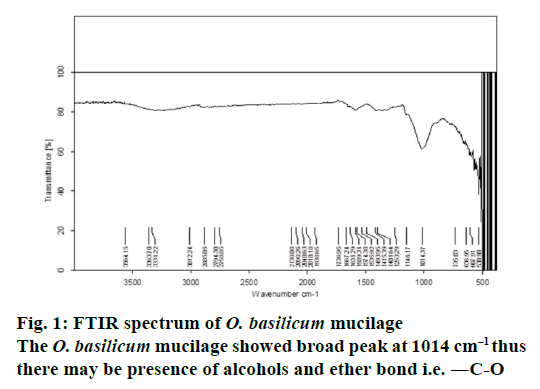

Figure 1: FTIR spectrum of O. basilicum mucilage
The O. basilicum mucilage showed broad peak at 1014 cm-1 thus there may be presence of alcohols and ether bond i.e. ―C-O

IJPS-intense-peak

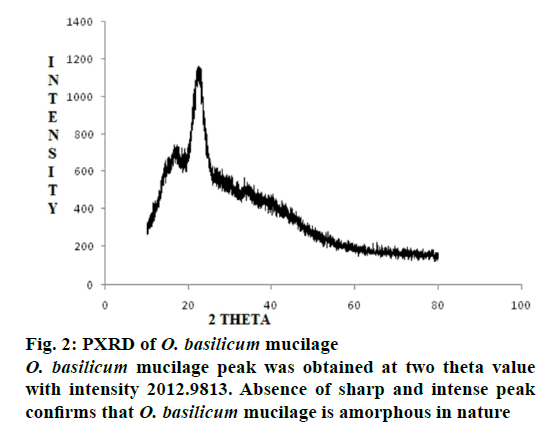

Figure 2: PXRD of O. basilicum mucilage
O. basilicum mucilage peak was obtained at two theta value with intensity 2012.9813. Absence of sharp and intense peak confirms that O. basilicum mucilage is amorphous in nature

In the DSC study, when the O. basilicum mucilage was taken to study its properties at higher temperature it has exhibited a broad endotherm at 118.6° as shown in Figure 3. DSC graphs supported the PXRD graph indicating amorphous nature of O. basilicum mucilage. As per the reported literatures, swelling was the most widely accepted general mechanism of action for tablet disintegration. Thus from Table 5 it could be concluded that the O. basilicum mucilage tended to swell in an aqueous medium [19,20]. When the micromeritic parameters of O. basilicum mucilage were evaluated, the angle of repose of mucilage was found to be 33.16±1.64°. Thus, the mucilage possessed passable flow property. The Cars index was found to be 21.137±0.80 %, thus it has fair flow property. Hausner ratio of mucilage was found to be 1.237±0.0328 indicating that the mucilage has fair flow or not having good flow property. The particle size and size distribution analysis of O. basilicum mucilage by microscopy method showed that the particles of O. basilicum mucilage have diameters in the range of 2.5-52.5 μm. The arithmetic mean diameter of mucilage was found to be 11.32978. The volume surface mean diameter was found to be 112.509124. The weight moment mean diameter was found to be 140.357758.

Volume occupied by the mucilage prior to hydration (V1) Volume occupied by the mucilage after hydration (V2) Swelling index=
(V2/V1)
Mean swelling index (±SD)
2.0 18.02 9.01 9.16±0.12
2.0 24.08 12.04 12.63±0.44
2.0 30.2 15.1 15.6±0.66

Table 5: Swelling index of Ocimum basilicum mucilage

IJPS-DSC-thermogram

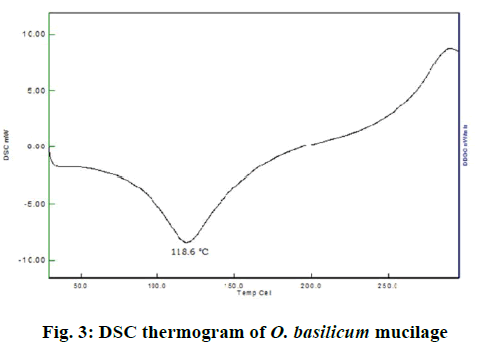

Figure 3: DSC thermogram of O. basilicum mucilage

From the Heckel plot study (Tables 6 and 7) the thickness of mucilage tablets was found in between 3.1 to 4.55 mm. Crushing strength was found to be in between 0 to 5.9 kg/cm². Tensile strength for tablets was found in between 11.7888 to 18.9446 kg/cm². Porosity was found to be 0.12676 to 28.169. It couldn’t show linear relationship for force vs. ln 1/1-rd, no any values for the mean yield pressure. Thus from the data obtained from Heckel plot study, it can be concluded that the O. basilicum mucilage doesn’t exert the good compressibility property. From the above study it may be concluded that O. basilicum seed mucilage can be used in wet granulation technology or with other excipients in direct compression studies.

Pressure (tons or kg/cm²) Compact weight (mg) Compact thickness (mm) Compact diameter (mm) Radius (mm ) Hardness
( pa)
25 500 3.1 13 6.5 4.8
34.28 500 3.69 13 6.5 5.2
51.42 500 3.56 13 6.5 4.1
68.57 500 3.33 13 6.5 4.5
85.71 500 4.55 13 6.5 5.1
102.85 500 3.61 13 6.5 4
120 500 3.55 13 6.5 5.9

Table 6: Heckel plot study of O. basilicum mucilage.

Density (g/mmc) Relative density (RD) 1/1-rd ln 1/1-rd porosity Tensile strength (kg/cm²)
1.21577147 1.14516 –6.88889 NUM -0.12676 -
1.02137983 0.96206 26.3571 3.27174 3.94366 15.6651
1.05867741 0.99719 356 5.87493 0.28169 11.9162
1.13179927 1.06607 –15.1364 #NUM! -6.19718 12.2338
0.82832782 0.78022 4.55 1.51513 28.169 18.9446
1.04401429 0.98338 60.1667 4.09712 1.69014 11.7888
1.0616596 #DIV/O! #DIV/O! #DIV/O! - 17.0995

Table 7: Heckel plot study of O. basilicum mucilage

Pre-compression analysis of powder blends indicates angle of repose 28.08±0.04 to 21.83±0.1° and percent compressibility of different concentrations of mucilage was found 21.41±0.01 to 29.46±0.74 %. This data suggest that the powder blends possess fair passable flow property. The bulk density and tapped density was found in the range of 0.352-0.356 and 0.432-0.530 as shown in Table 8.

Formulation code Bulk density (g/cm3) Tapped density (g/cm3) Hausner ratio Flow rate (s) Angle of repose (Ө) % Compressibility
F1 0.352±0.02 0.530±0.016 1.406±0.03 0.229±0.01 26.5±0.08 29.46±0.74
F2 0.353±0.002 0.432±0.003 1.22±0.02 0.418±0.001 26.17±0.57 18.26±0.04
F3 0.338±0.02 0.460±0.02 1.23±0.02 0.343±0.01 28.08±0.04 21.41±0.01
F4 0.339±0.02 0.452±0.001 1.23±0.02 0.314±0.005 25.77±0.96 20.25±0.02
F5 0.356±0.004 0.49±0.004 1.4±0.03 0.516±0.02 21.83±0.1 27.30±1.06
F6 0.34±0.008 0.46±0.01 1.26±0.03 0.514±0.05 25.82±0.61 22.47±0.37
F7 0.434±0.3 0.44±0.02 20.69±0.36 0.356±0.01 1.17±0.05 16.05±0.47
F8 0.40±0.01 0.48±0.05 21.90±0.55 0.355±0.002 1.2±0.007 16.66±1.25

Table 8: Precompression analysis of powder blend prepared for direct compression (f1-f6) and prepared granules (f7-f8)

The granules prepared by wet granulation technique (F7-F8) exhibited angle of repose 20.69±0.36 and percent compressibility 16.05±0.47. Thus granules possessed good flow property. The granules showed improvement in Hausner ratio 1.17 and thus exhibited free flowing property. The Bulk density and tapped density was found to be 0.434±0.3 and 0.44±0.02 g/cm3, respectively. From this data it could be concluded that the granules possessed improved micromeritic properties than powder blends ready for compression.

As shown in Table 9, wetting time has very close correlation with disintegration. This is an important criterion for understanding the capacity of disintegrants to swell in presence of little amount of water. Since the dissolution process of a tablet depends upon the wetting followed by disintegration of the tablet, the measurement of wetting time may be used as another confirmative test for the evaluation of dispersible tablets [21]. The wetting time of formulated tablets was found in the range of 13.6±0.30 to 50.4±0.08 s. The less wetting time was observed for tablets prepared using 60 mg concentration compared to tablets prepared with 45, 50, 55 mg concentration and CCS and SSG tablets as shown in Table 9. The results are quite improved for the F7 and F8 batch this might be due to disintegrants can be mixed with other ingredients prior to granulation and thus be incorporated within the granules (intragranular addition). It is also common for the disintegrant to be mixed with the dry granules before the complete powder mix is compacted (extragranular addition). The latter procedure would contribute to an effective disintegration of the tablet into smaller fragments [22]. In this investigation disintegrants were incorporated as both an intragranular and an extragranular portion may improve the performance at a low concentration in comparison with direct compression technology.

Formulation code Wetting time (s) Water absorption ratio % Disintegration time (s) Hardness (kg/cm2)
F1 50.4±0.08 64.59±0.12 48.65±0.15 3.7±0.08
F2 28.66±0.04 78.93±0.03 56.03±0.04 3.1±0.08
F3 41.03±0.009 84.56±0.02 37.79±0.06 3.16±0.04
F4 13.6±0.30 93.46±0.33 11.33±0.47 3.66±0.16
F5 27.83±0.22 84.56±0.02 28.16±0.36 4.2±0.21
F6 62.33±2.05 66.75±0.34 52.33±2.05 3.8±0.08
F7 11.05±0.8 96.77±0.56 5.66±0.16 3.6±0.14
F8 10.11±1.0 95.59±1.2 6.80±0.58 3.5±0.87

Table 9: Results of post compression evaluation parameters

Disintegration is the most important and basic phenomenon for FDTs [23]. The performance of a drug is primarily influenced by the disintegration and dissolution behaviour of the powder compact [24]. The disintegration time of the formulated tablets was found in the range of 5.66±0.16 to 56.03±0.04 s. The hardness was found to be in the range of 3.1±0.08 to 4.2±0.21 kg/cm2 for all formulations, which indicated good mechanical strength with an ability to withstand physical and mechanical stress conditions while handling [24-28].

In vitro drug release of all designed formulations using O. basilicum mucilage powder showed rapid dissolution at the end of 7 min. was between 73.88±0.10 to 98.44±0.23 %. Whereas the tablets prepared by CCS and SSG showed drug in vitro drug release 80.74±0.27- 73±0.81 %. Tablets prepared by wet granulation shows in vitro drug release 99.43±2.04 and 99.63±1.90 within six minutes. All other parameters were in acceptable range as shown in Table 10.

Formulation code Thickness (mm) Friability % Drug content (%) Tablet Weight (mg) In vitro drug release (%) at the end of 7 min
F1 3.59±0.06 0.866±0.02 96.55±0.10 253.58±1.52 73.88±0.10
F2 3.67±0.03 0.70±0.06 89.92±0.2 250.83±0.79 85.93±0.08
F3 3.47±0.01 0.81±0.01 98.52±0.01 249.13±0.68 90.57±0.34
F4 3.62±0.02 0.9±0.03 95.25±0.05 247.91±0.18 98.44±0.23
F5 3.72±0.23 0.89±0.04 85±0.07 250.49±0.50 80.74±0.27
F6 3.48±0.14 0.77±0.03 104.66±1.24 253.42±0.69 73±0.81
F7 3.42±0.06 0.72±0.05 97.80±0.21 249.27±1.63 99.43±2.04 *
F8 3.62±0.02 0.92±0.02 98.99±1.02 251.76±0.89 99.63±1.90*

Table 10: Results of post compression evaluation parameters

The isolated mucilage was evaluated for compressibility performance, from the Heckel plot study, it was observed that isolated mucilage has poor compressibility properties to form compacts but with other excipient it gets improved. Results showed that mucilage is a potential superdisintegrant in formulation of FDT of metoprolol tartarate. The ways of addition of mucilage, concentration and method of preparation have an effect on FDT performance. From the above study it may be concluded that O. basilicum seed mucilage can be used indirect compression and wet granulation technology as a superdisintegrant.

Acknowledgements

The authors are grateful to the Principal, Government College of Pharmacy, Karad for providing all the necessary laboratory facilities.

Conflicts of interest

There are no conflicts of interest.

Financial support and sponsorship

Nil.
