*Corresponding Author:
K. Ujwala
Department of Industrial Pharmacy, Gokaraju Rangaraju College of Pharmacy, Bachupally, Hyderabad-500 090, India
E-mail: ujwala.kolanupaka@gmail.com
Date of Submission 28 August 2016
Date of Revision 25 January 2017
Date of Acceptance 25 May 2017
Indian J Pharm Sci 2017;79(4):591-598

Abstract

The present work is focused to develop a novel technique for selecting hydrotropic agents to enhance the solubility of low soluble drug, paroxetine hydrochloride. Paroxetine hydrochloride was estimated using UV spectrophotometry at 293 nm and hydrotropic agents did not interfere with drug estimation. In order to elucidate the interaction, a UV spectrophotometric method was developed. As the concentration of the hydrotropic agent increased, the solubility of paroxetine hydrochloride increased linearly for nicotinamide, citric acid and tartaric acid at 25° and 37°. Neutralization by pH adjustment technique was employed with hydrotropic agents to prepare hydrotropes. Each hydrotrope was characterized by melting point, Fourier transform infrared spectroscopy, solubility and dissolution. The in vitro dissolution studies showed that paroxetine hydrochloride release was enhanced from the prepared hydrotropes (>80%) in comparison to the pure drug (37%) in 40 min. In vitro dissolution studies of tablets prepared using hydrotropes demonstrated two times increase in drug release (>88%) in comparison to the marketed tablets (56%) in 40 min.

Keywords

Paroxetine hydrochloride, hydrotropy, triangular pattern hypothesis, citric acid, nicotinamide, tartaric acid

Solubility enhancement is one of the important parameter, which should be considered in formulation development of orally administered drug with poor aqueous solubility [1]. Hydrotropy is a unique and unprecedented solubilisation technique in which certain chemical compounds termed as hydrotropic agents can be used to effect a several fold increase in the solubility of sparingly soluble solutes under normal conditions [2]. Hydrotropy is the term originally put forward by Neuberg in 1916, to describe the increase in the solubility of a solute by the addition of fairly high concentrations of alkali metal salts of organic acids [3]. Hydrotropes have been widely used in detergent formulation, health care, household applications and also as an extraction agent for fragrances [4]. The advantage of certain properties, such as the solvent character being independent of pH, high selectivity, absence of emulsification, inexpensive aqueous phase makes this technique superior to other solubilisation methods such as micellar solubilisation, miscibility, co-solvency, salting-in [5].

Hydrotropic agents [6] are structurally characterized by having a short, bulky, compact moiety, while surfactants have long hydrocarbon chains. In general, hydrotropic agents have a shorter hydrophobic segment, leading to higher water solubility than do surfactants. Some of the hydrotropic agents are ascorbic acid, benzoic acid, citric acid, nicotinamide, sodium benzoate, urea, lysine etc., The hydrotropes are formed by mixing the drug with the hydrotropic agent in water. These are identified by Fourier transform infrared (FTIR) spectroscopy, nuclear magnetic resonance (NMR), differential scanning colorimetry (DSC), and X-ray powder diffraction (XRPD).

Paroxetine hydrochloride (paroxetine HCl), a Biological Classification System (BCS) class II drug, is freely soluble in methyl alcohol, sparingly soluble in alcohol and slightly soluble in water [7,8]. It acts by inhibiting the reuptake of serotonin at the neuronal membrane and used in the treatment of obsessive compulsive disorder, obsessive preoccupations, including compulsive habits. Hydrotrope [9-11] formation was proposed using triangular pattern of hypothesis in which the distance between the functional groups of both the drug and the hydrotropic agents were measured in Angstrom (Å). The interaction of a drug with a hydrotropic agent results in increased aqueous solubility. This type of interaction may be hydrogen bonding or acid-base type.

Materials and Methods

Paroxetine HCl was obtained as a gift sample by Appcure Labs, Hyderabad, India. Nicotinamide, citric acid and tartaric acid were purchased from HiMedia Laboratories Ltd, Mumbai, India. All other chemicals and solvents were of analytical grade and freshly prepared. Distilled water was used throughout study.

Analytical methods used for the estimation of drug

Paroxetine HCl was analysed by dissolving 10 mg of drug in a few ml of methanol and made up to 100 ml with methanol. From the stock solution of paroxetine HCl, 1 ml was pipetted and diluted to 10 ml using water (10 μg/ml). A UV scan of this solution was taken between 200-400 nm. From the spectrum, λmax of 293 nm was obtained and utilized for further analysis. Serial dilutions were prepared form secondary stock solution to give different (10 to 80 μg/ml) concentrations of solution, which obeyed Beer Lambert’s range. The absorbance of these solutions were measured at 293 nm (R2=0.998).

Analysis of hydrotropic agents

UV spectral interference of hydrotropic agents with paroxetine HCl was done to identify the interference of hydrotropic agents. Three solutions, paroxetine HCl solution (10 μg/ml), hydrotropic agent (nicotinamide/ citric acid/tartaric acid) solution (10 μg/ml), and paroxetine HCl plus hydrotropic agent solution (10 μg/ml each) were prepared. These solutions were scanned for UV absorption pattern between 200-400 nm. Hydrotropic agents did not show UV absorption at 293 nm at the working concentrations. Hence, hydrotropic agents did not interfere with the estimation of paroxetine HCl.

Spectrophotometric analysis of interaction studies was performed to identify the possibility of interaction between drug and hydrotropic agents. For this purpose, two different concentrations of hydrotropic agents (lower and higher) were prepared with constant drug concentration (10 μg/ml). The prepared solutions were subjected to scanning between 200-400 nm and spectrum was obtained as an overlay method.

Determination of melting point

Melting points of individual components used in the preparation of hydrotropes were determined in open capillaries. The dried samples of products were repeatedly evaluated for melting points for three trials. These values were measured periodically until constant melting points were observed. These melting points of hydrotropes were compared with the melting points of individual components for characterization.

FTIR spectroscopic analysis

FTIR spectral studies were carried out for paroxetine HCL and the various hydrotropic agents (nicotinamide, citric acid and tartaric acid) for their pure form and for the prepared hydrotropes. The sample was prepared by dispersing the dry powder (drug/hydrotropic agent/ hydrotrope) in potassium bromide powder and analysed. The spectra were obtained by diffuse reflectance.

In vitro release studies

Dissolution studies were carried in triplicate for 1 h in USP dissolution test apparatus II. Pure drug and various hydrotropes containing drug equivalent to 20 mg were taken and filled in zero size hard gelatin empty capsules. Dissolution studies were carried out in 900 ml of distilled water maintained at temperature 37±0.5° and stirred at a rate of 50 rpm. Samples of 5 ml were withdrawn at time interval of 5 min up to 1 h. The samples were filtered through 0.2 μm filter, diluted suitably and analysed spectrophotometrically at 293 nm and the cumulative amount of drug released at various time intervals was calculated. Sink condition was maintained throughout the study.

Solubility studies of paroxetine HCl

Excess of paroxetine HCl was added to given volume (25 ml) of the solvent mixture contained in a 25 ml volumetric flask and flasks were shaken in a cryostatic constant temperature orbital shaking incubator at 25±1° for 8 h (100 rpm). The equilibrated solutions were then removed, filtered through Whatman filter paper (0.45 μ). The filtered saturated solutions were suitably diluted with double distilled water and the drug estimation was determined spectrophotometrically at 293 nm. The solubility studies of paroxetine HCl were done in triplicate. Similarly, solubility studies of paroxetine HCl at 37±1° were also conducted in triplicate.

Triangular pattern hypothesis

The chemical structures of drug and hydrotropic agents were compared for identifying the functional groups that can contribute for hydrogen bonding using the ChemOffice 2004 software. Based on the analysis, paroxetine HCl was chosen as drug and nicotinamide, citric acid and tartaric acid were selected as hydrotropic agents. The distances between the functional groups are measured and the areas were calculated using the Eqn.; area2= s (s–a) (s–b) (s–c). The areas obtained between the drug and hydrotropic agents need not be same. Some amount of variation is permissible. The extent of solubilisation varies with the relative position of substituent in the molecule. Expansion of the ring in the aromatic hydrotropic agent also favours the solubilisation.

It was assumed that the triangular frame of drug and hydrotropic agent overlap in the solution phase through hydrogen bonding. This might be responsible for enhanced aqueous solubility of drugs. Even if the triangular frame work does not overlap directly, water molecules may be interspersed between the two triangular frame works. This also suggests that the areas need not be same but closer.

Further interaction of molecules throughout delocalized p-cloud (planar structure) also contributes towards the solubilisation. These assumptions can be justified because the molecules of drug may self-associate or molecules of hydrotropes may self-associate. Hence, the phenomenon of molecular association between unlike molecules as similar molecular association of like molecules.

Preparation of paroxetine HCl hydrotropes

Neutralization by pH adjustment technique was successful for the preparation of hydrotropes of paroxetine HCl with nicotinamide, citric acid and tartaric acid. The neutralization by pH adjustment technique was employed; equimolar concentrations of drug and hydrotropic agents were separately dissolved in 0.5 N sodium hydroxide, then mixed two solutions and kept for stirring using magnetic stirrer with continuous addition of 0.5 N hydrochloric acid solutions in small amounts where upon hydrotrope precipitates. The precipitate was collected by filtration and the precipitate was kept in the freezer for 1 h and then stored in a desiccator. The prepared hydrotropes were characterized by melting point, FTIR, solubility and in vitro dissolution studies.

Results and Discussion

Triangular areas of drug and hydrotropic agents obtained were tabulated in the Table 1. From the Table 1, it is evident that, the areas of selected hydrotropic agents lie between 5.23 to 6.00 Å, which were closer to the area of paroxetine HCl (5.27 Å) indicating the possibility of interaction of drug with hydrotropic agents, results in hydrotropes (Figures 1, 2 and 3).

S. No Area of paroxetine HCl (Å) Areas of hydrotropic agents (Å)
Nicotinamide Citric acid Tartaric acid
1 5.3 4.63 7.2 5.32
2 4.71 5.33 7.09 5.73
3 5.82 6.25 5.69 4.83
4 4.7 4.05 7.74
Mean area 5.27 5.23 6 5.91

Table 1: Triangular areas of paroxetine hydrochloride and hydrotropic agents

IJPS-tartaric-acid

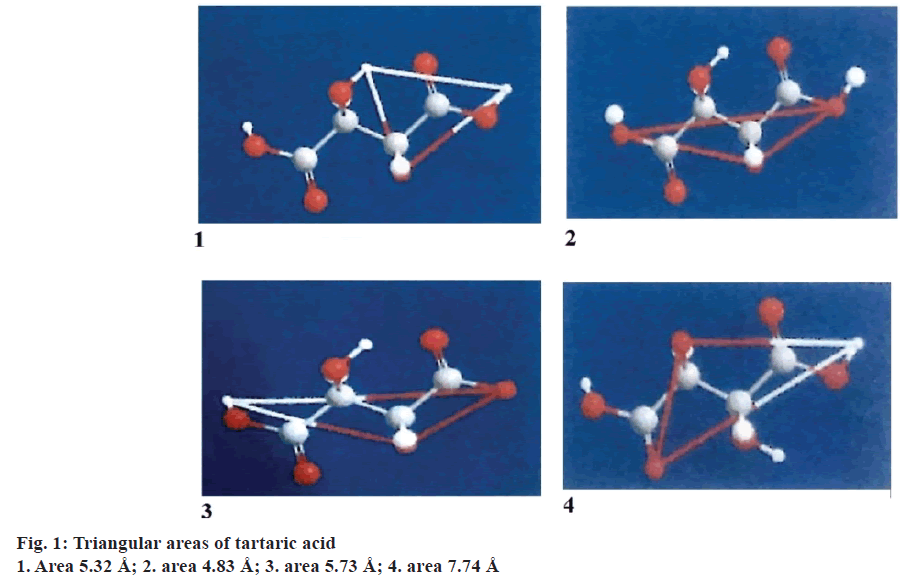

Figure 1: Triangular areas of tartaric acid
1. Area 5.32 Å; 2. area 4.83 Å; 3. area 5.73 Å; 4. area 7.74 Å

IJPS-Triangular-areas-citric

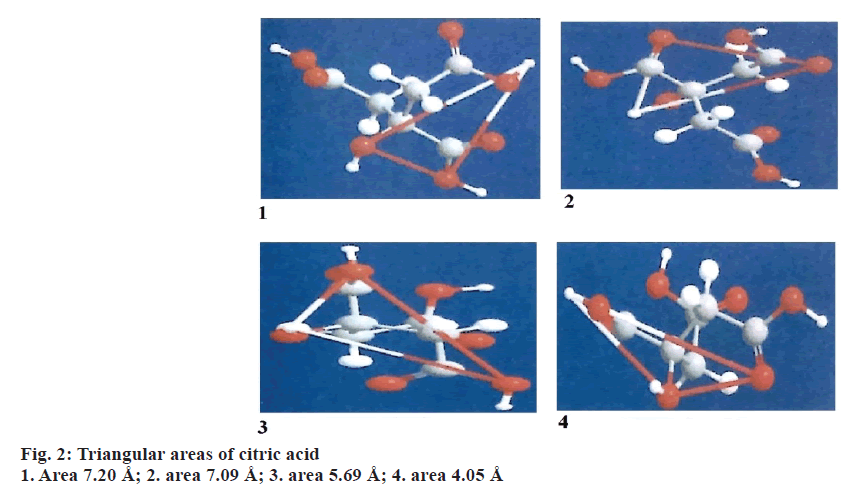

Figure 2: Triangular areas of citric acid
1. Area 7.20 Å; 2. area 7.09 Å; 3. area 5.69 Å; 4. area 4.05 Å

IJPS-areas-nicotinamide

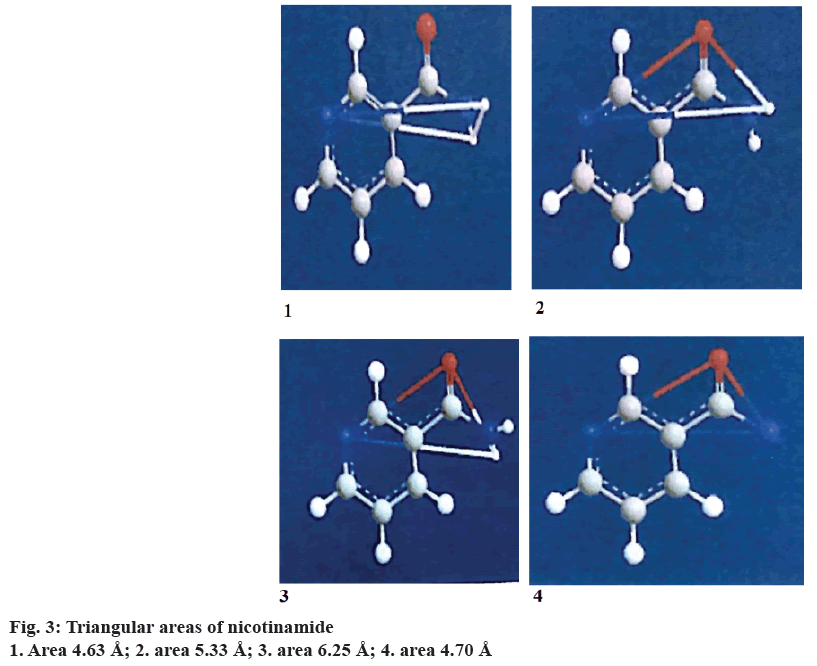

Figure 3: Triangular areas of nicotinamide
1. Area 4.63 Å; 2. area 5.33 Å; 3. area 6.25 Å; 4. area 4.70 Å

An UV-spectrophotometric analytical method of paroxetine HCl was developed successfully in water. The λmax was found to be 293 nm. The calibration curve was constructed using various concentrations (10-80 μg/ml) in the Beer-Lambert’s range. The UV-spectrophotometric method exhibits no interference of hydrotropic agents with the estimation of paroxetine HCl. This is possible because all the hydrotropic agent solutions are colourless.

Analysis of hydrotropic agent-interaction studies conducted at two different concentrations of hydrotropic agent (low and high). At lower concentrations, the interaction of hydrotropic agents and paroxetine HCl may be weak. There was a slight difference in absorbance’s at 293 nm, thus the hydrotropic agents did not interact with drug to give hydrotropes. At higher concentrations, the absorbance values were increased to a great extent at the wavelength of interest. These observations indicated that an interaction occurred between drug and hydrotropic agents, so there may be a chance of formation of hydrotropes.

The solubility of paroxetine HCl was increased upon increasing the concentration of hydrotropic agents both at 25° and 37°. The equilibrium solubility constants obtained from solubility studies of paroxetine HCl-nicotinamide were 26.02 and 19.78 l/mol, paroxetine HCl-tartaric acid were 5.23 and 7.25 l/mol and paroxetine HCl-citric acid were 73.59 and 5.53 l/mol, respectively at 25° and 37° (Table 2).

Hydrotropic
agent
Equilibrium solubility
constant (k) at 37°
Percentage drug release Triangular area (Å)
Nicotinamide 19.78 97.31 5.23
Tartaric acid 5.53 96.74 5.91
Citric acid 7.25 92.83 6.00

Table 2: Correlation of equillibrium solubility constant (k) with % drug release

The melting point of solid hydrotropes together with the melting points of individual components showed that the products obtained in the study are showing a lower melting point than the either of the components used in the preparation (Table 3).

Drug Melting point Hydrotropic agents Melting point Product Melting point
Paroxetine Hydrochloride 129-131 Nicotinamide 128-131 Hydrotropes formed 112-118
Citric acid 153 116-122
Tartaric acid 171-174 112-116

Table 3: Melting points of paroxetine hydrochloride and hydrotropic agents

The FTIR spectra obtained for pure drug as well as the prepared hydrotropes with different hydrotropic agents were recorded in the Figure 4A, B, C and D. A perusal to Figure 4A, B, C and D, indicated that the characteristic bands of paroxetine HCl (3404, 3010, 1604, 1184, 1130 cm-1) were retained as such in all the spectra of hydrotropes, indicated the presence of drug in all the products.

IJPS-Paroxetine-HCl-hydrotropes

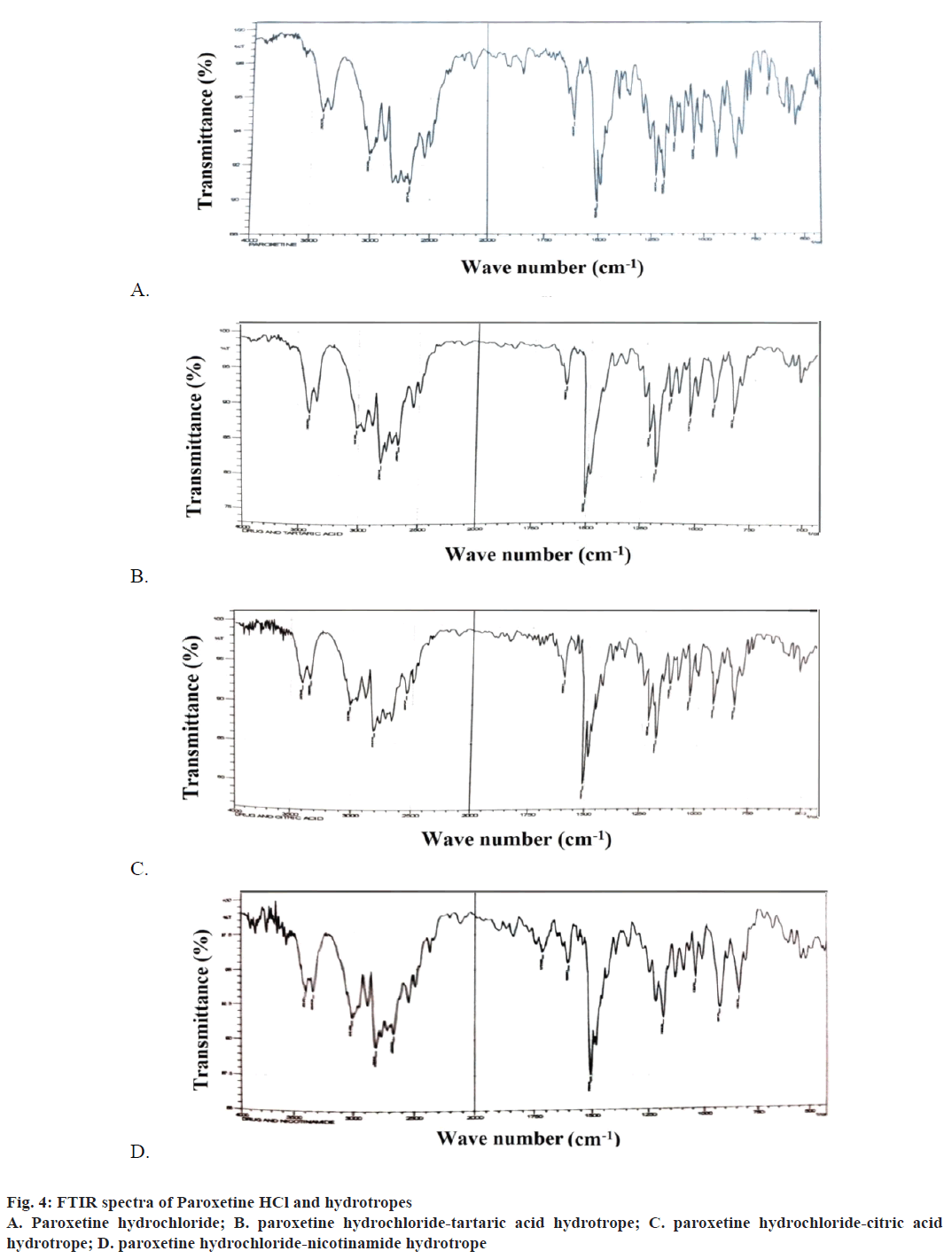

Figure 4: FTIR spectra of Paroxetine HCl and hydrotropes
A. Paroxetine hydrochloride; B. paroxetine hydrochloride-tartaric acid hydrotrope; C. paroxetine hydrochloride-citric acid hydrotrope; D. paroxetine hydrochloride-nicotinamide hydrotrope

To verify the correlation between the evaluated physicochemical properties, the equilibrium solubility constant (k) at 37° obtained in the solubility studies is related with cumulative percent drug release obtained from dissolution studies. The direct and linear relationship was obtained between the k and percentage drug release i.e., higher the k value, higher the percentage drug release (Table 2). Similarly the triangular area of hydrotropic agents and equilibrium solubility constant (k) obtained in solubility studies at 37° are correlated (Table 2), and the profile was recorded in the Figure 5, indicated a linear relationship between the triangular area and k values.

IJPS-triangular-area-equilibrium

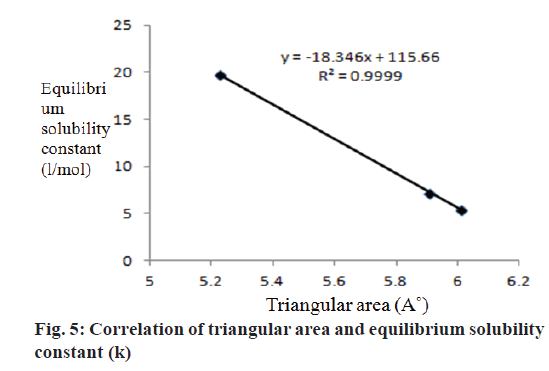

Figure 5: Correlation of triangular area and equilibrium solubility constant (k)

In vitro dissolution studies were conducted to verify the efficiency of hydrotropy technique. The studies were done in two different ways i.e., using the prepared products as such by taking 20 mg equivalent of paroxetine HCl and enclosed in the capsules. Similarly pure drug (20 mg) was filled in a capsule. The capsules so prepared were then subjected to dissolution studies using water as dissolution media at 50 rpm at 37°. The data obtained was given in the Table 4. A perusal to the Table 4, showed that the paroxetine HCl release was enhanced from the prepared hydrotropes (>80%) in comparison to the pure drug (37%) at 40 min.

Time
(min)
Pure drug release Cumulative % paroxetine HCl release from various hydrotropes prepared using
Nicotinamide Citric acid Tartaric acid
0 0.000±0.000 0.000±0.000 0.000±0.000 0.000±0.000
5 9.885±2.012 46.00±1.816 36.870±1.308 27.629±1.777
10 15.747±1.384 55.58±1.644 65.140±1.643 44.253±8.629
15 20.107±1.645 68.04±0.620 67.557±0.974 55.139±7.716
20 24.95±2.056 72.31±2.142 68.897±0.856 64.555±1.728
25 28.426±2.152 77.195±6.880 71.452±0.572 66.559±1.527
30 31.583±0.430 85.996±2.194 74.987±2.085 73.408±1.265
35 34.253±0.667 89.060±3.480 79.870±2.852 78.707±4.512
40 36.580±0.863 92.257±1.914 84.052±1.937 82.675±2.411
45 43.600±2.529 94.525±1.881 87.045±2.677 87.724±2.660
50 47.03±1.709 95.740±1.891 90.173±2.075 92.558±3.142
55 51.11±2.662 97.310±1.540 92.832±1.134 96.747±1.079

Table 4: In vitro release of paroxetine hydrochloride capsules for pure drug and the hydrotropes

Further, tablets were formulated with the prepared hydrotropes using direct compression technique and then subjected to the dissolution studies. The composition of the tablets was given in Table 5. The in vitro dissolution studies for the prepared tablets using hydrotropes indicated that hydrotropic solubilisation enhanced the drug release by almost two folds (>88%) in comparison to the marketed product (56%) in 40 min. The data obtained was given in Table 6.

Ingredients Nicotinamide hydrotropes (mg) Citric acid hydrotropes (mg) Tartaric acid hydrotropes (mg)
Paroxetine HCl+Hydrotropic agent 21.73 19.29 22.57
Lactose 46.27 48.71 45.43
Microcrystalline cellulose 30 30 30
Magnesium stearate 1 1 1
Talc 1 1 1
Total weight (mg) 100 100 100

Table 5: Composition of tablets with different hydrotropes using direct compression

Time (min) % Drug release (Avg±SD)
Marketed tablet* Nicotinamide hydrotropes* Citric acid hydrotropes* Tartaric acid hydrotropes*
0 0 0 0 0
5 38.46±0.93 38.58±0.77 55.95±2.96 63.95±0.73
10 44.82±1.27 66.19±2.14 65.47±3.97 78.04±3.33
15 46.35±0.77 69.15±1.68 73.01±1.45 83.29±2.22
20 48.03 ±1.17 77.22±2.25 75.31±1.92 84.58±2.44
25 49.94±1.04 82.00±62.35 79.39±2.30 86.69±2.43
30 51.88±1.80 84.45±1.88 81.22±1.67 88.46±2.37
35 53.70±2.04 87.39±2.16 83.79±2.51 90.48±3.09
40 55.86±1.02 89.86±1.99 88.39±2.75 93.09±2.15

Table 6: In vitro dissolution studies from marketed tablet and tablets prepared with different hydrotropes in distilled water

Hydrotropic technique was used to improve the aqueous solubility of paroxetine HCl. The hydrotropic agents such as nicotinamide, citric acid, and tartaric acid were selected based on the triangular pattern hypothesis and hydrotropes were prepared by neutralization by pH adjustment technique. The prepared hydrotropes were characterized by melting point, FTIR, solubility and in vitro dissolution studies. Further, tablets were formulated with the hydrotropes by direct compression technique and were evaluated by dissolution studies and compared the drug release with marketed tablets. The in vitro dissolution studies for the prepared tablets showed the faster drug release almost by two times (>88%) in comparison to the marketed product (56%) for 40 min. Thus, it is concluded that the proposed method is new, simple, accurate, reproducible, ecofriendly and inexpensive method to enhance the solubility.

Acknowledgements

The authors thank the management of Gokaraju Rangaraju College of Pharmacy for providing necessary facilities to carry out the studies and thanks are due to Appcure Labs Pvt Ltd for providing gift sample of paroxetine HCl.

Conflicts of interest

There are no conflicts of interest.

Financial support and sponsorship

Nil.
