*Corresponding Author:
B. Lakshmi Narayanan
Department of Pharmacy, Annamalai University, Annamalainagar, Chidambaram-608 002, India
E-mail: [email protected]
Date of Submission 28 July 2016
Date of Revision 10 January 2017
Date of Acceptance 26 April 2017
Indian J Pharm Sci 2017;79(3):477-482

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


An important medicinal plant, Polygonum barbatum was undertaken for gas chromatography-mass spectrometry analysis and high performance thin layer chromatography finger print profile to investigate the chemical constituent present in the hydroalcoholic extract of Polygonum barbatum leaves. Gas chromatography-mass spectrometry analysis shown that twenty two compounds were identified and named from the extract. Among these constituents, terpenoids are the major constituents present in this extract. Other major constituents were present in the extracts were carbohydrate and fatty acids. High performance thin layer chromatography fingerprint analysis of hydroalcoholic extract of P. barbatum was carried out by using ethyl acetate-hexane (7:3 v/v) as a mobile phase. From the high performance thin layer chromatography analysis, peak numbers 4, 5 and 6 shown highest % of peak area of 29.79, 21.42 and 10.67, respectively at 366 nm.


Polygonum barbatum linn, hydroalcoholic extract, GC-MS analysis, HPTLC fingerprint

Polygonum barbatum belongs to the family Polygonacaea is one of the most important herbal used in the traditional medicine. The genus Polygonum is comprised of nearly 300 species, which are widely distributed around the world. The genus primarily grows in northern temperate regions and Asian countries. They vary widely from prostrate herbaceous annual plants under 5 cm high to erect herbaceous perennial plants growing up to 3-4 m tall to perennial woody vines growing up to 20-30 m high in trees. Several are aquatic, growing as floating plants in ponds. The smooth-edged leaves range from 1-30 cm long and vary in shape between species from narrow lanceolate to oval, broad triangular, heart-shaped, or arrowhead forms. The stems are often reddish or red-speckled. The small flowers are, pink, white, or greenish, forming in summer in dense clusters from the leaf joints or stem apices [1].

Various secondary metabolites like tannins [1], proanthocyanidins [2], flavonoids [3,4], anthraquinones [5], stilbenoids [6], resveratrol [7], lignans [8], phenylpropanoids [9], triterpenoids [10], coumarins and neoflavonoids [11], sesquiterpenoids [12], anthraquinones [13], phenylpropanoids [14], proteins, amino acids and carbohydrates [15] have been reported from species of genus Polygonum.

Among the various species of genus Polygonum, biological activities such as antiinflammatory activity of P. glabrum [16], anticancer activity of P. hydropiper L [17], antihypertensive effect of P. perfoliatum [18], myocardial protective action of P. multiflorum [19], antiviral activity of P. punctutam [20], antiallergic effect of P. tinctorium [21], analgesic, antiinflammatory and CNS depressant activities of sesquiterpenes and a flavonoid glycoside from P. viscosum [22], antioxidant activity of P. paleaceum [23] and antiulcer activity of P. barbatum [24] were reported. Review of literature shown that there was limited number analytical studies carried out on the species of P. barbatum.

The present communication deals with the gas chromatography mass spectrometry (GC-MS) and high performance thin layer chromatography (HPTLC) fingerprinting analysis of hydroalcoholic extract of P. barbatum (HAPB) leaves. P. barbatum leaves were collected from an Ukkadam area in Coimbatore, Tamil Nadu, India. It was identified and authenticated (FRL/ CRJ/RDR No. 04/2014-15) at the Foundation for Revitalisation of Local Health Traditions (FRLHT), Bangalore, Karnataka, India. The plant materials (leaves) were cleaned, shade dried and powdered. The powdered leaves of the plant (100 g) was transferred into stoppered flask and treated with ethanol (70 % v/v) until the powder was fully immersed. The flask was shaken every hour for the first 6 h and then it was kept aside and shaken after 24 h. This process was repeated for 2 d and then the extract was filtered. The extract was collected and evaporated to dryness by vacuum. The final residue thus obtained was then subjected to GCMS and HPTLC analysis. Preliminary phytochemical screening of HAPB was carried out by the standard methods and it was reported [24].

The HPTLC fingerprint profile was determined for HAPB by the method of Harborne [25] and Wagner et al. [26]. About 1.0 g of the extract was dissolved in ethanol 70% and was taken for analysis. HAPB was spot (2 μl) as bands with the help of the auto sampler fitted with a 100 μl Hamilton syringe on a 10×10 cm silica gel precoated 60F-254 aluminium HPTLC plates of thickness 0.2 mm was used. Different combination of solvent systems like toluene:ethyl acetate, benzene:ethyl acetate, ethyl acetate:ethanol, chloroform:ethanol, chloroform:methanol, chloroform:water, ethyl acetate:benzene, ethyl acetate:hexane with various proportion were tried to obtain an excellent separation and sharp peaks for analysis. The satisfactory resolution of the separation of compounds presented in HAPB was obtained in ethyl acetate: hexane (7:3 v/v) solvent system. After the application of sample, the plate was developed in twin trough glass chamber 10×10 to a distance of 8 cm. Twin trough glass chamber was previously saturated with the solvent system by 30 min. The developed plate was air dried and scanned at 366 nm using Camag scanner 3 with WINCATS software. The plate was photographed at 366 nm using Camag Reprostar 3. The retention factor (Rf) value of each compound was separated on plate and % peak area of each band was recorded.

The GC-MS analysis of HAPB was performed using a GC-MS equipment GC Clarus 500 Perkin Elmer. Experimental conditions of GC-MS system were as follows: Elite-5MS (5% diphenyl/95% dimethyl poly siloxane), dimention: 30×0.25 mm×0.25 μm df was used and flow rate of mobile phase (carrier gas: He) was set at 1.0 ml/min and an injection volume of 2 μl was employed (split ratio of 10:1 injector temperature 250°). The oven temperature was programmed from 110° (isothermal for 2 min) with an increase of 10°/ min up to 200°, then 5°/min up to 280° and ending with a 9 min isothermal at 280°. Mass spectra were taken at 70 eV, scan interval of 0.5 s and fragments from 45 to 450 Da. Source and inlet line temperature was 200° and the mass spectra detected at 36 min.

The GC-MS spectrum of HAPB was interpreted by using the database of National Institute Standard and Technology (NIST). The unknown individual constituents were identified based on direct comparison of the retention time (RT) and their mass spectra of known compounds stored in the NIST spectral database library. The RT, name, molecular formula, molecular weight and structure of the unknown compound were ascertained.

HPTLC fingerprint profile of HAPB was carried out by using ethyl acetate: hexane (7:3 v/v) solvent system to confirm the presence of various phytoconstituents in the extract. HPTLC chromatogram showed a total of 11 peaks at different Rf values and peak area at 366 nm was obtained (Figure 1, Table 1).

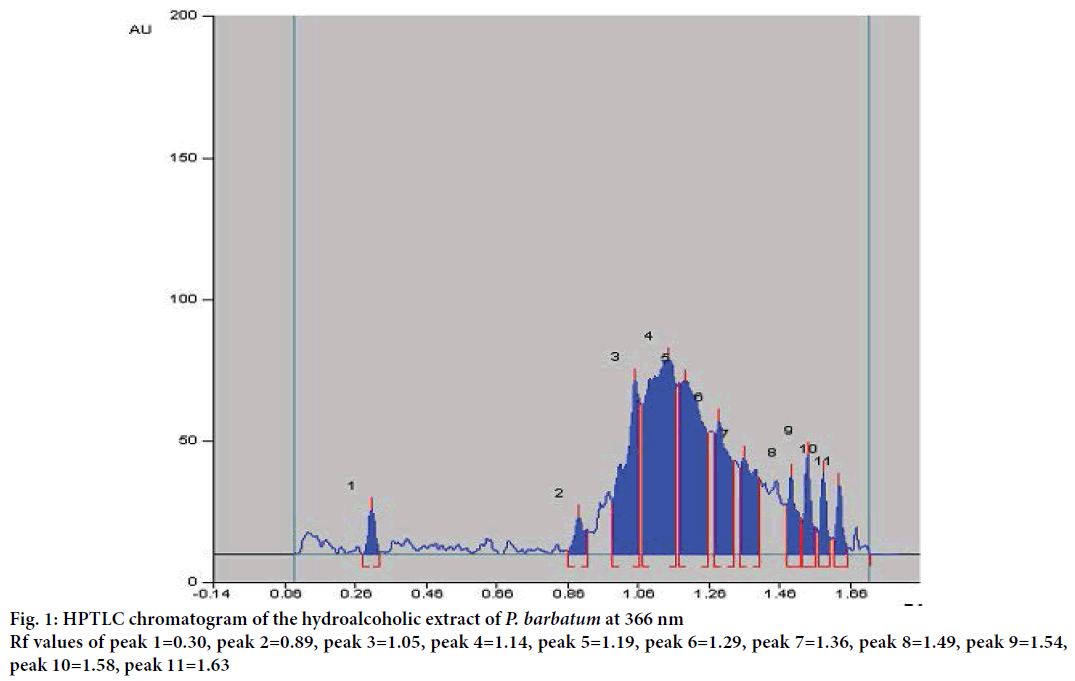

Figure 1: HPTLC chromatogram of the hydroalcoholic extract of P. barbatum at 366 nm
Rf values of peak 1=0.30, peak 2=0.89, peak 3=1.05, peak 4=1.14, peak 5=1.19, peak 6=1.29, peak 7=1.36, peak 8=1.49, peak 9=1.54, peak 10=1.58, peak 11=1.63

Wavelength Peaks Rf values %Peak area
366 nm 1 0.30 1.60
366 nm 2 0.89 2.13
366 nm 3 1.05 14.62
366 nm 4 1.14 29.79
366 nm 5 1.19 21.42
366 nm 6 1.29 10.67
366 nm 7 1.36 8.20
366 nm 8 1.49 3.55
366 nm 9 1.54 3.43
366 nm 10 1.58 2.46
366 nm 11 1.63 2.13

Table 1: HPTLC fingerprint profile of hydroalcoholic extract of Polygonum barbatum linn

The results pertaining to GC-MS analysis lead to the identification of a number of compounds from gas chromatography fractions of the HAPB. They were identified through mass spectrum attached with GC. The GC-MS analysis of the HAPB was reported in Table 2.

 RT Name of the Compound Molecular formula Molecular weight Peak area (%) Nature of the compounds
7.07 7-Octene-1,2-diol C8H16O2 144 1.01 Mono terpene diol
7.98 3,7-dimethyl-6-Octen-1-ol C10H20O 156 1.42 Alcoholic compound
8.12 1,4a,5,6,7,8,9,9a- octahydro-4a-methyl-, trans-2H-benzocyclohepten-2-one C12H16O 178 2.78 Ketone
8.84 4,5,5a,6,6a,6b- hexahydro-4,4,6b-trimethyl-2-(1-methylethenyl)- 2H-cyclopropa[g]benzofuran C15H22O 218 1.55 Terpenoid
9.58 1-methyl-4-(2- methyloxiranyl)-7-oxabicyclo[4.1.0]heptane C10H16O2 168 1.50 Terpenoid
10.23 3,3,5-trimethyl-cyclohexene C9H16 124 3.80 Terpenoid
10.69 D-Mannose C6H12O6 180 18.32 Carbohydrate
10.91 Methyl ester of 2'-hexyl-[1,1'-Bicyclopropyl]-2-octanoic acid C21H38O2 322 6.55 Fatty acid
11.09 Longipinene epoxide C15H24O 220 6.21 Terpenoid
11.17 Limonene-1,2-epoxide(fr.1) C10H16O 152 6.56 Terpenoid
12.30 Aristolene epoxide C15H24O 220 5.72 Terpenoid
12.74 4,6-diisopropylidene-8,8-dimethyl-bicyclo[5.1.0]octan-2-one C16H24O 232 2.86 Ketone
13.20 Aromadendrene oxide-(2) C15H24O 220 5.50 Terpenoid
13.63 9,12-Octadecadienoic acid (Z,Z)- C18H32O2 280 3.23 Fatty acid
13.92 Methyl ester of2,5-octadecadiynoic acid C19H30O2 290 4.10 Fatty acid ester
14.52 trans-Z-à-Bisabolene epoxide C15H24O 220 2.86 Terpenoid
15.10 cis-Z-à-bisabolene epoxide C15H24O 220 4.43 Terpenoid
15.52 1b,5,5,6a-Tetramethyl-octahydro-1-oxa- cyclopropa[a]inden-6-one C13H20O2 208 3.70 Terpenes
16.19 octahydro-1,4,9,9- tetramethyl-1H-3a,7-methanoazulene C15H26 206 7.71 Sesquiterpenes
17.96 Alloaromadendrene oxide-(1) C15H24O 220 8.75 Sesquiterpenoid
22.91 3,7,11-trimethyl-, (Z,E)-2,6,10-dodecatrien-1-ol C15H26O 222 0.61 Fatty alcohol
26.90 Phenylmethyl ester 9-Octadecenoic acid C25H40O2 372 0.83 Fatty acid ester

Table 2: Phytoconstituents in the hydroalcoholic extract of Polygonum barbatum by using GC-MS analysis

The results revealed that the presence of 22 different phytoconstituents viz., D-mannose (18.32%), alloaromadendrene oxide-(1) (8.75%), 1H-3a,7-methanoazulene, octahydro-1,4,9,9 tetramethyl-(7.71%), limonene-1,2-epoxide(fr.1) (6.56%), [1,1'-bicyclopropyl]-2-octanoic acid, 2'-hexyl-, methyl ester (6.55%), longipinene epoxide (6.21%), aristolene epoxide (5.72%), aromadendrene oxide-(2) (5.50%), cis-Z-à-bisabolene epoxide (4.43%), 2,5-octadecadiynoic acid, methyl ester (4.10%), cyclohexene, 3,3,5-trimethyl-(3.80%), 1b,5,5,6atetramethyl- octahydro-1-oxa-cyclopropa [a]inden-6- one (3.70%), 9,12-octadecadienoic acid (Z,Z)-(3.23%), 4,6-diisopropylidene-8,8-dimethyl-(2.86%), trans-Z-àbisabolene epoxide (2.86%), 2H-benzocyclohepten- 2-one, 1,4a,5,6,7,8,9,9a- octahydro-4a-methyl,trans-(2.78%), 2H-cyclopropa [g]benzofuran, 4,5,5a,6,6a,6b-hexahydro-4,4,6b-trimethyl-2-(1- methylethenyl)-(1.55%), 7-oxabicyclo [4.1.0]heptane, 1-methyl-4-(2- methyloxiranyl)-(1.50%), 6-octen-1- ol, 3,7-dimethyl-(1.42%), bicyclo [5.1.0]octan-2-one, 7-octene-1,2-diol (1.01%), 9-octadecenoic acid (Z)-, phenylmethyl ester (0.83%), 2,6,10-dodecatrien-1- ol, 3,7,11-trimethyl-, (Z,E)-(0.61%). The GC-MS spectrum of HAPB confirmed the presence of 22 compounds with the RT 7.07, 7.98, 8.12, 8.84, 9.58, 10.23, 10.69, 10.91, 11.09, 11.17, 12.30, 12.74, 13.20, 13.63, 13.92, 14.52, 15.10, 15.52, 16.19, 17.96, 22.91, 26.90, respectively (Figure 2).

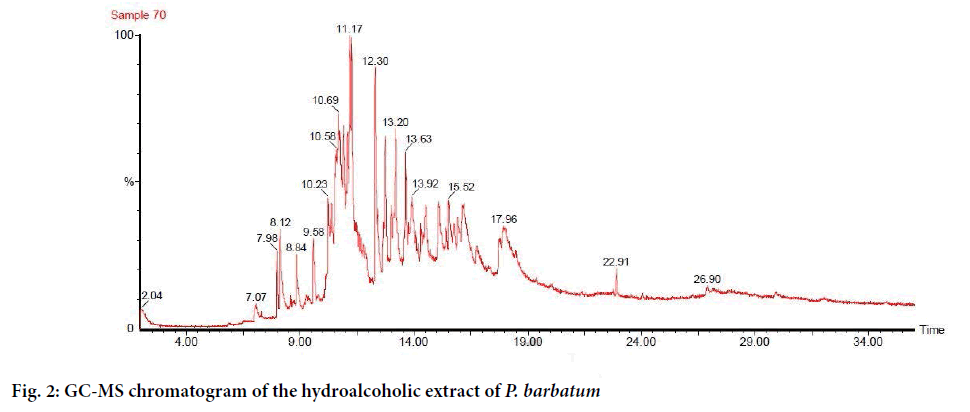

Figure 2: GC-MS chromatogram of the hydroalcoholic extract of P. barbatum

The results revealed that D-mannose, alloaromadendrene oxide-(1), tetramethyl- octahydro-1,4,9,9-1H-3a,7- methanoazulene, limonene-1,2-epoxide, methyl ester of 2'-hexyl- [1,1'-bicyclopropyl]-2-octanoic acid, longipinene epoxide and aromadendrene oxide were found as a major components in HAPB. We found that the majority of compounds were terpenes and it was used for pesticide [27,28], antidiabetic, antidiarrheal effects [29], antiinflammatory [30,31], antioxidant, antileukemic, antitumor, anticancer, antiulcer, hepatoprotective [32-34].

Nowadays, the interest in the study of natural products is growing rapidly, especially as a part of drug discovery programs. It was concluded that the present mobile phase combination is suitable for eluting the phytoconstutuents from the extract. GC-MS analysis of HAPB concluded that the presence of various terpenes, terpenoids and fatty acids with varied degree. These various bioactive compounds present in the extract conform the application of P. barbatum for various diseases by traditional practitioners.

Thus, this type of GC-MS analysis is the preliminary step towards understanding the nature of active constituents present in the medicinal plants and this will be useful for further detailed study of plant. It could be concluded that, HAPB contains various bioactive components. So it is recommended as plant of pharmaceutical importance. However, further studies are needed to undertake its bioactivity and toxicity profile.

Conflict of interest

We declare that we have no conflict of interest.


We would like to acknowledge Mr. S. Kumaravel, Quality Manager, Food Testing Laboratory, Indian Institute of Crop Processing Technology (Ministry of Food Processing Industries, Government of India), Thanjavur, Tamil Nadu, India for his assistance to carry out GC-MS analysis of the sample.
