*Corresponding Author:
I. E. Maldonado-Mendoza
Instituto Politécnico Nacional, Centro Interdisciplinario de Investigación para el Desarrollo Integral Regional (CIIDIR)-Unidad Sinaloa. Boulevard Juan de Dios Bátiz Paredes # 250, Col. San Joachin, 81101, Guasave, Sinaloa, México
E-mail: [email protected]
Date of Submission 21 April 2017
Date of Revision 07 May 2018
Date of Acceptance 18 December 2018
Indian J Pharm Sci 2019;81(1):181-187

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


The present study was conducted to identify the antifungal activity of phenolic compounds extracted from the mangrove, Rhizophora mangle against the Fusarium verticillioides isolates DA42, F64 and PO3. The total phenolic content was calculated using the Folin-Ciocalteu method. The in vitro inhibition test was performed according to the poisoned food technique. Stem extracts had the highest total phenolic content (9.5 mg GAE/g DM) and displayed major inhibition percentages against all F. verticillioides isolates. Furthermore, the concentration of this extract required to inhibit the three fungal isolates by 50 %, is 2 to 3 times greater on average than that required for leaf and root extracts. This study demonstrated the inhibitory activity of ethanol extracts of Rhizophora mangle roots, stems and leaves against different isolates of Fusarium verticillioides.


Antifungal effect, extracts, phenolic compounds, Fusarium verticillioides, fungal growth inhibition, Rhizophora mangle

Restrictions on the use of synthetic fungicides have been implemented in the last decade, due to their negative impact on the environment and the rapid emergence of resistant fungal isolates. This has driven researchers to find alternative fungicidal compounds [1]. Mangroves are one source of these compounds. These woody plants are found in tropical and subtropical intertidal regions, and are able to grow under extreme local environmental conditions including high salinity, extreme tides, strong winds and high temperatures, as well as muddy, anaerobic soils [2,3]. These stress conditions promote the production of antioxidants such as phenols, which are used to counteract the effect of reactive oxygen species [4,5]. Importantly, several studies have already reported the antifungal activity of mangrove phenolic extracts [6-8]. In particular, mangrove species of the Rhizophoraceae family have a high concentration and diversity of phenols [4,5,9,10], which are reported to be effective against different fungal species [11,12].

The study and use of phenolic compounds as a strategy for controlling pathogenic fungi has increased in recent years [13,14]. Several pathogenic species are found within the fungal genus Fusarium [15], this includes Fusarium verticillioides, the widely distributed causative agent of stalk, ear and root rot in maize [16,17]. Aside from decreasing grain yield and quality [18-20], this fungus produces a variety of mycotoxins that contaminate maize grain, thereby threatening animal and human health [15].

Chemical control of this fungus has been inadequate, making it necessary to find effective alternatives to monitor the effects of this pathogen. As stated above, previous research has examined the antifungal properties of mangrove phenolic compounds, although no comprehensive studies have been performed on the antifungal activity of R. mangle phenolic extracts against pathogenic fungi F. verticillioides. The aim of this work was therefore to investigate the antifungal activity of ethanol extracts from R. mangle organs against F. verticillioides.

Mangrove leaves, stems and roots were collected from Terminos Lagoon (Campeche, Mexico; 18°29´33.42" N, 91°47´26.32" W) in August, 2011. The samples were collected and kept in sealed amber bottles to protect them from sunlight. Subsequently, the samples were dehydrated in an oven (Riossa E-47) at 40° until they reached a constant weight. The dehydrated samples were then ground into a fine powder.

Aliquots (6.25 g) of dehydrated and ground mangrove leaves, stems and roots were extracted with 250 ml of ethanol-water (80:20 v/v). Each aliquot was protected from light with a cover and shaken in a multiple position stirrer (Corning, Cat. 440826; Corning, NY, USA) at 800 rpm for 30 min. The resulting extracts were filtered through Whatman No. 1 filter paper and the ethanol was completely evaporated at 40° using a rotary evaporator (Buchi R-210/R-215; Flawil, Switzerland). The volume of each extract was adjusted to 50 ml of ethanol-water (80:20 v/v) solution and stored in amber vials at 4° until use.

The total phenolic content (TPC) from R. mangle tissues was determined using the Folin-Ciocalteu method [21]. An aliquot of 100 μl of each extract was mixed with 750 μl of Folin-Ciocalteu reagent (1:10 dilution in distilled water); 750 μl of Na2CO3 solution (60 g/l) was then added 5 min later. The mix was incubated for 90 min and the absorbance was subsequently read in a spectrophotometer (Multiskan GO Microplate reader, Thermo Fisher Scientific; Waltham, MA, USA) at 750 nm [22]. TPC from R. mangle extracts was recorded as gallic acid equivalents (GAE) per gram of dry biomass (DM).

Three fungal isolates of F. verticillioides (PO3, DA42 and F64) were used as test organisms. These isolates are part of a Fusarium collection isolated from maize seeds and roots, belonging to the Laboratory of Molecular Ecology of the Rhizosphere at CIIDIRSinaloa (Mexico). Fungal isolates were grown on potato dextrose agar (PDA, BDBioxon, Edo. de Mexico) for five days at 25°.

Mycelial growth inhibition of F. verticillioides was tested in vitro according to the poisoned food technique [22]. A dose-response test was performed for each phenolic extract by adding between 0.5-3 ml of extract to a 9 mm Petri dish containing 20 ml of PDA. Final concentrations of phenolic extracts per milliliter of PDA for each test are reported in Table 1. Petri dishes were inoculated in the centre with a mycelial plug (5 mm in diameter) from a 5-d old F. verticillioides culture. Growth inhibition percentage of F. verticillioides was calculated according to the following Eqn., inhibition % = [(C-T)/C]×100, where C is the mycelium diameter of the control and T is the mycelium diameter of the treatments [22]. Petri dishes containing PDA with the equivalent ethanolwater (80:20 v/v) volume were inoculated with a F. verticillioides mycelial plug and used as controls (C) per each concentration of extract used. To determine the lethal concentration of F. verticillioides, a doseresponse curve for benomyl (Benoma-T, Velsimex Company, Mexico, D.F.) was performed using PDA plates with 0.5, 1.25, 2.5 and 5 mg/ml. PDA plates without benomyl were used as a control. Incubation was carried out in the dark at 35° for seven days. Each treatment was performed in triplicate.

Mangrove extracts EV (ml) EC (mg GAE/ml PDA) Growth inhibition percent
P03 DA42 F64
Leaf 0.5 0.056 0.00±0.00e 0.00±0.00e 0.00±0.00d
1 0.113 8.33±3.61d 8.00±0.00d 6.25±6.25cd
1.5 0.170 10.42±3.61cd 37.30±9.23c 8.33±3.60bc
2 0.227 18.75±0.00bc 60.00±0.00bc 22.91±3.60ab
2.5 0.283 29.17±7.22ab 72.00±6.92b 39.58±3.60a
1 0.340 41.67±3.61a 94.66±4.61a 45.83±3.60a
Stem 0.5 0.237 8.33±3.61e 0.00±0.00f 10.41±3.60e
1 0.475 20.83±7.22d 36.25±2.31e 18.75±0.00d
1.5 0.712 37.50±0.00c 51.25±2.31d 33.33±3.60c
2 0.950 45.83±3.61c 75.00±0.00c 41.66±3.60c
2.5 1.187 68.75±0.00b 91.25±2.31b 60.41±3.60b
3 1.425 91.67±3.61a 100.0±0.00a 85.41±3.60a
Root 0.5 0.064 4.17±3.61e 20.00±0.00e 0.00±0.00e
1 0.128 16.67±3.61d 20.00±0.00e 10.41±3.60d
1.5 0.192 25.00±0.00cd 37.33±4.61d 16.66±3.60c
2 0.256 37.50±0.00bc 52.00±6.92c 18.75±0.00bc
2.5 0.316 43.75±0.00b 69.33±2.31b 25.00±0.00b
3 0.384 66.67±3.61a 80.00±0.00a 43.75±0.00a

Table 1: Antifungal activity of ethanol extracts of Rhizophora mangle against three Fusarium verticillioides isolates

Data from the growth inhibition test of each phenolic extract were subjected to analysis of variance (ANOVA), and Tukey’s test was used for post-hoc comparison of means (p≤0.05). The inhibition percentages were arcsine-transformed before ANOVA. A two-way ANOVA model was used to determine the phenolic concentration of each extract and the Fusarium isolate effects on growth inhibition. Individual differences among phenolic concentrations and Fusarium isolates were determined by Tukey’s test. The mean inhibition percentages of each treatment were entered into a weighted linear regression model to account for the differences in phenolic concentrations between extracts. This model was used to calculate the phenolic concentration needed to inhibit fungal growth by 50 %. All statistical tests were performed using the SAS 9.0 software (SAS Institute, Inc.; Cary, NC, USA).

The TPC of R. mangle leaf, stem and root extracts ranged from 0.777 to 9.5 mg GAE/g DM, with significant differences between them. Stem extracts displayed the highest level of TPC (9.5 mg GAE/g DM), followed by root (2.56 mg GAE/g DM) and leaf (0.777 mg GAE/g DM) extracts (Figure 1A). The synthetic fungicide benomyl was used as a control for mycelial growth inhibition and used as a reference. A doseresponse curve was performed to determine the lethal dose of this chemical on the different F. verticillioides isolates (Figure 1B). A differential response among the various isolates at lower benomyl concentrations (0.5 and 1.25 mg/ml) was observed, whereas all isolates showed 100 % inhibition in response to 2.5 mg/ml benomyl. The latter concentration was therefore selected for use in the growth inhibition test. All mangrove extracts were capable of inhibiting mycelial growth of the different F. verticillioides isolates (Table 1). In every case, the inhibition percentage increased along with phenolic concentration.

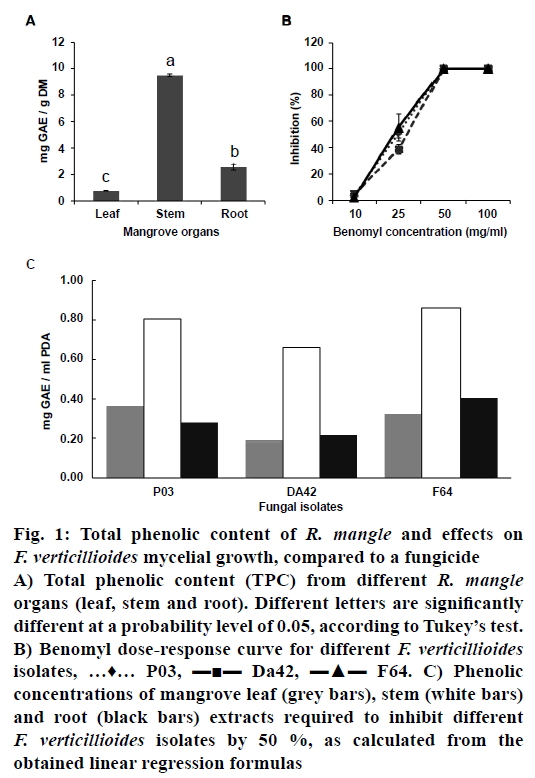

Figure 1: Total phenolic content of R. mangle and effects on F. verticillioides mycelial growth, compared to a fungicide
A) Total phenolic content (TPC) from different R. mangle organs (leaf, stem and root). Different letters are significantly different at a probability level of 0.05, according to Tukey’s test. B) Benomyl dose-response curve for different F. verticillioides isolates, …♦… P03, ▬■▬ Da42, ▬▲▬ F64. C) Phenolic concentrations of mangrove leaf (grey bars), stem (white bars) and root (black bars) extracts required to inhibit different F. verticillioides isolates by 50 %, as calculated from the obtained linear regression formulas

Results from the two-way ANOVA are reported in Table 2. Both phenolic concentration and the Fusarium isolate (as well as the interaction between these two factors) had significant effects on the growth inhibition percent. The three mangrove extracts were more efficient at inhibiting DA42 than P03 or F64 (Table 3), which could be due to genetic differences between the fungal isolates. Comparing mangrove extracts in the inhibition test was difficult due to differences in their phenolic concentrations. Inhibition percentages from each mangrove extract/fungal isolate combination were therefore adjusted to a linear regression model, and the phenolic concentration required to inhibit fungal growth by 50 % was calculated using the estimated regression formula for each combination (Figure 1). There was a significant relationship between inhibition percent and phenolic concentration for all combinations, revealing high correlation coefficients (R2) that ranged from 0.9125 (isolate F64, root extract) to 0.9822 (isolate DA42, leaf extract).

Source Leaf extract Stem extract Root extract
d.f MS F p d.f. MS F p d.f. MS F p
PC 5 5.215 188.46 <0.0001 5 5.578 626.31 <0.0001 5 2.892 263.91 <0.0001
Fi 2 1.154 104.3 <0.0001 2 1.147 322.16 <0.0001 2 1.043 237.93 <0.0001
PCxFi 10 0.665 12.03 <0.0001 10 0.091 5.16 <0.0001 10 0.141 6.46 <0.0001

Table 2: Two-way anova of percent growth inhibition as the dependant variable and phenolic concentrations and Fusarium isolates as factors

Isolate Growth inhibition percentage
Leaf Stem Root
P03 18.05±14.67b 45.48±29.06b 32.29±20.81b
DA42 45.33±35.08a 63.78±28.22a 46.44±23.80a
F64 20.13±17.48b 41.66±26.16c 19.09±13.97c

Table 3: Effect of Fusarium isolate growth inhibition percentages versus phenolic extracts from different Rhizophora mangle tissues

As stated above, the stem extract sample displayed the highest TPC value (9.5 mg GAE/g DM) and resulted in major inhibition percent in all F. verticillioides isolates (Table 1). However, the required concentration of this extract to inhibit the three fungal isolates by 50 % is two to three times greater on average than that required for leaf and root extracts (Figure 1C). In the present study, ethanol extracts from different red mangrove (R. mangle) organs were obtained, and their antifungal activity was evaluated against three F. verticillioides isolates from maize roots.

TPC varied greatly among the different mangrove organs. The highest phenol content was found in the stem extract, followed by root and leaf extracts. The same pattern was previously observed in other mangrove species belonging to the Rhizophoraceae family, including R. mucronata, Bruguiera gymnorrhiza, Ceriops decandra [4,9] and R. stylosa [5]. Although the ethanol extracts from R. mangle tested in this study were able to inhibit F. verticillioides growth, the response was variable and dependent on the type of extract (root, stem or leaf), its concentration, and the particular isolate (F64, DA42 or P03). Previous reports have demonstrated that phenolic extracts from several mangrove species exhibit antifungal activity against different fungal species [6,7]. It is believed that phenolic compounds can diffuse through the fungal membrane and penetrate into the cell, where they interfere with essential metabolic pathways (such as the synthesis of ergosterol, glucan and chitin), leading to the disruption of membrane integrity, fluidity and loss of intracellular content [23].

The phenolic profile depends on a number of factors including the plant genotype, and the organ, tissue or phenological stage [24,25]. A variety of phenolic compounds have been reported in red mangrove stems, such as ferulic acid, vanillic acid, protocatechuic acid, chlorogenic acid, caffeic acid, benzoic acid, gallic acid, ellagic acid, epicatechin and catechin [26,27]. On the other hand, it has been reported that red mangrove leaves contain quercetin, epi-catechin, catechin, 4-hydroxybenzoic acid, kaempferol 3-O-β- glucopyranoside, quercetin 3-O-β-glucopyranoside, quercetin 3-O-6"-trans-coumaroyl-β-glucoside, kaempferol 3-O-β-rutinoside and quercetin 3-O-β- rutinoside [28]. Finally, ethanol extracts of R. apiculata roots (a species closely related to R. mangle) show the presence of quercetin, gallic acid and rutin [29]. It is important to note that the phenolic profile of any plant also varies according to the method and solvent used in the extraction. This means that red mangrove may contain more phenolic compounds than stated here, and bioactivity may vary from one extract to another [10].

Several of the above-mentioned compounds have been tested individually against Fusarium fungi, with good results. In particular, Shukla and Dwivedi [30] reported mycelial growth inhibition of F. oxysporum f. sp. ciceri and F. udum (up to 98 %) when grown in culture medium supplemented with benzoic acid. Furthermore, Ferrochio et al. [31] determined that the antifungal effect of ferulic acid on F. verticillioides and F. proliferatum depends on its concentration and water activity (aw). Specifically, fungal growth was decreased by 50 % at high ferulic acid concentrations (20-25 mM) and high aw (0.99 and 0.98). Fumonisin accumulation on maize-based medium was also reduced by high doses of ferulic acid, even at high aw [31].

In this study, differences in the concentration of mangrove extracts required to inhibit fungal isolates was detected. Specifically, a greater concentration of stem extract is necessary to inhibit F. verticillioides isolates by 50 %, as compared to leaf and root extracts. Although the phenolic composition of the extracts used in this study is unknown, the specific concentration of each phenolic compound depends on the plant organ, which in turn has an effect on the antifungal capacity of each extract. Hussin et al. [6] reported different phenolic profiles and antifungal activities from leaf, stick and bark methanol extracts in Barringtonia racemosa. Leaf extracts displayed the greatest diversity and concentration of phenolic compounds (i.e. gallic acid, naringin, rutin, kaempferol, ferulic acid and luteolin), as well as the highest percent of Fusarium inhibition (53.45 %). Moreover, the differences in phenolic compound and gallic acid concentration were capable of influencing the inhibition percentages of stick (31.61 %) and bark (41.38 %) extracts in B. racemosa. Even when the three F. verticillioides isolates were inhibited, isolate DA42 exhibited a greater inhibition over each extract. This observation can be explained by genotypic differences among the isolates. Recent studies from our laboratory on the genetic and pathogenic variability of these and other isolates have determined that each isolate represents a different genotype that can infect maize, although differences in aggressiveness were observed [32,33]. Furthermore, different inhibition percentages were recorded between fungal isolates challenged with Bacillus cereus sensu lato strain B25 (unpublished data).

In this study, fungal growth inhibition by phenolic extracts required higher concentrations as compared to benomyl. Indeed, the benomyl dose-response curve indicates that all isolates were 100 % inhibited at 2.5 mg/ml. Similar results were reported by Gale et al. [34] in their inhibition assay against F. graminearum. Other studies have reported the inhibition of different Fusarium species with low concentrations of benomyl [35]. It is suggested that the control exerted by benomyl may be partially due to its purity, whereas the phenolic extracts are a mixture of several compounds that interact with each other, and which may interfere with the biological activity they exert. This underscores the necessity to analyse the profile of each phenolic extract, to determine the individual phenolic compounds present in them, and to evaluate the antifungal activity of the identified compounds (both individually and combined), which will improve our understanding of how these compounds inhibit fungal growth. This study demonstrates the inhibitory activity of ethanol extracts from R. mangle roots, stems and leaves against different isolates of F. verticillioides. Furthermore, our data indicate that leaf and root extracts were more effective than stem extracts at inhibiting this pathogen. Additional analyses are needed to determine the phenolic composition of the evaluated extracts, and to identify the phenolic compounds responsible for their antifungal activity. Future research should investigate the effect of these extracts on other pathogenic fungi, as well as the production of mycotoxins produced by the F. verticillioides and other fungal species.


The authors are grateful to the Secretaría de Investigación y Posgrado (SIP) del Instituto Politécnico Nacional (SIP-20120079, SIP-20130398) and Fomix CONACYT-Campeche (FOMIXCAMP- 2010-144280) for financial support. IGMA acknowledges the Consejo Nacional de Ciencia y Tecnología (CONACyT, México) and SIP-IPN for Ph.D. fellowships. We thank Dr. Brandon Loveall of Improvence for English proofreading of the manuscript.

Conflicts of interest

The authors declare that there is no conflict of interests in this paper.

Financial support and sponsorship
