Liquid crystal systems are attracting significant attention due to their unique microstructures and physicochemical properties. Liquid crystals are becoming the choicest system for R and D professionals in the formulation development sector. Drug delivery to desired biological targets can effectively be achieved using liquid crystals system. Liquid crystalline phases are formed via three routes, the molecular shape, micro-segregation effects and chirality. The objective of the present review was to provide information on different forms of liquid crystal systems along with unique physicochemical properties and possible utilization of the unique physicochemical properties of the systems in pharmaceutical formulation development. This review summarized characterization of liquid crystal mesophases highlighting the multidisciplinary application of liquid crystals in drug delivery with respect to cubic and hexagonal phases.


Lyotropic liquid crystals, thermotropic liquid crystals, drug delivery, mesophases, cubic phase

A unique state of matter, called liquid crystal exists in case of certain substances that is located between solid and liquid state (Figure 1). Liquid crystals are typically elongated organic molecules with an uneven distribution of electrical charges along their axes (dipole). This give rise to a special physical characteristic to which liquid crystals owe their name, between the crystalline and liquid states. They possess both structural order and mobility. Liquid crystalline structures exhibit anisotropy, having optical direction and the characteristic properties of solids and liquids [1]. They exhibit a further state of aggregation, namely the liquid crystalline or mesophase indicating the unique structure intermediate between that of a true liquid and a solid crystal phase. Liquid crystals are found to be birefringent, due to their anisotropic nature. So they demonstrate double refraction (having two indices of refraction). When liquid crystalline structure is viewed under crossed Nicole prism of a polarizing microscope, intense colour bands and birefringence are seen. Anisometric molecular shape, associated with the polarizability is the basic requirement for the formation of liquid crystalline phases [2]. Even drugs that include organic acids or basic salts with anisometric molecular shape might fulfil the requirements for liquid crystal formation [3]. On the basis of molecular structure, a compound may pass through one or many different liquid crystalline phases depending upon its order and symmetry, before transforming into a truly isotropic fluid (the liquid phase) [4]. Liquid crystals are categorized into two generic classes i.e. thermotropic and lyotropic mesophases [1,2]. Thermotropic liquid crystalline phases are formed by a change of temperature, whereas lyotropic phases are formed when mixed with aqueous phase. The phase transitions of thermotropic liquid crystal are temperature-dependent, while those of lyotropic liquid crystals depend on both temperature and concentration [5].


Figure 1: Formation of liquid crystal phase between crystal and liquid state of aggregation

Molecules in a crystal are highly ordered, while molecules in a liquid are free to diffuse in a random way. Thus, molecules in liquid crystal phases diffuse like the molecules of a liquid but they contain some degree of orderness [4]. Hexagonal and cubic mesophases are particularly of high interest in the drug delivery field due to their exceptional potential as drug vehicles [6,7]. They are highly investigated for their ability to control or sustain the release of both hydrophilic and hydrophobic drug molecules having wide range molecular weights. Drugs can be incorporated in these gel-like phases, additionally they have non-toxic, biodegradable and bioadhesive characteristics, which cause significant value addition in drug delivery [8]. These characteristics of hexagonal and cubic phases made them one of the favourable means for the researchers to deliver drug through different routes of administration e.g. buccal, gastrointestinal, intravenous, lung, nasal, oral, rectal and vaginal.

This review attempted to provide a comprehensive insight highlighting the multidisciplinary aspect of liquid crystal system. Owing to the wide applicability of liquid crystal system in different areas of science and technology, this review tried to investigate the current status of research to the application of cubic and hexagonal phases in the drug delivery context.

Thermotropic liquid crystals

Most of the thermotropic liquid crystals are composed of rod-like molecules and classified into three types, nematic, smectic and cholesteric (Figure 2). They are formed on heating the crystalline solid or cooling the isotropic liquid. Nematic phase (thread-like) is the simplest liquid crystalline phase, where the molecules maintain long-range orientation. There exists no positional order. Liquid crystals used in electronic display are primarily of the nematic type. When viewed under a polarizing microscope the defect regions linking these domains appear as dark threads [9,10]. Smectic phase (soap-like) a name that was coined by Friedel from a Greek word, meaning ‘grease or slime’ [11]. The smectics structure is stratified as the molecules are arranged in layers with their long axes approximately normal to the plane of the layers with a well-defined interlayer spacing. Cholesteric phase is also known as chiral nematic liquid crystal. The arrangement of cholesteric phase can be described as a combination of the nematic and smectic, where some layers which resemble the smectic phase are incorporated in the nematic layers [12,13]. Due to the helical structure, it exhibits an interesting phenomenon like optical rotation, selective reflection and two-colour circular polarization [9].

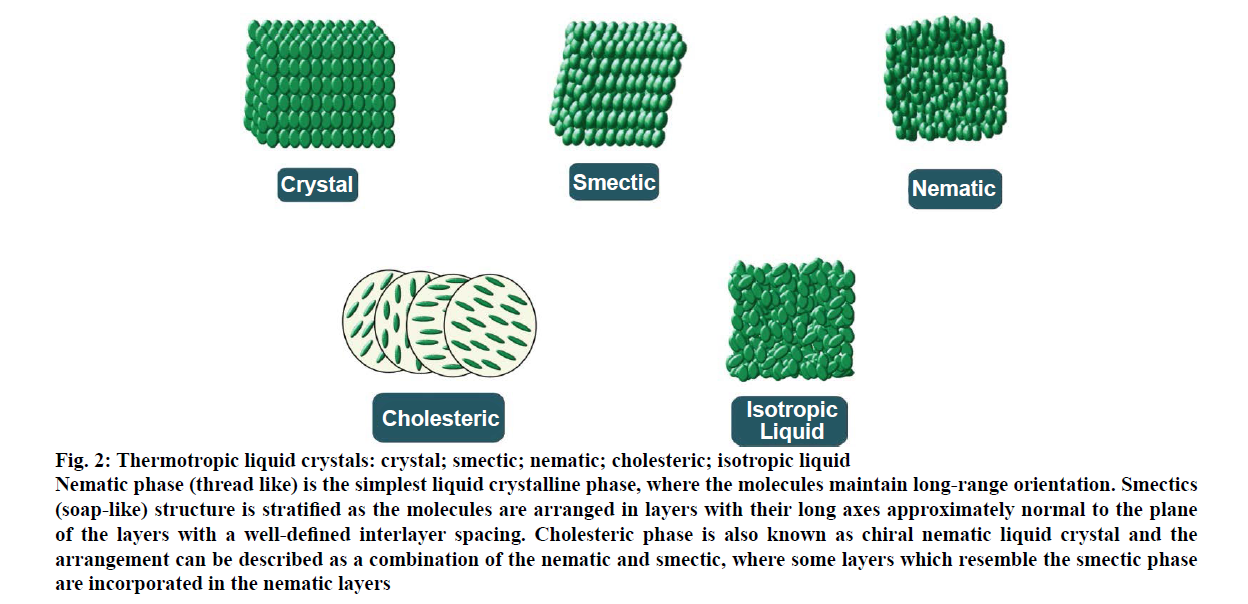

Figure 2: Thermotropic liquid crystals: crystal; smectic; nematic; cholesteric; isotropic liquid
Nematic phase (thread like) is the simplest liquid crystalline phase, where the molecules maintain long-range orientation. Smectics (soap-like) structure is stratified as the molecules are arranged in layers with their long axes approximately normal to the plane of the layers with a well-defined interlayer spacing. Cholesteric phase is also known as chiral nematic liquid crystal and the arrangement can be described as a combination of the nematic and smectic, where some layers which resemble the smectic phase are incorporated in the nematic layers

Lyotropic liquid crystals

Lyotropic liquid crystals, briefly called lyotropics or lyomesophases are mixtures of amphiphilic molecules in a solvent at a given temperatures and relative concentration [14]. The driving factors for the formation of lyotropic mesophases are the temperature, the structure of the organic molecule, and the water/ amphiphile ratio [15,16]. Lyotropic liquid crystals are further classified as lamellar, hexagonal and cubic phase. Lyotropic liquid crystal systems of surfactant molecules can absorb water from the environment. Depending upon the water content of the environment, it triggers spontaneous phase-transitions resulting lamellar, hexagonal and cubic phases (Figure 3). Three properties of surfactant(s) are found to be affecting the formation of lyotropic liquid crystalline phase, these are [8], the magnitude of the repulsive forces between adjacent head groups at the interface of surfactant and water, degree of contact between water and alkyl chain, and conformational disorders in the alkyl chains.

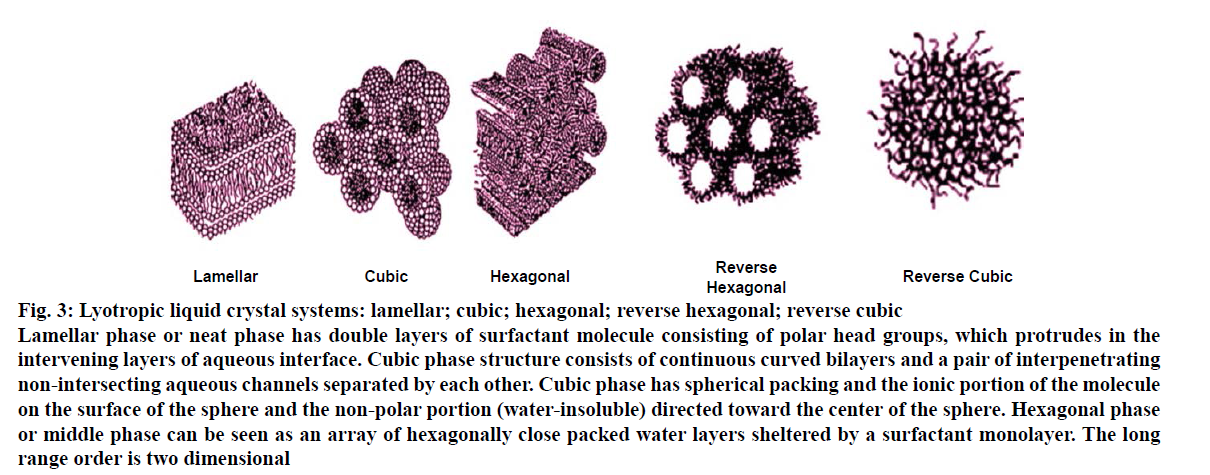

Figure 3: Lyotropic liquid crystal systems: lamellar; cubic; hexagonal; reverse hexagonal; reverse cubic
Lamellar phase or neat phase has double layers of surfactant molecule consisting of polar head groups, which protrudes in the intervening layers of aqueous interface. Cubic phase structure consists of continuous curved bilayers and a pair of interpenetrating non-intersecting aqueous channels separated by each other. Cubic phase has spherical packing and the ionic portion of the molecule on the surface of the sphere and the non-polar portion (water-insoluble) directed toward the center of the sphere. Hexagonal phase or middle phase can be seen as an array of hexagonally close packed water layers sheltered by a surfactant monolayer. The long range order is two dimensional

Lamellar phase or neat phase has double layers of surfactant molecule consisting of polar head groups, which protrudes in the intervening layers of aqueous interface. The hydrocarbon chains are in a dynamic disordered state that is similar to paraffin in the liquid state and the surfactant bilayers are separated by water layers [17,18]. A notable feature of the neat phase is its relative fluidity in spite of high surfactant content and thus the lamellae can glide easily over one another [19,20].

Hexagonal phase or middle phase can be seen as an array of hexagonally close packed water layers sheltered by a surfactant monolayer. The long range order is two dimensional. Two types of hexagonal mesophase can be encountered: normal and reverse mesophase, respectively in aqueous and anhydrous organic solvents. In anhydrous organic solvents (low water content), the structure is reversed and the hydrophilic polar groups now form the inner core and are shielded from the non-aqueous environment by a layer of hydrocarbon chains. These are called reverse hexagonal phase or reverse middle phase. Also when large quantities on non-ionic surfactant are added to the system, a hexagonal structure and the solution containing reversed micelles may be formed. The hexagonal phase is much stiffer than the lamellar phase [8,21,22].

Cubic phase structure consists of continuous curved bilayers and a pair of interpenetrating non-intersecting aqueous channels separated by each other. Cubic phase has spherical packing and the ionic portion of the molecule on the surface of the sphere and the non-polar portion (water-insoluble) directed toward the centre of the sphere [19]. The interfacial area of cubic phase is comparatively larger than other phases. The unique microstructure of a cubic phase offers advantageous properties for controlled drug release. The close packing of the micelles accounts for the marked flow-resistance of the phase, which is stiffer than the mesophase [8,22]. The cubic phase is formed spontaneously in excess water. Furthermore, the structure provides a slow release matrix for drugs of varying polarity and size because of its dual polarnonpolar nature. Additionally, release of the drug from within the cubic phase is controlled to certain degree because of its unique microstructure. Subsequently, the cubic phase displays bio adhesive properties. Thus, the structure is appropriate for gastrointestinal, pulmonary, nasal, oral, buccal, rectal, and vaginal drug delivery. As a whole, the cubic mesophase is stable in vitro [23].

Preparation of liquid crystal phase and its dispersion

Preparation of liquid crystal is very simple as compared to their dispersions. Liquid crystal can be prepared by intimately mixing lipid with aqueous phase by vortexing at high speed [12,13]. The vortexing can be repeated to achieve homogenous state. The mixture is equilibrated at room temperature for at least 48 h to obtain the liquid crystal. Depending upon the characteristics of the lipid, other additives may be added into the mixture or the method can be modified e.g. if more than one lipid is used, both the lipids are mixed and if required melted prior to vortex mixing with aqueous phase [3,8,22]. On the other hand preparation of liquid crystal dispersion is complex. Two techniques are used to prepare their dispersion. The first one is called the ‘Top-Down’ approach where at first the lipid and stabilizer is hydrated to self-assemble in a viscous bulk and then the bulk is dispersed into an aqueous solution by using high pressure homogenization and ultra-sonication. The second one is called as the ‘Bottom-Up’ approach, where the presence of hydrotrope plays the main role by creating liquid precursor and preventing liquid crystal formation at high concentration. Controlled addition of aqueous medium to the mixture leads to the formation of its dispersion. It is a dilution-based method and does not require any fragmentation procedure [13,8,18].

Characterization of Liquid Crystalline Phases

X-ray diffraction

The most frequently used method for investigating liquid crystalline phases formed by surfactant and block copolymer systems is no doubt the X-ray diffraction. With X-ray scattering experiments, characteristic interferences are generated from an ordered microstructure. There are two methods to detect interferences utilizing position-sensitive detectors/scintillation counters i.e. registration of X-ray counts and film detection. Due to the presence of longrange structural order in liquid crystals, generation of diffraction patterns are possible as electromagnetic radiation of a suitable wavelength will result in interaction.

Utilizing small-angle X-ray diffraction (SAXD) and wide-angle X-ray diffraction, long and short range orders can be registered respectively. In the characterization of liquid crystals SAXD is important tool for determining diffraction pattern (Table 1) [24].

Cubic 1:1/ √2:1/ √3:1/ √4:1/ √5:1/ √6:1/ √8: . . .
Lamellar 1:1/2:1/3:1/4: . . .
Hexagonal 1:1/ √3:1/ √4:1/ √7: . . .

Table 1: Relation between the First Reflections for Different Liquid Crystalline Phases

Nuclear magnetic resonance (NMR) spectroscopy

NMR spectroscopy offers a range of possibilities for investigating liquid crystalline phases. Deuterium (2H) NMR spectroscopy offers a powerful technique for investigating phase equilibrium, since the occurrence of different phases can be straight forwardly identified with this method. The basis for this method is that isotropic phase yields a narrow singlet resonance signal of quadrupolar nuclei such as 2H, whereas anisotropic phases result in so-called quadrupolar splitting, thereby yielding a doublet resonance signal. Furthermore, anisotropic phases may be separated through the magnitude of the splitting. From this, not only the nature of the phase in the case of a single-phase system can be determined, but the composition of a multiphase system may also be determined.

Polarizing microscopy

It is very simple and vivid method. As a result of their molecular ordering, anisotropic liquid crystalline phases, such as the hexagonal, the lamellar, and the reversed hexagonal phases, are optically birefringent. Polarized light microscope can be used for the study of the phases. In this microscope one polarizer is mounted above and the other below in cross position of the objective providing plane polarized light at right angle, whereby restricting the passage of polarized light from the below to the above polarizer of the objective. There is a possibility of observing turquoise and yellow textures with liquid crystalline material due to small deviations of the absorbed wavelengths. The lamellar phase usually yields mosaic patterns under the polarizing microscope, whereas the hexagonal phases normally show nongeometric textures. The occurrence of crystals may also be identified by this method. Because of the non-birefringent nature of the micellar and reversed micellar solutions and cubic phase dark background will be observed. The smectic mesophases of the thermotropic liquid crystal show a variety of textures but resemble the fan-shaped texture of the lyotropic hexagonal mesophase [25,26]. Although polarized optical microscopy is one of the powerful tool used to identify liquid crystal phases, due to submicron scale of liquid crystal mesophases this method may fall short. On the other hand interaction of other imaging techniques may also causes degradation of the sample [27].

Transmission electron microscopy

Because of the high magnification power of the electron microscope, the microstructure of liquid crystals can be visualized. Special techniques are adopted for preparation of aqueous samples as the samples tend to succumb in the high vacuum of an electron microscope that is responsible for inherent changes in the microstructure. The freeze-fracture technique has proven to be successful in this regard. For this purpose, a replica of the sample is produced and viewed in the electron microscope. To preserve the original microstructure of the sample during the replication, the first step is to shock freeze the sample. For high freezing rates up to 105-106 K/s, the sample is sandwiched as a thin layer between two gold plates and then shock frozen with nitrogen-cooled liquid propane at –196° or slush nitrogen at –210° [28]. The application of pressure ensures minimal crystallization of the water within the sample to preserve the structure as best as possible [27].

Differential scanning calorimetry

Phase transitions occur with changes in the energy content of the respective system. Depending on the transition type i.e. consumption of energy due to melting of solid or emission of energy due to recrystallization, endothermic or exothermic signals can be observed. The consumption of energy gradually decreases from crystalline to amorphous; between the transition from crystalline to amorphous phase, liquid crystalline phase occurs and the energy consumption among liquid crystalline phase transitions consume comparatively lesser energy [28]. Necessary care has to be taken about the sensitivity and detection limit of the measuring device. Change of baseline slope with a change in specific heat capacity is an indicator of entropy change during the phase transition. Therefore the phase transitions of liquid crystalline polymers result from entropic reasons are considered as transitions of the second order [29]. These are usually called glass transitions. They may be overlaid from an enthalpic effect, so their detection may be complicated.


Rheological properties of various degrees are shown by different forms of liquid crystals[30]. With an increase in the microstructural organization of the liquid crystal, its consistency increases and the flow behaviour becomes more viscous. The coefficient of dynamic viscosity Z, although a criterion for the viscosity of ideal viscous flow behaviour (Newtonian systems), hexagonal, and cubic liquid crystals shows comparatively higher viscosity than lamellar phase. Moreover, plastic flow behaviour (non-Newtonian) is observed in cubic and hexagonal crystals but pseudo plastic flow behaviour (non-Newtonian) is observed in lamellar phase; which is the key feature to differentiate between these two types [31]. For thermotropic liquid crystals, the viscosity increases in the following sequence: nematic<smectic A<smectic C.

Vesicle size determination

Vesicle size is an important parameter in not only inprocess control but also quality assurance in particular as the particle size and particle size distribution is a major determinant of the physical stability of vesicle dispersion [32]. An appropriate and particularly quick method is laser light scattering (for particle size) or diffraction (for particle size distribution). Laser light diffraction can be applied for >1 mm particles; according to the diffraction theory of Fraunhofer, this refers to the proportionality between the intensity of the diffraction and the square of the particle diameter.

Fraunhofer’s and Rayleigh’s theories are just an approximations of Mie’s theory, where scattering angle, absorption, size and refractive indices of particles and the dispersion medium are the major factors affecting the scattering intensity [3]. Photon correlation spectroscopy can be a good tool for determination of mesophase with particle sizes of <200 nm up to 1 mm.

Application of Liquid Crystals in Drug Delivery

The ability of LCs to include a vast array of molecules from lipophilic to hydrophilic irrespective of molecular dimensions is one of the significant parameters that are of interest [33]. Arsphenamin was the first drug substance with thermotropic mesomorphism to be therapeutically used as Salvarsan during the first half of the 19th century. The drug is effective against microorganisms and offered therapy for venereal diseases such as syphilis. Today, it has been replaced by antibiotics with less serious side effects.

The stability and resemblance with skin structure make lamellar phases suitable for the development of controlled-release drug delivery systems. The watersoluble, oil-soluble and amphiphilic drugs can easily be incorporated within the peculiar arrangement of lipid bilayers and aqueous channels of lamellar phase [34]. The drug candidate can permeate through the hydrophilic regions between the lamellae, trapped inside lipid bilayer and move both between and across the lamellae [35]. However the whole process depends upon the solubility/affinity of the drug molecule.

A lamellar system consisting Brij 96 (poly-oxyethylene- 10-oleyl ether) with water, liquid petrolatum and glycerol incorporated with ephedrine hydrochloride or tenoxicam, the former being a hydrophilic drug and the latter being hydrophobic drug was reported by Makai et al. [36]. The study detected an increase in interlamellar distance inferring that the drugs were partly located between the lamellar spaces and partly located at the amphiphilic surfactant molecules.

Application of cubic phases

Cubic phase consists of curved lipid bilayers extending in three dimensions and separated by two congruent networks of water channels [37]. Cubic phase has a stiff, transparent, gel-like appearance and possess bioadhesive properties. Biodegradability is another important feature with regards to drug delivery [38]. Interfacial area of cubic phase is about 400 m2 per g and the pore size of fully swollen cubic phases is about 5 nm [39,40]. In cubic phases the activity of water is minimum as well as it poses bio membrane like structures, which makes this system suitable for delivering protein molecules by protecting from external factors, thereby avoiding inactivation of protein molecules [37].

Glyceryl monooleate (GMO)-water system, an amphiphilic lipid, forms various liquid crystalline phases in contact with water. Bioavailability of poorly water-soluble drugs can be greatly enhanced with the incorporation of GMO in the delivery system. The drug delivery effectiveness of a binary GMO-water liquid crystalline phase composition is GMO:water ratiodependent. Binary liquid crystalline phase systems are categorized as having either relatively high or low water content. A binary composition having a weight ratio less than about 1:1 GMO to water is not useful as it separates into aqueous and liquid crystalline phases thus rendering the system ineffective [12,8]. The Pluronic F127 system has a high solubilizing capacity and is generally considered to be relatively non-toxic. In aqueous solution, at concentrations greater than 20 % w/w, F127 is transformed upon heating from a low viscosity transparent (micellar) solution at room temperature to a solid clear gel (cubic phase) at body temperature [41].

Lipids forming non-lamellar structures, such as monoolein, are now getting incorporated in novel protein biochip developments. As cubic lipid phases are biocompatible and digestible, these are being used for the development for controlled-release and delivery of proteins, vitamins and small drugs in pharmacological applications [9].

Cubic phase particles (cubosomes) are submicron particles of bicontinuous cubic phases for incorporation of lipophilic or amphiphilic active ingredient. Cubosomes addresses different challenges in oral delivery of many promising compounds that has poor aqueous solubility, poor absorption, and large molecular size. The presence of liquid crystal matrix provides a good option to control the release of drug form the system to obtain optimal delivery profile along with temporary protection of sore and sensitive skin. Cubosomes with metronidazole are available commercially to treat periodontal diseases based on combination of triglyceride-monoolein mixtures. The oral administration of insulin loaded into GMO cubic phase also has been successfully investigated [42].

Kuntsche et al. [43] reported that supercooled smectic cholesteryl myristate nanoparticles could be loaded with different model drugs without loss of the smectic state structure. Drugs of lower melting points such as ibuprofen, etomidate and miconazole were incorporated in the dispersions at a concentration of 10 % w/w, whereas progesterone with a higher melting point could only be dissolved in the lipid melt at a concentration of 1 % w/w at appropriate dissolution times.

Kuntsche et al. [44] further studied the permeation of the model drug corticosterone using different lipid nanoparticles. They reported that smectic nanoparticles seem to have no influence on the corticosterone permeation, and similar results were obtained for human and the cell culture epidermis. Only cubic nanoparticles enhanced drug permeation distinctly and the enhancing effect was 7 fold higher in human epidermis than in the rat epidermal keratinocytes organotypic culture. However, the variation of the permeability coefficients was very high in human skin for smectic and cubic nanoparticles especially between the skin samples obtained from different donors.

Nag et al. synthesized nanoparticles incorporating the water-insoluble model dye cargo, 3,3’-dioctadecyloxacarbocyanine perchlorate (DiO) into the hydrophobic liquid crystal nanoparticle (LCNP) core (DiO-LCNP-PEG-Chol). The LCNP platform was found to be efficient vehicle for the combined membrane-targeted delivery and physicochemical modulation of molecular cargos using lipid raftmediated tethering [45].

Sallam et al. formulated liquid crystal system containing 10 % PG, 5 % water and 65 % GMO that contains 7 % EC loaded with 20 % metronidazole. They found the formulation to be mucoadhesive, easily injectable at room temperature, and followed Fickian diffusion release mechanism [46].

Swarnakar et al. prepared phytantriol (PHY)-based doxorubicin-LCNPs using the hydrotrope method. The formulation exhibited Pn3m type cubic structure and possessed significantly higher cell cytotoxicity (16.23-fold) against MCF-7 cell lines as compared to free drug. Doxorubicin-induced cardiotoxicity was also found to be significantly lower in case of doxorubicin- LCNPs as compared to clinical formulations [47].

Hongbing et al. succeeded in developing a protocol for surface engineering of PEGylated cubosomes with functional molecules, mediating S14G-HN transport into the brain for ameliorating learning impairment in rats. Where most of the peptides and proteins with considerable potential in the treatment of brain diseases are susceptible to enzymes in vivo and hold a poor ability to cross BBB, the developed cubosomes showed potential to serve as carrier system [48].

Shah et al. incorporated seratiopeptidase (STP) in cubic phase carrier utilizing GMO. Magnesium trisilicate was found to improve stability of STP. They demonstrated that the in situ cubic phase transforming system can be used as a carrier for protein molecules by altering the microenvironment and water uptake by the matrix [49].

Sung et al. reported that monoolein cubosomes can effectively damp the fluctuation I time-dependent size and zeta potential KIOM-C. At all pHs tested (pH 2.0-10.0), baicalin, a major component of KIOM-C, was found to be chemically stable for 48 h at a room temperature. With the aid of cubosome, baicalin suspension remained homogenous without significant sedimentation for 180 min [50]. Bei et al. enumerated different factors that may influence the loading and encapsulation efficiency of dacarbazineloaded cubosomes [51].

Jin et al. developed cubic nanoparticles to increase the absorption of 20(S)-protopanaxadiol in which piperine was loaded for inhibition of metabolism. This novel carrier containing piperine showed an increase in the absorption and inhibition of metabolism, which in turn increases the bioavailability of 20(S)-protopanaxadiol. This system may be further investigated for anticancer drugs that are extensively metabolized and have low absorption [52].

Zhiwen et al. prepared cubosomes from PHY containing amphotericin B as a formulation for oral delivery. Cubosomes having nanometer-sized particles were obtained under homogenization at 1200 bar for 9 cycles [53]. Jain et al. demonstrated GMO-based PEGylated drug delivery system of paclitaxel, prepared by optimizing several parameters in order to discover its potential in anticancer therapy [54].

Nguyen et al. worked on LCNPs to prolong the absorption of a poorly water-soluble drug cinnarizine (CZ) after oral administration. Cubic liquid crystalline particles developed by utilizing PHY were found to be prolonging the absorption of CZ more than 48 h after administering orally to rats [55].

Thapa et al. found that a liquid crystalline nanoparticle reveals unique structures, which can be used in the delivery of various active pharmaceutical ingredients. The influence of saturated fatty acids on tacrolimusloaded liquid crystalline nanoparticles stabilized with poloxamer 407 was also investigated [56].

Lee et al. reported the in vitro sustained release behaviour of a number of model hydrophilic drugs with various molecular weights (14C-glucose, Allura Red, and fluorescein isothiocyanate dextrans FD-4, FD-20, and FD-70) in liquid crystalline matrixes prepared from GMO and PHY [57]. Nguyen et al. reported the sustained absorption of a poorly water-soluble drug (CZ) from PHY-based cubosomes after oral administration. The plasma concentration of PHY-based cubosomes was found to be 21.5±1.5 ng/ml within 12 and 48 h, while the plasma concentrations felt below the quantification limit after 24 h when treated with suspensions or GMObased cubosomes [55].

Esposito et al. studied in vitro diffusion of indomethacin from carbomer-indomethacin-loaded cubosomes. The performance of cubosomes as sustained percutaneous delivery systems was found to be satisfactory as the flux of indomethacin from cubosomes was significantly lower than carbomer blank cubosomes loaded with free indomethacin and carbomer with an indomethacin water suspension [58].

Chen et al. reported a cyclosporine A-loaded GMO/ F127 cubosome system to reduce ocular irritancy showing little or no ocular irritancy. The formulation was found to be safe to use with no ocular damage or clinically abnormal signs in cornea, conjunctiva, or iris [59]. Sadhale and Shah investigated the capability of cubic phase gel to protect insulin from agitation-induced aggregation. The agitated insulin in cubic phase gels was almost unaffected for 2 mo at 37° as compared to insulin in solution, which showed aggregation and precipitation after 8 d [60,61].

Sadhale and Shah also prepared GMO cubic phase gel containing cefazolin and cefuroxime and assessed their stability at two different concentrations (200 and 50 μg/g), at 22 and 37°. The degradation of cefazolin at lower concentration was 3 and 18 fold slower in cubic phase gel than that in solutions at 22 and 37°, respectively [62]. Spillmann et al. established multifunctional nanoparticle-based delivery system, which provides efficient delivery and allows intracellular fate tracking [63].

Application of hexagonal phases

Hexagonal mesophases are closed and extended micellar columnar structures having two-dimensional long range order. There is no direct contact between water inside and outside the hexagonal phases. The dispersed reversed hexagonal particles are called as hexosomes. The hexagonal mesophases composed of oleyl glycerate (OG, 2,3-dihydroxypropionic acid octadec-9-enyl ester) and phytanyl glycerate (PG, 2,3-dihydroxypropionic acid 3,7,11,15-tetramethylhexadecyl ester) have shown great potential in drug delivery. This system facilitates incorporation of both hydrophilic and lipophilic drugs as well as amphiphilic drugs, entrapping hydrophilic drugs in the internal water domain and lipophilic drugs within the lipid domain whereas amphiphilic drugs in the interface.

Nilsson et al. reported a highly efficient method for the radiolabeling of PHY/oleic acid (OA)-based hexosomes based on the surface chelation of technetium-99m ((99m)Tc) to preformed hexosomes using the polyamine 1, 12-diamino-3,6,9- triazododecane (SpmTrien) as chelating agent. They also concluded that the developed (99m) Tc labelling method could serve as a useful tool for investigating and imaging the in vivo performance of cubosomal and hexosomal drug nanocarriers [64].

Boyd et al. synthesized a new class of materials with glycerate headgroups to form lyotropic liquid crystal. The OG and PG-based hexagonal phase matrices were used as carrier for paclitaxel, irinotecan, glucose, histidine, and octreotide. The study revealed that the releases of all the formulations were following Higuchi kinetics confirming their ability to use as carrier in sustained release drug delivery [21].

Boyd et al. stated that the OG-based hexagonal phase improved the oral bioavailability of CZ up to 3.5 and 3 times than that of the control suspension and GMObased cubic phase, respectively [65]. Boyd et al. also reported that the OG-based hexosomes can be used to improve stability of irinotecan, a highly effective anticancer drug, which displays a pH-dependent equilibrium between its active lactone and inactive carboxylate forms, with rapid conversion to the carboxylate form occurring at a neutral pH [66].

Lopes et al. reported that vitamin K delivery to the stratum corneum was increased by 2 times and delivery to the epidermis and dermis was increased by 2 to 3.7 times than that in a vaseline control solution when incorporated into GMO-based hexagonal phase gel (GMO/vitamin K/water at 77.5/2.5/20, w/w/w) or GMO-based hexosomes (GMO/vitamin K/F127/water at 15/2.5/0.9/81.6, w/w/w/w) [67].

Swarnakar et al. investigated the penetration mechanism of hexosome system as a carrier of progesterone for mucosal delivery. The flux of progesterone-loaded hexosomes to the excised rabbit buccal mucosa was 5 times higher than that of a progesterone-loaded gel and nearly 4 times higher than a plain progesterone suspension [68].

Fong et al. reported a themoresponsive liquid crystalline system to deliver glucose (hydrophilic drug) through subcutaneous route. The in vivo study of the externally regulated themoresponsive system showed slow release from hexagonal phase when subcutaneously injected at physiological temperature [69].

Lee et al. reported fivefold enhancement of bioavailability, sustained release, and liver-specific drug delivery of prepared LCNPs containing hydrophobic peptide-based drugs as compared to a host-guest complex formulation. The LCNPs were prepared by using an energy efficient phase-inversion temperature method [70].

Swarnakar et al. prepared CoQ10-loaded hexosomes from glyceryl monooleate (GLCQ) and phytantriol (PHYLCQ) and investigated the implications of the lipase digestibility of hexosomes on the oral bioavailability, in vivo antioxidant potential, and IVIVR relationship. They observed 9.1 and 10.67 fold increase in Caco-2 cell uptake in the case of GLCQ and PHYLCQ, respectively. Bioavailability was increased by 7.09 and 8.67 fold in the case of GLCQ and PLCQ, respectively. The developed formulation found to have great potential in improving the oral bioavailability of difficult-to-deliver drugs such as CoQ10 [71].

Application of cubic-hexagonal phases and their inter-conversion

Many researchers also reported the inter-conversion between different phases of liquid crystal influenced by the temperature, pressure and pH. They have utilized the inter-conversion ability of the system to either target the delivery of drug molecules or to increase stability and bioavailability in different physiological conditions.

Okawara et al. prepared diosgenin LCs and investigated the interaction between LC and β-CD in order to improve its bioavailability of diosgenin. The SAXD patterns showed formation hexagonal and cubic phases of GMO and PHY LC, respectively. The oral bioavailability of LCs prepared by GMO was significantly enhanced than diosgenin alone, which was further improved with the combination of LC and β-CD than LC and water [72].

Yaghmur et al. prepared inverted type dis-continuous cubic phase (Fd3m) and inverted type hexagonal phase (H2) and stability/inter-conversion under pressure and temperature was investigated. Under ambient temperature phase transition from Fd3m to H2 was reported and opposite trend was observed when temperature was increased at isobaric condition causing transition from H2 to Fd3m [73].

Sallam et al. indicated that the acidic environment favours the formation of hexagonal phase by observing the formation of reversed hexagonal phase at a lower temperature in simulated gastric fluid than that in simulated intestinal fluid or water [74]. Negrini and Mezzenga reported that a system composed of monolinolein and linoleic acids (97/3, w/w) was able to reversibly change from a reverse bicontinuous cubic phase to a reverse hexagonal phase, when the pH was dropped from 7 to 2 [75].

Negrini et al. investigated various liquid crystal matrices made of monolinolein+drug+linoleic acid+excess water in different pH conditions and their release behaviour. The matrices were in a cubic phase in pH 7 and hexagonal in pH 2 [76]. Yaghmur et al. studied the effect of pH on the phase structures of GMO-based liquid crystals containing bupivacaine. Different self-assembled structures were formed by increasing the pH from 6.0 to 7.4, which induced the structural transition of bicontinuous cubic phase to reverse hexagonal phase [77,78].

Yuli and Garti studied the effect of triglycerides with various chain lengths into the binary GMO/water system. The study revealed the phase transition from lamellar or cubic phases to hexagonal structure at room temperature as the triglyceride gets solubilized in the system [79].

This review emphasized the characterization and application of liquid crystalline systems as drug carrier, highlighting its applications in drug delivery. Drug delivery to desired biological targets can effectively be achieved using liquid crystals technique as they respond to both pH and temperature depending upon the type of liquid crystal systems utilized for the delivery of drug molecules. Due to its wide array of drug loading irrespective of its hydrophobicity or hydrophilicity, it can be utilized for formulating any kind of formulation intended for delivery via various routes of administration. Hexagonal and cubic mesophases are particularly of high interest due to their exceptional potential as drug vehicles. This technique of drug loading is becoming one of the most promising techniques and requires extensive research to widen its spectra in the formulation development arena.
