Curcumin-incorporated Thiolated Chitosan/alginate Nanocarriers: Physicochemical Properties and Release Mechanism

*Corresponding Author:

P. Patrojanasophon
Pharmaceutical Development of Green Innovations Group (PDGIG), Faculty of Pharmacy, Silpakorn University, Nakhon Pathom, 73000, Thailand
E-mail: patrojanasophon_p@su.ac.th

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

This study was aimed to develop thiolated chitosan/alginate nanoparticles for curcumin delivery. The nanoparticles were prepared from thiolated chitosan and sodium alginate using an ionic gelation technique. The concentrations of thiolated chitosan and alginate used to form the nanoparticles were optimal at 0.05 and 0.025 % w/v, respectively. Curcumin was incorporated into the nanoparticles by entrapment during nanoparticle preparation. The thiol content of the synthesized thiolated chitosan as well as the particle size, size distribution, surface charge, loading efficiency, loading capacity and drug release characteristics of the curcumin-loaded thiolated chitosan/alginate nanoparticles were investigated. Nano-sized particles ranging from 291-435 nm were obtained. The blank nanoparticles exhibited the smallest size and positive surface charge. Incorporation of curcumin into the nanoparticles resulted in a slightly bigger particle size and the surface charge became negative. After drug loading, the particle size was changed to 435 nm with the technique used. Sustained release of curcumin was observed from the nanoparticles. Kinetica of curcumin release fitted well with the zero-order model. Curcumin incorporated nanoparticles were successfully prepared with desirable physicochemical properties. Moreover, sustained release of curcumin from the nanoparticles with zero-order kinetic was obtained. Therefore, these nanoparticles may prove to be favorable carriers for curcumin delivery.

Keywords

Curcumin, thiolated-chitosan, alginate, nanoparticles, colon cancer

Turmeric is widely used as a food spice and as an active component of traditional drug in Thai national list of essential medicine[1]. Turmeric rhizomes, which contain αγ-turmerone, curcumin and its derivatives are reported to have various indications such as gastric astringents, antimicrobial, antiinflammatory and anticancer[2]. Many researchers investigated the anticarcinogenic activity of curcumin in animal models. It was proposed that curcumin could inhibit cancer cell initiation, which destructs gene mutation and also inhibits tumor promotion that accelerates cancer growth[3]. Moreover, inhibition of tumorigenesis in stomach, duodenum and colon has been proved from curcumin intake. In a study, mice were fed with curcumin prior to carcinogen treatment; it was found that mice receiving curcumin not only had less number of tumors, but also smaller tumor size[4]. The anticarcinogenic mechanism of curcumin was reported to be inhibition of the colon carcinogenic azoxymethane[5]. Curcumin was not only found to be a potential anticarcinogenic agent, but it was also reported to enhance the efficacy of chemotherapeutic drugs.

Gastric cancer resistant to anticancer drugs was susceptible in vitro to anticancer agents when co-administered with curcumin; Additionally, chemotherapy drug dose reduction while given concurrent with curcumin could subsequently reduce side effects and increase drug tolerability in cancer patients[6]. Curcumin could also act as a P-glycoprotein inhibitor, which enhances anticancer effect of doxorubicin in drug-resistant gastric cancer cell line by inducing apoptotic cell death pathway[7]. Co-encapsulation of curcumin and doxorubicin in longcirculating liposomal formulation presented inhibitory mechanism of inflammatory and angiogenesis proteins involved in tumor growth[8].

Curcumin is an orange-yellowish crystalline powder that is poorly soluble in water and ether, but very soluble in ethanol and glacial acetic acid[9]. Recently, various efforts have been made to deliver curcumin to the cancer cells. Zhang et al. investigated the use of curcumin-cyclodextrin complex to enhance water solubility and therapeutic efficacy of curcumin. In this study, curcumin-entrapped cyclodextrin induced cellular uptake and delayed release of curcumin in the lung cancer cell compared to free curcumin[10]. A study reported the development of curcuminloaded transferosome as a transdermal drug delivery system of curcumin for the treatment of breast cancer. Curcumin was also found to be a potential anticarcinogenic agent through skin penetration using a nanovesicle drug carrier[11]. Furthermore, curcumin was developed as a liposomal dry powder inhaler, which showed better therapeutic efficacy against primary lung cancer compared to free curcumin powder and chemotherapeutic agent, gemcitabine, both in vitro and in vivo[12].

Nowadays, there have been numerous developments in drug delivery; however, polymer-based nano-systems seem to gain popularity. Polymeric nanoparticles (NPs) made of polymers with the size ranging from 10-1000 nm, which is small enough to easily penetrate through intercellular gaps of tumors especially in tumours undergoing angiogenesis[13]. Resulting from increased blood vessel size, the intercellular gaps of cancer cells expand allowing passive targeting of a drug delivery system, which will enhance drug selectivity to the tumour as well as reduce adverse drug events[14]. Polymer-based NPs can be prepared from different types of polymers, for example, guar gum, dextran, chondroitin. Recently, mucoadhesive polymer drug delivery has gained interest due to its advantages over the conventional system. The first generation selfmucoadhesive polymers are chitosan (CS) and alginate (ALG); in addition to these, mucoadhesive polymers with modified functional groups for stronger binding to the mucous surface such as thiolated polymers or thiomers have been developed. Thiomers are polymers with thiol groups (-SH) incorporated into the polymer chain, rendering disulfide bond formation with the mucin glycoprotein aiming to enhance mucoadhesive property. Apart from the aforementioned information, thiomers act as penetration enhancer due to their capability to enlarge intercellular gaps to enable the polymer to penetrate[15].

Herein, the development of thiolated chitosan (Cys-CS)/ALG NPs for curcumin delivery was reported, which could be used for colorectal cancer treatment. The mucoadhesive properties of Cys-CS could help increase the retention time of the NPs at the site of action providing the NPs to penetrate into the cancer cells by passive targeting. The particle size, size distribution, surface charge, loading efficiency, loading capacity and drug release characteristic of the curcumin-loaded Cys-CS/ALG NPs were investigated.

Materials and Methods

Low molecular weight CS (75-85 % deacetylated), sodium ALG from brown algae (viscosity of 2 % solution at 25° ~250 cps), L-cysteine hydrochloride, N-(3-dimethylaminopropyl)-N-ethylcarbodiimide hydrochloride (EDAC) and curcumin were obtained from Sigma Chemical Co. (St. Louis, MO, USA). All other reagents and solvents were of analytical grade and were used without further purification.

L-cysteine hydrochloride solution (3.6 mM) was prepared in deionized water. Then, EDAC (3 mM) was added to the solution while the solution was stirring to activate the carboxylic group of cysteine. The reaction was continued for 20 min. After that, 3.0 mM CS solution in 1 w % HCl was prepared before gently adding into the cysteine solution and the pH was adjusted to 4.0. The mixture was stirred for 6 h in the dark. Afterwards, the mixture was dialyzed against 1 mM HCl+1 % w/v NaCl solution on the first day and later against 1 mM HCl solution before being freeze dried (figure 1).

The amount of thiol groups attached to the CS chain was determined by Ellman’s assay. The synthesized Cys-CS (10 mg) was soaked in 500 μl phosphate buffer (pH 8.0) in a microcentrifuge tube. After that, 500 μl of Ellman’s reagent (5,5′-dithiobis(2-nitrobenzoic acid), 0.3 mg/ml) was added. The mixture was shaken and incubated for 90 min protected from light. Cysteine hydrochloride solutions at different concentrations were prepared to generate a standard curve for thiol content analysis. The NPs were prepared using ionic gelation method. CS was dissolved in 1 % v/v acetic acid while ALG was dissolved in water to obtain the polymer solutions with different polymer concentrations. The pH of the CS and ALG solutions were adjusted to 5.0. Different ratios of CS:ALG (Table 1) were used to formulate the NPs. The ALG solution was added dropwise to the CS solution using a glass syringe fitted with a 25 gauge needle. The mixture was stirred for 1 h after ALG was completely added into the CS solution. The obtained mixture was freeze dried before the NPs were collected. The optimal ratio of CS:ALG was used to prepare Cys-CS NPs for further investigations.

Table 1: Size, Size Distribution and Zeta Potential of the Nanoparticles

The particle size and zeta potential of the prepared NPs were evaluated at 25° using a Zetasizer Nano ZS (Malvern Instruments, Malvern, UK). Sample solutions were diluted to 1:10 with deionized water and probe sonicated to prevent particle aggregation before being filled into 1-cm³ zeta cell. These measurements were made in triplicate.

Cys-CS solution and ALG solution of the selected ratio were prepared as stated earlier. Curcumin solution (1 mg/ml) in ethanol was slowly added to the ALG solution using a micropipette before dropping the mixture into the Cys-CS solution according to the preparation method mentioned above. To quantify the curcumin loaded in the NPs, 1 ml of ethanol was added to the NPs and the mixture was shaken overnight to extract curcumin from the NPs. Then the mixture was centrifuged for 30 min and the supernatant was collected. The extent of curcumin entrapped in the NPs was quantified using a UV/Vis spectrophotometer at 419 nm. The loading efficiency and loading capacity were computed according the Eqns. 1 and 2, respectively. Loading efficiency (%) = the amount of curcumin in the NPs×100 initial amount of curcumin used. Loading capacity = the amount of curcumin in the NPs/the weight of the polymer used.

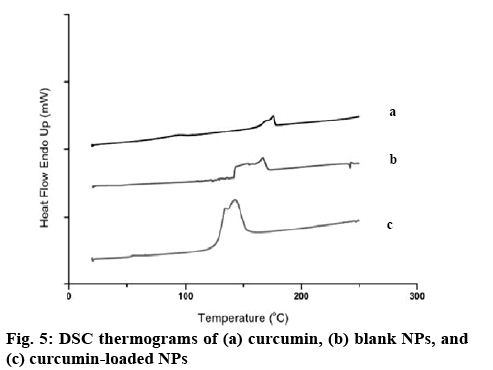

The chemical structure of the Cys-CS, blank NPs, and curcumin-loaded NPs was characterized by Fouriertransformed infrared spectroscopy (FTIR, Perkin Elmer spectrum 100) between 600-4000 cm^-1. The samples were pressed with potassium bromide to form clear disc and locked onto a holder prior to the observation. Proton nuclear magnetic resonance spectroscopy (¹H-NMR, 300 MHz Avance III HD, Bruker) at 298 K was also performed to elucidate the structure of the particles and components. Each sample was completely dissolved in deuterium oxide (D₂O) for the investigation and all data were recorded as chemical shift in parts per million (ppm; D₂O chemical shift=4.80 ppm). The thermal properties and molecular dispersion of curcumin, blank NPs, and curcumin-loaded NPs were examined using differential scanning calorimetry (DSC, Perkin Elmer DSC 8000, Waltham, MA, USA). Accurately weighed samples in a solid pan were placed in the instrument with temperature programmed from 20-250°, rate 10°/min[16,17]. Scanning electron microscope (SEM, Tescan Mira 3, Czech Republic) was performed to analyse the morphological characteristics of the NPs. Blank NPs were covered with thin gold layer after fixing on a metal stub using two-sided tape prior to the observation.

Freeze-dried NPs containing curcumin were accurately weighed (20 mg) and dispersed in 1 ml of release medium pH 7.4 (phosphate buffered saline (PBS) with 1 % Tween 20) contained in a dialysis bag. Then, the dialysis bag was submerged in a glass bottle containing 13 ml of the release medium and being shaken at 200 rpm in a shaker incubator at 37°. At different time intervals of 5, 15, 30 min, 1, 2, 4, 8 h, 1, 2, 3, 4, 5, 6, 7 d, an aliquot (1.5 ml) was removed, and the equal volume of fresh medium was added to maintain the initial volume. The quantities of curcumin released to the release medium at different time points were measured using a UV/Vis spectrophotometer operated at 419 nm. The experiments were carried out in triplicate and the release kinetics of curcumin from the NPs were analysed using the zero-order model, the first-order model and the Higuchi model.

Results and Discussion

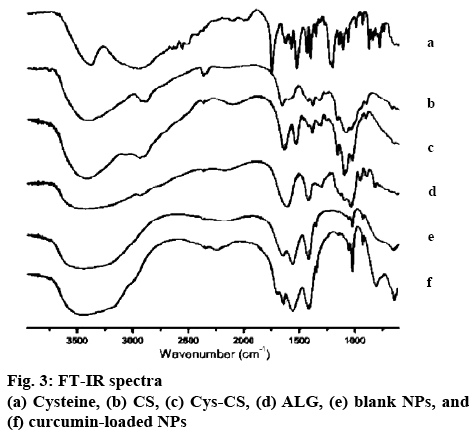

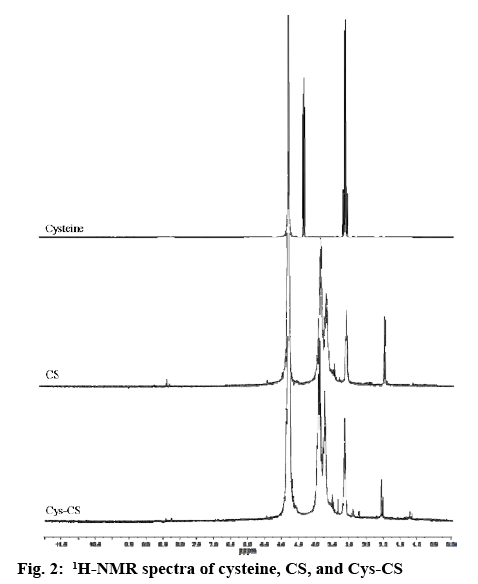

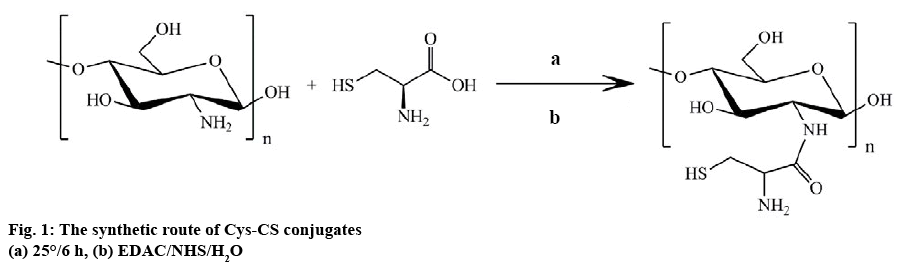

The structure of Cys-CS conjugate synthesized by coupling -COOH group of cysteine HCl with the -NH₂ groups of CS was confirmed using ¹H-NMR and FTIR as shown in figures 2 and 3, respectively. From the ¹H-NMR spectra, it was confirmed that cysteine was successfully grafted on the CS chain, which can be observed from the proton of the amino acid α-carbon and carbon of the side chain presented at 2.83 and 3.60 ppm, respectively. The FTIR spectra of CS and Cys-CS exhibited the band of amide carbonyl group at 1640 cm^-1. The peaks at 3389 cm^-1 is due to O–H stretching. The bands at 2890 and 1075-1034 cm^-1 correspond to C–H and C–O stretching of pyranose ring. Although the peak of thiol group in the Cys-CS could not be seen due to the small amount of cysteine attached to the CS backbone, the thiol content was quantified using Ellman’s assay to confirm successful synthesis. The thiol content of the synthesized Cys-CS was found to be 253 μmol/g.

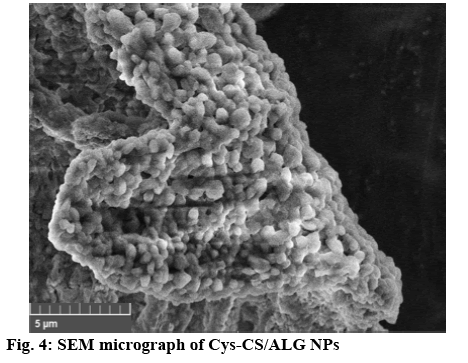

The NPs were formed through ionic gelation technique using negatively charged carboxylate functional group to interact with positively charged CS amino group at various ratios of ALG and CS. The particle size, size distribution and zeta potential of the NPs are presented in Table 1. All NPs obtained were nano-sized with positive surface charge from the amino group of CS. Considering NPs sizes, once greater ratio of CS was used to form the NPs (CS:ALG, 2:1), the blank NPs exhibited smallest particles with positive charge. Therefore, this ratio was selected to prepare the Cys-CS/ALG NPs for further investigations. The Cys- CS NPs were somewhat larger than the CS/ALG NPs at the same ratio; however, the size remained within the preferable nano-range. This may be due to the lower quantity of positively charged amines on the CS backbone due to the replacement by cysteine. This is confirmed by the lessen positive zeta potential of the Cys-Cs/ALG NPs. The FTIR spectrum of the blank Cys-CS NPs (figure 3) corresponded to the Cys-CS showing C=O amide bond characteristic at 1640 cm^-1 together with ALG characteristic of carboxylic O–H bending at 1420 cm^-1. The successful loading of curcumin into the NPs was asserted by the presence of C=O aliphatic ketone at 1705 cm^-1. The SEM image as shown in figure 4 presented the morphology of the Cys-CS/ALG NPs. It can be observed that the particles were in spherical shape, however, the hydrophilic nature of the polymers caused the particles to aggregate after the lyophilization process. However, the particles segregated after redispersion in water as proven by the narrow PDI of the particle. The DSC thermogram of curcumin, the blank NPs, and the curcumin-loaded NPs are displayed in figure 5. Curcumin showed melting temperature at 176o. The blank NPs showed no dominant thermal characteristics apart from the melting of polymer components, whereas, the curcumin-loaded NPs presented the melting temperature at lower temperature, which may be associated with the dispersion of curcumin in the NPs. The reason behind this phenomenon is due to the solid dispersion technique of increasing the solubility of an active compound after curcumin was mixed with ALG solution and transformed to amorphous state. This favours the solubility of the poorly soluble curcumin and may improve the efficacy of the formulation. Incorporation of curcumin into the NPs led to the increase in the particle size. This could be because curcumin may uniformly disperse in the NPs. Despite the increment, the obtained particle size seems to be optimal according to literatures stating the enhance permeability and retention effect of the tumour may also accumulate the NPs within the tumor[18,19]. The surface charge of the NPs became slightly negative after curcumin was loaded due to the negative charge of curcumin. The sparingly anionic surface charge would protect the formulation from membrane adsorption and cellular uptake and these are less likely to induce nonphagocytotic cell disruption. Moreover, the negative surface charge leads to prolonged circulation period and enhance accumulation of the NPs in the tumor cells[20,21].

Loading efficiency and loading capacity of the curcuminloaded Cys-CS/ALG NPs was found to be 2.80±0.18 % and 5.61±0.41 μg/mg, respectively. Drug entrapment may be resulted from the difference between the charge of the NPs (positive charge) and curcumin (negative charge) enabling a network entrapping curcumin. Factors having effect on drug loading efficacy and capacity include drug solubility, molecular weight and importantly the interaction between drug and polymer[22]. Curcumin is poorly soluble in water, which might be the cause of limited drug loading found. Although highest loading efficiency possible might be desired in drug delivery design, but in vivo pharmacokinetic study revealed that optimal drug loading may be preferential for less drug accumulation in the organs[19,23]. This study demonstrated that curcumin can be loaded onto the NPs through the entrapment method and further in vivo study would be necessary to elucidate the suitability of drug dosing.

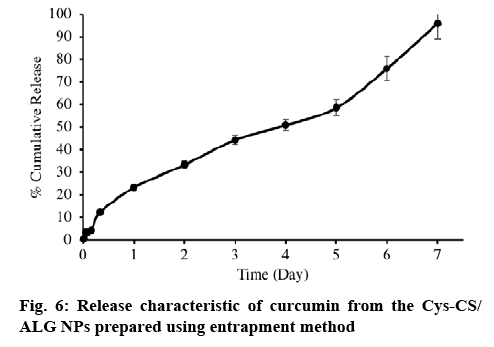

The release of curcumin form the NPs was performed in PBS pH 7.4 containing 1 % Tween 20, and the results are displayed in figure 6. As it can be seen from the results, curcumin released from the NPs in a sustain manner. Just above 90 % of the curcumin contained in the NPs release to the dissolution medium at a prolong period of 1 w.

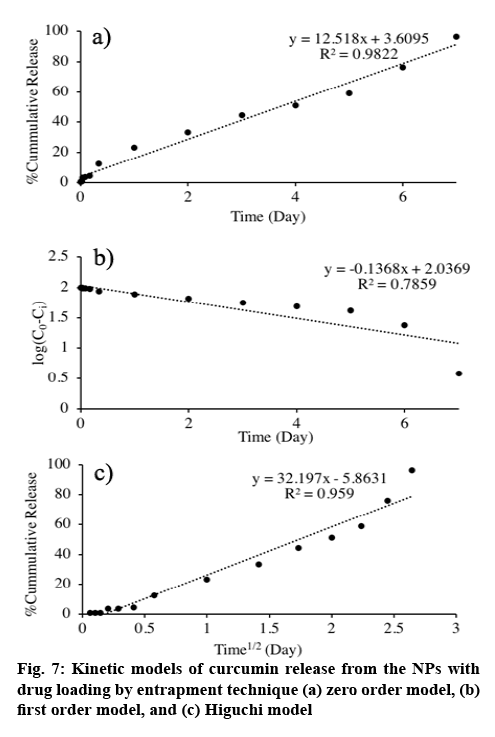

Once the drug release profile was obtained, it was fit to different release kinetic models and the findings are presented in figure 7. The release of curcumin from curcumin-loaded NPs prepared by entrapment method best fit with the zero order model with R² of 0.983, which describes the drug release from a drug delivery system containing non-swellable system with hydrophobic drug[24].

Long period, up to one week, of the drug release is desirable for cancer treatment delivery system because it would allow additional effectiveness, reduce side effects and improve patient compliance. Loading curcumin by entrapment method offered sustainable and favourable drug release, which 90.11 % of the curcumin loaded was released to the release medium in 7 d. Moreover, drug release kinetics revealed zero order. This may be a consequence of the crosslink Cys-CS/ALG resulting in the constant release of curcumin, which evenly dispersed in the NPs. Apart from that, drug solubility can be a factor affecting the release of curcumin as it is a hydrophobic compound, solubility may become the release rate-limiting step[22]. Near to the ideal kinetic model, curcumin release would minimize initial burst and prolong therapeutic efficacy[25].

Curcumin incorporated NPs was successfully prepared by ionic gelation method. The nanosized particles were obtained with slightly negative surface charge after curcumin was incorporated. Incorporation of curcumin by entrapment technique led to the increased particle size and desirable release of curcumin in acceptable range, which is best fit with the zero-order kinetic model. Therefore, the curcumin-loaded NPs prepared by entrapment method might provide a promising strategy to develop a control release drug delivery system for colorectal cancer treatment. However, the anticancer activity in vitro and in vivo should be further investigated.
