T. K. Shaikh, S. S. Shelke, I. R. Kakde, Aikaterini Lalatsa1 and R. B. Kakde*

Department of Pharmaceutical Sciences, Rashtrasant Tukadoji Maharaj Nagpur University, Nagpur, Maharashtra, 440033,India,1School of Pharmacy and Biomedical Sciences, University of Portsmouth, Portsmouth PO1 2DT, United Kingdom

*Corresponding Author:
R. B. Kakde
Department of Pharmaceutical Sciences, Rashtrasant Tukadoji Maharaj Nagpur University, Nagpur, Maharashtra, 440033,India
E-mail: drkakde@yahoo.com
Date of Received 03 May 2020
Date of Revision 09 August 2021
Date of Acceptance 01 February 2022
Indian J Pharm Sci 2022;84(1):130-136

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

DOI: 10.36468/pharmaceutical-sciences.904

Abstract

A novel, simple, accurate, precise, economical and reliable ultraviolet spectrophotometric method has been developed for the estimation of buparvaquone in bulk and in pharmaceutical dosage form. The drug shows maximum absorption at 251 nm by using acetonitrile as solvent. The method was validated as stated in International Council for Harmonisation Q2 (R1) guidelines. It obeys Beer’s law in the concentration range of 2-20 μg/ml with correlation coefficient of 0.998. The drug shows great accuracy close to 100 %. The method was found to be robust and precise as the relative standard deviation are less than 2 %. Limit of detection and limit of quantitation were found to be 0.60 μg/ml and 1.83 μg/ml respectively. From the results of specificity, the drug was found to be more degraded under alkaline, oxidative and photolytic conditions. The proposed method can be employed for the reliable quantification of buparvaquone in bulk and routine analysis of pharmaceutical formulations.

Keywords

Buparvaquone, ultraviolet method, validation, spectrophotometry

Leishmaniasis is a very complex disease which is caused by an intracellular protozoan parasite of genus Leishmania. Humans areinfected secondarily while most forms of leishmaniasis are zoonotic. It can be Cutaneous Leishmaniasis (CL) or Visceral Leishmaniasis (VL) which in turn is highly fatal if left untreated [1-3]. For the treatment of both forms of leishmaniasis, buparvaquone is used [4]. Buparvaquone, 2- [(4-tert-butylcyclohexyl) methyl]-3-hydroxynaphthalene-1,4-dione (fig. 1), is a second-generation hydroxynaphthoquinone drug which resembles structurally with antiprotozoan drug, parvaquone and atovaquone [5].

IJPS-buparvaquone

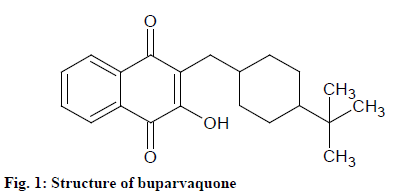

Fig. 1: Structure of buparvaquone

Initially it was developed as an antimalarial drug [6] and is currently the most promising compound for the treatment of theileriosis [7,8]. It was found to be 20 times more active than parvaquone in case of Theileria parva infection also known as East coast fever [9]. Buparvaquone is poorly soluble in water having solubility less than 1 mg/l making drug highly lipophilic. Therefore, it is also poorly soluble in various biological media like gastric fluids. Thus, buparvaquone have less oral bioavailability [10]. These problems have led the way to the synthesis of water-soluble phosphate prodrugs of buparvaquone having water solubility higher than 3.5 μg/ml within the pH range of 3.0-7.4 [11-13].

Literature survey discloses that there are specific techniques available for the estimation of buparvaquone like Reverse Phase High Performance Liquid Chromatography (RP-HPLC) method, bioanalytical method and spectrofluorimetric method [14-16]. The current study was designed to develop a cheap, novel accurate and precise Ultraviolet (UV) method [17] for the estimation of buparvaquone in bulk and in pharmaceutical preparation.

Materials and Methods

Buparvaquone active pharmaceutical ingredient has been obtained as a gift sample from Dr. Lalatsa lab, University of Portsmouth, United Kingdom. Pharmaceutical formulation in the form of tablets (buparvaquone 100 mg) was purchased from the local market manufactured by Vet Biochem India Pvt. Ltd, Pune, Maharashtra, India. All the solvents used were of HPLC grade and reagents were of Analytical Reagent (AR) grade.

Preparation of standard solution:

10 mg of buparvaquone was weighed accurately and dissolved in a small quantity of acetonitrile and the final volume was made up to 10 ml with the same. It was sonicated for 15 min to get a clear solution (concentration 1000 μg/ml). 1 ml from the above solution was taken out and diluted up to 100 ml to achieve the final concentration of 10 μg/ml.

Preparation of sample solution:

For sample preparation, acetonitrile was used as a solvent for extraction and dilution. 20 tablets of buparvaquone were weighed and finely pulverized. An accurately weighed powder of tablet equivalent to 10 mg of buparvaquone (40.58 mg) was transferred into a 10 ml volumetric flask. About 5 ml of acetonitrile was added and the mixture was sonicated for 15 min. The solution was allowed to cool at room temperature and then diluted with acetonitrile until it reaches the mark (stock solution 1000 μg/ml). The above solution is then filtered through Whatman filter paper having grade I. 1 ml of the filtrate was moved to a 100 ml volumetric flask and the volume was made up to the mark using acetonitrile to obtain a concentration of 10 μg/ml.

Preparation of forced degradation samples for specificity:

Acid degradation: 1 ml of the standard stock solution was diluted up to 10 ml with 2 N Hydrochloric Acid (HCl). This solution is heated under reflux for 18 h. 1 ml from the above-heated solution was neutralized with 2 N Sodium Hydroxide (NaOH) and again diluted with acetonitrile to achieve a concentration of 10 μg/ml. Then the absorbance of the resulted sample was taken at 251 nm and Percentage Drug Estimation (% DE) was calculated.

Alkaline degradation: From the prepared standard stock solution 1 ml was diluted up to 10 ml with 1 N NaOH. This solution is heated under reflux for 8 h. 1 ml from the above-heated solution was neutralized with 1 N HCl and then again diluted with acetonitrile to achieve the final concentration, which is 10 μg/ml. The absorbance of final concentration was taken at 251 nm and % DE was calculated.

Oxidative degradation: 1 ml from the previously prepared standard stock solution was diluted up to 10 ml with 30 % Hydrogen Peroxide (H2O2). The mixture was placed at room temperature for 24 h. And to achieve the concentration of 10 μg/ml, 1 ml from the resultant solution was diluted using acetonitrile. Then the absorbance was taken using acetonitrile as blank at 251 nm and % DE was calculated.

Neutral hydrolysis: 1 ml from the standard stock solution of 1000 μg/ml was diluted up to 10 ml with water. The mixture was refluxed on a water bath for 24 h. 1 ml from the resultant solution was diluted by using acetonitrile to achieve the final concentration. Then the absorbance was taken at 251 nm and % DE was calculated.

Thermal degradation: An accurately weighed 10 mg of buparvaquone was kept in an oven at 80 for 4 h. After 4 h, the resultant sample was solubilized in 10 ml acetonitrile to obtain a concentration of 1000 μg/ ml. 1 ml from it was again diluted up to 100 ml with acetonitrile in order to gain required concentration of 10 μg/ml. The absorbance of final concentration was taken at 251 nm using acetonitrile as blank and % DE was calculated.

Photolytic degradation: 10 mg of buparvaquone was weighed accurately and kept in sunlight for 15 d. After 15 d, the resultant sample was diluted by using 10 ml acetonitrile to obtain a concentration of 1000 μg/ml. 1 ml from it was then again diluted using acetonitrile up to 100 ml to achieve the final concentration of 10 μg/ ml. Then the absorbance was taken at 251 nm and % DE was calculated.

Characterization of buparvaquone:

Liquid Chromatography-Mass Spectroscopy (LCMS) data: Sample solution of buparvaquone when subjected to LC-MS gives a molecular ion peak at massto- charge (m/z) of 326.37 as shown in fig. 2. It gives us idea regarding the molecular mass of buparvaquone. The theoretical mass is 326 g/mol which is close to the m/z value.

IJPS-shows

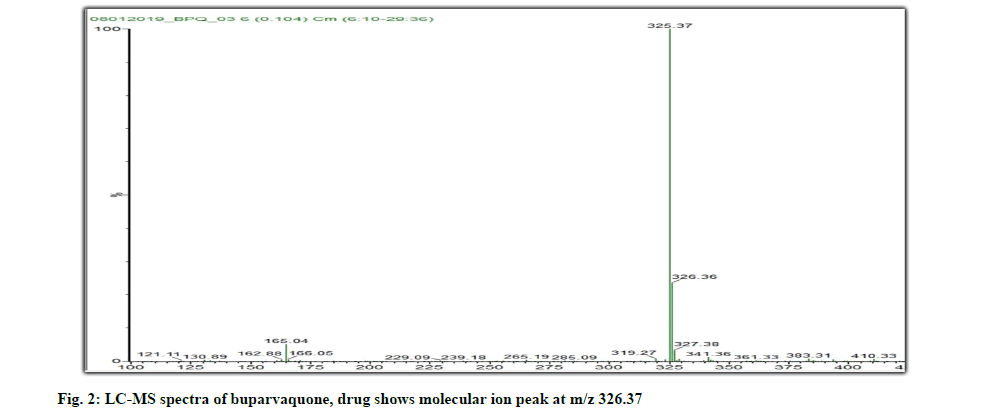

Fig. 2: LC-MS spectra of buparvaquone, drug shows molecular ion peak at m/z 326.37

Infrared Spectroscopy (IR) data: Powder of buparvaquone when mixed with Potassium Bromide (KBr) and subjected to IR spectrometer gives various absorption bands in cm-1 like 3360 (OH stretch), 1662 (C=O stretch), 1373 (Ar C=C stretch), 3070 (Ar C-H stretch), 1734 (cyclic 6 membered stretch) as shown in fig. 3.

IJPS-spectra

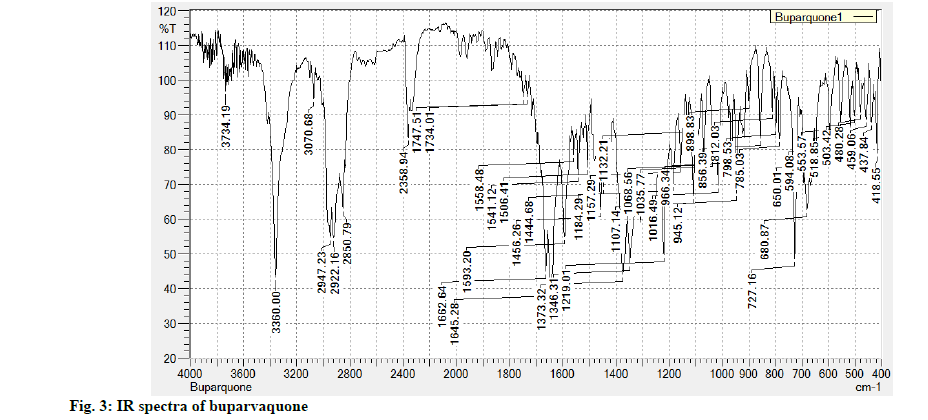

Fig. 3: IR spectra of buparvaquone

Determination of working wavelength:

Standard solution was scanned in UV range (400-200 nm) in 1.0 cm quartz cell against solvent blank. The wavelength of maximum absorbance (λmax) was found to be at 251 nm which was used in further study. The UV absorption spectrum of the drug is depicted in fig. 4.

IJPS-peak

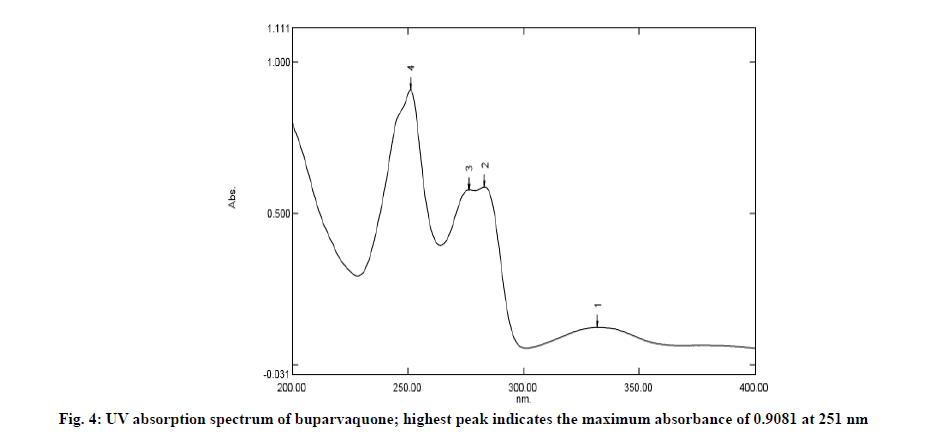

Fig. 4: UV absorption spectrum of buparvaquone; highest peak indicates the maximum absorbance of 0.9081 at 251 nm

Results and Discussion

Estimation of buparvaquone in marketed formulation was shown below. The absorbance of final concentration of sample solution was measured in 1.0 cm matched pair quartz cell at 251 nm against solvent blank. Also the absorbance of standard solution is taken. 6 such replicate estimations were performed. The content of buparvaquone was calculated using direct comparison method by the following formula.

% Estimation=Asample×Concentrationstandard×DF×Avg. wt./Astandard×Weight taken×LC

Where, Asample is absorbance of sample; Concentrationstandard is concentration of standard; DF is dilution factor; Avg. wt. is average weight of tablets;Astandard is absorbance of standard; Weight taken is weight of tablet powder taken; LC is Labelled Claim.

Drug content in marketed formulation was found to be 100.03 % and the results are shown in Table 1.

Buparvaquone tablet (Average weight, 405.83 mg for 100 mg of buparvaquone)
S. No. Weight taken (mg) Standard concentration (µg/ml) Absorbance at 251 nm % DE
Standard Sample
1
2
3
4
5
6 		40.5
40.5
40.6
40.5
40.6
40.6 		10.00
10.00
10.00
10.00
10.00
10.00 		0.9081
0.9081
0.9083
0.9081
0.9082
0.9082 		0.9076
0.9078
0.9075
0.9078
0.9079
0.9078 		100.14
100.17
99.87
100.17
99.92
99.91
Mean
±SD
% RSD		 100.03
0.1445
0.1444

Table 1: Results For Estimation of Buparvaquone in Marketed Formulation

Validation of the method was carried out as stated in International Council for Harmonisation (ICH) guidelines. The parameters which were evaluated are linearity, precision, robustness, accuracy, specificity, Limit of Detection (LOD) and Limit of Quantitation (LOQ).

An accurately measured standard stock solution B was diluted with acetonitrile to get the concentration range 2 μg/ml to 20 μg/ml. The absorbance of each of the solution was measured at 251 nm against blank which was prepared in same way as the final dilution. The graph of concentration versus absorbance was plotted and slope, Y-intercept and correlation coefficient (R2) was calculated. From the calibration curve (shown in fig. 5), it was found that the method is linear within the concentration ranging from 2-20 μg/ml having a correlation coefficient of 0.998. The results are summarized in Table 2.

Parameters Result
Linear dynamic range (µg/ml) 2-20
Slope 0.0908
Intercept 0.0875
Correlation coefficient (R2) 0.998

Table 2: Results For Linearity of Method

IJPS-graph

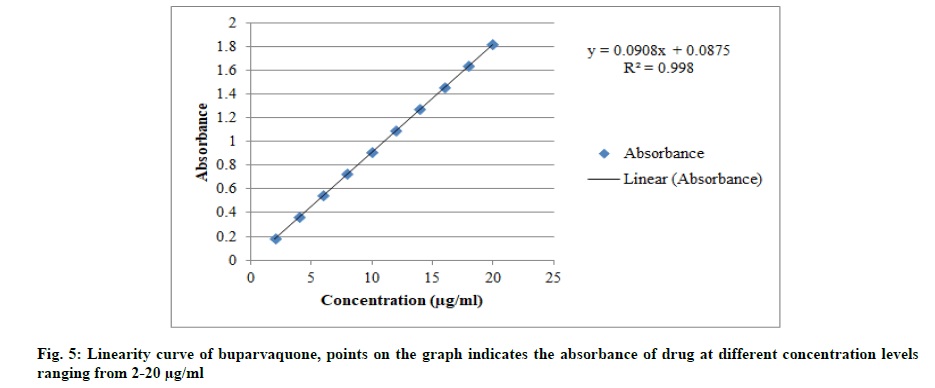

Fig. 5: Linearity curve of buparvaquone, points on the graph indicates the absorbance of drug at different concentration levels ranging from 2-20 μg/ml

Accuracy of the method was confirmed on the basis of recovery studies carried out by using the standard addition method at three different levels of the labeled claim (80 %, 100 % and 120 % w/w). In the solution of accurately weighed pre analyzed powder, standard drug was added and absorbance of final solutions was measured in 1 cm cell at 251 nm against solvent blank. Then percent (%) recovery was calculated. % recovery near 100 % represents the accuracy of the method. Results are shown in Table 3.

Buparvaquone tablets (Average weight, 405.83 mg for 100 mg of buparvaquone)
S. No. Weight of tablet powder taken (mg)+Amount of pure drug added (mg) Standard concentration (µg/ml) Total drug present (mg) Total drug found (mg) % Recovery
1.
2.
3.		 41.6+8
41.5+10
41.7+12		 10
10
10		 18
20
22		 17.93
19.58
21.82		 99.64*
97.94*
99.18*
Mean
±SD
% RSD		 98.93
0.8817
0.8901

Table 3: Results For Accuracy Studies of Buparvaquone

Precision of any analytical method is expressed as Standard Deviation (SD) and Relative Standard Deviation (% RSD) of series of measurements. Intraday was done by taking the absorbance of six samples three times in a single day while interday was done by taking the absorbance of six samples on three different days. Precision by different analyst or ruggedness was done by taking absorbance of six samples using three different analysts. Table 4 represents the result of precision done on interday, intraday and using different analyst. All the values are under permissible limits.

  S. No. % DE
Interday* Intraday* Different analyst*
1
2
3 		99.73
98.69
98.87 		99.33
98.51
99.53 		99.51
99.46
99.62
Mean
±SD
% RSD		 99.09
0.5558
0.5608 		99.12
0.5404
0.5452 		99.53
0.0818
0.0822

Table 4: Results For Precision Studies Of Buparvaquone

The robustness of the proposed method was studied by making small alterations in wavelength (±2 nm) and taking absorbance of six such replicates. The values were recorded as SD and % RSD and the proposed method was found to be robust by changing its wavelength and the results are shown in Table 5.

S. No. Wavelength (±2 nm) % DE
1.
2.
3.		 249
251
253		 100.13*
99.47*
99.73*
Mean
±SD
% RSD		 99.77
0.3322
0.3333

Table 5: Results For Robustness of Method

LOD and LOQ determination were done with method based on SD of the response and the slope of calibration curve. LOD was found to be 0.60 μg/ml by using the formula, 3.3 σ/S and LOQ was found to be 1.83 μg/ml by employing the formula 10 σ/S where σ is the SD and S is the slope.

Specificity of the method was done by using forced degradation studies. Buparvaquone was subjected to various stress conditions and then the absorbance was taken. From the results of specificity shown in Table 6, it was clearly seen that the drug gets more degraded under alkaline, oxidative and photolytic conditions.

  Acid Base Neutral Oxidative Thermal Photolytic
Stressor concentration 2 N HCl 1 N NaOH H2O 30 % H2O2 Hot air oven Sunlight
Duration Reflux, 18 h Reflux, 8 h Reflux, 24 h RT, 24 h 80°, 4 h 15 d
% of active buparvaquone 97.60 82.64 95.72 88.49 97.07 91.21

Table 6: Results For Specificity of Method

In the current investigation, novel analytical method was developed by using UV spectrophotometer and it was found to be simple, accurate, precise and inexpensive. Characterization of buparvaquone was done by using IR and LC-MS. The proposed method was validated according to ICH Q2 (R1) guidelines and satisfactory results are obtained. The method was found suitable for the routine analysis of buparvaquone in bulk and in pharmaceutical preparation. Low cost of reagents, high accuracy and precision, speed and easy sample treatment are the advantages of this method.

Acknowledgements:

The authors are thankful to Department of Pharmaceutical Sciences, Rashtrasant Tukadoji Maharaj Nagpur University, Nagpur for providing the facilities to carry out the research work and also thankful to School of Pharmacy and Biomedical Sciences, University of Portsmouth for providing Active Pharmaceutical Ingredient (API) of buparvaquone required for estimation.

Conflict of interests:

The authors declared no conflict of interest.
