Development of Liquisolid Tablets of Chlorpromazine using 3² Full Factorial Design

*Corresponding Author:

H. Patel
Maliba Pharmacy College, Uka Tarsadia University, Gopal Vidyanagar, Maliba campus, Surat-394 350, India
E-mail: hetalppatel1986@gmail.com

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

The major problem with chlorpromazine, a BCS Class II drug, is erratic absorption from GIT, limited aqueous solubility, poor dissolution, and poor bioavailability. The present work is aimed to investigate the use of the liquisolid technique to improve the dissolution of chlorpromazine in a tablet dosage form. The liquisolid tablets were formulated using polyethylene glycol 400 as a liquid vehicle, Avicel PH 200 as a carrier material, Neusilin US2 as a coating material and sodium starch glycolate as a superdisintegrant. The new mathematical model and 3² full factorial design were utilized to formulate various liquisolid tablets. The carrier:coating ratio (X1) and drug concentration (% w/v) in polyethylene glycol 400 (X2) were selected as independent variables whereas, percent cumulative drug release at 30 min (Y1) and disintegration time (Y2) were selected as dependent variables. The results of the evaluation parameters of liquisolid tablets were compared with directly compressed tablet and marketed tablet of chlorpromazine. The optimized tablets with liquisolid compact exhibited acceptable flow properties, weight uniformity, drug content, hardness, friability, and disintegration. Liquisolid tablets showed a higher dissolution rate as compared to a directly compressed tablet and marketed tablet. From the study, it may be concluded that the liquisolid technique is a promising alternative for improving the dissolution property of water-insoluble drugs.

Keywords

Carrier:coating ratio, liquisolid tablet, polyethylene glycol 400, liquid load factor

Tablets are the most commonly prescribed pharmaceutical dosage form due to advantages like ease of manufacture and administration, dosage uniformity and stability compared to liquid and semisolid preparations. The direct compression method is more preferable for tablet manufacturing method due to several advantages over wet granulation and dry granulation. Fewer steps in the manufacturing process, lower labor cost, reduced processing time, higher stability of hygroscopic and thermo-sensitive drugs, optimum tablet disaggregation and less microbiological contamination are more striking features of the direct compression method. However, the direct compression process is strongly influenced by the properties of the pre-compression powder blend, such as flowability, compactibility and dilution potential[1-3].

More than 40 % of new chemical entities (NCEs) developed in the pharmaceutical industry are practically insoluble in water. It has been well understood that solubility, dissolution and gastrointestinal permeability are fundamental parameters that control rate and extent of drug absorption and its bioavailability. BCS class II drugs are poorly water-soluble but highly permeable. Dissolution is the rate-limiting step for in vivo absorption. Many approaches were reported for improving solubility of poorly soluble drugs, which have limited in vivo bioavailability owing to low dissolution rate in the gastrointestinal fluids following oral administration. The techniques are chosen based on certain aspects such as properties of the drug under consideration, nature of excipients to be selected, and the nature of the intended dosage form[4-6].

Liquisolid technology is very efficient in the dissolution rate enhancement of BCS class II drugs. It is also known as the powder solution technology. The basic concept involved in the liquisolid technology is the use of liquid lipophilic or water-insoluble solid drugs dissolved in non-volatile solvent and conversion of this liquid into free-flowing, non-adherent, dry-looking and readily compressible powders with the use of different carrier and coating materials. Owing to the presence of the drug in the form of a liquid, it is in either a solubilized or a molecularly dispersed state. This can provide increased wetting and surface area for dissolution[7,8]. Dissolution rate of prednisolone[9], famotidine[10], valsartan[11], ketoprofen[12], raloxifene hydrochloride[13], clonazepam[14] and clofibrate[15] were enhanced by liquisolid technique.

Chlorpromazine, (3-[(2-chloro-10H-phenothiazine- 10yl)propyl]dimethylamine), acts as an antagonist at dopamine (D2) receptors to produce the positive symptoms of schizophrenia, which are associated with hyperdopaminergic neurotransmission in the brain[16]. It is a BCS II drug having high permeability and low solubility[17]. The present study aimed to enhance the dissolution rate of chlorpromazine from tablets using the liquisolid technique. The liquisolid tablets were formulated using polyethylene glycol (PEG) 400, as a liquid vehicle, Avicel PH 200 as a carrier material, Neusilin US2 as a coating material and sodium starch glycolate as a superdisintegrant[8]. A new mathematical model and 3² full factorial design were utilized to formulate various liquisolid tablets. The performance of liquisolid tablets was compared with the conventionally prepared directly compressed tablet and marketed tablet of chlorpromazine.

Materials and Methods

Chlorpromazine was purchased from Balaji drugs, Surat, India. Microcrystalline cellulose PH 200 was purchased from Signet, Mumbai, India. Neusilin US2 was a gift from Gangwal Chemicals Pvt. Ltd, Mumbai, India. PEG 400, propylene glycol (PG), Span 80, Tween 80 were purchased from Suvidhinath Laboratories, Baroda, India. Lactose anhydrous was purchased from DFE Pharma, Germany. Sodium starch glycolate, magnesium stearate, and talc were purchased from S. D. Fine Chem Products, Mumbai, India.

Solubility study of chlorpromazine in non-volatile solvents:

The saturated solubility of chlorpromazine in nonvolatile solvents like PG, PEG 400, PEG 600 and Tween 20 were determined using the shake flask method[18].

Mathematical calculation of carrier and coating material:

The liquid load factor for PEG 400 liquisolid system was calculated from flowable liquid retention potential and compressible liquid retention potential using R-value. Eqns. 1, 2 and 3 were used to calculate the quantity of carrier and coating material in the formulation batches (Table 1). In the present study, PEG 400, Avicel pH 200 and Neusilin US2 were selected as the nonvolatile solvent, carrier material, and coating material, respectively. Flowable liquid-retention potential for Avicel pH 200 and Neusilin US2 was 0.02 and 2.44, respectively[19]. Eqn. 1, L_f = Φ_Avicel+Φ_Neusilin(1/R) , where, L_f is the liquid load factor, Φ_Avicel represented the liquid retention potential of Avicel pH 200 in PEG 400, Φ_Neusilin is the liquid retention potential of Neusilin US2 in PEG 400. Eqn. 2, L_f = W/Q, where, W is the weight of liquid medication and Q is the weight of carrier material. Eqn. 3, R = Q/q, where, q is the weight of coating material and R is the ratio of carrier to the coating material.

Table 1: Formulation of liquisolid tablets

Formulation and evaluation of chlorpromazine liquisolid tablets:

Calculated quantities of chlorpromazine and PEG 400 (Table 1) were accurately weighed in a 20-ml glass beaker and sonicated at controlled temperature (80 to 90°) until a homogenous solution was obtained. The appropriate amounts of carrier and coating materials used for each formulation depend upon L_f of that formulation. A mixture of Avicel pH 200 and Neusilin US2 was added to the above liquid medication under continuous mixing in a mortar. Sodium starch glycolate was added to the above binary mixture and mixed for a period of 10 to 20 min. Talc and magnesium stearate was added to the mixture and mixed for 2 min. The resulting liquisolid material was evaluated for flowability and compressibility. The liquisolid mixture was compressed into a tablet using 8 mm punch and die set in a tablet compression machine. The liquisolid tablets were evaluated for appearance, weight variation, hardness, friability, disintegration time, content uniformity and drug release[20].

Experimental design:

A 2-factor, 3-level (3² factorial) design was used to statistically optimize the formulation parameters and evaluate main effects, interaction effects and quadratic effects of the formulation ingredients on disintegration time and in vitro release of formulations. The nonlinear computer-generated quadratic model is given as Eqn. 4, Y = b₀+b₁X₁+b₂X₂+b₁₂X₁X₂+b₁₁X₁²+b₂₂X₂², where, Y is the measured response associated with each factor level combination; b₀ is an intercept; b₁ to b₂₂ are regression coefficients computed from the observed experimental values of Y, and X₁ and X₂ are the coded levels of independent variables. The terms X₁X₂ and Xi² (i = 1, and 2) represent the interaction and quadratic terms, respectively[21]. The dependent and independent variables selected are shown in Table 2 along with their low, medium and high levels. Response analysis was evaluated by Design-Expert software. The levels were selected based on a literature survey and preliminary trials. A design matrix comprising of 9 experimental runs was constructed as shown in Table 3.

Table 2: Independent and Dependent variables for the selected design

Table 3: 3² full factorial design matrix with interaction terms Batches

Optimization data analysis and optimization model: The aim of pharmaceutical formulation development is to develop an acceptable formulation in the shortest period of time using minimum trials. A very efficient way to enhance the value of research and to minimize the process development time is through the design of the experiment. So for optimization of liquisolid tablets of chlorpromazine, grid searches were conducted to find the composition of optimized formulations. Various 2D and 3D response surface graphs were provided by the Design-Expert software. By intensive grid search performed over the whole experimental region, an optimum formulation was selected which satisfies the desired criteria for liquisolid formulation[22].

Formulation, evaluation and stability of chlorpromazine liquisolid tablets:

A conventional formulation of chlorpromazine was directly compressed into cylindrical tablets, each containing 10 mg chlorpromazine, Avicel PH 200, Neusilin US2, sodium starch glycolate, talc and magnesium stearate[23]. The resulting blend was evaluated for flowability and compressibility. The blend was compressed using 8 mm punch and die set in a compression machine and tablets were evaluated for appearance, weight variation, hardness, friability, disintegration time, content uniformity and drug release. Stability studies of optimized liquisolid tablets (OLS) were conducted as per ICH guidelines[24].

Results and Discussion

The saturated solubility of chlorpromazine drug powder in different solvents is reported in Table 4. The solubility of chlorpromazine in water was found to be 1.478±0.025 mg/ml, which indicated a slightly soluble category of the drug as per the solubility expressions reported in Indian Pharmacopoeia. Chlorpromazine exhibited the highest solubility in PEG 400 than other solvents hence PEG 400 was selected as a nonvolatile solvent for further study. This may be due to the lipophilic nature of the drug. The solubility of the drug is an important physicochemical property as the drug must dissolve in order to be absorbed through membranes and reach the site of action. Solubility governs the drug bioavailability, that is, the ability of a drug to be available in an appropriate concentration at the site of action, independently of the pharmaceutical dosage form and route of administration[25].

Table 4: Saturated solubility study in solvents

Precompression evaluation of liquisolid formulations (CH1 to CH9), the angle of repose, Carr’s index and Hausner’s ratio of all the liquisolid formulations were found to be in the range of 33.86 to 35.33°, 19.14 to 24.00 % and 1.23 to 1.31, respectively which showed good flowability and compressibility.

Post compression evaluation of liquisolid formulations showed that tablets of all batches (CH₁ to CH₉) were white, flat and without any physical defect. The prepared tablets showed acceptable pharmacotechnical properties (Table 5). For batches CH₁ to CH₉, hardness values were found to be in the range of 3.0±0.10 to 4.0±0.076 kg/cm². Friability values of all formulations were less than 1 % w/w. All formulations were found to be within USP 32 NF 27 limits as per weight variation test and assay (Table 5). Disintegration time was ranging between 46.33±5.30 to 113.66± 8.14 s. Avicel and sodium starch glycolate accelerated the disintegration of liquisolid compacts and improved the dissolution of the drug. Batch CH7 showed less disintegration time it had more amount (55 %) of non-volatile oil. In vitro drug release profile of all the liquisolid formulations are shown in figure 1. The release patterns of all batches showed fast dissolution during the first 30 min. All batches showed more than 80 % dissolution in 30 min. Only batch CH9 showed slow release in 30 min. The enhancement in the dissolution rate of chlorpromazine from liquisolid formulation can be increased due to several factors, lack of crystallinity, increased surface area of drug available for release, increased aqueous solubility of chlorpromazine and an improved wettability of chlortpromazine particles. During dissolution studies, the immediate sinking of the particles was noted.

Table 5: Post compression evaluation of liquisolid tablets

Fitting data to a model was achieved using a twofactor, three-level full factorial statistical experimental design as the response surface method, which required 9 experiments. All responses observed for 9 formulations (Table 6) prepared were simultaneously fitted to the quadratic model using Design-Expert software.

Table 6: Design layout with respective observed mean responses

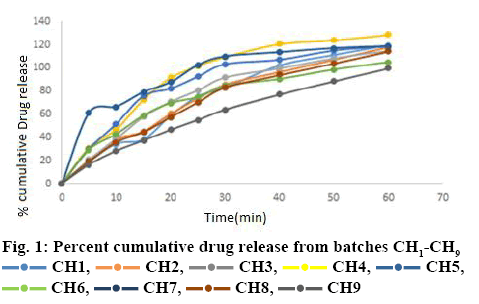

Data analysis of Y₁, drug release at 30 min showed that the observed value for all the 9 batches CH₁ to CH₉ varied from 64.00 to 109.79 % (Table 6). The result indicated that Y₁ is strongly affected by the independent variables selected for the study. The response (Y₁) obtained at various levels of two independent variables were subjected to multiple regression to give a quadratic polynomial Eqn. 5, Y₁ = 99.16-10.325X₁-0.528X₂-13.682X₁X₂-0.325X₁²-12.755X₂².

The above equation reflected the wide range of values for various coefficients (b). These two variables X₁ (p<0.05) and X₂ (p<0.05) were found to be significant in affecting Y₁. The negative coefficient value for independent variable X₁ (-10.325) indicated the negative effect on the dependent variable Y₁, decreased carrier:coating ratio lead to an increase in drug release. Negative coefficient value for X₂ (-0.528) indicates the negative effect on drug release, i.e. decreased drug concentration in PEG 400 leads to an increase in drug release. X₂ has the prominent effect on response. The model was significant at 5 % confidence level since p-value was 0.0163 (<0.05). The R² value was found to be 0.9710. For all the models, the predicted R² value is in reasonable agreement with the adjusted R² value. Adequate precision (AP) was 14.240. AP values higher than 4 for all the responses confirm that all predicted models can be used to navigate the design space defined by the full factorial design. The coefficient of variance (CV) as the ratio of the standard error of the estimate to the mean value of the observed response defines reproducibility of the model. A model normally can be considered reproducible if its % CV is not greater than 10 %. The % CV was found to be 4.57.

Data analysis of Y₂ that is disintegration time showed that the observed value of disintegration time for all the 9 batches CH₁ to CH₉ varied from 46.33 to 113.66 s. The result indicated that Y₂ is strongly affected by the independent variables selected for the study. The response (Y₂) obtained at various levels of two independent variables were subjected to multiple regression to give a quadratic polynomial Eqn. 6, Y₂ = 72.33+15.388X₁-14.888X₂-9.332X₁X₂-3.168X₁²+1.331X₂².

The above equation reflects the wide range of values of various coefficients (b). These two variables X₁ (p<0.05) and X₂ (p<0.05) were found to be significant in affecting Y₂. The positive coefficient value for independent variable X₁ (15.388) indicated a positive effect on the dependent variable Y₂, increased carrier:coating ratio lead to increase in disintegration time. Negative coefficient value for independent variable X₂ (-14.888) indicated the negative effect on the dependent variable Y₂. As decreased carrier:coating ratio led to an increase in the disintegration time. Both X₁ and X₂ almost have an equal effect on response. The model was significant at 5 % confidence level since p-value was 0.0393 (<0.05). The R₂ value was found to be 0.9472. For all the models, the predicted R₂ value is in reasonable agreement with the adjusted R₂ value. AP was found to be 9.732. AP values higher than 4 for all the responses confirmed that all predicted models can be used to navigate the design space defined by the full factorial design. The % CV was found to be 10.72, which means the model cannot be considered reproducible.

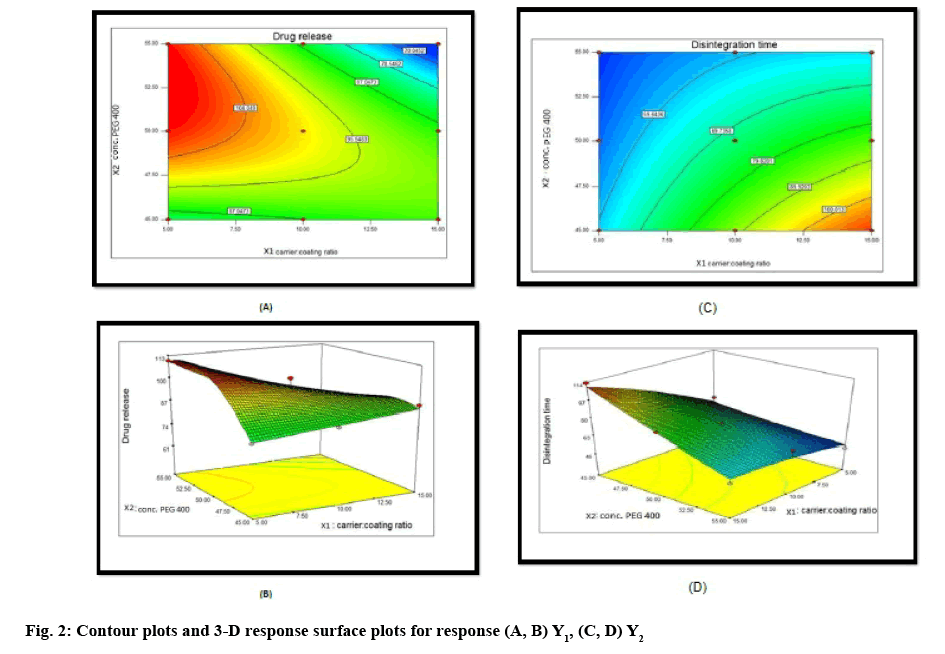

Two-dimensional contour plots and 3-D response surface plots for variables Y₁ and Y₂ are shown in figure 2A-D, respectively. Drug release increased from 64 to 109.79 % with the increasing amount of drug concentration in PEG 400 and increasing carrier:coating ratio. Disintegration time decreased from 113.66 to 46.33 s with the increasing amount of drug concentration in PEG 400 and increasing carrier:coating ratio. All the relationships among the two variables are nonlinear, as shown in the following contour and 3D plots.

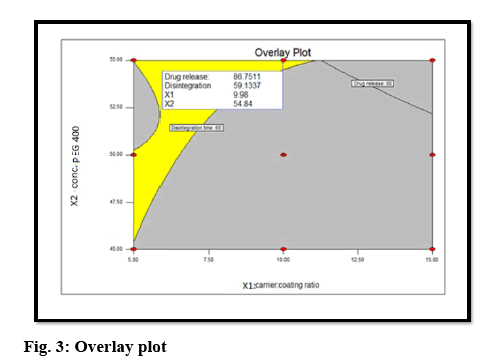

The optimal formulation was selected based on the criteria of attaining the constraints of variables response (drug release after 30 min (Y₁): >80 % and disintegration time (Y₂): <5 min). Upon trading of various response variables and comprehensive evaluation of feasibility search and exhaustive grid search, the formulation composition with concentration of drug in PEG 400 (54.84 %) and carrier:coating ratio (9.98) were found to fulfill the desired responses those are optimum drug release after 30 min with good disintegration time (figure 3). The results of the precompression evaluation parameters of the OLS and directly compressible tablets (DCT) are shown in Table 7.

Table 7: Comparison of pre-compression evaluation of OLS and DCT

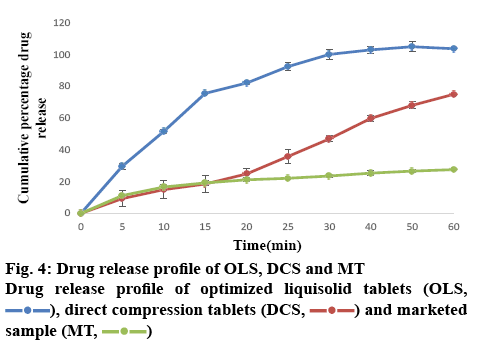

The results of the post-compression evaluation parameters of OLS, DCT and marketed tablet (Chlorpromazine 10) are shown in Table 8. The OLS could enhance drug release by more than 80 % in 30 min. The dissolution rate of OLS was higher than DCT and the marketed tablet of chlorpromazine (figure 4). This indicated that the liquisolid technique enhanced the in vitro dissolution of chlorpromazine. The study showed that liquisolid technique could be a promising strategy in improving the dissolution rate of poorly watersoluble drugs and formulating immediate release solid dosage form, which may increase the bioavailability of chlorpromazine in the systemic circulation. The OLS prepared using Avicel PH 200 as carrier material and Neusilin US2 as the coating material and PEG 400 as the non-volatile solvent is effective to enhance the drug dissolution rate with acceptable flow and compression characteristics. According to the result of 32 full factorial design, it could be concluded that as drug concentration in PEG 400 decreases and carrier:coating ratio increases drug release was increased. Thus, the liquisolid approach can also be utilized for other BCS class II drugs where dissolution is the rate-limiting step in their absorption.

Table 8: Post compression evaluation of OLS, DCT and marketed tablets

Acknowledgements:

The authors thank Gangwal chemicals Pvt. Ltd, Mumbai for providing a gift sample of Neusilin US2 for the present research work.

Conflict of interest:

There is no conflict of interest.

Financial support and sponsorship:

Nil.
