*Corresponding Author:
P. Graidist
The Excellence Research Laboratory of Cancer Molecular Biology, Prince of Songkla University, Songkhla, 90110, Thailand
E-mail:
[email protected]
Date of Received 23 October 2020
Date of Revised 04 January 2021
Date of Acceptance 17 March 2021
Indian J Pharm Sci 2021;83(2):238-251

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

This study aims to investigate the cytotoxicity of Andrographis paniculata, Ziziphus spina-christi and Gymnanthemum extensum crude extracts and their combination with low piperine fractional Piper nigrum extract. All plants were extracted with water and five organic solvents (methanol, ethanol, dichloromethane, ethyl acetate and hexane). Cytotoxicity was assessed by 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide assay on three cancer types (breast, colorectal and ovarian cancers) and two non-cancerous cells. The combination among extracts with low piperine fractional Piper nigrum extract was separately conducted in several tests including cytotoxicity, apoptosis and multi caspase activity. We found that, the dichloromethane crude extract of Andrographis paniculata, Ziziphus spina-christi and Gymnanthemum extensum exhibited the strongest cytotoxicity on colorectal cancer cells SW-620 (7.49±0.04 µg. ml-1), breast cancer cells Michigan Cancer Foundation-7 (13.35±0.30 µg. ml-1) and ovarian cancer cells A2780 (15.58±1.81 µg. ml-1), respectively. Gas chromatography mass spectrometry study of dichloromethane crude extract of Andrographis paniculata, Ziziphus spina-christi and Gymnanthemum extensum identified major compounds including 1-heptatriacotanol (60.29 %) and palmitic acid (26.92 % for dichloromethane crude extract of Ziziphus spina-christi and 21.40 % for dichloromethane crude extract of Gymnanthemum extensum), respectively. The combination of dichloromethane crude extract of Ziziphus spina-christi and low piperine fractional Piper nigrum extract at ratio IC50:0.5IC50 showed a moderate synergistic effect on Michigan Cancer Foundation-7 cells. Interestingly, the mixture of dichloromethane crude extract of Gymnanthemum extensum with low piperine fractional Piper nigrum extract at ratio IC50:IC50, 0.5 IC50:IC50 and IC50:0.5 IC50 exhibited a synergistic effect on Michigan Cancer Foundation-7 cells. Moreover, combination of dichloromethane crude extract of Gymnanthemum extensum with low piperine fractional Piper nigrum extract induced the apoptosis and multi caspase activity in a time dependent manner. In conclusion, dichloromethane crude extract of Andrographis paniculata, Ziziphus spina-christi and Gymnanthemum extensum displayed potent anticancer activities and the combination of dichloromethane crude extract of Gymnanthemum extensum with low piperine fractional Piper nigrum extract can be a promising regimen for an alternative cancer treatment

Keywords

Apoptosis, combination, dichloromethane, Gymnanthemum extensum, Piper nigrum

Introduction

The Global Cancer Observatory (GLOBOCAN) estimated more than 9 million death cases worldwide owing to cancer. Predictably, it would threaten people worldwide as 17 million cancer deaths per year in 2030 [1]. Breast and colorectal cancer are the top three in death rates worldwide [2]. Moreover, ovarian cancer is the deadliest cancer type besides breast and colorectal cancers and causes over 50 % of the death rate [3]. Now a days, several therapies to remedy cancers have been harnessed by clinicians such as surgery, radiotherapy and chemotherapy. Indeed, chemotherapy has been acknowledged as the most commonly used therapy. Otherwise, chemotherapy somehow might lead to being ineffective therapy due to drug resistance and cancer recurrence [4].

To date, over 3000 plant species have been revealed their potency as an anticancer agent [5]. Andrographis paniculata (Acanthaceae) is a shrub plant grown annually and distributed to tropical and subtropical Asia and also Southeast Asia [6]. Ziziphus spina-christi (Rhamnaceae) is an endemic plant of the middle east and distributed from Saharan Oases to West Africa [7]. Gymnanthemum extensum (Asteraceae) is a bitter leaf tree distributed to Northeastern Thailand [8]. Previously, A. paniculata, Z. spina-christi and G. extensum leaves showed high cytotoxicity on several cancer cells, indicated by half-maximal inhibitory concentration (IC50) lower than 20 µg/m

The methanolic crude extract of A. paniculata leaves exhibited a strong cytotoxicity effect on nasopharynx (KB) and leukemic (P388) cells [9] and colorectal cancer cells [10]. In addition, ethanolic crude extract of A. paniculata leaves also showed a high cytotoxicity effect on leukemic cells (HL-60) [11]. Ethyl acetate crude extract of A. paniculata leaves inhibited breast cancer (T-47D) and colorectal cancer (WiDr) cells [12]. Furthermore, Z. spina-christi leaves extracted in ethanol showed notable cytotoxicity on Michigan Cancer Foundation-7 (MCF-7) cells [13]. Methylene chloride crude extract of G. extensum showed high cytotoxicity on liver cancer (HepG2) cells [14].

According to these previous findings, we then carried out a study to investigate the cytotoxicity of these three medicinal plants in a different polarity of organic solvents. The selection of five different solvents used in this present study was referred to their polarity which correlated with the dielectric constant [15]. The polarity of solvent from highest to lowest are methanol (32.7), ethanol (24.6), dichloromethane (9.08), ethyl acetate (6.02) and hexane (1.9), respectively [16]. In addition, consideration of selective anticancer agents of these three medicinal plants was conducted on three cancer types and two non-cancerous cells (Vero and L-929). These normal cells were isolated from normal kidney cells of green African monkey and murine normal fibroblast cells, respectively. Due to the genetic stability and non tumorigenicity feature of Vero and L-929 cells, they are suitable to use in cytotoxicity tests [17,18].

Previously, we reported that low piperine fractional Piper nigrum extract (PFPE) exhibited the highest cytotoxicity compared to piperine and dichloromethan extract of P. nigrum [19]. This extract was able to inhibit various cancer cells including breast cancer (MCF-7, M.D. Anderson (MDA) Metastasis Breast cancer (MB)-468 and ZR-75-1) and cholangiocarcinoma (KKU-100, KKU-M213, KKU-M055 and human extrahepatic bile duct carcinoma cell line (TFK-1) [20]. Phytochemical compounds including kusunokinin and piperlongumine isolated from PFPE showed high cytotoxicity against breast cancer (MCF-7 and MDA-MB-468) and colorectal cancer (SW-620). PFPE degraded the proteins in cancer progression including signal transducer and activator of transcription 3 (STAT-3), cyclooxygenase-2 (COX-2), nuclear factor-kappa B (NF-?B), Topoisomerase II, Cellular myelocytomatosis oncogene (c-myc), cyclin D1 and B-cell lymphoma 2 (Bcl-2)). Moreover, PFPE contained pipericine, 2,4,14-eicosatrienamide, retrofractamide-a and piperanine showed cytoprotective on L-929 cells and hepatoprotective [20-22]. Furthermore, PFPE exhibited very low cytotoxicity against murine fibroblast cells (L-929 cells) [20]. Due to PFPE, showed high cytotoxicity on cancer cells and hepatoprotective activity, we here performed the combination of PFPE together with those three plant extracts to increase cytotoxicity which is higher than a single treatment A combination in cancer treatment has been recognized as an effective way to improve successful treatment by increasing the cytotoxicity [23]. The combination of A. paniculata with Silybum marianum showed a higher percentage of cell inhibition on breast (MCF- 7), ovarian (Human cervical tumor cell-SiHa) and liver (human liver cancer cell line-HepG2) cancer cells than each individual treatment [24]. Moreover, Z. spina-christi with termite shelter extract concentration at 300 µg/ml exhibited stronger cytotoxicity on cervical cells (Henrietta Lacks-HeLa) than individual treatment [25]. Thus, we hypothesized that A. paniculata, Z. spina-christi and G. extensum would have stronger cytotoxicity once we combined them with PFPE rather than a single treatment. In this report, we conducted the cytotoxicity test of different extracts of A. paniculata, Z. spina-christi and G. extensum leaves individually and their combination with PFPE on cancer cells. Phytocompounds were observed by gas chromatography-mass spectrometry (GC-MS) and the cytotoxicity of three medicinal plants alone and their combination with PFPE on cancer cells was measured by 3-(4,5-dimethylthiazol-2-yl)-2,5- diphenyl tetrazolium bromide (MTT) assay. Finally, to approach further results whether the regimen could inhibit precisely cancer cells growth only, apoptosis and multi caspase analysis were performed by flow cytometry analysis.

Materials and Methods

Plant materials collection

Dried leaves of A. paniculata and dried fruits P. nigrum were harvested from Banten Province, Indonesia and Songkhla Province, Thailand, respectively. Both plant specimens were authenticated by Assistant Professor Dr. Supreeya Yuenyongsawad and deposited in the Herbarium of Southern Centre of Thai Traditional Medicine, Department of Pharmacognosy and Pharmaceutical Botany, Prince of Songkla University (PSU), Thailand as a voucher specimen number SKP 001011601 and SKP 146161401, respectively. Dried leaves of Z. spina-christi was harvested from East Java Province, Indonesia and taxonomically authenticated by Dr. Nurainas (Chief of ANDA Herbarium, Department of Biology, Andalas University) with letter No. 305/ K-ID/ANDA/IX/2018. Dried leaves of G. extensum were harvested from Phatthalung Province, Thailand and identified by Professor Dr. Suchada Sukrong and deposited as a voucher specimen (No.   SS-PG-001) and kept at the Museum of Natural Medicine, Faculty of Pharmaceutical Science, Chulalongkorn University, Thailand.

Chemicals and reagents

In extraction protocol, ethanol (C2H5OH), methanol (CH3OH), dichloromethane (CH2Cl2), ethyl acetate (C4H8O2) and acetone (C3H6O) was purchased from J. T. Baker® (Phillipsburg, NJ, USA). Hexane (C6H14) was purchased from Reagent Chemical Industry (RCI) LabScan Ltd (Bangkok, Thailand). Furthermore, to make 1x phosphate buffered saline (PBS) for cell culture, the chemical substance such as sodium chloride (NaCl) was purchased in Omnipur® (Idaho, ID, USA). Moreover, sodium phosphate dibasic anhydrous (Na2HPO4), potassium chloride (KCl), potassium phosphate (KH2PO4) and dimethyl sulfoxide (C2H6OS) were purchased from Amresco® (Solon, OH, USA). In the cell culture study, the cell medium and supplements including Roswell Park Memorial Institute Medium (RPMI-1640) and Dulbecco’s Modified Eagle Medium (DMEM) powder, L-Glutamine, Fetal Bovine Serum (FBS) and antibiotics (penicillin-streptomycin) were purchased from GibcoTM (Massachusetts, USA). MTT assay and dimethyl sulfoxide (C2H6OS) were purchased from GibThai (Bangkok, Thailand) and Amresco®, respectively. Apoptosis and multi caspase reagents were purchased from Becton, Dickinson (BD) Biosciences, Inc (San Jose, CA, USA).

Maceration extraction

3 g of pulverized dried leaves were soaked in 300 ml of five types of organic solvents consists of methanol, ethanol, dichloromethane, ethyl acetate and hexane. Afterward, the mixture was filtered using Whatman Paper No. 1 filter paper. The filtrates were evaporated using a rotor evaporator at 40-45º, 1-3 mbar of vacuum pressure and 40 rpm of rotation. Then, the crude extracts were stored at –20º until used. The stock solution was diluted with dimethyl sulfoxide (DMSO).

Decoction extraction and lyophilization

3 g of pulverized dried leaves were soaked in 300 ml of boiled water within 10 min. Next, the extracts were placed in room temperature. After the temperature of extracts was decreased, the extracts were lyophilized by the freeze-drying method as described by Seong and colleagues [26]. Then, the freeze- dried extracts were kept at –20º until used. The stock solution was diluted with dimethyl sulfoxide (DMSO).

Cell culture

Human breast adenocarcinoma MCF-7 and MDAMB- 231, colorectal (HT-29 and SW-620) and ovarian (A2780 and SKOV-3) were used as cancerous representative cells. MCF-7 (American Type Culture Collection (ATCC®) HTB-22), MDA-MB-231 (ATCC® HTB-26), SKOV-3 (ATCC® HTB-77) and Vero (ATCC® CCL-81) cells were purchased from American Type Culture Collection (Manassas, Virginia, USA). A2780 cells were purchased from AddexBio (San Diego, California, USA). SW-620 cells were kindly donated by Dr. Surasak Sangkhathat, MD from Department of Surgery, Faculty of Medicine, Prince of Songkla University (PSU). Meanwhile, HT-29 cells were kindly given by Dr. Ruedeekorn Wiwattanapatapee from Department of Pharmaceutical Technology, Faculty of Pharmaceutical Sciences, PSU. L-929 cells were kindly provided by Dr. Jasadee Kaewsichan (Department of Pharmaceutical Chemistry, Faculty of Pharmaceutical Sciences, PSU). Vero, A2780 and SKOV-3 cells were cultured in RPMI-1640 culture medium. HT-29, SW- 620, MDA-MB-231 and L-929 cells were grown in DMEM. Both media (RPMI-1640 and DMEM) were supplemented with 10 % fetal bovine serum and 1 % of penicillin and streptomycin. All cultures were maintained at an incubation condition of 37º in 5 % carbon dioxide and at 95 % relative humidity.

Cytotoxicity of individual extract

To investigate the cytotoxicity in a single extract, an MTT colorimetric assay was conducted. Cells in the medium were seeded into 96 well plates (SDL Biosciences, Thailand). MCF-7, MDA-MB-231, SW- 620 and SKOV-3 cells were seeded at a density of 2×103 cells/well. Vero, L-929 and A2780 cells were seeded at a density of 1×103 cells/well and HT-29 cells were seeded at a density of 1.5×103 cells/well. All seeded cells were incubated within 24 h for adhering. The cell medium was mixed with extracts with different concentrations (5, 10, 20, 40 and 80 μg/ml) and applied to the cells within 72 h. As a positive control, doxorubicin with different concentrations (0.625, 1.25, 2.5, 5 and 10 μM) was applied to the respective wells. Furthermore, 0.5 % v/v of DMSO (a final concentration) was added to the complete cell medium mentioned as a vehicle. A complete cell medium with cells was mentioned as a negative control. After 72 h, the cell medium was changed by 100 μl MTT for 30 min and then dissolved by 100 μl of DMSO per well to accumulate the formazan salt. The colour formation was generated and observed using a microplate reader spectrophotometer (Spectra Max M5, Molecular Devices) at 570 nm and 650 nm, then the IC50 values were calculated using the formula as previously described [19]. Refers to the National Cancer Institute (NCI), a plant extract is considered to possess in vitro activity with the IC50 value of ≤20 μg/ml [19]. The IC50 of the individual extract was used as the initial concentration of the combination study. The selective index (SI) was determined adapted by Sriwiriyajan and colleagues [27] which divided the IC50 values of extracts of non-cancerous cells with the IC50 values of extracts on cancer cells.

Gas Chromatography/Mass Spectrometry (GC/MS)

To confirm the presence of phytocompounds possessed of notable cytotoxicity, gas chromatography/mass spectrometry analysis was conducted using two analytical instruments, Gas chromatography Agilent 7890B and Agilent 5977A triple quadrupole mass spectrometer (Agilent Technologies Inc, USA). This protocol was performed as previously described [20].

Cytotoxicity of combination extract:

The present study was conducted to investigate the interaction of this combination exhibited synergism, additive, or antagonism in inhibiting cancer cells. The combination extract protocol was conducted by MTT colorimetric assay. This investigation was performed by four ratios including IC50 extract: IC50 PFPE; 0.5×IC50 extract: IC50 PFPE; IC50 extract: 0.5×IC50 PFPE and 0.5×IC50 extract: 0.5×IC50 PFPE. The combination treatment results were computerized by “CompuSyn” software to procure the combination index values [28]. Manually, the combination index (CI) values were calculated by the Chou-Talalay equation [29].

The interaction of combination was indicated by CI, which estimated from dose effect data, both single and combined drug treatments. The synergism was identified from a CI value based on the criteria as followed: CI<0.1 (synergism); 0.1-0.3 (strong synergism); 0.3- 0.7 (synergism); 0.7-0.85 (moderate synergism); 0.85- 0.9 (slight synergism); 0.90-1.10 (nearly additive); 1.10-1.45 (slight antagonism); 1.45-3.3 (antagonism); 3.3-10 (strong antagonism) and >10 (very strong antagonism) [30].

Apoptosis assay

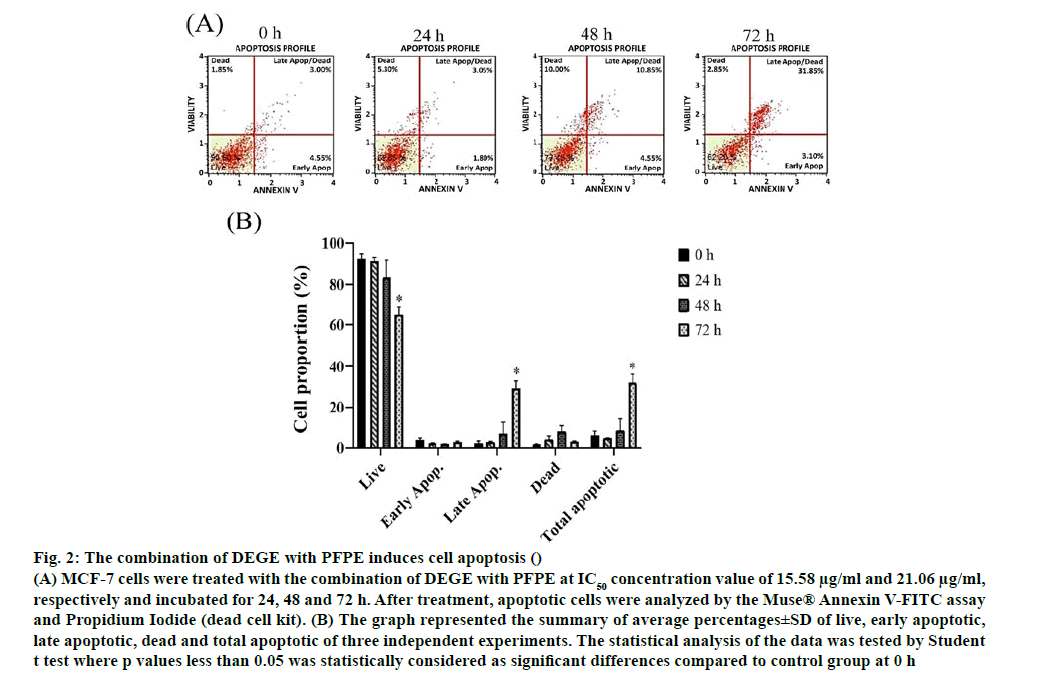

In the present study, apoptotic and necrotic cells were observed using an annexin V-fluorescein isothiocyanate (FITC) and propidium iodide (PI) detection kit (Catalog No.   MCH100105,   Merck   Millipore),   following the    manufacturer’s    instruction.    Briefly,    MCF- 7 cells (2×105 cells/well) were seeded in 12 well plates. Afterward, the cells were incubated with the combination of dichloromethane crude extract of Gymnanthemum extensum DEGE with PFPE at ratio IC50:IC50 at various times (0, 24, 48 and 72 h). Treated cells were harvested and cell pellets were incubated in 100 μl of Muse® FITC-Annexin V apoptosis staining kit and 100 μl of propidium iodide for 30 min. The signal of fluorescent was observed by flow cytometry using Muse® Cell Analyzer (Merck Millipore, Germany).

Multi caspase assay:

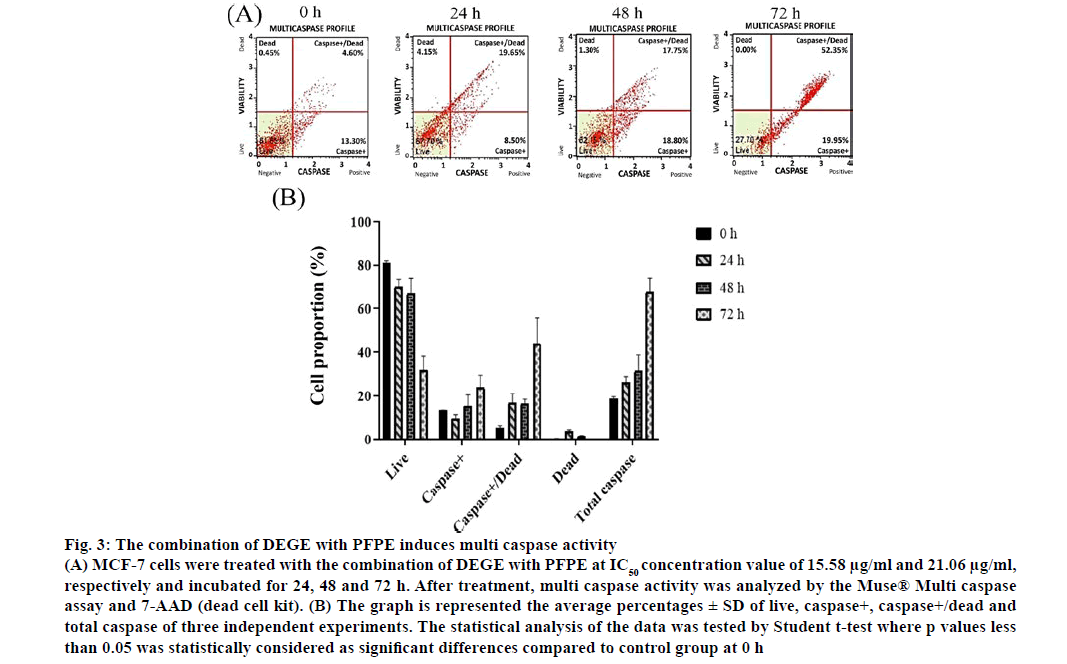

The observation of multi caspase activity was performed by Muse® multi caspase assay kit (Catalog No. MCH100109, Merck Millipore), following the manufacturer’s instruction. The MCF- 7 cells were seeded into 12 well plates at a density of 2×105 cells/well. Afterward, the cells were treated by the combination of DEGE and PFPE (ratio IC50:IC50) at various times (0, 24, 48 and 72 h). The cells were harvested and cell pellets were resuspended in 5 μl of Muse® Multi caspase assay for 30 min followed by 150 μl of 7-Aminoactinomycin D (7-AAD) within 15 min. The fluorescent marks of multi caspase and 7-AAD were completely identified by the Muse® Cell Analyzer (Merck Millipore, Germany).

Statistical analysis

All experiments were done in triplicate of each experiment and the data was calculated from three independent experiments. The IC50 values were expressed as the mean±standard deviation (SD). The percentages of apoptosis and multi caspase were presented as an average and (SD). All graphs were created by GraphPad Prism 8. The apoptosis and multi caspase data were statistically analyzed by the Student t-test to compare among the treated group and control group using Microsoft excel software. p<0.05 was considered statistically significant.

Results and Discussion

Cancer have been a health concern caused by free radicals and carcinogens, which have been naturally and artificially established to harm Deoxyribonucleic acid (DNA) [31]. Until now, many attempts for precise and effective cancer anticancer therapy were investigated and recognized as complementary alternative medicine (CAM),due to the fear of society against synthetic drugs detrimental effects. One of interesting CAM is to use plant extracts as an anticancer therapy. A. paniculata leaf was reported to possess of anticancer activity.

According to results in Table 1, we selected dichloromethane extract of A. paniculata (DEAP) for the next experiment due to its cytotoxicity on both HT-29 (8.93±0.52 µg. ml-1) and SW-620 cells (7.49±0.04 µg. ml-1). Even though methanolic extract of A. paniculata (MEAP) also showed strong cytotoxicity on SKOV-3 cells (7.60±0.72 µg. ml-1), we rather considered the dichloromethane extract as the extract which can affect the two cell types, than methanolic one where only one cell type affected. In this present study, we also used high polar solvent such as methanol and ethanol. Empirically, organic solvents with higher dielectric constant prefer to dissolve and interact with polar compounds. Correlating with the extracted phytocompounds, methanol is capable to dissolve antioxidant compounds such as phenol and polyphenol which is proved by the total antioxidant contents [32]. This information led to an implication that the antioxidant may play a role in cytotoxicity from MEAP.

Cell Line IC50value (µg/ml) (µM)a
FEAP
(SIVero, SIL-929)
MEAP
(SIVero, SIL-929)
EEAP
(SIVero, SIL-929)
DEAP
(SIVero, SIL-929)
EAAP
(SIVero, SIL-929)
HEAP
(SIVero, SIL-929)
DOX
(SIVero, SIL-929)
Breast cancer
MCF-7 Not inhibited
(ND, ND)
14.97±1.56
(1.22, 0.72)
18.44±1.71
(0.77, 2.43)
26.77±2.18
(0.53, 0.93)
21.64±0.93
(0.69, 0.95)
47.46±0.93
(ND, ND)
1.15±0.07
(6.84, 1.38)
MDA- MB-231 Not inhibited
(ND, ND)
12.54±1.38
(1.46, 0.86)
21.49±0.21
(0.66, 2.08)
24.03±0.40
(0.59, 1.04)
19.06±1.15
(0.79, 1.07)
Not inhibited
(ND, ND)
1.57±0.203
(5.02, 1.01)
Colorectal cancer
HT-29 Not inhibited
(ND, ND)
13.77±1.61
(1.33, 0.78)
12.45±0.05
(1.13, 3.59)
8.93±0.52
(1.58, 2.80)
13.17± 0.52
(1.14, 1.56)
Not inhibited
(ND, ND)
2.53±0.56
(3.11, 0.63)
SW-620 Not inhibited
(ND, ND)
12.39±1.61
(1.47, 0.87)
12.08±0.82
(1.17, 3.70)
7.49±0.04
(1.89, 3.34)
10.31±0.32
(1.46, 1.99)
39.40±0.42
(ND, ND)
3.15±0.62
(2.50, 0.5)
Ovarian cancer
A2780 Not inhibited
(ND, ND)
15.29±0.68
(1.19, 0.70)
20.51±1.60
(0.69, 2.18)
10.98±0.48
(1.29, 2.28)
13.53±1.28
(1.11, 1.51)
34.27±2.31 2.33±0.18
(3.38, 0.68)
SKOV-3 Not inhibited
(ND, ND)
7.60±0.72
(2.40, 1.41)
30.6±0.93
(0.46, 1.46)
19.34±0.15
(0.74, 1.29)
17.23±1.28
(0.87, 1.19)
Not inhibited
(ND, ND)
1.64±0.19
(4.80, 0.97)
Non-cancerous
Vero Not inhibited 18.27±1.22 14.11 ±1.59 14.14 ±0.29 15.02 ±0.94 Not inhibited 7.88±0.43
L-929 Not inhibited 10.75 ±0.27 44.74 ±2.44 25.02 ±1.07 20.48 ±1.34 Not inhibited 1.59±0.18

Table 1: Cytotoxicity of A. Paniculata Leaves Prepared in Six Solvents Against Different Type of Cancer Cells

Previously, the dichloromethane extract of A. paniculata leaves showed considerable cytotoxicity on HT-29 cells [33]. Another promising extract, dichloromethane extract of Z. spina-christi leaf (DEZSC), also showed notable cytotoxicity towards breast and ovarian cancer cells, MCF-7 cells (13.35±0.30 µg. ml-1) and A2780 cells (14.64±1.51 µg. ml-1), shown in Table 2. Apart from the dichloromethane extract, a previous investigation by Farmani and colleagues revealed that the methanol extract of Z. spina-christi exhibited notable cytotoxicity on MCF-7 cells [13]. In addition, an endemic plant of Northeastern Thailand, G. extensum, extracted by dichloromethane (abbreviated as DEGE) demonstrated strong   cytotoxicity   against   MCF-7   (15.58±1.81 µg. ml-1) and A2780 cells (10.08±0.04 µg. ml-1) (Table 3). The dichloromethane extract of Vernonia extensa (synonym of G. extensum) was additionally reported for strong cytotoxicity on HepG2 (liver carcinoma cells), HuCCA-1 (cholangiocarcinoma cells), A549 (lung cancer cells) and MOLT-3 (leukemic cells) [14]. However, the freeze-dried extract of these three plants has no cytotoxic effect on tested cells, which could bencaused by freeze-drying process which damaged the phytocompounds structure and finally led to the losing activity of compounds after the rehydration process [34]. In this study, Vero and L-929 cells were used for determining SI score by dividing IC50 of non-cancerous cell lines with IC50 of cancer cell lines. Our results demonstrated SIL929 values of DEAP and DEZSC more than 2 on HT-29, SW-620, A2780 and MCF-7 cells. According to Koch and colleagues, SI score of less than 2.0 indicates toxicity to non- cancerous cell lines [35]. However, several extracts could not be calculated for the cytotoxicity at the maximum concentration because the extract did not show an inhibitory effect on cancer cells. These results were noted as “Not determined (ND)”, shown in Tables 1-3. Due to strong cytotoxicity exhibited by DEAP, DEZSC and DEGE, we decided to perform a phytochemical characterization. Two major DEAP compounds were 1-heptatriacotanol (60.29 %, alcohol) and androsta- 1,4-dien-3-one,6,17-dihydroxy-,(6β,17β) (32.27 %, steroid). Furthermore, the highest amount in our DEZSC was palmitic acid (26.92 %, fatty acid). This chemical compound contained anticancer activity through intercalating with DNA topoisomerase-I [36]. DEGE displayed similar chemical composition with DEZSC, however, several compounds only found in DEGE were neophytadiene, phytol, linoleic acid,hentriacontane, phytol acetate and heneicosane, in which these compounds were reported for anticancer property [37-42]. The limitation of characterization was marked since GC-MS is able to detect only volatile compounds. However, other chemical contents can be analyzed through other spectroscopic methods with a linbrary of spectra to compare with the observed compounds [43]. We suggest phytochemical screening techniques such as UltraViolet-Visible spectroscopy [44], Infrared (IR) spectroscopy [45] and Liquid Chromatography Mass Spectroscopy (LC-MS) [46] to analyze other phytocompounds of DEAP, DEZSC and DEGE for further study.

Cell Line IC50 value (µg/ml) (µM)a
  FEZSC
(SIVero, SIL-929)
MEZSC
(SIVero, SIL-929)
EEZSC
(SIVero, SIL-929)
DEZSC
(SIVero, SIL-929)
EAZSC
(SIVero, SIL-929)
HEZSC
(SIVero, SIL-929)
DOX
(SIVero, SIL-929)
Breast cancer
MCF-7 Not inhibited
(ND, ND)
107.19±1.64

Not inhibited
(ND, ND)

13.35±0.30
(1.58, 3.52)
57.63±0.25
(0.92, ND)
Not inhibited
(ND, ND)
1.15±0.07
(6.84, 1.38)
MDA-MB-231 Not inhibited
(ND, ND)
80.83±1.65
(ND, ND)

Not inhibited
(ND, ND)

38.12±0.23
(0.55, 1.23)
55.13±0.44
(0.96, ND)
Not inhibited
(ND, ND)
1.57±0.23
(5.02, 1.01)
Colorectal cancer
HT-29 Not inhibited
(ND, ND)
39.01±2.65
(ND, ND)
82.35±11.96
(ND, ND)
17.02±0.69
(1.24, 2.76)
96.46±12.08
(0.55, ND)
Not inhibited
(ND, ND)
2.53±0.56
(3.11, 0.63)
SW-620 Not inhibited
(ND, ND)
77.91±2.04
(ND, ND)
40.73±0.73
(ND, ND)
23.2±1.08
(0.91, 2.03)
39.67±2.85
(1.34, ND)
Not inhibited
(ND, ND)
3.15±0.62
(2.50, 0.5)
Ovarian cancer
A2780 Not inhibited
(ND, ND)
18.54±2.33
(ND, ND)

36.23±1.27
(ND, ND)

14.64±1.51
(1.44, 3.21)
53.86±2.46
(0.99, ND)
Not inhibited
(ND, ND)
2.33±0.18
(3.38, 0.68)
SKOV-3 Not inhibite
d (ND, ND)
Not inhibited
(ND, ND)
Not inhibited
(ND, ND)
44.45±0.79
(0.47, 1.06)
Not inhibited
(ND, ND)
Not inhibited
(ND, ND)
1.64±0.19
(4.80, 0.97)
Non-cancerous
Vero Not inhibited Not inhibited Not inhibited 21.05±0.18 53.11±0.16 Not inhibited 7.88±0.43
L-929 Not inhibited Not inhibited Not inhibited 47.03±2.91 Not inhibited Not inhibited 1.59±0.18

Table 2: Cytotoxicity of Z. spina-christi Leaves Prepared in Six Solvents Against Different Type of Cancer Cells

Cell Line IC50  value (µg/ml) (µM)a
FEGE
(SIVero, SIL-929)
MEGE
(SIVero, SIL-929)
EEGE
(SIVero, SIL-929)
DEGE
(SIVero, SIL-929)
EAGE
(SIVero, SIL-929)
HEGE
(SIVero, SIL-929)
DOX
(SIVero, SIL-929)
Breast cancer
MCF-7 Not inhibited
(ND, ND)
26.34±0.53
(1.27, 1.72)
23.67±1.81
(1.09, 2.01)
15.58±1.81
(0.59, 1.18)
25.56±0.60
(1.06, 1.20)
Not inhibited
(ND, ND)
1.15±0.07
(6.84, 1.38)
MDA- MB-231 Not inhibited
(ND, ND)
51.18±2.07
(0.65, 0.88)
57.84±1.31
(0.45, 0.82)
20.78±2.01
(0.44, 0.88)
23.15±1.57
(1.17, 1.33)
Not inhibited
(ND, ND)
1.57±0.23
(5.02, 1.01)
Colorectal cancer
HT-29 Not inhibited
(ND, ND)
25.35±1.94
(1.32, 1.78)
29.68±2.04
(0.87, 1.60)
19.86±0.61
(0.46,0.92)
33.63±2.16
(0.81, 0.91)
Not inhibited
(ND, ND)
2.53±0.56
(3.11, 0.63)
SW-620 Not inhibited
(ND, ND)
23.27±1.54
(1.43, 1.94)
17.03±0.09
(1.52, 2.79)
20.09±2.03
(0.46, 0.91)
27.83±2.20
(0.97, 1.10)
Not inhibited
(ND, ND)
3.15±0.62
(2.50, 0.5)
Ovarian cancer
A2780 Not inhibited
(ND, ND)
16.12±1.40
(2.07, 2.81)
41.21±1.23
(0.63, 1.15)
10.08±0.04
(0.91, 1.82)
15.22±0.58
(1.78, 2.02)
43.16±1.51
(ND, ND)
2.33±0.18
(3.38, 0.68)
SKOV-3 Not inhibited
(ND, ND)
Not inhibited
(ND, ND)
Not inhibited
(ND, ND)
29.95±1.12
(0.31, 0.61)
Not inhibited
(ND, ND)
Not inhibited
(ND, ND)
1.64±0.19
(4.80, 0.97)
Non-cancerous
Vero Not inhibited 33.39±1.59 25.90±0.47 9.16±0.8 27.08 ±3.03 Not inhibited 7.88±0.43
L-929 Not inhibited 45.23±2.43 47.57 ±0.35 18.37±0.66 30.73 ±3.32 Not inhibited 1.59±0.18

Table 3: Cytotoxicity of G. extensum Leaves Prepared in Six Solvents Against Different Type of Cancer Cells

Our individual extract cytotoxicity test   revealed that DEAP, DEZSC and DEGE possessed high cytotoxicity. In this study, we attempted to enhance the cytotoxicity of DEAP, DEZSC and DEGE by combining them with PFPE. In the previous study using PFPE, P. nigrum dichloromethane crude extract and piperine showed IC50 values of 7.45, 23.46 and >20 µg. ml-1, respectively [19]. Based on our previous results, P. nigrum extract containing piperine increased IC50 which attenuated the cytotoxic effect on cancer cells. Moreover, phytocompounds of PFPE such as piperanine, pipericine, 2,4,14?eicosatrienamide and retrofractamide-A showed hepatoprotective activity which may protect non-cancerous cell lines from cytotoxic compounds [20]. Thus, we combined those three extracts with PFPE. The results showed that DEAP combination with PFPE provided antagonistic effect for the whole ratio against HT-29 and SW-620 cells. The combination of DEZSC with PFPE had an antagonistic effect on MCF-7 and A2780 cells. The observation on antagonistic effect emphasizes that phytocompounds of DEAP and DEZSC were not able to collaborate with compounds of PFPE. Steroids, fatty alcohols and fatty acids were detected in DEAP and DEZSC, from GC-MS results (fig. 1). Cholesterol is an initial form for synthesizing steroids. Meanwhile, fatty alcohols and fatty acids are the derivatives of lipids that can generate cholesterols. In contrast, caryophyllene which contained in PFPE exhibited anti-hypercholesterolemic or hyperlipid preventive activity [47]. Caryophyllene could additionally attenuate lipid accumulation on hepatic tissue which linked to the stimulation of AMP-activated protein kinase (AMPK) phosphorylation, a crucial enzyme in lipid metabolism. Caryophyllene also induces degradation of fatty acid synthase (FAS) [48]. The different roles in caryophyllene and lipid-derivatives (fatty acids, steroids and fatty alcohols) could pinpoint the antagonistic effect of this combination (Tables 4-7).

/IJPS-chromatographic-

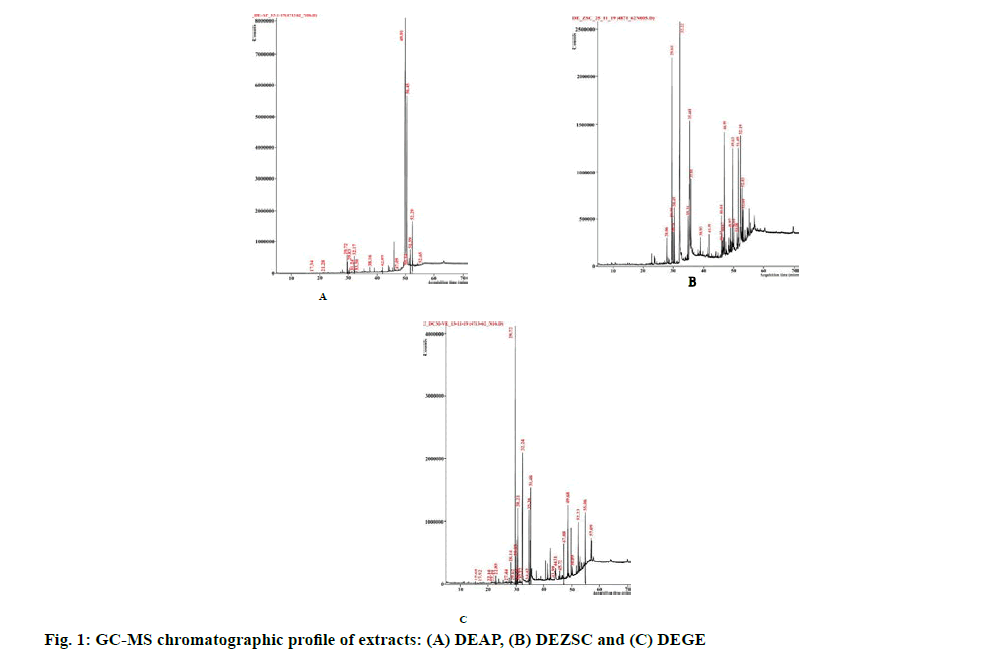

Figure 1: GC-MS chromatographic profile of extracts: (A) DEAP, (B) DEZSC and (C) DEGE

RT (min) Identified compound Formula Molecular mass (g mol-1) Area (%) Nature of compound
17.34 Furfuryl alcohol C5H10O2 102.13 0.01 Alcohol
21.28 Octadecane C18H38 254.5 0.02 Hydrocarbon
29.72 Neophytadiene C20H38 278.5 1.2 Terpene
29.83 6,10,14-trimethyl pentadecane-2-one C18H36O 268.5 0.53 Terpene
31.24 2-Methyltetradecanal C15H30O 226.4 0.03 Aldehyde
32.17 Palmitic acid C16H32O2 256.42 1.24 Fatty acid
33.3 2-octylacolein C11H20O 168.28 0.01 Hydrocarbon
34.74 3,7-Dimethyl-2,3-epoxyoctanal C10H18O2 170.25 0.01 Aldehyde
38.16 Tricosane C23H48 324.6 0.03 Hydrocarbon
42.09 1,2-Benzenedicarboxylic acid, bis(2-ethylhexyl) ester C24H38O4 390.6 0.25 Phthalate
47.09 2-oxobutanoic acid neopentyl ester C9H16O3 172.22 0.01 Carboxylic acid
49.91 1-Heptatriacotanol C37H76O 537 60.29 Alcohol
50.14 α-Tocopherol C29H50O2 430.7 0.05 Tocopherol
50.45 Androsta-1,4-dien-3-one, 6,17- dihydroxy-, (6β,17 β) C19H26O3 302.4 32.27 Steroid
51.59 Stigmasterol C29H48O 412.7 0.98 Steroid
52.29 γ-Sitosterol C29H50O 414.7 3.04 Terpene
52.65 β-Amyrin C30H50O 426.7 0.02 Terpene

Table 4: Chemical Constituents and Biological Properties of Compounds of Dichloromethane Crude Extract of A. paniculata (Deap) Identified Through Gc-Ms Analysis

RT (min) Identified compound Formula Molecular mass (g mol-1) Area (%) Nature of compound
28.06 Myristic acid C14H28O2 228.37 1.33 Fatty acid
29.64 Neophytadiene C20H38 278.52 7.91 Terpene
29.75 6,10,14-trimethyl pentadecane-2-one C18H36O 268.48 1.79 Terpene
30.14 Phytol, acetate C22H42O2 338.57 1.28 Terpene
30.49 Phytol C20H40O 296.53 4.07 Terpene
32.22 Palmitic acid C16H32O2 256.42 26.92 Fatty acid
35.31 Linoleic acid C18H32O2 280.46 6.76 Fatty acid
35.41 Linolenic acid C18H30O2 278.43 11.22 Fatty acid
35.81 Stearic acid C18H36O2 284.48 3.8 Fatty acid
38.93 4,8,12,16-Tetramethylheptadecan-4- olide C21H40O2 324.54 0.71 Furan hydrocarbon
41.99 Bis(2-ethylhexyl) phthalate C24H38O4 390.56 0.88 Phthalate
46.04 Squalene C30H50 410.72 1.68 Terpene
46.37 α-Tocospiro A C29H50O4 462.7 1.34 Tocopherol
46.67 α-Tocospiro B C29H50O4 462.7 1.44 Tocopherol
46.99 n-Tetracosanol-1 C24H50O 354.65 6.07 Fatty alcohol
48.97 γ-Tocopherol C28H48O2 416.68 1.11 Tocopherol
49.63 Octacosanol C28H58O 410.76 5.26 Fatty alcohol
50.01 Vitamin E C29H50O2 430.71 0.77 Tocopherol
51.08 Campesterol C28H48O 400.68 1.04 Steroid
51.49 Stigmasterol C29H48O 412.69 4.91 Steroid
52.19 Stigmast-5-en-3-ol C29H50O 414.7 5.24 Steroid
52.83 Lupenone C30H48O 424.7 2.91 Terpene
53.09 Lupeol C30H50O 426.72 1.91 Terpene

Table 5: Chemical Constituents and Biological Properties of Compounds of Dichloromethane Crude Extract of Z. spina-christi (Dezsc) Identified Through Gc-Ms Analysis

RT (min) Compound name Formula Molecular mass (g mol-1) Area (%) Compound nature
15.68 1,2-Di-tert-butylbenzene C14H22 190.32 0.08 Phenylpropane
17.92 2-Chlorohexylacetate C8H15ClO2 178.66 0.02 Carboxylic acid
22.1 Pentadecane C15H32 212.41 0.02 Hydrocarbon
22.49 5-Isopropyl-4-(trifluoromethyl)-1H- pyrimidin-2-one C8H9F3N2O 206.17 0.04 Alkaloid
22.85 Dihydroactinidiolide C11H16O2 180.24 0.47 Benzofuran
27.44 Heptanoic acid, tridecafluoro-heptyl ester C14H15F13O2 462.25 0.02 Fatty acid ester
28.14 Loliolide C11H16O3 196.24 1.64 Benzofuran
29.62 1-dodecanol C12H26O 186.33 0.05 Fatty alcohol
29.72 Neophytadiene C20H38 278.5 19.36 Terpene
29.83 6,10,14-trimethyl pentadecane-2-one C18H36O 268.5 1.93 Terpene
30.21 Phytol C20H40O 296.5 13.36 Terpene
31.23 2-Methyloctanal C9H18O 142.24 0.04 Aldehyde
32.12 1,2-Benzenedicarboxylic acid, dibutyl ester C16H22O4 278.34 0.19 Benzoic acid ester
32.24 Palmitic acid C16H32O2 256.42 21.4 Fatty acid
34.42 Pentatriacontane C35H72 492.9 0.34 Hydrocarbon
35.36 Linoleic acid C18H32O2 280.4 6.7 Fatty acid
35.48 Linolenic acid C18H30O2 278.4 12.08 Fatty acid
36.52 4-Tridecen-2-ynal, (Z)- C13H20O 192.3 0.06 Hydrocarbon
43.99 3-Penten-2-one C5H8O 84.12 0.05 Ketone

Table 6: Chemical Constituents and Biological Properties of Compounds of Dichloromethane Crude Extract Of G. Extensum (Dege) Identified Through Gc-Ms Analysis

Combination Cell line Ratio Extract:PFPE Extract Conc. (µg/ml) PFPE Conc. (µg/ml) % inhibition CI Interaction
DEAP+PFPE HT-29 IC50:IC50 8.93 17.63 82.35±1.13 1.12±0.04 Slight antagonism
0.5 IC50:IC50 4.46 17.63 54.89±1.34 1.86±0.05 Antagonism
IC50:0.5 IC50 8.93 8.82 47.37±2.45 1.74±0.08 Antagonism
0.5 IC50:0.5 I C50 4.46 8.82 34.21±0.24 1.73±0.01 Antagonism
SW-620 IC50:IC50 7.49 11.3 81.20±1.55 1.09±0.06 Nearly additive
0.5 IC50:IC50 3.74 11.3 67.68±1.25 1.29±0.04 Slight antagonism
IC50:0.5 IC50 7.49 5.65 65.58±0.77 1.14±0.01 Slight antagonism
0.5 IC50:0.5 IC50 3.74 5.65 43.00±1.2 1.33±0.03 Slight antagonism
DEZSC+PFPE MCF-7 IC50:IC50 13.35 21.06 78.65±4.33 1.19±0.16 Slight antagonism
0.5 IC50:IC50 6.675 21.06 50.4±2.65 1.86±0.11 Antagonism
IC50:0.5 IC50 13.35 10.53 82.66±2.65 0.72±0.07 Moderate synergism
0.5 IC50:0.5 IC50 6.675 10.53 37.07±1.05 1.52±0.04 Antagonism
A2780 IC50:IC50 14.64 21.12 72.46±5.09 1.39±0.07 Slight antagonism
0.5 IC50:IC50 7.32 21.12 13.59±4.36 4.77±0.91 Strong antagonism
IC50:0.5 IC50 14.64 10.56 48.7±8.73 1.66±0.30 Antagonism
0.5 IC50:0.5 IC50 7.32 10.56 14.15±9.69 3.21±1.36 Strong antagonism
DEGE+PFPE MCF-7 IC50:IC50 15.58 21.06 97.29±0.33 0.36±0.03 Synergism
0.5 IC50:IC50 7.79 21.06 93.65±3.72 0.44±0.14 Synergism
IC50:0.5 IC50 15.58 10.53 95.32±1.5 0.34±0.06 Synergism
0.5 IC50:0.5 IC50 7.79 10.53 37.69±4.12 1.46±0.13 Antagonism
A2780 IC50:IC50 10.08 21.12 80.41±1.97 1.22±0.08 Slight antagonism
0.5 IC50:IC50 5.04 21.12 10.11±4.19 6.70±1.61 Strong antagonism
IC50:0.5 IC50 10.08 10.56 51.22±4.84 1.63±0.16 Antagonism
0.5 IC50:0.5 IC50 5.04 10.56 5.54±2.14 5.55±1.18 Strong antagonism

Table 7: Combination Index of Extract with Pfpe Against Cancer Cell Lines

Surprisingly, our investigation revealed that a combination of DEGE with PFPE remarkably showed synergistic interaction on MCF-7 cells. We had tried to identify possible synergic chemical compounds. As we mentioned previously, palmitic acid and kusunokinin showed intercalation to DNA topoisomerase-I together with PFPE, enabling degradation of DNA topoisomerase-II [36,49]. Due to their important role as a DNA controller, DNA topoisomerase-I and DNA topoisomerase-II are targeted for promising anticancer treatment [50,51]. A synergistic effect against MCF-7 cells from a PFPE-combined DEGE led to a further study for the relevant information to strengthen our hypothesis that MCF-7 cells could not escape from cell death since it was attacked by several death pathways of this combination. These expected mechanisms accordingly convinced us to conduct a study regarding an apoptotic (cell death) process.

Apoptosis and multi caspase activity experiments were investigated using annexin V/propidium iodide assay and multi caspase/7-AAD assay. In the assay, the total apoptotic cells were obtained from a summation of early and late apoptotic cells. The early and later apoptosis stage could be distinguished by intercalation among Annexin V to Phosphatidylserine and intercalation of Annexin V together with PI inside permeable membrane of late apoptotic cells. Meanwhile, dead or necrotic cells were observed in this study. The different aspect of these two basic types of cell death is that the necrosis is caused by excessive external damage, while apoptosis occurs when the cells are aged and undergo progressive morphological alteration by internal molecular involvement [52]. Dot plots in fig. 2 reflected all cell conditions including live cells, early and late apoptotic cells and dead cells (necrotic cells). A significant decrease of live cells was found in MCF-7 cells at 72 h after the incubation with the combination of DEGE and PFPE. Moreover, late apoptotic and total apoptotic cells were increased statistically significantly at 72 h after the treatment and responded in a timedependent manner.

IJPS-apoptosis-83-2-238-g002

Figure 2: The combination of DEGE with PFPE induces cell apoptosis ()
(A) MCF-7 cells were treated with the combination of DEGE with PFPE at IC50 concentration value of 15.58 μg/ml and 21.06 μg/ml, respectively and incubated for 24, 48 and 72 h. After treatment, apoptotic cells were analyzed by the Muse® Annexin V-FITC assay and Propidium Iodide (dead cell kit). (B) The graph represented the summary of average percentages±SD of live, early apoptotic, late apoptotic, dead and total apoptotic of three independent experiments. The statistical analysis of the data was tested by Student t test where p values less than 0.05 was statistically considered as significant differences compared to control group at 0 h

The apoptosis insight can be harnessed as a key strategy for novel targeted therapies that lead to the arrest of cancer cell growth and spread [53]. Moreover, the correlation between apoptosis and caspase activation is the loss of mitochondrial membrane potential. An activation of cytochrome c (cyt-c) would be then followed by caspase activation [54]. The caspases are activated when the cell inactivates zymogens, provoking a low number of protease activity [55]. The dot plots, in fig. 3, represented the proportion of live, caspase+, caspase+/dead and dead cells of MCF-7 cells treated with the combination of DEGE and PFPE. We found that multi caspase activity was significantly increased at 72 h (p<0.05) after treatment and responded in a timedependent manner similar to the apoptosis experiment. However, further analysis of proteins in the apoptosis pathway would be encouraged.

IJPS-incubated

Figure 3: The combination of DEGE with PFPE induces multi caspase activity
(A) MCF-7 cells were treated with the combination of DEGE with PFPE at IC50 concentration value of 15.58 μg/ml and 21.06 μg/ml, respectively and incubated for 24, 48 and 72 h. After treatment, multi caspase activity was analyzed by the Muse® Multi caspase assay and 7-AAD (dead cell kit). (B) The graph is represented the average percentages ± SD of live, caspase+, caspase+/dead and total caspase of three independent experiments. The statistical analysis of the data was tested by Student t-test where p values less than 0.05 was statistically considered as significant differences compared to control group at 0 h

To the best of our insight, we analyzed and linked to the compounds observed by GC-MS. Several previous findings revealed that the chemical compositions of DEGE could affect apoptotic associated proteins and caspases. The most abundant phytocompound of DEGE was palmitic acid, which can promotes caspase -3, -8 and -9 activities in Pheochromocytoma cells (PC12) [56]. Furthermore, linoleic acid, phytol and stigmasterol up regulate apoptotic proteins, such as bax, caspase -3 and -9. These three compounds also downregulate bcl-2 in colorectal, liver and Non-small cell lung cancer (NSCLC) cells, respectively [38,39,57]. Surprisingly, Western blot analysis of PFPE reflected that PFPE was able to regulate the apoptosis associated proteins including p53, bax and suppress bcl-2 expression on cholangiocarcinoma cells (KKU-M213 and TFK-1) [20]. Merged all results together, this report points out that DEGE and PFPE would be a potential regimen for breast cancer treatment in the future. Nevertheless, an in vivo study using breast cancer and clinical trials remain necessary to support supplementary information.

In conclusion, dichloromethane extract of A. paniculata, Z. spina-christi and G. extensum showed strong cytotoxicity against colorectal, breast and ovarian cancer, respectively, with an IC50 value less than 14 μg/ ml. A combination of dichloromethane crude extract of G. extensum with P. nigrum crude extract interestingly enhanced a synergistic anticancer activity on breast cancer through the apoptosis induction.

Acknowledgements

This work was supported by the Thailand’s Education Hub for the Southern Region of ASEAN Countries (TEH-AC) Scholarship from Prince of Songkla University (Contract No. 004/2018); Graduate School, Prince of Songkla University, Thailand; the Agricultural Research Development Agency (Public Organization) (CRP6205031530), Thailand.

Conflict of Interests

The authors declared no conflict of interest.

References
