- *Corresponding Author:
- S. Mohapatra
Department of Pharmaceutics, School of Pharmaceutical Sciences, Siksha ‘O’ Anusandhan (Deemed to be University), Bhubaneswar, Odisha-751 003, India
E-mail: [email protected]
|Date of Submission||28 September 2019|
|Date of Revision||09 December 2019|
|Date of Acceptance||08 January 2020|
|Indian J Pharm Sci 2020;82(2):33-38|
This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms
The objective of this investigation was to prepare and evaluate propranolol hydrochloride time release tablets using press coating technique. The time release tablet consisted of two layers, a core tablet containing the active ingredient and an outer cell coating. The core tablet was prepared with the active ingredient using conventional method. Press coated optimized tablet was formulated using different ratios of ethyl cellulose and hydroxypropyl methylcellulose K4M. The coated tablets were evaluated by estimating the physical attributes, drug content, X-ray powder diffraction, Fourier-transform infrared spectroscopy and in vitro drug release profile. Based on the evaluation parameters formulation F10 showed a 6 h release lag time. The release pattern of F10 formulation fulfilled the circadian variation matching the chronotherapeutic objective of hypertension.
Propranolol hydrochloride, press coated, chronotherapy, time release
Time release (TR) tablets are gaining importance as this technology delivers medicine at a specific moment according to a disease’s pathophysiological requirements, leading to enhanced therapeutic effectiveness and patient compliance. These systems are useful for drugs with chronopharmacological behavior (where night dosage is required), first-pass effect, and explicit ingestion site in the gastrointestinal tract . By regulating the dosing routine of drug administration as indicated by physiological needs, chronotherapy has now been widely linked in clinical treatment. Different diseases such as asthma, hypertension and arthritis show circadian variety that demand time planned drug release for successful drug activity . Following the effects of a few epidemiological investigations, the 24 h cycle shows increased danger of various pathologies. The risk factor for patients suffering with cardiovascular diseases are more in early morning as the blood pressure rises in a significant manner just before awakening. So for treatment of hypertension delivery of drug is required early in the morning, when blood pressure is at its peak after a suitable lag period covering midnight hours, when blood pressure declines. To fulfill this prerequisite, new innovation based on TR was created [3-6].
TR drug delivery can be accomplished by formulating the tablet either in form of coated matrix tablets or coating the directly compressed core tablets by film coating or press coating [7-11]. Comparing the above techniques press coated tablets provide solvent free coating method that also requires no unique tool, and pressure shaped coating provides greater strength as compared to film coating [12-14].
This sim of this study was to develop press coated TR tablet of propranolol hydrochloride (PNH). PNH is a β blocker that blocks the β1 receptor in the kidney and reduces the discharge of renin. Renin angiotensin system impacts decrease and blood pressure decrease . A well-known water insoluble polymer, ethyl cellulose (EC) serves to modulate drug release as a controlling membrane. Hydroxypropyl methylcellulose (HPMC) is a widely used swellable polymer in the pharmaceutical industry that acts as an extended release agent [16,17].
The purpose of this examination was to establish a planned and controlled TR tablet that would release the drug quickly before risk time in the early morning and continue to release drug latter to treat hypertension. The TR tablet was meant to have a 6 h initial lag time and latter sustained release in view of this idea [18,19].
Material and Methods
The materials used were, propranolol hydrochloride (PNH, Macleods Pharmaceuticals, Sikkim), microcrystalline cellulose (MCC, Hiranya Cellulose Products, Hyderabad), lactose (Benzer Multi Tech India Private Limited, Pune), magnesium stearate (Eklingjee Polymers Private Limited, Delhi), talc (Goyal Enterprises, Jaipur), ethyl cellulose (EC, Perry Impex, Maharashtra), hydroxypropyl methylcellulose K4M (HPMC K4M, Paarichem Resources LLP, Mumbai), barium sulphate X-ray Grade (Mahavir Chemical Industries, Delhi). All chemicals used were of analytical grade. Ethanol and hydrochloric acid was of HPLC grade and were purchased from Nanda Enterprises Mumbai, India. The equipment used used were, electronic balance (Wensar), hydraulic compression machine (Technosearch), UV/Vis spectrophotometer (Jasco V-630), hardness tester (Dr. Schleuinger Pharmaton), disintegration apparatus (Technolab), dissolution apparatus (Electrolab TDT06L), FT-IR (Jasco 4600) and XRD (Miniflex 600).
Preparation of PNH core tablet:
The core tablet of PNH was formulated using direct compression technique. Precisely weighed PNH and excipients other than glidant and lubricant were passed through 60 mesh sieve and were mixed in a petri dish. Talc and magnesium stearate lubricated the prepared mix for a further 5 min and heated for the next 30 min at 40º in a hot air oven. Thereafter the resulting blend was compressed directly using 8 mm round level punches in a hydraulic press tableting machine. PNH was 40 mg per core tablet and the final weight was adjusted to 150 mg for each core tablet (Table 1).
|Product (3)||R1||R2||R3||Isolated yield (%)|
|3c||Cl||H||Cl||77 (3c = 42, 3d = 35)|
Table 1: 1,2-Disubstituted Benzimidazoles.
Preparation of press coated tablet:
Table 2 showed that the core PNH tablets were coated with coat constituents in different ratios of EC and HPMC K4M. Here, half of the coat materials were placed in a die cavity and then the core PNH tablet was placed in the centre of the die cavity and then loaded with the other part of the coating material. For compression 13 mm round flat and simple punches were used.
|OPD mol (Compound 1)||Benzaldehyde mmol (Compound 2)||Equivalents (1:2)||Reaction conditions||Yield (%)|
|1.97||1.97||1:1||RT, 24 h||12||65||77|
|1.97||5.91||1:3||RT, 24 h||37||53||90|
|1.97||9.85||1:5||RT, 24 h||51||36||87|
|1.97||19.7||1:10||RT, 24 h||73||15||88|
|1.97||19.7||1:10||60º, 48 h||55||19||74|
|1.97||19.7||1:10||90º, 48 h||41||14||55|
Table 2: Reaction Optimization and Yield.
Physicochemical characterization and drug content uniformity of PNH core tablet:
According to the Indian Pharmacopoeia (IP 2018), physicochemical parameters such as hardness, weight variation and friability were evaluated. The PNH press coated tablets were also subjected to similar evaluation for physicochemical parameters. For drug content estimation, 10 tablets were taken and triturated and precisely 100 mg of the powder was weighed and placed in a 100 ml volumetric flask. Then 75 ml of 95 % ethanol was added mixed and filtered. Five millilitres of the filtrate was diluted with 50 ml of ethanol and the PNH concentration was estimated on a UV spectrophotometer at 289 nm utilizing proper blank solution. The quantity of PNH was determined from the calibration curve.
In vitro disintegration time and dissolution of PNH core tablet:
In vitro disintegration time was determined by taking 6 tablets from every batch and were placed in a digital tablet disintegration apparatus. In vitro disintegration was determined at 37±2º in 900 ml of pH 6.8 phosphate buffer. The in vitro dissolution studies were done in pH 6.8 phosphate buffer (900 ml) at 37±5º employing the USP dissolution apparatus type II. The rotation speed was fixed at 50 rpm. Aliquots of dissolution medium were taken out at predetermine time intervals and content of PNH was determined using the UV spectrophotometer at 289 nm. The dissolution studies were performed in triplicate.

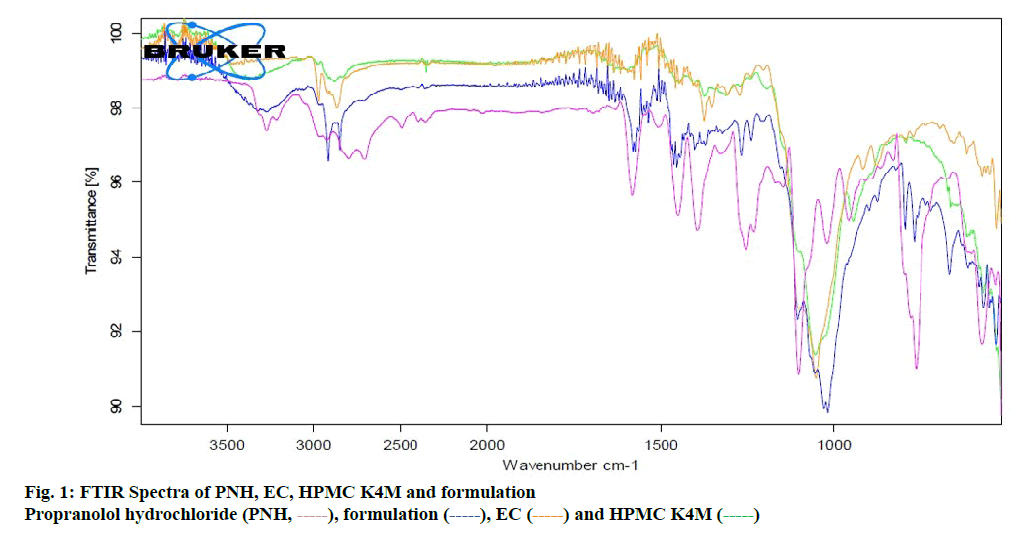

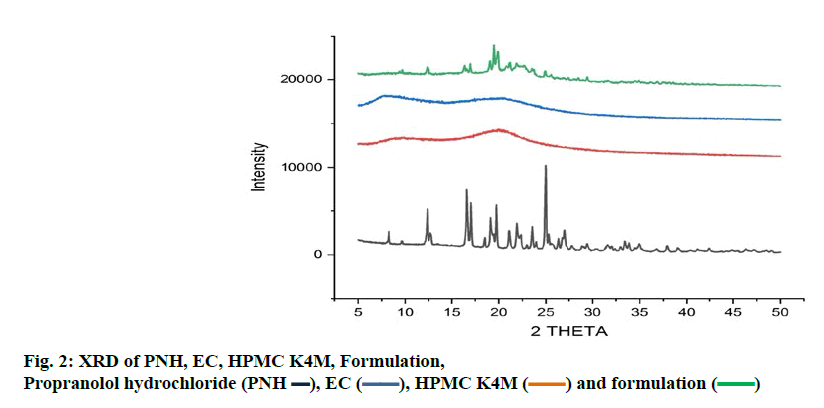

FTIR and XRD analysis of press coated tablets:
The compatibility between PNH and formulation excipients was evaluated using FTIR employing the KBr pellet method. The spectra obtained were compared and interpreted for useful functional group bands. X-ray diffraction spectrum of PNH, the polymer and the optimized formulation was recorded with X-ray diffractometer with ray-flex technology using Nifiltered, Cu-K-α-radiation, 40 kV and 30 mA current at a scan rate of 100/min. The instrument worked in constant output mode over a 5-50°, 2θ scope at a 10.3 sec phase moment. The comparative power I/I0 and the interplanar distance compared to the 2θ qualities were accounted and examined.
In vitro dissolution study of press coated tablet:
In vitro dissolution studies were performed in a USP dissolution type-II (paddle type) apparatus, in 500 ml medium at 37±5º at a rotation speed of 50 rpm. In light of lag time the press coated tablets was tested at 0.1N HCl at first for 2 h and after which the dissolution was studied in pH 6.8, which is similar to intestinal media. At predetermined time intervals, samples were withdrawn and replenished by an equivalent volume of fresh dissolution medium to maintain consistent volume. The withdrawn samples were filtered, diluted and analysed on a UV spectrophotometer at 289 nm [20,21].
Results and Discussion
The measured core tablet hardness was found to be 2.1±0.04 N for all formulations. This ensured that all batches possessed good handling characteristics. As the percent weight variation was within the limits of pharmacopoeia, the entire formulated core tablet passed the test. It was found that all tablet weights were uniform with low standard deviation. Tablet thickness was found to be 8 mm. The percent friability was less than one for all formulations, indicating that the batches were within the prescribed limits. The results of friability indicated that the tablets possessed good mechanical strength. It was found that the core tablets disintegrated rapidly within 100 sec. The content of PNH was found to be very high in all the cases. The assay value was 98 % of the labeled amount indicating uniformity of drug content (Table 3). The results obtained for post compression parameters are summarized in the Table 4. The coated tablet passed these tests as the data were within the pharmacopoeial limits. FTIR spectra revealed that there was minimal drug carrier interaction. The amine group showed a broadband at 3373 cm-1 due to probable interaction of intramolecular hydrogen bonds. In addition to that no other functional group of PNH interfered with the formulation excipients (figure. 1). PNH XRD pattern showed intense, sharp peaks showing its crystalline nature. In the case of the formulation, numerous distinct peaks indicated that the crystallinity was reduced in comparison to the pure drug (figure. 2).
|Sample code||Number of writhings (mean±SEM)a||Writhings (%)||Inhibition (%)|
Table 3: Analgesic Activity of Disubstituted Benzimidazole Derivatives on the Acetic Acid-Induced Writhing’s in Mice.
|Sample code||Number of stool pellets of 5 mice in 4 h (mean±SEM)b||% Inhibition of defecation|
Table 4: Antidiarrheal Activity of Synthesized Benzimidazole Derivatives on Castor Oil-Induced Diarrhea.

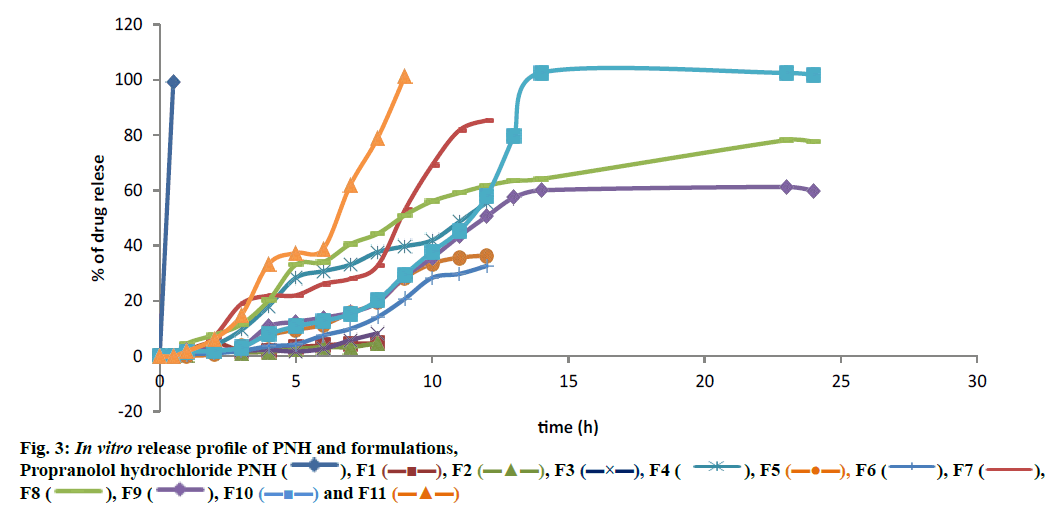

From the dissolution study it was observed that the core tablet showed rapid drug release, which was 99 % within 30 min (figure. 3) following a conventional release pattern. For formulating the TR tablet of PNH, a predetermined lag time followed by release at a programmed manner, the outer press coat material should resist the GI fluid before it disintegrated or ruptured in the intestine. Therefore, maintenance of lag time for the press coated tablet was a key parameter. Through optimization of the proportions of EC and HPMC K4M in the press coat, it was programmed to achieve a lag period of 6 h initially followed by sustained drug release. It is likely that lag time for drug release was controlled by a combination of the thickness and the viscous gel forming layer of HPMC and impermeable layer of EC. The optimized formulation F10 fulfilled all expectations maintaining a lag time of 6 h and followed by releasing PNH in a sustained manner. The thickness of the coat material is a major parameter for sustaining drug release, working as a barrier. The release pattern could be programmed by changing the coat thickness (figure. 4).
From the results of this investigation, it could be concluded that the prepared press coated TR tablets of PNH appears to be suitable for administration at bed time to release the drug in the early morning when chances of hypertension are more likely there by fulfilling the therapeutic requirement of the disease.
