*Corresponding Author:
P. S. Kumar
ICAR-National Research Centre for Banana, Trichy-620 102, India
E-mail: [email protected]
Date of Submission 29 September 2018
Date of Revision 05 Deceember 2018
Date of Acceptance 30 March 2019
Indian J Pharm Sci 2019;81(3):464-473

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

The present study was aimed to evaluate the antioxidant and antitumor activities of the aqueous methanol extract of Nendran banana peel as a valuable source for bioactive compounds against cancer. Free radical scavenging activity of the peel extracts was evaluated using 1,1-diphenyl-2-picrylhydrazyl and ferric reducing antioxidant power assay. The antitumor activity on MCF-7 breast cancer cell line was determined by the 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide and ethidium bromide/acridine orange staining assay. Extract of banana peel was more efficient in reducing ferric ion with the increase in concentration and exhibited IC50 180.33 µg/ml, free radical inhibition activity under 2,2-diphenyl-1-picrylhydrazyl hydrate assay. Flavonoid content was high (51.47 µg/ml) in the peel extract, which could have contributed to the antioxidant activity. The antioxidant enzyme concentration such as ascorbate peroxidase, catalase, peroxidase and superoxide dismutase were found higher in the fruit pulp than peel. As the concentration of extract increased from 20 to 200 μg/ml, the cell viability of MCF-7 decreased from 91.14 to 24.7%. The IC50 values of plant extract-treated cells (120.6 μg/ml) showed typical apoptotic and necrotic morphological features such as condensed nuclei, membrane blebbing and formation of apoptotic bodies. This indicated the efficiency of sample against breast cancer with the highest inhibition of growth.

Keywords

Nendran banana peel, bioactive compounds, apoptotic index, phenols, flavonoids, antioxidant

Cancer is a hyper-proliferative disorder, which involves transformation, deregulation of apoptosis, proliferation, invasion, angiogenesis, and metastasis. Worldwide, more than half a million people died of cancer every year, at a rate of 1500 patients every day [1]. Breast cancer is the second leading cancer in women, accounting for 25 % of all cases [2]. Currently tamoxifen, selective oestrogen receptor modulator, is widely used in the prevention and treatment of oestrogen receptor positive breast cancer [3]. However, a significant number of patients develop tamoxifen resistance and experience severe side effects [4,5]. It is therefore, imperative to search for newer compounds, which are effective, greener and not with many side effects.

As the conventional cancer therapies failed to fulfil the criteria for successful cancer treatments, recent research revolved around the urgency to develop suitable therapy for the cure of cancer with no toxic effects through methodical and scientific exploration of the enormous pool of synthetic, biological, and natural products [2,6-9]. Plant-derived natural products received significant attention due to their diverse pharmacological properties and cancer preventive effects. With the presence of flavonoids, alkaloids and terpenes, these offer different forms of cytotoxic effects such as cell proliferation inhibition, apoptosis induction or modulating signal transduction, without exhibiting considerable damage to normal cells [7-13]. These are relatively new, but very promising strategies in preventing cancer due to both additive and synergistic effects [8]. Interest in the pharmacological effects of bioactive compounds on cancer treatments and prevention has increased dramatically over the past 20 y. Many fruits such as guava [13], banana [11], papaya [12], lemon [14], orange [15], apple, water melon, litchi are reported to possess proven medicinal activities when used as a whole fruit, seeds, leaves, and as peels with anticancer potential [16-18].

Banana is one of the major fruit crops grown in India with the production of more than 30 million tons per annum. The Nendran banana is a dual-purpose banana, being utilized as a fruit and as in cooked form. Moreover, the chips, oil-fried products of Nendran increase the bioavailability of lipid soluble β-carotene in human diet, was reported by National Institute of Nutrition, India [10]. The chips industry with the production of 2 lakh tons of chips and the value of 500 crores annually, generate equal volume of peel and the amount of waste is expected to increase with the development of clustered processing industries [11]. Peel, the main by-product of banana constitutes 30-40 % of the fresh biomass of the Nendran fruit was found to contain much higher beneficial compounds compared to other fruit parts [12,13]. They are rich source of crude protein (6-9 %), crude fat (3.8-11 %), total dietary fibre (43.2- 49.7 %), polyunsaturated fatty acids, essential amino acids and micronutrients on dry weight basis. Banana peels are also a good source of lignin (6-12 %), pectin (10-21 %), cellulose (7.6-9.6 %), hemicelluloses (6.4- 9.4 %) and galacturonic acid [9]. The natural bioactive compounds such as carotenoids, quercetin derivatives, phenolic acids and saponins are found in the peels in high concentration [14]. Like pulp, banana peel flour offers scope for making new processed nutraceutical products. These parts of banana have long been used in traditional medicine in Asia and Africa [17]. Peel is used to make poultice for wounds to reduce pain and swelling. Peel, placed on a wart, with the yellow side out, could be an alternative to kill of wart and to reduce the irritation after a mosquito bite [18,19]. Therefore, bioactive compounds from various parts of banana are considered to be natural free radical defence that were acknowledged to be beneficial for human health as an antioxidant, antitumor, and antimicrobial agent [18,19].

Considering the need for effective anticancer agents, and the association of fruit and vegetable consumption with reduced cancer risk [9,11,20-24], present study was conducted to profile the bioactive compounds in Nendran peel extract and to assess its antioxidant and anticancer activities with the focus to determine their ability to inhibit the proliferation of human breast cell line (MCF-7).

Materials and Methods

The peel of the banana cv. Nendran was collected from the bakeries, making banana chips and from the experimental farm of ICAR-National Research Centre for Banana, Trichy, Tamil Nadu. The basic parameters such as fruit weight (g), length (cm), fruit diameter (cm), peel weight (g), pulp weight (g), firmness (kgf) and colour index were recorded. The peel and pulp were freeze-dried and ground into a fine powder using a mortar and pestle and passed using US 100 sieve (particle size 0.15 mm) and stored at 4° in a sealed poly propylene bag until further analysis.

Quantitative analysis of secondary metabolites:

Total carotenoids [7], β-carotene [8], total starch [11], total and reducing sugar, protein [9], superoxide dismutase (SOD) [8], catalase (CAT), peroxidase (POX), glutathione reductase [12], ascorbate peroxidase (APOX) and mineral nutrient [8] were estimated using standard procedures. Fresh samples of peel and pulp were used for the estimation of phenols, flavonoids, secondary metabolites, minerals and other proximate analyses.

Estimation of total phenolic compounds:

Phenolic compounds from fruit peel and pulp extract were estimated according to the method outlined by Kumar et al. [8]. In brief, 1 g of fresh sample was extracted using 80 % aqueous methanol and 1 ml of the sample was mixed with 1 ml of Folin-Ciocalteau phenol reagent and 1 ml of 20 % anhydrous sodium carbonate. The optical density was measured after 30 min at a wavelength of 650 nm. The phenolic content was obtained from a standard curve of gallic acid and then calculated as milligram phenolic per gram fresh weight of sample.

Estimation of total flavonoids:

Aluminium chloride colorimetric technique was used for flavonoid estimation [10]. Fruit peel and pulp was extracted using 1 g/10 ml of 80 % aqueous methanol solvent. From the extract 0.5 ml was mixed with 1.5 ml of methanol, 0.1 ml of 10 % aluminium chloride, 0.1 ml of 1 M potassium acetate and 2.8 ml of distilled water, left at room temperature for 30 min and then the absorbance of the reaction mixture was measured at 416 nm with a double beam UV/Vis spectrophotometer (UV-3200, LabIndia). The total flavonoid content was obtained from a calibration curve, using quercetin as standard and then calculated as milligram flavonoids/g fresh weight of sample.

Diphenyl picrylhydrazyl (DPPH) radical scavenging assay:

DPPH stable free radical scavenging activity was determined according to the protocol of Kumar et al. [8] with a slight modification. Five grams of fresh sample was taken and extracted with 25 ml methanol. One millilitre of the extract was mixed with an equal volume of methanol to which 1 ml of 200 μM DPPH was added. Control, blank and sample solutions were incubated in the dark at 37° for 30 min. Absorbance was measured at the end at 515 nm against control using a spectrophotometer. BHA was used as the reference material and the percent inhibition was calculated by comparing the optical density values of the extract with those of the controls.

Ferric reducing antioxidant power (FRAP):

The antioxidant capacity of pulp and peel of the fruits were estimated spectrophotometrically following the procedure reported by Benzie and Strain [25]. FRAP reagent was prepared by mixing 300 mM acetate buffer, 10 ml 2,4,6-tripyridyl-s-triazine in 40 mM HCl and 20 mM FeCl3.6H2O in the proportion of 10:1:1 at 37°. 3.995 ml of freshly prepared working FRAP reagent was pipetted and mixed with 5 μl of the appropriately diluted plant sample and mixed thoroughly. An intense blue colour complex was formed and the absorbance at 593 nm was recorded against a reagent blank after 30 min incubation at 37°. The standard graph was plotted using FeSO4.7H2O at different concentrations. The reduction of Fe3+ into Fe2+ was observed by comparing the absorbance and the FRAP activity was expressed as μM FeSO4/ml. β-hydroxy anisole (BHA) was used as standard.

MTT assay for cell cytotoxicity:

Lyophilized peel powder (10 g) was extracted using 80 % methanol (1:3) and was concentrated to obtain 18 % aqueous methanol extract. The extract was used for further analysis of anticancer activity using MTT and acridine orange/ethidium bromide (AO/EB) assay. Human breast carcinoma (MCF-7) cell line was obtained from the National Centre for Cell Science, Mumbai, were cultured in liquid medium (Dulbecco`s modified Eagle media, DMEM) supplemented with 10 % fetal bovine serum (FBS), 100 U/ml penicillin and 100 μg/ml streptomycin and maintained under 5 % CO2 atmosphere at 37°. Briefly, the cultured MCF-7 cells were harvested by trypsinization and pooled in a 15 ml tube [12,26]. Then, the cells were plated at a density of 1×105 cells/well (200 μl) into 96-well tissue culture plate in DMEM medium containing 10 % FBS and 1 % antibiotic solution for 24-48 h at 37°. The wells were washed with sterile PBS and treated with various concentrations of 80 % aqueous methanol extract in a serum free DMEM medium. Then, the cells were incubated at 37° in a humidified 5 % CO2 incubator for 24 h. After the incubation period, MTT (20 μl of 5 mg/ml) was added into each well and the cells incubated for another 2-4 h until purple precipitate was clearly visible under an inverted microscope. Finally, the medium together with MTT (220 μl) were aspirated off the wells and washed with 1X PBS (200 μl). Furthermore, to dissolve formazan crystals, DMSO (100 μl) was added and the plate was shaken for 5 min. The absorbance for each well was measured at 570 nm in a microplate reader (Thermo Fisher Scientific, USA), the percent cell viability and IC50 values were calculated using GraphPad Prism 6.0 software (USA).

AO/EB staining:

AO/EB staining assay was performed as outlined by Ciniglia et al. [24]. Briefly, 5×105 MCF-7 cells/ml were seeded into the 24 well tissue culture plate and treated with the best optimized extract in a serum-free DMEM medium. The plate was incubated at 37° in a 5 % CO2 incubator for 24 h. After incubation, 50 μl of 1 mg/ml AO and EB were added to the wells and mixed gently. Finally, the plate was centrifuged at 800 rpm for 2 min and evaluated immediately within 1 h and examined at least 100 cells by fluorescence microscope using a fluorescent filter. Early apoptosis, late apoptosis and necrosis indices were calculated using the difference in 100 cells with the staining [24].

Statistical analyses:

Results were calculated as mean±standard deviation (SD) for each group and were analysed using GraphPad Prism (V.7, GraphPad Software, CA, USA) statistical software. For calculation of significant difference between multiple groups, t test was performed using SPSS (V.20.1, USA), one‑way analysis of variance and post hoc analysis was performed with Tukey’s test and p<0.05 was considered statistically significant.

Results and Discussion

The general physical parameters of the Nendran banana are presented in Table 1. Nendran a dual-purpose banana variety weighed between 140-225 g with the fruit length of 19.0-25.0 cm and the fruit circumference of 13 to 16.0 cm. The pulp weight varied between 97.5- 124.67 g whereas the peel weighed in the range of 42.7-70.83 g. Colour, an important parameter for the selection of fruits expressed the L value of 43.6-52.4. This has shown that the fruit is light in colour with the medium redness value. The peel to pulp ratio was 1.7-2.28, this explained the need for the study as huge biomass is generated as a waste while utilizing banana fruits in processing industry.

Parameters Values
Fruit weight (g) 140.8-225.34
Fruit length (cm) 18.5-24.3
Fruit circumference (cm) 12.5-15.4
Pulp weight (g) 97.5-124.67
Peel weight (g) 42.7-70.83
Firmness (kgf) 26.7-29.15
Colour index L= 43.6-52.4a=16.21b=21.9
Pulp to peel ratio 1.75-1.94

Table 1: Physical Parameters of Nendran Banana (AAB)

Chemical parameters of both peel and pulp were analysed and presented in Table 2. All the basic nutrient parameters like sugar, carbohydrate, protein and fat were more in the pulp than in the peel. The pulp contained higher value on total suspended solids (TSS) than the peel. Higher TSS was required for palatability of the fruit pulp and for higher consumer acceptance, while making processed products. Similarly, reducing sugars, non-reducing sugars and total carbohydrates were more in the pulp than in the peel. However, the peel gave higher value for fat and the ash content. The higher fat content in the peel facilitates its use for the extraction of essential oil. The higher ash content indicated higher mineral accumulation in the peel than in the pulp (Table 3). The nutrient composition of the cultivar is mostly depended upon its genetic makeup with a little influence of the environment and added nutrients [11]. Accumulation of minerals is normally more in the peel than the pulp during fruit development stage. Among the minerals, potassium content was more with the values of 618.4 and 397.9 mg/100 g in the peel and the pulp, respectively followed by magnesium (536 and 421 ppm) and calcium (220 and 130 ppm). The positive effect of potassium on salt regulation and use of magnesium on reducing hypertension was welldocumented[ 3,17,21]. Consequently, these peels rich in minerals has a greater scope to be used in nutraceutical and cosmetic industries [11,22,23] and as a supplement in bakery and biscuits units with its higher content of dietary fibre.

Parameter Peel Pulp p (0.05) t-value (5 %)
Moisture (%) 75.3±3.2 62.0±2.87 1.24 2.34
TSS°Bx 6.4±0.25 21.5±0.81 0.43 -24.18
Reducing sugar (%) 12.6±0.47 17.8±0.64 0.57 -10.23
Non-reducing sugar (%) 3.4±0.19 5.4±0.09 0.67 -11.76
Starch (%) 4.5±0.11 7.6±0.19 0.28 -10.21
Protein (%) 0.35±0.004 0.83±0.04 0.23 -10.72
Fat (%) 3.67±0.20 2.58±0.12 0.64 09.27
Total carbohydrate (%) 22.6±1.62 32.5±1.99 0.42 -2.85
Ash (%) 1.83±0.10 1.54±0.07 0.26 1.61

Table 2: Nutrient Composition of Pulp and Peel of Nendran Banana (FWB)

Parameter Peel Pulp p (0.05) t-value (5%)
Potassium (mg/100 g) 618.4±25.74 397.9±15.05 0.43 13.11
Calcium (ppm) 220.0±08.32 130.0±04.68 0.57 13.76
Magnesium (ppm) 536.0±30.37 421.0±7.29 0.67 4.2
Iron (ppm) 12.4±0.32 4.7±0.11 0.29 17.59
Zinc (ppm) 2.8±0.06 1.4±0.06 0.56 11.43
Manganese (ppm) 2.3±0.07 1.3±0.05 0.63 18.8
Sodium (ppm) 38.0±2.91 22.0±1.34 0.42 3.95

Table 3: Mineral Content of Pulp and Peel Samples of Nendran (FWB)

In the current investigation, aqueous methanol extract of Nendran peel showed highest flavonoid content of 51.47 μg/g and phenolic content of 0.54 mg/g, which could be related to its antioxidant potential (Table 4). Medium containing polar and non-polar solvents has the capacity to release the cell wall bound polyphenols from the cells and neutralize the activity of poly phenol oxidase, which generally degrades the polyphenols in plants [21]. Phenols and flavonoids, the bioactive health beneficial phytochemicals, implicated in the prevention of a variety of diseases like cardiovascular diseases, cancers and neurodegenerative disorders was documented by researchers in different plant parts [24-29].

Parameter Peel Pulp p (0.05) t-value (5%)
Total phenols mg/g 0.54±0.02 0.82±0.03 0.42 -14.39
Total flavonoids µg/g 51.47±1.94 49.20±1.77 0.67 1.39
Total carotenoids µg/g 14.6± 0.33 15.8±0.78 0.56 -1.26
β carotene µg/g 10.3±0.33 12.6±0.59 0.63 -4.62
Ascorbate peroxidase(µmol/mg/min) 8.7±0.66 18.9±1.15 0.42 -5.91
Catalase (µmol/mg/min) 6.98±0.41 9.35±0.47 0.26 -2.77
Peroxidase (µmol/mg/min) 30.74±1.27 10.74±0.41 0.42 2.11
SOD (U/mg/min) 1.36±0.05 2.97±0.11 0.57 -18.92

Table 4: Secondary Metabolites and Antioxidant Potential of Pulp and Peel of Nendran (FWB)

FRAP assay (figure 1a) is a widely used method that uses antioxidants as reductants in a redox-linked colorimetric reaction. The ferric reducing capability was found better with peel than the pulp. With the concentration of 300 μg/ml, the peel has the antioxidant activity, matched with the BHA standard. Phenols and carotenoids were responsible for the higher FRAP activity in the peel. Carotenoids have good effect on human health, such as pro-vitamin A, antioxidant, anticancer, antiobesity effect and anabolic effect on bone components, which accumulated highly in pulp than peel [20]. The higher carotenoid content of Nendran, make it as a nutraceutical variety and gives its intense yellow colour while ripening [19].

ijpsonline-ncentration

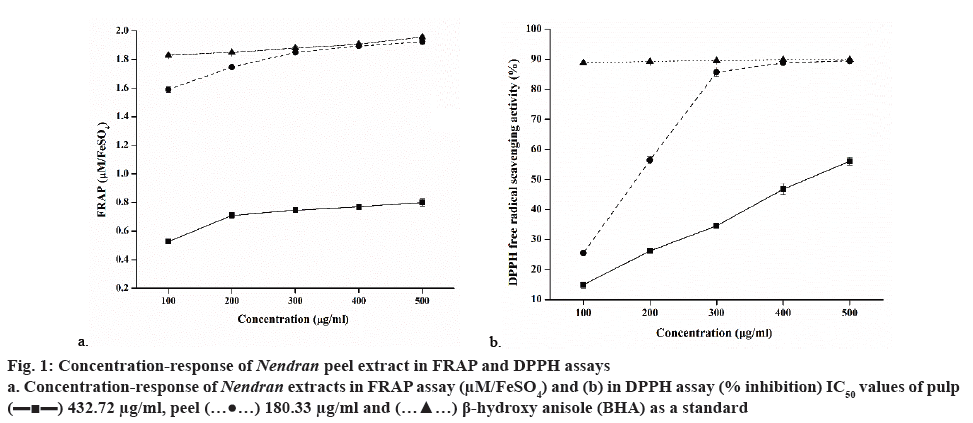

Figure 1: Co ncentration-response of Nendran peel extract in FRAP and DPPH assays
a. Concentration-response of Nendran extracts in FRAP assay (μM/FeSO4) and (b) in DPPH assay (% inhibition) IC50 values of pulp (image) 432.72 μg/ml, peel (image) 180.33 μg/ml and (image) β-hydroxy anisole (BHA) as a standard

The ability of the methanol extract of the Nendran peel to scavenge free radicals was determined based on its hydrogen donating ability in the DPPH assay (figure 1b). The free radical scavenging activity of the extract was expressed as an IC50 of 180.33 μg/ml, which could be due to the presence of high flavonoid content, which might play a key role with its proton donating ability and could serve as free radical scavengers, acting possibly as primary antioxidants [13]. Previous studies reported the antioxidant potential of extracts of banana pulp and peel with varying IC50 values [13,29]. Similar to FRAP, in the present study, the DPPH free radical scavenging activity of the peel reached its peak at a concentration of 300 μg/ml of extract and remained constant at higher concentrations. The inhibition was almost linear in the case of pulp with highest activity observed at a dose of 500 μg/ml of the extract. The variation in the antioxidant potential reported by several groups could be due to differences in cultivars, extraction procedures, geographical location and prevailing conditions such as soil, temperature, sunlight and horticultural practices [4,7,9,11,30].

Similarly, the antioxidant enzyme concentration such as APOX, CAT, POX and SOD were found higher in the pulp than in the peel. These enzymes are the most important antioxidant enzymes scavenging the active oxygen species in plant cells[16]. CAT may be major antioxidant enzyme involved in defence mechanism because it is induced during heating and persists during cold storage [31]. POX, APOX and SOD participate in a great number of physiological processes, such as the biosynthesis of lignin and ethylene, defence against pathogens, wounding and stress response [32]. POXs are recognized to be one of the most heat stable enzymes in plant and its resistance to heat has been reported by a numerous researchers [7,9,11,30], which was more in peel than the pulp.

To know the effect of secondary metabolites on antioxidant assays, a correlation study was performed (figure 2). Results indicated that with increasing concentration of the extract, the DPPH activity of both the peel and the pulp was increased. A linear correlation was observed with pulp on antioxidant activity whereas the peel exhibited the non-linear correlation with peak activity reached at a concentration of 300 μg/ml of the extract. The FRAP activity also increased with increasing the concentration of the extract. Secondary metabolites exerted significant role in antioxidant activity. FRAP activity showed significantly positive correlation with total phenols and carotenoids whereas the DPPH activity was higher with the flavonoid content. This explained the fact that more antioxidant activity is required to study the full potential of extracts of natural products. Depending upon the results, further isolation and characterization could be decided.

ijpsonline-flavonoid

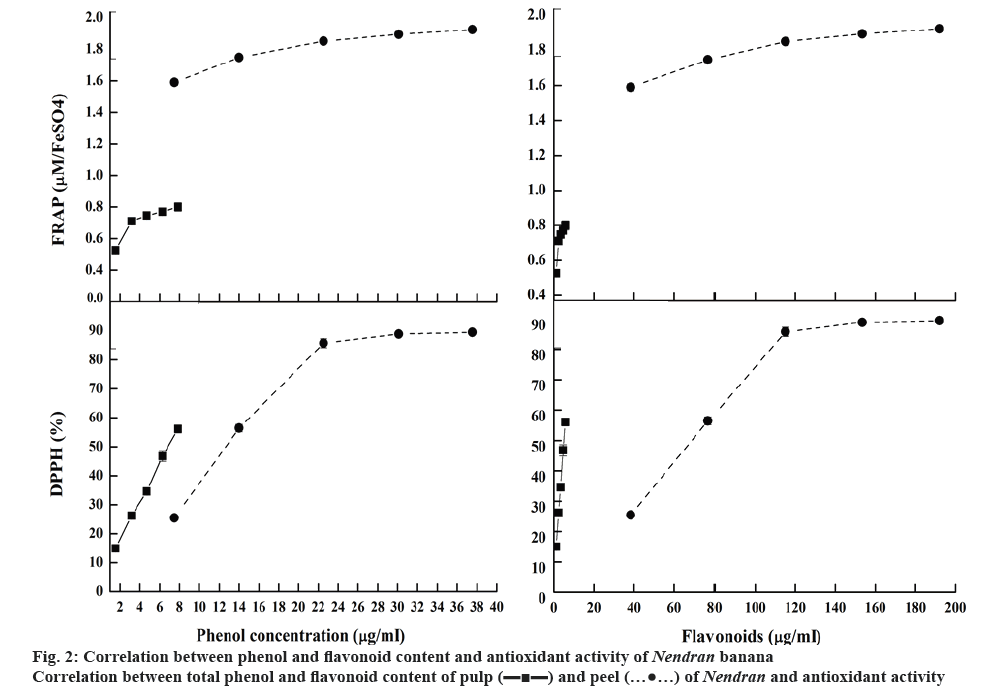

Figure 2: Correlation between phenol and flavonoid content and antioxidant activity of Nendran banana
Correlation between total phenol and flavonoid content of pulp (image) and peel (image) of Nendran and antioxidant activity

The anticancer properties of the pulp with its tumour necrosis factor were already reported by various researchers [11,19,23]. With higher content of phenols and flavonoids, the peel of Nendran bananas was chosen for evaluation of anticancer potential on MCF-7 cells. MCF-7 cell line has become a prominent model system for breast cancer studies as it relates to the susceptibility of the cells to apoptosis. Even though many tumours initially respond to chemotherapy, breast cancer cells can subsequently survive and develop resistance to the treatment. The inhibitory effect on breast cancer cells at different concentrations of peel extract of Nendran banana was studied. The dose-response relationship of the extract shown in Table 5. The intensity of darkblue colour developed by the MTT reaction is directly proportional to the number of viable cancer cells. Cell viability (%) indicates the number of living cells. As the concentration of sample increased (μg/ml), the absorbance decreased that related to cell viability (%). As the concentration increased from 20 to 200 μg/ml, the cell viability of MCF-7 decreased from 91.14 to 24.7 %. Cytotoxicity of the sample extract with varying concentration was also studied (Table 6). We noticed population whereas with the concentration of 100 μg/ml, cytotoxicity of sample found to be 32.42 % while with 200 μg/ml of sample showed the mortality of 75.3 % of cancer cells, which implied the effectiveness of peel extract against the cancer. The half maximal inhibitory concentration (IC50) is a measure of the effectiveness of a substance in inhibiting a specific biological or biochemical function. This quantitative measure indicates how much of inhibitor (sample) is required to inhibit a given biological process. In our present study, the extract of Nendran peel recorded IC50 of 120.6 μg/ml. Therefore, it can be concluded that the effective concentration of the sample to arrest the cancer cell was 120.6 μg/ml, which recorded the regression coefficient value of 0.85. This explained the best fit of the model system followed for the experiment.

Extract concentration (μg/ml) Cell viability (%)* Cytotoxicity (%)
Control 100±0.00 (90.00) 0
200 24.7±1.10 (29.76) 75.3
180 48.08±0.86 (43.88) 51.92
160 55.02±1.24 (47.86) 44.98
140 56.78±0.64 (48.87) 43.22
120 59.73±1.48 (50.60) 40.27
100 67.58±0.58 (55.29) 32.42
80 70.72±0.45 (57.22) 29.28
60 74.26±0.97 (59.50) 25.74
40 80.52 ±0.96 (63.81) 19.48
20 91.14±2.34 (72.94) 8.86

Table 5: Effect of Nendran Peel Extract on Cell Viability and Cytotoxicity of MCF-7 Cell Line

Log(inhibitor) vs. normalized response -- Variable slope
Best-fit values
Log IC50 2.081
Hill Slope -2.113
IC50 120.6
LogIC50 0.02057
Hill Slope 0.2733
95% Confidence intervals
Log IC50 2.039 to 2.123
Hill Slope -2.673 to -1.554
IC50 109.4 to 132.9
R square 0.85

Table 6: IC50 Values and Regression Co-Efficient of Cell Viability Test with Nendran Peel in MTT Assay

These changes were more visible in the dose response curve (figure 3) plotted with OD value versus increasing concentration of the sample. The intensity of colour decreased with higher concentration of the extract with the values falling from 0.45 OD value at 570 nm in control to 0.05 OD value with the concentration of 200 μg/ml. The effect of peel extract on change in the cell viability was examined under the microscope (figure 4) and the formazan crystals formed in the viable cell was noticed. The number of viable cells was more in untreated MCF-7 cells than in the Nendran peeltreated samples. This indicated the potential of peel as an anticancer agent and the presence of bio-active compounds, which had the capability to suppress the cell proliferation.

ijpsonline-extract

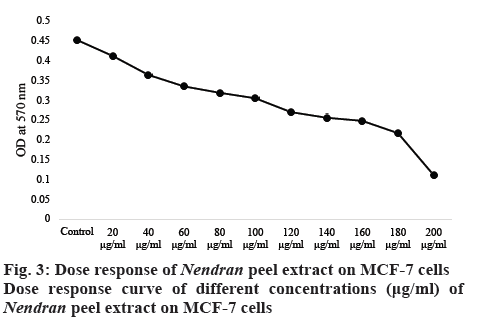

Figure 3: Dose response of Nendran peel extract on MCF-7 cells
Dose response curve of different concentrations (μg/ml) of Nendran peel extract on MCF-7 cells

ijpsonline-presence

Figure 4: Effect of Nendra n peel extract on the presence of viable cells through formation of formazan crystals after MTT treatment
Influence of varying concentrations of Nendran peel extract on the presence of viable cells through formation of formazan crystals after MTT treatment (a) control, (b) cell behaviour at 40 μg/ml, (c) cell behaviour at 100 μg/ml and (d) cell behaviour at 200 μg/ml

Tumor cells undergo apoptosis in the presence of anticancer drugs while normal cells become necrotic if the drug is toxic. MTT assays cannot differentiate between these mechanisms of cell death. Therefore, the effects of drug may primarily be toxic or poisoning to normal cells. These drugs have limited clinical application [11,31,32]. Therefore, detection of tumor cell apoptosis is more valuable than generally assessing tumour cell viability. To distinguish normal, early apoptotic, late apoptotic cells, and dead cells, nuclear morphology must be assessed. Fluorescent staining using AO alone has been used in the past; however, detection of cell apoptosis using AO/EB is a relatively new approach, and few papers have reported its use [33-39]. Dual AO/EB fluorescent staining can detect basic morphological changes in apoptotic cells. In addition, it allows for the distinction between normal cells, early and late apoptotic cells, and necrotic cells. Therefore, AO/EB staining is a qualitative and quantitative method to detect apoptosis [18].

Plant extract treated MCF-7 cells were subjected to AO/EB staining. AO will enter the nucleus and stain live cells as green colour fluorescence and EB will penetrate the nucleus of dead cells due to loss of membrane integrity and stain as red colour fluorescence (figure 5a and 5b) when bound to concentrated DNA fragments or apoptotic bodies [18,40]. In the present study, the MCF-7 cells were treated with 120.6 μg/ml of plant extract and the cells were examined using fluorescent microscopy. Normal viable cells appeared as green fluorescence with highly organized nuclei. Early apoptotic cells (28 %) were appeared as a crescentshaped or granular yellow-green with AO nuclear staining. Late apoptotic cells (65 %) were appeared as a concentrated and asymmetrically localized orange nuclear ETBr staining [33-36] (figure 6). Necrotic cells (7 %) showed uneven, orange-red fluorescence at their periphery without chromatin fragmentation. The IC50 values of plant extracts-treated cells (120.6 μg/ml) showed typical apoptotic and necrotic morphological features such as condensed nuclei, membrane blebbing and formation of apoptotic bodies, which were clearly observed under the fluorescence microscope [12,24]. These changes imply the cells appeared to be in the process of disintegrating. Whereas in control, the nucleus of the cells was regular in shape with no changes and retained the green colour. Our experiment result on ranticancer activity of banana peel extract was corroborated with the earlier reports showing the similar efficacy with different parts like pulp [11,39,40] and seed [7,9,11] in inhibition of cancer cell lines.

ijpsonline-staining

Figure 5: AO/EB staining o f MCF-7 cell line treated with peel extract of Nendran banana
Acridine orange/ethidium bromide (AO/EB) staining of MCF-7 cell lines (a) before treatment and (b) after treatment with peel extract of Nendran banana

ijpsonline-necrosis

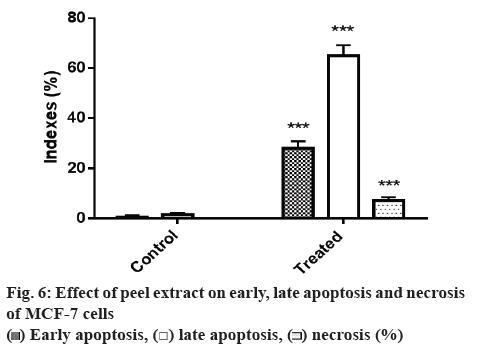

Figure 6: Effect of peel extract on early, late apoptosis and necrosis of MCF-7 cells

The present investigation provides the gateway of information that aqueous methanol extract of Nendran peel has potent cytotoxic activity against MCF-7 breast cell lines. Analysis of the extract showed the presence of high flavonoid content, a secondary metabolite, which is responsible for various therapeutic effects. The result obtained in this study clearly demonstrates that banana fruit peel has a broad spectrum of biological activities and could be used as a good source of antioxidant and antitumour agent. However, further research is needed to identify the bio-active components in banana peel extracts, their purification and characterization of compounds coupled with the evaluation of their mode of action to use the peel extracts in pharmaceutical industries.

Acknowledgements

The authors thank the Director, ICAR-NRCB, Trichy for providing infrastructure facilities to carry out the research work. The authors also thank DBT for providing fund to carry out the work under North Eastern project. The Trichy research centre for Biotechnology Laboratory is also acknowledged for doing the antitumor assay. The technical help rendered by Dr. J. Jeyabaskaran and Mr. R. Pitchaimuthu is also acknowledged.
