The inclusion complex was prepared by co-grinding α-lipoic acid with hydroxypropyl-β-cyclodextrin and alkalizer to enhance the solubility and stability of α-lipoic acid. Lipoic acid was chosen as a model drug because of its poor and pH-dependent aqueous solubility. Sodium carbonate and sodium bicarbonate were chosen as the pH regulators. Furthermore, the study investigated the proportion of alkalizer, hydroxypropyl-β-cyclodextrin and α-lipoic acid. Although the micronization has little effect on the solubility of the drug, the formation of amorphous form has an important effect of inclusion complexes. X-ray powder diffractometry and differential scanning calorimetry were used to assess the phase change of the drugs. The in vitro dissolution test indicates that the alkalizer plays a positive factor for the drug dissolution rate enhancement. The intermolecular interactions in the inclusion complexes were investigated using Fourier transform infrared spectroscopy. It was found that the drug frequency of the C=O band decreased or disappeared when the alkalizer was added. Thermal stability experiments showed that the inclusion complex have better stability after adding alkalizer. The solubility of α-lipoic acid can be increased 40 times when the ratio of α-lipoic acid and sodium carbonate is 1:1.2 in the ternary inclusion complex. It was evident that the inclusion compounds with alkalizer can improved the solubility and stability of α-lipoic acid significantly.


α-Lipoic acid, inclusion complex, alkalizer, solubility, stability

Current researches have reported that oxidative stress is a major reason for the occurrence and development of chronic diabetic complications. Reactive oxygen species (ROS) is the general term of all the reactive free radicals in the body, which have the functions of regulating vascular tone, cell adhesion and immune reaction [1]. A cluster of ROS can directly cause cell damage, which leads to the damage response of the signal transduction pathway. Furthermore ROS can produce a vicious cycle due to the tissue damage eventually [2]. Antioxidant system plays an important role in diabetes and its complications. Improving oxidative stress state may be an effective measure to prevent and cure chronic complications of diabetes. Therefore, antioxidant treatment will become an important part of the diabetes medication. α-Lipoic acid (LA) can reduce the formation of oxidative stress and the advanced glycation end products (AGEs) [3]. LA has been an important measure for the prevention and treatment of diabetes [4]. In Germany, LA has been used for the treatment of diabetes induction of neuropathy more than 30 y. LA is the only antioxidant, which can be dissolved by the water-soluble and fat-soluble solutions simultaneously [5,6]. Therefore, LA is also used as food additive or antiaging agent in cosmetic applications.

LA is a fatty acid containing sulphur forming an intramolecular disulphide bond in its oxidized form (Figure 1). In the chemical structure, due to the high electron density of 1,2-dithiolane ring, there is a high tendency for reduction of other redox-sensitive molecules [7]. LA is unstable to light and heat, and polymerization occurs easily when the temperature is close to or higher than the melting point (58.6°) [8]. Due to its low solubility in water, there are some limitations of LA in the practical application. It is necessary to produce a product, which has higher solubility and stability [7-10].

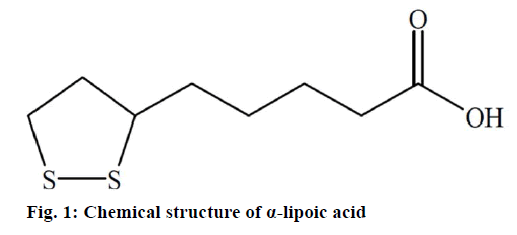

Figure 1: Chemical structure of α-lipoic acid

Hydroxypropyl-β-cyclodextrin (HP-β-CD) is the hydrophilic derivative of β-cyclodextrin and 1,2-propylene oxide obtained by condensation reaction. It is the one of best cyclodextrin derivatives and has been widely used in pharmaceutical preparations currently for drug solubilisation and improved stability [11]. HP-β-CD can maintain its stability in alkali, strong light and heat conditions, and its low price is suitable for industrial production.

For weakly acidic or basic drugs, the pH value has a great influence on its solubility in water. Because of the change of pH value in the solution, the hydrogen ion concentration changes obviously, which leads to the great changes of drug solubility [12]. The following Henderson-Hasselbalch equation, which reveals the relationship between the solubility of the weak acid and the pH. Eqn. 1, S=S0 [1+10(pH–pKa)], where, S0 is the natural solubility of the drug in the water, S is the solubility of the drug in this pH value, pKa is a polar parameter of the solute with a certain degree of dissociation in aqueous solution. With the increase of the pH value of the solution, the solubility of the drug can be increased.

Microenvironment pH (pHM) can be defined as the pH of the saturated solution in the immediate vicinity of the drug particles [13]. The pHM control technology is adds a certain amount of pHM modifier (acidic agent or alkalizer) in the prescription to control the pHM. Thus, the drug can be released in a predetermined pattern and independent of the environment pH. The pHM control technology has been introduced into the process of forming the solid dispersion (SD) [14]. The ternary SDs can not only achieve the drug release of non pH dependence, but can maintain a high degree of drug dispersion, and prevent the recrystallization of an amorphous SD system [15]. It shows a unique advantage in drug solubilisation and promotion of dissolution [16,17].

Many kinds of LA-CD inclusion complexes have been reported in recent years [18,19]. Hideko Maeda, et al. have previously reported a study on the LA and SBE-β-CD inclusion complex by spectroscopic and thermodynamic analysis although the improvement of solubility of LA is limited [18]. However, the limitation of aqueous solubility of those inclusion compounds results that they cannot meet the need of further research. In this article, the pH regulator was imagined to increase the water solubility and stability of LA further by introducing it into the inclusion complex system; the types and the amount of pH regulators were deeply studied. Mechanochemical action was chosen as the preparation method, because it is not only environmentally friendly, but also an effective method to improve the water solubility of poorly soluble drugs [20-23]. The content of LA was determined by high performance liquid chromatography (HPLC), and Fourier transform infrared spectroscopy (FTIR) was used to instrumental characterization of the structural behaviour and molecular interaction of compounds. Differential scanning calorimetry (DSC) and powder X-ray diffraction (XRD) were used to observe the crystalline form and crystallinity of drug in compounds. In addition, the stability of those binary or ternary compounds has been deeply studied in this paper.

Materials and Methods

LA (purity 99%) was supplied by Xi’an Realin Biotechnology Co., Ltd (Xi’an, ShanXi), HP-β-CD was obtained from Qianhui Fine Chemical Co., Ltd (Zibo, China), the pH regulators Na2CO3, citric acid, NaHCO3 and NaOH were purchased from Zhejiang Aoxing Biotechnology Co., Ltd (Taizhou, China), ethanol (purity 99.8%) was obtained from Hangzhou Bangyi Chemical Co., Ltd (Hangzhou, China).

Preparation of samples

LA-HP-β-CD inclusion complex was prepared by co-grinding 412 mg LA and 3074 mg HP-β-CD placed in a 25 ml stainless steel milling jar containing a third tank volume of 12 mm diameter steel balls and milling 2 h at 150 rpm using a planetary ball mill (Retsch, Verder Shanghai Instruments and Equipment Co., Ltd). The solid product were filtered by 100 mesh sieve and used for subsequent studies.

LA-HP-β-CD inclusion complex containing pH regulator was prepared by co-grinding: 3074 mg HP-β-CD and 412 mg LA were added in a measuring flask with continuous stirring. Then transferred the mixture to the jar of the planetary ball mill containing a third tank volume of 12 mm diameter steel balls, and added in different molar ratios pH regulator milling 2 h (suspend once every 30 min and stirred up the mixture) at 150 rpm. The solid product was filtered by 100 mesh sieve and used for subsequent studies. The drug and polymer were simply agitated for 10 min in a jar to get physical mixtures (PM). All of the samples were stored in a dryer at the room temperature away from light.

Solubility analysis

The solubility of LA was determined in the solutions in triplicate. The gastric fluid (pH=1.2) without pepsin was prepared by dissolving 2 g NaCl and 7 ml HCl in 1000 ml distilled water and pH was adjusted with 37% HCl; the enzyme-free intestinal juice (pH=6.8) was prepared by dissolving 6.8 g KH2PO4 and 77 ml 0.2 mol/l NaOH in 1000 ml distilled water and regulate with 0.2 mol/l NaOH or 0.2 mol/l HCl; 1% w/v solution of the pH regulators (NaOH, Na2CO3, NaHCO3, citric acid) and distilled water. 5 ml of the solution was added to brown conical flasks, respectively with excess of LA (200 mg). The flasks were put in shaking bath at 37° for 24 h with the condition of avoiding light, and the suspension was centrifuged at 3500 rpm for 10 min, then the supernatant was diluted and measured accurately. The concentration of LA in the solution was measured by HPLC.

Determination of pHM and solubility for complexes

The pHM was measured by slurry method [24]. The ternary compounds, which were prepared by ball milling (200 mg), were placed into a 25 ml conical flask containing 5 ml purified water. The suspension was placed in 37° air bath shaking table for 48 h with a speed of 200 rpm to prepare the supersaturated solutions, the suspension was directly detected with a pH meter. Then, the solutions were centrifuged at 3500 rpm for 10 min, and the supernatants were filtered through a 0.45 μm membrane, HPLC was used to measure the concentration of LA.


Infrared spectra of the samples were obtained using a Niclolet Avatar 370 instrument (Thermo Niclolet Corporation, USA) in the range of 4000-500 cm-1. All solid samples were mixed with KBr for compressing into a thin tablet. XRD were measured by an X’Pert PRO diffractometer (PANalytical, Holland) using Cu-K radiation. A differential scanning calorimeter (a Mettler Q100 apparatus TA Corporation, USA) was used for thermal analysis of samples. About 3-4 mg solid sample was accurately weighed, and then placed in the pierced DSC aluminium pan. The samples were heated at a scanning speed of 10° min-1 from room temperature to 300° under flowing nitrogen flux.

In vitro dissolution test

Dissolution testing was performed using a HTY-EU802 rotating paddle apparatus (Tailin Bioengineering Equipments Co., Ltd., Hangzhou). The deionized water was chosen as the dissolution medium. The dissolution tests were carried out at 37±0.5° at a rotation speed of 75 rpm with the inclusion complexes containing 300 mg LA. Samples were withdrawn from the dissolution medium at predetermined intervals (5, 10, 15, 30, 45 and 60 min) and replaced with an equal volume of the same medium. Then the amount of LA was determined by HPLC.

Stability test

The solid sample (containing 20 mg LA) was added into five brown ampoule bottles respectively, then placed in a dry block bath (DHG-9240A, Yiheng scientific instrument co., LTD., Shanghai) at 70° (above the melting point of LA). LA was extracted with the solution (acetonitrile: deionized water=50:50) and detected by HPLC at 0.5, 2, 4, 8 and 24 h [19].

HPLC analysis

LA was measured by the Agilent HPLC system 1200 series using a reverse phase column (150×4.5 mm, Sunfire C18), the column temperature was maintained at 30°; the flow rate was 1.0 ml/min; the UV detection wavelength was 215 nm; the injection volume was 20 μl. The liquid mobile phase was the mixed solution containing 25 mM potassium dihydrogen phosphate solution (pH=3) and acetonitrile.

Results and Discussion

Solubility of LA in the presence of HP-β-CD was examined using the solubility method [25]. In the prior research, an excessive amount of LA was added to various concentrations of HP-β-CD aqueous solution, the effect of different temperature on the solubility of LA was investigated. Figure 2 shows the phase solubility diagram of HP-β-CD and LA in different temperature, the solubility was improved by the addition of HP-β-CD. According to the Higuchi-Connors theory [26], HP-β-CD shows AL type solubility curves. Further, the inclusion ratio can be determined to 1:1. The supramolecular inclusion stability constant can be calculated through the slope and the inherent solubility of LA according to the type Eqn. 2: K=slope/intercept(1–slope). According to these results, as the temperature increases, the K value is increased indicating that the higher temperature is a favourable factor for the formation of inclusion complex.

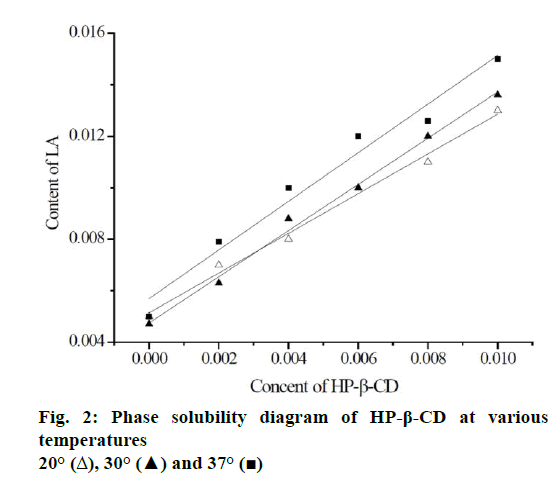

Figure 2: Phase solubility diagram of HP-β-CD at various temperatures
20° (Δ), 30° (▲) and 37° (■)

In the pharmaceutical field, micropowder and nanometer are often used to explain the mechanism of solubilisation of drugs [27]. In the prior research, LA was used to mill alone at the speed of 100 rpm with 10 steel 12 mm diameter steel balls. The powder samples were removed at 0.5, 1, 2, 4 and 8 h, and detected by HPLC. The solubility of LA is 0.75 ± 0.02 mg/ml after co-grinding 0.5 h and 0.76 ± 0.03 mg/ml after 8 h. This illustrates that long time grinding has no positive effects on the solubility of LA. It can be concluded that micro powder or nanometer is not the main factor for solubilisation of LA.

The study attempted to add pH regulators because of the pH-dependent peculiarity of LA. The pH regulator can improve its aqueous solubility significantly. An excess of LA was added in the different solutions containing different pH regulators (alkalizer or acidic agent) or buffer salt. Its purpose is to detect the solubility of LA in different pH conditions as the basis of choosing the appropriate pH regulator. As the results shown in Table 1, the solubility of LA was high in the solutions with a high pH value, and was low with the strong acidic conditions. The solubility of LA in the acidic solutions was similar to that in the distilled water, which shows that the addition of acid has no positive effect. Therefore, the alkalizers were selected as the pH regulator to improve the solubility of LA in this study.

Solution Solubility (mg/ml)
Distilled water 0.86±0.04
Gastric fluid 0.93±0.06
Intestinal fluid 6.5±0.16
NaOH 23±0.46
Na2CO3 14.9±0.21
NaHCO3 12.5±0.13
Citric acid 0.84±0.05

Table 1: The solubility of la at 37° (n=3)

The results of in vitro dissolution test were shown in Figure 3a and b. The dissolution rate of inclusion complex LA and HP-β-CD was faster than the pure drug, and HP-β-CD had a positive effect on LA dissolution rate as shown in the curve of the PM, maybe it’s related to the hydrophilicity of HP-β-CD. The dissolution rate of all ternary inclusion complexes reached almost 95% in 10 min, regardless of the type and proportion of alkalizer. It was evident that the addition of alkalizer enhanced the dissolution rate of LA obviously. However, the effect of the type and proportion of alkalizer cannot reveal in the inclusion complexes from the dissolution test. For this reason, the detailed roles of alkalizers in control the pHM of the inclusion complex and the intermolecular interactions in the system were investigated further in order to elucidate the modulating mechanism of dissolution rate.

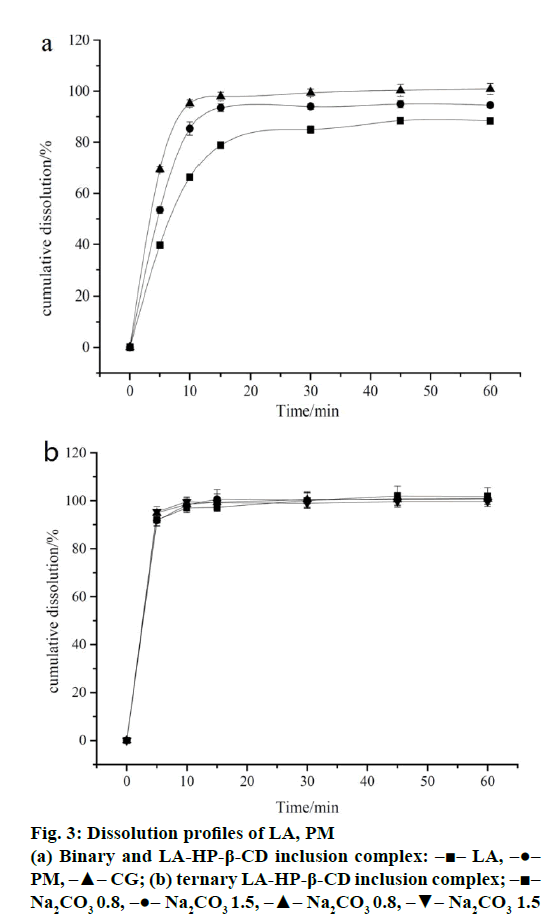

Figure 3: Dissolution profiles of LA, PM
(a) Binary and LA-HP-β-CD inclusion complex: –■– LA,–●– PM, –▲– CG; (b) ternary LA-HP-β-CD inclusion complex;–■– Na2CO3 0.8, –●– Na2CO3 1.5, –▲– Na2CO3 0.8, –▼– Na2CO3 1.5

The pH value of ternary inclusion complex and the content of LA were measured in order to confirm the relationship between the amount of alkalizers with the solubility of LA and the pH of system. Interestingly, when the amount of alkalizer was increased, the solubility of LA may not be increased. In other words, the amount of alkalizer is not an important factor to improve the solubility of LA (Figure 4 and 5). The higher pH value results in a higher solubility of LA although the large change of pH value is not significant to the solubility (32-35 mg/ml). Therefore, the solution pH was not the only variable to improve the solubility. The improved solubility of ternary inclusion complexes was more similar to the intermolecular interactions among the drug, HP-β-CD and the pH regulator and the transformation of crystalline of LA. Therefore, the intermolecular interactions were analysed using FTIR spectroscopy.

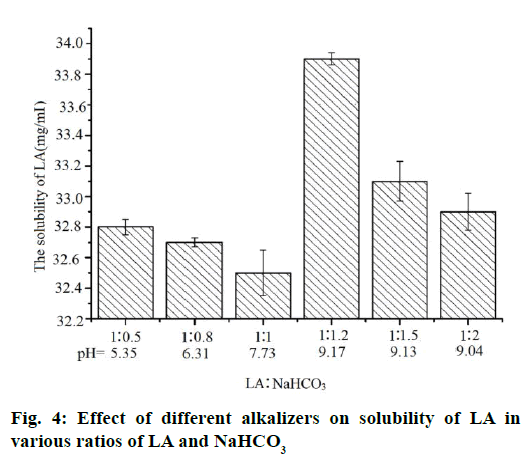

Figure 4: Effect of different alkalizers on solubility of LA in various ratios of LA and NaHCO3

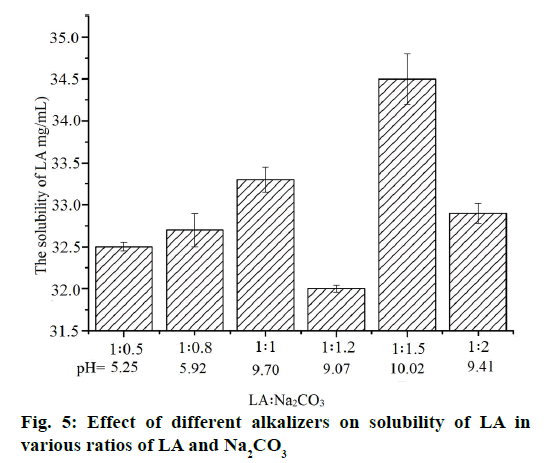

Figure 5: Effect of different alkalizers on solubility of LA in various ratios of LA and Na2CO3

FTIR was often used to detect the changes in bonding between functional groups, so as to speculate the interaction between molecules. As the FTIR spectra shows (Figure 6), LA does not present any bands in the broad band between 4000 and 3000 cm-1. The peak is only to be the O-H stretching vibrations of HP-β-CD molecule. The stretching frequency of O-H was shifted from 3405 cm-1 (pure HP-β-CD) to 3415 cm-1 (LA-HP-β-CD inclusion complex) due to the change of hydrogen bonds number by the intermolecular interaction during the process of formation. The expulsion of the water molecules from the HP-β-CD cavity cannot be neglected [28]. With the complexation of LA and HP-β-CD, νas (C=O) of LA shifted from 1691 cm-1 to 1697 cm-1. The higher frequency shift can be considered as the destruction of the strong hydrogen bonding in uncomplexed LA after inclusion with HP-β-CD. These changes of vibrational band suggest that there were intermolecular interaction existed between the drug and HP-β-CD, which can be used to explain the mechanism of inclusion formation.

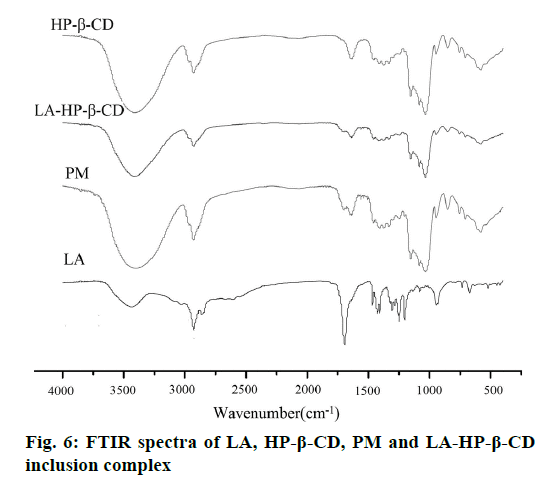

Figure 6: FTIR spectra of LA, HP-β-CD, PM and LA-HP-β-CD inclusion complex

Compared with the LA-HP-β-CD inclusion complex, the FTIR spectra of the LA-HP-β-CD inclusion complex containing alkalizers exhibits distinct differences shown in Figure 7 and 8. Based on the variation of these FTIR bands, we could classify the alkalizers of inclusion complexes into two groups. In the first group (LA:Na2CO3=1:1.2, 1:1.5, 1:2 and LA:NaHCO3=1:1.5, 1:2), the spectra shows that the disappearance of characteristic band of pure LA at 1691 cm-1 and the strong absorption bands at 1550-1600 cm-1 illustrating the formation of anionic carboxylate forms [29]. Meanwhile, the spectra of the second group (LA:Na2CO3=1:0.5, 1:0.8, 1:1 or LA:NaHCO3=1:0.5, 1:0.8, 1:1, 1:1.2) shows that the characteristic band of pure LA still existed but some frequency shift appeared. This suggests that these inclusion complexes containing pH regulators were not become salt completely and some interactions exist among LA, HP-β-CD and alkalizer.

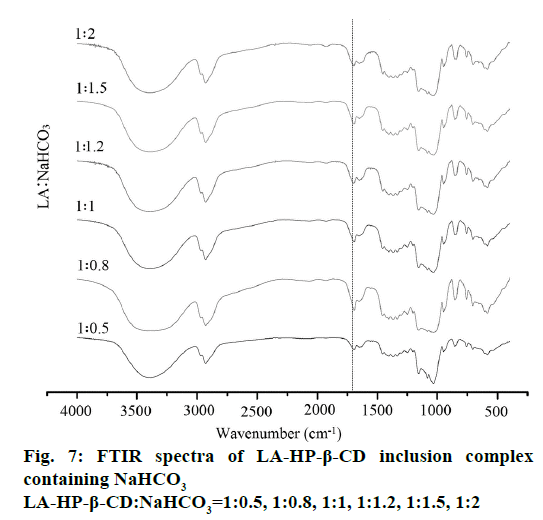

Figure 7: FTIR spectra of LA-HP-β-CD inclusion complex containing NaHCO3
LA-HP-β-CD:NaHCO3=1:0.5, 1:0.8, 1:1, 1:1.2, 1:1.5, 1:2

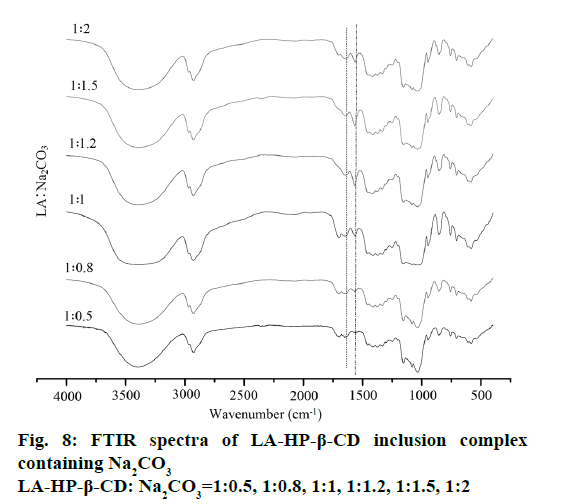

Figure 8: FTIR spectra of LA-HP-β-CD inclusion complex containing Na2CO3
LA-HP-β-CD: Na2CO3=1:0.5, 1:0.8, 1:1, 1:1.2, 1:1.5, 1:2

Therefore, it is necessary to control the amount of alkalizer strictly. The large amount of alkalizer may be due to the protonation on the carboxyl groups of LA via a Lewis acid-base interaction. Meanwhile, molecular interactions and the high pH value inside of the system could be the main reasons of the solubility improving of LA, because of the spectra of the second groups had confirmed that these inclusion complexes had not become salt completely. Furthermore, Na2CO3 exhibits better ability in term of transforming LA into carboxylate form than NaHCO3. It was evident from FTIR spectra that there was a molecular interaction between the alkalizer and HP-β-CD that results in solubility increasing in water and enhanced the dissolution of LA in the inclusion complex.

XRD patterns of LA, HP-β-CD, PM, the LA- HP-β-CD inclusion complex and the ternary inclusion complex (LA: Na2CO3=1:0.8, 1:1.5 or LA: NaHCO3=1:0.8, 1:1.5) as typical samples are given in Figure 9. LA exhibited a strong characteristic peak at 23.3°, showing a highly crystalline in nature as indicated. No sharp diffraction peak can be found in HP-β-CD, proving that the complex substance present an amorphous state. The diffraction patterns of PM were equivalent to the superposition of LA and HP-β-CD, and the disappearance of the strong characteristic peak at 23.3° of LA in LA-HP-β-CD indicated the formation of inclusion complex. The characteristic peak of the ternary inclusion complex (LA:Na2CO3=1:0.8 or NaHCO3=1:0.8) at 23.3° was showed in the XRD pattern indicating crystal LA still existed. The new peaks of the ternary complex (LA:NaHCO3=1:0.8) at 32.9° and 38.1° indicating a new crystal formation existed. It can be speculated that LA, HP-β-CD and alkalizer had some reactions occurred result in the crystal structure changed. The disappearance of the distinctive peak of LA in the ternary inclusion complex (LA:Na2CO3=1:1.5 or NaHCO3=1:1.5) indicates the formation of carboxylate. These results are consistent with the analysis of the FTIR.

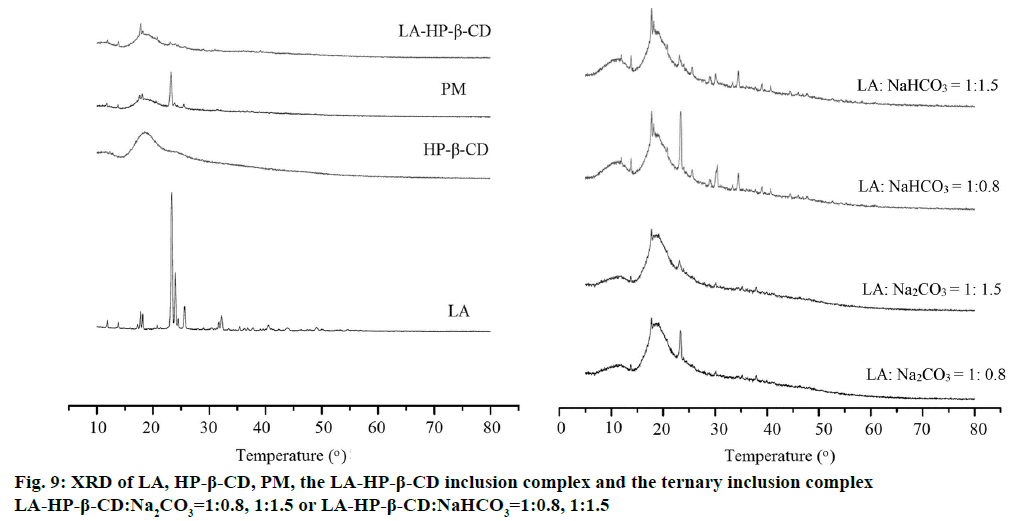

Figure 9: XRD of LA, HP-β-CD, PM, the LA-HP-β-CD inclusion complex and the ternary inclusion complex
LA-HP-β-CD:Na2CO3=1:0.8, 1:1.5 or LA-HP-β-CD:NaHCO3=1:0.8, 1:1.5

DSC thermograms of LA, HP-β-CD, PM, the LA- HP-β-CD inclusion complex and the ternary inclusion complex (LA:Na2CO3=1:0.8, 1:1.5 or LA:NaHCO3=1: 0.8, 1:1.5) as a typical sample were showed in Figure 10. The DSC curve of pure LA exhibited a single endothermic peak at 62.9° corresponding to its own melting point. The amorphous form of HP-β-CD makes it have no endothermic peak in the DSC curve. The characteristic melting peak of LA can be found in the DSC curve of LA, revealing no interaction between LA and HP-β-CD. The weakened of the endothermic peak in the ternary inclusion complex (LA:Na2CO3=1:0.8 or LA:NaHCO3=1:0.8) showed that the carboxylate is not formed completely, which has been verified by FTIR and XRD. The lack of an endothermic peak of the ternary inclusion complex (LA:Na2CO3=1:1.5 or LA:NaHCO3=1:1.5) in the DSC illustrated the drug was presence in an amorphous form.

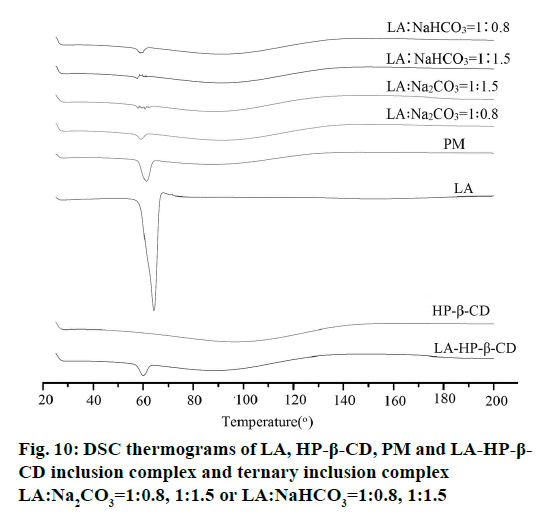

Figure 10: DSC thermograms of LA, HP-β-CD, PM and LA-HP-β- CD inclusion complex and ternary inclusion complex
LA:Na2CO3=1:0.8, 1:1.5 or LA:NaHCO3=1:0.8, 1:1.5

Since that when the crystallinity is lower than 2% cannot be detected with DSC generally [30], there is no obvious difference of the DSC curves of the inclusion complexes with or without alkalizer as the XRD patterns have. However, combined with XRD and FTIR, the conclusion can be draw that the crystallinity change of the drug and the molecules interaction are the main reasons of the solubility increased of LA, and the interaction is also different when the amount of alkalizer is different.

The thermal stability of binary or ternary LA-HP-β-CD inclusion complex was tested by a constant temperature drying oven, and the results were showed in Figure 11. The content of LA in the pure LA decreased rapidly under the condition of high temperature, and there is no much left after 24 h, but the remaining amount of LA in the binary LA-HP-β-CD inclusion complex was 70% in the same condition. Compared with pure LA alone, the thermal stability has been greatly improved. The finding is consistent with prior reports on improving the thermal stability of racemic LA through complex formation with cyclodextrins [31]. It is possible that the complex formation of LA and HP-β-CD protects the 1,2-dithiolane ring of LA, thus the LA was more stable under the high temperature. However, the ternary complexes are more stable than the binary one. The content of LA can remain above 90% after 24 h in ternary LA-HP-β-CD inclusion complex. It is possible that the addition of alkalizer can enhance the interaction of molecules. The ring in the acid can obtain better protection by the interaction, so it can resist the destruction of high temperature. According to the results of the thermal stability study, Na2CO3 and NaHCO3 were chosen as the pH regulators to provide good stability for LA.

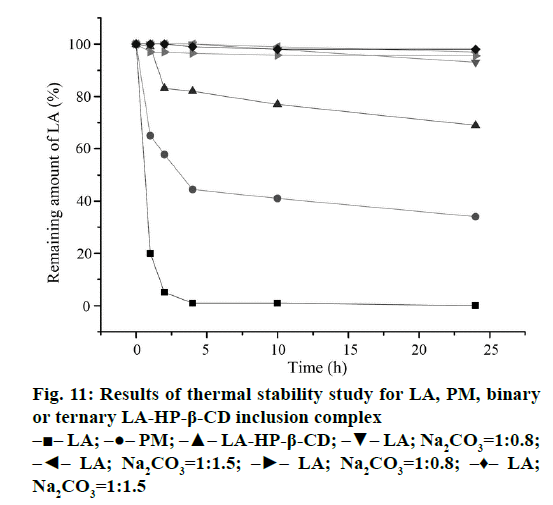

Figure 11: Results of thermal stability study for LA, PM, binary or ternary LA-HP-β-CD inclusion complex
–■– LA; –●– PM; –▲– LA-HP-β-CD; –▼– LA; Na2CO3=1:0.8; –◄– LA; Na2CO3=1:1.5; –►– LA; Na2CO3=1:0.8; –♦– LA; Na2CO3=1:1.5

Inclusion complex of α-LA containing alkalizer to improve its solubility and stability has been prepared by co-grinding. Cyclodextrin inclusion complex containing alkalizer can be a useful method to improve the solubility and stability of the pH-dependent drugs like LA. The addition of alkalizer can increased the drug dissolution rate in water obviously. Different amount of Na2CO3 and NaHCO3 was selected by solubility study. The solubility of LA can be increased 40 times when the ratio of LA and Na2CO3 is 1:1.2 in the ternary inclusion complex. The stability study proved that the inclusion complex containing alkalizer exhibits better thermal stability than the LA alone. The FTIR shows that the type and the quantity of alkalizers in inclusion complex formulation are important factors because of the molecular interactions and changes of crystallinity in LA in the process of ball milling. XRD and DSC had demonstrated that the inclusion complex was exists as an amorphous form.
