Abstract

The present study was aimed at analyzing the effect of contrast-enhanced ultrasonography on trans-arterial chemoembolization for advanced liver cancer in the elderly. A total of 160 elderly patients with advanced liver cancer and treated at the People’s Hospital of Dongguan were enrolled. All cases were subjected to trans-arterial chemoembolization and contrast-enhanced ultrasonography. All patients in this study underwent 498 times of interventional therapy. The average lifetime was 10.2±2.9 mo, with the longest one being 25 mo and the shortest one 4 mo. The number of patients with complete remission, partial remission, stable disease and progressive disease were 22, 90, 30 and 18, respectively, leading to a total efficacy of 70.00 % (112/160). After treatment, the hepatalgia symptom was significantly relived, ascites was significantly reduced and the appetite and immune index were increased. Trans-arterial chemoembolization is an effective approach for advanced liver cancer in the elderly, while contrast-enhanced ultrasonography could fully display the feeding arteries of tumor, which has enormous application value.

Keywords

Contrast-enhanced ultrasonography, trans-arterial drug perfusion, embolization, digital subtraction angiography, advanced liver cancer, clinical analysis

Liver cancer, the malignant tumor of the liver, includes primary liver cancer and metastatic liver cancer. Liver cancer mainly refers to primary carcinoma of the liver, which occurs in the hepatocyte or intrahepatic bile duct cells is currently the fourth most common malignant tumor and the third leading cause of death from cancer, seriously threatening people’s life and health [1-3]. This type of cancer is characterized by high malignancy, strong invasion and high metastatic ability. The longterm therapeutic efficacy depends on early diagnosis and early treatment, in which alpha fetoprotein (AFP) and imaging examinations serve as primary supplementary approaches.

Advanced liver cancer (Figure 1) refers to the aggravation phase of the disease developed from occult state. The primary symptoms of this disease are gastrointestinal bleeding, hepatic encephalopathy, hepatalgia, secondary infection and other severe complications that endanger patient’s life. Also, correspondent clinical symptoms would occur with the metastasis of advanced liver cancer. For those elderly patients with advanced liver cancer who cannot tolerate surgery, transcatheter hepatic arterial chemoembolization serves as an important method [4]. This study observed and analyzed the effect of contrast-enhanced ultrasonography (CEUS) on trans-arterial chemoembolization for advanced liver cancer in the elderly, aiming to provide valuable evidence for clinical therapy.

ijps-liver-cancer

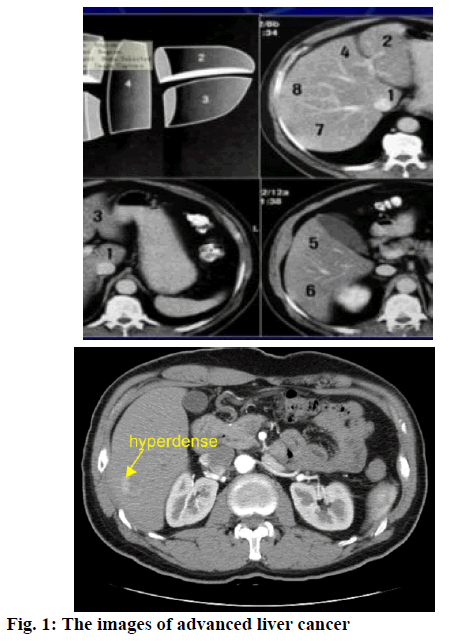

Figure 1: The images of advanced liver cancer

A total of 160 elderly patients definitely diagnosed as advanced liver cancer and treated at the People’s Hospital of Dongguan from January 2016 to August 2018 were enrolled. The image of a patient was shown in Figure 1. All cases were positively diagnosed by relevant clinical examinations and presented with typical clinical symptoms, namely persistent distended pain or dull pain in the liver area, signs and symptoms of peritonitis, splenomegaly, ascites, venous lateral circulation. All patients enjoyed the right to know and formal consent forms were obtained. This study was approved by the ethic committee of the hospital. In the 160 patients, there were 90 male and 70 female patients. The average age was 80.2±3.9 y, ranging from 70 to 92 y.

All patients were treated with transcatheter hepatic arterial chemoembolization. Seldinger modified intubation method was adopted to perform percutaneous femoral artery catheterization. The RH catheter was guided to the common hepatic artery to perform hepatic angiography, in an attempt to understand the degree of the disease. Also, two or multiple chemotherapy drugs were applied according to the disease condition. The chemotherapy drugs were, epirubicin 30 mg combined with mitomycin 20 mg, carboplatin 300 mg, or 5-Fu 1000 mg combined with vindesine 4 mg and cyclophosphamide 600 mg. These drugs were diluted with 40 ml of normal saline before slow perfusion. After surgery, routine hydration diuretic, antiemetic, liver-protective and antiinflammatory treatments were applied.

The Toshiba Aplio color Doppler ultrasound system, equipped with color Doppler imaging technology and real-time harmonic imaging technology, was used in this study. The contrast agent was so. noVue (Bracco SpA, Milan, Italy), of which the main components were sulfur hexafluoride (SF6) gas and white lyophilized powder. After adding 5 ml of normal saline for injection to the lyophilized powder, the drug was sonicated and mixed to form microbubble suspension. Then after standing for 2 min, the liquid was injected 1 ml per second at a concentration of 400 mg/ml. Patients were placed in the supine position with narrow abdomen, the conventional ultrasound was used to closely observe the location, number and characteristics of the lesions. Then selected the contrast mode and observed for 5 consecutive minutes after injecting the contrast agent. The collected image data were stored in the workstation. The time for angiography was 2 d before surgery, the day after surgery, and the d 7 and 30 after surgery. All procedures and images were operated and analyzed by 2 experienced attending physicians. The changes of tumor feeding arterial blood supply were observed primarily and compared with the intraoperative digital subtraction angiography (DSA) image. Meanwhile, the type of tumor feeding arteries was observed and the blood flow indicated by CEUS was graded. Of those, grade 0, grade I, grade II, grade III and grade IV refers to no blood flow signals, sparse point blood flow signals or short-line blood flow, long linear or branched blood flow, local dense or clustered blood flow, and crumby mass of diffuse blood flow, respectively [5,6].

No detection of enhanced echoes by contrast-enhanced ultrasonography 30 d after surgery indicated total embolization of the tumor vessel and tumor ablation. According to the criteria made by WHO, the therapeutic effects include complete remission (CR), partial remission (PR), stable disease (SD) and progressive disease (PD).

Statistical analysis was performed using SPSS21.0. All quantitative data were expressed in the form of mean±standard deviation, and comparisons were made with t-test. Enumeration data were expressed in the form of natural number (n)+percentage (%), and comparisons were made with chi-square test. P<0.05 represents the intergroup difference was of statistically significance.

All patients in this study underwent 498 times of interventional therapy. The average lifetime was 10.2±2.9 mo, with the longest one being 25 mo and the shortest one being 4 mo. The number of patients with CR, PR, SD, PD were 22, 90, 30 and 18, respectively, leading to a total efficacy of 70.00 % (112/160). Comparisons were made between the CEUS and DSA for the classification of feeding arteries before surgery. As shown in Table 1, the feeding arteries were occluded to a varied degree or reduced significantly (p<0.05). Comparison of the CEUS flow grades and CT enhancement before and after surgery was made and as shown in Table 2, the CEUS flow grades and CT enhancement rates before and after surgery were of significant difference (p<0.05).

CEUS DSA/Holding ball DSA/ Continuative type DSA/Dense Total
Holding ball 20 0 0 20
Continuative type 0 90 10 100
Dense 8 4 28 40
Total 28 94 38 160

Table 1: Comparison Between the CEUS and DSA for the Classification of Feeding Arteries before Surgery

Time CEUS flow grades (%) CT enhancement (%)
Grade II Grade III Grade IV No enhancement Apparent enhancement
Before surgery 22 (13.75) 72 (45.00) 66 (41.25) 15 (9.38) 145 (31.52)
After surgery 140 (87.50) 12 (7.50) 8 (5.00) 95 (59.38) 65 (40.63)
X2 30.29 18.36
P < 0.05 < 0.05

Table 2: Comparison of the CEUS flow grades and CT Enhancement before and after Surgery

The patient’s ultrasound examination results before and after treatment was shown in Figure 2. Transhepatic arterial chemoembolization (TAE) is one of the preferred choice for those elderly patients with advanced liver cancer who cannot tolerate surgery Figure 2. The clinical value has been affirmed by many researchers. When the catheter tip is guided to the hepatic artery or the left and right hepatic artery, the drug diluted in normal saline is slowly infused through the catheter. Then the super-liquid iodized oil emulsified by 5-Fu was slowly injected under fluoroscopy. The oil emulsion fills the vascular bed along with the blood flow. And then the gelatin sponge debris is suspended in the contrast agent, which is then injected along the catheter to realize the embolization and re-imaging. Only a small amount of oil emulsion is injected into the single small lesion of the liver [7,8]. The catheter couldn’t be guided into the proper hepatic artery because the hepatic artery could be shifted by the compression of hepatoncusor the origin of the hepatic artery could be varied. For those elderly patients or patients with other organ dysfunction, perfusion chemotherapy via the common hepatic artery or abdominal cavity is adopted. For those with metastatic liver cancer and unresected primary lesion, intravenous chemotherapy and embolization are performed. For those subjected to re-treatment, perfusion chemotherapy with normal dosage is preferred. Moreover, if the lesion was partially controlled or new lesions were observed in other areas of the liver, chemotherapy and embolization are selected.

ijps-ultrasonography

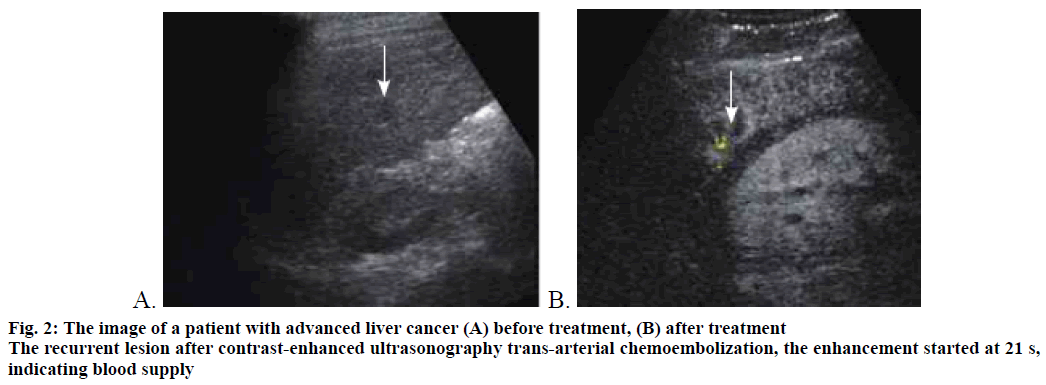

Figure 2: The image of a patient with advanced liver cancer (A) before treatment, (B) after treatment
The recurrent lesion after contrast-enhanced ultrasonography trans-arterial chemoembolization, the enhancement started at 21 s, indicating blood supply

CEUS is a new technology developed in recent years, which not only can significantly improve the contrast of ultrasound, but also dynamically observe the microcirculation in real-time. It could serve as a new method for examining the tumor feeding arteries. Contrast-enhanced ultrasound can evaluate the hemodynamic changes of human organs, which would not be affected by the angle of blood vessels. At the same time, it can detect small blood vessels with slow convection speed. The feeding arteries are better presented on the sonogram, with continuous imaging and more accurate judgement about the inner diameter of feeding artery. The results of this study showed that tumor feeding arteries were detected in 109 cases (68.13 %) before treatment, while it was observed in only 48 cases (30.00 %) after treatment. There were multiple continuous strong echo bands extending into the mass (or surrounding the tumor) in the preoperative ultrasound images, with 20 cases (12.50 %) of holding ball type, 100 cases (62.50 %) of continuative type, and 40 cases (25.00 %) of dense type. However, noncontinuous color bands entering the lumps or stopping at the edge of the tumor or no vascular image were shown after treatment. It is proved that the feeding arterial type classified by contrast-enhanced ultrasound can also tell that whether the tumor has an envelope, providing a basis for the choice of treatment (TACE or RFA) or re-treatment, which is also an effective mean to evaluate the therapeutic efficacy in patients with advanced liver cancer before and after treatment. The finding is in consistence with recent reports [9-16].

To sum up, TAE is an effective way to treat advanced liver cancer in the elderly. CEUS could fully demonstrate the tumor feeding arteries, which is basically in line with the DSA. The feeding arterial type classified by CEUS can also tell that whether the tumor has an envelope, providing a basis for the choice of treatment (TACE or RFA) or re-treatment, which is also an effective mean to evaluate the therapeutic efficacy of TAE. Furthermore, CEUS can evaluate the hemodynamic changes of human organs, which would not be affected by the angle of blood vessels. Meanwhile, it can detect small blood vessels with slow convection speed. The feeding arteries are better presented on the sonogram, with continuous imaging and more accurate judgement about the inner diameter of feeding artery, which had enormous application value. Given that the number of sample is limited in this study, data from larger samples are required in the future to further prove our results.
