Abstract

The aim of this study was to explore the application of standardized ultrasonography in the first trimester. A total of 1670 pregnant women who underwent ultrasonography in the first trimester (1706 fetuses) and 2,562 pregnant women who underwent ultrasonography in the second trimester (2637 fetuses) visiting the Second Affiliated Hospital of Nanchang University from January 2016 to December 2018 were included in this prospective study. Standardized ultrasonography was performed on the fetuses and pregnancy outcomes were tracked in abnormal cases. A total of 20 cases of fetal structural abnormalities were detected in the first trimester and the number of pregnant women who chose to induce labor was as high as 15. A total of 41 cases of fetal soft marker abnormalities were detected in the first trimester and most of these markers returned to normal. A total of 113 cases of malformed fetuses were detected in the second trimester. Additionally, those cases that did not undergo standardized ultrasonography in the first trimester were significantly more likely to show fetal abnormalities in the second trimester than those who had standardized ultrasonography in the first trimester. Some fetal malformations, especially some severe ones, can be detected by standardized ultrasonography in the first trimester. However, standardized ultrasonography in the second trimester which was regard as the best period for fetal malformation detection cannot be replaced by the first trimester. It is better to conduct standardized ultrasonography in both first and second trimesters.

Keywords

Ultrasonography, Structural abnormalities, Pregnant women, Fetus

Birth defects are the abnormal developmental changes that occur in the maternal uterus before the baby is born. The status quo of birth defects in China not only is a serious public health problem but also has become a social problem that affects economic development and people’s daily lives. To solve this problem, medical research continues to prevent the emergence of birth defects. There are some effective ways to reduce the incidence of birth defects in infants, such as, reduce the risk factors that lead to birth defects and improve the rate of early diagnosis of fetal malformations during pregnancy[1,2].

Ultrasonography as a means of prenatal diagnosis plays a very important role in detecting fetal malformation and involved in saving the fetus[3]. At present, systematic standardized ultrasonography of the fetus is generally performed in second trimester (between 18 and 22 w of gestation). However, with the rapid development of ultrasound imaging technology and the use of high-resolution ultrasound instruments, standardized ultrasonography in the first trimester (11-14 w of gestation) has been to be effective. Standardized ultrasonography of the fetus in the first trimester can detect some serious fetal malformations, avoiding the induction of labor during the advanced gestational age, thus effectively reducing the psychological and physical toll on pregnant women[4,5]. Therefore, the development of standardized ultrasonography of fetus in the first trimester has been receiving increased attention. Experts point out that standardized ultrasonography should not only be conducted in the second trimester but also in the first trimester[6].

Prenatal standardized ultrasonography in the first trimester can not only detect obvious fetal structural abnormalities but also can identify some clinically unclear features that are considered to be possible markers of aneuploidy. These markers are collectively referred to as ultrasonic soft markers[7]. These ultrasonic soft markers reported in the first trimester include increased nuchal translucency (NT), nasal bone absence, choroidal cyst, single umbilical artery and so on. Although an abnormality of the ultrasonic soft markers of the fetus does not equal fetal abnormality, a large number of studies have found that there is a certain correlation between abnormal fetal soft markers and chromosomal abnormalities or structural abnormalities. Therefore, this study analysed the data regarding abnormalities of fetal structure and ultrasonic soft markers in the first trimester in the Second Affiliated Hospital of Nanchang University from January 2016 to December 2018. Moreover, the detection of fetal structural abnormality in the second trimester was compared to pregnant women who have undergone standardized ultrasonography in the first trimester and those who did not. With these methods, the significance of standardized ultrasonography of the fetus in the first trimester could be discussed.

Materials and Methods

Subject selection

A total of 1670 pregnant women whose gestation is between 11 and 14 w (1634 singles, 36 twins, total 1706 fetuses) and 2562 pregnant women whose gestation is between 18 and 22 w (2487 singles, 75 twins, total 2637 fetuses) visiting the Second Affiliated Hospital of Nanchang University hospital from January 2016 to December 2018 were included in this prospective study. Standardized ultrasonography was performed on the pregnant women and pregnancy outcomes were tracked in abnormal cases.

Ultrasound screening instrument and method

Philips IU22 and GE Voluson E8 Color Doppler Ultrasound Diagnostics were used for this study. The probe frequencies were 3.5 to 6.0 and 4.0 to 6.0 MHz, respectively. The examiner was a physician with more than 3 y of clinical ultrasound training who has passed the fetal ultrasonography examination. A fetus detected with suspected malformation or abnormal ultrasonic soft markers was further examined by a senior physician.The standardized ultrasonography in the first trimester included, measurement of crownrump length (CRL), NT, ductusvenosus (DV) doppler waveform, depth of amniotic fluid, placental thickness and doppler assessment of umbilical artery. Continuous scanning of fetal brain, face, chest, heart, abdomen, spine and limbs. Standardized ultrasonic views were stored (fig. 1). The standardized ultrasonography in second trimester was 32-39 standard views according to guidelines and experts[8-11].

IJPS-Standardized

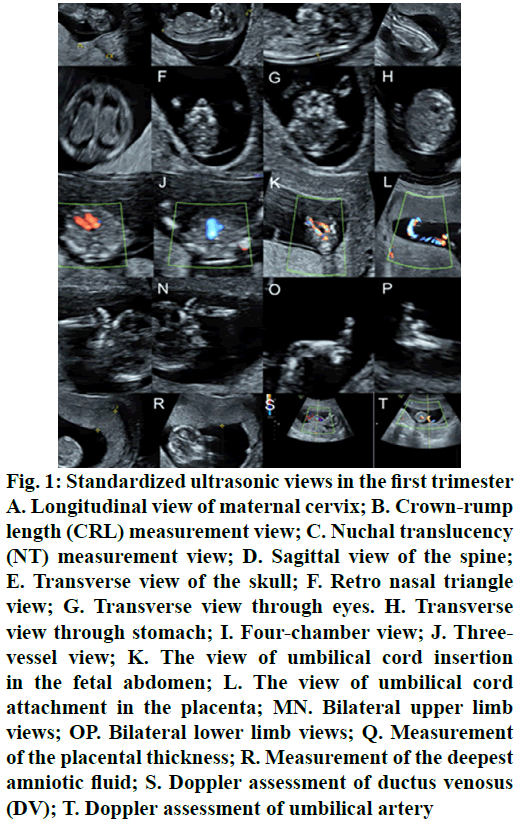

Figure 1: Standardized ultrasonic views in the first trimester A. Longitudinal view of maternal cervix; B. Crown-rump length (CRL) measurement view; C. Nuchal translucency (NT) measurement view; D. Sagittal view of the spine; E. Transverse view of the skull; F. Retro nasal triangle view; G. Transverse view through eyes. H. Transverse view through stomach; I. Four-chamber view; J. Threevessel view; K. The view of umbilical cord insertion in the fetal abdomen; L. The view of umbilical cord attachment in the placenta; MN. Bilateral upper limb views; OP. Bilateral lower limb views; Q. Measurement of the placental thickness; R. Measurement of the deepest amniotic fluid; S. Doppler assessment of ductus venosus (DV); T. Doppler assessment of umbilical artery

Non-invasive DNA testing

For pregnant women who volunteered for non-invasive genetic testing, venous blood was taken between 12 and 24 w of gestation and sent to the testing centre to assess the risk of fetal chromosomal abnormalities.

Karyotype analysis of amniotic fluid or umbilical cord blood puncture

Pregnant women, who had the necessity and agreed to undergo karyotype analysis after a comprehensive assessment, amniotic fluid or umbilical cord blood was drawn and send to the testing centre for karyotype analysis.

Ultrasonic detection results of the fetal structural abnormalities in the first trimester

A total of 1706 fetuses were examined in the first trimester and 20 cases of fetal structural abnormalities were detected (Table 1, fig. 2). Seven cases of severe neural tube defects were detected, including acrania, holoprosencephaly, encephalocele, and spina bifida; 3 cases of obvious cardiac malformations were detected, including single atrium, single ventricle and endocardial cushion defect; and 4 cases of obvious limb malformations were detected, including arthrogryposis multiplex congenita, abnormal hand and foot postures, foot deficiency, and clubfoot. There were three cases combined with soft marker abnormalities in these 20 cases of fetal structural abnormalities, including increased NT, choroidal cyst, and single umbilical artery. And also, there were five cases with chromosomal abnormalities. Since most of fetal malformations in these 20 cases were severe or the karyotype analysis was abnormal, the number of pregnant women who chose abortion was as high as 15.

Age (y) Ultrasonic structural abnormality Ultrasonic soft markers abnormality Karyotype Follow-up results
35 Holoprosencephaly Increased NT 47, XN, +13 abortion
39 Holoprosencephaly+Nuchal Cystic Hygroma / 46, XN abortion
32 Encephalocele+Polycystic kidneys / 46, XN abortion
29 Encephalocele / 46, XN abortion
32 Acrania+Abnormal Posture of Hands and Feet / Undetected abortion
26 Spina Bifida / 46, XN abortion
24 Endocardial Cushion Defect / 46, XN abortion
35 Exomphalos / Undetected loss to follow-up
34 Giant Bladder / 46, XN abortion
37 Arthrogryposis Multiplex Congenita / 47, XN, +18 abortion
25 Single Atrium, Single Ventricle+Clubfoot / 46, XN abortion
32 Body Stalk Anomaly / 47, XN, +18 abortion
26 Nuchal Cystic Hygroma Single umbilical artery 47, XN, +21 abortion
31 Nuchal Cystic Hygroma / 46, XN loss to follow-up
28 Nuchal Cystic Hygroma+Hydrops Fetalis / Undetected abortion
28 Nuchal Cystic Hygroma+Hydrops Fetalis / 46, XN Fetal reduction
31 Nuchal Cystic Hygroma+Hydrops Fetalis+Exomphalos / 47, XN, +21 abortion
22 Spina Bifida, Cleft Lip and Cleft Palate (one of the twins) / 46, XN Fetal reduction
29 Cleft Lip and Cleft Palate, Right Foot Deficiency Choroidal cyst 46, XN abortion
28 Single Atrium, Single Ventricle, Nuchal Cystic Hygroma / Undetected abortion

Table 1: Ultrasonic Detection Results of the Fetal Structural Abnormalities in the First Trimester

IJPS-Holoprosencephaly

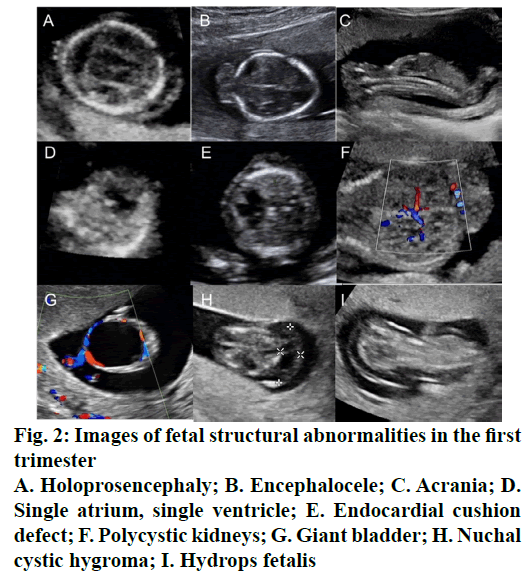

Figure 2: Images of fetal structural abnormalities in the first trimester
A. Holoprosencephaly; B. Encephalocele; C. Acrania; D. Single atrium, single ventricle; E. Endocardial cushion defect; F. Polycystic kidneys; G. Giant bladder; H. Nuchal cystic hygroma; I. Hydrops fetalis

The ultrasonic detection results of the fetal soft marker abnormalities in the first trimester

In the first trimester, 41 cases of abnormal fetal soft markers were detected (Table 2, fig. 3), including 22 cases of increased NT, 4 cases of choroidal cyst, 5 cases of single umbilical artery, 3 cases of nasal bone absence, 1 case of increased NT with abnormal DV doppler waveform, 1 case of increased NT with nasal bone absence, 1 case of increased NT with choroidal cyst, and 1 case of nasal bone absence with abnormal DV doppler waveform. Then, we conducted a DNA or karyotype test or follow-up. The results showed that there were 30 cases of normal labour (meant no deformation after birth), 6 cases of fetal karyotype abnormalities or fetal structural abnormalities, and 5 cases lost to follow-up.

Abnormal ultrasonic soft marker in the first trimester The tracking results of the mid-trimester
class Number of cases Normal Abnormal Lost
Increased NT 22 16 3(2 cases 21-trisomy, 1 case of fetal heart malformation) 3
Choroidal cyst 4 4 / /
Single umbilical artery 5 4 / 1
Nasal bone absence 3 2 1(21-trisomy) /
Abnormal DV Doppler waveforms 3 2 1case(fetal heart malformation) /
Increased NT and abnormal DV Doppler waveforms 1 1 / /
Increased NT and nasal bone absence 1 / 1case(21-trisomy) /
Increased NT with choroidal cyst 1 1 / /
Nasal bone absence and abnormal DV Doppler waveforms 1 / / 1
Total number of cases 41 30 6 5

Table 2: The Ultrasonic Detection Results of the Fetal Soft Marker Abnormalities in the First Trimester

IJPS-Choroidal

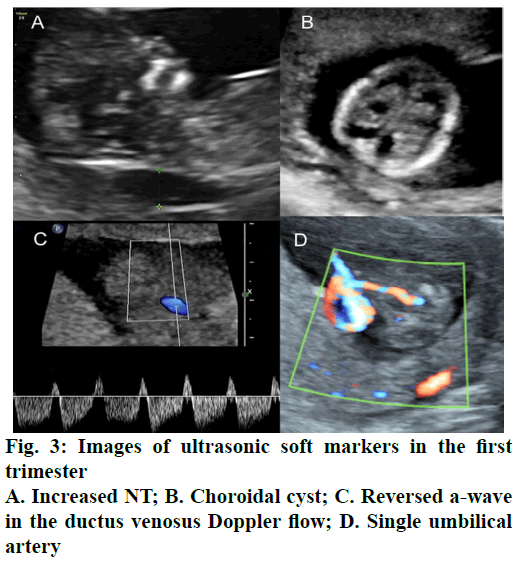

Figure 3: Images of ultrasonic soft markers in the first trimester
A. Increased NT; B. Choroidal cyst; C. Reversed a-wave in the ductus venosus Doppler flow; D. Single umbilical artery

The ultrasonic detection results of fetal structural abnormalities in the second trimester

A total of 2637 fetuses were examined in the second trimester, of which 1363 fetuses had undergone standardized ultrasonography in the first trimester and 1274 fetuses underwent standardized ultrasonography in the second trimester. A total of 113 cases of malformed fetuses were detected (Table 3, fig. 4), and those which did not undergo standardized ultrasonography in the first trimester were significantly more likely to have fetal abnormalities in the second trimester than those who underwent standardized ultrasonography in the first trimester (76 vs 37 cases). Moreover, compared to the fetuses that had standardized ultrasonography in the first trimester, the fetuses that did not have standardized ultrasonography in the first trimester had more types of fetal malformations, especially some serious ones like encephalocele, open spina bifida and gastroschisis and so on.

Structural Malformation Standardized ultrasonography in the first trimester No standardized ultrasonography in the first trimester
Class Nor of cases No of cases diseases No of cases diseases
Brain 21 6 Hydrocephalus, Blake porch cyst, corpus callosum agenesis, cerebellar dysplasia 15 Encephalocele, schizencephaly, corpus callosum agenesis, hydrocephalus, cerebellar hypoplasia, acrania
Face 12 4 Cleft lip, cleft palate 8 Cleft lip, cleft palate, abnormal ear morphology
Spine 10 3 Hemivertebra, closed spina bifida 7 Butterfly vertebra, hemivertebra, open spina bifida, fused vertebra
Cardiovascular 20 7 Ventricular septal defect, endocardial cushion defects, cardiomyopathy, tetralogy of Fallot, hypoplastic left heart syndrome. 13 Single ventricle, absent pulmonary valve, ventricular septal defect, endocardial cushion defect, hypoplastic left heart syndrome, cardiomyopathy, Ebstein’s anomaly, transposition of the great arteries, tetralogy of Fallot.
Chest 14 6 Congenital cystic adenomatoid malformation, pulmonary sequestration 8 Congenital cystic adenomatoid malformation, pulmonary sequestration, high airway obstruction, diaphragmatic hernia
Abdomen 18 6 Polycystic kidney, hydronephrosis, ectopic kidney 12 Exomphalos, gastroschisis, duodenal atresia polycystic kidney, hydronephrosis, ectopic kidney
Limb 10 3 clubfoot, short limbs 7 Clubfoot, arthrogryposis multiplex congenita, foot deficiency, short limbs
Others 8 2 Lymphangioma, hydrops fetalis 6 Hydrops fetalis, multiple abnormality
Total number of cases 113 37   76

Table 3: The Ultrasonic Detection Results of Fetal Structural Abnormalities in the Second Trimester

IJPS-Ultrasonic

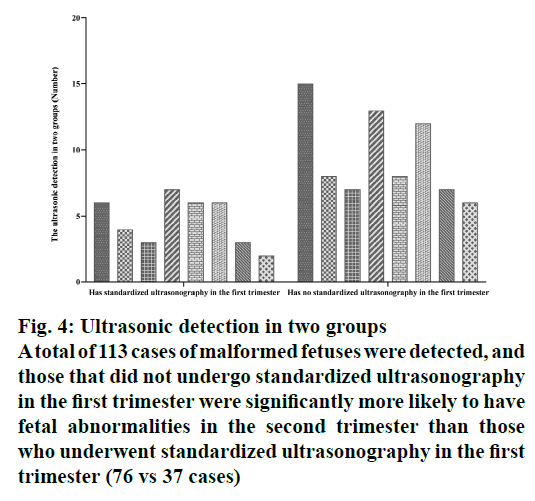

Figure 4: Ultrasonic detection in two groups
A total of 113 cases of malformed fetuses were detected, and those that did not undergo standardized ultrasonography in the first trimester were significantly more likely to have fetal abnormalities in the second trimester than those who underwent standardized ultrasonography in the first trimester (76 vs 37 cases)

Results and Discussion

Fetal malformation affects not only the growth and development of the fetus but also the safety of infants and young children and imparts a serious burden to families and society. Ultrasonography plays an important role in prenatal screening and diagnosis because of its safety, simplicity, non-invasiveness and real-time measurements. At present, systematic standardized ultrasonography of the fetus is generally performed in the second trimester (between 18 and 22 w of gestation)[12-14]. However, with the rapid development of ultrasound imaging technology and the use of high-resolution ultrasound instruments in recent years, fetal standardized ultrasonography in the first trimester has become possible and has attracted greater attention. Some experts have pointed out that standardized ultrasonography should not only be conducted in the second trimester but also in the first trimester. The standardized ultrasonography in the first trimester screening not only can detect severe fetal structural abnormalities but also can play a role in alerting the physician and patient of fetal chromosomal abnormalities through ultrasonic soft markers.

At first, our results demonstrated that standardized ultrasonography in the first trimester can detect a lot of fetal malformations, especially for some serious ones. A total of 1686 fetuses were examined in the first trimester in our study and 20 cases of fetal structural malformations were detected. And also, most of these were severe abnormality or complicated with karyotype abnormalities. Therefore, up to 15 pregnant women were selected for abortion. Therefore it is necessary to promote the use of standardized ultrasonography in the first trimester.

Secondly, our results showed that a lot of abnormal soft markers could be detected by standardized ultrasonography in the first trimester. Fetal ultrasonic soft markers have become a research hot spot in recent years, including nasal bone absence, mild ventriculomegaly, mild renal pyelectasis, choroidal cyst, single umbilical artery, echogenic intracardiac focus and so on. Although abnormal ultrasonic soft markers are not equal to fetal abnormalities, a large number of studies have found a certain correlation between abnormal ultrasonic soft markers and chromosomal abnormalities or structural abnormalities[15,16]. In this study, a total of 41 cases of fetal soft marker abnormalities were detected in the first trimester. In the later follow-up, it was found that most of them returned to normal and some had karyotype abnormalities or fetal structural abnormalities. Therefore, the recommendation is that if ultrasonic soft markers are found in the first trimester, doctors should be optimistically communicate with pregnant women and their families, but at the same time, doctors should inform them of the risk of fetal chromosomal abnormalities or structural abnormalities.Last but not the least, compared to the fetuses that had standardized ultrasonography in the first trimester, the fetuses that did not have standardized ultrasonography in the first trimester were significantly more likely to show fetal abnormalities in the second trimester (76 vs 37 cases). Moreover, they had more types of fetal malformations, especially for some serious ones, like encephalocele, open spina bifida, and gastroschisis and so on. These results further indicated that it is very important to conduct standardized ultrasonography in the first trimester and that the standardized ultrasonography in the second trimester could not be replaced by the standardized ultrasonography in the first trimester.

Conclusion

In general, the application of standardized ultrasonography in the first trimester is of great significance. On the one hand, it can detect some severe structural abnormalities at an early stage, avoiding the abortion of the fetus in the middle and third trimester, thus effectively reducing the psychological and physical toll on pregnant women. On the other hand, some fetal soft marker abnormalities can be found, which can help guide clinical chromosomal examination and followup, thereby reducing the birth defect rate. However, since fetal structure develops in a continuous and dynamic process, some fetal malformations are difficult to observe in the first trimester; therefore it is necessary to also conduct standardized ultrasonography in second trimester.

Conflict of Interest

All authors report no conflicts of interest in this work.
