- *Corresponding Author:
- l. Sratthaphut
Department of Health-Related Informatics, Faculty of Pharmacy, Silpakorn University, Nakhon Pathom 73000, Thailand
E-mail: [email protected]
|Date of Received||01 November 2019|
|Date of Revision||05 February 2021|
|Date of Acceptance||04 June 2021|
|Indian J Pharm Sci 2021;83(3):562-568|
This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms
The study aimed to examine the effectiveness of motion infographic media on improving patient’s knowledge and medical adherence during counseling. Eighty eight human immunodeficiency virus infected patients from outpatient department, human immunodeficiency virus clinic, Saraburi hospital participated in the study. Subjects were randomized into control and study groups (44 of each). Subjects in the study group received motion infographic media, while those in the control group did not receive motion infographic media. The results showed that subjects in the study group had higher knowledge scores and higher percentage of medical adherence than those in the control group in all tests. In addition, knowledge and medical adherence after receiving motion infographic media in the study group were even greater as indicated by higher knowledge test scores and higher percentage of medical adherence, as compared to before receiving the motion infographic media. It can be concluded that motion infographic media is beneficial and can be used as a tool for improving patient’s knowledge and medical adherence during counseling.
Antiretroviral drugs, human immunodeficiency virus, infographics, medical adherence, pharmacist, counseling
Medical adherence is one of the important factors influencing treatment effectiveness in human immunodeficiency virus (HIV) infected patients receiving antiretroviral drugs[1-3]. Strict medical adherence leads to a better immune function, a lower chance of viral resistance and a reduced viral load. Generally, antiretroviral regimens can cause the inconsistency of medical adherence due to a number of pills to be taken, a high frequency of medication intake, the difficulties in keeping the medicine and the medication side effects. Even though there have been attempts to improve medical adherence, for instance, prescribing fixed drug combination, taking multiple medications for different times at once and developing of new regimen to reduce side effects, inconsistent medication behaviors still occur and might lead to unsuccessful treatment[4,5].
Several factors have been found influencing medical adherence. Knowledge regarding HIV infection and antiretroviral drugs is one of those factors. Pharmacist as a healthcare provider can play a significant role in improving medical adherence through patient counseling and education[6-8]. However, inadequacy of pharmacists as well as miscommunication between pharmacists and patients makes the counseling difficult. Integration of technology into the process of counseling may provide more effective outcome.
Infographic media is one of the most recent and effective communication technologies that can be used in the field. It applies images to convey the information or knowledge, which can stimulate the interest of patients, reduce the time used in deducing the intended information, provide a positive impact on the long-term data memorization and influence the behavioral changes of patients[9-13]. The objective of this study is to integrate motion infographic media (MIM) into counseling process and further examine its effectiveness on improving knowledge and medical adherence of patients who receive antiretroviral drugs.
Materials and Methods
Conceptual framework of infographic media:

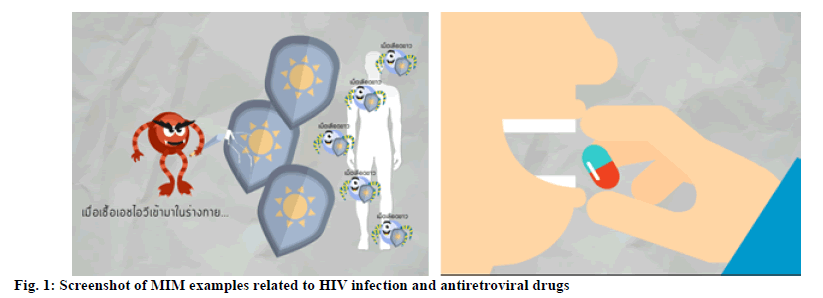

MIM was adapted from the previous work of Chongpornchai, et al.. Conceptual framework of the media was obtained from academic documents and operation manuals[4,5,15], along with the survey and inspection from clinical pharmacist at a HIV clinic. Knowledge content was divided into two parts: HIV infection and antiretroviral drugs. The screenshot in fig. 1 displayed MIM examples, which explained information related to HIV infection and antiretroviral drugs in Thai language.
Study site and subjects:
The study was conducted at Outpatient department, HIV clinic, Saraburi hospital from September 2018 to November 2018. Subject inclusion criteria were as follows: participant was a HIV-infected patient, had age older than 18 y, received antiretroviral drugs for more than 1 mo, had signed an informed consent form, resided in Saraburi province until completion of the study and did not have difficulties in listening, speaking, reading and writing Thai language and did not have memory disorders.
The study has been approved by the Human Research Ethics Committee of Faculty of Pharmacy, Silpakorn University (COA no.7/2018). Each participant gave a written informed consent before enrolment. The trial was registered on the Thai Clinical Trials Registry, number TCTR20180725003.
It was a randomized experimental study. Sample size calculation was based on the result from Robbins RN, et al. as medical adherence was assessed using pill count method. Eighty eight subjects were randomized into control and study groups using a random number table that resulted in equal sample sizes (N of each=44). Subjects on both groups received counseling on HIV infection and antiretroviral drugs. However, MIM was exclusively provided to those in the study group. Fig. 2 displayed the room used for providing MIM to subjects in the study group. After completion of the study, only 34 subjects in the study group and 35 subjects in the control group remained for data analysis as some subjects were lost for follow-up on the second visit.
Tools and outcome measures:
The primary outcomes were the knowledge scores regarding HIV infection and antiretroviral drugs as well as the percentage of medical adherence. Demographic data and knowledge questionnaire applied in this study were adapted from our previous work. Thirty questions with 34 points were found in knowledge questionnaire. The contents in questionnaire were separated into 2 parts as follows: disease knowledge (true/false questions; 20 total points) and medication knowledge (10 questions; 14 points). The medication knowledge questionnaire, however, was composed of four sections. The first section focused on general information of antiretroviral drugs (true/false question; 7 points). The second section was identification of recently used medication (1 point). The third section was knowledge on the adverse drug reaction of recently used medication (3 points). The last one was knowledge on medical precaution/contraindication (3 points).
Medical adherence was measured using self-reported adherence and pill count method. The self-reported adherence questionnaire was adapted from the surveys of Adult Acquired immunodeficiency syndrome (AIDS) clinical trials group (AACTG). Good adherence (100 %) indicated that subjects had never forgotten to take medicine. The pill count method was performed by pharmacist. Both methods would be calculated to render the percentage of medical adherence from the following formula.
Total dose of drug taken/Total dose of drug prescribed×100
If there was more than one medicine on the prescription, the average of all percentages would be calculated and represent the adherence.
As soon as subjects arrived the clinic on the first visit, they were asked to fill demographic questionnaire, knowledge questionnaire and self-reported adherence questionnaire. The remaining antiretroviral pills were counted and recorded. Knowledge scores obtained during this period were used as pretest data. MIM was provided afterward only to subjects in the study group for 15-20 min. Subjects in both groups subsequently received routine counseling regarding HIV disease and medications by clinical pharmacist. After the counseling process, all subjects were asked to re-answer the same knowledge questionnaire. Knowledge scores obtained after counseling process were used as posttest data. On the second visit (1 mo later), knowledge scores were retested and recorded as follow-up test data and the medical adherence was measured using the same tools which were done on the first visit.
SPSS statistical program was used for data analysis with the significance level at a p-value less than 0.05. Demographic characteristics of patients were summarized as frequency, percentage, mean and standard deviation. Categorical factors were examined by Chi-squares test or Fisher’s exact test (if the expected value was less than 5). Differences in means between two groups were analyzed by independent sample t-test or Mann-Whitney U test (if data distribution were not normal). Two way mixed model analysis of variance (ANOVA) with between subjects variable (Group: study and control) and within subjects variable (Time: pretest, posttest and follow-up test) was utilized to compare mean differences of knowledge scores. Bonferroni post hoc t-tests method was further applied if the differences were significance. For medical adherence results, Wilcoxon signed-rank test was used to compare mean percentage differences for paired data from the first and second visits in each group as well as Mann-Whitney U test employed for independent subjects.
Results and Discussion
Table 1 presented the demographic characteristics of participants. There was no statistical difference in any characteristics between groups. The average age for all subjects was 41 y old. Most of them were males with at least primary school education. They had a good level of cluster of differentiation 4 (CD4) and viral load. Mean treatment duration for both groups was longer than 5 y. Despite taking concomitant drugs, most of them were vitamin supplements. About 60 % of participants took none fixed drug combination regimen twice a day.
|Study variable||Study (n=34)||Control (n=35)||p-value|
|Age, years (mean, SD)||42.85 (10.6)||40.34 (11.2)||0.341*|
|Gender (n, %)
21 (55.3 %)
13 (41.9 %)
17 (44.7 %)
18 (58.1 %)
|Education level (n, %)
14 (50.0 %)
13 (52.0 %)
7 (43.8 %)
14 (50.0 %)
12 (48.0 %)
9 (56.2 %)
|CD4 cell count, cell/mm3 (mean, SD)||457.15 (247.6)||471.31 (264.3)||0.819*|
|Viral load, copies/ml (n, %)
| 25 (48.1 %)
3 (60 %)
27 (51.9 %)
2 (40 %)
|Concomitant drug (n, %)
28 (53.8 %)
6 (35.3 %)
24 (46.2 %)
11 (64.7 %)
|Combination antiretroviral drug (n, %)
15 (53.6 %)
19 (46.3 %)
13 (46.4 %)
22 (53.7 %)
|Medication regimen (n, %)
One daily dose
Two daily dose
9 (42.9 %)
25 (52.1 %)
12 (57.1 %)
23 (47.9 %)
SD stands for standard deviation, *Based on independent sample t-test, **Based on Chi-squared test, ***Based on Fisher's exact test
Table 1: Demographic Characteristics of Participants In Two Groups
Knowledge scores regarding HIV infection and antiretroviral drugs were given. The mixed model ANOVA (Table 2) revealed significant effects of group (p<0.001), time (p<0.001) and group-bytime interaction (p<0.001) in knowledge test scores. Bonferroni post-hoc t-tests analysis demonstrated a significant increase in posttest scores and follow-up test scores between two groups (p<0.001, fig. 3). Fig. 4 illustrated significant improvement between pretest and posttest within each group (p<0.001).
Fig. 4: Pairwise comparisons of knowledge test scores over
pC12 stands for p-value between pretest and posttest means in control group, pC13 stands for p-value between pretest and follow-up test means in control group, pC23 stands for p-value between posttest and follow-up test means in control group, pS12 stands for p-value between pretest and posttest means in study group, pS13 stands for p-value between pretest and follow-up test means in study group, pS23 stands for p-value between posttest and follow-up test means in study group
|Groups||nowledge test scores
|Significance F (p-value)|
|22.09 (4.59)||29.03 (3.96)||29.18 (3.84)||33.606 (<0.001)||79.984 (<0.001)*||25.034 (<0.001)*|
|19.83 (5.23)||23.29 (4.14)||20.83 (4.59)|
SD stands for standard deviation, *Based on Mauchly’s test for sphericity assumed (p=0.146)
Table 2: Two Way Mixed Model Anova Results of Knowledge Test Scores
It should be noticed that knowledge test scores on both groups were significantly improved after subjects received the counseling and the study group had significantly higher knowledge scores on the followup test than those in the control group. However, knowledge scores of participants in study group on the follow-up test were a little higher as compare to those in the posttest despite being tested 1 mo apart.
Table 3, the mean percentages of medical adherence in study group, measured by pill count and self-reported adherence method increased after counseling. The mean percentage of medical adherence measured by the pill count method also revealed a significant increase, (p=0.014). On the other hand, there was no statistical difference (p=0.391) in mean percentage of medical adherence measured by self-reported adherence method. Additionally, the mean percentages of medical adherence measured by both methods on the second visit in study group were significantly greater than those in the control group (p=0.030 and p=0.021) (Table 4).
|Group of participants||Percentage of medical adherence|
|Pill count method|
|Study (n=34)||98.85 (2.30)||99.68 (1.07)||0.014|
|Control (n=35)||98.54 (2.23)||98.40 (3.17)||0.715|
|Self-reported adherence method|
|Study (n=34)||98.09 (3.86)||98.76 (3.21)||0.391|
|Control (n=35)||96.91 (3.44)||96.80 (3.92)||0.793|
SD stands for standard deviation, *Based on Wilcoxon signed-rank test
Table 3: Comparison of Medical Adherence Between First and Second Visits in Each Group
|Methods||Percentage of medical adherence|
|Pill count method||99.68 (1.07)||98.40 (3.17)||0.030|
|Self-reported adherence method||98.76 (3.21)||96.80 (3.92)||0.021|
SD stands for standard deviation, *Based on Mann-Whitney U test
Table 4: Comparison of Medical Adherence Between Study and Control Groups in Second Visit
A number of studies have been attempting to integrate technologies into the counseling given by healthcare providers in HIV clinics. The technologies were tested and showed the effectiveness[16,18-24]. However, such technologies are sometimes impractical to be used because of difference of the HIV clinic. This study adopted the concept of the motion infographics to improve the media that is easy to use, able to publicize in various channels and practical for using in HIV clinics in Thailand.
The results of knowledge test scores were consistent with an increase in the percentage of medical adherence. This was consistent with previous studies suggesting that infographic media is more attractive to the audiences than other conventional communication means[11-13].
Subjects in study group had significantly higher knowledge test scores regarding HIV infection and antiretroviral drugs, coinciding with previous reports suggesting that integrating technology into the counseling better improved the knowledge in patients not doing so[16,21]. Interestingly, this knowledge scores were not decreased after the period of 1 mo, in accordance with the study of Turk et al., suggesting that “infographic affects the long-term memory”.
The results indicated that medical adherence was improved when MIM was provided to patients. This is in accordance with previous studies with the results demonstrating good medical adherence[16,18-24]. It was also implied that utilization of technology acted as a tool to convey medical information during counseling to improve medical adherence of patients compared with no technology.
It should be noted that the percentage of medical adherence using the pill count method was slightly higher than the one using self-reported adherence method. As the pill was directly counted by pharmacists, the result then could be classified as good evidence. On the contrary, the result from self-report method was very subjective because the result was reported, based on memory of subjects regarding the delay or missing of medication. Thus, the use of self-report adherence method did not provide any empirical evidence.
\The result also presented that very high adherence was found in both study and control groups. This may be due to two possible reasons. Firstly, all HIV patients in Thailand can freely access to antiretroviral drug due to the support by the government through Universal Health Coverage Service Scheme. Secondly, the subjects are well aware of being assessed by counting pills as normal, which is the practice of the hospital pharmacy service during their receiving medical care.
HIV-infected patients receiving antiretroviral drugs had better knowledge on the infection and medications as well as good medical adherence after receiving MIM during counseling. This study provided a strong evidence to support the use of MIM as a counseling tool, which can be used by pharmacists, for patient education.
This was a preliminary study conducting in HIV patients at Saraburi hospital. In addition, clinical evaluation focused only on the medical adherence. No other clinical outcomes, such as CD4 or viral load, were measured to confirm the consistency of medical adherence. As the self-reported adherence method was completed by patients, some of them might not accurately remember if they had missed taking the medication because of the long intervals between visits. Furthermore, this research intended to gain the overview data. So, it did not specify the samples with poor medical adherence. As most of the participants had good medical adherence record, the behavioral change was not clear but visible. Lastly, the knowledge on HIV infection and antiretroviral drugs is only the influencing factor that can be directly provided by pharmacist to improve medical adherence. With technological innovations, various counseling issues can be solved. Treatment effectiveness then may be improved.
Future research should include more subjects with multiple setting. A large number of subjects with poor knowledge regarding the infection and inconsistent medical adherence should be included in order to get more reliable and effective results.
This research is successfully completed by the generous cooperation of all healthcare providers and patients from the HIV Clinic, Saraburi hospital, Thailand. The authors would like to thank Dr. Krittika Tanyasaensook, Mahidol University for providing information which helps to improve the quality of this work.
Conflicts of interest:
The authors declared no conflict of interest.
