*Corresponding Author:
Xiaoye Chen
Department of Radiotherapy,
Taizhou Hospital,
Zhejiang Province,
Taizhou 317000,
China
E-mail: chenxye@enzemed.com
This article was originally published in a special issue, “Novel Therapeutic Approaches in Biomedicine and Pharmaceutical Sciences”
Indian J Pharm Sci 2021:83(6) Spl Issue “29-37”

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

LGK974 is a potent Wingless-related integration site inhibitor at Phase II of a clinical trial. However, little is known about its role and the underlying mechanisms in human hepatocellular carcinoma. 3-(4,5-Dimethylthiazol-2-yl)-2,5-Diphenyltetrazolium Bromide and colony formation assays were used to determine the cytotoxicity of LGK974 on liver cancer cell lines. Flow cytometry assay was performed to examine the cell apoptosis induced by LGK974 alone or in combination with tumor necrosis factor- related apoptosis-inducing ligand. Western blot assay was used to evaluate the protein expression profiling of caspases, poly adenosine diphosphate-ribose polymerase and B-cell lymphoma 2 family, as well as the activation of signaling pathways. At the present study, we demonstrated that LGK974 can suppress human hepatocellular carcinoma cell proliferation by inducing apoptosis and suppress colony formation. In addition, LGK974 effectively inhibited the protein expression of B-cell lymphoma 2, while elevated the protein expression of B-cell lymphoma 2 homologous antagonist/killer, B-cell lymphoma 2 associated agonist of cell death and B-cell lymphoma 2 like protein 11 in human hepatocellular carcinoma cells. More interestingly, it was observed that LGK974 obviously enhances the tumor necrosis factor-related apoptosis-inducing ligand induced apoptosis. Our data indicated that LGK974 not only inhibited the Wingless-related integration site/beta catenin signaling pathway, but also inactivated the nuclear factor kappa light chain enhancer of activated B cells signaling pathway. We also activated nuclear factor kappa light chain enhancer of activated B cells signaling pathway by using small interfering RNA against nuclear factor of kappa light polypeptide gene enhancer in B-cells inhibitor alpha, which effectively attenuated the sensitization effects of LGK974 on tumor necrosis factor-related apoptosis-inducing ligand in human liver cancer cell line, HepG2 cells. Altogether, these data presented in this study illustrated that LGK974 potentiated the lethality of tumor necrosis factor-related apoptosis-inducing ligand in human hepatocellular carcinoma by inducing apoptosis via suppressing nuclear factor kappa light chain enhancer of activated B cells signaling pathway.

Keywords

Human hepatocellular carcinoma, LGK974, drug resistance, apoptosis, nuclear factor kappa light chain enhancer of activated B cells signaling pathway

Human Hepatocellular Carcinoma (HCC) is the third leading cause of cancer mortality around the world, with approximately seven hundred thousand each year [1,2]. Even though the advance in chemotherapy and surgery in the past decades have been enhanced the survival time of HCC patients, a considerable part of patients still relapse due to the development of drug resistance to chemotherapeutics [3,4]. Therefore, to identify novel drugs to sensitize HCC to chemotherapy is hugely important for the exploration of therapies.

The Wingless-related integration site (Wnt) family comprised of 19 members which can be classified into two categories depending on whether beta (β) catenin was involved. The canonical β-catenin dependent pathway and the non-canonical β-catenin independent pathway [5,6]. The unusual activation of Wnt/β-catenin signaling has been reported to be involved in numerous cancer types [7-10]. Furthermore, several studies have indicated that β-catenin mutation was implicated in the tumorigenesis of multiple cancers, such as non-small cell lung cancer [11], colorectal cancer [12], ovarian cancer [13], gastric cancer [14], esophageal cancer [15], HCC [16] and so on. Recently, LGK974, a specific porcupine inhibitor, was found to potently inhibit Wnt signaling pathway [17]. LGK974 is at phase II of a clinical trial and is believed to possess a promising application in Wnt-driven cancers [18,19]. However, there is little research focusing on the role of LGK974 in HCC up to now.

Tumor Necrosis Factor-Related Apoptosis-Inducing Ligand (TRAIL), one of Tumor Necrosis Factor (TNF) family members, has been diffusely identified as a hopeful anti-cancer drug to against a large group of tumors because of its selective cytotoxicity to cancer cells [20,21]. After binding to receptors, TRAIL receptor 1 (TRAIL-R1) Death Receptor 4 (DR4) or TRAIL Receptor 2 (TRAIL-R2) Death receptor 5 (DR5), the binding complex recruits the intracellular adaptor Fas Associated Death Domain (FADD) and procaspase 8 to form the Death-Inducing Signaling Complex (DISC), which induces caspase-8 self-cleavage and initiates an extrinsic pathway of apoptosis [22-24]. Unfortunately, TRAIL is still not effective in almost half of the detected cancer cell lines [25,26]. A previous study reported that most of HCC cell lines showed resistance to TRAIL- induced apoptosis [27]. Therefore, the identification of the conventional drugs in new use to sensitivity to TRAIL may represent a reachable approach for effective HCC treatment.

In the present study, the effects of LGK974 alone and the sensitizing effects to TRAIL and the underlying molecular mechanisms in HCC was preliminarily elucidated.

Materials and Methods

Cell culture:

Two HCC cell lines HepG2 and Huh7 were obtained from the American Type Culture Collection (ATCC, USA) and cultured in a humidified incubator in an atmosphere of 5 % (v/v) carbon dioxide (CO2) at 37° using Dulbecco’s Modified Essential Medium (DMEM) (Hyclone; GE Healthcare Life Sciences) supplemented with 10 % fetal bovine serum (FBS) (Hyclone; GE Healthcare Life Sciences), 100 U/ml penicillin (Sigma- Aldrich; Merck KGaA) and 100 g/ml streptomycin (Sigma-Aldrich; Merck KGaA).

Cell viability assay:

The cytotoxicity of LGK974 and TRAIL alone or in combination with HCC cells in vitro was determined by 3-(4, 5-dimethylthiazolyl-2)-2, 5-diphenyltetrazolium bromide (MTT) assay. In brief, cells were seeded in a 96-well tissue culture plate and incubated with varying concentrations of LGK974 and TRAIL alone or in combination for another 24 h. Then, MTT was added to each well at a final concentration of 5 mg/ml after that discard all medium and the plate was further incubated at 37? for up to 4 h. Then, Dimethyl Sulfoxide (DMSO, 150 μl) was added into each well and the plate was shaken to dissolve the formazan crystals. Finally, the absorbance of the mixture was measured at 570 nm using a microplate reader (Molecular Device).

Colony formation assay:

Briefly, after treated with different dose of LGK974, 1000 HCC cells were seeded into the 6-well plate followed by 14 d incubation. Then, cells were fixed with iced methanol for 20 min after washing with Phosphate Buffered Saline (PBS), followed by treatment with 0.1 % crystal violet staining solution for 15 min. All operations were performed at room temperature. After cells were washed with PBS twice, the number of colonies (>50 cells) was counted by using an inverted microscope (Olympus Corp).

Apoptotic analysis:

Cell apoptosis rate was determined by using flow cytometry analysis. After indicated treatment, cells were collected by trypsinization and washed with ice-cold PBS followed by staining with Annexin V-Fluorescein Isothiocyanate (FITC) in dark at 4°and Propidium Iodide (PI) for 5 min at room temperature. Then, flow cytometry assay was performed on a Fluorescence- Activated Cell Sorting (FACS) Scan flow-cytometer (Becton Dickinson). Early apoptotic cells are Annexin V-positive and PI-negative (Annexin V-FITC+/PI), while late apoptotic cells are Annexin V/PI-double- positive (Annexin V-FITC+/PI+). The summation of both early and late apoptotic cells was used to determine the percentage of apoptotic cells. WinMDI 2.9 software was used to perform the data analysis.

Western blotting:

Cells were washed with PBS and protein was obtained by scraping in lysis buffer which contains aprotinin (2.1 μg/ml), leupeptin (0.5 μg/ml), phenylmethylsulfonyl fluoride (1 mm), Magnesium chloride (MgCl2) (4.9 mm), orthovanadate (1 mm) and 1 % Triton X 100. The Bicinchoninic Acid (BCA) assay was used to determine the protein concentration and 20 μg proteins for each sample was loaded on Sodium Dodecyl Sulphate Polyacrylamide Gel Electrophoresis (SDS-PAGE) and electrophoresis was performed at 100 V for 40 min. The proteins were transferred onto Polyvinylidene Fluoride (PVDF) membranes and incubated with primary antibodies and respective secondary antibodies after blocking with 5 % non-fat milk. X-ray film (Fujifilm) and Enhanced Chemiluminescence (ECL) reagents (GE Healthcare) were used to visualize the signal.

Primary antibodies caspase-3 (ab32351), Poly Adenosine Diphosphate-Ribose Polymerase (PARP) (ab32138), B-cell lymphoma 2 (Bcl-2) (ab32124), Bcl-2 homologous antagonist/killer (Bak) (ab32371), Bcl-2 associated agonist of cell death (Bad) (ab32445), Bcl-2-like protein 11 (Bim) (ab32158), N-cadherin (ab76011), E-cadherin (ab76055) and Vimentin (ab92547) used in the present study were obtained from Abcam (Cambridge, UK). Primary antibodies β-catenin (8480), Glycogen Synthase Kinase 3 Beta (GSK-3β) (12456), phosphorylated GSK-3β (p-GSK-3β) (5558), Inhibitor of Kappa B Kinase alpha (IKKα) (11930), phosphorylated IKKα (p-IKKα) (2697), Nuclear Factor Kappa Light Chain Enhancer of Activated B cells (NF-κB) (8242), phosphorylated NF-κB (p-NF-κB) (3033), survivin (2808) and Nuclear Factor of Kappa Light Polypeptide Gene Enhancer in B-Cells Inhibitor, Alpha (IκBα) (4814) were obtained from cell signaling technology (Danvers, MA, USA). The secondary antibodies were obtained from Santa Cruz (Dallas, TX, USA). The antibody against β-actin was purchased from Sigma-Aldrich (Merck KGaA).

Immunocytochemistry assay for the nuclear translocation of NF-κB:

For immunostaining, cells cultured on glass coverslips were fixed with iced 4 % paraformaldehyde (20 min, room temperature) and washed with PBS for three times. Coverslips were then incubated sequentially with 0.5 % Triton-X100 (Sigma) in PBS (5 min, room temperature), 5 % BSA blocking buffer in PBS (60 min, room temperature), primary antibody against NF- κB (Abcam, Alexa Fluor® 594 conjugated) diluted in blocking buffer (overnight, 4°). Phalloidin was used to stain the cytoskeleton and nuclei were counterstained with 20 μg/ml of the nuclear stain 4′,6-Diamidino-2- Phenylindole (DAPI) (Sigma Aldrich) in PBS for 5 min. Coverslips were mounted on to glass slides using mounting media and pictures were obtained under fluorescence microscope (Olympus).

Silencing of IκBα using Small interfering RNA (siRNA):

For knockdown of the IκBα, specific siRNA against IκBα was purchased from Shanghai Genepharma and the sequence is 5’-GGACGAGAAAGATCATTGA-3’. The transfection was performed by using lipofectamine 2000 reagent (Thermofisher) according to the manufacture’s instruction. The silence efficiency was confirmed by western blot assay.

Statistical analysis:

Statistical analysis was performed using a two-sided Student’s t test for data containing two groups, or two- way Analysis Of Variance (ANOVA) (parametric) with a Bonferroni post-test for the comparison of multiple groups. All data are expressed as the mean±Standard Deviation (SD) from at least three independent experiments, p<0.05 was considered to indicate a statistically significant (*p<0.05, **p<0.01) and all statistical analysis done by GraphPad Prism 5.0 (GraphPad Software, Inc., La Jolla, CA, USA).

Results and Discussion

LGK974 suppressed cell proliferation and colonies formation on HCC cells. Firstly, MTT assay was used to evaluate the cytotoxicity of LGK974 on HepG2 and Huh7 cells. As shown in fig. 1A, LGK974 significantly suppressed the cell survival of both HepG2 and Huh7 cell lines in a dose-dependent manner. Meanwhile, colony formation assay was performed to further confirm whether LGK974 could influence the ability of single cells to grow into colonies. Our data revealed that LGK974 treatment effectively decreased colony formation potentials of HepG2 and Huh7 cells (fig. 1B).

IJPS-proliferation

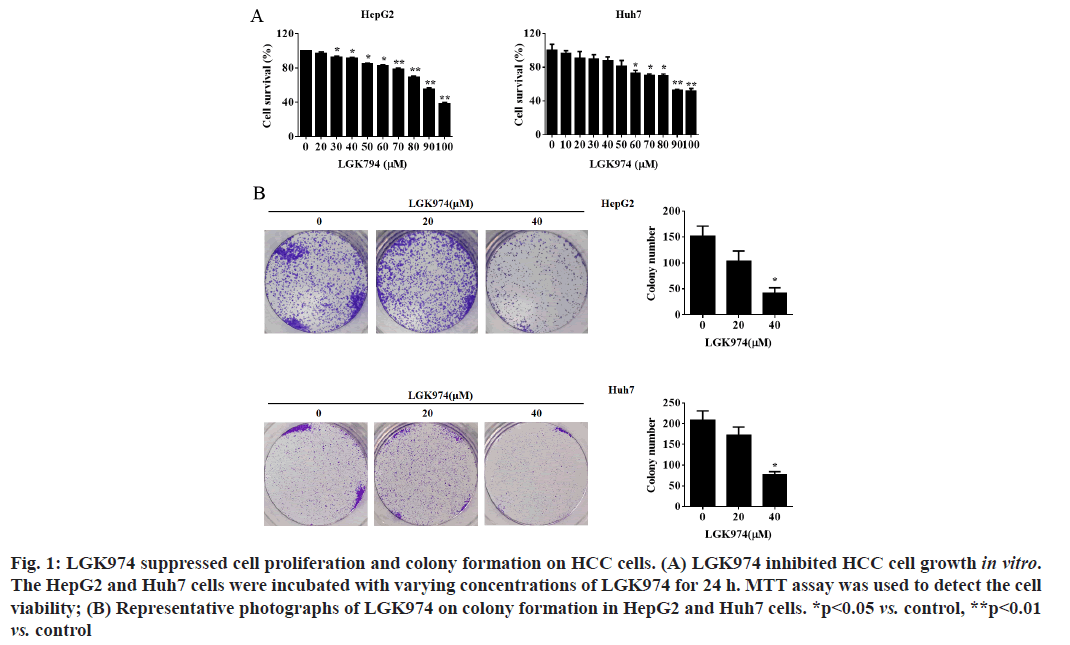

Figure 1: LGK974 suppressed cell proliferation and colony formation on HCC cells. (A) LGK974 inhibited HCC cell growth in vitro. The HepG2 and Huh7 cells were incubated with varying concentrations of LGK974 for 24 h. MTT assay was used to detect the cell viability; (B) Representative photographs of LGK974 on colony formation in HepG2 and Huh7 cells. *p<0.05 vs. control, **p<0.01 vs. control

LGK974 effectively induced apoptosis in HCC cells by modulating Bcl-2 family. Next, to confirm whether the lethality effect of LGK974 on HCC was done by inducing apoptosis, flow cytometry analysis was performed. As shown in fig. 2A, it was found that LGK974 dramatically enhanced apoptosis rate in both two HepG2 and Huh7 cell lines (the percentage of cells under apoptosis increased from 6.93 % to 12.81 % and 28.76 % and from 5.22 % to 12.21 % and 35.37 % in HepG2 and Huh7 cells, respectively). Furthermore, the cleaved caspase-3 and PARP, one of the hall markers for cell apoptosis, was also detected in both HepG2 and Huh7 cell lines after treated with LGK974 by western blot assay. Our data revealed that LGK974 effectively promoted the cleavage of caspase-3 and PARP in HepG2 and Huh7 cells (fig. 2B).

IJPS-apoptosis

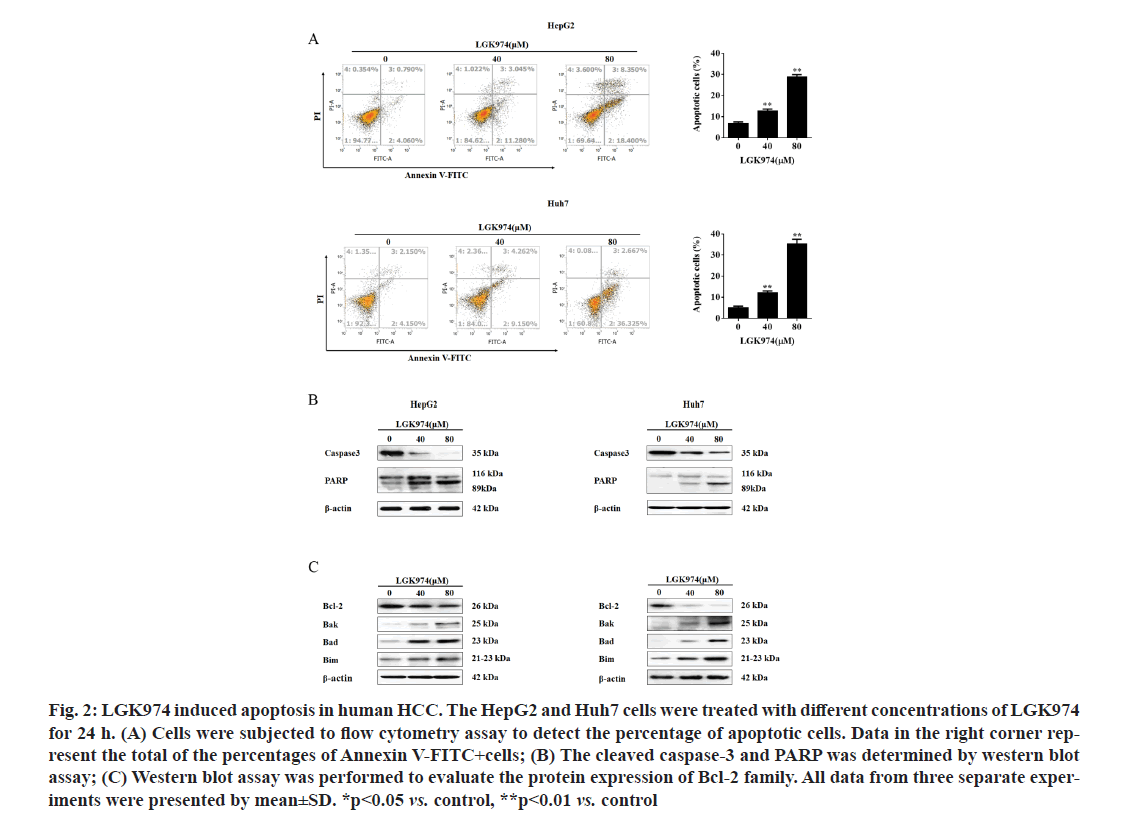

Figure 2: LGK974 induced apoptosis in human HCC. The HepG2 and Huh7 cells were treated with different concentrations of LGK974 for 24 h. (A) Cells were subjected to flow cytometry assay to detect the percentage of apoptotic cells. Data in the right corner rep- resent the total of the percentages of Annexin V-FITC+cells; (B) The cleaved caspase-3 and PARP was determined by western blot assay; (C) Western blot assay was performed to evaluate the protein expression of Bcl-2 family. All data from three separate exper- iments were presented by mean±SD. *p<0.05 vs. control, **p<0.01 vs. control

Western blotting assays were also used to examine the Bcl-2 family proteins expression, as they are key regulators for the apoptosis pathway [28]. Our data indicated that LGK974 markedly decreased the level of Bcl-2 protein, while remarkably increased the levels of Bak, Bad and Bim proteins in HepG2 and Huh7 cells (fig. 2C), suggesting that LGK974 might trigger apoptosis procedure in HCC cells by regulating Bcl-2 family protein expression at least partially.

LGK974 potentiated the TRAIL-mediated apoptosis in HCC cells via regulating Bcl-2 family expression. Next, MTT assay was used to examine whether LGK974 could increase TRAIL-mediated lethality in HCC cells. As expected, the combined treatment with LGK974 and TRAIL dramatically inhibited the cell growth in HepG2 and Huh7 cell lines (fig. 3A). To further confirm whether the sensitization functions of LGK974 on TRAIL-induced cytotoxicity was by inducing apoptosis, HepG2 cells were subjected to flow cytometry analysis after double staining with Annexin V-FITC and PI. As shown in fig. 3B, LGK974 significantly promoted the apoptosis induced by TRAIL in HepG2 cells, the apoptotic percentage increased from 10.37 % (LGK974 alone) and 13.47 % (TRAIL alone) to 44.71 % (LGK974 in combination with TRAIL) (fig. 3C).

IJPS-hepatocellular

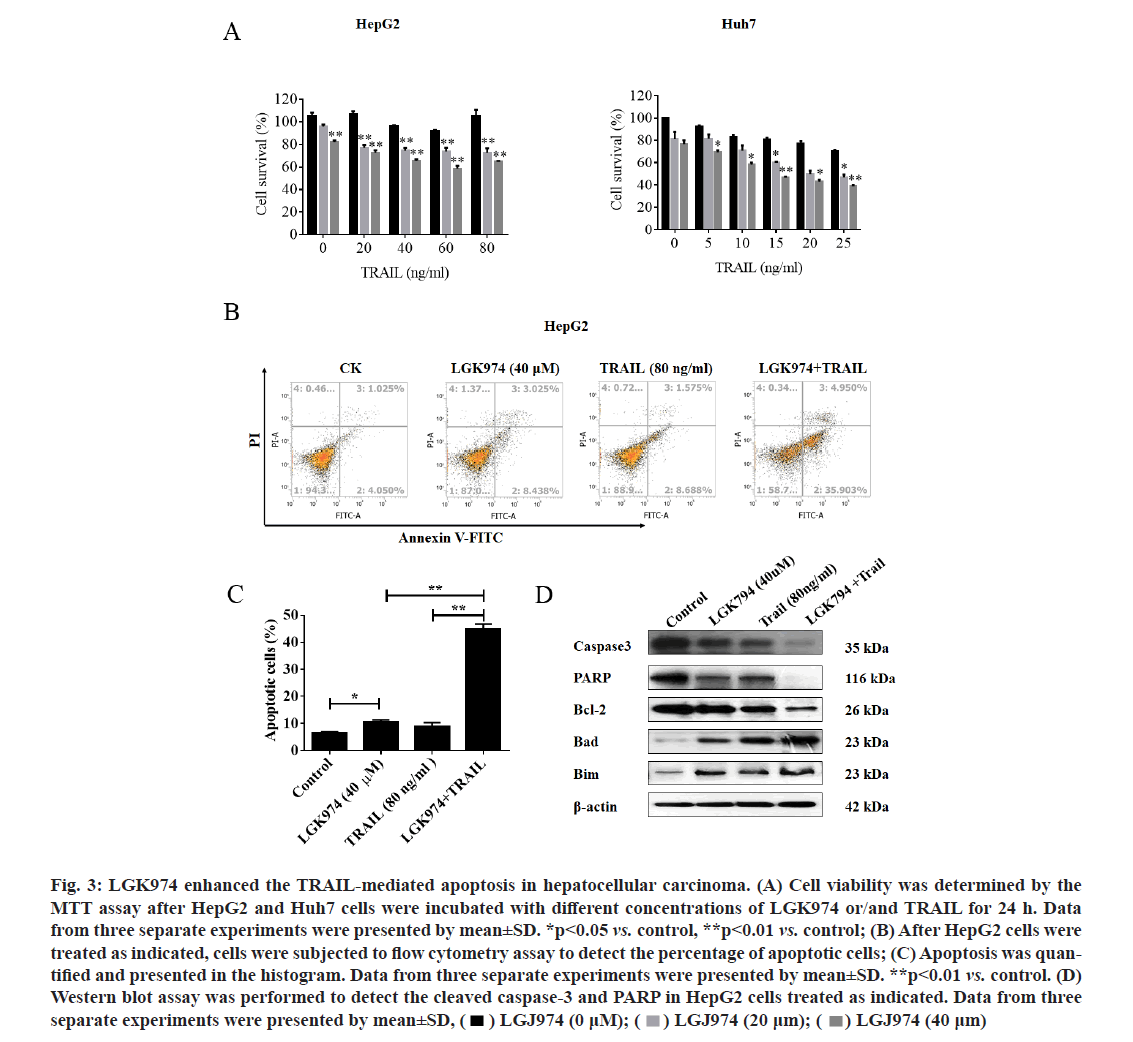

Figure 3: LGK974 enhanced the TRAIL-mediated apoptosis in hepatocellular carcinoma. (A) Cell viability was determined by the MTT assay after HepG2 and Huh7 cells were incubated with different concentrations of LGK974 or/and TRAIL for 24 h. Data from three separate experiments were presented by mean±SD. *p<0.05 vs. control, **p<0.01 vs. control; (B) After HepG2 cells were treated as indicated, cells were subjected to flow cytometry assay to detect the percentage of apoptotic cells; (C) Apoptosis was quan- tified and presented in the histogram. Data from three separate experiments were presented by mean±SD. **p<0.01 vs. control. (D) Western blot assay was performed to detect the cleaved caspase-3 and PARP in HepG2 cells treated as indicated. Data from three separate experiments were presented by mean±SD, equation

LGK974 inhibited the activation of Wnt/β-catenin and NF-κB signaling pathways. As LGK974 is a potent Wnt inhibitor, we next examined the expression of β-catenin protein and the phosphorylation of its regulator GSK- 3β by western blot assay to determine the activation of Wnt signaling pathway. As shown in fig. 4A, LGK974 (40 μm) alone indeed downregulated the protein expression of β-catenin and effectively decreased the phosphorylation of GSK-3β. On the other hand, our data also revealed that LGK974 could significantly impair the activation of NF-κB signaling pathways, which was supported by the downregulation of the phosphorylation of IKK-α and NF-κB (fig. 4B). It was also observed that the expression of survivin, one of NF-κB target genes was also suppressed by LGK974 (fig. 4B). Finally as shown in fig. 4C, the nuclear- translocation of NF-κB was obviously inhibited by LGK-974 treatment in HepG2 cells. Taken together, the activation of Wnt/β-catenin and NF-κB signaling pathways were inhibited by LGK974.

IJPS-survivin

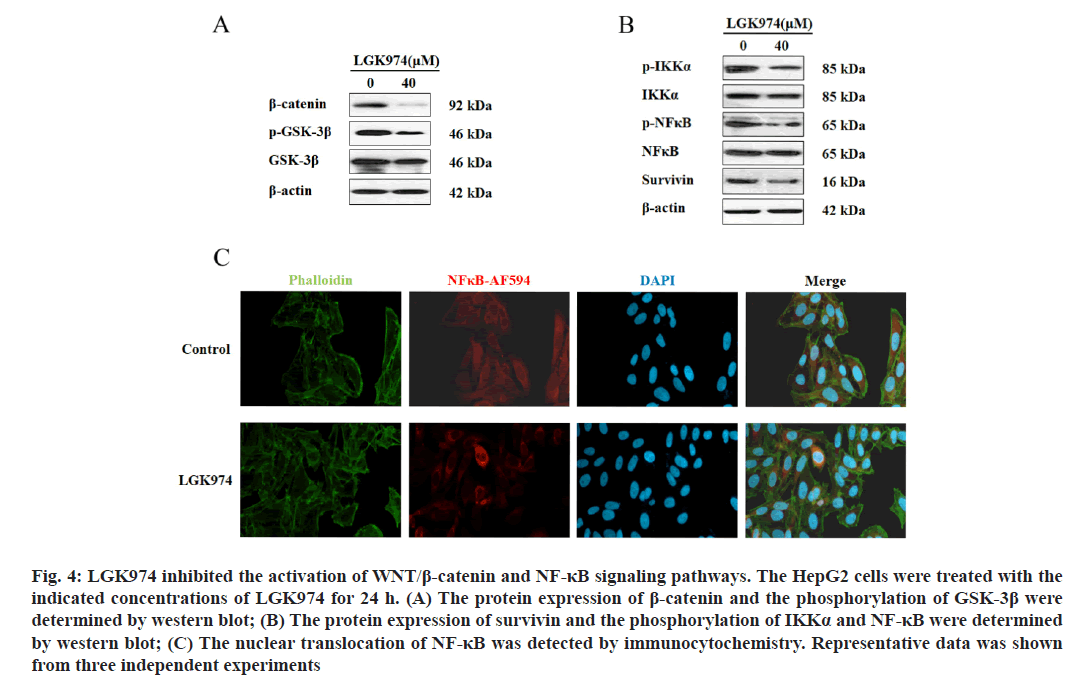

Figure 4: : LGK974 inhibited the activation of WNT/β-catenin and NF-κB signaling pathways. The HepG2 cells were treated with the indicated concentrations of LGK974 for 24 h. (A) The protein expression of β-catenin and the phosphorylation of GSK-3β were determined by western blot; (B) The protein expression of survivin and the phosphorylation of IKKα and NF-κB were determined by western blot; (C) The nuclear translocation of NF-κB was detected by immunocytochemistry. Representative data was shown from three independent experiments

Consistent activation of NF-κB signaling pathway effectively attenuated the sensitizing effect of LGK974 on TRAIL in HCC cells. To further confirm whether NF-κB signaling pathway was involved in the role of LGK974 in HCC, especially its sensitizing function on TRAIL-mediated apoptosis, siRNA against IκBα was used to activate NF-κB. As shown in fig. 5A, the phosphorylation of NF-κB was effectively improved after IκBα was silenced. Next, several downstream target gene of NF-κB which contributed to the apoptotic pathway regulation were examined. As shown in fig. 5B, silence of IκBα upregulated the expression of Bcl- 2 and survivin, and downregulated the expression of Bak, Bad and Bim. More interestingly, silence of IκBα significantly attenuated the apoptosis-induced by the combined treatment of LGK974 and TRIAL (as shown in fig. 5C and fig. 5D, the apoptosis rate was brought down from about 45 % to about 23 %).

IJPS-attenuated

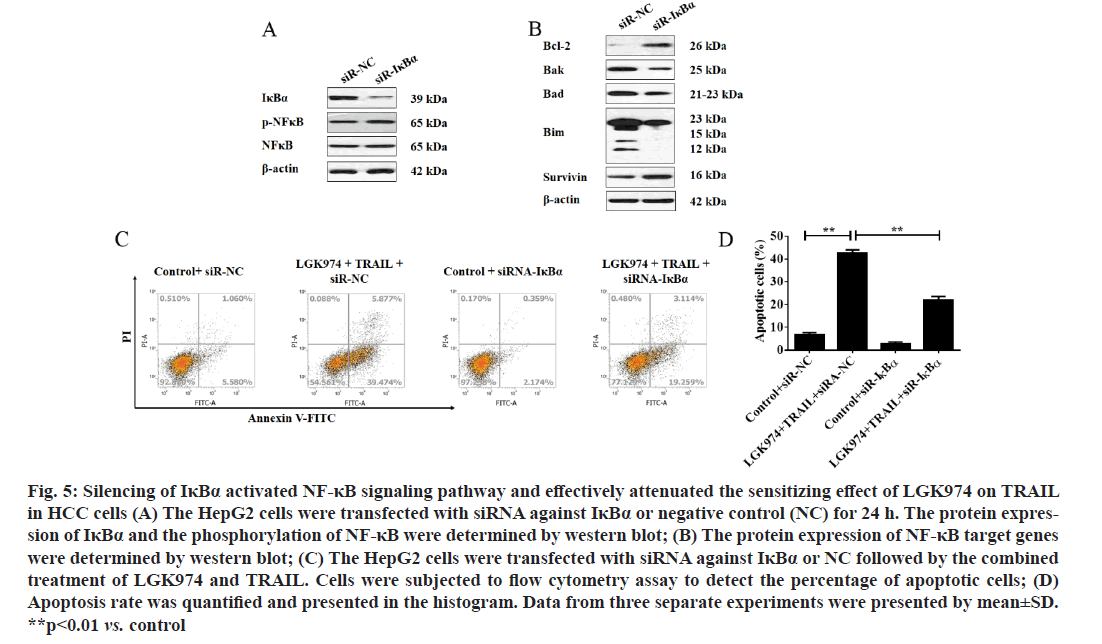

Figure 5:Silencing of IκBα activated NF-κB signaling pathway and effectively attenuated the sensitizing effect of LGK974 on TRAIL in HCC cells (A) The HepG2 cells were transfected with siRNA against IκBα or negative control (NC) for 24 h. The protein expres- sion of IκBα and the phosphorylation of NF-κB were determined by western blot; (B) The protein expression of NF-κB target genes were determined by western blot; (C) The HepG2 cells were transfected with siRNA against IκBα or NC followed by the combined treatment of LGK974 and TRAIL. Cells were subjected to flow cytometry assay to detect the percentage of apoptotic cells; (D) Apoptosis rate was quantified and presented in the histogram. Data from three separate experiments were presented by mean±SD. **p<0.01 vs. control

Hepatocellular Carcinoma (HCC) is considered as the most common primary malignancy of the liver due to its high recurrence and mortality rates, and is more generally diagnosed in male [29,30]. In the early stage, HCC patients could usually benefit from chemotherapy [2,31]. However, almost all HCC patients can develop resistance to chemotherapeutics and this is a major challenge in healing cancer patients. TRAIL is a hopeful anti-cancer drug against a large group of cancers as it could specifically kill cancer cells with non-toxicity or low-toxicity on normal cells and tissues [25]. However, a lot of elements contribute to the development of acquirement resistance in cancer cell towards TRAIL. Many studies have proved that combined use of other anticancer agents with chemo-sensitization effects could conquer cancer cell resistance to TRAIL. In this study, we demonstrated that LGK974 could effectively enhance the TRAIL-mediated apoptosis in HCC cells.

Recently, several studies reported that the abnormal activation of Wnt signaling pathway contributed to the development of resistance of cancer cells to TRAIL [32,33]. The biological role of LGK974, a novel Wnt antagonist, has been examined in multiple cancers. In pancreatic cancer cells, LGK974 was found to inhibit cell growth and triggered cell differentiation [34]. In breast cancer cells, LGK974 inhibited cell proliferation by enlarged Nuclear Receptor Binding Protein 1 (NRBP1) [35]. It is also reported that LGK974 effectively suppressed the metastasis of head and neck squamous cell carcinoma [36]. All these findings authenticated that LGK974 exerted obvious anti-cancer characteristics including suppressing cell proliferation and metastasis of cancers. However, there is little study focus on the effect and the underlying mechanism of LGK974 in HCC, especially its chemo-sensitizing effects on TRAIL-mediated apoptosis up to now.

The present study tried to elucidate the anti-cancer biological functions and the underlying mechanism of LGK974 in HCC. Firstly, the data from MTT and colony formation assays proved that LGK974 exerted obvious cytotoxicity on HCC cell in a dose-dependent manner. Our data indicated that LGK974 alone could effectively induce apoptosis in HCC cells and significantly downregulated the Bcl-2 protein expression, while upregulated the protein levels of Bak, Bad, Bim in HCC cells. It is well known that the abnormal expression of Bcl-2 family was a critical reason for the development of drug resistance in cancer [37]. As expected, our data illuminated that a sub-cytotoxic dose of LGK974 significantly sensitized TRAIL-induced apoptosis in HCC cells, which was supported by the activation of caspase-3 and PARP, since the cleavage of caspase and PRAP were the key biomarkers for the apoptosis pathway activation [38].

Evidences have proved that NF-κB signaling pathway played an indispensable role in chemo-resistance in cancer and one of the mechanism is to promote its anti- apoptotic target gene such as Bcl-2 family members [39]. Recently, two studies reported that there is a crosstalk between Wnt and NF-κB signaling pathways [40,41]. Therefore, we tried to elucidate whether NF-κB signaling pathway was involved in the sensitizing functions of LGK974 in HCC in this study. Our data indeed shown LGK974 exerted a remarkable role on Wnt signaling pathway, which was verified by the decreased levels of β-catenin protein and the phosphorylation of GSK-3β. On the other hand, LGK974 effectively downregulated the phosphorylation of IKKα and NF-κB, as well as the expression of survivin, which imply the agent could weaken the NF-κB signaling pathways. This finding was further supported by the data of immunocytochemistry in which the nuclear-translocation of NF-κB was whittled.

Next, siRNA against IκBα was applicated in HepG2 cells to activate the NF-κB signaling pathway. Our data demonstrated that silencing of IκBα not only elevated the phosphorylation of NF-κB, but also promoted the expression of anti-apoptotic target genes such as Bcl- 2 and survivin, and suppressed the expression of pro- apoptotic target genes including Bak, Bad and Bim. The most important is that silencing of IκBα could effectively attenuate the apoptosis-induced by the combined treatment of LGK974 and TRAIL.

Taken together, all data in this study we indicate that LGK974 exerted significant cytotoxicity on HCC and effectively enhanced TRAIL-mediated lethality by inducing apoptosis via modulating the activation of NF-κB signaling pathways and the expression of downstream target genes including Bcl-2 family and survivin. In conclusion, our findings afford a novel insight into the clinical application of LGK974 in HCC and underlying mechanisms.

Author’s contributions:

Weiti Wu and Fei Yan contributed equally to this work. Conception, design and administrative support were contributed by Weiti Wu and Xiaoye Chen. Provision of study materials or patients was contributed by Huazhong Chen and Hui Shao. Collection and assembly of data was done by Fei Yan and Yongzhi Tang. Data analysis and interpretation was done by Weiti Wu, Fei Yan and Yongzhi Tang. Manuscript writing and final approval of manuscript was contributed by all authors.

Acknowledgements:

This work was supported by Science and Technology
Project of Taizhou (No. 1801KY15).

Conflicts of interest:

All authors have completed the ICMJE uniform disclosure form. The authors have no conflicts of interest to declare.
