This study aims to explore the safety and accuracy of the intracavitary electrocardiography and ultrasound in the peripherally inserted central venous catheter tip positioning of breast cancer patients. A total of 176 breast cancer patients who were treated in the breast surgery department of our hospital from January 2018 to January 2019 were selected. They were randomly divided into the Electrocardiogram-UI group (n=88) and the control group (n=88). In the Electrocardiogram-UI group, the peripherally inserted central venous catheter tip positioning was under the guidance of the bedside Electrocardiogram combined with ultrasound, while the peripherally inserted central venous catheter insertion in the control group was performed by the traditional technology. The accuracy of peripherally inserted central venous catheter tip positioning, psychological state, anxiety, pain degree, and complications were compared between the two groups after surgery. The results showed that the positioning accuracy rate of the catheter tip in the Electrocardiogram-UI group was 99.40 %, while that in the control group was 92.10 %. In the control group, the accuracy rate of the catheter tip positioning in the 6th, 7th and 8th ribs was 20.30 %, 64.10 %, and 14.70 % respectively, while that in the Electrocardiogram-UI group was 32.20 %, 40.30 % and 19.60 % respectively, with a significant difference between the two groups. And 24 h before the catheter insertion, there was no significant difference in the anxiety scores between the two groups. However, 24 h after the catheter insertion, the anxiety and pain scores in the Electrocardiogram-UI group were significantly lower than that of the control group. In terms of the complications, in the first w, two patients in the Electrocardiogram-UI group had thrombosis, while four patients in the control group. No patients had the symptoms of the chest discomfort, arrhythmia, or infection in both groups. At the end of three and six mo, the incidence of thrombosis in the Electrocardiogram-UI group was significantly lower than that of the control group. The peripherally inserted central venous catheter tip positioning technology guided by Electrocardiogram combined with ultrasound is an ideal method for peripherally inserted central venous catheter insertion. It can improve the quality of life of the breast cancer patients and promote the prognosis of the breast cancer patients.
Intracavitary electrocardiography, ultrasound, central venous catheter, tip positioning, breast cancer
The peripherally inserted central venous catheter (PICC) played an important role in the nursing of the breast cancer patients, which provided the reliable, medium-term, or long-term venous access for various clinical indications (including the safety management of the chemotherapy drugs and intravenous infusion). Compared with the traditional central venous catheter, the PICC had the advantages of higher safety, lower infection rate, and longer retention time[1,2]. It can be used as a channel for the infusion of intravenous nutrition, chemotherapy drugs, and antibiotics[3,4]. The correct placement of the PICC tip was very important. Studies has found that the incidence of complications was only 3.8 % if the tip was located in the superior vena cava, otherwise, the incidence of complications increased to 28.8 %, which increased the risk of other complications, including the tip migration, infection, thrombokinase, and phlebitis[6,7].
At present, the main technologies of PICC insertion include the blind puncture, chest X-ray technology, and ultrasound-guided Seldinger technology. Recent findings show that the success rate of PICC tip localization by chest X-rays was about 80 % based on conventional anatomical markers. The Seldinger technology involves the angiographic agents, which has the exposure risk to radiation. The electrocardiogram (ECG)-guided PICC tip positioning technology with the advantages of simple, no radiation exposure, and real-time adjustment.
There have been some studies on the safety and effectiveness of the bedside ECG-guided PICC tip positioning for cancer patients. It is worth noting that the ECG cannot display the position of PICC tip in real-time by image, which was the main reason that restricts the application of ECG in PICC tip positioning. Therefore, this study aims to explore the effectiveness and safety of ECG combined with ultrasound in the location of the PICC tip in the breast cancer patients.
Clinical Data and Methods
A total of 186 breast cancer patients admitted to the breast surgery department of our hospital from January 2018 to January 2019 were included in this study, and all the patients signed the informed consent. Exclusion criteria: The patients with serious blood infection or systemic infection before the catheterization; The patients with compression syndrome of the superior vena cava; The patients with serious cardiovascular diseases (such as atrial fibrillation, pulmonary heart disease with abnormal P wave or severe heart block); Children or adolescents under 18 y old. Finally, 10 patients were excluded and 176 patients were included in this study.
The 176 patients were randomly divided into the ECG-UI group (n=88) and the control group (n=88) by the random number table. In the ECG-UI group, the PICC tip positioning was under the guidance of the bedside ECG combined with ultrasound, while the PICC insertion in the control group was performed by the traditional technology. There was no significant difference in the age, height, weight, upper arm circumference, education level, clinical stage, complication, and history of the previous central venous catheter, history of PICC insertion, platelet count, and prothrombin time between the two groups (Table 1).
|Index||ECG-UI group||Control group||p value|
|Upper arm circumference (cm)||27.35±3.21||26.89±2.88||0.670|
|Education level (%)||0.634|
|Illiteracy||11 (12.50)||13 (14.77)|
|Junior middle school||24 (27.27)||25 (28.41)|
|Senior middle school/vocational high school||35 (39.77)||33 (37.50)|
|Undergraduate college and above||18 (20.46)||17 (19.32)|
|I||33 (37.50)||35 (39.78)|
|II||27 (30.68)||26 (29.54)|
|III||19 (21.59)||18 (20.45)|
|IV||9 (10.23)||9 (10.23)|
|No||74 (84.09)||73 (82.95)|
|≥1||14 (15.91)||15 (17.05)|
|History of previous central venous catheter (%)||0.577|
|Yes||62 (81.82)||60 (79.55)|
|No||16 (18.18)||18 (20.45)|
|Platelet count (109/L)||228.49±78.35||231.28±85.20||0.530|
|Prothrombin time (sec)||8.83±1.21||8.56±1.49||0.667|
|History of PICC insertion (%)||0.513|
|Yes||66 (75.00)||64 (72.73)|
|No||22 (25.00)||24 (27.27)|
Table 1: Comparison of the Clinical Data between the Two Groups
Catheterization: The 18G (4Fr)×65 cm BD first PICCTM kit was used in all patients. The catheter was inserted by the same professional nurse with the PICC qualification in an extremely closed PICC puncture room, and maintained in the hospital by the PICC nurse team. The distance from the puncture point to the right articulation sternoclavicularis plus 5-7 cm was the estimated catheter insertion length. The upper arm circumference was measured 10 cm above the elbow crease. The arm was washed and disinfected with 75 % alcohol and chlorhexidine three times before the venipuncture under the guidance of ultrasound. And the vein basilar was the first choice for the venipuncture. During the operation, the length of the catheter in the body, the resistance of the guide wire removal in the catheter, and the operation time (from the incision skin disinfection to the plaster application) were recorded.
In the ECG-UI group, the signs of the patients were monitored by the limb leads of the ECG machine, the normal P wave and the sinus rhythm was confirmed on the leads II. When the inserted catheter reached the estimated length, the right arm lead was removed; the fixture was sterilized, and then connects it to the guide wire. Then, under the guidance of ultrasound, the guide wire was pushed slowly, 0.5-1 cm at a time, and the changes of the P wave were observed on the monitor.
During the catheter insertion, the following waveforms were obtained: The blunt short P wave of the normal sinus rhythm; The biphasic P wave indicating that the tip was located in the right atrium; The high amplitude P wave indicating that the tip was located at the junction of the superior vena cava and the right atrium (the P wave amplitude is 80 % of QRS) or the tip was located at the lower third of the superior vena cava (the P wave amplitude is 50 % of QRS). The patients in the control group were punctured with the traditional puncture technology under the guidance of ultrasound. The P wave which corresponds to the depolarization of the atria begins to increase progressively as the catheter approaches the right atrium.
Radiographic examination of the chest. In order to confirm the position of the needle tip, the radiographic examination of the chest was usually regarded as the gold standard. Therefore, the chest X-rays were performed on all patients to confirm the correct tip positions. The ideal location was defined as the lower middle third of the superior vena cava or the junction of the superior vena cava and the right atrium.
The anxiety levels before and after PICC. The state trait anxiety inventory (STAI) scale was used to evaluate the anxiety levels of the patients 24 h before and after the catheterization. Each item has 4 levels (1 for no anxiety, 2 for little anxious, 3 for moderate anxiety, 4 for obvious anxiety), and a total score of 20 to 80 can be used to quantify the unpleasant short-term emotional experiences.
The complications related to PICC. The complications related to PICC were recorded after 1 w, 3 mo and 6 mo in all patients who received the treatment of the catheter infusion and maintain regularly. The patients were followed up every two w to record their health and catheter conditions.
The numerical pain rating scale (NPRS) was used to evaluate the pain during the puncture. The scores of pain had four levels (0 for no pain, 1 to 3 for mild pain, 4 to 6 for moderate pain, 7 to 10 for severe pain).
SPSS 20.0 software (SPSS) was used for the data analysis. The quantitative data were expressed by mean ± standard deviation, the qualitative data were compared with Chi-square test, and the intergroup data were compared with T-test. p<0.05 means the difference was statistically significant.
The results showed that the accuracy rate of the catheter tip positioning in the ECG-UI group was 99.40%, while that in the control group was 92.10 % (p<0.05, Table 2). In the control group, the accuracy rate of the catheter tip positioning in the 6th, 7th, and 8th ribs was 20.30 %, 64.10 %, and 14.70 % respectively, while that in the ECG-UI group was 32.20 %, 40.30 %, and 19.60 % respectively, with a significant difference between the wo groups (p<0.05, Table 2).
|Groups||Total accuracy rate||Accuracy rate of the 6th rib||Accuracy rate of the 7th rib||Accuracy rate of the 8th rib||p value|
|ECG-UI Group||99.40||20.30 %||64.10 %||14.70 %||<0.001|
|Control group||92.10||32.20 %||40.30 %||19.60 %|
Table 2: Comparison of the Accuracy Rate of the Catheter Tip Positioning between the Two Groups
During the 24 h before the catheter insertion, there was no significant difference in the anxiety scores between the two groups. However, 24 h after the catheter insertion, the anxiety scores in the ECG-UI group were significantly lower than that of the control group (p<0.001) (Table 3).
|Groups||24 h before the operation||24 h after the operation|
Table 3: Comparison of the Anxiety Scores before and After the Operation between the Two Groups
In the first w, two patients in the ECG-UI group had thrombosis, while four patients in the control group. No patients had the symptoms of the chest discomfort, arrhythmia, or infection in both groups. At the end of three and six mo, the incidence of thrombosis in the ECG-UI group was significantly lower than that of the control group (p=0.04, p=0.03, Table 4).
|Complications||1 w after the operative||3 mo after the operative||6 mo after the operative|
|ECG-UI group||Control group||p value||ECG-UI group||Control group||p value||ECG-UI group||Control group||p value|
|Mechanical phlebitis||0||1 (1.11)||0.787||0||0||1.000||0||0||1.000|
|Staxis||10 (11.36)||12 (13.64)||0.684||7 (7.95)||9 (10.23)||0.695||7 (7.95)||8 (9.09)||0.688|
|Local infection||0||0||1.000||2 (1.14)||3 (3.41)||0.973||3 (3.41)||4 (4.54)||0.98|
|Thrombosis||2 (2.27)||4 (4.54)||0.680||1 (2.27)||8 (4.54)||0.021||0||6 (6.82)||0.023|
Table 4: Comparison of the Postoperative Complications in the Same Period between the Two Groups

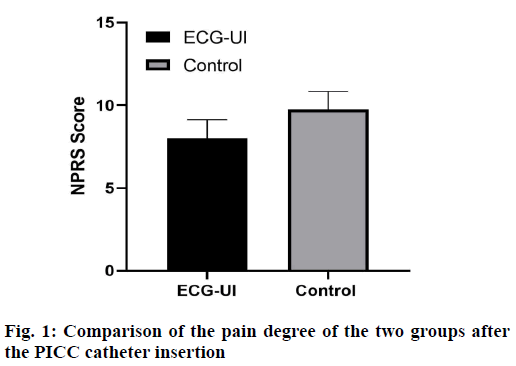

The pain degree of the two groups was evaluated after the PICC catheter insertion, and the results showed that the NPRS scores of the ECG-UI group was significantly lower than that of the control group (p<0.001) (fig. 1 and Table 5).
Table 5: Comparison of the Pain Degree of the Two Groups after the PICC Catheter Insertion
Results and Discussion
At present, there were few comparative studies on the accuracy of different technologies of the PICC catheter tip positioning. This study showed that the accuracy of the PICC catheter tip positioning method under the guidance of ECG combined with ultrasound was better than that of the traditional method, which was consistent with other research results[13,14]. In the ECG-UI group, the catheter tip position of PICC can be adjusted in realtime by observing the shape of P wave and ultrasound image on the monitor. In the traditional method, the chest X-ray was used to confirm the correct tip position for the adjustment of the PICC tip. In this study, the chest X-ray was used in 11 patients in the control group for the adjustment of the PIC tip, which increased the radiation exposure to them.
Patients were anxiety during the PICC insertion, and the anxiety levels were evaluated 24 h after PICC insertion. The anxiety levels in the ECG-UI group and the control group were 40.96±1.97, 42.06±1.90 respectively. Before the catheterization, the patients in the ECG-UI group received the positive psychological cues, which may increase the confidence to the operator and reduce their anxiety. In addition, the successful radiologic confirmation at the end of the operation can further reduce anxiety. Once the accuracy of ECG guidance technology was ensured, there was no need to have the chest X-ray examination for confirmation, which could reduce the cost of the operation. These results were consistent with the research results of Bream and Walker. In addition, there will be a certain degree of pain during the catheterization, which will also cause the emotional fluctuation of the patients. The results of this study showed that the patients in the ECG-UI group can reduce the unnecessary catheterization pain under the guidance of ultrasound and ECG, which enhanced the cooperation of the patients in the treatment.
Previous studies have shown that the complications related to PICC should be minimized as far as possible, which may affect or even interrupt the treatment of patients. In this study, to ensure the safe use of PICC and reduce the complications related to PICC, all operations were performed by the experienced and skilled clinical nurses, under the strict handling rules. At the same time, some psychological counseling was given to the patients to complete the intubation successfully. In the first w after PICC insertion, the incidence of the complications related to the operation was lower, no patients had the symptoms of the chest discomfort, arrhythmia, or infection, and there was no significant difference between the two groups. At the end of 3 mo and 6 mo, the cases in which the patients had the symptoms of thrombosis decreased significantly in the ECG-UI group. In the control group, the position of PICC catheter tip in some patients were adjusted repeatedly, which may damage the vein wall and lead to a higher incidence of thrombosis.
In conclusion, the PICC tip positioning technology guided by the ECG combined with ultrasound is considered as an ideal method for PICC insertion. Compared with the traditional PICC intubation technology, this method has the advantages of locating precisely, adjust the catheter tip of PICC in realtime, and avoid the radiation exposure. Meanwhile, the anxiety levels and pain scores of the patients after operation were reduced significantly, and the postoperative complications also reduce significantly. The application of the PICC tip positioning technology guided by ECG combined with ultrasound can improve the prognosis and quality of life of the patients after operation, which is worthy of clinical promotion.
