Abstract
The establishment of pharmacognostic standards of traditional plants is prerequisite for selecting authenticated plants for research purpose. The pharmacognostic standards of an Indian traditional plant, i.e., Abies pindrow Royle (Silver Fir; family- Pinaceae) has been established. Transverse section of leaf through midrib showed presence of epidermis, palisade cells, vascular bundles, spongy cells, phloem and xylem whereas stem showed the presence of cork, cortex, pericyclic fibres, phloem, xylem and pith. Pitted vessel, pericyclic fibre, unicellular covering trichome and anomocytic stomata were observed in powdered microscopy. Total ash was about 2 and 4 times more than acid insoluble and water soluble ash, respectively. Alcohol soluble extractive value was found to be slightly less than water soluble extractive value. Foreign organic matter, moisture and tannin contents were found to be nil, 8.03% and 2.11% w/w, respectively. Swelling index, foaming index, bitterness value and haemolytic value were found to be 1.2, <100, 4000 and nil, respectively. Volatile oil content was found to be 0.85% v/w. Quantitative chemical parameters viz., acid-, saponification-, ester-, hydroxyl-, iodine-, peroxide-, acetyl values and unsaponifiable matter for the volatile oil were also generated. The content of toxic residues was estimated and found to comply with the limits as per World Health Organization. Phytochemically, the plant was found to contain fats, triterpenoids, flavonoids, steroids, tannins, proteins and carbohydrates. Thin layer chromatography of n-hexane, chloroform, methanol extracts and volatile oil showed eleven, eight, ten and eleven spots, respectively, using suitable mobile phases.
Keywords
Abies pindrow, ash value, extractive value, moisture content, silver fir
Abies pindrow Royle commonly known as Himalayan silver fir, belongs to family Pinaceae. It is widely distributed at elevations between 2000-3000 m throughout the Western Himalayas from Afghanistan to Nepal [1]. Traditionally, the plant has been used in the treatment of anxiety, pain and inflammation [2]. The plant has been reported to exhibit antiinflammatory [3], anxiolytic [4], antioxidant [5] and bronchospasm activities [6]. Chalcone glycosides, flavonoids, fatty acids, hydrocarbons and terpenoids have been isolated from A. pindrow [7-10].
Recently, researchers are exploring natural resources to develop newer and safer drugs for the effective treatment of various diseases. Investigating plants, based on their traditional uses becomes a sound, viable and costeffective strategy [11]. In case of herbals, standardization has prime importance because it ensures the quality of plant material, which will contribute to its safety and efficacy [12]. A thorough survey of literature revealed that despite a long tradition of use for the treatment of various ailments, no systematic phytochemical and pharmacological work has ever been carried out on this traditionally used and clinically potential plant with a view to isolate bioactive constituent(s) responsible for biological activities.
Non-availability of pharmacognostic standards to authenticate this plant may be one of the reasons that sporadic phytochemical and pharmacological reports are available on A. pindrow. Thus, the present investigations were planned with an objective to establish pharmacognostic standards for A. pindrow thereby facilitating authentication of the correct plant material.
Materials and Methods
All the chemicals, reagents and solvents including bacoside A, quinine hydrochloride, chloral hydrate (Reidel Research Laboratory, Hapur, India), anisaldehyde (Central Drug House Pvt. Ltd., Mumbai, India), hide powder (Panacea Biotech, Lalru, India), laboratory grade reagents such as glycerine, ethanol, methanol, chloroform, petroleum ether, n-hexane, acetonitrile, toluene, bromine, hydrochloric acid, nitric acid, formic acid, phenolphthalein, potassium hydrogen phthalate, potassium hydroxide, potassium iodate, sodium chloride, potassium iodide, sodium thiosulphate, sulphuric acid, acetic anhydride, carbon tetrachloride, diethyl ether, glacial acetic acid, sodium hydroxide, potassium chlorate, ferric chloride, sodium citrate, iodine, ammonia, ninhydrin, magnesium turnings, picric acid, mercuric iodide, potassium bismuth iodide, disodium hydrogen phosphate, potassium dihydrogen phosphate, lead acetate, sodium nitroprusside, sodium picrate, Fehling’s A, Fehling’s B, Benedict’s reagent, α-naphthol and pyridine (E-Merck Ltd., Mumbai; S. D. Fine-Chem Ltd., Biosar, India), were used in the present investigations.
Plant material
Abies pindrow aerial parts were collected from Gulaba Kothi, Manali, Himachal Pradesh, India in September, 2012. Identity of the plant was confirmed in the Raw Materials Herbarium and Museum, National Institute of Science Communication and Information Resources (NISCAIR), New Delhi (Reference No. NISCAIR/ RHMD/Consult/2013/2242/23, dated 21/05/2013).
Macroscopic and microscopic studies
The macroscopic studies of A. pindrow aerial parts were separately studied by observing the external characters. Qualitative and quantitative microscopic studies on the plant were carried out using compound microscope. Observations were made using 10X eye piece and 10X or 40X objectives.
Micrometric determinations viz., length and width of bordered pitted vessels, pericyclic fibres and trichomes were made using eye and stage micrometer. Photomicrographs were taken using binocular photomicrographic apparatus attached with digital camera. Dried aerial parts of A. pindrow were boiled with water until soft. Thin sections of plant parts were cut by sharp blades, transferred on slides, cleared by warming with chloral hydrate aqueous solution (250 % w/v) and mounted in glycerine aqueous solution (50 % v/v).
Similarly, powdered plant materials (# 60) were also cleared with chloral hydrate and mounted in glycerine. For micrometric determinations, plant materials were disintegrated using Schult’z maceration fluid. Schult’z maceration fluid was prepared by adding sufficient potassium perchlorate to aqueous nitric acid (50 % v/v) to maintain a steady but gentle effervescence while heating on a water bath.
A fragment of the plant material was placed in above macerating fluid. Potassium perchlorate was added time to time till tissues softened and disintegrated. The treated tissue was taken on a slide, teased with a mounted needle and repeatedly washed with water to free the acid. Length and width of the bordered pitted vessels, pericyclic fibres and trichomes (50 observations for each) were recorded using a calibrated eye piece micrometer [13].
Petroleum ether-, alcohol- and water-soluble extractive values, total ash, acid insoluble ash and water soluble ash of dried powdered aerial parts of the plant were determined following the procedures given in the Indian Pharmacopoeia [14]. Ash was prepared in a Muffle Furnace (Narang Scientific Works, New Delhi, India). All weightings were made using digital weighing balance (Ohaus, USA).
Foreign organic matter in A. pindrow aerial parts was determined by spreading 100 g aerial parts on clear smooth surface background by using a 10X magnifying lens [15]. The experiment was performed in triplicate.
The moisture content was determined by azeotropic distillation method following the procedure given in Indian Pharmacopoeia [14]. The experiment was done in triplicate. Toluene was used in the determination of moisture content.
Coarsely powdered aerial parts (5 g each) were taken in round bottom flasks and 200 ml of prepared toluene was added. The flask was heated gently on heating mantle till its contents began to boil. Then, distillation was carried out at the rate of about 2 drops per second until most of the water had distilled over. Finally, the rate was increased to about 4 drops per second which was maintained for 5 min.
Bitterness and haemolytic values of dried powdered aerial parts was determined following the procedures given in the World Health Organization (WHO) [15]. Bitterness value is determined by comparison with quinine hydrochloride, the bitterness value of which is set at 2 00 000. Swelling and foaming index of dried powdered aerial parts were determined following the procedures given in the WHO [15].
Determination of tannin in dried powdered aerial parts of the plant was made following the procedures given in the WHO [15].
Volatile oil content was determined following the procedure given in United States Pharmacopoeia/ National Formulary using Clevenger Apparatus (Perfit- Gupta Scientific Industry, Ambala) [16]. The experiment was performed in triplicate. Refractive index and specific gravity of volatile oil were also determined.
Various quantitative chemical tests viz., acid value, saponification value, ester value, hydroxyl value, peroxide value, iodine value, acetyl value and unsaponifiable matter of the volatile oil were done following the procedure given in Indian Pharmacopoeia [14].
The fluorescence character of the aerial parts was studied both in daylight and UV light (254 and 366 nm) and after treatment with different reagents like formic acid, glacial acetic acid, sulphuric acid, hydrochloric acid, nitric acid, ammonia solution, iodine, ferric chloride and potassium hydroxide [17].
Quantitative determinations of aflatoxins, heavy metals, arsenic, pesticides and microbial content in A. pindrow aerial parts were done at analytical laboratory of OSCAR Analytical Pvt. Ltd. Baddi, Solan (Certificate No. OAPL/1962/09FXIII, dated 09/06/2013). These determinations were made as per the procedures described in WHO [15].
Phytochemical screening of various extracts
Aerial parts were dried under sunlight and powdered in a grinder. Dried powdered plant material (250 g) was extracted in a Soxhlet apparatus (Perfit, Ambala, India) successively using solvents in increasing order of polarity viz., n-hexane, chloroform and methanol.
The water extract was prepared by boiling the marc of plant material with distilled water for 2 h on a hot plate. The solvents and water from crude extracts were recovered under reduced pressure using rotary vacuum evaporator (Buchi, Switzerland) to get n-hexane extract, chloroform extract, methanol extract and water extract. Various extracts were subjected to phytochemical screening to ascertain various classes of phytoconstituents present therein [18].
Thin layer chromatography (TLC) of extracts and volatile oil
Precoated aluminium based TLC plates (Merck, Silica gel G, 0.2 mm) were used to generate fingerprint profiles of various extracts and volatile oil. Dried powder aerial parts (25 g) were extracted in a similar manner as described in section ‘phytochemical screening of various extracts’.
The dried n-hexane, chloroform and methanol extracts were dissolved in 3 ml of respective solvents, and their volume was made up to 5 ml in volumetric flasks. Ten microliters of the standard solution of each extract was loaded on TLC plates using Camag Linomat 5.
The thin layer chromatograms were visualized by spraying with 0.5 % anisaldehyde followed by heating at 105° for 2 min[19]. Similarly, TLC fingerprint profile of volatile oil extracted from fresh aerial parts was performed.
Results and Discussion
A. pindrow is a tall evergreen tree having conical crown with level branches. The leaves are needle-like in shape, dark green in colour, 3-8 cm in length, 0.2- 0.4 cm width, perfumery odour and bitter taste. Stems are greyish-pink to buff-brown, smooth and glabrous (hairless).
The transverse section of leaf through midrib region of A. pindrow showed the presence of epidermis, palisade cells, vascular bundles, spongy cells, phloem and xylem whereas transverse section of stem showed the presence of cork, cortex, pericyclic fibres, phloem, xylem and pith (Figure 1 and 2).

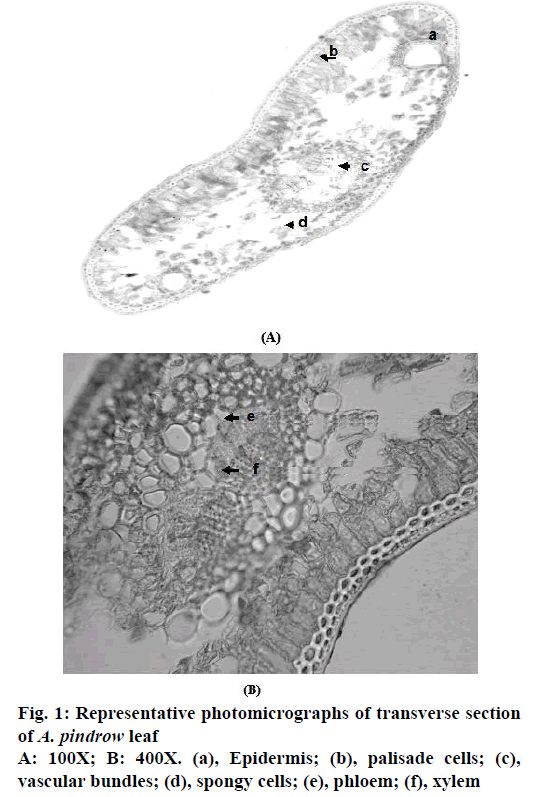

Figure 1: Representative photomicrographs of transverse section of A. pindrow leaf
A: 100X; B: 400X. (a), Epidermis; (b), palisade cells; (c), vascular bundles; (d), spongy cells; (e), phloem; (f), xylem

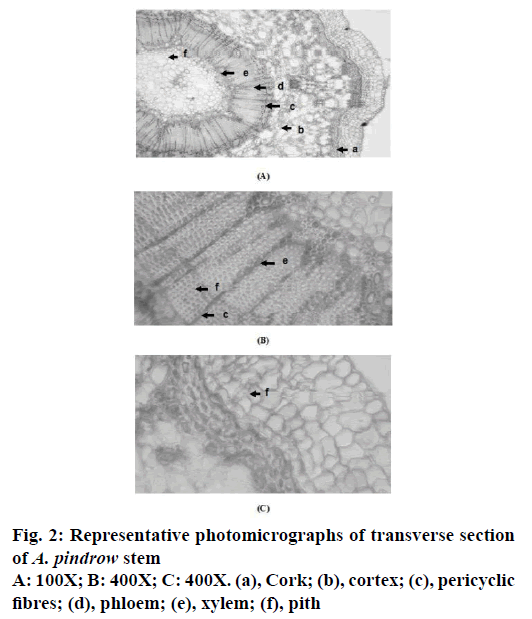

Figure 2: Representative photomicrographs of transverse section of A. pindrow stem
A: 100X; B: 400X; C: 400X. (a), Cork; (b), cortex; (c), pericyclic fibres; (d), phloem; (e), xylem; (f), pith
Representative photomicrographs of pitted vessel, pericyclic fibre, trichomes and stomata (Figure 3). Mean values of length and width of pitted vessels, pericyclic fibres and trichomes of A. pindrow aerial parts are depicted in Table 1.

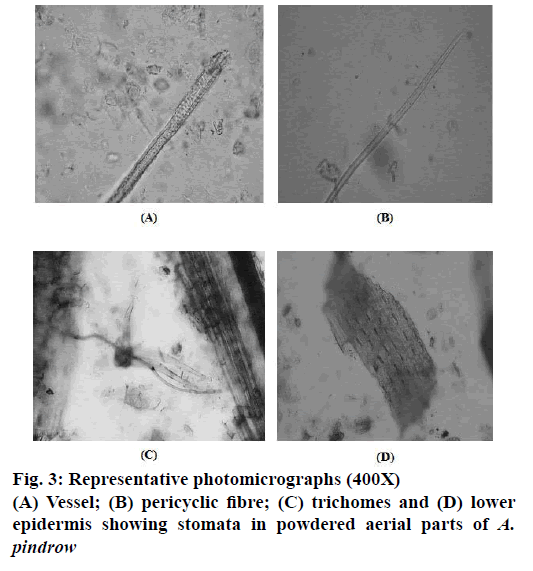

Figure 3: Representative photomicrographs (400X)
(A) Vessel; (B) pericyclic fibre; (C) trichomes and (D) lower epidermis showing stomata in powdered aerial parts of A. pindrow
| Parameter | Meann length/width (mm, range) |
|---|---|
| Trichomes | 201.11/8.39 (190.31-209.79/6.71-9.03) |
| Bordered pitted vessels | 275.31/11.87 (269.33-283.79/9.91-12.35) |
| Pericyclic fibres | 679.87/14.57 (640.37-699.81/12.11-16.89) |
Table 1: Mean Values of length and width of Trichomes, Bordered Pitted Vessels and Pericyclic Fibres of A. Pindrow aerial parts
Results of various physiochemical parameters of A. pindrow aerial parts are presented in Table 2. Results of mean values of various quantitative chemical parameters viz., acid value, saponification value, ester value, hydroxyl value, iodine value, peroxide value, unsaponifiable matter and acetyl value for the volatile oil of A. pindrow aerial parts are presented in Table 3. Table 4 shows fluorescence analysis of dried powder of A. pindrow aerial parts with various reagents. Tables 5 and 6 shows aflatoxins, heavy metals, mercury, arsenic, pesticides residue, and microbial content in A. pindrow aerial parts. A. pindrow aerial parts were successively extracted using solvents in increasing order of polarity viz., n-hexane, chloroform, methanol and water. Percent yields (w/w) of extracts of A. pindrow aerial parts are shown in Table 7. All extracts of A. pindrow aerial parts were dissolved in their respective solvents and screened for different classes of phytoconstituents using specific standard reagents. All extracts were screened for presence of different classes of phytoconstituents. The results of phytochemical screening have been shown in Table 8. Results of TLC of various extracts and volatile oil of A. pindrow aerial parts are shown in Table 9 and Figure 4. Finally, it can be concluded that a complete monographic study helps the natural product scientists in authenticating A. pindrow for phytochemical and pharmacological work.
| Parameters | Observations |
|---|---|
| Total ash* | 9.53±0.03% w/w |
| Acid insoluble ash* | 4.20±0.03% w/w |
| Water soluble ash* | 2.23±0.03% w/w |
| Sulphated ash* | 10.20±0.06% w/w |
| Petroleum ether soluble extractive value* | 1.71±0.01% w/w |
| Alcohol soluble extractive* | 13.36±0.04% w/w |
| Water soluble extractive* | 17.83±0.05% w/w |
| Moisture content** | 8.03±0.07% w/w |
| Foreign organic matter** | Nil |
| Swelling index* | 1.2±0.20 |
| Foaming index* | Less than 100±0.00 |
| Bitterness value* | 4,000±0.00 |
| Haemolytic value* | Nil |
| Tannin determination* | 2.11±0.01% w/w |
| Volatile oil*** Refractive index/specific gravity |
0.85±0.00% v/w 1.47±0.02/0.86±0.00 |
Table 2: Mean Values of various Physicochemical Parameters of A. Pindrow aerial parts
| Parameter | Meann Value |
|---|---|
| Acid value | 8.42±0.03 |
| Saponification value | 50.49±0.05 |
| Ester value | 42.07±0.07 |
| Hydroxyl value | 821.87±0.15 |
| Iodine value | 29.16±0.01 |
| Peroxide value | 8.05±0.05 |
| Unsaponifiable matter | 80.02±0.07 |
| Acetyl value | 63.92±0.01 |
Table 3: Mean Values of various quantitative Chemical Parameters of volatile oil obtained from A. Pindrow aerial parts
| Treatment | Visible light | Ultraviolet light | |
|---|---|---|---|
| Short wavelength (254 nm) | Long wavelength (366 nm) | ||
| Toluene | Green | Green | Blackish |
| Chloroform | Green | Green | Reddish |
| Hexane | Green | Green | Green |
| Ethyl acetate | Green | Green | Green |
| Methanol | Green | Green | Green |
| Formic acid | Green | Green | Blackish |
| Glacial acetic acid | Green | Green | Dark reddish |
| Dilute sulphuric acid | Green | Green | Dark green |
| Dilute hydrochloric acid | Light green | Green | Dark blackish |
| Dilute nitric acid | Reddish brown | Brown | Black |
| Dilute ammonia | Green | Green | Dark brown |
| 5% Iodine | Green | Green | Dark green |
| 5% Ferric chloride | Green | Green | Black |
| 1 M Potassium hydroxide | Dark green | Green | Brown |
Table 4: Fluorescence analysis of A. Pindrow aerial parts
| Parameters | Observations | Limit (as prescribed by WHO) |
|---|---|---|
| Aflatoxins B1 | Absent | Should be absent |
| B2 | Absent | |
| G1 | Absent | |
| G2 | Absent | |
| Total | Absent | |
| Heavy metals: lead, cadmium, mercury, arsenic | Absent | NMT 1 ppm NMT 5 ppm NMT 3 ppm |
| Pesticides: aldrin, azinphos-methyl, cypermethrin, chlordane, chlorfenviphos, chlorpyrofos, carbophenothion, dimethoate, diazinon, Dichlorvos, dieldrin, DDT, eldrin, ethion, endosulfan, fenitrothion, fensalfothion, fonofos, heptachlor, cis and trans heptachlorepoxide, hexachlorocyclohexane, hexachlorobenzene, heptachlor, lindane, malathion, methidathion, parathion, permethrin, phosalone, pyrethrins, pirimiphos-methyl | Absent | Should be absent |
Table 5: Aflatoxins, heavy metals, mercury, arsenic and pesticides residue in A. Pindrow aerial parts
| Microbes | Observations | Limit (as prescribed by WHO) |
|---|---|---|
| Total microbial count | 26 cfu/gm | NMT 1000 cfu/g |
| Total yeast and mould count | Absent | NMT 100 cfu/g |
| Salmonella typhymurium | Absent | Should be absent |
| Escherichia coli | Absent | Should be absent |
| Pseudomonas auroginosa | Absent | Should be absent |
| Staphylococcus aureus | Absent | Should be absent |
| Clostridium botulinum | Absent | Should be absent |
| Clostridium perfringens | Absent | Should be absent |
| Clostridium tetani | Absent | Should be absent |
Table 6: Microbial and Pathogen content in A. Pindrow aerial parts
| Extract | Percentage yield (%w/w) |
|---|---|
| HE | 3.20 |
| CE | 4.10 |
| ME | 10.60 |
| WE | 16.10 |
Table 7: Percentage yields of various extracts of A. Pindrow aerial parts
| Class of phytoconstituents | HE | CE | ME | WE |
|---|---|---|---|---|
| Alkaloids | – | – | – | – |
| Anthraquinone glycosides | – | – | – | – |
| Cyanogenetic glycosides | – | – | – | – |
| Cardiac glycosides | – | – | – | – |
| Steroids/triterpenoids | – | –/+ | +/+ | – |
| Saponins | – | – | – | + |
| Flavonoids | – | – | + | – |
| Coumarins | – | – | – | – |
| Tannins | – | – | – | + |
| Carbohydrates | – | – | + | + |
| Proteins | – | – | + | + |
| Fixed oils/fats | + | – | – | – |
Table 8: Phytochemical screening of various extracts of A. Pindrow aerial parts
| Extract | Mobile phase | Number of spots* |
|---|---|---|
| HE | Hexane:chloroform (2:3) |
Eleven spots; Rf values: 0.07, 0.11, 0.15, 0.27, 0.38, 0.42, 0.54, 0.60, 0.82, 0.89 and 0.93 |
| CE | Chloroform:methanol:acetonitrile: glacial acetic acid (18:1:1:1) | Eight spots; Rf values: 0.06, 0.13, 0.28, 0.46, 0.51, 0.63, 0.72 and 0.81 |
| ME | Toluene:ethyl acetate:methanol (2:1:1) |
Ten spots; Rf values: 0.12, 0.16, 0.21, 0.28, 0.35, 0.40, 0.55, 0.63, 0.70 and 0.83 |
| Volatile oil | Toluene:ethyl acetate (4:1) |
Eleven spots; Rf values: 0.06, 0.17, 0.19, 0.23, 0.38, 0.57, 0.66, 0.75, 0.81, 0.87 and 0.93 |
Table 9: Thin layer Chromatography of various extracts and Volatile oil of A. Pindrow aerial parts

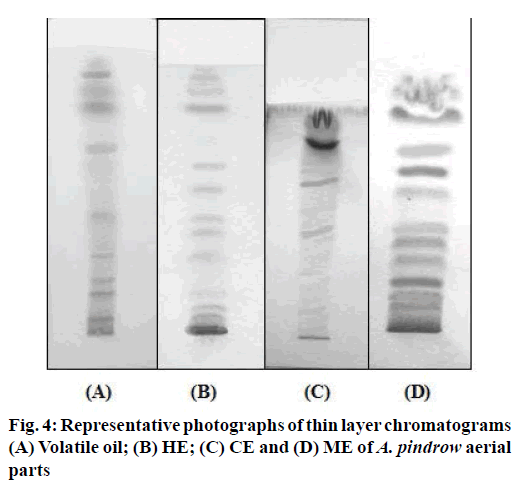

Figure 4: Representative photographs of thin layer chromatograms
(A) Volatile oil; (B) HE; (C) CE and (D) ME of A. pindrow aerial parts
Acknowledgements
The financial assistance provided by University Grants Commission, New Delhi (F. No. 41-735/2012 (SR), dated 23/07/2012) for the present research work is duly acknowledged. The authors thank Dr. Sunita Garg, Chief Scientist and Head, Raw Materials Herbarium and Museum, National Institute of Science Communication and Information Resources (NISCAIR), New Delhi for confirming the identity of the plant.
Conflict of interest
The authors declare that they have no conflict of interest.
Financial support and sponsorship
Nil.
