- *Corresponding Author:
- M. R. Jeyaprakash
Department of Pharmaceutical Analysis, J. S. S College of Pharmacy, (Off Campus College of JSS University, Mysore), Rock Lands, Ootacamund-643 001, India
E-mail: [email protected]
|Date of Submission||2 March 2010|
|Date of Revision||12 May 2011|
|Date of Acceptance||18 May 2011|
|Indian J Pharm Sci, 2011, 73 (3): 320-323|
A simple, sensitive and reproducible method was developed and validated for the simultaneous estimation of diethylcarbamazine and levocetirizine in its tablet formulation by reverse phase high performance liquid chromatography using Waters1515 HPLC with UV detector at the λmax of 224 nm, using Princeton Sphere-100 C18 (250×4.6 mm. 5 μ) column. The mobile phase used was 20mM potassium dihydrogen orthophosphate buffer (pH: 3.2):acetonitrile (50:50 v/v) with isocratic flow (flow rate 1 ml/min) and the pH was adjusted with orthophosphoric acid. Losartan potassium was used as an internal standard. The compounds diethylcarbamazine, levocetirizine and losartan potassium were eluted at 2.12, 4.27 and 5.96 min, respectively. The peaks were eluted with better resolution. The method was accurate with assay values of 96.32 and 93.04% w/w, precise (%RSD) with intra-day 1.72 and 1.89 and inter-day 1.85 and 1.92, recoveries 102.86 and 101.1% w/w, which are very sensitive with limit of detections (LOD)’s 75, 50 ng/ml and limit of quantification (LOQ)’s 100, 75 ng/ml and linear with R2 values 0.994 in the range of 5 to 30 μg/ml 0.1 to 1 μg/ml for diethylcarbamazine and levocetirizine, respectively. Hence this method can be applied for quantification of different formulations containing diethylcarbamazine and levocetirizine simultaneously.
C18 column, diethylcarbamazine, levocetirizine, RP-HPLC, validation
Diethylcarbamazine (DEC) is a piperazine anthelmintic agent indicated for the treatment of individual patients with lymphatic filariasis, tropical pulmonary eosinophilia and loiasis. The chemical name of the drug is N,N-diethyl-4-methylpiperazine-1-carboxamide citrate. It acts by inhibiting arachidonic acid metabolism and it is a polar compound.
Levocetirizine (LEVC) is a third generation nonsedative antihistamine developed from secondgeneration antihistamine; cetirizine. Chemically LEVC is active enantiomer of cetirizine. The chemical name is 2-(2-(4-((R)-(4-chlorophenyl)-phenyl-methyl) piperazin-1-yl) ethoxy) acetic acid dihydrochloride. It is more effective with fewer side effects than second generation drugs. It works by blocking histamine receptors and it is polar compound in nature.
Both drugs have good pharmacological actions. Many formulations are marketed individually or combination with other drugs. UV/Vis spectrophotometric methods[3-5], high performance liquid chromatographic (HPLC) methods[6-9], liquid chromatography-tandem mass spectroscopic (LCMS/MS) method and gas chromatographic (GC) method are available for estimation of DEC and LEVC in formulations individually or in combination with other compounds or in plasma samples. DEC and LEVC combined formulation is recently available marketed product. Literature survey showed that no HPLC method is available for estimation of these drugs simultaneously. The present study aims in developing RP-HPLC method for simultaneous estimation of these compounds in formulations.
All the chemicals used were of HPLC grade. Potassium dihydrogen orthophosphate was obtained from Qualigens fine chemicals, orthophosphoric acid and acetonitrile were obtained from Rankem Fine Chemicals, Mumbai, India. All the drugs DEC citrate, LEVC dihydrochloride and losartan potassium (IS) were purchased from Sigma Aldrich chemicals, Bangalore, India. Tablets of Levodec (equivalent to 150 mg of DEC and 2.5 mg of LEVC, Reign (India) Formulations Pvt. Ltd, Mettupalayam, India) were purchased from a local pharmacy. The ultra pure water used was collected from Millipore system.
The method development was performed with Waters 1515 HPLC system (Dual λmax 2487 UV detector), Rheodyne 7725i injector with 20-μl loop and the output signal was monitored and integrated using Breeze software (3.30 version), Shimadzu UV 1700 spectrophotometer for optimizing the wave length. Sartorious digital balance, Systronics pH meter and ultra sonicator were used. Shimadzu Prominence HPLC (LC-20AT pump, SPD-20A detector) was used for determining the ruggedness of the method. Mobile phase used was 20 M potassium dihydrogen orthophosphate buffer adjusted to pH 3.2 and acetonitrile with 50:50% v/v, it was filtered and degassed by ultra sonication.
Standard solutions of DEC, LEVC and IS were prepared separately at a concentration of 1 mg/ml and further dilutions were made to prepare working standard solutions used for validation studies. IS was maintained in each standard solution at a concentration of 50 μg/ml prepared from 1 mg/ml. All the dilutions were made with mobile phase.
Twenty tablets were powdered and average weight equivalent to one tablet was weighed and dissolved by adding mobile phase and sonicated for 30 min. It was filtered to remove the matrix by using Whatman filter paper of pore size 1 μ and made up the volume to 100 ml with mobile phase (solution A). From solution A, 1 ml was taken and made up the volume to 10 ml with mobile phase (solution B). From solution B, 1 ml was taken and 0.5 ml of 1 mg/ml of IS stock solution were mixed and made up the volume to 10 ml with mobile phase.
Separation of compounds was carried out by using reverse phase columns (Princeton SPHERE 100 C18, 250×4.6 mm id, 5μ, Hibar® C18 250×4.6 mm id, 5μ) and Princeton SPHER-100 C18 (250×4.6mm 5 μ), was selected as the stationary phase, with a flow rate maintained at 1 ml/min with isocratic solvent pumping system. The analysis was done at ambient temperature (~20º). 20 μl of sample was injected and checked at wavelength of 224 nm.

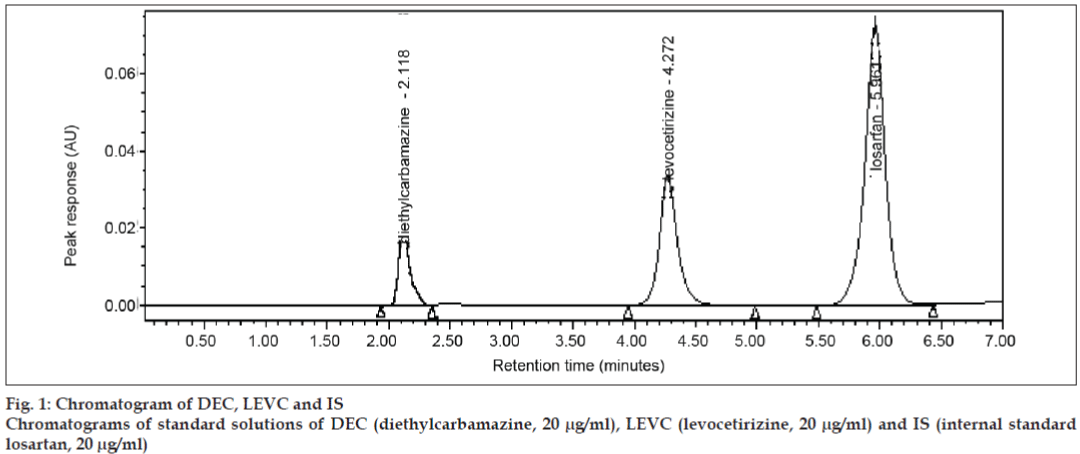

The primary target in developing this method is to achieve simultaneous determination of DEC and LEVC in the tablet formulation under common conditions that will be applicable for routine quality control of the product in laboratories. Various mobile phases such as 20 mM potassium dihydrogen orthophosphate, Acetonitrile of pH 3.0 with 60:40 and 50:50 ratios were used as mobile phase. At 60:40 ratios, the peaks were eluted at 2.15 and 4.04 min with symmetry. At 50:50 ratios, the peaks were eluted at 2.11 and 4.01 min with symmetric and well retained Peaks. For the present study 50:50 ratio was selected. Effect of flow rate Flow rates of 0.8 and 1.0 ml/min were used and chromatograms were recorded. When 0.8 ml/min was used, elution time of the peaks was 2.14 and 4.04 min, whereas 2.12 and 4.01 min at 1.0 ml/min. All these flow rates gave symmetric and well retained peak. For the present study the flow rate 1.0 ml/min was selected. Finally the present mobile phase with flow rate of 1ml/min was used for method development. The ionization of drugs takes place at pH 3.2. The UV wavelength was optimized at 224 nm for both detection and quantification. Losartan was selected as an internal standard. At this wavelength both drugs and internal standard gave significant absorption. No significant peaks were observed from the formulation matrix, indicating no interference from the matrix of the formulation. By this method the peaks were better resolved with retention times 2.11±0.05 min for DEC, 4.02±0.02 min for LEVC and 5.85±0.02 min for IS. The chromatogram of standard drugs with concentration of 20 μg/ml is shown in fig. 1.
The present method was validated as per ICH guidelines. The peak purity of DEC, LEVC and IS were assessed by comparing the retention times (Rt) of standard DEC, LEVC and IS. Good correlation was also found between the retention times of standards and sample of DEC, LEVC and IS.
Linearity of the responses of the two drugs were verified at six different concentration levels ranging from 5 to 30 μg/ml for DEC and 0.1 to 1 μg/ml for LEVC, respectively and 50 μg/ml of IS was maintained at each level. The calibration curve was constructed by plotting response factor (F) against concentration (C) of each drug. The regression equations obtained for two drugs were F=0.0038C+0.0003(R2=0.9949, n=6) for DEC and F= 0.0118C-0.0002 (R2=0.9979, n=6) for LEVC.
The developed method was applied in the estimation (assay) of DEC and LEVC in tablets. Two batches of the tablets were assayed and results are shown in Table 1, indicating that the amount of each drug in tablet samples met with requirements (92.5 to107.5% of label claim for DEC and 90 to 110% of label claim for LEVC, respectively).
|Drug name||Batch I (% Label claim ±SD*)||Batch II (% Label claim ±SD*)|
DEC is diethylcarbamazine, 150 mg per tablet and LEVC is levocetirizine, 2.5 mg per tablet. *SD= Standard deviation (n=3)
Table 1: Assay results for dec and levc
Accuracy of the method was determined in terms of recovery by spiking to the pre-analyzed sample of two different concentrations 50 μg of DEC and 7.5 μg of LEVC standard drugs and the mixtures were reanalyzed by this method for three times. The mean recovery data was 51.43±0.52, 50.03±0.03 and percentage recovery was 102.86%, 101.10% for DEC and LEVC, respectively.
Precision study was performed to find out intra-day and inter-day variations in the estimation of DEC and LEVC of different concentrations, with the proposed method. The values of intra-day were 1.72, 1.85 and inter-day were 1.89, 1.92 for DEC and LEVC respectively. Percentage relative standard deviation (%RSD) of all the parameters is less than 2%, which indicates that the proposed method is precise.
The LOQ’s by this method were found to be as 0.1 μg/ml and 0.075 μg/ml for DEC and LEVC respectively. Each value was verified by six individual injections of respective drug. The LOD’s were found to be as 0.075 and 0.050 μg/ml for DEC and LEVC, respectively. These were confirmed by injecting respective standard drug solution at respective concentration for six times.
Ruggedness was determined on different HPLC systems such as Waters 2487 dual wavelength absorbance detector with a rheodyne 7725i, 20 μl loop using breeze as data station having 1515 solvent delivery system and a Shimadzu gradient system SPD M-10AVP photo diode array (PDA) detector with rheodyne 7725i, 20μl loop possessing LC-10 AT VP solvent delivery system using a Class-VP data station with different operators and different stationary phases § Princeton SPHERE 100 C18 (250×4.6 mm i.d., 5μ), § Hibar® C18 (250×4.6 mm i.d., 5μ) were used and the chromatograms were recorded. Robustness of the method was determined by making slight changes in the chromatographic conditions for change in the ratios of mobile phases, pH and flow rate as mentioned above. No marked changes were observed. System suitability parameters were checked which include theoretical plate/ meter (5408 for DEC, 7641 for IS and 9412 for LEVC), resolution factor (1261 for DEC and 3.72 for LEVC), peak asymmetry factor (1.3 for DEC, 1.1 for IS and 1.1 for LEVC).
The results showed that the method provided adequate accuracy, precision, sensitivity, reproducibility with better resolution for the analysis of diethylcarbamazine citrate and levocetirizine dihydrochloride in formulations either simultaneously or individually. Thus it can be concluded that the proposed method can be used for the routine analysis of these two drugs in bulk as well as pharmaceutical preparations without any interferences.
The authors thank the founder of JSS Mahavidyapeetha, Mysore and Dr. B. Suresh, Vice-chancellor, JSS University, Mysore for providing the facilities to carry out this work.
- Available from: http://en.wikipedia.org/wiki/Diethylcarbamazine, Oct. 2009.
- Available from: http://en.wikipedia.org/wiki/Levocetirizine, Nov. 2009.
- Wahbi AM, el-Obheid HA, Gad-Kariem EA. Spectrophotometric determination of diethylcarbamazine citrate via charge-transfer complex. Farmaco 1986;41:210-4.
- Merukar SS, Mhaskar PS, Bavaskar SR, Burade KB, Dhabale PN. Simultaneous spectrophotometric methods for estimation of levocetirizine and pseudoephedrine in pharmaceutical tablet dosage form. J Pharm Sci Res 2009;1:38-42.
- Prabu SL, Shirwaikar AA, Shirwaikar A, Kumar CD, Kumar GA. Simultaneous UV spectrophotometric estimation of ambroxol hydrochloride and levocetirizinedihydrochloride. Indian J Pharm Sci 2008;70:236-8.
- Mathew N, Kalyanasundaram M. HPLC method for the estimation of diethylcarbamazine content in medicated salt samples. Acta Trop 2001;80:97-102.
- Chandrasekaran B, Patil SK, Harinath BC. Chromatographic separation and colorimetric estimation of diethylcarbamazine and its metabolities. Indian J Med Res 1978;67:106-9.
- Selvan PS, Gopinath R, Sarvanan VS. Estimation of Levocetirizine, Ambroxol, Phenylpropanolamine and Paracetamol in Combined Dosage Forms by RP-HPLC Method. Asian J Chem 2006;18:2591-6.
- Arayne MS, Sultana N, Nawaz M. Simultaneous quantification of cefpirome and cetirizine or Levocetirizine in pharmaceutical formulations and human plasma by RP-HPLC. J Anal Chem 2008;63:881-7.
- Morita MR, Berton D, Boldin R, Barros FA, Meurer EC, Amarante AR, et al. Determination of Levocetirizine in human plasma by liquid chromatography-electrospray tandem mass spectrometry: Application to a bioequivalence study. J Chromatogr B 2008;382:132-9.
- Miller JR, Fleckenstein JL. Gas chromatographic assay of diethylcarbamazine in human plasma for application to clinical pharmacokinetic studies. J Pharm Bio Anal 2001;26:665-74.
- Validation of analytical procedures: Methodology, ICH Guidelines, 1996, 1-8.
- Indian Pharmacopoeia, Vol. 2, Delhi: Controller of Publications; 2007.
