The objective of this study was to synthesize and characterize citric acid crosslinked hydrogel films of carboxymethyl cellulose-tamarind gum for topical drug delivery. The hydrogel films were characterized by attenuated total reflectance-Fourier-transform infrared spectroscopy, solid state 13C-nuclear magnetic resonance spectroscopy and differential scanning calorimeter. The prepared hydrogel films were evaluated for the carboxyl content and equilibrium swelling ratio. Moxifloxacin hydrochloride was loaded into these hydrogel films and drug release was monitored in the phosphate buffer pH 7.4. Hemolysis assay was used to study biocompatibility of hydrogel films. Results of the attenuated total reflectance-Fourier-transform infrared spectroscopy, solid state 13C-nuclear magnetic resonance and differential scanning calorimeter confirmed the formation of citric acid-crosslinked hydrogel films. Total carboxyl content of hydrogel film was found to be increased when polymer ratio and amount of citric acid was increased. In contrast, swelling of hydrogel film was found to be decreased with increase in polymer ratio and amount of citric acid. Batch B1 showed highest drug loading with non-Fickian release mechanism. All remaining batches showed non-Fickian release behavior with diffusion coefficient greater than 0.5. Results of hemolysis assay indicated that the citric acid crosslinked carboxymethyl cellulose-tamarind gum hydrogels were safe to be used in drug delivery. These results indicated that the citric acid crosslinked carboxymethyl cellulose-tamarind gum composite hydrogel films has the potential to be used in topical novel drug delivery systems.


Carboxymethyl cellulose, citric acid, crosslinking, hydrogel, tamarind gum

Hydrogels are the crosslinked networks of hydrophilic water-soluble polymers. They have a tendency to absorb enormous water and swell [1]. Their distinct physical properties make them suitable for drug delivery applications. The hydrogels meant for drug delivery can be prepared using synthetic and natural polymers [2-8]. However, natural polymer-based hydrogels are more preferable due to their inherent biocompatible and biodegradable nature [9]. Besides, the natural polymers are cheap as compared to the synthetic polymers. Some of the well-known natural polymers used for the preparation of hydrogels include cellulose [10], starch [11], chitosan [12], sodium alginate [13], guar gum [8], gellan gum [14] and xanthan gum [7].

The natural polymer-based hydrogels can be prepared by physical or chemical crosslinking. The physically crosslinked hydrogels are mechanically weak and change in the environmental parameters such as pH, temperature or ionic strength may disrupt the network structure of the hydrogels [15]. The chemically crosslinked hydrogels are strong but the crosslinking agents used for their preparation are reported to be toxic [11]. In past few years, citric acid has emerged as a non-toxic crosslinking agent for the preparation of the hydrogels [16,17]. At sufficiently high temperatures, citric acid forms a cyclic anhydride and esterifies the hydroxyl groups present on the adjacent polymer chains. This leads to the formation of crosslinks.

Carboxymethylcellulose (CMC) is a biodegradable and easily available derivative of cellulose, which is considered as an ideal candidate for preparing hydrogels due to its high swellability. It has hydrophilic carboxylate groups in its polymeric backbone. When used alone, CMC forms hydrogels with poor mechanical strength due to formation of intramolecular crosslinks instead of intermolecular crosslinks. This can be attributed to the electrostatic repulsion between charged macromolecules due to which, few hydroxyl groups remain available for reaction at C6, the most reactive position. Therefore, another cellulose derivative like hydroxyethylcellulose (HEC) has been used in combination with CMC to improve the intermolecular crosslinking [18].

Tamarind gum (TG) is a natural polysaccharide, which is used as a binder, gelling agent, thickener, emulsifier, suspending agent and a release modifier in different pharmaceutical formulations. It is also used as a stabilizer in food and pharmaceutical industries [19]. It is extracted from the endosperm of Tamarindus indica L. seeds belonging to the family Leguminosae. TG is composed of (1→4)-β-D-glucan back-bone substituted with side chains of α-D-xylopyranose and β-D-galactopyranosyl(1→2)-α-D-xylopyranose linked (1→6) to glucose residues [20]. It has been used in the development of various drug delivery systems due to its hydrophilic and bioadhesive properties [21-27]. Although TG shows presence of non-sterically hindered hydroxyl groups, very few reports mentioned the use of pure TG in chemically crosslinked hydrogels [28]. Moreover, TG can be used as a cheaper alternative to HEC for the preparation of citric acid crosslinked CMC-based hydrogels.

Moxifloxacin hydrochloride (MH) is a fourth generation fluoroquinolone, widely used for soft tissue and skin infections, which promoted wound healing without causing bacterial resistance [29]. MH-loaded hydrogel film could be useful in treating topical infections as well as burn wounds.

The objective of the present work was to investigate potential of citric acid crosslinked CMC-TG hydrogel films as topical drug delivery in the form of implants or wound healing films. In the present work, we have prepared the CMC-TG hydrogel films using citric acid as a crosslinking agent. The effect of concentration of TG on the properties of hydrogel films was investigated. MH was used as model drug. The hydrogel films were characterized for the formation of crosslinks and evaluated for swellability, drug loading and release. The biocompatibility of the hydrogel films was tested using haemolytic assay.

Materials and Methods

Tamarind kernel powder was kindly gifted by Chhaya Industries, Barshi, Maharashtra, India. MH was obtained as a gift sample from Apotex, Bangalore, India. Sodium CMC (degree of substitution: 0.7, average molecular weight: ∼250 000) and anhydrous citric acid anhydrous were procured from Sigma Aldrich, Mumbai, India. All other chemicals used were of analytical grade and were purchased from Loba Chemie, Mumbai, India.

Isolation of TG

Twenty grams of defatted tamarind kernel powder was added to the cold distilled water (200 ml) to prepare a slurry. The slurry was poured into the boiling distilled water (800 ml) containing citric acid (0.2 %). The solution was boiled with stirring for 20 min on a water bath. The resulting thin clear solution was kept overnight (24 h) so that most of the proteins and fibres settle down, following which the solution was centrifuged at 5000 rpm for 20 min. The supernatant liquid was separated and poured into the excess of absolute alcohol with continuous stirring (1:1). The precipitated polysaccharide was washed with absolute ethanol, diethyl ether and acetone, followed by drying at 50-60° for 10 h. The dried polymer was powdered, sieved (sieve no: 80), and stored in a desiccator until further use [30]. Extracted TG was further qualitatively evaluated for the presence of proteins and fats.

Preparation of citric acid crosslinked TG-based hydrogel films

The citric acid crosslinked hydrogel films of TGCMC were prepared by esterification-crosslinking mechanism, as reported elsewhere [10]. Two percent w/v aqueous solutions containing TG, CMC and citric acid were prepared using a mechanical stirrer (RQG126D, Remi, India), at room temperature (Table 1). The solutions were kept overnight to remove the entrapped air bubbles. The aqueous solutions (50 ml) were casted into 9 cm diameter Petri dishes and dried at 50° for 24 h. The resulting films were cured at 140° for 5 min. The curing temperature and curing time was sufficient to achieve crosslinking. The cured hydrogel films were washed with distilled water and isopropyl alcohol for 1 h in order to remove untreated entities. Then, the hydrogel films were dried in a hot air oven at 50° for 24 h and stored in a desiccator until use. The parameters such as concentrations of TG, CMC, citric acid and curing time were varied individually to study their effect on hydrogel properties [31].

Parameter Batch code
B1 B2 B3 C1 D1
TG:CMC* 1:1 2:1 3:1 1:1 1:1
Citric acid (%) 10 10 10 15 20
Curing temperature (°) 140 140 140 140 140
Curing time (min) 5 5 5 5 5

Table 1: CMC and TG Hydrogel Films

Total carboxyl content of hydrogel films

Acid-base titration was used to determine total carboxyl content of the hydrogel films. About 100 mg of hydrogel film was dissolved in 20 ml 0.1 N NaOH and stirred on magnetic stirrer (Remi, India) for 2 h. Excess amount of 0.1 N NaOH was titrated with 0.1 N HCl using phenolphthalein as an indicator [32]. The carboxyl content in milliequivalents per 100 g of hydrogel films was calculated as given below, carboxyl content = (Vb–Va)×N×100/W, where, N is the normality of HCl (eq./l), Vb and Va are the volumes of HCl in absence and presence of sample, and W is the weight of sample (g).

Attenuated total reflectance-Fourier transform infrared (ATR-FTIR) spectroscopy

Infrared spectra of TG, CMC, citric acid, and citric acid crosslinked hydrogel films were obtained using ATR-FTIR spectrophotometer (Shimadzu, Miracle 10, IR Affinity, Japan). The samples to be analysed were placed in the ATR and spectra were recorded in the range of 600-4000 cm−1 at an average of 25 scans and resolution of 4 cm−1.

Solid-state NMR spectroscopy

Solid-state 13C cross-polarization-magic angle spinning (13C CP-MAS) NMR spectra of TG, CMC and citric acid crosslinked hydrogel film was measured using Jeol-ECX400 spectrometer operating at 400 MHz (contact time of 3.5 ms, relaxation delay of 5 s, sweep width of 35 kHz and spinning speed of 10 KHz). The chemical shifts were calibrated with the external hexamethylbenzene standard methyl resonance at 17.3 ppm.

Thermal analysis

Thermogravimetric analysis (TGA) and differential scanning calorimetry (DSC) of TG, CMC, citric acid and crosslinked hydrogel film was performed using a Mettler-Toledo TGA/DSC1 thermogravimetric analyser (Mettler-Toledo, Switzerland). Samples were heated from 30°-300° at a rate of 10°/min, under nitrogen atmosphere (flow rate: 10 ml/min).

Swelling study

The extent of swelling of hydrogel films was determined in phosphate buffer pH 7.4. A known quantity (~0.2 g) of hydrogel films were immersed in the swelling medium (10 ml) at room temperature. The swollen samples were removed at predetermined time intervals for 24 h, excess medium was blotted using tissue paper and the swollen hydrogel were weighed [33]. The swelling index was calculated using the following Eqn., swelling ratio (g/g) = (WT–W0)/WT, where, WT is the weight of swollen hydrogel at time T, and W0 is the weight of dry hydrogel films before start of the study. All measurements were done in triplicate.

Drug loading and in vitro release

MH was loaded into hydrogel films using the swelling equilibrium method. In brief, pre-weighed hydrogel films (~200 mg) were placed in 20 ml aqueous solution of MH (5 mg/ml) for 2 h and hydrogel films were dried in hot air oven at 40° for 24 h [34]. To determine the amount of drug loading, MH-loaded hydrogel film was cut into small pieces, weighed and immersed in 50 ml water. The dispersion was stirred on a magnetic stirrer (Remi, India) at 100 rpm for 24 h and the amount of MH was determined spectrophotometrically using a UV/Vis spectrophotometer (Shimadzu, Japan) at λmax 289 nm.

In vitro release studies of the drug were carried out by keeping the MH-loaded hydrogel films (~0.1 g) in 20 ml of phosphate buffer pH 7.4 at 37°. Samples were withdrawn at predetermined time intervals, each time replacing the volume withdrawn with fresh dissolution medium in order to maintain the sink conditions. The amount of MH released was determined using a UV/Vis spectrophotometer at λmax 289 nm up to 300 min. The experiments were performed in triplicate [35].

Haemolysis assay

Hydrogel films (2 cm2) were equilibrated in phosphatebuffered saline for 60 min at 37° and human citratephosphate- dextrose (CPD) blood (0.5 ml) was added to the films. After 20 min, 4.0 ml of 0.9 % sodium chloride solution (saline) was added to each sample to stop haemolysis and the samples were incubated for 60 min at 37°. Positive and negative controls were obtained by adding 0.5 ml of human CPD blood and saline, respectively, to 4.0 ml of double-distilled water. The incubated samples were centrifuged for 10 min at 3500 rpm, the supernatant was taken, and its absorbance was measured on a spectrophotometer at 545 nm [31]. Percent haemolysis was calculated using the following relationship: haemolysis (%) = (ATest sample–A–ve control)/ (A+ve control–A–ve control)×100, where, A is the absorbance. The absorbance of positive and negative controls was found to be 3.614 and 0.011 %, respectively.

Statistical analysis

The numerical data was statistically analysed using one way ANOVA followed by Tukey’s multiple comparison test. P value less than 0.05 was considered as statistically significant.

Results and Discussion

TG was isolated from seeds of tamarind (T. indica), and the average yield of dried TG was found to be 48 %. The addition of citric acid helped to separate proteins from the TG due to precipitation. The TG present in the supernatant solution was separated by alcohol precipitation [36]. The molecular weight of TG is 1.5×105 g/mol. Extracted polysaccharide was free from proteins and fats.

The preformulation batches were prepared in order to optimize concentration of citric acid, curing temperature and curing time to get hydrogel film. The prepared hydrogel films were washed with distilled water to remove unreacted citric acid and polymer. The total polymer concentration was fixed at 2 % and TG to CMC ratio was varied from 1:1 to 3:1. The average thickness of citric acid crosslinked TG/CMC hydrogel film was found to be ~174 μm.

At very low concentrations of citric acid, the TGbased hydrogel films were not formed due to poor crosslinking, which may have led to loss of integrity of hydrogel film. At high concentrations of citric acid, the hydrogel films formed were rigid, with reduced ability to absorb water [37]. This rigidity and poor ability to absorb water might be due to the increase in crosslinking density, which in turn may have led to the reduction in the mobility of polymer chains and reduced the free volume of the hydrogel network [2].

The curing temperature was varied from 130° to 150°. At lower temperature poor crosslinked gel was formed, whereas at elevated temperature, firm and tough hydrogel film was formed. This might be due to the formation of strong hydrogen bond interactions between polysaccharides (TG and CMC) and citric acid, leading to reduction in expansion and relaxation of polymer chains [37]. The optimum swelling was observed at a curing temperature 140°.

The curing time was varied from 5 to 15 min. The 5 min curing time was found to be sufficient to form the citric acid crosslinked hydrogel film while higher curing times lead to formation of a brown-colored film with insufficient swelling. This could be exhibited due to interaction between –OH groups of polysaccharide and dehydrated citric acid leading to the formation of strong crosslinking.

Esterification reaction caused the formation of crosslinks between citric acid and polysaccharides (TG and CMC). The possible reaction and structure of TG and CMC were given in Figure 1. When citric acid is heated, the cyclic anhydride intermediate is formed, which served as the base mechanism responsible for the development of crosslinks with TG and CMC. Esterification of -OH functional groups of the polysaccharide with the cyclic anhydride intermediate lead to new carboxylic acid units, which exhibited the property of forming new intra-molecular anhydride moiety with neighbouring carboxylic acid unit [10,38,39]. There might also be involvement of the primary –OH groups of the polysaccharides as they are more reactive than the secondary –OH groups, in the esterification process. Crosslinking generally occurred under dry state and required high temperatures for the reaction [11]. On the other hand evaporation of water, which is the first step in crosslinking with citric acid, is promoted by the hydrophobic character of the substrate.

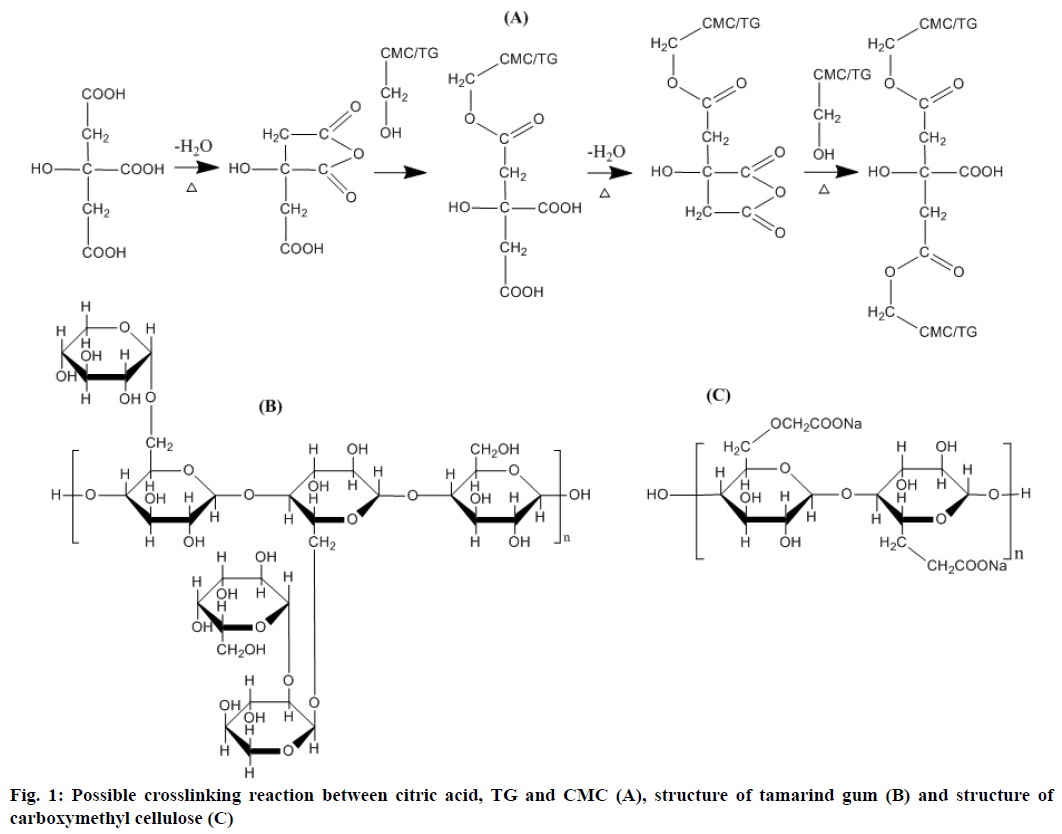

Figure 1: Possible crosslinking reaction between citric acid, TG and CMC (A), structure of tamarind gum (B) and structure of carboxymethyl cellulose (C)

The carboxyl content of hydrogel films was found to be in the range of 2.59 to 4.35 mEq/g of hydrogel (Table 2). The ratio of polysaccharide and concentration of citric acid had significant effect on the carboxyl content. When TG was increased in the films (B1 to B3), the carboxyl content was found to be increased. Increase in carboxyl content might be due to increased participation of TG in the esterification reaction with citric acid. An increase in concentration of citric acid from 10 to 20 % (B1, C1 and D1), also increased the carboxyl content of hydrogel film. This could be due to fact that when the film was heated, higher amount of cyclic anhydride intermediate of citric acid was available for crosslinking of polysaccharides leading to increased carboxyl content.

Batch Total carboxyl content
(mEq/g of hydrogel)
Drug loading*
n r2 Order of release
B1 2.59 402.3±4.19 1.56 0.60 0.972 Quassi-Fickian
B2 3.22 249.1±5.12a 1.14 0.75 0.991 Non-Fickian
B3 3.34 129.8±4.51a 2.57 0.86 0.990 Non-Fickian
C1 3.38 268.6±3.41a 1.79 0.75 0.993 Non-Fickian
D1 4.08 256.8±2.69a 1.93 0.76 0.994 Non-Fickian

Table 2: Characterization of Hydrogel Films

ATR-FTIR spectra of CMC, TG and citric acid were presented in Figure 2A and spectra of all hydrogel films were given in Figure 2B. ATR-FTIR spectrum of TG exhibited broad strong peaks at 3500-3000 cm-1 due to stretching vibration of -OH. A strong peak at 1039 and 1143 cm-1 could be attributed to the C-O stretching vibration of the alcoholic group. The medium peak at 2920 cm-1 belonged to asymmetric stretching of CH. The peaks at 1747 and 1689 cm-1 were due to carbonyl (-HC=O) stretching [40]. The spectrum of citric acid showed a broad peak at 3279 cm−1 attributed to -OH stretching and a sharp peak at 1693 cm−1 due to hydrogen bonded C=O stretch. In the spectrum of CMC, the broad peaks at 3500 to 3000 cm-1 are seen due to -OH stretching. The band at 2922 cm-1 is due to C-H stretching vibration. The presence of a strong absorption band at 1587 and 1411 cm-1 was due to the asymmetric and symmetric stretching of COO- group, respectively. The peak at 1323 cm-1 was due to CH-OCH 2 stretching. The ATR-FTIR spectrum of hydrogel film showed additional peaks at 1710 to 1730 cm-1 attributed to the carbonyl band of free carboxylic acid groups and the carbonyl band of ester formed during the TG-CMC, CMC-CMC and TG-TG crosslinking. To confirm the formation of ester linkages further, hydrogel film was treated with 0.1 N NaOH in methanol so as to separate ester carbonyl band from the acid carbonyl band by converting the carboxylic acid group to carboxylate anions. In case of NaOH-treated batch (Figure 1A) additional two bands were observed at 1742 cm-1 (ester carbonyl) and 1589 cm-1 (carboxylate), which confirmed crosslinking [31]. Solid-state 13C NMR spectrum of TG showed three distinct peaks (Figure 3). The resonance peak at 105 ppm is assigned to anomeric carbon atom (C1) and the peak at 74 ppm is assigned to the carbon atoms (C2 to C5) connected by –OH groups (i.e. the carbon atoms in the six membered ring except C1 carbon atom). The presence of a peak at 63 ppm is attributed to the C6 carbon atom of CH2OH group. The solid-state 13C NMR spectrum of CMC showed four distinct peaks (Figure 3). The resonance peak at 105 ppm is attributed to anomeric carbon (C1) of glucose units and the peak at 75 ppm is due to the carbon atoms (C2 to C5) in the six member ring connected by –OH groups and C7 carbon atom in methyl group of carboxylated side chain. The presence of a peak at 63 ppm is attributed to C6 of the carbon atom of CH2O- group. The peak at 178 ppm is due to carbonyl carbon of substituent groups –CH2COO-. The solid-state 13C NMR of prepared citric acid crosslinked hydrogel film (Figure 3) of TG-CMC shows broad resonance peak due to ester crosslinks and free –COOH groups in the range of 174-182 ppm, which confirms crosslinking.

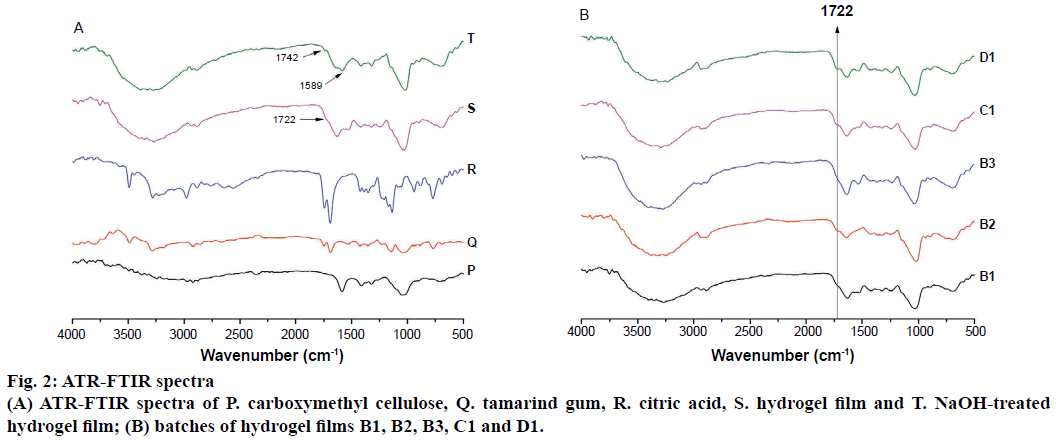

Figure 2: ATR-FTIR spectra
(A) ATR-FTIR spectra of P. carboxymethyl cellulose, Q. tamarind gum, R. citric acid, S. hydrogel film and T. NaOH-treated hydrogel film; (B) batches of hydrogel films B1, B2, B3, C1 and D1.

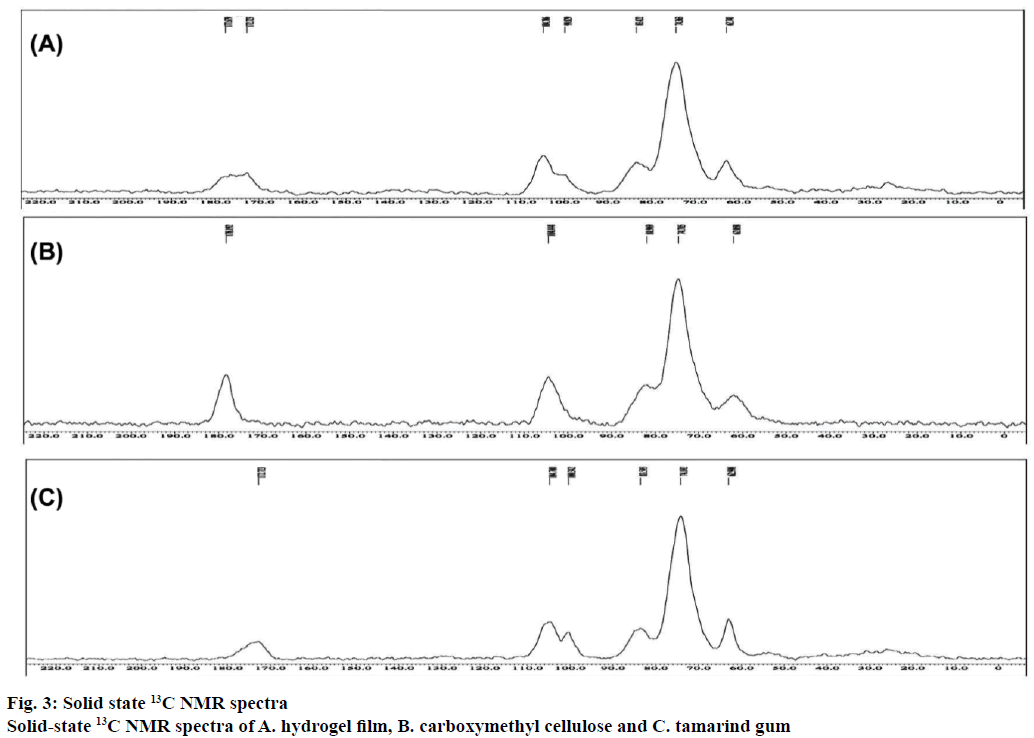

Figure 3: Solid state 13C NMR spectra
Solid-state 13C NMR spectra of A. hydrogel film, B. carboxymethyl cellulose and C. tamarind gum

The TGA and DSC thermograms were presented in the Figure 4A and 4B, respectively. Thermal decomposition curve of TG showed two main stages of decomposition. The first stage began at 35° and ended at 100°. This could be due to the removal of free and bound water from the polymer. The second stage of weight loss was observed around 228° to 300° with 35 % loss of weight. CMC showed two main stages of decomposition. The first stage began at 35° and ended at 84° and was due to removal of free and bound water from the polymer. The second stage of weight loss was observed around 225° to 325° with 38 % loss of weight. The weight loss in both the polymers in second stage could be attributed to the decomposition of the polymer backbone. The decomposition of anhydrous citric acid started at 160° and ended at 349° with 93 % weight loss. In case of hydrogel film, thermal decomposition started at 199° and ended at 389° with 47.5 % loss of weight. This indicated that the decomposition of the citric acid crosslinked TG/CMC hydrogels is slower than individual polymers. The thermal stability of the prepared hydrogel film was improved compared to that of the individual polymers due to formation of crosslinks between TG/CMC by citric acid. In other words, thermal decomposition of TG and CMC was delayed. The DSC thermogram of hydrogel film showed considerable change in the heat flow indicating formation of ester crosslinks. Observations are in agreement with the earlier reports with CMC and hydroxyethyl cellulose [10,41].

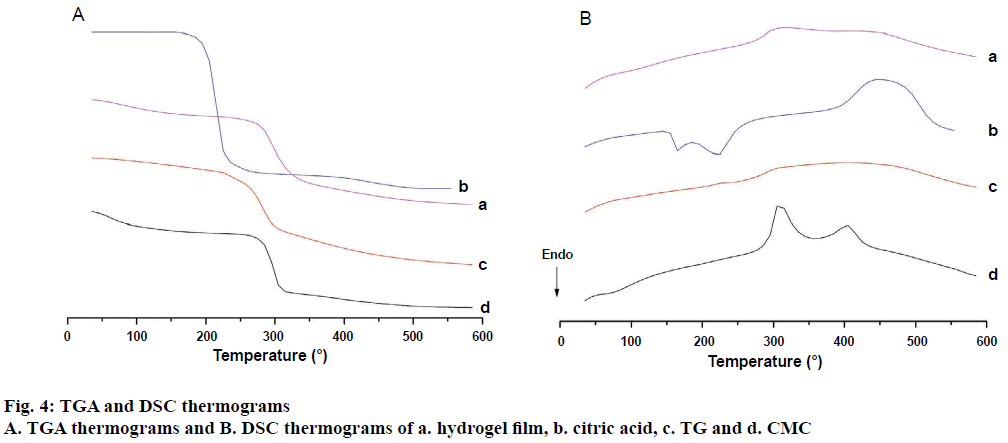

Figure 4: TGA and DSC thermograms
A. TGA thermograms and B. DSC thermograms of a. hydrogel film, b. citric acid, c. TG and d. CMC

The swelling study was performed in phosphate buffer pH 7.4. The result of swelling study presented in Figure 5A. Batch B1 exhibited a maximum equilibrium swelling of 5.33 g/g whereas batch D1 showed a minimum equilibrium swelling of 1.64 g/g. When hydrogel is in contact with medium, its three dimensional hydrophilic network expansion is prevented by the crosslinks and provided an elastic response, which affected the swelling of hydrogel film [42]. All hydrogel batches showed steady swelling ratio after 1 h.

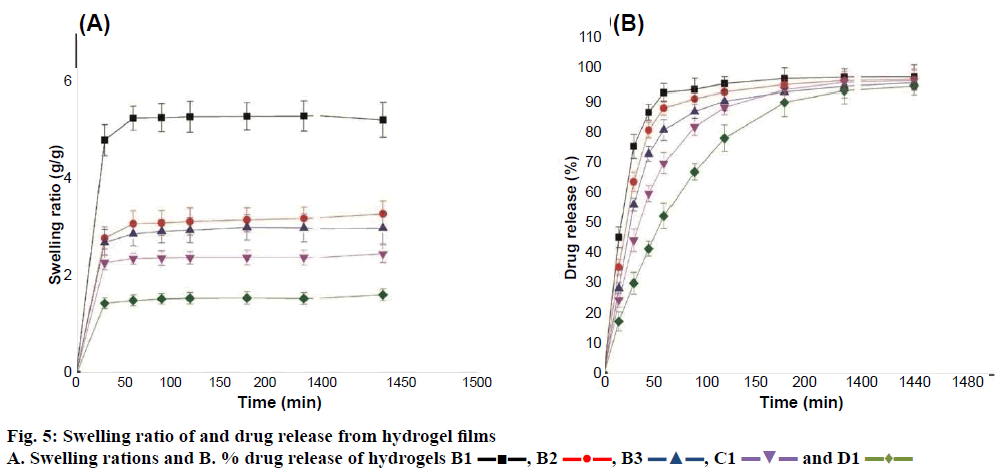

Figure 5: Swelling ratio of and drug release from hydrogel films
A. Swelling rations and B. % drug release of hydrogels B1 image, B2 image, B3 image, C1 image and D1 image

The swelling ratio of the hydrogel film at equilibrium is dependent on the ratio of polymer and the concentration of citric acid. As the polymer ratio was increased the equilibrium swelling ratio was found to be decreased significantly (batch B1 to B3). This might be attributed to high amount of TG and low amount of CMC in hydrogel film, which decreased ionic character and increased hydrophilicity of hydrogel film [43]. In case of batch B3 there might be self-entanglement of TG chains by hydrogen bonding and decreased ionic contribution to the absorption of swelling medium leading to decreased equilibrium swelling [44]. In case of batch B1 there might be dissociation of highly hydrophilic carboxylic group of CMC, which absorbed a lot of water to fill pores leading to increased equilibrium swelling [45,46].

It was noticed that when concentration of citric acid was increased the swelling ratio of hydrogel film was found to be decreased significantly (Figure 4A). This might be due to an increase in the degree of crosslinking, which altered the mobility of polymer chains. Diffusion of the swelling medium into the polymer network also decreased thereby giving rise to more rigid structure of the polymer network [37]. As discussed earlier the amount of carboxyl content in hydrogel increased with increase in extent of cross-linking density.

The drug loading was done in aqueous solution of MH through diffusion process in swollen networks. The results of drug loading studies was presented in Table 2. Drug loading of hydrogel film was observed in the range of 402.3 to 84.78 mg/g of hydrogel film. As the degree of equilibrium swelling increased, drug loading was found to be increased. This might be due to faster diffusion of drug in to swollen network. Drug loading was found to be decreased as the polymerweight ratio and concentration of crosslinker citric acid was increased. This is probably due to low equilibrium swelling ratio of the hydrogel films.

As the prepared hydrogel films could be used to deliver the drug topically or as implants, in vitro drug release study was performed at pH 7.4. The in vitro drug release profile from MH-loaded hydrogel films is given in Figure 5B. An initial burst of ~15 to 45 % release of MH was observed from all CMC-TG hydrogel films. This could be due to release of the drug associated with the gel surface. The free drug molecules back diffused from the bulk of the hydrogel matrix at the surface along with solvent during drying of drug-loaded swollen hydrogel films. So, when the MH-loaded hydrogel film came in contact with the dissolution medium, the surface-associated free drug is released at a faster rate. The controlled release was observed after 30 min from all drug-loaded hydrogel batches. The retardation of drug release is associated with the swelling of the drug-loaded hydrogel film. The swelling of hydrogel film increased the thickness of film from which drug gets diffused in to bulk of dissolution medium [34].

High drug release was exhibited for batches B1 to B3. The equilibrium swelling of these batches was more than the other batches (C1 and D1) as evident from swelling study. Irrespective of the path length drug was released at a faster rate. This may be due to ionic contribution of the CMC at buffer pH 7.4 as well as the low crosslinking of the hydrogels films. MH showed greater solubility above pH 6 due to ionization of carboxylate group (pKa=6.4) [47]. This could be one of the reasons why drug released at a faster rate form these hydrogel films. Drug release was found to be decreased in the hydrogel films from batch B1, C1 and D1, when the concentration of crosslinking agent was increased (Figure 4B). This might be due to the fact that as the concentration of citric acid was increased, the crosslinking density was also increased, which in turn decreased the swelling of the polymer matrix resulting in retardation of drug release.

The release data up to 60 % of total drug released was fitted into the Korsmeyer-Peppas Eqn. to determine the release mechanism [31,48]. Mt/M= atn, where Mt/M is the fraction of drug released in time ‘t’, ‘a’ is the kinetic constant and ‘n’ is the diffusional coefficient, which depended upon the interaction in between drug and the components of hydrogel matrix. The result of diffusion coefficient (n) and release mechanism is given in Table 2. All hydrogel batches showed non-Fickian release behaviour. The value of diffusion coefficient was found to be greater than 0.5 indicating high interaction between the drug and the hydrogel and the drug was released by diffusion coupled with erosion mechanism. An increase in ‘n’ value from B1 to B3 suggested an increase in drug hydrogel interaction due to TG. Also, an increase in concentration of crosslinker (B1, C1, D1) increased the ‘n’ value.

The biocompatibility of the hydrogel films was determined by hemocompatibility study. The test is based on the determination of the lysis of red blood cells in presence of the hydrogel films. The released hemoglobin dissolved in external fluid giving a yellowish colour, which could be measured spectrophotometrically. The higher the optical density of the supernatant, the greater the cell damage [28]. The results of haemolysis assay of hydrogel films were given in Table 2. Percent haemolysis for all hydrogel films was found to be in the range of 1.14 to 2.79 %. Lower percent haemolysis for hydrogel film could be attributed to higher hydrophilicity of polymer matrix, which decreased polymer-RBC interactions and lowered disruption of RBCs [35]. The observed percent haemolysis was found to be less than the permissible limit of 5 % [49] indicating hemocompatibility of hydrogel films.

CMC-TG hydrogel films were successfully developed using citric acid as the crosslinking agent. ATR-FTIR, TGA, DSC and solid-state 13C NMR study indicated the formation of ester linkage between polymers. These results indicated that as the concentration of citric acid increased carboxyl content was increased and equilibrium swelling ratio found to be decreased. Citric acid-crosslinked CMC-TG composite hydrogel films exhibited high drug loading with controlled release of model drug. Haemolysis study indicated hemocompatibility of hydrogel films. It can be concluded that CMC-TG composite hydrogel films crosslinked with citric acid exhibit the potential to be used as controlled or sustained drug delivery system for topical delivery. Further, cytocompatibility and in vivo studies are required to further develop the CMCTG hydrogels as an approvable drug delivery system.
