Combating drug resistant pathogenic bacteria isolated from clinical infections, with silver oxide nanoparticles

*Corresponding Author:

Padma Thiagarajan
School of Biosciences and Technology, VIT University, Tamil Nadu, Vellore‑632014, India
E-mail: padmadk4@gmail.com

Abstract

The antibiogram study of methicillin resistant Staphylococcus aureus isolates revealed 100% resistance to vancomycin, bacitracin, erythromycin, ciprofloxacin and nalidixic acid. Eight isolates (53.3%) showed resistance to co-trimoxazole and one isolate to rifampicin, which was the drug of choice. An effort was made to evaluate the antimethicillin resistant Staphylococcus aureus activity of silver oxide (Ag 2 O) nanoparticles synthesized from Aspergillus terreus VIT 2013. Production of Ag 2 O nanoparticles was confirmed by color change of fungal filtrate and UV light absorption at 450 nm. X-ray diffraction pattern showed 2θ values at 27, 32, 38 and 57°, which corresponded to the cubic structure of Ag 2 O nanocrystals. Fourier transform infrared spectroscopy indicated the presence of primary amine, carbonyl group, NO 2 and silver, revealing protein mediated nanoparticle production. The scanning electron microscope image showed freely dispersed Ag 2 O nanoparticles. The nanoparticles were active against all methicillin resistant isolates and hence can be used as antibacterial agents against drug resistant bacteria.

Keywords

Antibiogram, drug resistant MRSA, Aspergillus terreus VIT 2013, Ag₂O nanoparticles, antibacterial activity

Drug resistance of bacteria is a worldwide problem, which requires a continuous effort for eradication. In spite of their emergence in the hospital settings, they are also noticed in important parts of the community like drinking water, food, animals and their meat. Resistant isolates from animals and their products are directly transferred to the human beings either by direct contact with animals or from water, feed and waste associated with their farms [1,2]. Nosocomial infections, caused by drug resistant isolates, are a major problem as it requires costly treatments and long stay in hospitals. Patients with drug resistant infections will have less choice of drugs for treatment. Increased epidemiology of drug resistant isolates is a serious problem, which needs to be urgently tackled. In addition to the traditional remedies using plants, fungal extracts to cure these diseases have been reported. Many nanoparticles have also been cited to be active against drug resistant bacteria [3,4]. Colloidal silver nanoparticles of size 1‑10 nm are used as magic bullets for targeting GP120 of human immune deficiency virus, thereby inhibiting the viral entry [5] Nanoparticles form efficient electron transferring agents between borohydrate and dye and therefore are widely used as catalysts [6].

Metal oxide nanoparticles have many applications in various areas of science. In agriculture and food industries, zinc oxide nanoparticles of size 75±15 nm are used as antifungal agents against post harvest pathogens viz., P. expansum and B. cinerea [7]. Aspergillus aureus and Humicola sp. are some of the examples of fungi that synthesize zinc oxide and cerium oxide nanoparticles, respectively [8,9]. Although, many fungi have been reported for the biosynthesis of silver nanoparticles, there are no reports of biosynthesis of Ag₂O nanoparticles from fungi. This is a first report of Ag₂O nanoparticle biosynthesis from Aspergillus terreus and testing of their antibacterial activity against drug resistant bacteria.

Materials and Methods

Aspergillus terreus VIT 2013 was isolated from soil. Clinical isolates of MRSA were collected from Narayani Hospital, Vellore. All cultures were maintained at 4°. Mueller Hinton Agar and other chemicals were purchased from Hi-Media, Mumbai. Silver nitrate (AgNO₃, extra pure) was purchased from Thomas Baker. Nanoparticles were characterized using powder X‑ray diffraction (Bruker Advance, Germany) Scanning Electron Microscope (SEM) and Fourier Transform Infrared Spectroscopy (Bruker, Optics, Germany).

Antibacterial activity against drug resistant isolates

Clinical pathogens collected from Narayani hospital, Vellore, were subcultured and used for antibiotic susceptibility studies. Antibiotic susceptibility test was performed by disc diffusion method following Clinical and Laboratory Standards Institute (CLSI) guidelines [10]. Sterile Muller Hinton Agar plates were prepared, on which a lawn of MRSA was spread. With the help of sterile forceps, antibiotic discs were placed in plates. Plates were incubated at 37° for 24 h. After the incubation, plates were observed for the zone of inhibition around the discs. The results of antibiograms were interpreted using CLSI chart. Antibiotics were selected based on their mode of action and the following antibiotics were used (μg/disc); rifampicin (RIF)‑5, vancomycin (VAN)‑30, bacitracin (BAC)‑10, Co‑trimoxazole (CO)‑25. erythromycin (ERY)‑10, ciprofloxacin (CIP)‑10 and nalidixic acid (NA)‑30.

Biosynthesis of Ag₂O nanoparticles by Aspergillus terreus VIT 2013

The fungus isolated from soil was inoculated in the sterile medium containing the following ingredients (g/l): KH₂PO₄‑7.0; K₂HPO₄‑2.0; MgSO₄.7H₂O‑0.1; (NH₄)₂SO₄-1.0; yeast extract‑0.6 and glucose‑10.0. The fungus was incubated at room temperature (30°) for eight days. On the ninth day, 10 g of fungal mat was filtered, washed thrice with Milli Q water and reinoculated in 100ml of Milli Q water for 72 h. Subsequently, the fungal filtrate was collected for the production of Ag₂O nanoparticles which were synthesized in the dark by adding 0.1 mM AgNO₃ to the fungal filtrate, after which the flask was incubated in a dark room. Two flasks, one with only 0.1 mM AgNO₃ solution and other containing fungal filtrate alone, were kept as experimental controls for which similar conditions were maintained as that of the test flask.

Characterization of Ag₂O nanoparticles

Biosynthesis of Ag₂O nanoparticles was monitored at various time intervals by scanning the test filtrate and control from 300‑600 nm with UV spectrophotometer. UV readings were taken until maximum absorption was obtained. For further characterization, Ag₂O nanoparticles were washed thrice in Millli Q water, to remove fungal secondary metabolites and characterized by XRD, SEM and FTIR.

Evaluation of antibacterial activity of Ag₂O nanoparticles

Antibacterial activity of Ag₂O nanoparticles were assessed by well diffusion method using CLSI guidelines [10]. The lawn of bacterial inoculum was prepared on sterile Mueller Hinton Agar and wells were made. In each well, 100 μl of Ag₂O nanoparticles were added and plates were incubated at 37° for 24 h, after which the zone of inhibition was measured. All measurements were done in triplicate.

Results and Discussion

Epidemiological studies of drug resistant bacteria play a crucial role in the overall understanding of diseases and drug resistance scenario of isolates in a particular location. Appropriate planning and administration of health systems, controlling the spread of drug resistant bacteria and their prophylaxis is only possible through well‑established epidemiological studies. In spite of the continuous search for remedies, drug resistance remains an unresolved problem. Staphylococcus aureus, being a normal skin flora, is one of the best examples of drug resistant bacteria. Over a period, these have evolved into dangerous drug resistant pathogens and today infections caused by them is an serious issue of concern worldwide [11]. There is an urgent need for studies to prevent increased drug resistance, both in hospital and community settings.

The present study mainly focuses on understanding the drug resistance pattern of methicillin resistant Staphylococcus aureus (MRSA) in hospital settings and controlling them using antiMRSA Ag₂O nanoparticles, biosynthesized from a soil fungus, Aspergillus terreus VIT 2013. Fifteen clinical isolates of MRSA were collected from a hospital in Vellore District of Tamil Nadu, India and their drug resistance patterns were studied. A high level of resistance was observed among many of these clinical isolates. All isolates were found to be 100% resistant to vancomycin, bacitracin, erythromycin, ciprofloxacin and nalidixic acid. Resistance to vancomycin and ciprofloxacin in MRSA isolates have increased in recently in comparison to previous years wherein it was found to be 35.3 and 76.4%, respectively [12,13]. In contrast, resistance to co‑trimoxazole was found to be reduced from 82.3% as reported in 2013, to 53.3% (8/15 isolates) as observed in the present study [13]. Rifampicin was found to be a drug of choice, as most of the isolates except one (6.6%) were sensitive to it as is shown in Table 1. Three antibiotic resistance patterns were expressed by all fifteen isolates of MRSA in which 40% isolates were resistant to five antibiotics and 53.3 and 6.6% were resistant to six antibiotics. The results are represented in Tables 2 and 3.

Table 1: Incidence of antibiotic resistance of Mrsa

Table 2: Antibiotic Resistance Patterns Of Mrsa

Table 3: Antibiotic Resistance Patterns Expressed By Mrsa

Each isolate was resistant to more than one antibiotic, thus showing high versatility of drug resistance among nosocomial MRSA. Since drug resistance is disseminating at a rapid pace, it should be of serious concern for prevention and control of diseases caused by them. Nanotechnology is one of the promising areas to battle the drug resistance scenario. Silver‑carbon complexes, nitric oxide releasing nanoparticles and other multifunctional nanoparticles have been reported to have strong antibacterial activities against drug resistance bacteria [14]. Antibacterial Ag₂O nanoparticles synthesis, by soil fungus Aspergillus terreus VIT 2013 was carried out and the presence of Ag₂O was confirmed through the characteristic color change in the fungal filtrate, from colorless to brown, upon addition of AgNO₃. The color change was noticed within one hour of addition of the substrate. No change in color was observed in the remaining two conical flasks containing only fungal filtrate and 0.1 mM AgNO₃ solution, which served as controls (fig. 1a). Test solution, when scanned from 300-600 nm showed strong UV peak absorption at 450 nm. The optical density (OD) value of each successive recording at 450 nm was approximately doubled which signified increased synthesis of Ag₂O nanoparticles (fig. 1b). In contrast to Ag₂O nanoparticles, silver (Ag°) nanoparticles absorbs light at 420 nm as observed in our previous study, thus clearly indicating a difference in UV absorption spectra of two nanoparticles [15‑17].

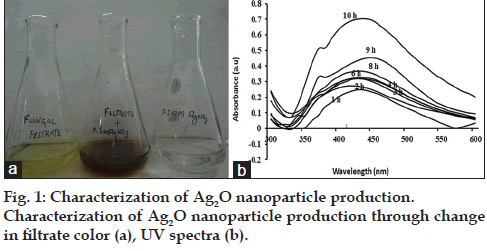

Figure 1: Characterization of Ag₂O nanoparticle production. Characterization of Ag₂O nanoparticle production through change in filtrate color (a), UV spectra (b).

Along with the peak at 450 nm, a second peak at 360 nm was also observed which corresponds to the production of inorganic phosphate [18]. This indicated that the production of Ag₂O nanoparticles and inorganic phosphate may be simultaneous and an interlinked process as in each UV recording, the OD value of the peak at 450 nm was accompanied by OD value of peak at 360 nm. Our previous study on silver nanoparticles production by Aspergillus niger also revealed a similar mechanism [15]. The comparative results with other species revealed that the mechanism operates only in the Aspergillus Spp. which produces silver or silver oxide nanoparticles.

The result of XRD analysis of Ag₂O nanoparticles revealed that the diffraction peaks in the XRD pattern matched with Ag₂O of JCPDS file no 42‑0874 (fig. 2). The XRD peaks, 110, 111 are the main indictors of Ag₂O nanoparticle production, and the peaks, 211, 220 corresponded to the plane of face centered cubic crystal structure [16,19].

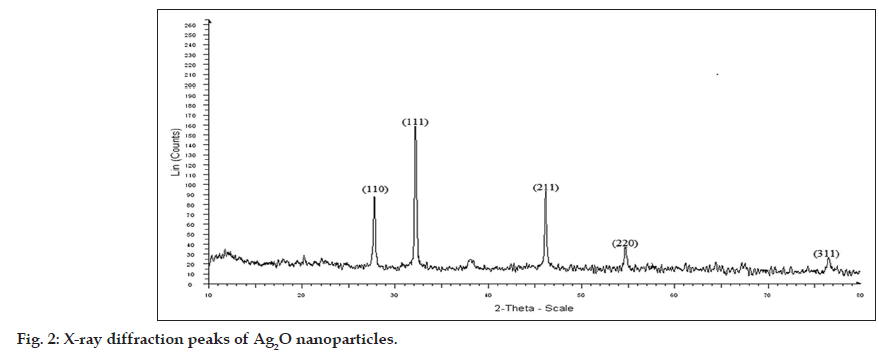

Figure 2: X-ray diffraction peaks of Ag₂O nanoparticles.

The SEM images of these particles indicated the presence of Ag₂O nanoparticles and their enlarged images, respectively (fig. 3). Surprisingly, no aggregation of Ag₂O nanoparticles was observed in the SEM picture as seen in case of several metal nanoparticles wherein aggregation is the major problem. Ag₂O nanoparticles were found to be freely dispersed, which may be the possible reason for their strong antibacterial activity against drug resistant isolates.

Figure 3: Scanning electron microscopic images of Ag₂O nanoparticles.

FTIR analysis indicated the peaks for functional groups OH at 3915 cm^‑1, primary amine group at 3411 cm^‑1, carboxylic acid at 2521 cm^‑1, amide I (C=O stretching) at 1639 cm^‑1 and amide III at 1247 cm^‑1. These indicate that the biosynthesis of Ag₂O nanoparticles may be an enzyme mediated process [20]. The additional peaks, i.e.,1370 cm^‑1, 1110 cm^‑1 are mainly due to the presence of NO₃ ^‑ (Fig. 4) [21].

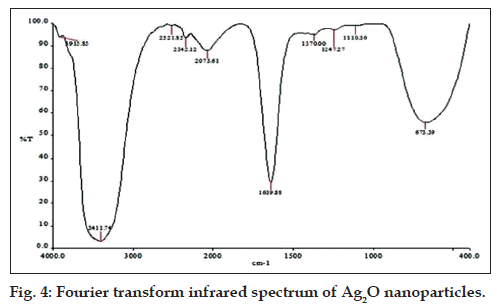

Figure 4: Fourier transform infrared spectrum of Ag₂O nanoparticles.

The Ag‑O interaction was found by observation of a peak appearing at 673 cm^‑1 [22]. Ag₂O nanoparticles showed strong antibacterial activity against MRSA with a zone of inhibition of 17.6±0.5 mm (results of triplicate readings) and this value excludes the well diameter of 6 mm. No zones of inhibition were seen for filtrate, AgNO₃ and a combination of both. These observations are shown in fig. 5. The results indicate that Ag₂O nanoparticles could definitely form a first line of defense against MRSA infections. It would be interesting to study the inhibitory action of these oxide nanoparticles on other pathogenic and infectious bacteria like Mycobacterium tuberculosis.

Figure 5: Antibacterial activity of Ag₂O nanoparticles against MRSA. MRSA is methicillin resistant Staphylococcus aureus.

Acknowledgements

The authors thank VIT University, Vellore, India for providing the facilities for carrying out this research and Narayani Hospital, Vellore, India for providing the clinical samples.

References

1. Xi C, Zhang Y, Marrs CF, Ye W, Simon C, Foxman B, et al. Prevalence of antibiotic resistance in drinking water treatment and distribution systems. Appl Environ Microbiol 2009;75:5714‑8.
2. Marshall BM, Levy SB. Food animals and antimicrobials: Impacts on human health. ClinMicrobiol Rev 2011;24:718‑33.
3. Allahverdiyev AM, Abamor ES, Bagirova M, Rafailovich M.Antimicrobial effects of TiO2 and Ag₂O nanoparticles against drug‑resistant bacteria and leishmania parasites. Future Microbiol 2011;6:933‑94.
4. Rai MK, Deshmukh SD, Ingle AP, Gade AK. Silver nanoparticles: The powerful nanoweapon against multidrug‑resistant bacteria. J ApplMicrobiol 2012;112:841‑52.
5. Lara HH, Ayala‑Nuñez NV, Ixtepan‑Turrent L, Rodriguez‑Padilla C. Mode of antiviral action of silver nanoparticles against HIV ‑1. J Nanobiotechnology 2010;8:1‑10.
6. Wang H, Shen J, Li Y, Wei Z, Cao G, Gai Z, et al.Porous carbon protected magnetite and silver hybrid nanoparticles: Morphological control, recyclable catalysts, and multicolor cell Imaging. ACS Appl Mater Inter 2013;5:9446‑53.
7. He L, Liu Y, Mustapha A, Lin M. Antifungal activity of zinc oxide nanoparticles against Botrytis cinerea and Penicilliumexpansum. Microbiol Res 2011;166:207‑15.
8. Jain N, Bhargava A, Jagadish C, Tarafdar JC, Singh SK, Panwar J. A biomimetic approach towards synthesis of zinc oxide nanoparticles.ApplMicrobiolBiotechnol 2013;97:859‑69.
9. Khan SA, Ahmad A. Fungus mediated synthesis of biomedically important cerium oxide nanoparticles. Mater Res Bull 2013;48:4134‑8.
10. Clinical and Laboratory Standards Institute (CLSI): Protocols for evaluating dehydrated Mueller‑ Hinton Agar; approved standard. 2nd ed. CSLI document M6‑A2.Wayne, PA: Clinical and laboratory standards; 2006.
11. Stefani S, Chung DR, Lindsay JA, Friedrich AW, Kearns AM, Westh H, et al. Methicillin‑resistant Staphylococcus aureus (MRSA): Globalepidemiology and harmonisation of typing methods. Int J Antimicrob Agents 2012;39:273‑82.
12. Ibe C, Onyeagba RA, Charles SU, Onuabuchi IA, Jacobs C, Nduka CJ, et al. Prevalence and antibiotic susceptibility patterns of methicillinresistant Staphylococcus aureus (MRSA) isolated from healthy inhabitants of Uturu rural communities, Abia State, Nigeria. J Nat Sci Res 2013;3:85‑91.
13. Kali A, Stephen S, Umadevi S, Kumar S, Joseph NM, Srirangaraj S. Changing trends in resistance pattern of methicillin resistant Staphylococcus aureus.J ClinDiagn Res 2013;7:1979‑82.
14. Hajipour MJ, Fromm KM, Ashkarran AA, Jimenez de Aberasturi DJ, de Larramendi IR, Rojo T, et al. Antibacterial properties of nanoparticles. Trends Biotechnol 2012;30:499‑512.
15. Sangappa M, Thiagarajan P. Mycobiosynthesis and characterization of silver nanoparticles from Aspergillusniger: A soil fungal isolate. Int JLife ScBt Pharm Res 2012;1:282‑9.
16. Zhou W, Liu H, Wang J, Liu D, Du G, Cui J. Ag₂O/TiO2Nanobeltsheterostructure with enhanced ultraviolet and visible photocatalytic activity. ACS Appl Mater Interfaces 2010;2:2385‑92.
17. Page K, Palgrave RG, Parkin IP, Wilson M, Savin LPS, Chadwick AV. Titania and silver‑titania composite films on glass potent antimicrobial coatings. J Mater Chem 2007;17:95‑104.
18. Webb MR. A continuous spectrophotometric assay for inorganic phosphate and for measuring phosphate release kinetics in biological systems. ProcNatlAcadSci USA 1992;89:4884‑7.
19. Ma J, Chen K. Surface‑modulated magnetization of magnetite microspheres. Phys Status Solidi‑RRL 2012;6:391‑3.
20. Silverstein RM, Webster FX, Kiemle DJ. Infrared Spectroscopy. In: Brennan D, Yee J, editors. Spectrometric identification of organic compounds. 7th ed. India: John Wiley and Sons; 2006. p. 82‑108.
21. Satyanarayana N, Xie X, Rambabu B. Sol‑gel synthesis and characterization of the Ag₂O‑SiO2system. Mater SciEng B 2000;72:7‑12.
22. Tripathi S, Mehrotra GK, DuttPK. Chitosan‑silver oxide nanocompositefilm: Preparation and antimicrobial activity. Bull Mater Sci 2011;34:29‑35.
