*Corresponding Author:
R. Sharma
School of Pharmacy, Devi Ahilya Vishwavidyalaya, Takshashila Campus,Indore-452 001, India
E-mail: rbsm73@yahoo.co.in
Date of Submission 24 December 2014
Date of Revision 23 November 2015
Date of Acceptance 15 February 2016
Indian J Pharm Sci 2016;78(1):54-64

This is an open access article distributed under the terms of the Creative Commons Attribution?NonCommercial?ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non?commercially, as long as the author is credited and the new creations are licensed under the identical terms.


Androgen receptor has been proved to be effective site for treatment of prostate cancer. Molecular modeling methods performed on forty-three ionone based chalcones derivatives as anti-prostate cancer activity. The designed comparative molecular field analysis, comparative similarity indices analysis and hologram quantitative structure activity relationship models produced statistically significant results with the cross-validated correlation coefficients (q2) of 0.527, 0.550 and 0.670, non-cross-validated correlation coefficients (r2) 0.636, 0.671 and 0.746 and predicted r2 (Pred r2) of 0.621, 0.563 and 0.732, respectively. Furthermore, bioactive conformation was explored and explained by docking of the potent compound 25 into the binding site of androgen receptor. Present study deals with comparative molecular field analysis, comparative similarity indices analysis and hologram quantitative structure activity relationship and molecular docking studies of the ionone-based chalcones and their derivatives, obtained from literature. The model obtained could be effectively used as a channeling tool for further structure modification and designing of some novel potent anti-prostate cancer compounds.


Prostate cancer, CoMFA, CoMSIA, HQSAR, MOLCAD docking

Prostate cancer is the second most common cause of cancer mortality in the male population[1]. The current treatment for prostate cancer is a combination of surgery, chemotherapy and radiation[2]. It is a hormone dependent disease and blockade of androgen action is the foundation of most popular therapies[3]. Androgens, acting through the androgen receptor (AR), are required for prostate development and normal prostate function[4]. AR expression is observed in primary prostate cancer and can be detected throughout progression in both hormone-sensitive and hormone refractory cancers[5]. It is obvious that either androgen ablation and/or application of AR antagonists lead to a reduction of tumor volume and an improvement in symptoms in most of the prostate cancer patients[3,6-12].

In recent years, a number of androgen receptor antagonists have appeared[10,13]. Among them, synthesized ionone based chalcones derivatives act as potent antiprostate cancer compounds. Some compounds showed significant cytotoxicity against human prostate cancer cell line androgen-dependent LNCaP as well as antiandrogenic activity was also evaluated in LNCaP cells, transfected with wild-type AR[14]. In addition, the X-ray crystal structures of AR have been determined which provide useful information about the interaction with the residues near the binding site[15].

To date, no report on molecular modeling has been established on ionone based chalcones for anti-prostate cancer. The most popular QSAR methods, comparative molecular field analysis (CoMFA) and comparative similarity indices analysis (CoMSIA) studies incorporate 3D information for the ligands by searching for sites on molecules capable of being modified into better specific ligands while hologram quantitative structure activity relationship (HQSAR)a fingerprints technique offers sub-structural features in datasets of molecules that are important to biological activity[16-18]. Furthermore the molecular docking analysis can offer vivid interaction picture between a ligand and receptor[19-21]. Combined 3D-QSAR and docking study could offer more information to understand the structural features of binding site of protein and the detail of protein–ligand interactions for purposive directing the design of new potential molecules.

Materials and Methods

The molecular sketching and modeling calculations were performed using Sybyl X 2.0. A set of forty three anti-prostate cancer derivatives with reported IC50 μM values were taken from previous literature[14]. These activity values were converted to corresponding pIC50 (ranging from 6.131-4.572) and used as dependent variable in QSAR studies for development of model. The structures of the compounds and their biological data are given in Table 1. In extend to examine the predictive power of the QSAR models, the dataset divided into the test set of 10 molecules (1, 12, 13, 15, 16, 20, 27, 33, 39 and 43) and remaining in training set were selected by diversity method in such a way that the structural diversity and wide range of biological activity in the data set were added. The structures of compounds used in training and test set shown in Table 1.

The molecular geometry of molecule was minimized by Tripos molecular mechanics force field with 0.01 kcal/molÅ energy, Gasteiger-Huckel partial atomic charges were calculated and energy minimizations were performed using the Powell method 1000 iterations. The accuracy of the prediction power based on QSAR model docking and reliability depend on contour maps according to alignment rule[22,23]. In order to obtain the best possible 3D-QSAR statistical model all compounds were aligned using a 1-phenylpenta-1,4-dien-3-one nucleus, of compound 25 using as the template (fig. 1a) for the alignment, because it is one of the most active compounds in dataset. An automatic alignment was carried out on dataset by using database alignment module and aligned molecules are shown in fig.1b.

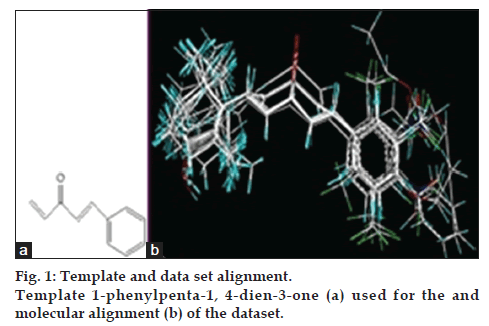

Fig. 1: Template and data set alignment. Template 1-phenylpenta-1, 4-dien-3-one (a) used for the and molecular alignment (b) of the dataset.

Comparative molecular field analysis

The standard CoMFA and CoMSIA procedure applied on Sybyl X 2.0. In the CoMFA analysis, the steric (S) and electrostatic (E) fields were calculated at each lattice with a grid size of 2 Å using a sp3 hybridized carbon atom with +1 charge serving as a probe atom and default energy cutoff of 30 kcal/mol. The Gasteiger, Gasteiger–Hückel, MMFF, Del-Re and Pullman charges were used to generate the partial charges on the studied molecules and explored models[24].

Comparative molecular similarity index analysis

The CoMSIA descriptors, steric (S), electrostatic (E), hydrophobic (H), hydrogen bond donor (D), and hydrogen bond acceptor (A), were generated using a sp3 hybridized carbon atomwith +1 charge with the attenuation factor 0.3 and a van der Waals radius of 1.4 Å; CoMSIA similarity indices (AF.K) between a molecule j and atoms i at a grid point were calculated by using Eqn (1) as follows


where q represents the grid point, i is the summation index, over all atoms of the molecule j under computation, Wik is the actual value of the physicochemical property k of atom i, and Wprobe.k is the value of the probe atom[25-27].

Hologram quantitative structure–activity relationship

Hologram QSAR (HQSAR) is an emerging QSAR technique. With the transformation o27f the chemical representation of a molecule into its corresponding molecular hologram, this method requires no explicit 3D information for the ligands. In this study, the HQSAR method with its default parameters compiled in Sybyl X 2.0 was performed by the following procedure: At first, a predefined set of rules was used to has a molecule into a molecular fingerprint that encoded the frequency of occurrence of various molecular fragment types; then, the molecular fingerprint was cut into strings at a fixed interval as specified by a hologram length (HL) parameter; and at last, all of the generated strings were hashed into a fixed length array. HQSAR does not require 3D alignment for model generation and is sensitive to three parameters concerning hologram generation, including hologram length, fragment size and fragment distinction. The distinct fragments are atoms (A), bonds (B), connections (C), hydrogen atoms (H), chirality (Ch), and donor and acceptor (DA). Initially, various models were developed by using the default fragment size of 4–7, then based on the different fragment distinctions determined by the first step, the models were developed using different fragment sizes[11]. The better statistical results were obtained in fragment size 4–7 and A/B/C distinct. The A/B/C distinct fragment was applied successfully to different fragment sizes[28,29].

PLS calculations and validations

The partial least squares (PLS) methodology analysis was carried out to determine the optimal number of components[26]. The cross-validated coefficient q2, as an internal statistical index of predictive power, was subsequently obtained. In order to test the real predictive ability of the best model derived by the training set, biological activities of the test set were predicted. The quality of the external prediction was documented using the standard deviation of error prediction (R2). Q2 and R2 are calculated according to the formula[30].


Where Ymean means average activity value of the entire data set, while Yobs, Ypred and YCVpred represent observed, predicted and cross-validated activity values, respectively[31].

The CoMFA/CoMSIA results were graphically interpreted by field contribution maps using field type “stdev*coeff”, and the contour levels were set to default values.

Predicted r2

To validate the derived CoMFA, CoMSIA and HQSAR models, biological activities of an external test set of ten compounds were predicted using models derived from the training set. The predictive r2 value is based on only the test set molecules, which may be defined as shown in Eqn, r2pred=SD-PRESS/SD. Where SD is the sum of squared deviation between the biological activities of the test set molecules to the mean activity of the training set molecules, while PRESS is the sum of squared deviations between the observed and the predicted activities of the test molecules. The predictive ability of the models is expressed by the predicted r2 (Predr2) value, which is analogous to the cross-validated r2 value (q2), as given in Table 2[30,31].

Model acceptability criteria

According to Alexander Tropsha and Alexander Golbraikh, a predictive model must satisfy a set of statistical criteria. A QSAR model was considered predictive if the following conditions are satisfied (i) q2>0.50; (ii) r2>0.60[32,33].

Molecular docking

To determine the possible binding interaction, conformations and to suggest more insight into the understanding of the binding affinity of androgen receptor antagonists, molecular docking analysis was carried out using the Surflex Dock in Sybyl X 2.0. The crystal structure of AR was retrieved from RCSB Protein Data Bank (PDB entry code: 1T65). All attached ligands and water molecules have been removed at first, the polar hydrogen atoms and AMBER7FF99 charges were added. Protomol, a computational representation of the intended inhibitor 5-α dihydrotestosterone (DHT) binding site, is used to guide molecular docking and predicted binding mode of AR antagonists in the antagonistic model[15]. The protomol bloat value was set as 1 and the protomol threshold value as 0.5 when a reasonable binding pocket was obtained. Other parameters are established by default in software[34,35]. To visualize the binding affinity mode between the antiprostate cancer derivatives and protomol site, the MOLCAD programme was employed to color coded display of electrostatic potential (EP), lipophilic potential (LP) and cavity depth (CD) to validate QSAR models.

Results and Discussion

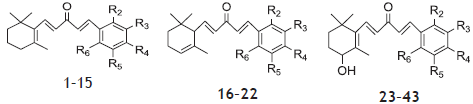

The β-ionone-based chalcones 1–15, α-ionone-based chalcones 16–22 and 4-hydroxy-β-ionone-based chalcones 23–43 showed considerable cytotoxicity in LNCaP cell line as antiprostate activity (Table 1). Compound 25 was most potent; 5, 11, 34, 39 and 40 were moderate and 9, 17, 21 and 30 were least active ionone based chalcone compounds compared to parent analogue 25 which have electron-withdrawing group at the meta position. On displacement of -CF3 from the meta position to the para position (6, 18 and 26) or elimination of -CF3 with –NO2 (11, 21 and 40), –F (9 and 30), electron donating group -CH3 (14, 22 and 38) have substantially weakened the cytotoxicity in prostate cancer cells in comparison to compound 25.

Using the series of ionone based chalcones derivatives possessing antiprostate cancer activity, 3D-QSAR models were derived. The CoMFA and CoMSIA models were developed using common substructure-based based alignment scheme. During 3D-QSAR analyses, we selected 10 compounds as the testing set for model validation (1, 12, 13, 15, 16, 20, 27, 33, 39 and 43) and remaining in training set were selected by diversity method in such a way that the structural diversity and wide range of biological activity in the data set were added. The structures of compounds used in training and test set shown in Table 1.

Compoundnumber R2 R3 R4 R5 R6 IC50 (µM) pIC50
1* H OCH3 OH H H 9.5 5.022
2 H OH OCH3 H H 9.9 5.004
3 H OCH3 OCH3 H H 9.5 5.022
4 H OC2H5 OC2H5 H H 8.2 5.086
5 H CF3 H H H 2.8 5.553
6 H H CF3 H H 9.1 5.041
7 H CF3 H CF3 H 8.7 5.060
8 F H H H H 10.70 4.971
9 H F H H H 12.90 4.889
10 H H F H H 7.3 5.137
11 H NO2 H H H 2.7 5.569
12* H NO2 OH H H 26.80 4.572
13* H NO2 H H Cl 4.2 5.377
14 H CH3 H H H 17.80 4.750
15* H H Ph H H 14.80 4.830
16* CF3 H H H H 22.60 4.646
17 H CF3 H H H 1.0 6.000
18 H H CF3 H H 4.7 5.328
19 F H H H H 1.6 5.796
20* F H H CF3 H 1.7 5.770
21 H NO2 H H H 3.3 5.481
22 H CH3 H H H 12.2 4.914
23 H H H H H 5.8 5.237
24 CF3 H H H H 2.9 5.538
25 H CF3 H H H 0.74 6.131
26 H H CF3 H H 3.0 5.523
27* CF3 H H CF3 H 3.2 5.495
28 H CF3 H CF3 H 2.1 5.678
29 F H H H H 2.9 5.538
30 H F H H H 4.4 5.357
31 H H F H H 3.90 5.400
32 H CF3 F H H 2.2 5.658
33* H CF3 H F H 1.1 5.959
34 F CF3 H H H 1.1 5.953
35 F H CF3 H H 2.6 5.585
36 F H H CF3 H 1.7 5.770
37 F H H H CF3 4.9 5.310
38 H CH3 H H H 4.1 5.387
39* H CN H H H 1.8 5.745
40 H NO2 H H H 2.0 5.699
41 H H NO2 H H 4.2 5.377
42 H OCH3 H H H 4.9 5.310
43* H CH (OET)2 H H H 1.8 5.745

Table 1: Structural Features And Inhibitory Activity Values

The results of the PLS statistical analyses for the alignment approaches are summarized in Table 2. The CoMFA statistical model using steric and electrostatics contribution fields were 30.1% and 69.9% respectively, gave a cross-validated correlation coefficient (q2) of 0.527, non-crossvalidated correlation coefficient (r2) of 0.636, F value of 34.902, low standard error estimate (SEE) of 0.236 with an optimum number of components 2 and Pred r2 of 0.621 was obtained. The predicted activities for the inhibitors along with the experimental activities and residual values are listed in Table 3. The scatter plot for the actual pIC50 versus predicted pIC50 values for the training and test sets is depicted in fig. 2a. Activities predicted by CoMFA model are in agreement with the experimental data. PLS analysis and predicted activities suggest that a reliable CoMFA model was developed.

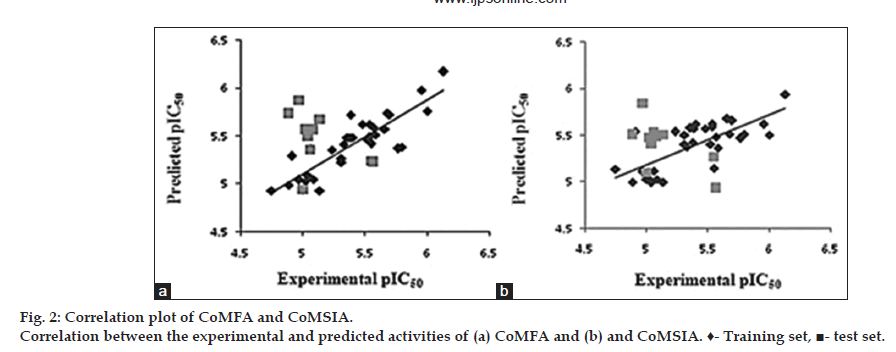

Fig. 2: Correlation plot of CoMFA and CoMSIA. Correlation between the experimental and predicted activities of (a) CoMFA and (b) and CoMSIA. ♦- Training set, ?- test set.

PLS statistics   CoMFA   CoMSIA   Field contribution CoMFA   CoMSIA
q2(cross?validated) 0.527 0.550 Steric 0.301 0.036
r2 0.636 0.671 Electrostatic 0.699 0.437
F values 34.902 26.581 Hydrophobic ? 0.090
SEEa 0.236 0.257 HB donor ? 0.296
Ncb 2 2 HB acceptor ? 0.141
Predicted r2 0.621 0.563

Table 2: Partial Least Squares Statistical Analysis Of Comfa And Comsia Model

Compound number   CoMFA   CoMSIA     HQSAR
Predicted pIC50 Residual Predicted pIC50 Residual Predicted pIC50 Residual
1* 4.939 0.083 5.095 −0.073 4.871 0.083
2 4.936 0.068 5.026 −0.022 4.878 0.068
3 5.024 −0.002 5.026 −0.004 5.016 −0.002
4 5.049 0.037 5.026 0.060 5.107 0.037
5 5.419 0.134 5.146 0.407 5.718 0.134
6 5.086 −0.045 4.993 0.048 5.234 −0.045
7 5.358 −0.298 5.119 −0.059 5.251 −0.298
8 5.041 −0.07 5.110 −0.139 5.095 −0.070
9 4.989 −0.100 5.000 −0.111 5.058 −0.100
10 4.930 0.207 4.994 0.143 5.418 0.207
11 5.592 −0.023 5.485 0.084 4.817 −0.023
12* 5.566 −0.994 5.471 −0.899 5.428 −0.994
13* 5.567 −0.19 5.481 −0.104 4.984 −0.19
14 4.926 −0.176 5.139 −0.389 4.775 −0.176
15* 5.235 −0.405 5.267 −0.437 4.661 −0.405
16* 5.498 −0.852 5.401 −0.755 5.718 −0.852
17 5.761 0.239 5.502 0.498 5.273 0.239
18 5.416 −0.088 5.372 −0.044 5.251 −0.088
19 5.385 0.411 5.510 0.286 5.769 0.411
20* 5.355 0.415 5.531 0.239 5.418 0.415
21 5.619 −0.138 5.572 −0.091 4.984 −0.138
22 5.289 −0.375 5.541 −0.627 5.464 −0.375
23 5.356 −0.119 5.537 −0.300 5.469 −0.119
24 5.622 −0.084 5.617 −0.079 6.235 −0.084
25 6.172 −0.041 5.937 0.194 5.510 −0.041
26 5.460 0.063 5.405 0.118 5.402 0.063
27* 5.872 −0.377 5.838 −0.343 5.471 −0.377
28 5.739 −0.061 5.513 0.165 5.488 −0.061
29 5.487 0.051 5.592 −0.054 5.332 0.051
30 5.485 −0.128 5.578 −0.221 5.295 −0.128
31 5.480 −0.080 5.625 −0.225 5.679 −0.080
32 5.572 0.086 5.677 −0.019 5.818 0.086
33* 5.735 0.224 5.509 0.450 5.886 0.224
34 5.978 −0.025 5.617 0.336 5.531 −0.025
35 5.511 0.074 5.367 0.218 6.006 0.074
36 5.370 0.400 5.469 0.301 5.471 0.400
37 5.260 0.050 5.505 −0.195 5.221 0.050
38 5.720 −0.333 5.573 −0.186 5.785 −0.333
39* 5.671 0.074 5.504 0.241 5.655 0.074
40 5.720 −0.021 5.657 0.042 5.503 −0.021
41 5.486 −0.109 5.426 −0.049 5.271 −0.109
42 5.223 0.087 5.406 −0.096 5.713 0.087
43* 5.231 0.514 4.933 0.812 5.273 0.514

Table 3: Predicted And Residual Value Of Comfa, Comsia And Hqsar Relationship Model

In CoMSIA analysis, hydrophobic, hydrogen-bond donor and hydrogen-bond acceptor fields in addition to steric and electrostatic fields were calculated. A combination of various fields was employed to obtain the optimum result. Using compounds of the training set and a combination of steric, electrostatic and hydrogen-bond acceptor fields; a model with cross-validated correlation coefficient (q2) of 0.550, non-cross-validated correlation coefficient (r2) of 0.671, F value of 26.581, low standard error estimate (SEE) of 0.257 with an optimized component of 2 and Pred r2 of 0.563 was obtained. The field contributions of steric, electrostatic hydrophobic, hydrogen bond donor and hydrogen bond acceptor fields were 0.036, 0.437, 0.090, 0.296 and 0.141, respectively.

The statistical parameters are summarized in Table 2. The predicted and experimental activities for inhibitors with their residues are listed in Table 3 and the scatter plot for the actual pIC50 versus predicted pIC50 values for the training and test sets is displayed in fig. 2b. The predicted activities are in accordance with the experimental data, indicating that a reliable CoMSIA model was developed.

3D coefficient contour maps were generated to visualize the results of the 3D-QSAR models. The CoMFA and CoMSIA results were graphically interpreted by the field contribution maps using the STDEV*COEFF field type. The contour maps of CoMFA (steric and electrostatic), and CoMSIA (steric, electrostatic, hydrophobic, hydrogen-bond donor and acceptor fields) are shown in figs. 3 and 4, respectively. Compound 25 was labelled and displayed in the map in aid of visualization.

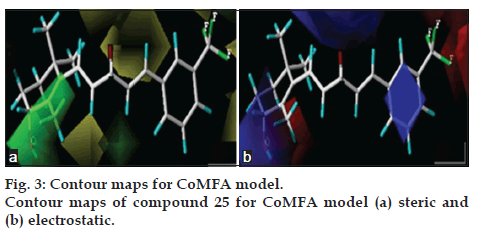

Fig. 3: Contour maps for CoMFA model. Contour maps of compound 25 for CoMFA model (a) steric and (b) electrostatic.

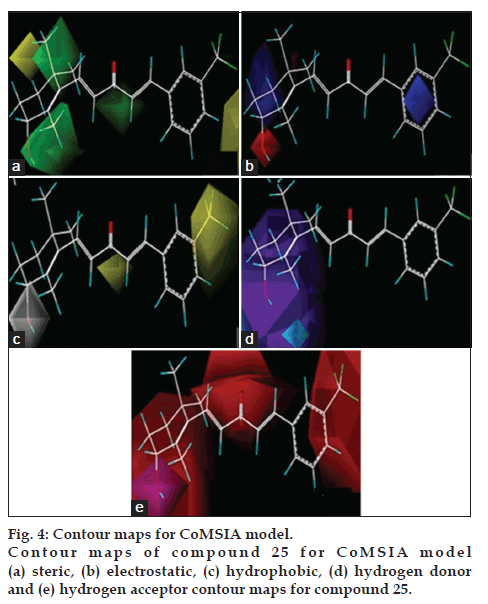

Fig. 4: Contour maps for CoMSIA model. Contour maps of compound 25 for CoMSIA model (a) steric, (b) electrostatic, (c) hydrophobic, (d) hydrogen donor and (e) hydrogen acceptor contour maps for compound 25.

In fig. 3a, the contour map of the steric field of CoMFA model, a large green contour polyhedron located around the hydroxy group suggested that appropriately bulky groups had favourable steric interactions. This may be the reason why compounds with –CF3 substituent (5, 7, 25, 28, 32 and 34) in R3 region showed potent antiprostate cancer activity than molecules with and without any substituent at this particular position R3. Two yellow colour contours indicated that bulky groups were steric unfavourable in this direction as steric clash might occur. A small green contour beside ring was consistent with the light increase in activity.

The electrostatic contour map of CoMFA model can be seen clearly from the fig. 3b. The blue contours indicate that electropositive substituents would increase the AR antagonist activity with protein, while red colour indicates that they should be the electron rich groups decreased. Since the red contours were found near the hydroxy group of compound 25, which is an electron rich functionality and thus exhibit high AR antprostate cancer activity.

The steric and electrostatic contours of the CoMSIA model were similar to the CoMFA contours fig. 4. However, in the steric field there was a green colour and blue colour is favoured while the yellow and red coloured is disfavoured near the functional group. Yellow colour below the phenyl ring shows the requirement of less bulky substituents, while near the cyclic ring green coloured preferred for bulky substituents (fig. 4a). For electrostatic Blue coloured near the phenyl ring shows that electron donating group is required at that position. This contour map was similar with CoMFA model. As for the electrostatic field, the main blue and red polyhedrons were similar with that in CoMFA model (fig. 4b).

In the hydrophobic interaction yellow colour shows that the phenyl ring is active and contributing in the lipophilicity, while white coloured near unsaturated cyclic ring is disfavouring lipophilicity (fig 4c). In the hydrogen bond donor interaction analysis cyan and purple coloured shows favouring and disfavouring nature with respect to biological activity near unsaturated cyclic ring (fig 4d). In the hydrogen bond acceptor interaction study red coloured disfavoured the acceptor group attached with unsaturated ring and contributing less in the biological activity while magenta colour near unsaturated cyclic ring favours biological activity fig. 4e.

HQSAR analyses were executed by screening the 12 default series of hologram length values ranging from 53–401 bins, initially using the fragment size default (4–7) on different distinct fragments as A/B/C, A/B/H, A/B/Ch, A/B/DA, A/B/C/H, A/B/C/ Ch, A/B/C/DA, A/B/H/Ch, A/B/H/DA, A/B/Ch/DA, A/B/C/H/DA, A/B/C/H/DA, A/B/C/H/DA and A/C/H/ Ch/DA. The patterns of fragment count from the training set inhibitors were related to the experimental biological activity using PLS analysis. The best statistical parameter was obtained from PLS analyses with A/B/C. The influence of fragment size is of fundamental importance in the generation of HQSAR models, as this parameter controls the minimum and maximum lengths of fragments to be encoded in the hologram fingerprint.

The HQSAR statistical model generated using default fragment size (4-7) with fragment distinct (A/B/C) gave a cross-validated correlation coefficient (q2) of 0.670, non-cross-validated correlation coefficient (r2) of 0.746, low standard error estimate (SEE) of 0.203 with an optimized component of 4, and Pred r2 of 0.732 was obtained (Table 4). Thus, the HQSAR model obtained here was reliable. The predictive and residual pIC50 values of data based on the HQSAR model are listed in Table 3. The scatter plot for the actual pIC50 versus predicted pIC50 values for the training and test sets is displayed in fig. 5.

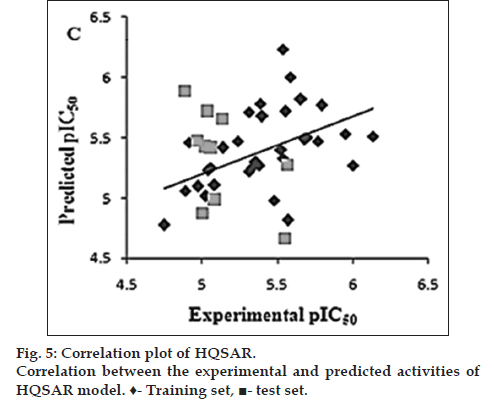

Fig. 5: Correlation plot of HQSAR. Correlation between the experimental and predicted activities of HQSAR model. ♦- Training set, ?- test set.

Model Fragment size Fragment distinct q2 r2 Predicted r2 SEE HL n
1 4–7 A/B/C 0.670 0.746 0.732 0.203 199 4

Table 4: Results Of Hologram Quantitative Structure Activity Relationship Analyses On The Key Statistical Parameters Using Fragment Size Default

HQSAR graphically provides information on the atomic or fragment contributions to the activities as different colours. The colours at the green end (yellow, green-blue and green) reflect positive contribution, colours at the red end of the spectrum (red, red-orange and orange) reflect negative contribution and neutral contributions are coloured in white. The most active molecular fragments of compound 25, most potent antiprostate cancer compound of the data set are shown in fig. 6. According to the contribution maps, the molecular fragments corresponding to the unsaturated ring are strongly related to biological affinity at C1, C2 and C6 (coloured in green and yellow).

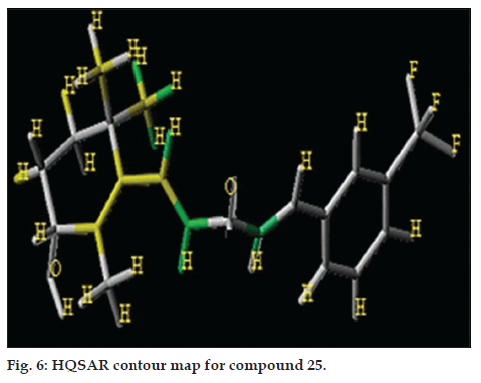

Fig. 6: HQSAR contour map for compound 25.

The regions that negatively contribute to biological activity include the methyl group attached to phenyl ring at R3, and also found that the electron-donating groups reduces activity and could be replaced by electron-withdrawing substituents with different structural and physicochemical features with the aim to increase the affinity and potency of the compounds studied in this work.

The predictive powers of the CoMFA and CoMSIA models were validated by the external test set of 14 compounds. The predicted pIC50 values of the test compounds are in agreement with the experimental data within an acceptable error range. The r2 pred values were calculated to be 0.621 and 0.563 for CoMFA and CoMSIA models, respectively. A test set of 10 compounds excluded from the construction of 3D-QSAR models were used to further validate the predictive ability of the obtained models. The correlation coefficient r2 (r2pred) of the CoMFA and CoMSIA models were 0.621 and 0.563, respectively indicating a good predictive ability. External validation using Tropsha’s validation methods was performed to further assess the predictive ability of the CoMFA and CoMSIA models[32,33]. This validation was performed using the 10 test set compounds not included in the development of the model. CoMFA and CoMSIA models satisfied the following conditions (i) q2=0.53>0.50; (ii) r2=0.64>0.60 and (i) q2=0.55>0.50; (ii) r2=0.67>0.60.

The residual value obtained from observed and predicted activities of the training and test set by the best CoMFA (SE), CoMSIA (SEHDA) and HQSAR model (A/B/C). The connected HQSAR model showed good external predictive ability in comparison with the CoMFA model and the CoMSIA models for the external test set. These statistical results for the test set molecules provide powerful verification that the CoMFA, CoMSIA and HQSAR models so derived are able to predict well the anti prostate activity of structurally varied data set. The validation results indicate that the derived 3D-QSAR models could be used to predict the inhibitory activities and to design ionone-based chalcones in LNCaP cell line as antiprostate activity.

Docking was employed to explore the binding mode between these ionone based chalcone derivatives and the androgen receptor protein inhibitor 5-α dihydrotestosterone (protomol) site, to examine the stability of QSAR models which were previously generated.

We selected the most potent compound 25 in the docking experiment to perform the deeper docking analysis. According to the best docking conformation of the most potent compound 25 the –CF3 at R3 established key interaction with the THR 877, fluorine atom acted as a hydrogen bond acceptor and forming H-bonds with the –H atom of THR 877. The THR 877 amino acid was required for the growth of androgen receptor. The required THR 877 amino acid inhibition was achieved with the –NH2 functional group of the ionone based chalcones derivatives. The –OH group appeared too involved in a net of both hydrogen bond acceptor and hydrogen bond donor interaction. The oxy of -OH formed hydrogen donor interaction with NH2 of ARG 752; -OH of H atom created hydrogen bond donor interaction with oxy of GLN 711 amino acid and dock score was found to be -3.183 kcal/mol (fig. 7a).

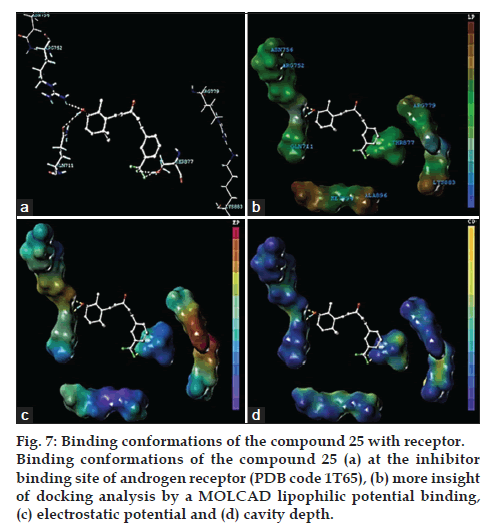

Fig. 7: Binding conformations of the compound 25 with receptor. Binding conformations of the compound 25 (a) at the inhibitor binding site of androgen receptor (PDB code 1T65), (b) more insight of docking analysis by a MOLCAD lipophilic potential binding, (c) electrostatic potential and (d) cavity depth.

To visualize the secondary structure element of the binding, the MOLCAD was applied with inhibitor site. In most active compound 25, aromatic ring present on the slight electrostatic potential, in highly lipophilic region and in deeper cavity. The R3 portion suspend on the slight electrostatic potential region, slight lipophilic region and upper region of cavity depth. The MOLCAD surface of inhibitor 5-α dihydrotestosterone (DHT) binding site was created as protomol and map displayed with electrostatic potential (EP) to examine and validate the CoMFA electrostatic contour map.

The MOLCAD surface of the DHT was also created and displayed with lipophilic potential (LP) to examine the CoMSIA hydrophobic contour map (fig. 7b). The ramp for LP displays from red (lipophilic area) to blue (hydrophilic area) color to examine CoMSIA contours map. The R3 side chain and aliphatic chain was in green and R3 aromatic phenyl ring in red area, which suggested that slight hydrophobic and more hydrophobic groups respectively would increase potency.

The EP contour map binding affinity confirmed and validates the CoMFA model fig. 7c. The docking of compound 25 into the DHT site; the red color shows the electron-withdrawing area and purple color shows the electron-donating area. The observations taken from fig. 7 significantly related those of the CoMFA electrostatic contour map. In detail, the R3 region were in the blue region, which suggested that an electron-withdrawing substituent would be favorable; the R4, R5 position was in a red region, which indicated that electron-donating groups may enhance potency.

The color ramp for cavity depth ranges from orange (highest cavity depth) to blue (lowest cavity depth). The R3 (-CF3) side chain was in the brown color, which recommended that part in deeper cavity region groups would increase potency; the phenyl, -C=O and C1 of unsaturated ring was in a blue color which demonstrated the region of upper cavity (fig. 7d).

The important key finding obtained from CoMFA, CoMSIA, HQSAR and docking interaction analysis promotes us to suggest some novel antiprostate cancer compounds. The molecular modelling analysis provided adequate information regarding the structural requirements for enhanced antiprostate activity. The CoMFA, CoMSIA and HQSAR contours contribution maps guide us to optimize the accessible scaffold. Furthermore docking estimated the binding affinity of the most active compound. Based on the molecular modelling recommendation in detail, less bulky, electron withdrawing, electron donating, hydrogen bond donor and acceptor groups at the R2 position enhance activity; bulky, electron-withdrawing and hydrophobic substituent are favored at R3; and minor, fewer bulky substituents at R4, R5 and R6 assistance potency through CoMFA and CoMSIA. Moreover HQSAR advise that unsaturated and linked aliphatic side chain showed positive contribution. The group -CF3, and -OH were essential for binding to the inhibitors site cavity (protomol). The structureactivity relationship explored by this study is presented in fig. 8. Based on this suggestion, we designed a series of novel antiprostate molecules. These designed molecules were aligned in the database by align database module, and their pIC50 values were predicted by the previously established CoMFA, CoMSIA, HQSAR models and docking scores.

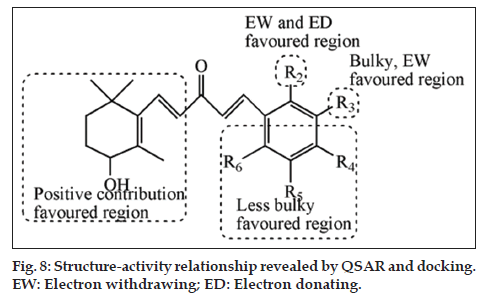

Fig. 8: Structure-activity relationship revealed by QSAR and docking. EW: Electron withdrawing; ED: Electron donating.

According to the predictions, twelve structures of newly designed derivatives, predicted pIC50 values their and dock score are shown in Table 5, most of the designed derivatives showed better potencies but compounds S6 and S9, which were the most active derivatives in the database and verified in comparison to compound 25. These results confirm the structureactivity relationship obtained from QSAR and docking studies, we thought that the designed molecules testified by us impart antiprostate cancer and remains leads for forthcoming research.

Serial number R2 CoMFA CoMSIA HQSAR Docking score
S1 OCH3 5.433 5.232 3.952 −0.131
S2 OH 5.401 5.246 3.815 −1.566
S3 C2H5 5.437 5.226 4.12 −5.890
S4 OC2H5 5.437 5.216 4.01 −3.7752
S5 CF3 5.516 5.406 4.817 −1.744
S6 H 5.615 5.326 4.992 3.283
S7 F 5.442 5.300 4.866 −1.039
S8 NO2 5.454 5.213 4.340 −5.610
S9 CH3 5.604 5.324 4.937 3.091
S10 OC3H7 5.399 5.177 4.165 −1.259
S11 Cl 5.44 5.279 4.223 0.564
S12 Br 5.432 5.267 4.175 2.800

Table 5: Predicted PIC50 values and docking scores of newly designed antiprostate Derivatives

In the present study, QSAR analysis and docking have been applied to a set of ionone based chalcones derivatives. The models generated have confirmed to be statistically precise with higher q2 and r2. Molecular modeling methods were performed to understand the structural features responsible for the affinity of the ligands for AR. The bulky, negatively charged substituents and H-bond acceptors at R2, R3, R4, R5 and R6 position would increase the activity; the substitution at the phenyl position is very important for improved activity. The hydrophobic substituent at the position of the linker would increase the activity. Cylic rings at the both sides of ionone based chalcones derivatives are required for the cytotoxic of AR antagonist. Here, the hydrophobic property of phenyl ring plays a key role in the anti-prostate cancer activities. These results provided important clues that were used to design twelve novels anti-prostate cancer compounds with high predicted activity.


The authors are thankful to the Head, School of Pharmacy for providing facilities.

Financial support and sponsorship

Naveen Dhingra is thankful for providing INSPIRE Fellowship, DST, New Delhi (Ref No. IF110047) and Swaraj Patil for UGC fellowship.

Conflicts of interest

There are no conflicts of interest.
