*Corresponding Author:
Lourdes Rodríguez-Fragoso
Facultad de Farmacia, Universidad Autónoma del Estado de Morelos, Cuernavaca 62210, Mexico
E-mail: mrodriguezf@uaem.mx
Date of Submission 11 January 2019
Date of Revision 14 May 2019
Date of Acceptance 05 August 2019
Indian J Pharm Sci 2019;81(5):876-884

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


To investigate nanoparticles disposition and elimination, dextrin-coated cadmium sulphide nanoparticles were administered intraperitoneally as a single or multiple doses to rats. Nanoparticles distribution in liver, kidney, heart, lung, muscle, testis, brain, spleen and thymus was investigated up to 90 d after daily administration for 30, 60 and 90 d. Tissue distribution was measured in homogenates as fluorescence intensity by spectrophotometry. Tissue concentrations with time for dextrin-coated cadmium sulphide nanoparticles were plotted and some pharmacokinetics parameters were obtained. Serum biochemical parameters were determined using spectrophotometry. Nanoparticles in tissue samples were visualised under an epifluorescence microscope and histological analysis was also performed. After a single administration in rats, nanoparticles were distributed quickly with a Cmax occurring in the first 72 h in all tissues analysed. The elimination t½ of nanoparticles was less than 12 d in kidney, spleen, lung and brain; however, it was more than 40 d in muscle, liver and testicle with a mean residence time greater than 50 days. Alterations in glucose, triglycerides and alkaline phosphatase, were observed since the first day and continued throughout the 90 d post dose. Biocompatibility study showed that dextrin-coated cadmium sulphide nanoparticles only produced degenerative alterations in testis and chronic inflammation in lungs after continuous administration during the 90 days. In conclusion, dextrin-coated cadmium sulphide nanoparticles are widely distributed in tissues and have a very long residence time without producing significant toxicity. The multi-dose study showed that these produce selective toxicity after administration for a long periods of time. These characteristics make the dextrin-coated cadmium sulphide nanoparticles ideal for theranostic purposes.


Disposition, biocompatibility, nanoparticles, pharmacokinetic

The development of nanomaterials has increased dramatically during the past decade[1]. However, currently only very few studies focus on the disposition of nanomaterials in vivo as well as the time taken to completely eliminate them in the organisms[2,3]. Researchers intended to study nanomaterial biocompatibility need to understand what happens to these after administered to living organisms. Predicting disposition of a nanomaterial is very important in the process of developing new nanomaterials for theranostic use in human beings[4]. All preclinical studies on nanomaterials should require a pharmacokinetic study in order to predict and understand the disposition once the nanomaterial enters the organism, when it is finally completely eliminated, and how safe its use is overall. The fate and disposition of any nanomaterial should be based on its properties, site of administration, formulation, and dosage[5]. For this reason, it is necessary to explore biocompatibility, tolerance and characterize the pharmacokinetic profile of each synthetized nanomaterial.

An important parameter to consider in pharmacokinetic studies is the estimated mean time a drug resides in the body within specific tissues; the mean residence time (MRT) can help assess the extent of its efficacy and tolerability[6]. For nanomaterials, this parameter is also quite essential because the residence time specifies how long it stays in the organism and the estimated time period during which it might identify a pathogenic microorganism, tumor cells or molecular markers for diagnostic purposes, as well as for delivering drugs or genes in therapeutic treatments. Several studies have demonstrated that nanomaterials are delivered to several organs and that these even cross biological barriers[7-10]. In addition to this, these have selectivity for specific tissues and remain within for long periods of time, which are ideal properties if they are used to carry drugs, antibodies or vaccines. Few studies reported analysis of nanoparticle disposition and how long these remained inside the tissues before completely eliminated after a single dose administration[11].

These past few years, our group has synthesized and carried out in vitro and in vivo studies of cadmium sulphide nanoparticles coated with sugar polymers, and found that these were biocompatible and well tolerated in rodents[12,13]. Our in vitro studies showed dextrincoated cadmium sulphide (CS-DX) nanoparticles were efficiently delivered at the cellular and subcellular levels[14]; additional studies have confirmed effective tissue distribution and safety in rodents after multiple administrations over a short period of time. Given the great tolerability observed in previous studies using experimental animals, those findings suggested that nanoparticles would be rapidly eliminated without producing any biochemical alterations.

The characteristics that have been shown to have the CS-DX nanoparticles suggest that they have the potential to be used for imaging for research and clinical purposes. However, in order to use them with this last purpose it is necessary to know their disposition and their elimination time and also to identify their side effects after multiple doses. Therefore, the present study had two goals. First goal was to characterize CS-DX nanoparticles’ disposition after a single dose administered to rats and detailed analysis of a series of pharmacokinetic parameters, such as the Cmax, Tmax, AUC0-t, AUC0-∞, Ke and MRT, along with biochemical parameters while nanoparticles remained in the rats. Rats were observed for a period of 90 d after a single dose administration in order to investigate when these were completely eliminated. The second goal was to address the biocompatibility of CS-DX nanoparticles after daily administration for 30, 60 and 90 d. Biochemical parameters and morphology of certain tissues were studied.

Material and Methods

All chemicals for the preparation of nanomaterial were purchased from Sigma-Aldrich unless otherwise stated. Commercial diagnostic kits to estimate alanine aminotransferase (ALT), aspartate aminotransferase (AST), alkaline phosphatase (ALP), glucose, cholesterol and triglycerides (TG), urea, creatinine and uric acid were purchased from ELITech, Mexico. Male Wistar rats weighing 110-130 g were obtained by Envigo S.A. (Mexico). All rats were kept in a controlled environment and allowed food (Standard Purina Chow Diet, Mexico) and water ad libitum. The rats were fasted for 12 h prior to treatment. Experimental protocols were designed in accordance with the International Guides for practice in animals[15].

CS-DX nanoparticles:

Cadmium sulphide nanoparticles using dextrin as a capping agent was prepared according to the process described previously[13]. Briefly, cadmium sulphide nanoparticles were prepared in aqueous solution. 0.02 M CdCl2), 0.5 M KOH, 0.5 M NH4NO3, and 0.2 M CS(NH2)2 were added and the mixture was stirred and heated at 80°. Similar conditions were applied to dextrin with 3 % concentration at pH 11. The solution immediately turned a light yellow color, indicating the initial formation of a CS nanoparticle. The temperature of the mixture was kept at 75° and maintained at this temperature for 60 min. The nanoparticles were separated by centrifugation at 6000 rpm during 60 min, and deposited in solid form from the solution; finally, they were washed several times with deionized water and dried at 40° for 24 h.

CS-DX nanoparticle disposition analysis:

Rats were randomly divided into two groups, control group (n=5) animals were treated with a single ip dose of phosphate buffered saline (PBS, 200 μl) and the CSDX nanoparticle group (n=65) was treated with a single ip dose of 100 μg/kg CS-DX nanoparticles prepared in 200 μl of PBS. Animals were sacrificed 3, 6, 12, 18, 24, 48, 72, 150, 300, 600, 960, 1440 and 2160 h (90 d) after administration. Five animals were used per time point. A post-mortem macroscopic examination was carried out to search for macroscopic alterations. Tissues were collected and preserved in 10 % neutral-buffered formalin fixative after time samples were processed for a histopathological inspection. Serum samples were also obtained and maintained at –75° for biochemical analysis. Nanoparticle disposition and pharmacokinetic analysis employed fluorescence quantitative analysis. Liver, kidney, lung, heart, striated muscle, spleen, thymus, brain, and testis were examined. Tissues (50 mg) were homogenized with lysis buffer (20 mM HEPES, 2 mM EGTA, 50 mM β-glycerol phosphate, 5 mM sodium fluoride, 50 μM DTT, 100 mM PMSF). The fluorescence was quantified by spectrophotometry (Perkin Elmer) using the excitation wavelength of 485 nm.

Tissues were treated as mentioned above, but samples were not stained and tissues were rinsed with 1 mg/ml solution of sodium borohydride as a blocking agent to reduce autofluorescence. To obtain clear images regarding the disposition of nanoparticles, unstained tissue samples were analysed under an epifluorescence microscope. The amount of nanoparticles was estimated by measuring fluorescence intensity by spectrophotometry in tissue homogenates; the intensity of fluorescence was expressed as arbitrary units (AU). Individual tissue concentration-versus actual time curves were built to derive non-compartmental pharmacokinetic parameters. The pharmacokinetic parameters obtained included, Cmax, Tmax, AUC0-t, AUC0-∞, T½, Ke and MRT, according the next Eqns.[16,17], Ke = –(lnC1–lnC0)/t; AUC0-t = AUCt0 = C0+C1/2(t1–t0)+C1+C2/2(t2–t1)+…Cn-1+Cn/2(tn–tn-1)K; AUC0 = Cf/Ke; MRT = AUMC0/AUC0.

Maximal concentration (Cmax) was considered as maximal concentration achieved by CS-DX. Time of maximum concentration (Tmax) was considered as the time at which Cmax was achieved by CS-DX nanoparticles. The analysis of biochemical parameters was performed using colorimetric methods. The study included glucose, triglyceride, cholesterol, AST, ALT, PA, urea, creatinine and uric acid level quantitation using commercial kits and following manufacturer protocols.

Biocompatibility of CS-DX nanoparticles in rats:

Twenty four male Wistar rats weighing 110-130 g were assigned to one of four groups: (1) control group rats (6 animals) were treated daily with an ip dose of PBS (200 μl) for 90 d; (2) the CS-DX nanoparticle group (18 animals) was treated daily with an ip dose of 100 μg/kg CS-DX nanoparticles during 30, 60 or 90 d. After said periods, the animals were sacrificed as described. Tissue samples were processed and observed under a light as well as epifluorescence microscope to carry out a histopathological analysis. A biochemical analysis of blood samples was also performed.

Statistical analysis:

The data were expressed as the mean±SD and statistically analysed using the t-test, and ANOVA calculated with the help of the SPSS 10.0 software (SPSS Inc., Chicago, Ill., USA). Differences were considered significant at p<0.05.

Results and Discussion

During the study, rodents were closely monitored to ensure they did not suffer side effects from the nanoparticles. Safety assessments consisted of daily observations, body weight and food consumption. A rigorous evaluation was made in order to find out alterations in, motor apparatus (ataxia, tremors, arching, rolling, tonic extension or clonic seizures), central nervous system (anaesthesia, sedation, depression or hypnosis), and physical aspect (lacrimation, exophthalmos, piloerection, salivation or diarrhoea).

Fig. 1 shows the disposition of nanoparticles seen as concentration-time profile and measured as fluorescence intensity (AU) in liver, kidney, heart, lung, spleen, thymus, muscle, brain and testis. The Tmax, or observed time to reach the maximum nanoparticle concentration in tissues (Cmax) was mostly between d 1 and 2 (24-48 h), although it remained in muscle at 6.25 d (150 h). The profile curve and pharmacokinetic parameters were different for each tissue studied. The Cmax was more intense in liver (65,739 AU) and, consequently, both AUC0-t and AUC0-∞ were higher here than in the other tissues (Table 1), reaching Tmax on d 3 (72 h). Nanoparticle levels remained high in liver for 40 d, gradually decreasing; however, at 90 d, significant levels of fluorescence were still detected. Interestingly, the calculated MRT for liver was of 69 d with a t½ = 48 d (elimination half time). The concentration-time profile in lung, kidney, heart, spleen, muscle and thymus was low compared with liver, particularly in thymus (Cmax 7339, 6018, 3679, 4386, 2515 and 573 AUs, respectively). MRT was different for each tissue: kidney 9.3 d; heart 16 d; lung 14.8 d; spleen 10.4 d, and muscle 59 d. The t½ was below 12 d in kidney, heart, lung, and spleen (fig. 1 and Table 1); the muscle had an elongated t½ (41.3 d). Interestingly, we also found nanoparticles in brain and testis. The intensity of fluorescence was low in the brain (6561), with a MRT=8.5 d and a t½=5.9 d. However, fluorescence intensity was very high in testis (16,810 AUs), with a MRT = 83.3 d and t½ = 58 d. Fig. 2 shows a representative slice from tissues analysed under light and epifluorescence microscope in stained and non stained samples, respectively; microphotographs were taken during the maximum fluorescence time (tmax) and at 90 d. CS-DX nanoparticles were identifiable because they emited green colored fluorescence (fig. 2). The fluorescence intensity was different for each tissue. The histopathological analysis revealed morphological alterations in testis due to the presence of nanoparticles. The changes were characterized by a reduction of Leydig cells, changes in interstitial tissue and seminiferous ducts.


Figure 1: Single dose time-concentration profiles of CS-DX nanoparticles in tissues in rats
Time-concentration profiles of distribution of CS-DX nanoparticles in tissues over a period of 90 d after a single intraperitoneal administration to rats. Each point represents the mean±SD of 5 animals. equation Spleen, equation thymus, equation kidney, equation heart, equation brain, equation testis, equation lung, equation muscle


Figure 2: Photomicrographs of distribution and localization of CS-DX nanoparticles in rat tissues
Distribution and localization of CS-DX nanoparticles in tissues from rats treated with a single dose of 100 μg/kg was studied using fluorescence microscopy images that showed the presence of nanoparticles through emission of green color. These images are from A. liver, B. kidney, C. heart, D. lung, E. brain and F. testis at the time of maximal concentration (Tmax) and at 90 d. All tissues were stained with H and E. Magnification 20X

Tissue Cmax (AU) Tmax (h) AUC0-t (AU *h) MRT (d) T½ (d) Ke (h-1)
Liver 65 739±1621 72 26 484 058±74650 69±8 48±6 0.0006±0.00008
Kidney 6018±1257 24 519 582±8348 9.3±9 6.41±0.8 0.0045±0.0009
Heart 3679±552 72 3 637 750±45 823 16.0±7 11.1±3 0.0026±0.0007
Lung 7339±2070 48 3 794 373±72859 14.8±6 10.31±4 0.0028±0.0006
Spleen 4386±468 48 1 147 335±93 856 10.4±7 7.04±2 0.0041±0.0009
Brain 6561±1427 24 1 487 975±69784 8.5±4 5.9±0.8 0.0049±0.0005
Testis 16 810±5426 48 11 677 942±79 385 83.3±3 58±12 0.0005±0.00001
Muscle 2515±896 150 1 582 380±99 563 59±8 41.3±17 0.0007±0.00002

Table 1: Pharmacokinetic parameters of CS-DX nanoparticles after a single dose

The biochemical analysis showed that CS-DX nanoparticles induced changes in almost all analysed parameters. Fig. 3 shows the variations observed throughout the 90 d of the study, glucose, TG and ALP had important variations. Changes were observed since the first hour until 45 d. However, glucose and ALP subsequently reached normal values by the end of the study (90 d). Triglyceride levels, on the other hand, remained high at 90 d. Slight changes were found in AST, ALT and urea. No changes were observed in cholesterol, uric acid and creatinine.

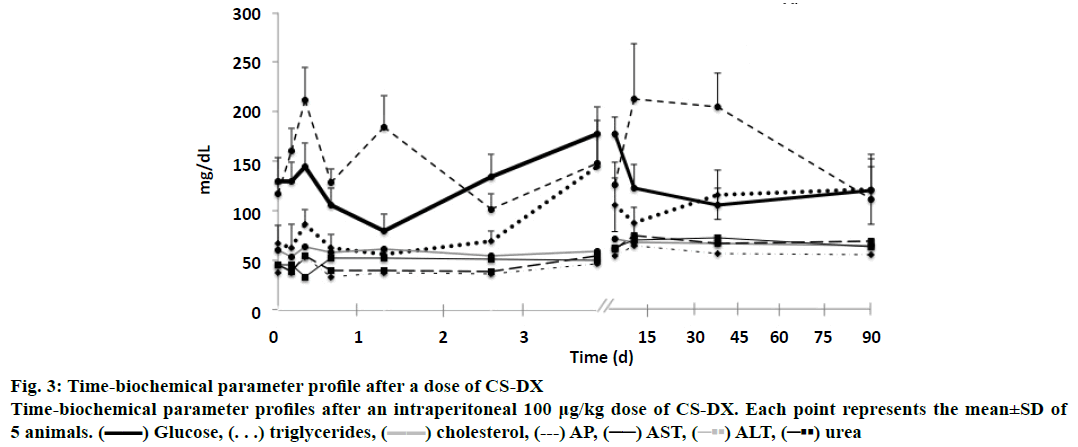

Figure 3: Time-biochemical parameter profile after a dose of CS-DX
Time-biochemical parameter profiles after an intraperitoneal 100 μg/kg dose of CS-DX. Each point represents the mean±SD of 5 animals. equation Glucose, equation triglycerides, equation cholesterol, equation AP, equation AST, equation ALT, equation urea

Fig. 4 shows representative tissue slices obtained from rats treated daily during 30, 60 and 90 d captured under an epifluorescence microscope. All time periods resulted in a homogeneous distribution of nanoparticles in all analysed tissues. The intensity of fluorescence increased as the treatment time increased. Fig. 5 shows representative slices from tissue stained with H and E. Images from liver, kidney, and brain did not show any morphological alterations, and tissues are quite similar to control. However, microphotographs from the lung region evidenced the presence of an inflammatory infiltrate after 90 d of treatment; on the other hand, testis showed atrophy and degenerative changes 90 d after receiving the CS-DX nanoparticles. Table 2 shows the quantification of biochemical parameters at 30, 60 and 90 d. No alterations were found in rats treated daily with CS-DX nanoparticles for 30 d. Animals treated daily with CS-DX nanoparticles for 60 d showed elevated AP (73 %) and urea (41 %) levels when compared to the control group (p<0.05). However, only urea levels remained elevated (28 %) after 90 d of treatment. No changes were observed in either cholesterol or creatinine levels during all time periods.


Figure 4: Photomicrographs of rat tissue sections with distribution and localization of CS-DX nanoparticles
Animals were treated daily with a dose of 100 μg/kg for 30, 60 and 90 d. Variations in the intensity of green fluorescence in each tissue are evident. Magnification 20X. (A) Liver, (B) kidney, (C) lung, (D) brain, (E) testis


Figure 5: Tissue histological sections from rats treated daily with CS-DX for 30, 60 and 90 d
A chronic inflammatory process in lungs after 90 d of treatment was observed (black arrows). Atrophy and degenerative changes in testis after 90 d were observed (blue arrows). Tissue samples were stained with H and E. Margnification 20X. (A) Liver, (B) kidney, (C) lung, (D) brain, (E) testis

Parameter Control 30 days 60 days 90 days
Glucose 140.2±19.4 120.5±36.1 152.0±43.3 159.9±19.4
Triglycerides 60.8±13.7 112.3±51.7 122.4±34.4 187.0±15.5
Cholesterol 54.9±8.9 59.4±12.9 58.7±3.3 64.9±10.3
ALT 54.3±8.6 54.5±8.9 74.9±25 57.5±9.7
AST 160.2±26 168.3±20.1 146.5±40.9 176.1±29.0
AP 121.6±33.7 156.9±13 210±31.4*#& 113.8±23.8
Urea 39.6±8.4 35.8±6.6 55.9±8.3*# 50.8±2.0#
Creatinine 0.6±0.1 0.5±0.1 0.4±0.1 0.7±0.04
Uric Acid 5.2±1.8 5.6±1.7 10.6±5.4 10.5±3.4

Table 2: Effect of CS-DX nanoparticles on biochemical parameters in rats treated daily for 30, 60 and 90 days (n=6)

In pharmacology, disposition indicates the fate of a drug inside the body, it represents the sum of all absorption, distribution, metabolism and excretion (ADME) processes[18]. Although nanomaterials are not drugs, these must nevertheless pass through the same ADME processes once administered to the organism. But it could be assumed these processes are more complex given the physical, chemical and optical properties of nanomaterials. MRT on the other hand[6], help understand the effect span for direct-acting molecules. In the case of nanomaterials, the average time nanoparticles reside in the organism or the average time in which they leave it.

The present study assessed the disposition and biocompatibility of CS-DX nanoparticles administered as a single and multiple doses, respectively. There are currently very few reports on disposition and pharmacokinetics of nanomaterials. Given their size and reduced amounts in blood, this is sometimes easier to quantify in tissues[19,20]. Some researchers have developed theoretical mo1 rats and that their presence in the brain and testicles confirmed that these can cross barriers. Traces of nanomaterials have been detected in long-term studies after administering a single dose without producing toxicity. Cr3+-doped zinc gallate, Zn1.1Ga1.8Sn0.1 O4:Cr3+ (ZGO) was administered intravenously over a period of 60 d and no toxicity was observed[21]. Orally administered heparin-conjugated deoxycholic acid conjugates also showed no alterations in histology after 45 d[22]. Nanomaterial presence in some tissues has also been previously reported, including traces of iron-dopes silica nanoshells in lung and liver after 10 w of their administration[23]. Carboxylated and pegylated few-layer graphene sheets were found within liver and spleen after 3 mo without producing toxicity[24]. These studies and the present study indicate nanomaterials have the capacity to remain for a long period of time in the organism without necessarily producing toxicity. This may be due to their inherent properties.

Modifications in glucose, triglyceride and ALP levels throughout the study were detected, suggesting possible liver damage. Most studies have focused on quantifying nanoparticle levels or identifying their distribution in tissues, while few have analysed their effects on physiological functions. One would expect that, lacking morphological alterations, the tissues would be functional. While the present study detected variations in biochemical parameters with in the initial 24 h, it would seem that, after a long period of time, organs tend to adapt to the presence of nanomaterials and recover their functionality, an hypothesis confirmed by our biocompatibility studies.

Subchronic and chronic treatment with CS-DX nanoparticles demonstrated that these nanomaterials were well-tolerated. No functional or histological alterations were found in tissues from rats administered daily doses during 30 d. At 60 d, no morphological alterations could be seen in any analysed tissues even though there was an increase in ALP and urea levels, suggesting functional alterations in liver and kidney. There was significant toxicity data in animals treated daily for 90 d, which showed degenerative changes in the testis and inflammation in lungs. Additionally, urea levels remained elevated at this time. Previous studies reported have shown that CS nanoparticles coated with polymers are able to cross biological barriers such as the hemato-encephalic and hemato-testicular ones[12,13]. Histologically speaking and given the observations made on rats, it seems the brain is not sensitive to these nanomaterials. However, the testicles appeared to be a particularly sensitive organ to toxic agents and drugs as well as nanomaterials. Nanomaterial toxic effects to testicular cells have been reported. Bara and Kaul reported that ZnO nanoparticles affected steroidogenesis and provoked alterations in phagosomes and lysosomes in Leydig cells[25]. Habas et al. found that silver-nanoparticles were able to enter sertoli cells and induce apoptosis and oxidative damage altering molecular pathways associated with that process[26]. It has also been reported that mice treated with carbonaceous nanoparticles showed changes in sperm viability, morphology and motility[27]. Nanomaterial-induced reproductive toxicity induced by is now a topic of interest for several researchers. Recently, several reports have evidenced nanomaterial toxicity in different reproductive organs[28-32].

Toxicity induced by nanomaterials administered not by airway has been previously reported. Wang et al. reported an inflammatory process in the lungs after oral administration of halloysite nanotubes to mice, suggesting nanomaterials might accumulate in the lungs, and induce fibrosis[33]. On the other hand, other studies have revealed many histological changes in the lung, cellular infiltration and thrombosis in fetuses following an intravenous injection to pregnant rats[34], follicular atresia in female mice[35], and malformation and injury to different organs[36]. These results and others suggest that, regardless of the route of administration, lung tissue captures and retains nanoparticles, thus suffering the concomitant toxic effects.

Although the present study revealed several biochemical alterations during the first hour after the administration of a single dose of CS-DX nanoparticles and some of these remained throughout the 90 d, it is striking that, after the administration of multiple doses, the functionality of the organs showed no deterioration. On the contrary, some of the alterations were reversed. As previously indicated, it seems that, after administration, the organs adapt to the presence of nanoparticles and these remain there without producing toxicity in the tissues.

It has been mentioned that cadmium induces several toxic effects to cells and can affect DNA, RNA and proteins[37-39]. Even exposure to cadmium-containing nanoparticles could lead to disturbances in cellular homeostatic mechanisms[40-42]. Present results demonstrated that CS-DX nanoparticles did not cause severe damage to rats receiving nanoparticles, nor did they produce death. The findings of this study suggested that CS nanoparticles protected with dextrin control toxicity related to cadmium leakage.

It was observed that CS-DX nanoparticles have a wide distribution and a very long MRT without producing significant toxicity. The multi-dose study showed these nanoparticles were biocompatible and only produced selective toxicity after administration for very long time periods. Due to the high intensity of fluorescence emitted by the CS-DX nanoparticles, it was possible to clearly visualizes the tissue morphology; therefore these have the potential to be used in bioimaging in diagnostic and treatment activities. Although nanoparticles have shown to have selective toxicity further research is needed to ensure nanoparticles are safely and efficiently used in medicine.


The authors would like to thank to Mariana Ortega for her technical assistance. Gerardo González wishes thank CONACYT under grant 254414.

Conflict of interest:

The author’s report no declaration of interest, financial or otherwise regarding this project.
