*Corresponding Author:
Shuang Liu
Department of Stomatology, Nankai Hospital, Tianjin 300100, China
E-mail: [email protected]
This article was originally published in Special issue on “Trends in therapeutic Management of Various Conditions”
Indian J Pharm Sci 2020:82(3) spl issue 6;92-96

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


The purpose of this study is to explore the effectiveness of porcelain veneer technology on periodontitis in rats, so as to better guide clinical practice. Using 70 rats the periodontitis rat model was established. Porcelain veneer was used to repair the rat teeth. Follow-up evaluation of the curative effect was carried out at 2, 4, 6 and 8 weeks after operation, so as to gain a certain understanding of the treatment of periodontitis with porcelain veneer. The results showed that after porcelain veneer restoration, the teeth of periodontitis rats constructed by string ligation became wider, the space between teeth become smaller, the height of tooth bone decreased and the teeth were closely adhered to the gingiva. After operation, alveolar bone volume significantly increased (P<0.05). The follow-up results showed that the success rates of porcelain veneer were 100, 100, 97.5 and 95 % on the 2, 4, 6 and 8 week after operation. These results indicated that the ceramic veneer exerted a good restorative effect on rat teeth with periodontitis and has a high stability after operation. It is hence worth further investing future in clinical research


Porcelain veneer, rats with periodontitis, dental restoration, therapeutic effect tracking

Periodontitis is a common oral disease caused by bacterial biofilm infection of dental plaque. This biofilm leads to the formation of periodontal pockets, and develops into inflammation-mediated loss of connective tissue attachment and alveolar bone destruction, which eventually leads to tooth loss[1]. The condition of periodontitis will aggravate with the increase of age and recover after treatment. The prevalence of periodontitis in the world is about 5-20 %, and people of all ages may be infected[2,3]. In recent years, the incidence of periodontitis in China is increasing. Porcelain veneer has been used for many years as a restorative material. It combines bonding material with tooth surface tissue to protect periodontal tissue from damage[4]. With the continuous improvement of ceramic veneer restoration technology, the preparation of ceramic veneer teeth, the bonding stability and the degree of appearance beautification have made a great leap, which has been widely used in the field of dental restoration[5]. Porcelain veneer repair methods can be divided into direct veneer repair and indirect veneer repair, mostly ceramic materials. Because the prosthesis sometimes falls off and discoloration during occlusion and chewing after porcelain veneer restoration, it is usually necessary to have a follow-up visit within a certain time[6]. In the study of periodontal disease, animal models are very important for studying the relationship between disease and external factors and testing potential new therapies. These can be used to construct periodontal lesion models, such as connective tissue destruction, bone loss and periodontal pocket formation[7]. Since collagen degradation and gingival tissue structure has been observed in alveolar bone loss in rats and humans, rats are the most widely used rodents to study the pathogenesis of periodontal disease[8]. At present, there are many ways to induce periodontitis in rats, but ligation of mandibular molars with thin rope is a simple and easy method[9]. Radiography, morphometry and histology are the main techniques used to quantify the severity of periodontitis, regardless of the method used to induce periodontitis. Although there have been some studies on the treatment of periodontitis in rats, there are few reports on the restoration of rat teeth with porcelain veneer. Therefore, in this study, rats with periodontitis were used as the test system to evaluate the efficacy of porcelain veneer in the treatment of periodontitis, hoping to provide a new way for the treatment of periodontitis. Vita 3D Master colorimetric board (Fengda Dental Equipment Co., Ltd., China) was used to compare the dental surface of rats and select suitable veneer color. The model of base toothpaste and veneer wax were made and put into an electric oven (Guangzhou Zhanzhuo Commercial Equipment Manufacturing Co., Ltd., China) to make the body porcelain back-cut after refractory sintering and natural cooling. According to the colorimetric results, the corresponding veneer is selected. The restorations are dyed with color porcelain powder and covered with cut-end magnets and body ceramics. The restorations were pickled with 35% phosphoric acid (Wuhan Yixing Da Chemical Co., Ltd., China) for 2 min, rinsed and dried. Seventy adult rats (Shanghai Yisen Biotechnology Co., Ltd., China) weighing 310- 330g were purchased. The rats were housed in controlled atmosphere of 23º, 55 % humidity 12 h of dark and light cycle for 2 w. Animal experimental protocols were approved by Ethics Committee of Nankai Hospital. The rats were randomly divided into 3 groups, control group (20 rats), 5 d ligation group (25 rats) and 10 d ligation group (25 rats). Eight hours before the experiment rats were not allowed access to water. Rats are anesthetized with 0.5 ml/100 g dose of 7% chloral hydrate (Yinhai Chemical Group Co., Ltd., China), limbs were fixed on the platform abdomen upward and the upper and lower teeth were pulled with a thin rope and fixed. In the space between molars, the filaments are wounded and ligated. A tooth hook was used to separate the gingiva and tweezers were used to clamp the ligating wire and tie it tightly in the cervical buckle to cut off and close the truncation. After feeding, rats were monitored continuously. Development of periodontitis was validated on d 0, 5 and 10 after operation. Three rats in each group were randomly selected. Gingival index, periodontal pocket depth, tooth mobility and alveolar bone resorption were measured with periodontal probe (Xiamen Yushang Hardware Tools Co., Ltd., China), and its average value was recorded. After testing, the mandible was separated and fixed in 5 % polyformaldehyde (Yangzhou Zhongjiang Material Technology Co., Ltd., China) for 2 d. The mandible was decalcified in formic acid (Beijing Baiolaibo Technology Co., Ltd., China). After dehydration, it was embedded in paraffin and thin tissue sections were prepared. The periodontal pathological changes were observed under an optical microscopy (Nikon, Japan) after staining with hematoxylin-eosin (Shanghai Meixuan Biotechnology Co., Ltd., China). Porcelain veneer was used to restore the teeth of periodontitis rats. Firstly, porcelain veneer restorations were treated with 10% hydrofluoric acid (Jinan Baike Chemical Co., Ltd., China). After rinsing, soaked for 3 min in 95% medical alcohol (Guangxi Boheng Medical Products Co., Ltd., China) and then coated with silane coupling agent (Guangzhou Yuantai Synthetic Materials Co., Ltd., China). After 1 min, it was dried and finally coated with resin cement (Coltene, Switzerland). Pumice powder solution (Suzhou Zhenglong Trading Co., Ltd., China) was used to clean the affected teeth of rats with periodontitis, and then 35% phosphoric acid (Wuhan Yixing Da Chemical Co., Ltd., China) was used to corrode the teeth for 20 s. After smearing the adhesive, it was dried. The restorations were attached to the affected teeth, where the cement was solidified by light, and the cement was completely fixed by applying an oxygen-insulating agent (Ivoclar, Liechtenstein) on the edge of the adhesive. Four rats were randomly selected, sacrificed, the jaw bone was removed and scanned by high resolution micro-CT (Shunyun Instrument Co., Ltd., China). The changes of alveolar bone in rats before and after operation were observed and transformed into data analysis. All rats with periodontitis repaired with porcelain veneer were fed normally after operation, and were reexamined after 2, 4, 6 and 8 w. The evaluation criteria were shown in Table 1. The effect of porcelain veneer restoration was evaluated according to 3 grades, excellent, good and poor. Excellent and good were regarded as success while poor was failure. SPSS22.0 software was used to statistics the experimental results, and the data are expressed as mean±standard deviation Comparison between groups was based on one-way variance. When P < 0.05, the difference is statistically significant. Qualitative data are expressed in n (%). The periodontal tissues of experimental rats are shown in fig. 1. Before ligation, the gingival surface of rats was intact and closely attached to the tooth surface. A small number of inflammatory cells infiltrated the connective tissue and the alveolar bone was intact. Five d after ligation of molars, the surface of gingiva was ulcerated. A large number of scales and calculi appeared at the ligation site, and the color of gingiva was dark. There were obvious signs of bleeding, and periodontal pockets formed. After 10 d of ligation, the periodontal pockets were obviously deepened, the root of the experimental teeth was exposed and very loose, the gingival papilla was destroyed, and the alveolar bone resorption led to the reduction of alveolar bone height. As shown in Table 2, the gingival index, periodontal pocket depth, tooth mobility and alveolar bone resorption in 5-d group and 10-d group were significantly higher than those in the control group, indicating that the ligation experiment had an impact on rat teeth. The above results showed that the periodontitis model of experimental rats was successful, and the rats ligated for 5 and 10 d can be used for follow-up experiments. From the three-dimensional images taken, it can be seen from fig. 2 that the teeth of periodontitis rats were narrower, the height of the teeth was more, the roots were exposed, and there were obvious spaces between the gingiva and the teeth. After porcelain veneer treatment, the tooth surface of rats became wider, the adjacent teeth were arranged tightly, the height of the tooth bone decreased, and the gum was tightly adhered. After calculating the alveolar bone volume of rats with periodontitis before and after porcelain veneer treatment was compared with that before treatment as shown in fig. 3. After treatment, the alveolar bone volume increased significantly (P<0.05). The results showed that porcelain veneer can effectively increase the bone volume of rats with periodontitis. The rats with periodontitis at 2, 4, 6 and 8 weeks after operation were followed up and evaluated. The results are shown in Table 3. In terms of the regularity of porcelain veneer, 38, 38, 37 and 37 rats with periodontitis have complete porcelain veneer 2, 4, 6 and 8 w after operation, and 2, 2, 2 and 1 rats showed defective teeth that did not affect the appearance. At 6 and 8 w, 1 or 2 rats porcelain veneers were broken and needed to be repainted and pasted. In terms of marginal fitness, 39, 39, 38 and 38 rats with periodontitis at 2, 4, 6 and 8 w after operation can seamlessly fit the edges, but the probes cannot penetrate into the edges. Small gaps appeared at the edges of 1, 1, 2 and 2 rats, which can clamp the sharp probes. As for the color of porcelain veneer, it kept good basically. Only 1 or 2 rats with periodontitis show slight discoloration in 6 and 8 w. As for caries occurrence, only one case has mild secondary caries at 8 w. Postoperative sensitivity was observed in 38 and 39 patients at 2 and 4 w, respectively. No significant sensitivities were observed in 2 and 1 patients. With the passage of time, no postoperative sensitivity occurs. As for gingival abnormalities, 38, 38, 39 and 39 periodontitis rats have no gingival abnormalities at 2, 4, 6 and 8 w postoperatively, while only gingivitis and a little bleeding were found at 2, 2, 1 and 1 w postoperatively. The success rate of porcelain veneer is 100, 100, 97.5 and 95 % at 2, 4, 6 and 8 w after operation. At present, the treatment of periodontitis is mainly divided into traditional Chinese medicine and Western medicine. Traditional Chinese medicine relieves periodontal symptoms mainly by nourishing kidney and pulp, clearing away heat and purging fire, while western medicine cures periodontitis by curettage, cleaning periodontitis and taking antibiotics. Traditional Chinese medicine treatment course is long and easy to relapse. Western medicine treatment process is complex and not conducive to beautiful teeth. Porcelain veneer can effectively reduce the degree of tooth damage, and has cosmetic effect, which can be gradually promoted in clinical use. In this study, the experimental model of periodontitis in rats is established, and the restoration technology of porcelain veneer is used to treat tooth injury. The regularity, marginal fitness, color of porcelain veneer, occurrence of dental caries, postoperative sensitivity and gingival abnormality are evaluated and counted regularly after operation. The results show that the porcelain veneer can effectively increase the volume of alveolar bone, reduce the space between teeth, reduce the height of alveolar bone, and enhance the bonding degree between alveolar bone and gingiva. At the same time, the porcelain veneer has strong stability and affinity, and few changes or adverse tooth reactions occur after operation. In summary, in order to study the clinical effect of porcelain veneer in the restoration of periodontitis rat teeth, the technology of porcelain veneer is used to treat periodontitis rat teeth and monitor its prognosis, and the results are as expected. This study provides experimental data for the clinical application of porcelain veneer in the treatment of periodontitis. However, there are still some shortcomings in this study, such as a small number of experimental samples, inadequate monitoring and evaluation indicators after surgery. Therefore, followup studies still need to increase the sample size, constantly improve the mechanism of post-operative evaluation and do in-depth research at the molecular level.


Fig. 1: Histopathology of periodontal tissue in experimental rats


Fig. 2: Microscopic CT three-dimensional image of alveolar bone in rats

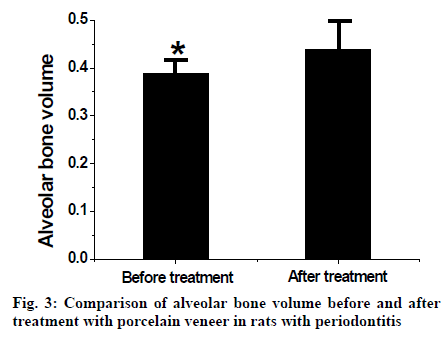

Fig. 3: Comparison of alveolar bone volume before and after treatment with porcelain veneer in rats with periodontitis

Assessment projects Grade
Excellent Good Poor
Tidiness of porcelain veneer Complete There are some defects, but they do not affect the beauty. There are some cracks, breaks or shedding.
Edge fitness Complete, seamless fit There are some small gaps where the probe can enter. The crack is obvious and the tooth surface is exposed.
Porcelain veneer color No discoloration There is a slight discoloration. Obvious discoloration
Dental caries No dental caries There are superficial caries. Deep caries
Postoperative sensitivity Insensitive reaction Mild sensitivities disappear after wearing teeth. Very sensitive, tooth inflammation.
Gingival abnormality No abnormality There is mild inflammation and a small amount of bleeding. There is marked redness and swelling and periodontal pocket formation.

Table 1: Evaluation Criteria for Porcelain Veneer Restoration

  Control group 5-day ligation group 10-day ligation group
Gingival index 0.00±0.00 2.03±0.41 2.16±0.20
Periodontal pocket depth (mm) 0.21±0.08 3.13±0.24 3.35±0.21
Tooth mobility 0.00±0.00 1.28±0.35 1.35±0.36
Alveolar bone resorption (mm) 0.00±0.00 0.75±0.09 2.02±0.13

Table 2: Gingival Index, Periodontal Pocket Depth, Tooth Mobility and Alveolar Bone Resorption of Rats in Each Group

Assessment project Assessment time
2 weeks (n=40) 4 weeks (n=40) 6 weeks (n=40) 8 weeks (n=40)
Tidiness of porcelain veneer
Excellent 38 (95) 38(95) 37(92.5) 37(92.5)
Good 2(5) 2(5) 2(5) 1(2.5)
Poor 0 0 1(2.5) 2(5)
Edge fitness
Excellent 39(97.5) 39(97.5) 38(95) 38(95)
Good 1(2.5) 1(2.5) 2(5) 2(5)
Poor 0 0 0 0
Porcelain veneer color
Excellent 40(100) 40(100) 39(97.5) 39(97.5)
Good 0 0 1(2.5) 1(2.5)
Poor 0 0 0 0
Dental caries
Excellent 40(100) 40(100) 40(100) 39(97.5)
Good 0 0 0 1(2.5)
Poor 0 0 0 0
Postoperative sensitivity
Excellent 38(95) 39(97.5) 40(100) 40(100)
Good 2(5) 1(2.5) 0 0
Poor 0 0 0 0
Gingival abnormalities
Excellent 38(95) 38(95) 39(97.5) 39(97.5)
Good 2(5) 2(5) 1(2.5) 1(2.5)
Poor 0 0 0 0

Table 3: Assessment Results of Porcelain Veneer Repair
