In Silico Analysis of Siddha Formulation Thippili Rasayanam Against COVID-19 in Inhibition of Ribonucleic Acid-Dependent Ribonucleic Acid Polymerase Target Enzyme

S. M. Chitra

doi:10.36468/pharmaceutical-sciences.1250

All submissions of the EM system will be redirected to Online Manuscript Submission System. Authors are requested to submit articles directly to Online Manuscript Submission System of respective journal.

Research Paper

In Silico Analysis of Siddha Formulation Thippili Rasayanam Against COVID-19 in Inhibition of Ribonucleic Acid-Dependent Ribonucleic Acid Polymerase Target Enzyme

S.M.Chitra^*

Department of Maruthuvam, Government Siddha Medical College, Arumbakkam, Chennai, Tamil Nadu 600106, India

*Corresponding Author:: S.M.Chitra
Department of Maruthuvam, Government Siddha Medical College, Arumbakkam, Chennai, Tamil Nadu 600106, India
E-mail: chittu758@gmail.com

Date of Received	25 April 2022
Date of Revision	08 May 2023
Date of Acceptance	04 January 2024
Indian J Pharm Sci 2024;86(1):45-53

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

DOI: 10.36468/pharmaceutical-sciences.1250

Abstract

The pandemic of coronavirus disease-19 involved various traditional medical formulations as therapeutics for treatment along with boosting the immunity to overcome the crisis. Thippili rasayanam was one among the medicines recommended by the Ministry of Ayurveda, Yoga, Unani, Siddha and Homoeopathy for coronavirus disease-19 in Siddha. In spite of the effectiveness, its role against the virus target was not clarified. As a consequence, the present docking study was performed to know its action against inhibition of the target enzyme ribonucleic acid-dependent ribonucleic acid polymerase. The phytocomponents of the herbs present in the formulation were retrieved through literature survey and in silico docking analysis was performed through Auto dock tool. The lead molecules were identified with respect to the target protein and the best dock pose was selected based on the molecular interaction. The phytocomponents epicatechin, myrcene, hyoscyamide, piperic acid, piperine and zingiberene, of the formulation Thippili rasayanam revealed maximum 3 interactions while betulonic acid, eucalyptol, galangin, p-thymol and ellagic acid showed 2 interactions with the active binding site of the target enzyme ribonucleic acid-dependent ribonucleic acid polymerase. Docking results suggest, the formulation Thippili rasayanam has potential inhibiting action against coronavirus disease-19 by reducing the viral replication.

Keywords

Coronavirus disease-19, Siddha, Thippili rasayanam, phyto components, docking analysis, ribonucleic acid-dependent ribonucleic acid polymerase

Severe Acute Respiratory Syndrome Coronavirus-2 (SARS-CoV-2), the deadly virus disease identified at Wuhan, China on December 2019 became a global pandemic and the world had crossed the two waves on 2020, 2021 respectively. At present the third wave is being accomplished by most of the countries including India, by the emergence of Omicron variant. As on January 19, 2022, India has reported around 317 000 new covid cases[1]. Even though there are vaccines produced for Coronavirus Disease-19 (COVID-19) by different manufacturing industries, people in the community and researchers are trying to find the best way to cure the disease, including herbal medicine. The world was relying on self-care practices that include the use of traditional medicine[2]. World Health Organization (WHO) recognizes that traditional, complementary and alternative medicine of proven quality, safety and efficacy has many benefits[3].

India is renowned for its traditional system of medicine and played a vital role in providing healthcare to the people for centuries. The unique Ayurveda, Yoga, Unani, Siddha and Homoeopathy (AYUSH) systems of India are based on definite medical philosophies and represent a way of achieving a healthy lifestyle with conventional and established ideas on the prevention of diseases and the promotion of health. The basic treatment approach of all these systems is holistic and the pharmacological modalities are based on natural products of plants, animals, or mineral origin. There are many medicinal plants indigenous to India and used in the Indian Systems of Medicine which has been reported as potent antiviral with immuno modulatory, anti-allergic, and anti-asthmatic activities. Many of these medicinal plants are also used as integral part of several traditional formulations that have been in use for a long time[4].

In COVID-19, Ribonucleic Acid (RNA) dependent RNA polymerase (RdRp) is the main enzyme that replicates the viral RNA genome and it is a promising drug target[5,6]. RdRp of the SARS-CoV-2 shares 96 % of the sequence identity with SARS-CoV-19 and hence the compounds or medications that are efficient towards RdRp of SARS-CoV are considered to be effective against the novel CoV. Molecular docking analysis of known RdRp-inhibiting antivirals, other Food and Drug Administration-approved medications and phytochemicals to repurpose SARS-CoV-2 is documented[7]. Three countries including India, China and South Korea, have issued guidelines on traditional regimens for the prevention and management of COVID-19[8]. In India, several clinical trials had been conducted in Siddha and Ayurveda as an integrated approach with modern medicine in the management of COVID-19. Among them, a Randomized controlled trial conducted in a tertiary care hospital at Chennai, with Siddha regimen and modern medicine as an integrated approach during June-July 2020 was proved to be effective. In that trial, Thippili rasayanam given was reported as an effective drug[8].

The Ministry of AYUSH (Government of India) had listed out such formulations and recommended their use from time to time as a prophylactic measure in the management of COVID-19. Moreover, the guidelines given by Ministry of AYUSH for Siddha practitioners, in treating mild to moderate COVID-19 patients also encompasses Thippili rasayanam, indicated for difficulty in breathing which is a prominent symptom of COVID-19[10]. Despite the potency of Thippili rasayanam was proven in the Randomized Controlled Trials (RCT) to combat COVID-19, yet there was a gap regarding the action of the biomolecules of the medicine against disease causing viral protein. One of the easiest and effective ways to identify the action potential of biomolecules of a drug against disease causing viral protein is Molecular docking analysis. Hence, it was aimed to explore the action of the phytocomponents present in the Siddha formulation Thippili rasayanam against SARS-CoV-2 virus through in silico analysis.

Objectives:

The objectives of the present study were to analyze the molecular interaction of the phyto principles with the target RNA dependent RNA polymerase (RdRp) enzyme (PDB)-6NUR which was a nonstructural protein (nsp 12) essential for viral replication in RNA viruses; to identify the potential therapeutic efficacy of the phyto principles in inhibiting the target RdRp of COVID-19 virus.

Materials and Methods

Thippili rasayanam was a polyherbal Siddha formulation quoted in the text, Siddha vaithiya thirattu in page number 235-236, written by Kuppusamy mudaliar, published by The Indian medicine and Homeopathy department, Tamil Nadu[11]. The formulation comprises 18 herbs, Piper longum, Piper nigrum, Zingiber officinale, Cuminum cyminum, Nigella sativa, Carum copticum, Hyoscyamus niger, Alpinia officinarum, Alpinia galangal, Terminalia chebula, Phyllanthus emblica, Terminalia bellirica, Syzygium aromaticum, Cinnamomum tamala, Abies spectabilis, Plumbigo indica, Elettaria cardamomum, Cinnamomum verum. The formulation was prepared with the above raw drugs taken as per ratio, mentioned in the text. Each of them was slightly roasted, powdered separately and mixed together with equal quantity of sugar. The mixture was kneaded with sufficient quantity of honey. The obtained rasayanam was indicated for cough and bronchitis.

Ligand preparation:

As a first step, the herbs present in the formulation Thippili rasayanam were explored for the phytocomponents present in them. An extensive literature search was done through PubMed, Google scholar and a sum of 15 bioactive lead compounds were identified and retrieved from them as listed in Table 1[12-25]. Two dimensional structure of the phytocomponents identified were converted into three dimensional structure through Chem Draw pro-online tool version 12.0. The Ligands were prepared through geometry optimization method and Molecular Mechanics Fore Field (MMFF94) programmer. The phyto components ligand properties selected for docking analysis were described in Table 2.

S. No	Botanical name	Phytocomponents	Literature survey reference
1	Piper nigrum	Piperic acid	[12]
2	Piper longum	piperine	[13]
3	Terminalia chebula	Gallic acid	[14]
4	Terminalia bellirica	Epicatechin	[15]
5	Cumin cyminum	Cinnamaldehyde	[16]
6	Nigella sativa	Limonene	[17]
7	Carum copticum	Thymol	[18]
8	Hyoscyamus niger	Hyoscyamide	[19]
9	Alpinia officinarum	Galangin	[20]
10	Alpinia galangal	Eucalyptol	[21]
11	Phyllanthu emblica	Betulinic acid	[22]
12	Cinnamomum tamala	Myrcene	[23]
13	Zingiber officinale	Zingiberene	[24]
14	Syzygium aromaticum	Ellagic acid, salicylic acid	[25]

Table 1: List of PHYTO Components Selected for Docking From Herbs Present in the Formulation Thippili Rasayanam Through Literature Survey

Compound	Molar weight g/mol	Molecular Formula	H Bond Donor	H Bond Acceptor	Rotatable bonds
Limonene	136.23 g/mol	C₁₀H₁₆	0	0	1
Epicatechin	290.271 g/mol	C₁₅H₁₄O₆	5	6	1
Myrcene	136.238 g/mol	C₁₀H₁₆	0	0	4
Betulonic acid	454.7 g/mol	C₃₀H₄₆O₃	1	3	2
Eucalyptol	154.25 g/mol	C₁₀H₁₈O	0	1	0
Galangin	270.24 g/mol	C₁₅H₁₀O₅	3	5	1
Gallic acid	170.12 g/mol	C₇H₆O₅	4	5	1
Hyoscyamide	624.7 g/mol	C₃₆H₃₆N₂O	6	8	13
Piperic acid	218.2 g/mol	C₁₂H₁₀O₄	1	4	3
Piperine	285.34 g/mol	C₁₇H₁₉NO₃	0	3	3
Cuminaldehyde	148.205 g/mol	C₁₀H₁₂O	0	1	2
p-Thymol	150.221 g/mol	C₁₀H₁₄O	1	1	1
Ellagic acid	302.19 g/mol	C₁₄H₆O₈	4	8	0
Salicylic acid	138.12 g/mol	C₇H₆O₃	2	3	1
Zingiberene	204.35 g/mol	C₁₅H₂₄	0	0	4

Table 2: Ligand Properties of the Phyto Components Selected for Docking Analysis

Protein preparation:

From the online repository of Protein Data Bank (www.rcsb.org/pdb), three dimensional protein structure of the target protein RdRp enzyme (PDB) 6NUR was retrieved as shown in fig. 1. Protein clean-up process with removal of water molecules and addition of essential missing hydrogen atoms were carried out. The above were subjected to Ramchandran plot analysis using RAMPAGE to identify the statistical distribution of the ANALYSIScombinations of the amino acid backbone dihedral Ø (Phi) angles and ψ (Psi) angle and subjected to protein clean geometry prior to docking simulation. By Auto dock program, with respect to the target protein, different orientation of the lead molecules was evaluated and the best dock pose was selected based on the two dimensional interaction plot analysis and hydrogen bond plotting with core amino acid analysis[26,27]. Three dimensional pictures of the selected phyto components are shown in fig. 2.

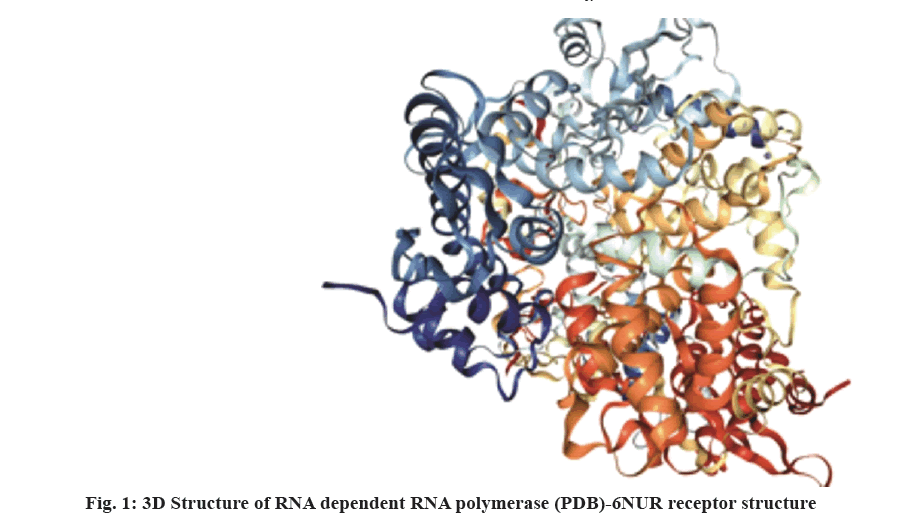

Fig 1: 3D Structure of RNA dependent RNA polymerase (PDB)-6NUR receptor structure

Fig 2: 3D structure of selected ligands; (A) Limonene; (B) Epicatechin; (C) Myrcene; (D) Betulonic acid; (E) Eucalyptol; (F) Galangin; (G) Gallic acid; (H) Hyoscyamide; (I) Piperic acid; (J) Piperine; (K) Cuminaldehyde; (L) p-Thymol; (M) Ellagic acid; (N) Salicylic acid and (O) Zingiberene

Docking methodology:

For the retrieved phyto principles, docking scores were carried out against various binding pockets of target protein RdRp with the aid of Auto Dock tools. Essential hydrogen atoms, Kollman united atom type charges, and solvation parameters were added. Using Autogrid program affinity (grid) maps of grid points and 0.375 Å spacing were generated. Auto dock parameter set- and distance-dependent dielectric functions were used in the calculation of the van der Waals and the electrostatic terms, respectively. Docking simulations were performed using the Lamarckian Genetic Algorithm (LGA) and the Solis and Wets local search method[28,29]. Initial position, orientation and torsions of the ligand molecules were set randomly. During docking all rotatable torsions were released. Each docking experiment was derived from 2 different runs that were set to terminate after a maximum of 250 000 energy evaluations. The population size was set to 150. During the search, a translational step of 0.2 Å, and quaternion and torsion steps of 5 were applied.

Results and Discussion

Table 3 shows the summary of the molecular docking studies of phytocomponents like binding free energy, inhibition constant, electrostatic energy, intermolecular energy, total interaction surface and Table 4 shows the amino acid residue interaction of lead phyto compounds against RdRp (PDB)-6NUR. The lead compounds present in them such as epicatechin (-6.27 kcal/mol), myrcene (-4.65 kcal/mol), hyoscyamide (-8.73 kcal/mol), piperic acid (-4.66 kcal/mol), piperine (-6.64 kcal/mol) and zingiberene (-6.24 kcal/mol) revealed a maximum of 3 interactions with all the binding sites on the core active amino acid residues present on the target receptor RdRp and also exhibited lower binding free energy. Followed by this, the compounds like betulonic acid, eucalyptol, galangin, p-thymol and ellagic acid ranked second with the maximum of 2 interactions with the active binding site of the target enzyme RdRp. Among the phytocomponents Hyoscyamide had a highest interaction surface and very lowest free binding energy. Fig. 3 illustrates the Docking Pose of the selected phytocomponents with core amino acid against RdRp (PDB)-6NUR.

Compounds	Binding free energy Kcal/mol	Inhibition constant KiµM (mM)(*nM)	Electrostatic energy Kcal/mol	Inter molecular energy Kcal/mol	Total interaction surface
Limonene	-4.68 kcal/mol	370.09 µM	-0.03 kcal/mol	-4.98 kcal/mol	447.17
Epicatechin	-6.27 kcal/mol	25.49 µM	-0.97 kcal/mol	-6.54 kcal/mol	572.431
Myrcene	-4.65 kcal/mol	387.80 µM	-0.01 kcal/mol	-5.76 kcal/mol	476.388
Betulonic acid	-7.13 kcal/mol	5.91 µM	-0.77 kcal/mol	-7.69 kcal/mol	740.74
Eucalyptol	-5.28 kcal/mol	135.91 µM	-0.01 kcal/mol	-5.28 kcal/mol	449.175
Galangin	-5.95 kcal/mol	43.76 µM	-1.80 kcal/mol	-6.83 kcal/mol	643.94
Gallic acid	-5.73 kcal/mol	62.85 µM	-1.88 kcal/mol	-5.24 kcal/mol	399.285
Hyoscyamide	-8.73 kcal/mol	397.72 µM	-0.81 kcal/mol	-10.09 kcal/mol	1184.035
Piperic acid	-4.66 kcal/mol	386.52 µM	-1.67 kcal/mol	-5.55 kcal/mol	505.323
Piperine	-6.64 kcal/mol	13.69 µM	-0.09 kcal/mol	-6.43 kcal/mol	589.153
Cuminaldehye	-4.69 kcal/mol	362.26 µM	-0.07 kcal/mol	-5.29 kcal/mol	418.065
p-Thymol	-4.60 kcal/mol	425.69 µM	-0.15 kcal/mol	-5.20 kcal/mol	437.566
Ellagic acid	-6.15 kcal/mol	31.16mM	-1.67 kcal/mol	-5.59 kcal/mol	620.05
Salicylic acid	-3.52 kcal/mol	2.61mM	-1.84 kcal/mol	-4.15 kcal/mol	347.05
Zingiberene	-6.24 kcal/mol	26.78 mM	-0.01 kcal/mol	-7.21 kcal/mol	573.56

Table 3: Summary of the Molecular Docking Studies of Phyto Components Against RNA Dependent RNA Polymerase (Pdb)-6NUR

Compounds	Interactions	Amino acid Residues
Limonene	1	761 ASP*	800 TRP	811 GLU
Epicatechin	3	617 TRP	618 ASP*	619 TYR	623 ASP	760 ASP*	761 ASP*
Myrcene	3	617 TRP	618 ASP*	619 TYR	760 ASP*	761 ASP*	800 TRP
Betulonic acid	2	551 LYS	618 ASP*	761 ASP*	800 TRP	811 GLU
Eucalyptol	2	618 ASP*	761 ASP*	800 TRP	811 GLU
Galangin	2	618 ASP*	761 ASP*	798 LYS	800 TRP	811 GLU
Gallic acid	1	618 ASP*	620 PRO	621 LYS	623 ASP	798 LYS
Hyoscyamide	3	553 ARG	618 ASP*	623 ASP	758 LEU	759 SER	760 ASP*	761 ASP*	800 TRP	811 GLU
Piperic acid	3	618 ASP*	619 TYR	621 LYS	623 ASP	760 ASP*	761 ASP*
Piperine	3	618 ASP*	760 ASP*	761 ASP*	800 TRP	811 GLU
Cuminaldehyde	1	761 ASP*	800 TRP	811 GLU	814 SER
p-Thymol	2	618 ASP*	761 ASP*	800 TRP	811 GLU	814 SER
Ellagic Acid	2	551 LYS	618 ASP*	760 ASP*	798 LYS	811 GLU
Salicylic acid	1	618 ASP*	620 PRO	621 LYS	798 LYS
Zingiberene	3	618 ASP*	619 TYR	760 ASP*	761 ASP*	800 TRP	811 GLU

Note: *: Binding interaction of the phyto components with RNA dependent RNA polymerase enzyme

Table 4: Amino Acid Residue Interaction of Lead Phyto Components Against RNA Dependent RNA Polymerase (Pdb)-6NUR

Fig 3: Docking Pose of the selected phytocomponents from the formulation Thippili rasayanam with RNA dependent RNA polymerase- PDB 6NUR; (A) Limonene; (B) Epicatechin; (C) Myrcene; (D) Betulonic acid; (E) Eucalyptol; (F) Galangin; (G) Gallic acid; (H) Hyoscyamide; (I) Piperic acid; (J) Piperine; (K) Cuminaldehyde; (L) p-Thymol; (M) Ellagic acid; (N) Salicylic acid and (O) Zingiberene

Traditional formulations had a pivotal role in treating and preventing chronic as well as novel diseases since centuries. They have been a rich source of bio active medicinal constituents which were not investigated scientifically. Several docking studies had been conducted on individual herbs as well as formulations with respect to traditional system of medicines like Traditional Chinese Medicine (TCM), Ayurvedha and Siddha against COVID-19 virus. Previously, a docking study carried on individual herb Nigella sativa, reported anti-viral potential against SARS-CoV-2 by Ahmad et al.[30]. A study conducted by Alrasheid et al.[31], announced that Gallic acid, Quercetin are important sources for novel anti-viral drug targeting. In the current study also the phytocomponent Gallic acid present in the herb Terminalia chebula of the formulation showed interaction with the RdRp binding site.

Previous studies conducted on siddha formulations Kabasura Kudineer, adathodai kudineer had reported inhibitory action of their phytocomponents aganist Angiotensin-Converting Enzyme 2 (ACE2) receptor spike protein similar to the present study[32,33]. Joshi et al.[34], described some Ayurvedic formulations had anti-thrombotic activity and effective against COVID-19 and suggested that Siddha, Ayurvedha, Unani formulations can be repurposed as they had the potential to prevent and treat COVID-19 that can be tested in future. In this context, the formulation Thippili rasayanam that was selected and repurposed for COVID-19 in Siddha system was found to be effective in a previous study conducted on 2021 and hence as a continuation of that, the present study was done to establish the same.

Individual studies conducted on Thippili rasayanam previously reported about its significant action scientifically. A study conducted by Manoharan et al.[35], revealed that the drug had potent anti-microbial, anti-oxidant, anti-fungal activities. An in vivo study conducted by Vaniswari et al.[36], on Thippili rasayanam reported it possess significant anti-inflammatory and anti-septic activities and it is safe to use in paediatrics. Therefore, it is evident that traditional medicines had its predominance in emerging novel diseases also which has to be studied elaborately in all aspects to prove their therapeutic efficacy.

The computational analysis of the present study concludes that the phyto components present in the siddha formulation Thippili rasayanam has a significant binding efficacy against active amino acid present on the binding sites of target enzyme. Hence, the identified Phyto principles act as potential compounds which exerts promising therapeutic efficacy by inhibiting RdRp enzyme in SARS-CoV-2 RdRp and thereby halting the viral replication. Since the formulation Thippili rasayanam’s effectiveness was proved in clinical trials conducted for COVID-19 and recommended by Ministry of AYUSH, the above study further confirms and establishes it as a strong potential medicine for the management of COVID-19.
