- *Corresponding Author:
- A. Puratchikody
Drug Discovery and Development (D3) Research Group, Department of Pharmaceutical Technology, Bharathidasan Institute of Technology, Anna University, Tiruchirappalli-620 024, Tamilnadu, India
E-mail: [email protected]
|Date of Submission||04 January 2019|
|Date of Revision||17 May 2019|
|Date of Acceptance||10 August 2019|
|Indian J Pharm Sci 2019;81(5):900-912|
This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms
In this present work, silver nanoparticles were synthesized, the biological mechanisms involved and interaction routes were explained using density function theory, adsorption site identification and blend binding energy calculations. The results indicated that among the 18 molecules of a methanol fraction of Tridax procumbens only the phytoconstituent, baicalin was accountable for materialization of the silver nanoparticle. Baicalin formed six π-cationic interactions with a silver ion, which formed the repulsive network between each other atom to rule out the binding of nitrate ion. The HOMO, LUMO and binding energies conformed that baicalin-Ag complex was stable. These fingerprint simulation studies pointed out the easy way for researchers in green nanotechnology for identifying nanoparticle-forming phytoconstituents from the plant extracts in future.
Tridax procumbens extract, silver nanoparticles, density function theory, adsorption locator, Blends binding energy, nano interaction
Nanotechnology is an emerging interdisciplinary technology involving biology, medicine, chemistry and material sciences. Over the past decades, nanoengineered particles have provoked much curiosity due to their distinct physicochemical and biological properties. Nanoparticles (NPs) considered as structure slabs and the key to the next generation technology in many fields. Especially, silver nanoparticles (AgNPs) are one of the supremely energetic and captivating nanomaterials among several metallic NPs frequently used in the biomedical zone. Although, several noble metals used for various purposes, in that AgNPs engrossed applications in cancer diagnosis and therapy. There are several physical and chemical methods for the synthesis of silver nanomaterials. However, due to the low yield and use of toxic solvents hazardous to the environment the medical applications of synthesized NPs are getting limited[5,6].
The growing need to eliminate the environmental risk substances, as green chemistry ideologies labeled the synthesis of NPs using nano green field has received increasing attention in the last decade. Nano green is merging the green chemistry and green engineering with nanotechnology. This environment-friendly approach has much more prominence due to its economic advantage, biocompatibility and viability in the long run, principally in the medical field[8,9]. Naturally grown plants, which are a dynamic source of phytochemicals, serve as a reservoir for the production of metallic NPS. Research indicated that nucleation and growth of NPs occur inside the plants. This fact gave rise to the possibility to use plant phytoconstituents for nanoparticle synthesis, which could be advantageous over other biological processes. Bioengineering of metal NPs based on the assortment of reducing agents, solvent medium and stabilizing agents. Generally, plant extract contains both a reducing and stabilizing agents, constituents, which are responsible for the molecularlevel modifications of their metabolic weaponry, resulting in the synthesis of either metallic or oxide NPs[11,12].
In the present work, T. procumbens leaf extract (microwave irradiation) was used to synthesize AgNPs. T. procumbens is one such multidimensional weed available throughout the region, which used as a supernumerary for many herbs. The phyotochemical examination reported the presence of lipid constituents, sterols, bergenin derivatives and flavonoids[13-15]. However, the diverse compositions of T. procumbens leaf extracts do not explicitly answer what is responsible for the metal ions reduction. Hence, this work was taken up to identify the AgNP shaping phytoconstituent using novel strategic dynamic simulation approaches such as adsorption locator, HOMO/LUMO energy, density function theory (DFT) and blend binding analysis. The reaction and binding energies of phytoconstituents on silver metal surfaces were investigated using molecular level interaction. Finally, the theoretical results correlated with experimental values to conclude the nano-sized silver particle shaping phytoconstituent of T. procumbens. Moreover, the available spectroscopic techniques have provided only insufﬁcient and indirect information of binding events. Therefore, for understanding selective orbital binding, effects of chemical functionalities and resulting non-covalent interactions of phytoconstituent were explained in this work.
Materials and Methods
Reagents used in this study were all the first grade and HPLC grade. Microwave-assisted extraction (MAE) was performed in commercial open type Catalysis-4RI microwave synthesizer. It can emit 140-700 W in 15 W microwave increments with beam reflector for perfect distribution of microwaves. The flexible dipping type temperature probe was used to calculate the temperature. The solvent extracts stored in amber colored pyrogenfree Tarsons click lock microcentrifuge tubes for further factor analysis. Whatman filter papers (20- 25 μm pore size) and a rotary vacuum evaporator (IKA RV 10) were used to separate the phytoconstituents from the final solvent extract.
T. procumbens plant material:
One to two inches extended, pinnate, arrow-headed, oblong to ovate, opposite, acute apexes, and coarsely serrate marginal leaves of Tridax procumbens collected from Tiruchirappalli region (longitude 78.74545, latitude 10.65774) in August 2016. The collected plant material was identified as Tridax L. genus, Tridax procumbens species, cited pl. 900. 1753 and Asteraceae family, in the Department of Botany, St. Joseph’s College, Tiruchirappalli, Tamilnadu, India. The freshly collected leaves were cleaned with doubledistilled (DD) water to remove dust and other external matters for succeeding use.
Microwave-assisted extraction (MAE):
Extraction of phytoconstituents from the leaves of T. procumbens was performed in the MAE unit. Fresh plant leaves (100 g) was kept in a ﬂask of 1 l capacity along with 300 ml of DD water. Upon application of 8 (425 watts, 80 %) level microwave irradiation and the temperate set at 70° gave better yield. The water molecules residing in the leaf cells rapidly realigned with the electromagnetic ﬁeld. The excited molecules generate a high amount of heat and are vaporized. The increased vapour content inside the cells led to an escalation in internal pressure toward the cell wall, subsequently leading to the rupture of the cell walls. Further, the solvent extract was concentrated and desiccated using a rotary vacuum evaporator.
Fractionation of aqueous extract:
T. porcumbens aqueous extract was fractionated using an already reported method. Dried aqueous extract 10 g was initially fractionated with 50 ml of the of methanol in a separatory funnel. The solution was shaken vigorously for 15 min, and then the methanol solution was filtered out. All the 50 ml fractions were concentrated to 5 ml and subjected to gas chromatography-mass spectrometry (GC-MS) for the phytochemical analysis.
GC-MS analysis of fractions:
GC-MS analysis was performed to identify the phytoconstituents present in the methanol fraction of the dried aqueous extract on autosampler attached GC-MS-5975C Agilent system. Column Elite-1 fused silica capillary column (30×0.25 mm ID×IEM df), functioning in electron impact mode at 70 eV; carrier gas helium (99.999 %) was applied at a constant flow of 1.51 ml/min. One microliter injection was delivered with 10:1 split ratio, injector temperature 250° and ionsource temperature of 230°. The oven temperature was automated from 70°-2 min isothermal, with an increase of 100°/min, to 300°/min, ending with 300°-9 min isothermal value. Mass spectra with a scan mass range 40-1000 m/z, 5 min solvent cut time were recorded. A scan of MS start time is 5 min to end time to be 35 min. National Institute Standard and Technology (NIST) database was used to interpret the mass spectrum of methanol fraction.
Synthesis of NPs:
Concentrated methanol fraction of T. procumbens was added to the aqueous solution of 1 mM silver nitrate (AgNO3, MW 169.87, Sigma Aldrich Pvt Ltd) in 3 different ratios, 100:0.5, 100:1, 100:1.5 (by volume) labelled as AgNP-0.5, AgNP-1 and AgNP-1.5, respectively. The resulting mixture was irradiated under direct sunlight; gradual colour changes were observed as a sign of nanosized silver particle formation. Every 30 s, samples were subjected to kinetic-based UV studies for pinpointing the end time of nanoparticle formation and stability duration. The AgNPs were packed at the bottom by centrifuging for 15 min at 12 000 rpm. The supernatant phase was filtered out, and the sedimented AgNPs were washed 3× with 10 ml DD water.
Coating on a glass slide using SILAR:
The separated AgNPs were deposited as a thin films on a glass substrate using the SILAR technique. A deposition cycle of the Ag thin film consisted of 4 steps. First, the substrate was immersed in methanol dispersed Ag solution for 10 s. Then the substrate was rinsed in methanol for 30 s to remove excess unabsorbed Ag ions. The deposition cycles were repeated 150 times. The primed thin films were characterized using diffraction analysis. Scanning electron microscopy (SEM) images were recorded using a microscope (Jeol JSM-6360) with 20 kV voltage.
Characterization of AgNPs:
One millilitre of the nanoparticle mixture was periodically examined for completion of the bioreduction reaction of Ag+ in aqueous solution, followed by addition of the methanol fraction of T. procumbens. Subsequent UV/Vis spectral scan read with the wavelengths of 250 to 600 nm in a spectrophotometer Beckman-Model No. DU-50, CA, USA, having a resolution of 1 nm. UV/Vis spectra were saved at intervals of every 30 s up to 45 min and then once for every 30 min. The absorbance peaks were analysed for the formation and degradation of NPs using the kinetic process.
The particle size of synthesized AgNPs was measured using the radiation scattering techniques (Malvern system). Dynamic light scattering (DLS) examines the size dispersal of particles (nanometer) in mixture with a scale ranging from submicron down to one. The measurement of particle size in Malvern system begins with the random movement of particles in a liquid due to the Brownian motion of particles in a sample using DLS and then interpreting a size using established concepts.
The dispersion stability of synthesized silver nanoparticle was measured by zeta potential. The Malvern zeta seizer 2000 used to calculate the Surface zeta potentials of ions. The Coulomb explosion engendered due to repelling of surface charged silver nanoparticle each other. It precludes the agglomerate tendency of the particle in solution. The surface potential and the dispersing liquid potential, which diverges according to the distance from the particle surface. The criteria of stability of NPs are measured when the values of zeta potential ranged from higher than +30 mV to lower than –30 mV. Freeze dried AgNPs were dispersed in 50 ml of DD water using NaCl as a suspending electrolyte solution (2×10-2 M NaCl). The mixture was shaken for 30 min, and the equilibrium pH was recorded.
Synthesized AgNPs-coated glass slide was subjected to X-ray diffraction (XRD) pattern analysis to investigate both molecular, crystal structures, qualitative identification of metal ions and particle sizes. Unique diffraction pattern of synthesized AgNPs identified by paralleling the diffracted beams of the reference database in the joint committee on powder diffraction standards (JCPDS) library. Phase identification Match software (v 3.6.2) was used to correlate the experimental pattern with the XRD reference database.
The AgNPs coated by SILAR method was used for SEM analysis. The thin AgNPs film images were developed in a Zeiss EVO-MA 10 SEM (Germany). The details of working condition (voltage, magnification) and size of the particle were included on the images itself. In addition, the edax potential of the AgNPs was measured and analysed.
The 200 kV, ultra-high resolution transmission electron microscope Jeol, model no. JEM 2100 HR with EELS used to record the morphology of the synthesized AgNPs. TEM module was prepared by dropping 5 μl of the AgNPs solutions on carbon-coated copper grids and dried under the lamp.
The synthesized AgNPs were characterized using atomic force microscopy (AFM; NanoWizard II, JPK Instruments, Germany) for determining the size and morphology. The dispersed solution was prepared as a thin layer by dropping 100 μl of the sample on a glass slide and allowed to dry for 5 min. The AFM images were scanned with silicon cantilevers (CSC17, Mikro Masch, Estonia) in contact mode. The AFM images were processed using JPK data processing software (JPK Instruments, Germany).
Dynamic simulation studies and interaction studies were performed using the Biovia Discovery studio 2017 and Material studio 2017. Biovia Discovery Studio is a multi-dimensional CHARMm molecular mechanics simulation tool. The material studio is a complete modelling and simulation environment designed to allow predicting and understanding of the realistic model.
The compounds identified from the GC-MS studies were submitted to the Forcite molecular mechanic's tools. All the 2D molecules coordinates were converted to 3D atomistic document or a 3D Atomistic Trajectory document to investigate the potential energy surface, on which the atomic nuclei move. Their steps involved, running a Forcite calculation, which can be grouped as follows: once a 3D atomistic document has been defined, then the smart algorithm was selected with tolerance energy 0.001 kcal/mol and 500 iterations to measure geometric optimization. Consistentvalence force field (Cvff -version 2.4) assigned with an atom-based Van der Waals and electrostatic energy. Cubic spline truncation method with 12.5 Å cutoff distance was fixed for energy calculation. The energy expression used in cvff is shown below Eqn.1, Epot=ΣbDb[1–e–α(b–b0)]2+ΣθHθ(θ–θ0)2+ΣφHφ(1– SCOS(nφ)]+ΣxHxX2+ΣbΣb'Fbb'(b–b0)(b'–b'0)+ΣθΣθ'(θ– θ0)(θ'–θ'0)+ΣbΣθFbθ(b–b0)(θ–θ0)+ΣφFφθθ'cos(θ–θ0) (θ'–θ'0)+ΣxΣx'Fxx'xx'+Σε[(r*/r)12–2(r*/r)6]+Σqiqj/εrij. 1 to 4 terms referred to as the diagonal terms of the valence force field and epitomize the energy of deformation of bond lengths, bond angles, torsion angles, and outof- plane interactions, respectively. All the molecules include the same parameters measured silver, nitrate ion potential energies, and submitted for the orbital analysis using DFT.
The DFT protocol allowed calculating the energy or optimizing the geometry of the phytoconstituent of T. procumbens using the Dmol3 calculation. The force field measure 3D atomic structures of each phytoconstituent were loaded into the Molecule Window of DS-2017. Further, the calculate energy protocol parameters were set to measure total energy, HOMO energy, LUMO energy, dipole, atomic charges. The calculated molecular properties found in the Molecule tab of the Data Table View. If there are atomic properties such as fitted atomic charges, found in the Atom tab of the Data Table View. The isosurface of the electron density coloured by the electrostatic potential is added for up to the first 100 molecules. By default, the isovalue of the electron density is 0.03, and the colouring scheme is spectrumRainbow1 with a range from -0.05 to 0.1. The HOMO and LUMO can be visualized using scripts accessible from in the report. The positive phase of the molecular orbitals uses an isovalue of 0.01 and is coloured blue, while the negative phase uses an isovalue of -0.01 and is coloured red. Orbital nature of all the molecules, silver ion, and the nitrate ion, were analysed and discussed.
To identify the phytoconstituent, which is responsible for reducing AgNO3 to AGNPs, a realistic model was developed using the amorphous cell module in MS- 2017. The amorphous cell module constructs threedimensional periodic structures of molecular systems. The module physiques molecules in a cell by Monte Carlo fashion and minimizing close contacts between atoms, while confirming a realistic distribution of torsion angles for any given force field. All the 18 phytoconstituents and silver nitrate ions were packed into the cubic cell. The unit cell dimensions are determined by the mass density and the number of molecules and set automatically. The existing empty surface was filled with the water components in the mole ratio specified. The number of molecules is determined by the mass density, the volume and mass of the packing region, and set automatically.
After generating the amorphous cell, the location of the silver and nitrate ion with all the 18 phytoconstituent in an aqueous environment was analysed using the Adsorption Locator protocol. It finds the low energy adsorption orientation on both periodic and nonperiodic substrates of discrete systems. The adsorption locator module run with the 3 heating cycles, 100 000 loading steps and optimize geometry. Stimulated annealing performed with adjusted Monte Carlo step size to measure overall system energies. The non-bonded interaction between the silver, nitrate ions were analysed.
Blends modules were used to measure the binding energies between the silver and nitrate ion with each phytoconstituent separately. The module calculates pair energy with the trajectories and atom-based nonbonded interaction energies were measured using 0.020 kcal/ mol energy bin width.
The functional group of capped phytoconstituent with AgNPs was identified by FTIR-potassium bromide (KBr) pellet method in (1:100). IR spectrum was recorded on a Fourier transform infrared spectrometer Jasco FT/IR-6300 using transmittance mode operating at a resolution of 4 cm-1 (Jasco, Tokyo, Japan).
Precipitation of silver by argentometric method:
The separation of capped phytoconstituent from silver ion, complex formation principle was used. An equivalent amount of KCN was added to the dispersed AgNPs solution. The solution was allowed to settle down, and then a few drops of KCN were added slowly to the upper supernatant liquid to test the completeness of precipitation. The precipitate was separated by filtration. The remaining filtrate was subjected to highperformance thin layer chromatography (HPTLC) analysis.

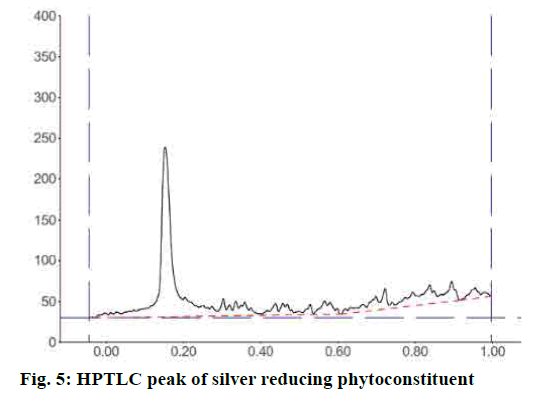

HPTLC method was carried out using the mobile phase of benzene (9 ml):chloroform (5 ml):ethyl acetate (8 ml) was selected based on a trial and error method. Ten microliters each with band length of 5 mm separated filtrate from synthesized AgNPs solution (after precipitation) was applied on TLC aluminium sheets silica gel 60 F 254 (Merck) in Camag HPTLC system, which was programmed through winCATS software. The chromatograms were developed in Camag twin trough chamber saturated with mobile phase solvent for 20 min up to the distance of 80 mm. The bands scanned at both 254 and 366 nm by deuterium and tungsten lamp with slit dimension of the 6.0×0.45 macro. The data was integrated through the winCATS Planar Chromatography Manager.
Results and Discussion
The GC-MS retention times and interpretation of mass spectral analysis of the methanol fraction of aqueous extract of T. procumbens revealed the presence of 18 compounds. Table 1 showed the details of the compounds identified. The structural characterization indicated that the GC-MS found 10 flavonoids, 6 alkaloids, a hydroxycinnamate, carotenoids and a benzoic acid derivative (Table 1).
|RT (min)||Compound||Compound nature||Molecular formula||Molecular weight (g/mol)|
|14.367||Vanilic acid||Benzoic acid||C8H8O4||168.148|
Table 1: GC-MS analyses of methanol fraction of aqueous extract of T. procumbens leaves
When the methanol fraction was mixed in different ratios with AgNO3 and irradiated in sunlight, within 1 min, the colour of the solution began to change from colourless to dark violet, showing the nucleation of AgNPs. Among the 3 mixture, the AgNP-0.5 and AgNP-1 formed stable particles without micelle formation. It is an ultrafast method, which as reported by other researchers worked with different plant systems.

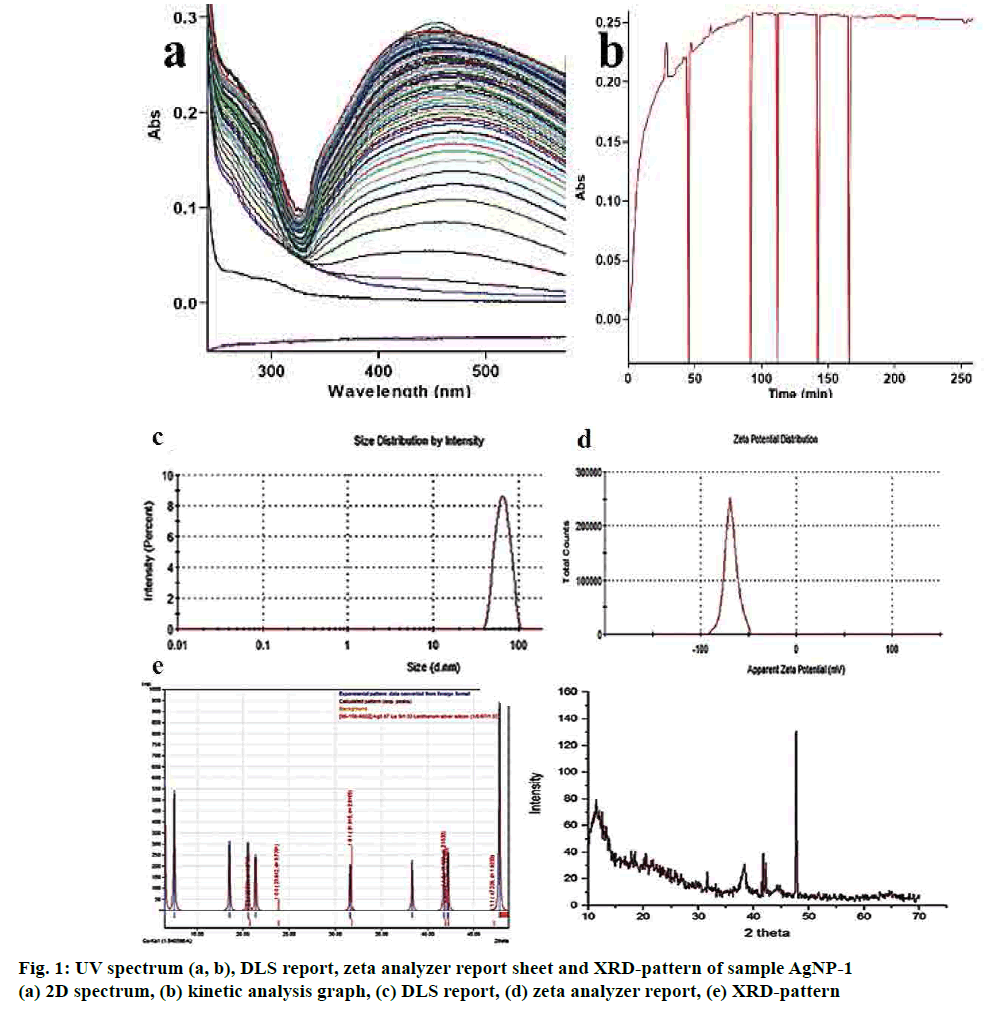

UV/Vis spectroscopy is the most convenient methods for characterizing the optical response of AgNPs and sensitive to the materialization of colloidal metal NPs, due to their strong surface plasmon resonance (SPR). The results of the colour and absorption intensity revealed that the colloidal samples AgNP-1 were stable up to 48 h and the absorbance was at 412 nm, while the addition of 1 ml of the methanol fraction into 100 ml of silver nitrate solution. Such observation gave preliminary indication regarding the shape and size of AgNPs. Addition of 1.5 ml extract showed the shifts towards higher wavelength 582.15 nm and unstable of AgNPs.
A kinetic study of the reduction process shows (figs. 1a, b) that the synthesis of AgNPs started within 30 s of addition and reached a plateau after 30 min. In the initial 30 s, there is gradual rise in absorbance followed by a slow increase in the absorbance values, which finally become linear after 90 min for thus suggesting very fast reaction kinetics of SNs synthesis from AgNP-1 compared to other mixtures.
The blanks did not show any colour change even after two days. It signified that sunlight plays an important role in the biosynthesis of AgNPs. Sunlight enriched the energy of Ag+ ion to the sharing of electrons in the process. A plot is drawn between the percent absorbance vs. time t as a pseudo-first order rate constant (kobs), the same is fitted in to the Eqn., At=Af+(Ao –Af)exp(-kobst), where Ao and Af are the initial and final absorbance” AgNPs, respectively[21,22].
The intensity distribution and polydispersity index (PDI) of primary result from DLS showed the distribution width of AgNPs formed using methanol fraction of T. procumbens. Fig. 1c exposed that the size and the associated relative percentage of particles distribution in AgNPs-1 by the intensity of light scatter. The Z average of the 1-min sample of 10:1 ml ratio mixture found to be 63.30 d. nm with s. dev of 12.55. PDI of 0.041 clearly describes the sample less polydispersed. The fit of the geometrically spaced actual data points by the cumulates (fig. 1c) analysis from which the z-average diameter and PDI verified the good quality data, and there is no presence of large or sediment particles. The excess addition of methanol fraction (10:1.5 ml) showed the greater particle size and very polydispersity of AgNPs.
To further gain insights into the stability of the engineered AgNPs, zeta potential was measured[23,24]. Herein, the ζ values wide-ranging from 15.5, 38.5 and 68.3 Mv for the AgNPs-0.5, AgNPs-1 and AgNPs-1.5, respectively. It suggested that the surface of the NPs is positively charged and dispersed in the neutral medium. The negative value of electrophoretic mobility conﬁrms the repulsion forces. It quantified by the small frequency shift of the light. An articulate laser source (laser) scattered by the charged particle that is moving in a peripheral electric field between the particles proved that NPs are very stable electrophoretic mobility distribution. Fig. 1d showed the average electrophoretic mobility and zeta potential values of the synthesized AgNPs.

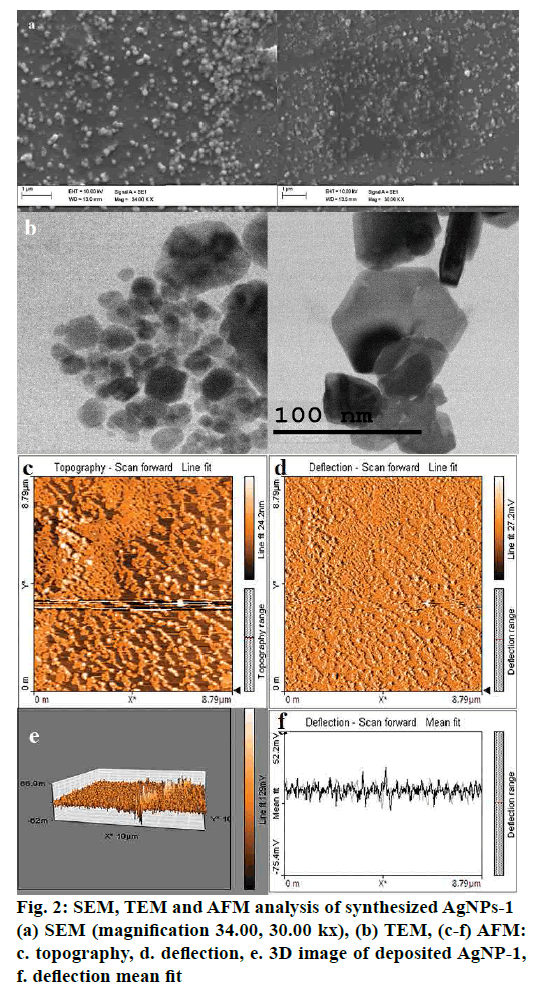

After 125 cycles in SILAR, the good-quality AgNPs film was deposited and quantified by the XRD pattern. The grey colored, thin films well-adhered to the glass (silicon) substrate. Fig. 1e showed the diffractograms of the AgNPs-1 film with glass substrates and the Ag particle is amorphous and fine grains in nature. The Ag (111) substrate are strongly surfaced along with a hexagonal crystal structure of the nanoparticle. The crystal data entry 96-210-5382 pattern was matched well with experimental value with the figure-of-merit value of 0.8369. Fig. 1e shown four distinct (111), (200), (220) and (311) reﬂections at 38.12, 44.38, 64.45 and 77.41 indicated the metallic silver. The hexagonal assembly of AgNPs conformed by vociferous and stout diffraction peak cantered at 38.12, which referenced to the (111) reﬂection and close fit. The 69.25 nm crystallite size of the AgNPs assessed by the Debye- Scherrer formula, which was greater than the mean size of the TEM analysis.
From the integrated results of SEM, the sample, which consisted of 1 ml of the methanol fraction in silver nitrate solution, consisted of 63.35 nm sized particles (fig. 2a). Also, the agglomerated NPs formed by the mixture containing 1.5 ml of extract. EDX analysis was employed, it was perceived that 60 % weight of the product is Ag nanofilm and 40 % silicon ion existed (substrate). The help of TEM clarified the outline shape and dimension of the particles (fig. 2b). Carbon-coated copper grid with dried AgNPs solution was evaluated using TEM images. The micrograph of TEM result proposed the sizes of the synthesized AgNPs were around 74 nm. The dimension analysis labelled the synthesized AgNPs was hexagonal. Non-contact mode of AFM surface analysis reports shown in figs. 2c-f. The 1×1 μm area of surface analysed and the images revealed that the topography of the particle is properly systematic construction for the (fig. 2e) sample-3 showed aggregated particle.
Molecular modelling is a well-adapted technique to investigate the organization of the molecular level interaction studies[26-28]. Here a new correlated approach was devoted to pointing out the phytoconstituent of the methanol fraction of T. procumbens, which is responsible for shaping and stabilizing the AgNPs. Phytoconstituent were identified using the interaction, energy, binding energy, HOMO, LUMO orbital and Dmol3 calculation. Modelling protocols begin with potential energy calculation (forcefield) to molecular dynamics experiments executed on immeasurable solids with periodic boundary conditions.
The classical force field-based simulation was performed on both molecular and periodic systems[29,30]. The protocol run resulted in the energy calculated and minimized 18 molecules for future studies (Table 2). The initial potential energy brought to the local minima of -27.59 kcal/mol and the VdW; electrostatic values range from -5.03944 to 7.8936 and -39.65714 to 5.71059 kcal/mol, respectively. All the molecules were minimized using the 1000 steps of conjugated gradient followed by 1000 steps of steepest gradient method. Forcite geometric optimization level for all the phytoconstituents energy and convergence, revealed that all molecules energy brought to the local minima to make molecules stable in the complex system.
|Name||Potential energy (kcal/mol)||Van der Waals energy (kcal/mol)||Electrostatic energy (kcal/mol)||Initial RMS gradient (kcal/(mol x A),||Final RMS gradient (kcal/(mol x A)|
Table 2: Forcite energy analysis for phytoconstituent from methanol fraction of T. procumbens

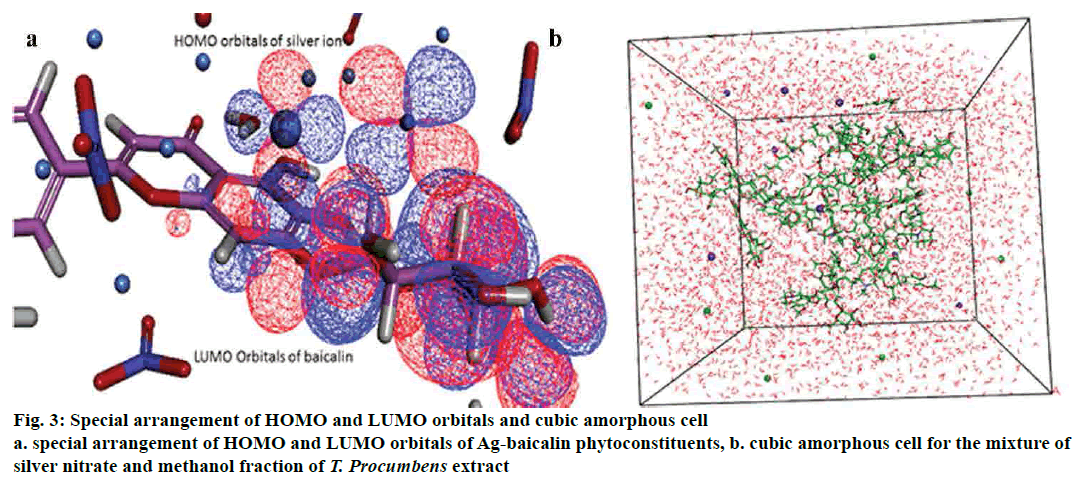

DFT protocol used to study the chemical reactivity pattern between the phytoconstituent and silver nitrate ions. The tabled reactivity descriptors were added in the properties table of each phytoconstituent and analyzed (Table 3). The density functional quantum mechanics method in Dmol3 calculate the energy of the molecules. The total energy of each system calculated using optimized variations Et respect to variations in ρ, subject to orthonormality constraints by using Eqn. 2, Et[ρ] = Σi〈φi+|-∇2/2|φi〉+〈ρ(r1)[εxc[ρ(r1)+(Ve(r1)/2– VN]〉+VNN. The higher total energy of the Ag ion found to be -5194.8482 kcal/mol making the ability to form non-bonded interaction with the phytoconstituent.
|Name||Total energy (Ha)||Binding energy (Ha)||HOMO energy (Ha)||LUMO energy (Ha)||Band Gap energy (Ha)||Dielectric energy (Ha)|
Table 3: Density functional theory (DFT) analysis of molecules
The cubic amorphous cell boundary composed of the 18 phytoconstituents and n number of silver, nitrate ion and a varying number of water molecules in the isosurface of the periodic boundary. In order to explicate the interaction mechanism between the phytoconstituent, silver, nitrate ions and a water molecule in the amorphous regions, adsorption location and binding energies were analysed between the formed complexes (fig. 3). All interaction pattern was analysed to point out the phytoconstituent, which is answerable for the reduction and stabilization of silver ion.
Adsorption locator investigates that low energy adsorption sites and preferential adsorption site of the individual complex (phytoconstituent-Ag) in both periodic and nonperiodic substrates[34,35]. This module generated 10 different coordinated atoms in each phytoconstituent, which would form the stable interaction between Ag or nitrate ion. Based on the result of adsorption energy (Table 4) between ions and phytoconstituent showed baicalin and Ag ion (-39.58290904 kcal/mol) for the most favorable and stable conformation in the orientation space. Fig. 2b explained the energy distribution and total energy of the Ag and baicalin complex.
|Structures||Total energy||Adsorption energy||Rigid adsorption energy||Deformation energy||Ag:dEad/dNi|
Table 4: Details of adsorption energy of phytoconstituent and silver nitrate ions
The compatibility of Ag ion and phytoconstituent mixtures was perceived by using modified Flory- Huggins blend model and role property. Blends distinguish the components by using the role property. In each mixture considered by Blends, one component has a base role, and the other has a screen role. These abbreviated as b and s, respectively. Table 5 describes the binding energy (energy of interaction) of each phytoconstituent (base) with individual screen atoms such as Ag, nitrate, and water. Blends generated a large number of molecular orientations and calculated the pair interaction energies of each configuration. Excluded-volume constraints also included making van der Waals surfaces are in contact.
|Complex||Ebs min||Ebs avg||Complex||Ebs min||Ebs avg|
|vanillic acid-Ag||-8.5936||-4.3021||Epicatechin gallate-Ag||-13.831||-5.22715|
|vanillic acid-nitrate||-4.5721||-1.6409||Epicatechin gallate-nitrate||-6.2076||-2.05872|
|vanillic acid-water||-4.5000||-0.5544||Epicatechin gallate-water||-5.3469||-0.68871|
Table 5: Binding energies of individual base and screen complex using blends

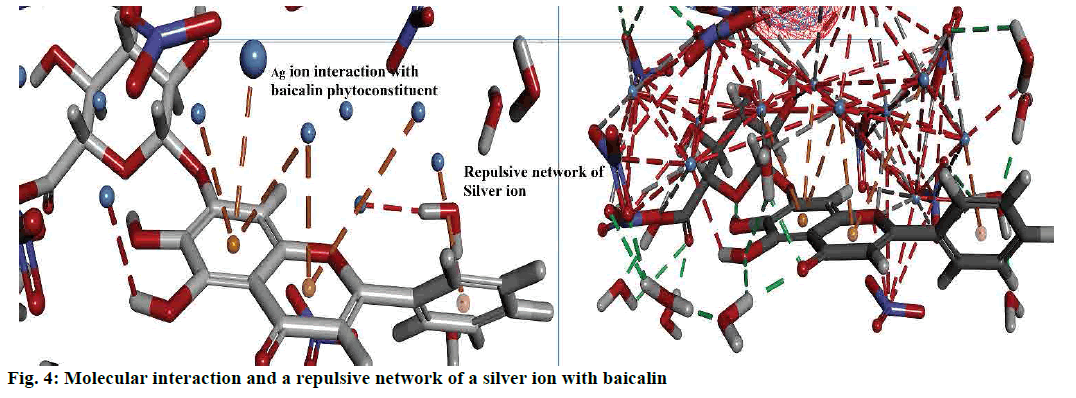

Interactions between the Ag ion and phytoconstituent described by the non-bond interactions such as attractive interactions, traditional interactions (classic hydrogen bonds) as well as weak hydrogen bonds with carbon donors. In addition to attractive forces, and repulsive interactions also monitored. Figs. 2c-f and 4 explained the bond formed between the more stable complex of baicalin and Ag ion.
IR spectrum of the synthesized silver nanoparticle conformed the capping compound contains the broad and less transmittance peak at 3391.21 cm-1 also sp3 C-H stretch at 2920.66 and 2851.24 cm-1. The peak at C=O 1735.62 cm-1, aromatic C=C stretch at 1626.66 cm-1 and the Sp3 bending peaks at 933.37 cm-1 confirmed that baicalin is capping the surface of the synthesized AgNPs. HPTLC analysis of the dispersed AgNPs solution after precipitation of Ag using the Mohr’s method. The result of HPTLC analysis confirmed the major peak at 70.65 % of the area with Rf start from 0.11 and end at 0.20 (fig. 5). This result confirmed the solution contained a single compound, which is responsible for the formation and shaping of the AgNPs.
Bioengineering of AgNPs using plant extracts is an ultra-fast growing field due to its eco-friendly nature. In this pathbreaking approach shown here, the new way to study molecular level insight of AgNPs formation by plant phytoconstituents. The colour change of the NPs mixture was due to surface plasmon vibrations, nature of phytoconstituent, size and shape of the metal particles. In addition, these colour changes instigated by the interface of the electric field of light with confined surface electron charges within the particles, which triggered communal oscillation of the conduction electrons concerning the nucleus[39,40]. Typically, the materialization of nano-sized silver particles was inveterate by the appearance of shrill SPRs in the range of 350-600 nm[41,42]. Based on the mixture ratio, absorption spectra (fig. 1) of AgNPs displayed bands, which differ in their λ max and SP band intensities.
The DFT analysis, clearly explained the aptness of a complex between phytoconstituent and Ag ion. Measurement and analysis of HOMO and LUMO orbitals, as well as energy, showed that the silver ion (HOMO -0.3680202, LUMO-0.1776565) possessed higher HOMO orbitals to gain the electron. Examining the orbitals and energy of each phytoconstituent resulted in baicalin atoms found that (LUMO- 0.1062958) ability to donate the electrons and forming a complex with the Ag ions[43,31]. Indeed, this confirmed the superior stability of complexes associated with other phytoconstituent (fig. 3). Lower values of HOMO -0.2139046 kcal/mol, directed that baicalin receive electrons and less affinity as an electrophobic center. The HOMO energies of other phytoconstituent were higher than baicalin, which deteriorated from the electron donation with the Ag ion.
The negative values of binding energy and orbital potentials signiﬁes more stability of complex systems. HOMO and LUMO gap also assess the stability of Ag complex with shifting conformation and orientation conferring to the principle. As marked from Table 3, the band gap energy values increased on Ag-baicalin complex. Likewise, the code of minimum electrophilicity principle consigned that chemical stability of Ag ion complex inversely correlated to electrophilicity of each atom. Binding of phytoconstituent with silver cation produces a more significant value of energy -0.0605054 and lower energy of baicalin (-0.1132099) that specify it is easy for relocating charge.
Moreover, higher negative values of baicalin indicate substantial global stability than other phytoconstituents. Subsequently, the Ag ion complex formation with other phytoconstituent was not auspicious on solvation. Overall, Ag+ cation binding with baicalin was favoured whereas other molecules were disfavoured and unaffected on solvation. Based on the result of adsorption energy (Table 4) between ions and phytoconstituent showed baicalin and Ag ion (-39.58290904 kcal/mol) for the most favourable and stable conformation in the orientation space. The higher energy between baicalin and nitrate ion showed unfavourable binding.
Blends-binding energy calculation of specific complex concluded that the baicalin and Ag ion complex found that more negative energy of -0.30605 kcal/mol, which indicated that the complex was more stable compared to nitrate ion complex as well as other phytoconstituent complexes. The energy distribution graph revealed that the energy of Ag ion with complex less energy compared with the nitrate and water molecules.
Interaction analysis of AgNPs and phytoconstituent complex inside the amorphous periodic boundary. Especially, 2 cyclic rings of the baicalin form the π-cationic interaction with four Ag ions distance range from 3.09-4.01 Å between the centre of the benzene ring. These AgNPs built the repulsive network, between each other, which shielded the baicalin molecule from the nitrate ion attack (fig. 4). Also, the negative HOMO orbitals of the Ag ion form interaction with the positive LUMO orbital of baicalin (fig. 3). Based on this information the hypothetical reduction reaction of AgNO3 to AgNPs by the phytoconstituents schemed. The T. procumbens phytoconstituent, baicalin, a flavone glycoside, contained multiple –OH groups and a ketone group accepted an electron to form an interaction between Ag+ ions present in the AgNO3 solution. In this probable reaction, baicalin (–OH/C=O) hydroxyl group or carboxyl groups form a complex with Ag ions and π cationic interaction with the aromatic rings, which caused the reduction of Ag ion and stabilization of AgNPs.
The result of the present correlation study between the computational simulation and experimental evaluation concluded that among the 18 phytoconstituents found in the methanol fraction of T. procumbens, only baicalin acted as a reducing as well as a stabilizing agent to shape the AgNPs. DFT analysis and blends binding energy clearly explain the HOMO and LUMO orbital interaction as well as the interaction between the adsorbent atoms of baicalin. This tactic would give greater impetus to the growing green synthetic nanoengineering field.
