*Corresponding Author:
Y. Lee
Department of Oriental Pharmacy and Wonkwang-Oriental Medicines Research Institute, Wonkwang University, Iksan 570-749
Date of Submission 29 April 2017
Date of Revision 04 May 2018
Date of Acceptance 12 January 2019
Indian J Pharm Sci 2019;81(2):219-225

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


Pulsatilla koreana Nakai, or pasque flower has been used as a medicinal plant for the treatment of amoebic dysentery, malaria, and internal hemorrhoids. The extract of Pulsatilla koreana Nakai, itself, has not been yet investigated for potential antiobesity effects. In this study, the antiobesity effect was evaluated on preadipocyte differentiation of Pulsatilla koreana Nakai extracted by 70 % ethanol in 3T3-L1 cells. Pulsatilla koreana Nakai ethanol extract at doses of 20 μg/ml significantly decreased lipid droplet accumulation, the expression of transcription factors, including CCAAT/enhancer-binding protein α, β, δ, peroxisome proliferator-activated receptor gamma and mRNA levels of fatty acid synthase. Moreover, Pulsatilla koreana Nakai ethanol extract also activated the phosphorylation of 5' adenosine monophosphate-activated protein kinase α. In conclusion, Pulsatilla koreana Nakai ethanol extract suppressed preadipocyte differentiation via down-regulation of CCAAT/enhancer-binding proteins, peroxisome proliferator-activated receptor gamma, and fatty acid synthase by phosphorylation of 5'-adenosine monophosphate-activated protein kinase α in adipocytes. This data suggested that Pulsatilla koreana Nakai ethanol extract be further explored as a new preventive and therapeutic agent against obesity.


Pulsatilla koreana Nakai, ethanol extract, antiobesity, CCAAT/enhancer-binding protein, peroxisome proliferator-activated receptor, 5' adenosine monophosphate-activated protein kinase

Obesity is a steadily increasing public health dilemma that is associated with an imbalance between energy intake and expenditure [1]. The state of being overweight or obese increases the risk of developing serious diseases such as hypertension, coronary heart disease, insulin resistance type 2 diabetes, dyslipidemia, arteriosclerosis, infertility, back pain, and some cancers [2]. These situations can be due to an altered lipid metabolism, including lipogenesis and lipolysis, and accumulation of excessive abdominal fat can induce metabolic impairments [3]. The multistep processes are related to the proliferation or differentiation of adipocytes, and fatty acid oxidation or synthesis [4]. In adipocyte differentiation, various transcriptional factors including CCAAT/enhancerbinding protein (C/EBP)α, β, δ, and peroxisome proliferator-activated receptor (PPAR)γ play a role as the major regulators of adipogenesis [5,6]. C/EBPβ and C/EBPδ are expressed in the early phase of adipocyte differentiation and activate the expression of PPARγ and C/EBPα [5,7]. During adipogenesis, C/EBPα is involved in stimulating and maintaining the expression of PPARγ [6,8]. Additionally, the expressed genes are involved in the adipocytes phenotype and maintenance via lipid metabolic enzymes at the end of adipocytes differentiation [9]. Fatty acid synthase (FAS) as a representative key enzyme in the lipogenesis pathway, plays a role in catalysing all the enzymatic reactions involved in the conversion of acetyl CoA and malonyl CoA finally to palmitic acids [9,10]. Activation of 5'-adenosine monophosphate-activated protein kinase (AMPK), which functions as an energy status sensor of cells, inhibits fatty acid synthesis through the inactivation of acetyl CoA carboxylase, which hinders the differentiation of preadipocytes into adipocytes and down-regulates PPARγ expression [11]. Various herbal medicine formulas have been developed for the prevention and treatment of obesity [6]. As known a pasque flower, Pulsatilla koreana Nakai (Figure 1) is a perennial grass belonging to the family Ranunculaceae, which has traditionally been used as an herbal medicine for the treatment of amoebic dysentery, malaria, and internal haemorrhoids in Korea and China [12]. Additionally, pharmacological effects of P. koreana Nakai such as hypoglycaemic, antitumor, cognition-enhancing, neuroprotective, cytotoxic, and antiangiogenic activities have been reported [13]. P. koreana root contains various phytochemicals that included anemonin, protoanemonin, hederagenin, oleanane, ranunculin, oleanolic saponins, lupinetype triterpenoid saponin, cinnamic acid derivates, and deoxypodophyllotoxin [14-17]. A previous study has shown that Pulsatilla saponin D isolated from the root of P. koreana Nakai had inhibited tumor growth rate on the BDF1 mice bearing Lewis lung carcinoma cells [12]. It was reported that methanol extract from P. koreana inhibited inflammatory reactions in lipopolysaccharide-exposed rats [18]. Another study demonstrated that P. koreana ethanol extract (PKEE) has antitumor activities via apoptosis in anaplastic thyroid cancer cells and antiangiogenesis effects by decreasing the expression of hypoxia-inducible factor 1α and vascular endothelial growth factors [19]. However, the extract of P. koreana Nakai, itself, has not been yet scientifically investigated for potential antiobesity effects. In this study, we evaluated the antiobesity effects on preadipocyte differentiation of P. koreana Nakai extracted by 70 % ethanol in 3T3-L1 cells.


Figure 1: Representative photograph of Pulsatilla koreana Nakai

Materials and Methods

Dulbecco’s modified Eagle’s medium (DMEM), bovine calf serum (BCS), fetal bovine serum (FBS), penicillin, streptomycin, and phosphate-buffered saline (PBS) were purchased from Gibco BRL (Grand Island, NY, USA). Dimethyl sulfoxide (DMSO), 1-isobutyl- 3-methylxanthine (IBMX), dexamethasone, insulin, 3-(4,5 dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT), and oil red O were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). Cell lysis buffer was obtained from iNtRON Biotechnology Inc. (Seongnam, Korea), and the protein assay reagent was purchased from Bio-Rad Laboratories (Hercules, CA, USA). Polyvinylidene fluoride (PVDF) membrane and chemiluminescence kit were obtained from Amersham Pharmacia Biotech Inc. (NJ, USA). SYBR Green was purchased from Roche Diagnostics Ltd. (Lewes, UK). AntiC/EBPα, antiC/EBPβ, antiC/EBPδ, antiPPARγ, antiFAS, antiphosphorylated (p)-AMPKα, and antiAMPK antibodies were purchased from Cell signal Technology, Inc., (Danvers, MA, USA).

Preparation of plant materials:

Dried roots of P. koreana Nakai were obtained from Kumsan herbal market (Kumsan, Chungnam, Korea). The roots of P. koreana Nakai (30 g) were washed and ultrasonically extracted with 300 ml of 70 % ethanol for 2 h. Then, the extract was filtered through a 0.45 μm microporous membrane. PKEE so prepared was freeze-dried and stored at 4° in the dark. When needed it was freshly diluted with distilled water for use in experiments.

Cell maintenance:

3T3-L1 preadipocytes were purchased from the American Type Tissue Culture Collection (Rockville, MD, USA). Cells were maintained at 37° in a humidified 5 % CO2 incubator in DMEM supplemented with 10 % BCS and 1 % penicillin-streptomycin until 80 % confluency was reached. To induce differentiating into adipocytes 2 d after confluency was reached, the cells were incubated in DMEM containing 10 % FBS, 0.5 mM IBMX, 1 μM dexamethasone, and 1 μg/ml insulin for 2 d, and then maintained in DMEM containing 10 % FBS with 1 μg/ml insulin for another 2 d. Fresh DMEM containing 10 % FBS was replaced every 2 d until the 8th d.

Cell viability:

3T3-L1 preadipocytes (2×104 cells/well) were seeded in 48 well microplates and were treated with 4, 20 and 100 μg/ml of PKEE in a humidified incubator of 5 % CO2 at 37° for 48 h. At the end of incubation, 50 μl of 5 mg/ml MTT solution diluted with PBS was added to each well and further incubated at 37° for 3 h. The medium was removed and 300 μl of DMSO added to these wells, and the plates were agitated to dissolve the formed crystal product. Optical density of formazan was measured using a microplate reader (Fluostar Galaxy, BMG Laboratories, Offenburg, Germany) at 540 nm. The readings were compared to the control, which was taken as 100 %.

Oil red O staining:

3T3-L1 cells were seeded at 3×104 cells/cm2 on 6-well culture plates. Differentiated 3T3-L1 cells were treated with PKEE at concentrations of 4, 20, and 100 μg/ml. Cells were washed twice with PBS and then fixed with 10 % neutral formalin for at least 20 min at room temperature. After the removal of 10 % neutral formalin, 100 % propylene glycol was added to each well for 3 min. Cells were decolorized with 60 % propylene glycol before staining with the oil red O working solution and then washed extensively with water. Then, cells were incubated with the oil red O working solution for 1 h. The stained lipid droplets in 3T3-L1 adipocytes were rinsed three times with distilled water. The staining dye of cells was extracted with isopropyl alcohol and measured spectrophotometrically at 490 nm using a multi-well plate reader.

Western blot analysis:

3T3-L1 cells were respectively homogenized in 200 μl lysis buffer for 30 min on ice, and vortexed for 15 s every 5 min. Lysates were centrifuged at 13 000 rpm for 10 min, and supernatants were determined by protein concentration using the Bio-Rad protein assay reagent. Aliquots of 60 μg of protein from homogenate were separated by 10 % sodium dodecyl sulphate polyacrylamide gel electrophoresis and then transferred to a PVDF membrane. After blocking for 2 h with 5 % skim milk, membranes were washed in TBS-T (0.1 % Tween-20 in 1X TBS) for 10 min four times, and then incubated with primary antibodies (1:2000) derived from rabbit overnight at 4°. After washing with TBS-T, the membranes were incubated with antirabbit IgG or antimouse IgG horseradish peroxidaseconjugated secondary antibodies at 1:5000 diluted in 5 % skim milk in TBS-T for 1 h at room temperature. At last, immunoactive bands were detected by the chemiluminescence kit using the Fluorchem E image analyser (Cell Biosciences, California, USA).

Ultra performance liquid chromatography (UPLC):

UPLC separation was performed on an Acquity UPLC system (Waters Corp., Milford, MA, USA) with an Acquity UPLC BEH C18 column (2.1×50 mm, 1.7 μm particle size). Temperature of the column was set at 30° and the mobile phase consisted of acetonitrile (phase A) and 0.1 % H3PO4 (phase B). The gradient was applied with the condition at 0-4.5 min (4-10 % A, 96-90 % B). Two microliters of each working solution was injected into the UPLC instrument to construct the calibration curves. Each mixed standard solution was injected in triplicate. Calibration curves were established by plotting the peak area versus concentration (μg/ml) of each analyte. The limit of detection and limit of quantification for each standard were defined at signalto- noise ratio of 3.3 and 10, respectively. To confirm the repeatability, three independently prepared samples were analysed.

Statistical analysis:

All results were statistically analysed by SPSS 19.0 analysis program and presented as mean±SD. Data were calculated by using one-way analysis of variance and the post hoc test was performed via the Turkey’s test. P-values of less than 0.05 were used as the criterion for statistical significance.

Results and Discussion

The 3T3-L1 fibroblast cell line, which is derived from mouse embryonic tissue, has been used to identify key molecular markers, transcription factors and various interactions [4,20]. In the current study, the antiadipogenic activity of PKEE on cell viability, transcriptional factors in adipocyte differentiation, and fatty acid synthesis regulation using 3T3-L1 were examined. Treatment with PKEE significantly decreased the contents of intracellular lipid accumulation stained by oil red O in differentiated adipocytes, regardless of cell toxicity. To evaluate cell viability, 3T3-L1 preadipocytes were treated with various concentrations at a concentration of PKEE (4, 20 and 100 μg/ml) for 48 h. The cytotoxicity by PKEE treatment did not alter cell viability at concentrations of 4, 20 and 100 μg/ml (Figure 2). The cytoplasmic lipid accumulation in differentiated adipocytes was examined by oil red O staining at the end of the 8th d. As shown in figure 3A and B, the content of lipid accumulation in IBMX, dexamethasone, and insulin (MDI)-treated cells significantly increased compared with that of untreated cells (p<0.01). However, the content of lipid drops in PKEE-treated cells was significantly reduced at concentrations of 20 and 100 μg/ml, respectively, in comparison to that of adipocytes differentiated cells treated with MDI excluding PKKE (p<0.01).

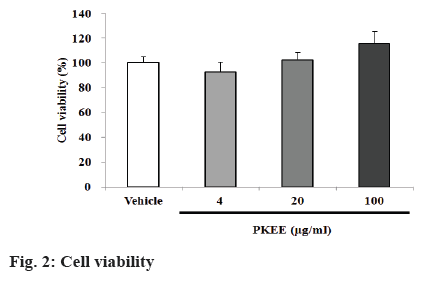

Figure 2: Cell viability

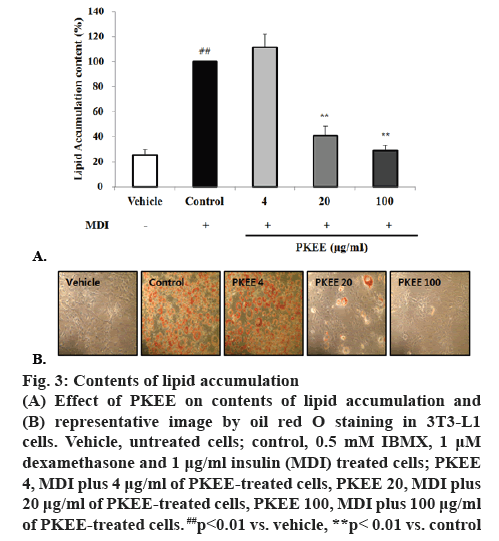

Figure 3: Contents of lipid accumulation
(A) Effect of PKEE on contents of lipid accumulation and (B) representative image by oil red O staining in 3T3-L1 cells. Vehicle, untreated cells; control, 0.5 mM IBMX, 1 μM dexamethasone and 1 μg/ml insulin (MDI) treated cells; PKEE 4, MDI plus 4 μg/ml of PKEE-treated cells, PKEE 20, MDI plus 20 μg/ml of PKEE-treated cells, PKEE 100, MDI plus 100 μg/ml of PKEE-treated cells. ##p<0.01 vs. vehicle, **p< 0.01 vs. control

Adipocyte differentiation and maturation are intimately related to the occurrence and development of obesity [21]. Adipogenesis, which is the whole process of cell differentiation that preadipocytes undergo to become mature adipocytes, is regulated by several transcriptional factors, including C/EBPs and PPARs, and accompanied with changes in cell morphology, gene expression, and hormone sensitivity [22-24]. The expression of C/EBPs and PPARs in differentiated cells was observed to investigate whether PKEE was associated with regulating transcriptional factors. The effects of PKEE on the expressions of C/EBPα, C/EBPβ, C/EBPδ, and PPARγ were investigated by western blot analysis. In the process of adipocyte differentiation, C/EBPβ and C/EBPδ were expressed in the early phase of adipocyte differentiation and rapidly induced by the stimulation of hormone signalling [5,7]. As shown in figure 4, the expression of C/EBPα, C/EBPβ, C/EBPδ, and PPARγ in MDI-differentiated cells was significantly increased compared with that of untreated cells without MDI. Especially in adipocytes treated with PKEE at a concentration of 20 μg/ml, the expression of C/EBPα (figure 4A), C/EBPβ (figure 4B), C/EBPδ (figure 4C), and PPARγ (figure 4D) were significantly decreased in comparison to adipocytes differentiated by MDI excluding PKKE. After inducing C/EBPβ and C/EBPδ in differentiated cells, they function as transcriptional regulators of C/EBPα and PPARγ [5,7]. In the present study, PKEE may decrease the content of lipid accumulation in differentiated cells by downregulating C/EBPα and PPARγ after inhibiting C/EBPβ and C/EBPδ expression. During adipogenesis, C/EBPα is involved with stimulating and maintaining PPARγ expression [6,8]. PPARγ, a nuclear receptor, promotes the expression of a set of genes involved in the maturation of adipocytes [21]. Some reports demonstrated that PPARγ-mediated lipogenesis in adipose tissue, either directly or indirectly via modulation of the sterol regulatory element-binding protein (SREBP) 1c [25,26]. PPARγ and C/EBPα synergistically activate the downstream adipocyte-specific gene promoters, such as FAS, acetyl CoA synthase 1, fatty acid transport protein 1, fatty acid binding protein 4, and perilipin at the late stage of adipocyte differentiation leading to fat droplet formation [27]. Additionally, the expression of FAS, one of lipogenic enzymes was observed in cells to ascertain the inhibitory effects on C/EBPs and PPARγ by PKEE. The amount of FAS expression in PKEE-treated cells was significantly decreased at concentrations of 20 and 100 μg/ml, as compared to that of MDI-differentiated cells without PKEE treatment (p<0.01; figure 4E). FAS as a representative key enzyme in the lipogenesis pathway, and plays a role that catalyses all the enzymatic reactions involved in the conversion of acetyl-CoA and malonyl-CoA finally to palmitic acids [9,10]. It has been known that FAS causes obesity by increasing the storage of triglycerides [27]. In this study, it was assumed that down-regulation of C/EBPα expression by PKEE might have decreased fatty acid synthesis along with PPARγ expression, leading to suppression of lipid accumulation.

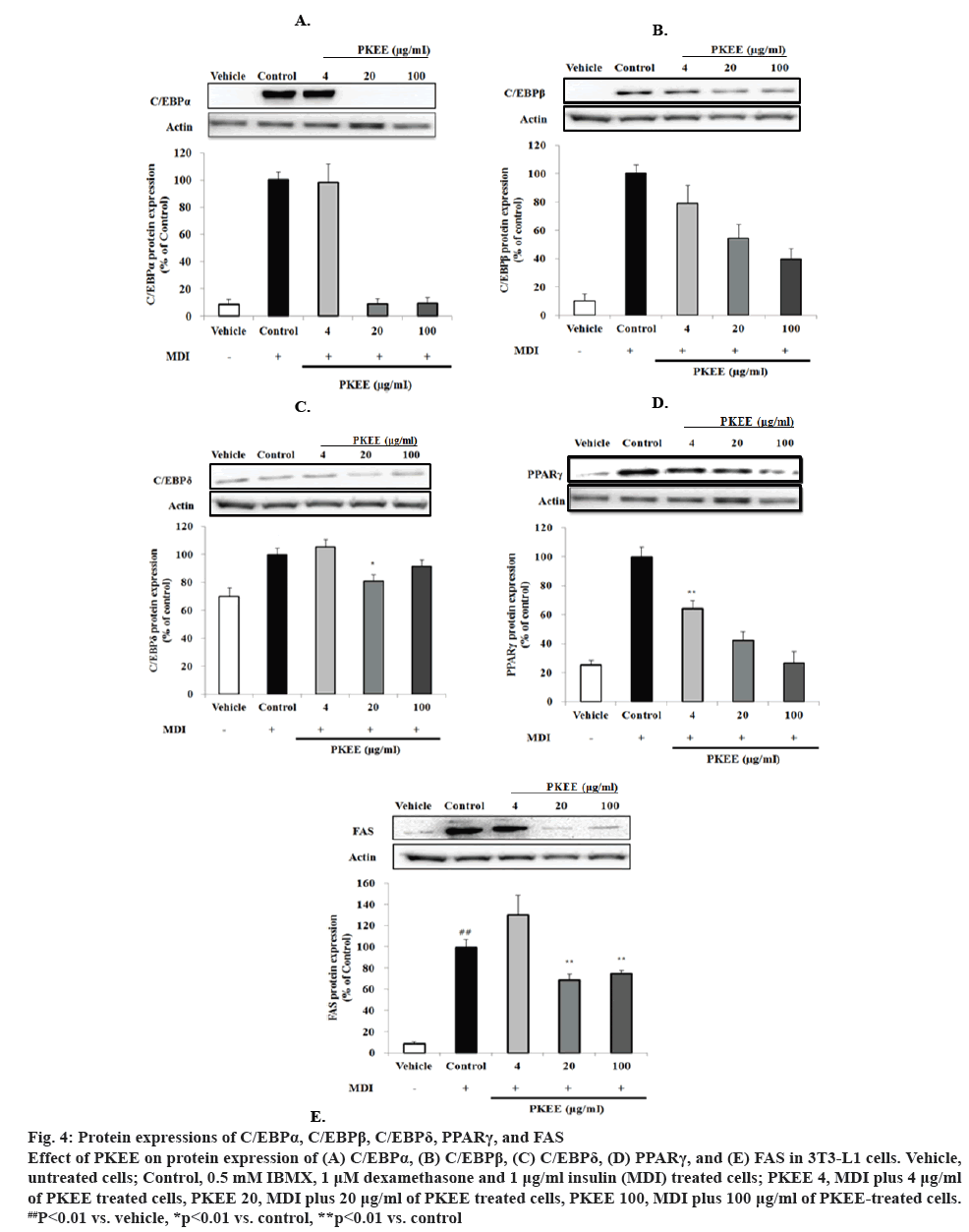

Figure 4: Protein expressions of C/EBPα, C/EBPβ, C/EBPδ, PPARγ, and FAS
Effect of PKEE on protein expression of (A) C/EBPα, (B) C/EBPβ, (C) C/EBPδ, (D) PPARγ, and (E) FAS in 3T3-L1 cells. Vehicle, untreated cells; Control, 0.5 mM IBMX, 1 μM dexamethasone and 1 μg/ml insulin (MDI) treated cells; PKEE 4, MDI plus 4 μg/ml of PKEE treated cells, PKEE 20, MDI plus 20 μg/ml of PKEE treated cells, PKEE 100, MDI plus 100 μg/ml of PKEE-treated cells. ##P<0.01 vs. vehicle, *p<0.01 vs. control, **p<0.01 vs. control

Protein levels of p-AMPKα, a regulator of target gene such as FAS, were evaluated in adipocytes by western blot analysis. AMPK is a heterotrimeric protein kinase complex that consist of a serine/threonine kinase and is an important metabolic sensor that is ubiquitously expressed in almost all eukaryotic cells [28,29]. It was reported that AMPK is composed of three subunits, α, β, and γ, and in mammalian cells there are 2 isoforms of the α subunit, 2 of the β subunit, and 3 of the γ subunit [30]. The activation of AMPK requires the phosphorylation of a critical threonine residue (Thr172) in the activation loop of the α-subunit recognized as AMPKα [31]. AMPKα can be phosphorylated at Thr172 and Ser485. In this study, p-AMPKα protein expression levels significantly increased with PKEE treatment. AMPK play roles that induce ATP-generation pathways at the intracellular level and couple to phosphorylation of downstream substrates, leading to an increase in the rate of ATP production and a decrease in the rate of ATP utilization [31,32]. A previous study demonstrated that not only is AMPK an important target for controlling metabolic diseases, including type 2 diabetes, obesity, and cancers, but also a molecular candidate of controlling adipocyte differentiation [33,34]. As shown in figure 5, PKEE at concentrations of 20 and 100 μg/ml significantly activated the protein expression of p-AMPKα (p<0.01), although the treatment of PKEE at concentrations of 4 μg/ml had no difference in p-AMPKα level compared to untreated differentiated adipocytes. Additionally, UPLC analysis was carried to identify constituents of PKEE (figure 6). The compound detected in PKEE was P. saponin I (3-O-β-D-glucopyranosyl (1→3)-α- Lrhamnopyranosyl (1→2)[β-D-glucopyranosyl(1→4)]- α-L-arabinopyranosyl oleanolic acid). The content of P. saponin I in PKEE was about 13.6 %. Overall, the present study demonstrated that PKEE suppressed adipocyte differentiation via downregulation of C/EBPs and PPARγ as early and middle stage regulators of terminal adipocyte differentiation in 3T3- L1 cells. Moreover, PKEE decreased the expression levels of FAS and increased activation of AMPK without cytotoxicity in cells. These results suggested that PKEE might be explored as a new preventive and therapeutic agent against obesity.

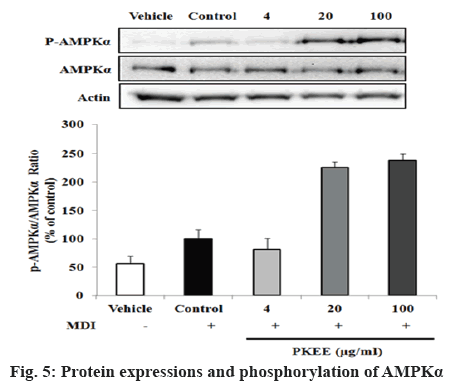

Figure 5: Protein expressions and phosphorylation of AMPKα

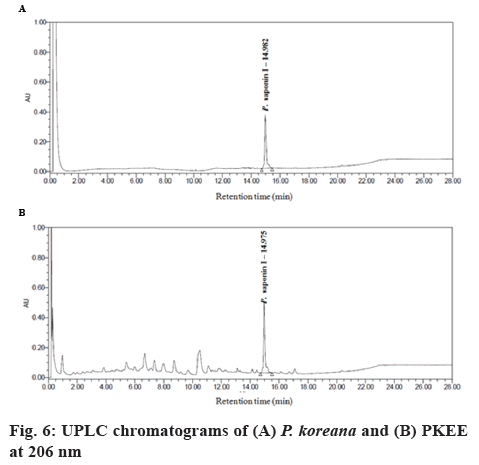

Figure 6: UPLC chromatograms of (A) P. koreana and (B) PKEE at 206 nm

Conflict of interest:

The authors report no conflicts of interest in this work.

Financial assistance and scholarship:

This research was financially supported by the Ministry of Trade, Industry and Energy (MOTIE), Korea Institute for Advancement of Technology (KIAT) through the Encouragement Program for the Industries of Economic Cooperation Region.
