- *Corresponding Author:
- Supriya Shidhaye
Department of Pharmaceutics, Bharati Vidhyapeeth’s College of Pharmacy, Sector-8, C. B. D. Belapur, Navi Mumbai-400 614, India
E-mail: [email protected]
|Date of Submission||22 December 2005|
|Date of Revision||23 August 2006|
|Date of Acceptance||17 March 2007|
|Indian J Pharm Sci, 2007, 69 (2): 206-210|
Various hydrophilic polymers from synthetic origin such as methylcellulose, PEGs, HPMC as well as those from natural world such as guar gum, tragacanth, xanthan gum have been used to formulate oral sustained release formulations. Psyllium husk has the ability to swell 10-14 times of its original volume and form a hydrogel. It is biocompatible, inexpensive, inert, non-absorbable, environment friendly and easily available. However, its use as a release retardant has not been fully explored. Owing to large dose, high sensitivity to light, moisture and heat and also very short half-life of 1-2 h; formulation of sustained release dosage form of amoxicillin trihydrate is a challenge. Hence the present study has been undertaken to develop sustained release granules as well as matrix tablets of amoxicillin trihydrate using psyllium husk as a primary release retardant. The drug release of these formulations was compared with those containing HPMC K4M.The results showed insignificant difference in t80% value for drug release as assessed by student's t-test at 5% level of significance. Selected formulations were kept at controlled conditions of 40o/75% RH and 30o/65% RH for a period of 3 mo. Microbiological assay was used as a stability indicating method of assay. Sustained release granules and tablet formulations containing HPMC alone were found to be more stable than the similar formulations containing husk with percent drug content at the end of 3 mo at 40o/ 75% RH being 92.66%, 93.81%, 86.74%, 88.31% and the rate of degradation being 8.46×10-4 d-1, 7.1×10-4 d-1, 1.58×10-3 d-1 and 1.38×10-3 d-1, respectively. Thus it was concluded that psyllium husk can be effectively used as a hydrogel polymer in sustained release formulations. However, there is a need to keep moisture level under control during and after formulation.
Amoxicillin trihydrate is a widely prescribed broad-spectrum antibiotic, available in conventional dosage forms for peroral delivery. The conventional formulations such as capsules, tablets, suspensions produce a large plasma peak of drug about 2 h after administration, which rapidly declines to below the minimum inhibitory concentration (MIC) of most pathogenic microorganisms, before the administration of subsequent doses of 250-500 mg at 8 h intervals . It has often been claimed without clinical substantiation that this pulsed pattern of administration is more effective than sustained delivery of therapeutic concentration of active, as it may encourage outgrowth of resistant organisms when antibiotic levels become sub-therapeutic . However, this suggestion is at variance with practice of giving the antibiotic as its sodium salt by slow intravenous infusion when treating severe infections and by the increasing use of orally active cephalosporin and tetracycline antibiotics with once- or twice-a-day dosage regimen. Also, it has been shown in vitro that β-lactam antibiotics differ from aminoglycosides in that their antibacterial effect was less concentration dependent, but was more related to the duration of active antibiotic level . Attempts to develop a sustained release dosage form of amoxicillin have been hindered by its dose size, short biological half-life of 1-2 h, high sensitivity to light, moisture and heat.
In recent years, water-swellable polymers have attracted considerable attention in the field of drug delivery systems. The swellable, hydrophilic polymers such as polyvinylalcohol, hydroxypropylcellulose, methylcellulose and hydroxypropylmethylcellulose (HPMC) are quite popular in designing of controlled drug delivery dosage forms with HPMC being the most widely used among all . However, these semi-synthetic polymers are relatively expensive.
The work has been carried out for the use of natural materials such as guar gum, alginates, xanthan gum, tragacanth as release retardants in sustained release dosage forms5. Psyllium husk, dried seed coats of Plantago ovata, is biocompatible, inexpensive, inert, non-absorbable, environment friendly and easily available. It is official in IP, BP and USP. It is used in food and pharmaceuticals at a dose level of 5-7 g, twice-a-day . Psyllium husk has the ability to swell 10-14 times  of its original volume and form a hydrogel. However, its use as a release retardant is not fully explored by the researchers and hence the present study was undertaken to develop sustained release dosage formulations of amoxicillin trihydrate using psyllium husk.
Materials and Methods
Amoxicillin trihydrate BP (compacted) was received as a gift sample from Cipla Pvt. Ltd. and Abbott India Ltd. HPMC K4M was received as a gift sample from Glenmark Pharmaceuticals. Psyllium husk (Laxmi brand Sat-Ispaghula) was procured from local pharmacy. All otherchemicals and solvents were of analytical grade. For comparative studies, student’s t-test was applied at 5% level of significance.
The drugs as well as husk (powdered and passed through sieve no: 36) were standardized as per pharmacopeial methods and the micromeretic studies were carried out [8,9]. Also, pH solubility profile of the drug was studied. Microbiological assay was performed by diffusion method for the strains of E. coli 113D and S. aureus 6538 to study the antibacterial activity of the drug .
Preparation of sustained release granules to be filled in capsules
The sustained release granules containing the drug, psyllium husk, HPMC K4M, methylparaben and propylparaben were prepared using 2% HPMC K4M slurry in 70% alcohol as binder. The mixture of air-dried granules (18/36 #) and the compacted drug (18/36 #) as a loading dose was lubricated with aerosil (0.5%) and magnesium stearate (1%) and filled in the capsules. Also, the granules using only HPMC K4M as a release retardant were prepared.
Preparation of sustained release matrix tablets
The powder mixture of amoxicillin trihydrate, psyllium husk, calcium phosphate dibasic, starch, methylparaben and propylparaben was wet-granulated using 2% HPMC K4M slurry in 70% alcohol as binder. The mixture of air-dried granules (18/36 #) and the compacted drug (18/36 #) as a loading dose was compressed on a Remek ten station rotary press tableting machine fitted with 12.5 mm standard concave punch. Also, sustained release matrix tablets using only HPMC K4M as a release retardant were prepared.
The sustained release granules were evaluated for bulk density, angle of repose, flow-rate and moisture content. Capsules were evaluated for weight variation, content uniformity and assay. The tablets were evaluated for uniformity of diameter, uniformity of thickness, hardness, friability, weight variation, uniformity of content, assay and swelling index .
In vitro dissolution studies
For both granules as well as tablets, a Veego USP dissolution tester type II was used. Tablets as well as granules were evaluated in the dissolution medium 0.1 N HCl, pH 1.2 (900 ml, 37o, n=3) for first two hours and in phosphate buffer pH 6.8 (900 ml, 37o, n=3) for rest of the six hours at 100 rpm. The samples were withdrawn at predetermined time intervals and the absorbance was measured at 272 nm using Shimadzu UV 1608 spectrophotometer. Concentration of the drug was calculated by reference to a linear calibration curve constructed at the respective pH. Effect of pH on drug release was also studied by carrying out dissolution study in various buffers at pH 2, 4, 6 and 8.
Selected formulations were kept at controlled conditions of 40°/75% RH and 30o/65% RH for stability studies for 3 mo. The parameters viz. physical appearance, drug release profile, loss or gain in weight and percent drug content were studied at the suitable intervals. Microbiological assay was used as a stability indicating method of assay.
Results and Discussion

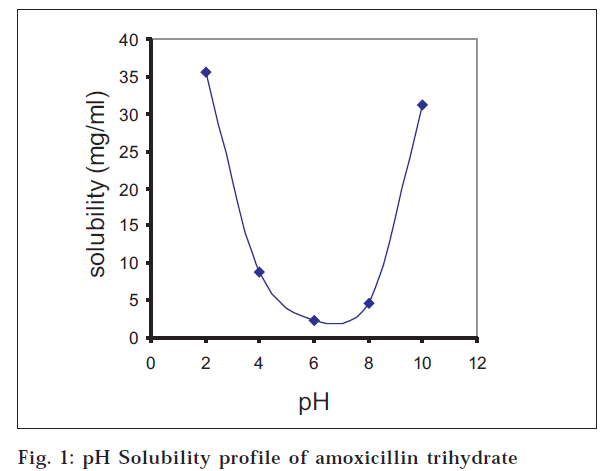

The drug and the husk were found to be of the pharmacopoeial standards with the desired powder characteristics for the direct compression of the drug. The pH-solubility profile of amoxicillin trihydrate was determined at 37° and ionic strength 0.1. A U-shaped curve (fig. 1) with minimum solubility at pH close to 6 was obtained. Standard curves obtained for E. coli 113D and S. aureus 6538 showed linearity between drug concentrations of 10 μg/ml to 80 μg/ml having equations y = 0.1642x + 14.11 (R2= 0.9966) and y= 0.1713x + 22.945 (R2= 0.9971), respectively, where y is concentration (μg/ml) and x is zone diameter (mm).
Various formulations of sustained release granules were prepared as per the formulae given in Table 1. As seen from fig. 2, formulations G4 and G6 were found to show most satisfactory release profile with 100% release over 6.5 to 7 h. Formulation G4 containing husk and around half the quantity of HPMC K4M of formulation G6 gave almost similar t80% value as G6 at 5% significance level as assessed by student’s t-test. Also, it was observed that for a multiparticulate system there was a need to use husk in combination with another hydrophilic polymer like HPMC to reduce its immediate swelling on interaction with the surrounding fluid and to make the granules heavier. The granules of formulation G4 were found to be satisfactory with the bulk density of 0.5 g/ml, angle of repose 6.85°, flow rate 2 g/sec, loss on drying (60o) 4.43% and 98.36% drug content. During in vitro dissolution studies, it was observed that multiparticulate formulations of husk as well as of HPMC showed incomplete aggregation i.e. particles came together to form small groups while still maintaining the multiparticulate system. Drug release profile of the multiparticulate system showed almost complete drug release as compared to the tablet formulations as seen from figs. 2 and 3.
|G1 (1:0.5)||G2 (1:1)||G3 (1:1)||G4 (1:2)||G5 (1:1)||G6 (1:2)|
|HPMC K4M (mg)||-||1||81||325||325||650|
|as binder (mg)|
|Magnesium stearate (%)||1||1||1||1||1||1|
Table 1: Formulation of Sustained Release Granules of Amoxicillin Trihydrate.

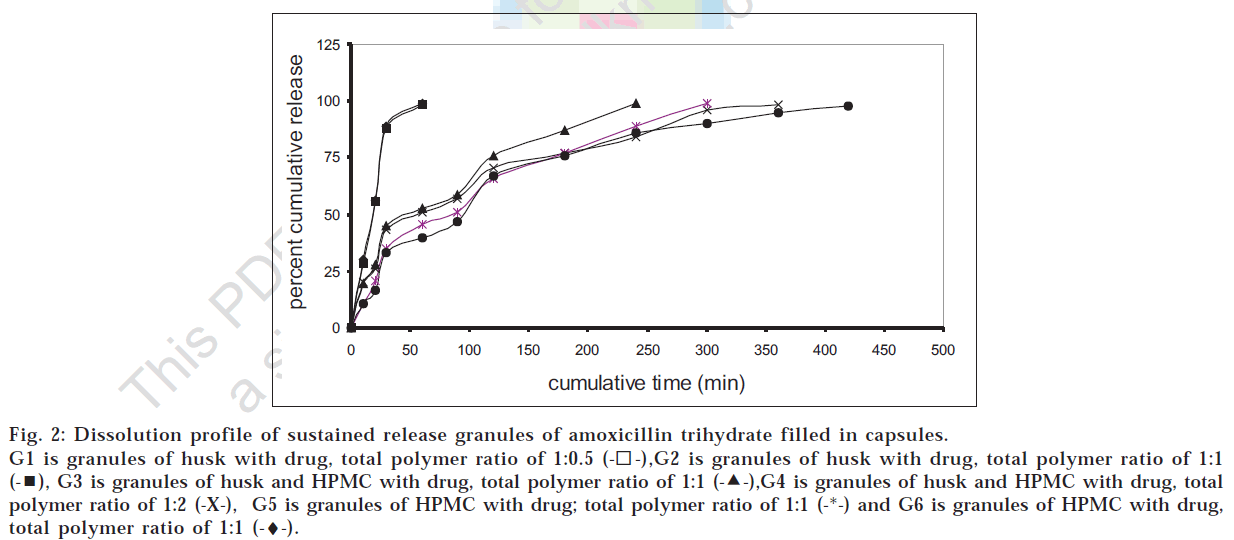

Fig 2: Dissolution profile of sustained release granules of amoxicillin trihydrate filled in capsules.
G1 is granules of husk with drug, total polymer ratio of 1:0.5 ,G2 is granules of husk with drug, total polymer ratio of 1:1 , G3 is granules of husk and HPMC with drug, total polymer ratio of 1:1 ,G4 is granules of husk and HPMC with drug, total polymer ratio of 1:2 (-X-), G5 is granules of HPMC with drug; total polymer ratio of 1:1 (-*-) and G6 is granules of HPMC with drug, total polymer ratio of 1:1 (-♦-).

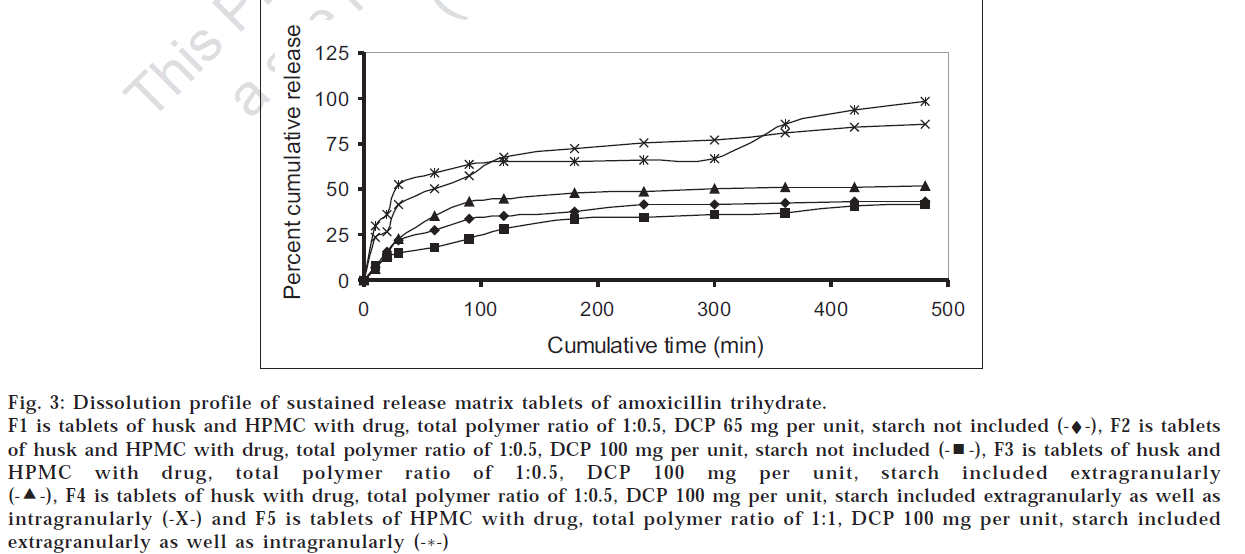

Fig 3: Dissolution profile of sustained release matrix tablets of amoxicillin trihydrate.
F1 is tablets of husk and HPMC with drug, total polymer ratio of 1:0.5, DCP 65 mg per unit, starch not included (-♦-), F2 is tablets of husk and HPMC with drug, total polymer ratio of 1:0.5, DCP 100 mg per unit, starch not included , F3 is tablets of husk and HPMC with drug, total polymer ratio of 1:0.5, DCP 100 mg per unit, starch included extragranularly , F4 is tablets of husk with drug, total polymer ratio of 1:0.5, DCP 100 mg per unit, starch included extragranularly as well as intragranularly (-X-) and F5 is tablets of HPMC with drug, total polymer ratio of 1:1, DCP 100 mg per unit, starch included extragranularly as well as intragranularly (-*-)
Various matrix tablets formulations from F1 to F4 were prepared as per Table 2 with drug:polymer ratio of 1:0.5 and evaluated for the physicochemical characters and drug release profile. As seen from fig. 3, formulation F2 was found to show lesser drug release than F1 due to higher amount of calcium phosphate dibasic which increased the hardness and reduced the swelling of the matrix. To wwwincrease the drug release without compromising the hardness, starch was added extra granularly in formulation F3 that produced higher drug release than F2. To increase drug release further, HPMC K4M was eliminated from the polymer composition and starch was incorporated intragranularly as well and the resultant formulation (F4) was found to be most satisfactory with hardness of 4 kg/ cm2, friability of 0.78%, swelling index of 3.2, drug content of 97.93% and drug release of 85% over 8 h. Also, this formulation was comparable with F5 having HPMC alone in the drug:polymer ratio of 1:1 with respect to t80% value of drug release as calculated by student’s t-test at 5% level of significance. Thus it was found that husk alone can be effectively used as release retardant in the tablet formulation unlike multiparticulate system, which might be because of the compression force of the tablet that binds the husk firmly.
|F1 (1:0.5)||F2 (1:0.5)||F3 (1:0.5)||F4 (1:0.5)||F5 (1: 1)|
|Drug (Dm) (mg)||325||325||325||325||325|
|HPMC K4M (mg)||41||41||41||-||325|
|Starch (intra-granular) (mg)||-||-||15||15||15|
|Starch (extra-granular) (mg)||4.5-5||4.5-5||4.5-5||4.5-5||4.5-5|
|HPMC K4M (as binder) (mg)||0.18||0.18||0.18||0.18||0.18|
Table 2: Formulation of Amoxicillin Trihydrate Matrix Tablets
The drug release profiles of the successful granules (G4) and tablet (F4) formulations were studied at different pH values. Figs 4 and 5 showed that the release was higher at low pH, which was in accordance with the data reported  .

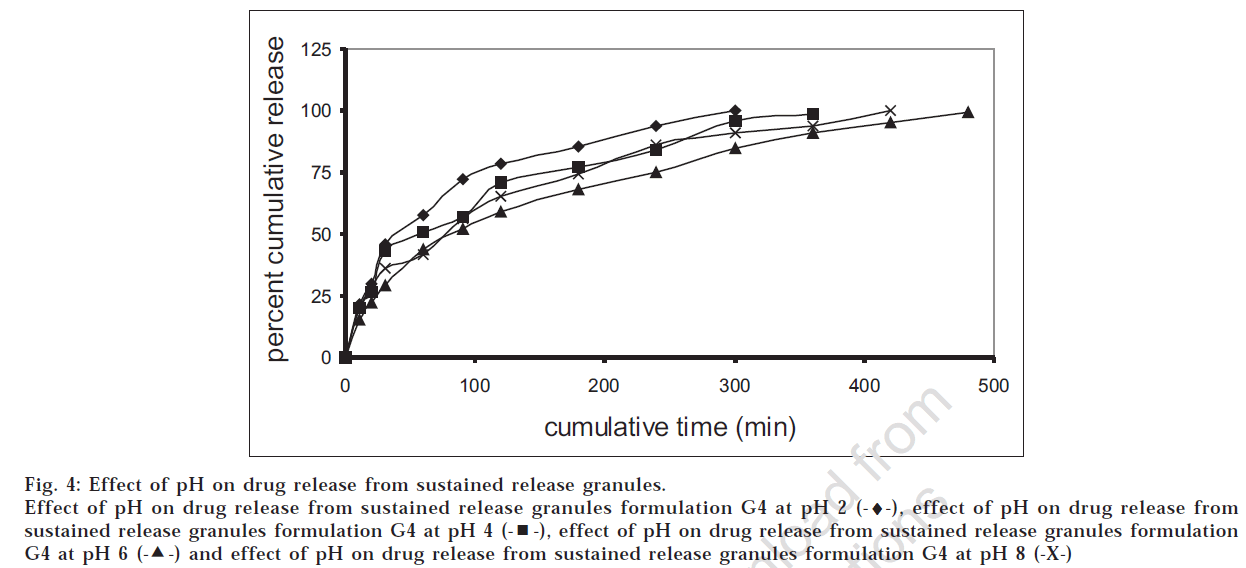

Fig 4: Effect of pH on drug release from sustained release granules.
Effect of pH on drug release from sustained release granules formulation G4 at pH 2 (-♦-), effect of pH on drug release from sustained release granules formulation G4 at pH 4 , effect of pH on drug release from sustained release granules formulation G4 at pH 6 and effect of pH on drug release from sustained release granules formulation G4 at pH 8 (-X-)
Fig 5: Effect of pH on drug release from sustained release matrix tablets.
Effect of pH on drug release from sustained release matrix tablets, formulation F4 at pH 2 (-♦-), effect of pH on drug release from sustained release matrix tablets, formulation F4 at pH 4 , effect of pH on drug release from sustained release matrix tablets, formulation F4 at pH 6 and effect of pH on drug release from sustained release matrix tablets, formulation F4 at pH 8 (-×-)
The formulations G4, G6, F4 and F5 were selected for stability studies. Formulations G6 and F5 containing HPMC alone were found to be more stable than G4 and F4 with percent drug content at the end of 3 mo at 40o/ 75% RH being 92.66%, 93.81%, 86.74%, 88.31% and the rate of degradation being 8.46×10-4 d-1, 7.1×10-4 d-1 , 1.58×10-3 d-1 and 1.38×10-3 d-1, respectively. The instability may be attributed to the higher percentage of moisture in the husk of 8.9%, which was permissible as per IP. Also, it may be enhanced higroscopicity, which was slightly higher in case of formulations containing psyllium husk, during the accelerated stability study. But this problem can be potentially overcome by adopting better packaging methods.
Overall, tablets and capsule formulations of the drug using HPMC as a release retardant were formulated with 95-98% drug release over 6-8 h. Formulation containing psyllium husk as a release retardant produced the similar results but the sensitivity of the drug to moisture may interfere with the long term stability of the formulation containing husk and there is a need to protect the formulations adequately against the moisture.
The authors are grateful to Cipla Pvt. Ltd., Abbott India Ltd. and Glenmark Pharmaceuticals for providing gift samples of the drug and excipients.
- Physician Desk Reference, Marcel Dekker, 2002, 1471.
- LeBel, M. and Spino, M., Clin. Pharmacokinet ., 1988, 14, 71.
- Vogelman, B. and Craig, W., J. Pediat. , 1986, 108, 835.
- Herman, J. and Remon, J. P., Int. J. Pharm ., 1990, 63, 201.
- Tilak, R. B., Kanwar, M., Gupta, V.D. , Drug Develop. Ind. Pharm ., 2000, 26, 1025.
- Reynolds, J.E.F., Eds, Martindale, the extra pharmacopoeia, 30th edition, pharmaceutical press, London, 1993, 1886.
- Kokate, C.K., Eds., Pharmacognocy, 12th Edn., Nirali Prakashan, 1999, 125.
- Indian Pharmacopoeia, Vol. 1, Controller of Publication, Delhi, 1996, 416.
- Alfred Martin, Eds., Physical Pharmacy, 4th Edn., Varghese Publication, 423.
- Indian Pharmacopoeia, Vol. II, Controller of Publication, Delhi, 1996, A-100.
- Nafee, N.A., Ismail, F.A., Khan, M.N. Gandhi, H.I., Drug Develop. Ind. Pharm ., 2004, 30, 985.
- Hilton, A.K. and Deasy, P.B., Int. J. Pharm. Sci. , 1992, 86, 79.
