*Corresponding Author:
Department of Radiology, Yanbian University Hospital, Jilin, 133000, China
E-mail: jishanquan@sina.com
Date of Submission 02 January 2017
Date of Revision 18 September 2019
Date of Acceptance 28 Juy 2019
Indian J Pharm Sci 2020;82(1):149-156

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms


In this study, ginsenoside Rg3-loaded PEGylated liposomes were prepared and optimized using the Box- Behnken design. These liposomes were characterized, the cumulative release profiles were investigated and compared with ginsenoside Rg3-loaded liposomes in vitro. To improve the stability ginsenoside Rg3-loaded PEGylated liposomes were freeze-dried and the lyoprotectants to be added were screened. The results showed that the liposomes have a small particle size (152.58±0.74 nm) and spherical shape. The encapsulation efficiency and drug-loading rate were approximately 85.24±1.02 and 7.44±0.08 %, respectively. For lyoprotectants, 2 % lactose was chosen as the lyophilized protectant according to the appearance, re-dispersity, particle size, and entrapment efficiency of lyophilization of ginsenoside Rg3- loaded PEGylated liposomes. In vitro release showed that ginsenoside Rg3-loaded PEGylated liposomes showed a more obvious sustained release effect, which suggests that ginsenoside Rg3-loaded PEGylated liposomes might enhance the therapeutic effect of ginsenoside Rg3.


Ginsenoside Rg3; PEGylated liposomes; Box-Behnken design

Ginseng, the root of Panax ginseng, has been used globally for thousands of years as a herbal drug[1]. Ginsenoside Rg3 (G-Rg3), a primary bioactive component of P. ginseng, has been extracted and studied extensively for its anticancer properties. Ginseng can prevent tumor cell adhesion, invasion and metastasis. Furthermore, it can inhibit tumor cell proliferation and induce apoptosis[2]. The combination of G-Rg3 with other chemotherapeutics has been found to have a synergistic effect[3-5]. Although G-Rg3 possesses a variety of medical activities, the clinical application of G-Rg3 is restricted due to its poor water solubility, short circulation half-life and poor target specificity[2,6,7]. For this reason, to improve the bioavailability and therapeutic effect of G-Rg3, current research is focused on improving its delivery efficiency by developing new formulations. Zhang et al.[8] prepared a G-Rg3 inclusion compound using a magnetic stirring method. Compared to G-Rg3, the solubility of the inclusion compound was enhanced approximately 19 fold. Geng et al.[9] prepared G-Rg3-loaded PEG/PLGA nanoparticles. Compared to G-Rg3, G-Rg3-loaded nanoparticles had a sustained-release effect and maintained a suitable blood concentration over a long period of time. In addition, G-Rg3-loaded PEG/PLGA nanoparticles promoted the antitumor effect of G-Rg3 in Lewis lung cancer mice. Yu et al.[6] found that the cytotoxicity and tumor inhibitory potential of liposomal G-Rg3 was significantly higher than the G-Rg3 solution group.

In recent years, stable circulating liposomes have been studied as they can improve the in vivo half-lives of conventional liposomes by reducing macrophage phagocytosis to reduce the clearance[10-14]. Through the enhanced permeability and retention (EPR) effects on solid tumors, long-circulating liposomes can also increase the concentration of a drug at the target area, thereby achieving a better anticancer therapeutic effect. Studies have also found that PEGylated liposomes are stable for up to several months of storage at low temperature[15]. In this study, PEGylated liposomes were prepared to deliver G-Rg3 and their potential investigated to provide a direction for future anticancer research.

A reasonable experimental design is very important, especially when complex formulations need to be developed, as it can save time, money and reduce experimental errors to obtain reliable experimental data. In particular, the multivariate strategy of experimental design allows simultaneous investigation of the effects of several variables, their actual significance on the considered response and the possible interrelationship among them. This approach yields maximum information with a small number of experiments[16]. Response surface methodology (RSM) explores the relationships between several independent variables and one or more response variables[17]. RSM includes central composite design (CCD), Box-Behnken design (BBD) and Doehlert design (DM). Present study used BBD since it has a high fitting correlation coefficient, good predictability and high precision and has been considered to be a cost-effective technique compared to the other usual processes of formulation and optimization because it requires fewer experimental runs and therefore saves time[18].

In this study, the formulation process of G-Rg3-loaded PEGylated liposomes (G-Rg3-PLP) were screened using a three-level three-factor BBD. The independent variables selected were phosphatidylcholine:cholesterol (PC:Chol, wt/wt) ratio (X1), PC:N-(carbonylmethoxypolyethylene glycol 2000)-1,2-distearoyl-snglycero- 3-phosphoethanolamine (DSPE-PEG2000) ratio (mol/mol) (X2) and PC: G-Rg3 ratio (wt/wt) (X3). The encapsulation efficiency (EE, Y1) and the drug-loading rate (DL, Y2) were selected as dependent variables. The characterization of the liposomes was also studied.

Materials and Methods

G-Rg3 was purchased from Nanjing Langze Biotechnology Co., Ltd. (Nanjing, China). PC and N-(carbonyl-methoxypolyethylene glycol 2000)-1,2-distearoyl-sn-glycero-3- phosphoethanolamine (DSPE-PEG2000) were purchased from Avanti Polar Lipids Inc. (Suffolk, England). Cholesterol was purchased from Beijing Solar Bioscience & Technology Co., Ltd. (Beijing, China). Methanol and acetonitrile were obtained from Sigma Chemical Co. (St. Louis, MO, USA). Ultrapure water used for liquid chromatography/UV/Vis spectrum (LC/UV) was obtained using a Milli-Q water purification system.

Preparation of G-Rg3-PLP:

G-Rg3-PLP was prepared using the film dispersionultrasonic method[19]. Briefly, phosphatidylcholine, cholesterol, DSPE-PEG2000, and G-Rg3 were accurately weighed and dissolved in a 3:2 v/v mixture of methanol:chloroform. After these were dissolved completely, the solvent was evaporated using a rotary evaporator at 60° to form a thin dry film. The film was dried further in a vacuum oven overnight. The dried lipid film was hydrated in phosphate buffered saline (PBS, pH 7.4) at 40°. The dispersion was sonicated using a Scientz-II D ultrasonic cell crusher (Zhejiang, China, 200 w, ultrasound 3 s, intermittent 3 s) to reduce particle size and then passed through a 0.45 μm filter membrane to remove larger liposomes. The final products were stored at 4° until further use. Blank liposomes (without G-Rg3) and conventional liposomes (without DSPEPEG 2000) were also prepared using the same method.

Characterization of G-Rg3-PLP:

The morphology of G-Rg3-PLP was observed using a transmission electron microscope (TEM, (HT7700, Hitachi, Japan). The sample was dropped onto the grid and dried completely at room temperature. After counterstaining it with 2 %, w/v aqueous phosphotungstic acid solution, TEM images were taken. The particle size and zeta potential of G-Rg3-PLP were measured with a laser particle size analyser (JL-1197, Chengdu Jingxin Powder Testing Equipment Co., Ltd. Sichan, China) and zeta potential analyser (Bl-90 Plus, Holtsville, New York, USA), respectively.

Determination of entrapment efficiency (EE) and drug loading capacity (DL):

One millilitre of G-Rg3-PLP solution was transferred into 1.5 ml tubes (n=3) and centrifuged for 90 min at 15 000 rpm using a high-speed refrigerated centrifuge. The concentration of G-Rg3 (C2) in the supernatant was analysed on a high pressure/performance liquid chromatography (HPLC) system. The precipitate was collected, dried, and weighed (W1) and the amount of G-Rg3 in the powder (W2) was measured by HPLC. The same volume of G-Rg3-PLP was degraded by demulsification and the drug concentration (C1) was measured. Data were analysed by independent-samples t tests using SPSS16.0 software. P<0.05 was considered statistically significant. The EE and DL capacity were calculated by the following formula: EE % = 1-C2/C1×100, and DL %= W2/W1×100.

Box-Behnken design:

EE is an important evaluation parameter for liposomes and is affected by the amount of PC, Chol, and DSPEPEG 2000 in the liposomes[20-24]. Therefore, in this study, a three-level three-factor BBD was employed to optimize the formulation variables. Based on the preliminary experimental results, three independent variables, PC:Chol ratio (wt/wt) (X1), PC:DSPE-PEG2000 ratio (mol/mol) (X2), and PC:G-Rg3 ratio (wt/wt) (X3) were evaluated and the EE (Y1) and DL (Y2) were selected as dependent variables. In the multi-index test, considering the interplay between various factors, a comprehensive evaluation index-overall desirability (OD) was introduced and calculated by the following Eqn., di=(Yi-Ymin)/(Ymax-Ymin) OD=(d1d2d3…… dn)1/n. Yi is the measured value and Ymin is each index minimum value. Ymax is the index maximum value. According to experimental purposes and the standards of Chinese Pharmacopoeia, we set Y1=70–100 %, Y2=3–8 %, Yi ≥ Ymax, di=1, Yi ≤ Ymin, and di=0.

In vitro release:

The release of G-Rg3 from G-Rg3-PLP was investigated using the dialysis method. Briefly, volumes of G-Rg3- LP and G-Rg3-PLP suspension equivalent to 2 mg G-Rg3 were accurately measured and placed into dialysis bags. Then, the dialysis bags were immersed in 100 ml dialysate (30 % ethanol PBS (pH=7.4)) and the mixture was stirred at 120 rpm at 37°. Samples (1 ml of dialysate) were taken at predetermined times (0, 0.5, 1, 2, 3, 4, 5, 6, 8, 12, 24, 36, 48, 60 and 72 h), and replaced with an equal volume of fresh dialysate medium. The sample was filtered through a 0.45 μm Nylon 66 membrane syringe filter and without any further treatment injected into HPLC-UV for G-Rg3 determination. The cumulative release rate was calculated according to the following formula, F (%) = Cn×V+Σi=n=1 n=1Ci×Vi/Q×100, where F is the cumulative release rate, Cn is the dialysate drug concentration at a predetermined time, V is the total volume of dialysate, Q is the initial total drug dose before dialysis, Ci is the dialysate drug concentration at the last sample time, and Vi is the sample volume.

Preparation of lyophilized G-Rg3-PLP:

The G-Rg3-PLP suspension was mixed with different lyoprotectants and placed in a penicillin bottle for freeze-drying. The bottle was successively placed in −20 and −40° refrigerators for prefreezing, followed by lyophilization using a freeze-dryer (BTP-3L-ES-55, SP Scientific, USA) at −52 to −55° for 48 h. The lyophilized powder of G-Rg3-PLP was stored at 4° for further use.

Results and Discussion

G-Rg3-PLP was prepared using the film dispersionultrasonication method. As shown in figure 1A, G-Rg3- PLP exhibited spherical shape and were monodispersed. The particle size of G-Rg3-PLP was approximately 152.58±0.74 nm and the polydispersity index (PDI) was 0.293 (Figure 1B), indicating that the particle size was uniform. The zeta potential was −26.73±0.57 mV (Figure 1C) as measured by a zeta potential analyser.

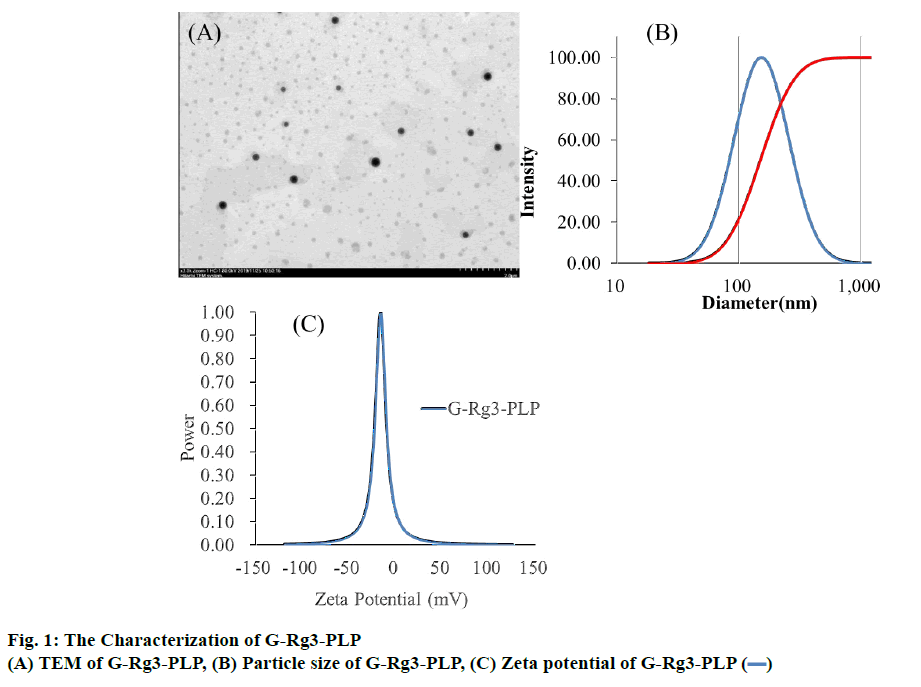

Figure 1: The Characterization of G-Rg3-PLP
(A) TEM of G-Rg3-PLP, (B) Particle size of G-Rg3-PLP, (C) Zeta potential of G-Rg3-PLP image

Liposomes are versatile drug carriers. Hydrophobic drugs are incorporated into the lipid bilayers, while hydrophilic drugs are usually encapsulated in the aqueous compartments. EE is one of the main evaluation indices for liposomes and was determined by comparing the concentration of G-Rg3 in liposomes with the initial concentration of G-Rg3 (figure 2). Therefore, the separation of free drug from liposomes is important. The determination method included highspeed centrifugation, dialysis, column chromatography, and microcolumn centrifugation. Considering the poor water solubility of G-Rg3, it is difficult to elute by column chromatography. Furthermore, the addition of organic solvent may lead to the leakage of liposomes. The dialysis method can be used to determine the EE of liposomes, because the dialysate is much larger than liposomes and free drug, it is easy to destroy the dynamic balance between them. Meanwhile, due to the poor stability of liposomes, the encapsulated drugs were prone to leakage. Sephadex chromatography requires a large sample loading quantity and has a long separation time. The process of eluent separation greatly dilutes the liposomes and free drug, which may cause liposomal leakage. Feix et al. proposed the microcolumn centrifugation method[25], which has the advantage of only needing a small loading quantity of a sample, a small volume of eluent, and a short separation time.

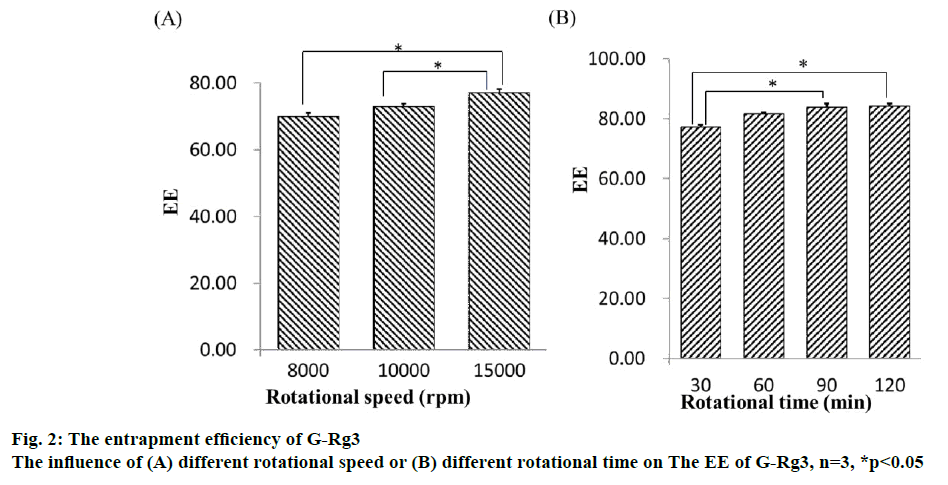

Figure 2: The entrapment efficiency of G-Rg3
The influence of (A) different rotational speed or (B) different rotational time on The EE of G-Rg3, n=3, *p<0.05

In this study, both the microcolumn and high-speed centrifugation methods were investigated. For the microcolumn centrifugation method, Sephadex LH- 20 microcolumns were used, and the centrifugation speed was 1000 rpm. The microcolumn elution curve showed that it could separate the free drug and liposomes very well and that the average recovery was 97.19 ±0.99 %, which indicated that this method was accurate and feasible. High-speed refrigerated centrifugation is a method used to separate free drug from liposomes by gravity. The rotational speed and rotational time were two factors influencing the accuracy of measurement results. The results showed that the EE of liposomes was significantly different at different centrifugal speeds. Increases in centrifugal speed led to an increase in the EE of liposomes. The highest EE was at 15 000 rpm, which was similar to that measured by the microcolumn centrifugation method. When the centrifugation time was longer than 90 min, the EE has no significant change. There was no significant difference in the EE of liposomes in response to different centrifugation times. EE increased slightly as centrifugation times increased. When the centrifugation time was more than 90 min, the EE did not change; thus, the optimal centrifugation speed and time were determined to be 15 000 rpm and 90 min, respectively (the average recoveries of high, medium, and low concentration drug solutions was 98.27 %). Overall, both the Sephadex LH-20 microcolumn centrifugation and high-speed freezing centrifugation methods effectively separated G-Rg3-PLP and free G-Rg3. While the input sample quantity of high-speed freezing centrifugation is small, the operation is simple and can maintain the stability of liposomes in low temperatures. Therefore, the EE and DL of G-Rg3-PLP were measured using the highspeed freezing centrifugation method for the following experiments.

After determining the EE and DL determination method, the formulation of G-Rg3-PLP was investigated. According to the related references and data from preliminary experiments, the technological conditions (e.g., incubation temperature, hydration temperature) and the prescription parameters (pH of PBS) were screened by single factor investigation. The incubation temperature was set to 60°, the hydration temperature was 40° and the pH of PBS was set to 7.4. Among these variables, the incubation temperature had a large impact on EE. This could be because as the acyl side in the lipid bilayer of liposomes changes from order to disorder, the film changes from gel crystalline to liquid crystalline at the phase-transition temperature[26]. This leads to a decrease in the thickness of the lipid bilayer and the cross-sectional area of the membrane and membrane fluidity increase[27]. When the incubation temperature was above the phase-transition temperature, the phospholipid membrane has greater fluidity and permeability and the drug loading increased[28].

The amount of PC, Chol, and DSPE-PEG2000 in the liposomes was optimized by applying BBD. The corresponding values of BBD were observed and are shown in Table 1. Experimental data was fitted to a quadratic model by one-way analysis of variance (ANOVA). The results of the ANOVA for the 3 responses are shown in Table 2. The analysis showed that the models of DL and OD were significant at the 95 % confidence level and that the lack of fit was not significant (p>0.05). Meanwhile, the model of EE was significant at the 95 % confidence level and the lack of fit was significant (p<0.05). Additionally, due to the complication and interaction of the response variables, a signal traditional forecasting model could not be relied to get accurate results for the EE and DL. Thus, the model of OD was chosen to analyse and predict the prescription and the results were considered adequate. The ANOVA test for OD indicated that the linear model was significant (p<0.05). The model of OD was fitted by Design-Expert 8.0.6 software and a formula was established. The resulting regressive equation, which rejects the undistinguished variables with the F-test of every index in terms of coded values was as follows: OD=−1.38399+0.19428X1+0.16665X3-6.59917E- 003X21 (R2=0.8766).

Run X1 X2 X3 EE (%) DL (%) OD
1 1 -1 0 81.32 6.14 0.163
2 -1 0 -1 50.23 7.53 0
3 0 0 0 78.66 6.64 0.313
4 -1 -1 0 65.83 6.49 0
5 0 -1 -1 84.93 7.06 0.514
6 0 0 0 79.55 6.66 0.324
7 0 -1 1 66.26 5.11 0
8 -1 0 1 39.38 4.95 0
9 -1 1 0 67.47 6.75 0
10 0 0 0 84.21 7.32 0.559
11 1 1 0 85.48 7.01 0.510
12 1 0 1 74.24 5.31 0
13 0 0 0 83.33 6.74 0.405
14 0 0 0 82.15 6.69 0.374
15 1 0 -1 80.01 7.21 0.449
16 0 1 1 73.22 5.16 0
17 0 1 -1 86.37 7.43 0.625

Table 1: Box-behnken design and the corresponding response measurements

 Source Sum of Squares df Mean Squares F value P value
Model 0.79 9 0.088 5.52 0.0173 Significant
X1 0.16 1 0.16 9.84 0.0165
X2 0.026 1 0.026 1.64 0.2412
X3 0.32 1 0.32 19.71 0.0030
X1 X2 0.030 1 0.030 1.88 0.2124
X1 X3 0.050 1 0.050 3.15 0.1191
X2 X3 3.080E-003 1 3.080E-003 0.19 0.6740
X12 0.17 1 0.17 10.49 0.0143
X22 3.098E-003 1 3.098E-003 0.19 0.6731
X32 0.029 1 0.029 1.82 0.2194
Residual 0.11 7 0.016
Lack of Fit 0.073 3 0.024 2.47 0.2010 not significant
Pure Error 0.039 4 9.801E-003
Cor Total 0.91 16

Table 2: Anova for response surface quadratic of OD

The result of the regression OD equation indicated that R2=0.8766, meaning it is suitable for the desired model. The 3D surface model of the 3 indices of EE, DL and OD with independent variables is shown in figure 3. The software predicted the optimum PC:Chol, PC:DSPEPEG 2000 and PC:G-Rg3 ratios, which were 14:1, 5 % and 8:1, respectively. The predicted entrapment efficiency and drug loading rates were 87.71 and 7.50 %, respectively. A verification experiment was completed, and the result was consistent with theoretical predictions.

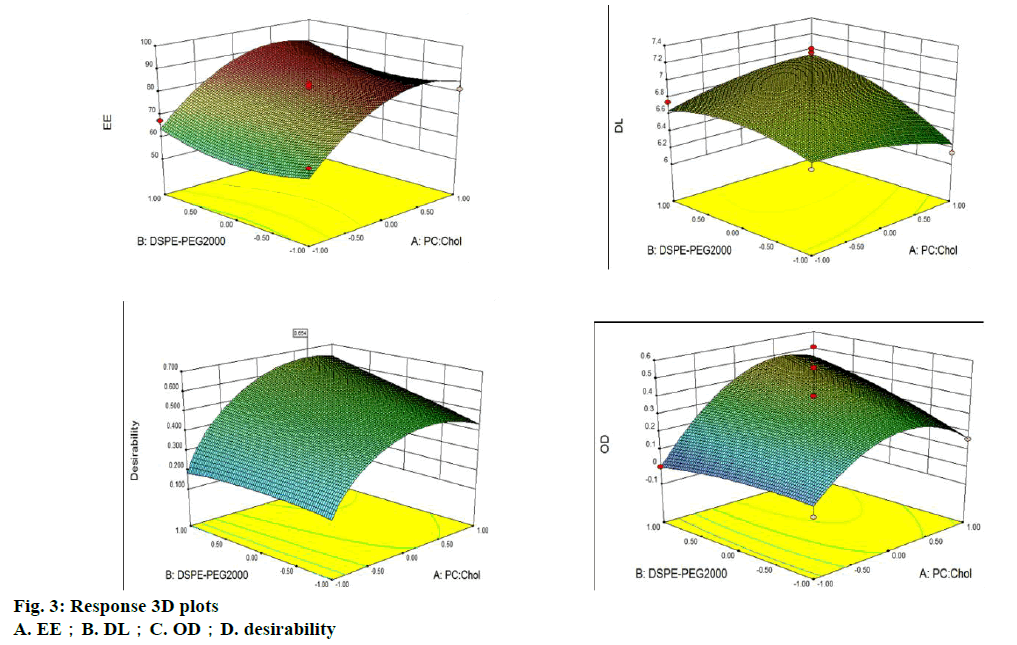

Figure 3: Response 3D plots
A. EE?B. DL?C. OD?D. desirability

In this study, the cumulative release rate of G-Rg3 from G-Rg3-PLP or G-Rg3-LP was investigated. Rg3 has low solubility in water, which means a delivery vehicle is needed if this drug is to be administered systemically[6]. Therefore, in this study, the release profiles of G-Rg3- LP and G-Rg3-PLP were investigated. Due to the low water solubility of G-Rg3, 30 % ethanol PBS (pH=7.4) was selected as the dialysate to improve the solubility of G-Rg3; the results are shown in figure 4. Compared with G-Rg3-LP, G-Rg3-PLP showed a more obvious sustained release effect. This may be due to the steric effect of the polyethylene glycol (PEG) chain, which can prevent drug diffusion[28]. Both groups did not display a burst effect at their initial release patterns.

Considering that aggregation, fusion, precipitation, and drug leakage may occur during storage and transportation[10], the stability of G-Rg3-PLP needs to be improved. Freeze-drying is a promising method to extend the life shelf of liposomes; however, the sublimation of ice or crystallization may occur during the phase transition, which can disrupt the integrity of lipid membranes. Therefore, the addition of lyoprotectants is necessary to prevent changes in appearance, increases in particle size, and decreases in drug loading[29,30]. Different lyoprotectants were screened in this study according to the appearance, re-dispersity, particle size, and entrapment efficiency of lyophilization of G-Rg3- PLP (Table 3). When mannitol and PEG6000 are used as freeze-drying protectors, the redispersion effect is poor and the particle size is large. When hydroxypropyl- β-cyclodextrin is used as freeze-drying protectant, the encapsulation efficiency changes greatly. When glucose is used as freeze-drying protective agent, the appearance of the freeze-dried product is poor. Finally, two percent lactose was chosen as the protectant because its reconstruction time is short, the particle size is small, and the encapsulation efficiency changed only slightly.

lyoprotectant percent Appearance EE (%) D50 (nm) Reconstruction time (s)
  2 + 76.04±4.06 74.1±9.78 7.33±0.58
Glucose 4 + 69.99±5.55 79.1±14.92 8.33±2.08
  6 + 68.64±10.62 102.7±3.19 6.33±1.15
  2 ++ 78.15±1.90 105.3±11.41 9.33±0.58
Lactose 4 ++ 71.60±7.48 79.8±9.96 9.00±3.61
  6 ++ 71.39±5.04 64.0±3.37 6.00±2.00
  2 +++ 78.46±3.37 175.7±11.06 11.33±2.89
Mannitol 4 +++ 77.69±1.62 174.9±7.61 9.66±3.06
  6 +++ 76.17±1.62 186.5±3.34 10.67±0.58
  2 +++ 81.69±4.40 186.9±8.30 18.00±2.65
PEG6000 4 +++ 81.01±3.67 175.6±9.30 11.67±1.53
  6 +++ 79.89±2.42 209.8±12.32 9.67±0.58
  2 ++ 67.89±13.36 63.0±2.05 14.00±2.00
HP-β-CD 4 ++ 62.63±5.62 64.3±7.49 12.67±2.31
  6 ++ 53.56±11.60 65.0±2.15 14.67±3.79

Table 3: Screening results of diffrernt lyoprotectants

The protection mechanism of lyophilized protectants can be divided into the water replacement hypothesis and the vitrification model. The water replacement hypothesis was first proposed by Crowe et al.[31], in which sugars reduce the interactions between the water and phospholipids and eventually replace the water. In this process, the head group spacing is maintained and van der Waals interactions among the acyl chains of phospholipids are reduced[32,33]. The other lyoprotective mechanism is the vitrification model proposed by Koster et al.[34] The sugar solution generates a stable glassy state during freezing at low temperature, reduces crystallization during lyophilization, effectively prevents the aggregation of polymer particles, and protects the integrity of the structure of the bilayer of liposome phospholipids[35] .

In this study, G-Rg3-PLP was successfully prepared using film dispersion-ultrasonic technology. G-Rg3- PLP had a small particle size and high EE. In vitro release showed that G-Rg3-PLP had a more obvious sustained release effect, which suggests that G-Rg3- PLP may enhance the therapeutic effect of G-Rg3. The future work should focus on the pharmacokinetics of G-Rg3-PLP and its anticancer therapeutic effect.
