*Corresponding Author:
S. Porasuphatana
Division of Pharmacognosy and Toxicology
Faculty of Pharmaceutical Sciences
Khon Kaen University
Khon Kaen, Thailand
E-mail:
psupatra@kku.ac.th
Date of Accepted 25 May 2020
Date of Revised 28 April 2020
Date of Received 06 August 2019
Indian J Pharm Sci 2020;82(3):506-513

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

The purpose of this study was to investigate the protective effects of purple waxy corn extract (Zea may L.) on aflatoxin B1-induced cytotoxicity, oxidative stress and micronuclei in HepG2 cells. Purple waxy corn extract contained phenolics (187.15-341.65 µg gallic acid/mg), flavonoids (0.55-21.35 µg quercetin/mg) and anthocyanins (43.70-220.43 mg cyanidin-3-glucoside/l). Antioxidant activities of the extracts were measured using oxygen radical absorbance capacity (1410.70-2214.49 µM trolox/mg) and ferric reducing/antioxidant power (292.38-612.38 µM trolox/mg) assays. There were significant correlations between phenolic, flavonoid and anthocyanin content and antioxidant activities (R= 0.740-0.778) of purple waxy corn extract. Studies in HepG2 cells found that 0.5 and 1 mg/ml purple waxy corn extract increased cell viability in AFB1-treated HepG2 cells. Purple waxy corn extract reduced intracellular ROS production, increased GSH content and antioxidant enzyme GR, GPx and GST activities and micronucleus in aflatoxin B1-treated HepG2 cells. Therefore, purple waxy corn extract reduced aflatoxin B1 toxicity through induction of antioxidant activities and, thus, inhibited oxidative stress-induced DNA damage caused by aflatoxin B1.

Keywords

Mycotoxin, anthocyanins, antioxidant, hepatocellular carcinoma, aflatoxin, purple waxy corn, micronucleus

Aflatoxin B1 (AFB1) is a mycotoxin produced by fungi Aspergillus flavus and A. paraciticus and classified as a class I carcinogen due to its association with hepatocellular carcinoma (HCC) in humans [1]. AFB1 is widely-found as a contaminate in various crops such as rice, dried fruits, nuts, and sorghum [2], which enables humans to become easily exposed to AFB1 in daily life. The main site for AFB1 metabolism for humans is the liver through cytochrome P450 CYP1A2 and CYP3A4 pathways to form AFB1-8,9-epoxide, a highly reactive metabolite that directly binds to biomolecules, especially DNA and leads to AFB1-DNA adducts. This adduct formation results in gene mutation, and initiation of carcinogenesis. Likewise, AFB1 and AFB1- 8,9-expoxide also cause the adduct formation via the induction of intracellular reactive oxygen species (ROS) production, which damages biomolecules causing oxidative stress [3-5].

Previous studies reported that AFB1 exposure resulted in oxidative stress. In vitro and in vivo studies showed that AFB1 induced intracellular ROS, lipid peroxidation, protein carbonyl and 8-hydroxy-2’-deoxyguanosine (8-OHdG) while decreasing antioxidant enzymatic and non-enzymatic systems [3,6]. Therefore, oxidative stress is considered one of the main mechanisms of AFB1- induced toxicity and carcinogenesis.

Recent studies illustrated that various plant extracts expressing antioxidant activity were capable of decreasing AFB1 toxicity and these extracts included, green tea, purple rice, cruciferous vegetables, turmeric and a few others [7-11]. Corn is another type of food plant domestically consumed in Southeast Asia. Among those, purple waxy corn (PWC) extract has been reported to contain large quantities of bioactive compounds such as phenolics, flavonoids and anthocyanins and exhibited antioxidant activity as compared to other coloured corns [12]. Previous studies also revealed antidiabetic, anticancer, antiinflammatory and especially antioxidant activity of PWC [13-18]. This study was aimed to investigate the effects of PWC extract on AFB1-induced cytotoxicity, oxidative stress and genotoxicity.

Although the effect of PWC extract on AFB1 detoxification has never been studied, an in vivo study reported the effect of PWC extract on the promotion of antioxidant enzyme activities, such as superoxide dismutase, catalase and glutathione peroxidase (GPx) [14]. Accordingly, PWC might reduce cytotoxicity, oxidative stress and genotoxicity induced by AFB1.

Materials and Methods

All chemicals were obtained from Sigma Co. St. Louis (St. Louis, MO, USA). HepG2 cells were obtained from American Type Culture Collection (Manassas, VA, USA). PWC at the maturity phase were obtained from the Vegetable Corn Breeding Project, the Plant Breeding Research Center for Sustainable Agriculture, Khon Kaen University.

Purple corn extraction:

PWC cobs and seeds were ground in an electrical herb grinder separately, while boiled seed was steamed for 30 min before grinding and then extracted using either deionized water (DI water) or 70 % acetone as solvents with the sample:solvent ration of 25 g:1000 ml under 60º for 4 h. The extracts were filtered by Whatman no.1 filter paper to remove solid residual. About 0.1 % w/w ascorbic acid was added to protect oxidation before removing water by freezedrying at -30º under pressure 130 mbar for 72 h. The dried extracts were preserved at -20º [19,20].

Determination of bioactive compounds and antioxidant activity:

Total phenolic content (TPC) of PWC was evaluated by colorimetric method using Folin-Ciocalteu assay [21]. The TPC was calculated as μM gallic acid equivalents relying on a gallic acid standard curve. Total flavonoid content (TFC) of the PWC was determined using aluminium chloride colorimetric method [22]. The TFC was calculated as quercetin equivalents (μg quercetin/ mg extract) following to quercetin standard curve. Total proanthocyanidin content (TAC) was measured by pH-differential method [23] using two different pH buffer solutions, pH 1.0 0.025 M KCl and pH 4.5 0.4 M sodium acetate. The extracts were mixed with these two buffers and measured absorbance at both 510 and 700 nm for calculating TAC as mg cyanidin-3- glucoside/g extract.

Antioxidant activity using oxygen radical absorbance capacity (ORAC) assay was based on hydrogen atom transfer reactions. The ORAC was calculated from area under the curve as trolox equivalents (μM trolox/mg plant extract) [24]. Antioxidant activity also determined by ferric reducing/antioxidant power (FRAP) assay. The antioxidant activity evaluated by FRAP was calculated as trolox equivalent (μM trolox/mg plant extract) [19,25].

Cell cytotoxicity:

The effect of PWC extract on cell viability of HepG2 cells for determining non-toxic concentration was measured using sulforhodamine B colorimetric assay (SRB assay) [26]. HepG2 cells (25 000 cells/well) were seeded in to 96-well plate and incubated at 37º and 5 % CO2 for 24 h. The combinations of non-toxic concentration of extracts (0.01-1 mg/ml) and 6 μg/ml AFB1 were also treated and incubated for 24 h. Cell viability was compared with 0.12 % DMSO group as % viability of control.

Intracellular ROS production:

Intracellular ROS production in HepG2 cells was measured using dichlorofluorescein (DCF) assay [27]. Cells (4×104 cells/well) were seeded into black 96-well plate and incubated at 37º and 5 % CO2 for 48 h. Then, cells were washed twice with PBS before incubating with 50 μM DCFH-DA diluted in PBS for 45 min. The fluorescence intensity as relative fluorescence units was read at 485 (excitation) and 528 (emission) nm, respectively. Percent intracellular ROS production of control was calculated and compared to 0.12 % DMSO group.

Determination of glutathione content and antioxidant enzyme activities:

Cells (5×105 cells/well) were seeded into 6-well plate and incubated at 37º and 5 % CO2 for 24 h. Then, the cells were treated with substances and then incubated for 24 h. They were harvested by 0.05 % trypsin-EDTA. PBS was added into cell pellet. Then, it was sonicated for 60 s twice. The solution was centrifuged at 4º, 9000 rpm for 10 min and supernatant was kept at -80º to examine enzyme activities and glutathione content. Protein content was measured by Bradford assay [28]. Regarding GSH content, the reaction was measured change of DTNB into 5-thio-2-nitrobenzoic acid (TNB) [29]. GPx activity was determined by measuring the reduction in NADPH concentration [30]. Glutathione reductase (GR) activity was determined by measuring the decrease of NADPH concentration resulted from GR-catalysed GSSG to GSH [31]. GST activity in the cell lysate was also determined using Sigma GST assay kit.

Micronucleus:

HepG2 cells were seeded into 100 mm dishes (6×106 cells) and incubated at 37º and 5 % CO2 for 24 h. Each dish was treated with test compounds for 24 h. Then, the cells were incubated with 4 μg/ml CytB for 48 h. Cells were harvested by 0.05 % trypsin-EDTA and centrifuged at 1500 rpm for 10 min and the cell pellet was resuspended in 5.6 mg/ml KCl hypotonic solution and centrifuged at 1500 rpm for 10 min. Samples were fixed by dropping 10 ml fixative solution (3:1 methanol:acetic acid) followed by spinning at 1500 rpm for 10 min. Cell slide was dried and stained with 10 % Giemsa stain for 15 min. Number of micronuclei was counted under an inverted light microscope at 300X. The frequency of micronuclei in 300 binucleated cells was evaluated (n=3) [32].

Statistical analysis:

Data was analysed by SPSS version 19 by multiple comparison Dunnett’s test for parametric data and Kruskal-Walis for non-parametric data. The correlation test used the Pearson’s correlation coefficient. The 50 % effective concentration (EC50) was calculated using the GraphPad software.

Results and Discussion

The contents of bioactive components TPC, TFX and TAC of the PWC extracts are shown in Table 1. The TPC content of PWC extracts was 161.65±1.80- 217.07±2.29 μg gallic acid/mg. When compared to each solvent group, both cob and boiled seed DI water extract contained higher phenolic content than the 70 % acetone extract.

Solvent Part of PWC Bioactive compound Antioxidant activity
TPC TFC TAC ORAC FRAP
70% acetone Cob 133.09±8.63 13.76±0.41 113.55±2.19 1796.78±61.64 9.21±28.21
Seed 203.87±9.85 4.29±0.64 23.29±1.14 1496.33±11.88 52.86±28.49
Boiled seed 161.65±1.80 3.81±0.42 21.64±0.33 1241.75±0.83 61.19±28.31
DI water Cob 187.15±2.46 8.11±0.14 142.94±4.88 2138.51±138.65 266.67±24.06
Seed 177.27±2.78 0.17±0.10 19.20±2.18 1299.77±49.36 370.48±26.79
Boiled seed 217.07±2.29 0.55±0.09 43.70±2.61 1410.70±13.23 477.14±26.30

Table 1: Bioactive Compounds and Antioxidant Activity of the PWC Extracts

The PWC extracts contained TFC at 0.17±0.10- 13.76±0.41 μg quercetin/mg while TAC determined by the pH-differential method was 19.20±2.18- 142.94±4.88 mg C3G/mg. The DI water and 70 % acetone extracts of corn cob contained TFC content was greater than that of any of the other extracts. TAC of corn cob extracts was also dramatically higher than seed and boiled seed extracts (Table 1).

Antioxidant activity was evaluated using assays based on hydrogen atom transfer reactions (ORAC assay) and electron transfer (FRAP assay). The results of antioxidant activity were displayed in Table 1. The PWC extracts exhibited antioxidant activity in the range of 1241.75±0.83-2138.51±138.65 μM trolox/mg extract as determined by the ORAC assay. Corn cob DI water extract had the highest antioxidant activity. In the FRAP assay, PWC extracts exhibited antioxidant activity in the range of 9.21±28.21-477.14±26.30 μM trolox/mg. The antioxidant activity of PWC DI water extract was higher than that of the 70 % acetone extract. Of particular note was that the boiled seed extract contained the highest activity (Table 1).

There were correlations between bioactive compounds and antioxidant activity of the PWC extracts (p<0.05). TFC and TAC were moderately correlated to antioxidant activity determined by ORAC with a correlation coefficient of 0.75 and 0.78, respectively, while TPC moderately correlated to antioxidant activity measured by FRAP assay with R=0.74.

Regarding the content of bioactive compounds and antioxidant activity, corn cob DI water extract was selected for screening on AFB1-induced toxicity in HepG2 cells due to the high content of bioactive compounds and antioxidant activity in the extract. Concentration sin the range of 0.1-3 mg/ml of extract was applied to HepG2 cells for 24 h. Fig. 1A showed the effect of PWC cob extract at different concentrations on % cell viability and the results showed that cell viability was significantly increased after treatment with 0.1-1 mg/ml PWC cob extract with % viability values of 121.17±7.41, 147.38±15.94, 123.55±11.04 and 121.17±10.22, respectively (p<0.05). On the contrary, high concentrations of 2 and 3 mg/ml PWC cob extract resulted in significantly reduced the % cell viability to 91.43±6.48 and 60.64±7.76%, respectively (p<0.05).

IJPS-indicated

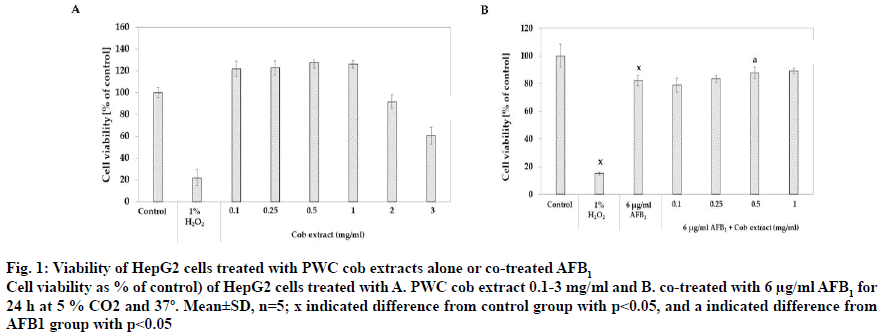

Figure 1: Viability of HepG2 cells treated with PWC cob extracts alone or co-treated AFB1
Cell viability as % of control) of HepG2 cells treated with A. PWC cob extract 0.1-3 mg/ml and B. co-treated with 6 μg/ml AFB1 for 24 h at 5 % CO2 and 37º. Mean±SD, n=5; x indicated difference from control group with p<0.05, and a indicated difference from AFB1 group with p<0.05

PWC cob extract in a range of 0.1-1 mg/ml was co-treated with 6 μg/ml AFB1 in HepG2 cells for 24 h. Percent cell viability of control was calculated and compared to the control group (0.12 % DMSO). The co-treatment of AFB1 and 0.5 and 1 mg/ml PWC cob extract had a % cell viability of 87.90±4.07 and 89.25±2.01, respectively (p<0.05), higher than treatment with 6 μg/ml AFB1 alone (82.19±3.80, fig. 1B).

The intracellular ROS production was measured after co-exposure of 3 μg/ml AFB1 and cob extract in a range from 0.1 to 1 mg/ml for 24 h using DCF assay. The results showed that 3 μg/ml significantly increased intracellular ROS production compared to the corresponding control (p<0.05) (fig. 2). It was also found that co-treatment with AFB1 and cob in the concentrations of 0.1 and 1 mg/ml reduced intracellular ROS compared to treatment with AFB1 alone in a dose-dependent manner with EC50 as 0.356 mg/ml.

IJPS-intracellular

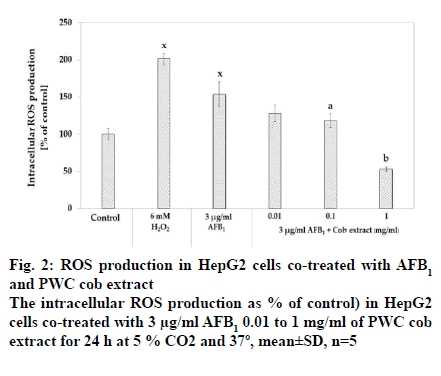

Figure 2: ROS production in HepG2 cells co-treated with AFB1 and PWC cob extract
The intracellular ROS production as % of control) in HepG2 cells co-treated with 3 μg/ml AFB1 0.01 to 1 mg/ml of PWC cob extract for 24 h at 5 % CO2 and 37º, mean±SD, n=5

The study of the effect of PWC cob extract on GSH content demonstrated that 3 μg/ml AFB1 resulted in 74.48±5.36 % of GSH content, a significant GSH content reduction from that of the control group. Moreover, the co-treatment of 3 μg/ml AFB1 with 1 mg/ml PWC cob extract resulted in 107.46±6.86 % of the GSH content that the control group contained, a significant GSH content increase when compared to treatment with AFB1 alone (fig. 3A).

IJPS-extracts

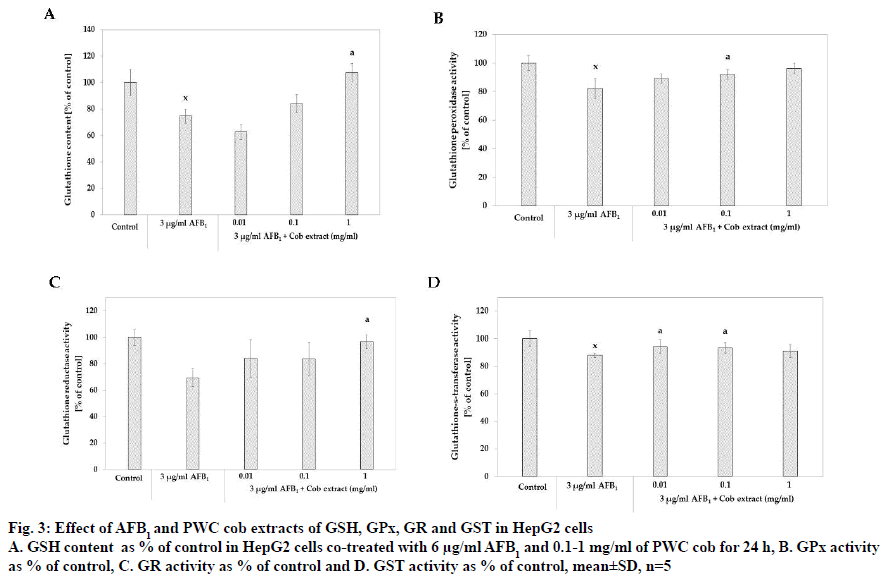

Figure 3: Effect of AFB1 and PWC cob extracts of GSH, GPx, GR and GST in HepG2 cells
A. GSH content as % of control in HepG2 cells co-treated with 6 μg/ml AFB1 and 0.1-1 mg/ml of PWC cob for 24 h, B. GPx activity as % of control, C. GR activity as % of control and D. GST activity as % of control, mean±SD, n=5

With respect to GPx activity, the results indicated that 3 μg/ml AFB1 reduced GPx activity compared to that of the control group (% of control as 82.24±6.84, p<0.05). It was also found that co-treatment with 3 μg/ml AFB1 and cob extract in the concentrations of 0.1 and 1 mg/ ml significantly induced GPx activity, higher than with AFB1 treatment alone. The % of control levels were 92.09±3.43 (p<0.05) and 96.12±3.71 for co-treatment with 0.1 and 1 mg/ml cob extract, respectively (fig. 3B).

The effect of cob extract on GR activity found that co-treatment with 3 μg/ml AFB1 and 1 mg/ml cob significantly increased GR activity as % of control compared to treatment with 3 μg/ml AFB1 alone. Furthermore, the activity of co-treatment with 1 mg/ml cob did not significantly differ from that of the control group (p>0.05). About .01 and 0.1 mg/ml cob extract did not increase activity (fig. 3C).

With respect to glutathione-S-transferase (GST) activity, the results revealed that 3 μg/ml AFB1 significantly reduced GST activity when compared to the control group (p<0.05) with the % GST activity at 87.90±1.53. The results also showed that co-treatment with 3 μg/ml AFB1 and 0.01 and 0.1 mg/ml cob extract had % GST activity of 94.12±4.95 % and 93.10 ±3.10 %, respectively, higher than treatment with AFB1 alone (p<0.05, fig. 3D).

After treatment with 3 μg/ml AFB1, the number of micronucleated cells in 300 binucleated cells significantly increased 1.8-fold compared to the corresponding control (p<0.05). Co-treatment with 3 μg/ml AFB1 and 0.01 mg/ml PWC cob extract resulted in no micronucleus reduction whereas 1 mg/ml PWC cob extract resulted in a micronucleus decrease compared to treatment with AFB1 alone (p<0.05).

Oxidative stress is the main mechanism of AFB1- induced toxicity because the production of free radicals is induced during AFB1 metabolism by CYP450 and AFB1-8,9-expoxide as well. These free radicals could damage lipids, proteins, carbohydrates and DNA and, thus, contribute to cell injury and DNA damage, leading to liver carcinogenesis [3,5]. Numerous studies confirmed that phenolics-rich plants were capable of reducing AFB1-induced toxicities. To illustrate, ginger extract enhanced antioxidant enzyme activities and reduced hepatotoxicity induced by AFB1 in an in vivo study [33]. In addition, there are studies displayed that anthocyanin and anthocyanin-rich plants showed the ability to reduce AFB1 toxicities via alleviation of phase I and II metabolism, chromosome aberration, biomolecule synthesis, DNA fragmentation and oxidative stress in in vivo studies [10,34]. Regarding flavonoids, flavonoid fraction of Rhus verniciflua extract increased the activity of ROS-detoxifying enzymes [35]. Consequently, phenolics, flavonoid and anthocyanin assured to reduce AFB1 toxicity and antioxidant properties clearly showed protective effects of AFB1-induced toxicity.

This study was aimed at investigating whether PWC extract was able to protect AFB1-induced cytotoxicity, oxidative stress and micronucleus in HepG2 cells. After three parts (cob, seed and boiled seed) of PWC were extracted with DI water and 70 % acetone, the contents of bioactive components such as phenolics, flavonoids and anthocyanins were determined. The TPC was 133.09-217.07 μg gallic acid/mg, flavonoid content was 0.17-13.76 μg quercetin/mg and anthocyanin content was 19.20-142.94 mg cyanidin-3-glucoside/l in these PWC extracts. The antioxidant activities were measured by ORAC (1241.75-2138.51 μM trolox/mg) and FRAP (9.21-477.14 μM trolox/mg). Bioactive compounds TPC, TFC and TAC and antioxidant activity seemed to depend on part of PWC and types of solvent. From these investigations, PWC cob DI water extract was selected for studying the effects on AFB1-induced toxicity in HepG2 cells due to their optimized content of bioactive compounds and antioxidant activity.

Furthermore, there were correlations between bioactive compounds and antioxidant activity of PWC. TPC moderately correlated to antioxidant activity as measured by the FRAP assay with R=0.74 (p<0.05). It could be observed from seed and boiled seed DI water and 70 % acetone extracts had high TPC and high antioxidant activity whereas cob extracts contained low TFC and low antioxidant activity. In addition, TFC and TAC moderately correlated to antioxidant activity determined by ORAC with R=0.75 and 0.78, respectively. PWC Cob extracts had the highest TFC and TAC compared to the other extracts. It also had higher antioxidant activity than any other parts of PWC (Table 1). Accordingly, the antioxidant activity of PWC depended on the contents of these bioactive compounds.

HepG2 cells were used as a model in this study. These were widely accepted as a model for drug metabolizing and liver toxicity studies. Despite some limitations (ex., low activities of phase I and II metabolizing enzymes), their activities are rather stable, not relying on passage [36]. Hence, HepG2 cells were commonly used for studying AFB1-induced hepatotoxicity (ex., studying the effects of zinc on liver toxicity and DNA damage induced by AFB1 and studying the effects of carotenoids inhibiting molecular toxicity in AFB1- induced HepG2 cells) [37,38]. To evaluate the cytotoxicity of cob extract for choosing a non-toxic concentration, HepG2 cells were incubated with cob extract for 24 h and then measured using SRB assay. The results found that 0.1-1 mg/ml cob extract not only non-toxic but also increased viability of HepG2 cells.

Regarding the effect of cob extract on AFB1-induced cytotoxicity, the results revealed that 0.5 and 1 mg/ml cob extract slightly increased the % viability in AFB1- treated HepG2 cells (p<0.05). The small influence on cell viability was also reported in prior studies; zinc and Allium fistulosum extract minimally increased viability of AFB1-treated HepG2 cells [37,39]. Important as well is that this protection effect was also found in other extracts containing phenolics, flavonoids and anthocyanins [33,38].

For antioxidant studies, intracellular ROS production, GSH content, GPx, GR and GST activities, the reliable markers for oxidative stress, were examined. The results indicated that after incubation with 3 μg/ml AFB1 for 24 h, intracellular ROS production was induced while GSH content, GPx, GR and GST activities were reduced compared to the control group. These findings confirmed that AFB1 could cause oxidative stress in HepG2 cells (fig. 2, 3 and 4). The effects of AFB1 on decreasing the GSH content and induction of ROS corroborate the findings of several previous studies performed under similar conditions, 3 μg/ml AFB1 and incubated for 24 h [33,34,37,39].

IJPS-micronucleated

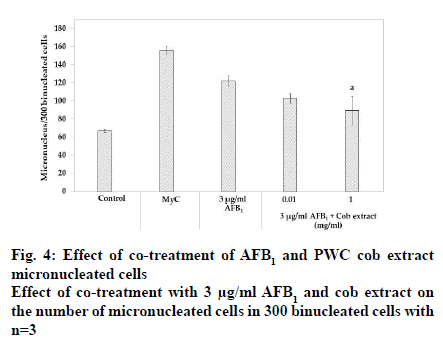

Figure 4: Effect of co-treatment of AFB1 and PWC cob extract micronucleated cells
Effect of co-treatment with 3 μg/ml AFB1 and cob extract on the number of micronucleated cells in 300 binucleated cells with n=3

The most interesting finding is that the PWC cob extract could reduce ROS production induced by AFB1 in a dose-dependent manner, especially 1 mg/ml cob extract was more effective in reducing ROS by more than 50 % of that produced by AFB1 group. In addition, PWC cob extract could also increase glutathione content and GPx activity in a dose-dependent manner while only 0.01 and 0.1 mg/ml PWC cob extract were capable of increasing GST activity as a function of cellular detoxification against xenobiotics and against oxidative stress. In addition, 1 mg/ml cob extract was able to activate GR activity. These results agreed with those of a previous study in which in vivo antioxidant activity played a critical role in ameliorating diseases, such as diabetes, Opisthorchis viverrini infection and diabetic cataract [14,40,41].

Apart from AFB1-induced genotoxicity, prior studies reported that AFB1-induced micronucleus and chromosome aberration. This study also found that AFB1 caused micronuclei formation. Co-treatment with 0.01 mg/ml cob extract did not reduce the frequency of micronucleated cells; however, 1 mg/ml cob extract reduced the frequency of micronucleated cells.

In conclusion, co-treatment of 3 μg/ml AFB1 with 0.01-1 mg/ml of PWC cob extracts clearly showed antioxidative stress induced by AFB1 through reduction of ROS production and induction of GSH content, GR and GPx as well as GST activities. Furthermore, PWC extract also lowered micronucleus count and cytotoxicity. Both induction of oxidative stress and genotoxicity are the main mechanisms leading to HCC, therefore, PWC extracts could contain anticancer substances, the molecular mechanism of which needs to be explored further.

Acknowledgments:

We thank the Vegetable Corn Breeding Project, the Plant Breeding Research Center for Sustainable Agriculture, Khon Kaen University for providing cob sample of PWC. We greatly acknowledge the financial support provided by Development and Promotion of Science and Technology Talent Project (DPST) organized by Ministry of Science and Technology, Thailand; the National Research Council of Thailand (NRCT); and Faculty of Pharmaceutical Sciences, Khon Kaen University, Khon Kaen Thailand.
