*Corresponding Author:
M. Tiwari
Department of Pharmacy, Laboratory of Medicinal and Pharmaceutical Chemistry
Shri G. S. Institute of Technology and Science, 23 Park Road, Indore-452 003, India
E-mail: drmeenatiwari@gmail.com
Date of Submission 07 Janurary 2017
Date of Revision 16 April 2017
Date of Acceptance 26 November 2017
Indian J Pharm Sci 2018;80(1):108-117

This is an open access article distributed under the terms of the Creative Commons Attribution-NonCommercial-ShareAlike 3.0 License, which allows others to remix, tweak, and build upon the work non-commercially, as long as the author is credited and the new creations are licensed under the identical terms

Abstract

A series of 6-acetyl-coumarin derivatives (2a-n) were synthesized and evaluated for antiretroviral activity in C8166 T-cell line infected with HxBru-Gluc strain of human immunodeficiency virus-1. Michael Addition followed by re-aromatization and subsequent acid-induced elimination of water leads to the formation of coumarin intermediate, which undergoes Claisen-Schmidt condensation with substituted bezaldehydes using silica sulphuric acid as a catalyst to form 6-acetyl-coumarin derivatives, 2a-n. In silico absorption, distribution, metabolism, excretion and toxicity parameters of compounds 2a-n were found within their reference limits. All synthesized compounds were devoid of cytotoxicity as they have shown cell viability count more than 80 % in cytotoxicity assay. Compounds 2a, 2g and 2h showed potent inhibitory activity against human immunodeficiency virus infection with IC50 value of 4.7, 4.5 and 0.35 μM, respectively. It was found that electron-withdrawing group at phenyl ring, attached to the coumarin nucleus was crucial for activity against human immunodeficiency virus. The present study may be helpful in the development of some potent antiretroviral agents.

Keywords

6-acetyl-coumarin, synthesis, in silico ADMET, in vitro toxicity, antiretroviral activity

Acquired immunodeficiency syndrome (AIDS) caused by human immunodeficiency virus type-1 (HIV-1) is final stage of infection that occurs when CD4 cell (also called T-cells) count of a HIV-1 infected person falls below 200 [1]. Now, it became the fifth leading cause of death among all adults (between 25 to 44 y age-group) in the United States. Globally, about 36.7 million people were living with HIV in year 2015 [2]. Rapid development of viral resistance to currently available antiretroviral drugs and drug combinations invoked an imperative need to develop novel antiretroviral agents. One of the active natural products, coumarin, has attracted attention in recent years due to its diverse pharmacological properties [3-8]. Coumarins are highly variable in structure due to possibility of various types of substitutions in its ring skeleton, which influence a variety of pharmacological actions [9-15]. Various reports showed the antiretroviral potency of coumarins via inhibition of retroviral enzymes i.e. reverse transcriptase, protease and integrase [16-20]. Due to wide range of biological activity, synthesis of coumarins in laboratory has now become the prime interest of medicinal chemists. Previously, several coumarin derivatives were designed as antiHIV agents by quantitative structure-activity relationship (QSAR) and docking studies [21,22]. The present study explores the synthesis and antiretroviral activity of 6-acetylcoumarin derivatives against HIV infection.

The classical synthesis routes of coumarins include condensation reactions such as Knoevenagel, Pechmann, Perkin, Reformatsky and Wittig [23-25]. Phenols, o-hydroxy-benzaldehydes and acetophenones are the commonly used precursors for synthesis of coumarin ring [26-27]. To increase the yield of classical reactions, several variations have been made in terms of catalysts and reaction conditions [28]. It has now became advantageous to use solid catalysts in organic synthesis due to their non-toxicity, operational simplicity, low cost, environmental compatibility, reusability, and ease of isolation [29]. Silica sulphuric acid (SSA) is such a versatile catalyst that makes chemical reactions economic, convenient and environment friendly [30-32]. In the present study, 6-acetyl-coumarin derivatives were synthesized in good yield using SSA as a catalyst.

About 40 % of drug candidates fail in clinical trials because of poor pharmacokinetics, and toxicity. The late-stage detection of such failures significantly increases the cost of new drug development process. In order to determine absorption, distribution, metabolism, excretion and toxicity (ADMET) properties of developed compounds at an early stage, in silico approaches are preferred nowadays. Therefore, a preliminary drug-likeness, in silico ADME profiling, and toxicity risk assessment (i.e. mutagenicity, tumorigenicity, irritant and reproductive effects) studies were performed to determine the pharmacokinetic properties and toxicity of synthesized compounds.

The in vitro toxicity study of synthesized compounds was performed using Trypan Blue exclusion method [33] while the antiretroviral activity of synthesized compounds against HIV-1 infection was determined by measuring the Gaussia luciferase (Gluc) activity [34]. The present study indicated that synthesized compounds have potential of inhibiting the HIV-1 infection in low micromolar concentration.

Materials and Methods

All reactions were carried out under anhydrous conditions and in solvents dried over molecular sieves type 4 Å. Melting points (MP) of all the synthesized compounds were determined by open capillary method and are uncorrected. Reactions were monitored by thin layer chromatography (TLC) using hexane:ethyl acetate (3:7) as mobile phase. Spots on TLC plate were detected in UV cabinet. All synthesized compounds were purified by column chromatography using optimized proportions of hexane and ethyl acetate. The wavelength of maximum absorption (λmax) and LogP (octanol-water partition coefficient) of synthesized compounds was determined by Shimadzu 1700 UV/ Vis double beam spectrophotometer. IR spectra were recorded on Bruker Alpha spectrophotometer. Proton nuclear magnetic resonance (1H-NMR) spectra were recorded on Bruker Avance II NMR spectrometer using tetramethylsilane as an internal reference standard. Chemical shift values are reported in parts per million (δ in ppm), where s, d, dd and m designate singlet, doublet, doublet of doublet and multiplet, respectively. Mass spectra were recorded on Varian 500 Mass spectrometer and elemental analysis was done using Vario EL III CHN elemental analyser.

Synthesis of 5-hydroxy-6-acetyl-4-methylcoumarin (1)

Aluminum chloride (7.5 mmol) and dry nitrobenzene (10 ml) were added to a mixture of resacetophenone (20 mmol) and ethyl acetoacetate (20 mmol) in a three naked round bottom flask. The mixture was protected from moisture and heated around 130-140° for about an hour until the evolution of hydrogen chloride gas ceased. It was then cooled in ice and nitrobenzene was removed by steam distillation. Solid left behind was coumarin intermediate 1 (5-hydroxy-6-acetyl- 4-methylcoumarin), which was re-crystallized from boiling alcohol to give colourless needle shaped crystals (MP=189-195°, % yield=62).

Synthesis of 6-acetyl-coumarin derivatives (2a-n)

Substituted bezaldehydes (10 mmol), intermediate 1 (7.5 mmol) and SSA (0.7 g) were mixed in a glass tube. The mixture was heated at 70-80° for 2 h with intermittent mixing every 15 min with a glass rod. After completion of the reaction, the product was extracted with 50 ml of dichloromethane. The dichloromethane extract was filtered and concentrated under vacuum to give solid mass. Recrystallization from ethanol finally gave 6-acetyl-coumarin derivatives, 2a-n, which was further purified by column chromatography. The physicochemical properties and spectral data of synthesized compounds were as follows:

6-(3-(4-chlorophenyl)-acryloyl)-5-hydroxy-4- methyl-2H-chromen-2-one (2a)

Compound 2a was synthesized by reaction of 1 with 4-chloro-benzaldehyde using SSA as a catalyst; yellow crystals; % yield: 79; MP: 215-218°; Rf: 0.5; UV (λmax): 267; LogP: 3.42; IR (KBr): 3245 (-OH stretch), 2926 (Ar, C-H stretch), 2840 (aliphatic, C-H stretch), 1696 (O-C=O stretch), 1624 (C=O stretch), 1489, 1427 (C=C ring stretch), 1287, 1181, 1142 (Ar, C-H bend, in plane), 1091 (C-Cl stretch), 840, 805, 762 (Ar, C-H bend, out of plane) and 441 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.95 (d, J=15.0 Hz, 1H, 3’ –CH), 7.86 (d, J=7.5 Hz, 1H, 7 –CH), 7.48 (dd, J=11.3, 3H, 2’, 2”, 6” –CH), 7.41 (d, J=7.5 Hz, 2H, 3”, 5” –CH), 6.95 (d, J=7.4 Hz, 1H, 8 –CH), 6.05 (d, J=0.5 Hz, 1H, 3 –CH), 4.98 (s, 1H, 5 –OH), 2.54 (s, J=0.6 Hz, 3H, 4 –CH3); calculated mol. wt.: 340; found: EIMS m/z: 340 (M+ peak), 341 (M+1 peak); Molecular formula: C19H13ClO4; Elemental analysis, calculated, C, 66.97; H, 3.85; found, C, 66.85; H, 4.01.

6-(3-(4-fluorophenyl)acryloyl)-5-hydroxy-4- methyl-2H-chromen-2-one (2b)

Compound 2b was synthesized by reaction of 1 with 4-fluoro-benzaldehyde using SSA as a catalyst; light brown crystals; % yield: 78; MP: 212-217°; Rf: 0.7; UV (λmax): 278; LogP: 3.22; IR (KBr): 3385 (O-H), 3056 (Ar, C-H stretch), 2927 (aliphatic, C-H stretch), 1692 (O-C=O stretch), 1624 (C=O stretch), 1599, 1468, 1429 (C=C ring stretch), 1293, 1158 (Ar, C-H bend, in plane), 1229 (C-F stretch), 834 (Ar, C-H bend, out of plane) and 436 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 8.18 (d, J=15.1 Hz, 1H, 3’ –CH), 7.79 (d, J=7.6 Hz, 1H, 7 –CH), 7.62–7.49 (m, 3H, 2’, 2”, 6” –CH), 7.15 (t, J=7.7 Hz, 2H, 3”, 5” –CH), 6.96 (d, J=7.4 Hz, 1H, 8 –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 5.71 (s, 1H, 5 –OH), 2.54 (s, J=0.5 Hz, 3H, 4 –CH3); calculated mol. wt.: 324; found: EIMS m/z: 324 (M+ peak), 325 (M+1 peak); Molecular formula:C19H13FO4; Elemental analysis: calculated, C, 70.37; H, 4.04; found, C, 69.98; H, 4.43.

5-hydroxy-6-(3-(4-hydroxyphenyl)acryloyl)-4- methyl-2H-chromen-2-one (2c)

Compound 2c was synthesized by reaction of 1 with 4-hydroxy-benzaldehyde using SSA as a catalyst; off white crystals; % yield: 85; MP: 239-243°; Rf: 0.45; UV (λmax): 264; LogP: 2.56; IR (KBr): 3176 (-OH stretch), 3033 (Ar, C-H stretch), 2848 (aliphatic, C-H stretch), 1672 (O-C=O stretch), 1631 (C=O stretch), 1579, 1454 (C=C ring stretch), 1289, 1221, 1159 (Ar, C-H bend, in plane), 855, 789, 706 (Ar, C-H bend, out of plane) and 454 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.93 (d, J=15.1 Hz, 1H, 3’ –CH), 7.79 (d, J=7.6 Hz, 1H, 7 –CH), 7.39 (d, J=15.0 Hz, 1H, 2’ –CH), 7.29 (d, J=7.4 Hz, 2H, 2”, 6” –CH), 6.97 (d, J=7.4 Hz, 1H, 8 –CH), 6.87 (d, J=7.4 Hz, 2H, 3”, 5” –CH), 6.48 (s, 1H, 5 –OH), 6.05 (d, J=0.6 Hz, 1H, 3 –CH), 3.94 (s, 1H, 4” –OH), 2.53 (s, J=0.5 Hz, 3H, 4 –CH3); calculated mol. wt.: 322; found: EIMS m/z: 322 (M+ peak), 323 (M+1 peak); Molecular formula: C19H14O5; Elemental analysis; calculated, C, 70.80; H, 4.38; found, C, 70.89; H, 4.54.

5-hydroxy-4-methyl-6-(3-p-tolylacryloyl)-2Hchromen- 2-one (2d)

Compound 2d was synthesized by reaction of 1 with 4-methyl-benzaldehyde using SSA as a catalyst; light red crystals; % yield: 89; MP: 209-214°; Rf: 0.65; UV (λmax): 298; LogP: 3.29; IR (KBr): 3432 (-OH stretch), 3020 (Ar, C-H stretch), 2922 (aliphatic, C-H stretch), 1682 (O-C=O stretch), 1622 (C=O stretch), 1465, 1423 (C=C ring stretch), 1288, 1237, 1183 (Ar, C-H bend, in plane), 847, 809, 756 (Ar, C-H bend, out of plane) and 435 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.96 (d, J=15.1 Hz, 1H, 3’ –CH), 7.79 (d, J=7.4 Hz, 1H, 7 –CH), 7.47 – 7.35 (m, 3H, 2’, 2”, 6” –CH), 7.24 (d, J=7.5 Hz, 2H, 3”, 5” –CH), 6.97 (d, J=7.4 Hz, 1H, 8 –CH), 6.36 (s, 1H, 5 –OH), 6.05 (d, J=0.6 Hz, 1H, 3 –CH), 2.53 (s, 3H, 4 –CH3), 2.34 (s, 3H, 4” –CH3); calculated mol. wt.: 320; found: EIMS m/z: 320 (M+ peak), 321 (M+1 peak); Molecular formula: C20H16O4; Elemental analysis: calculated, C, 74.99; H, 5.03; found, C, 75.22, H, 4.89.

5-hydroxy-6-(3-(4-methoxyphenyl)acryloyl)-4- methyl-2H-chromen-2-one (2e)

Compound 2e was synthesized by reaction of 1 with 4-methoxy-benzaldehyde using SSA as a catalyst; reddish brown crystals; % yield: 87; MP: 203-207°; Rf: 0.76; UV (λmax): 287; LogP: 2.89; IR (KBr): 3406 (-OH stretch), 2968 (Ar, C-H stretch), 2932 (aliphatic C-H stretch), 1632 (O-C=O stretch), 1606 (C=O stretch), 1427 (C=C ring stretch), 1248, 1175 (Ar, C-H bend, in plane), 1030 (C-O-C asymmetric stretch), 831 (Ar, C-H bend, out of plane) and 432 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.90 (dd, J=28.5, 11.3 Hz, 2H, 7, 3’ –CH), 7.52 (d, J=7.5 Hz, 2H, 2”, 6” –CH), 7.43 (d, J=15.0 Hz, 1H, 2’–CH), 6.99 (dd, J=23.7, 7.4 Hz, 3H, 8, 3”, 5” –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 4.97 (s, 1H, 5 –OH), 3.81 (s, 3H, 4” – OCH3), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 336; found: EIMS m/z: 336 (M+ peak), 337 (M+1 peak); Molecular formula: C20H16O5; Elemental analysis; calculated, C, 71.42; H, 4.79; found, C, 71.59, H, 5.00.

6-(3-(4-(dimethylamino)phenyl)acryloyl)-5- hydroxy-4-methyl-2H-chromen-2-one (2f)

Compound 2f was synthesized by reaction of 1 with p-dimethyl-amino-benzaldehyde using SSA as a catalyst; off white crystals; % yield: 80; MP: 196-200°; Rf: 0.58; UV (λmax): 236; LogP: 3.26; IR (KBr): 3255 (-OH stretch), 2998 (Ar, C-H stretch), 2956 (aliphatic, C-H stretch), 1739 (O-C=O stretch), 1631 (C=O stretch), 1508, 1444 (C=C ring stretch), 1323 (C-N stretch), 1275, 1223, 1175 (Ar, C-H bend, in plane), 1143 (C-N stretch, aliphatic), 879, 839, 730 (Ar, C-H bend, out of plane) and 432 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.89 (dd, J=29.1, 11.2 Hz, 2H, 7, 3’ –CH), 7.38 (dd, J=11.3, 6.8 Hz, 3H, 2, 2”, 6” –CH), 6.96 (d, J=7.4 Hz, 1H, 8 –CH), 6.75 (d, J=7.5 Hz, 2H, 3”, 5” –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 4.77 (s, 1H, 5 –OH), 2.92 (s, 6H, 4” –N(CH3)2), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 349; found: EIMS m/z: 349 (M+ peak), 350 (M+1 peak); Molecular formula: C21H19NO4; Elemental analysis: calculated, C, 72.19; H, 5.48; N, 4.01; found, C, 71.98; H, 5.59; N, 3.95.

6-(3-(3,4-dichlorophenyl)acryloyl)-5-hydroxy-4- methyl-2H-chromen-2-one (2g)

Compound 2g was synthesized by reaction of 1 with 3, 4-dichloro-benzaldehyde using SSA as a catalyst; grayish white solid; % yield: 86; MP: 225-230°; Rf: 0.62; UV (λmax): 289; LogP: 3.88; IR (KBr): 3386 (-OH stretch), 3054 (Ar, C-H stretch), 2925 (aliphatic C-H stretch), 1702 (O-C=O stretch), 1623 (C=O stretch), 1469, 1429 (C=C ring stretch), 1287, 1242, 1194 (Ar, C-H bend, in plane), 1054 (C-Cl stretch), 881, 815 (Ar, C-H bend, out of plane) and 436 cm-1 (C=C ring bend, out of plane); 1 H NMR (300 MHz, CDCl3) δ 7.95 (d, J=15.1 Hz, 1H, 3’ –CH), 7.85 (d, J=7.6 Hz, 1H, 7 –CH), 7.60 (d, J=1.1 Hz, 1H, 2” –CH), 7.49 (d, J=15.0 Hz, 1H, 2’ –CH), 7.41 – 7.30 (m, 2H, 5”, 6” –CH), 6.95 (d, J=7.4 Hz, 1H, 8 –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 5.07 (s, 1H, 5 –OH), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 375; found: EIMS m/z: 374 (M+ peak), 375 (M+1 peak); Molecular formula: C19H12Cl2O4; Elemental analysis: calculated, C, 60.82; H, 3.22; found, C, 60.69; H, 3.44.

6-(3-(3,4-dimethoxyphenyl)acryloyl)-5-hydroxy-4- methyl-2H-chromen-2-one (2h)

Compound 2h was synthesized by reaction of 1 with 3, 4-dimethoxy-benzaldehyde using SSA as a catalyst; brown crystals; % yield: 87; MP: 203-207°; Rf: 0.65; UV (λmax): 293; LogP: 2.78; IR (KBr): 3405 (-OH stretch), 3045 (Ar, C-H stretch), 2934, 2837 (aliphatic C-H stretch), 1631 (O-C=O stretch), 1512 (C=O stretch), 1463, 1423 (C=C ring stretch), 1268 (Ar, C-H bend, in plane), 1137 (C-O-C asymmetric stretch), 849, 731 (Ar, C-H bend, out of plane) and 433 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 8.15 (d, J=15.1 Hz, 1H, 3’ –CH), 7.79 (d, J=7.4 Hz, 1H, 7 –CH), 7.57 (d, J=15.1 Hz, 1H, 2’ –CH), 7.23 – 7.14 (m, 2H, 2”, 6” –CH), 6.98 (dd, J=9.8, 7.4 Hz, 2H, 8, 5” –CH), 6.08 – 5.99 (m, 2H, 3 –CH, 5 –OH), 3.82 (d, J=7.8 Hz, 6H, 3”, 4” –OCH3), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 366; found: EIMS m/z: 366 (M+ peak), 367 (M+1 peak); Molecular formula: C21H18O6; Elemental analysis: calculated, C, 68.85; H, 4.95; found, C, 68.88; H, 4.99.

5-hydroxy-6-(3-(4-hydroxy-3-methoxyphenyl) acryloyl)-4-methyl-2H-chromen-2-one (2i)

Compound 2i was synthesized by reaction of 1 with 4-hydroxy-3-methoxy-benzaldehyde using SSA as a catalyst; brownish white crystals; % yield: 75; MP: 232-238°; Rf: 0.73; UV (λmax): 276; LogP: 2.56; IR (KBr): 3390 (-OH stretch), 2922 (Ar, C-H stretch), 2910 (aliphatic C-H stretch), 1650 (O-C=O stretch), 1633 (C=O stretch), 1590, 1453, 1433 (C=C ring stretch), 1273, 1175, 1150 (Ar, C-H bend, in plane), 1025 (C-O-C asymmetric stretch), 806, 730 (Ar, C-H bend, out of plane) and 437 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.95 (d, J=15.0 Hz, 1H, 3’ –CH), 7.86 (d, J=7.4 Hz, 1H, 7 –CH), 7.43 (d, J=15.0 Hz, 1H, 2’ –CH), 7.08 – 6.99 (m, 2H, 2”, 6” –CH), 6.96 (d, J=7.6 Hz, 1H, 8 –CH), 6.86 (d, J=7.4 Hz, 1H, 5” –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 4.79 (s, 1H, 5 –OH), 4.33 (s, 1H, 4” –OH), 3.82 (s, 3H, 3” – OCH3 ), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 352; found EIMS m/z: 352 (M+ peak), 353 (M+1 peak); Molecular formula: C20H16O6; Elemental analysis: calculated, C, 68.18; H, 4.58; found, C, 68.11; H, 4.70.

5-hydroxy-6-(3-(3-hydroxy-4-methoxyphenyl) acryloyl)-4-methyl-2H-chromen-2-one (2j)

Compound 2j was synthesized by reaction of 1 with 3-hydroxy-4-methoxy-benzaldehyde using SSA as a catalyst; off white solid; % yield: 76; MP: 232- 235°; Rf: 0.62; UV (λmax): 294; LogP: 2.44; IR (KBr): 3299 (-OH stretch), 2935 (Ar, C-H stretch), 2847 (aliphatic C-H stretch), 1673 (O-C=O stretch), 1607 (C=O stretch), 1579, 1443 (C=C ring stretch), 1277, 1246, 1214 (Ar, C-H bend, in plane), 1120 (C-O-C asymmetric stretch), 865, 791, 758 (Ar, C-H, bend, out of plane) and 438 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.90 (dd, J=23.1, 11.2 Hz, 2H, 7, 3’ –CH), 7.43 (d, J=15.1 Hz, 1H, 2’ –CH), 7.12 – 7.02 (m, 2H, 2”, 6” –CH), 6.95 (d, J=7.6 Hz, 1H, 8 –CH), 6.88 – 6.81 (m, 1H, 5” –CH), 6.05 (d, J=0.6 Hz, 1H, 3 –CH), 5.16 (s, 1H, 5 –OH), 3.88 (s, 1H, 3” –OH), 3.81 (s, 3H, 4” –OCH3), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 352; found EIMS m/z: 352 (M+ peak), 353 (M+1 peak); Molecular formula:C20H16O6; Elemental analysis: calculated, C, 68.18; H, 4.58; found, C, 68.20; H, 4.68.

5-hydroxy-4-methyl-6-(3-(3,4,5-trimethoxyphenyl) acryloyl)-2H-chromen-2-one (2k)

Compound 2k was synthesized by reaction of 1 with 3,4,5-trimethoxy-benzaldehyde using SSA as a catalyst; brownish white crystals; % yield: 84; MP: 202-206°; Rf: 0.54; UV (λmax): 280; LogP: 2.65; IR (KBr): 3372 (-OH stretch), 3008 (Ar, C-H stretch), 2939, 2839 (aliphatic C-H stretch), 1691 (O-C=O stretch), 1623 (C=O stretch), 1590, 1462, 1420 (C=C ring stretch), 1279, 1233, 1184 (Ar, C-H bend, in plane), 1125 (C-O-C asymmetric stretch), 835, 754, 722 (Ar, C-H bend, out of plane) and 438 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.96 (d, J=15.1 Hz, 1H, 3’ –CH), 7.79 (d, J=7.6 Hz, 1H, 7 –CH), 7.40 (d, J=15.1 Hz, 1H, 2’ –CH), 7.11 (s, 1H, 5 –OH), 6.96 (d, J=7.6 Hz, 1H, 8 –CH), 6.60 (s, 2H, 2”, 6” –CH), 6.05 (d, J=0.6 Hz, 1H, 3 –CH), 3.80 (s, 9H, 3”, 4”, 5” – OCH3), 2.56 (s, 3H, 4 –CH3); calculated mol. wt.: 396; found EIMS m/z: 396 (M+ peak), 397 (M+1 peak); Molecular formula: C22H20O7; Elemental analysis: calculated, C, 66.66; H, 5.09; found, C, 66.59; H, 5.20.

5-hydroxy-6-(3-(4-hydroxy-3,5-dimethoxyphenyl) acryloyl)-4-methyl-2H-chromen-2-one (2l)

Compound 2l was synthesized by reaction of 1 with 4-hydroxy-3,5-dimethoxy-benzaldehyde using SSA as a catalyst; grayish white solid; % yield: 80; MP: 229- 234°; Rf: 0.51; UV (λmax): 270; LogP: 2.34; IR (KBr): 3267 (-OH stretch), 2968 (Ar, C-H stretch), 2940, 2839 (aliphatic C-H stretch), 1671 (O-C=O stretch), 1631 (C=O stretch), 1586, 1464, 1425 (C=C ring stretch), 1276, 1208, 1142 (Ar, C-H bend, in plane), 1108 (C-O-C asymmetric stretch), 841, 830, 728 (Ar, C-H bend, out of plane) and 433 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.92 (d, J=15.1 Hz, 1H, 3’ –CH), 7.80 (d, J=7.4 Hz, 1H, 7 –CH), 7.39 (d, J=15.1 Hz, 1H, 2’ –CH), 6.97 (d, J=7.4 Hz, 1H, 8 –CH), 6.72 (s, 1H, 5 –OH), 6.60 (s, 2H, 2”, 6” –CH), 6.05 (d, J=0.9 Hz, 1H, 3 –CH), 3.87 (s, 1H, 4” –OH), 3.79 (s, 6H, 3”, 5”–OCH3), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 382; found EIMS m/z: 382 (M+ peak), 383 (M+1 peak); Molecular formula:C21H18O7; Elemental analysis: calculated, C, 65.96; H, 4.74; O, 29.29; found, C, 67.00; H, 5.00.

6-(3-(1H-indol-3-yl)acryloyl)-5-hydroxy-4-methyl- 2H-chromen-2-one (2m)

Compound 2m was synthesized by reaction of 1 with 1H-indole-3-carbaldehyde using SSA as a catalyst; white solid; % yield: 76; MP: 250-254°; Rf: 0.55; UV (λmax): 298; LogP: 2.56; IR (KBr): 3298 (-OH stretch), 3180 (Ar, C-H stretch), 2931 (aliphatic C-H stretch), 1631 (O-C=O stretch), 1607 (C=O stretch), 1509, 1442 (C=C ring stretch), 1276, 1208, 1143 (Ar, C-H bend, in plane), 879, 839, 729 (Ar, C-H bend, out of plane) and 442 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.90 (d, J=15.1 Hz, 1H, 3’ –CH), 7.76 (d, J=7.6 Hz, 1H, 7 –CH), 7.57 (s, 1H, 2” –CH), 7.40 (s, 1H, 3” –NH), 7.32 (d, J=15.1 Hz, 1H, 2’ –CH), 7.21 – 6.99 (m, 4H, 5”, 6”, 7”, 8” –CH), 6.92 (d, J=7.6 Hz, 1H, 8 –CH), 6.00 (d, 1H, 3 –CH), 5.10 (s, 1H, 5 –OH), 2.43 (s, 3H, 4 –CH3); calculated mol. wt.: 345; found EIMS m/z: 345 (M+ peak), 346 (M+1 peak); Molecular formula:C21H15NO4; Elemental analysis: calculated, C, 73.03; H, 4.38; N, 4.06; O, 18.53; found, C, 73.00; H, 4.58; N, 3.99.

6-(3-(1H-pyrrol-2-yl)acryloyl)-5-hydroxy-4- methyl-2H-chromen-2-one (2n)

Compound 2n was synthesized by reaction of 1 with 1H-pyrrole-2-carbaldehyde using SSA as a catalyst; grayish crystals; % yield: 80; MP: 219-224°; Rf: 0.57; UV (λmax): 287; LogP: 1.52; IR (KBr): 3272 (-OH stretch), 3179 (Ar, C-H stretch), 2938 (aliphatic C-H stretch), 1739 (O-C=O stretch), 1630 (C=O stretch), 1508, 1444 (C=C ring stretch), 1275, 1175, 1143 (Ar, C-H bend, in plane), 879, 791, 730 (Ar, C-H bend, out of plane) and 439 cm-1 (C=C ring bend, out of plane); 1H NMR (300 MHz, CDCl3) δ 7.79 (dd, J=15.9, 11.6 Hz, 3H,7, 3’ –CH, 2”-NH), 7.35 (d, J=15.0 Hz, 1H, 2’ –CH), 7.18 (d, J=7.4, 1.3 Hz, 1H, 3” –CH), 6.95 (d, J=7.4 Hz, 1H, 8 –CH), 6.37 (d, J=7.5 Hz,1H, 5” –CH), 6.17 (t, J=7.4 Hz, 1H, 4” –CH), 6.05 (d, J=0.6 Hz, 1H, 3 –CH), 5.85 (s, 1H, 5 –OH), 2.54 (s, 3H, 4 –CH3); calculated mol. wt.: 295; found EIMS m/z: 295 (M+ peak), 296 (M+1 peak); Molecular formula: C17H13NO4; Elemental analysis: calculated, C, 69.15; H, 4.44; N, 4.74; O, 21.67; found, C, 69.33; H, 4.59; N, 4.75.

Drug-likeness and in silico ADME/T study

Drug-likeness and lead-likeness of synthesized compounds was assessed as per Lipinski’s rule of five and Jorgensen’s rule of three, respectively [35,36]. The rule of five states that a compound should have a molecular weight <500 Da, LogP ≤5, hydrogen bond donors (HBD) ≤5 and hydrogen bond acceptors (HBA) ≤10, while the rule of three states that a compound should have LogP ≤3, molecular weight <300 Da, HBD ≤3, HBA ≤3 and rotatable bonds ≤3. Polar surface area (PSA) is also a very good property for characterizing bioavailability, absorption (including intestinal absorption), blood-brain barrier penetration and Caco-2 permeability of a drug [37]. Molecules with PSA less than 140 Å2 (angstroms squared) tends to be good at permeating cell membranes and also possesses better drug-likeness properties [38]. In particular, compounds which meet only two criteria, 10 or fewer rotatable bonds and PSA equal to or less than 140 Å2 are supposed to have good oral bioavailability [39]. In silico prediction of ADME properties and toxicity risks i.e. mutagenicity and tumorigenicity, irritant and reproductive effects, of compounds was done by Qikprop module of Schrödinger suite 2010 [40] and OSIRIS property explorer [41], respectively.

Biological activity

C8166 T-cells were cultured in Dulbecco modified Eagle medium and RPMI 1640 medium, each supplemented with 10 % fetal bovine serum. Peripheral blood mononuclear cells (PBMCs) were isolated from the blood of healthy adult volunteers and cultured as described in previous study [42]. Antiretroviral drug, raltegravir (RAL) was obtained from the NIH AIDS Research and Reference Reagent Program. HIV-1 HxBru-Gluc virus was generated by transfecting 293T cells with corresponding HIV-1 proviral DNAs, as described previously [34,43].

Cytotoxicity assay

The trypan blue exclusion method was used to analyze the cytotoxicity of synthesized compounds, which notably distinguishes non-viable cells from viable cells [33]. C8166 T-cells (0.1×106/well) were seeded in 96-well plate, and treated with corresponding concentrations of compounds (i. e. 0.25-2.0 μg/ml). Negative control was not seeded with C8166 T-cells. After 48 h treatment, viable (unstained) and nonviable (stained) cells were counted by TC 20 automated cell counter (Bio-RAD). The viable cell count was normalized as a percentage of the negative control and organized using following symbols –, +, ++, +++, which represent the mean cell viability of 80-100, 60-79, 40-59 and below 40 %, respectively.

Antiretroviral activity

Synthesized compounds (2 mg/ml) were individually dissolved in dimethyl sulfoxide and stored at –20° until use. To screen the antiHIV-1 activity, each compound was added to a single well of 96-well plates at a final concentration of 0.25, 0.5, 1 and 2 μg/ml, separately. Meanwhile, 1×106 C8166 T cells were infected with HIV-1 HxBru-Gluc virus (HIVp24 10-50 pg/1×106 cells) for two hours, and this cell-virus mixture was immediately transferred to the 96-well plate containing the synthesized compounds such that each well contained a final concentration of 104 cells. Three days post-infection, supernatant were collected and the levels of virus infection were monitored by measuring the Gluc activity in the supernatants from each infected cell culture using a POLARstar OPTIMA microplate luminometer (BMG Labtech, Germany). Gluc activity measurement was used as biomarker to detect the HIV infection [34,44].

Results and Discussion

The synthesis of target compounds 2a-n was carried out in two steps (Figure 1). Resacetophenone condensed with ethyl acetoacetate using aluminium chloride as condensing agent, to produce the coumarin intermediate 1 (5-hydroxy-6-acetyl-4-methylcoumarin) in high yield [25]. Claisen-Schmidt condensation of 1 with substituted bezaldehydes using SSA as a catalyst resulted in the formation of 6-acetyl-coumarin derivatives, 2a-n. IR bands at 3344 (-OH stretch), 2942 (Ar, C-H stretch), 2841 (aliphatic, C-H stretch) 1727 (C=O stretch, coumarin), 1662 (C=O stretch), 1585, 1456, 1421 (C=C, ring stretch), 1290, 1234, 1126 (Ar, C-H bend, in plane), 845, 794, 697 (Ar, C-H bend, out of plane), 423 (C=C ring bend, out of plane) showed the characteristic functional groups in 1. NMR spectrum of 1 showed two peaks at δ 2.0-3.0 which were attributed to three protons of -CH3 at 4th position and -COCH3 at 6th position of coumarin ring, respectively. The chemical shifts at δ 5.92, 7.80 and 6.87 were due to single protons at 3, 7 and 8 positions of coumarin ring. Mass spectrum of 1 showed characteristic molecular ion peak at m/z 218. Fragmentation of the molecule showed two peak at m/z 175 (due to removal of –COCH3 fragment from parent ion) and m/z 43 (due to –COCH3 fragment). Compounds 2a-n, which were derived from 1 showed only one peak in NMR spectrum at δ 2.0-3.0 due to three protons of -CH3 group attached at 4 position of coumarin ring. This showed that –COCH3 group of 1 was involved in formation of C=C bond. Mass spectrum of 2a showed M+ peak at 340, M-15 at 325 and M-16 peak at 324, which confirm the molecular weight and CH3 and OH fragments of 2a, respectively. Common fragments of mass 229, 216, 203 and 275 were found in all synthesized compounds (2a-n; Figure 2). The above spectral characterization was further confirmed by elemental analysis, which was in agreement with calculated percent values of C, H and N.

IJPS-Reaction-scheme-synthesis

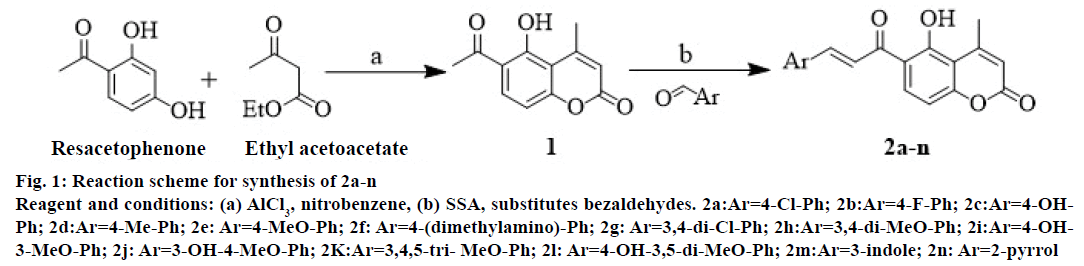

Figure 1: Reaction scheme for synthesis of 2a-n
Reagent and conditions: (a) AlCl3, nitrobenzene, (b) SSA, substitutes bezaldehydes. 2a:Ar=4-Cl-Ph; 2b:Ar=4-F-Ph; 2c:Ar=4-OHPh; 2d:Ar=4-Me-Ph; 2e: Ar=4-MeO-Ph; 2f: Ar=4-(dimethylamino)-Ph; 2g: Ar=3,4-di-Cl-Ph; 2h:Ar=3,4-di-MeO-Ph; 2i:Ar=4-OH- 3-MeO-Ph; 2j: Ar=3-OH-4-MeO-Ph; 2K:Ar=3,4,5-tri- MeO-Ph; 2l: Ar=4-OH-3,5-di-MeO-Ph; 2m:Ar=3-indole; 2n: Ar=2-pyrrol

IJPS-Common-molecular-fragments

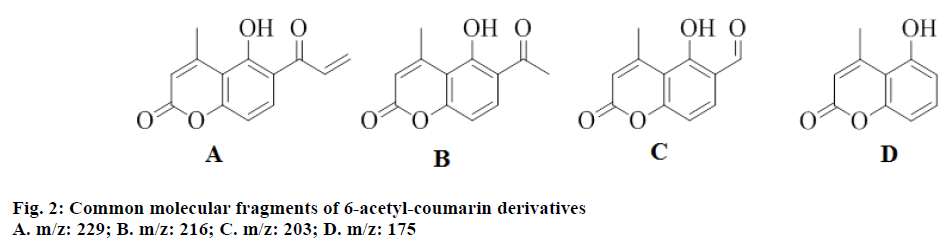

Figure 2: Common molecular fragments of 6-acetyl-coumarin derivatives
A. m/z: 229; B. m/z: 216; C. m/z: 203; D. m/z: 175

As per Lipinski’s rule of five, an orally active compound has not more than one violation and as per Jorgensen’s rule of three, if a compound complies with all parameters, then it is more likely to be orally available [45,46]. Compounds 2a-n complied with Lipinski’s rule of five and Jorgensen’s rule of three, as they have shown no rule violations in drug-likeness study (Table 1). All compounds showed values of ADME parameters i.e. LogS (aqueous solubility), #rot (number of rotatable bonds), #met (number of metabolic reactions), CNS activity, Caco2 permeability (permeability through intestinal epithelium), LogBB (ability to cross blood brain barrier), LogKp (permeability through skin), LogKhsa (serum protein binding) and % HOA (percent human oral absorption), within reference limits (Table 2). In silico toxicity study showed that all synthesized compounds have low toxicity risks for mutagenicity, tumorigenicity, irritant and reproductive effects (Table 3).

Comp. MW HBD HBA LogP PSA ROT ROF
2a 340 0 4 3.611 81.025 0 0
2b 324 0 4 3.341 81.075 0 0
2c 322 1 5 2.597 103.380 0 0
2d 320 0 4 3.374 81.145 0 0
2e 336 0 5 3.166 89.007 0 0
2f 349 0 5 3.499 84.496 0 0
2g 375 0 4 4.066 81.027 0 0
2h 366 0 6 3.220 96.347 0 0
2i 352 1 6 2.746 107.210 0 0
2j 352 1 6 2.675 110.741 0 0
2k 396 0 7 3.311 103.841 0 0
2l 382 1 7 2.885 114.227 0 0
2m 345 1 4 3.513 94.404 0 0
2n 295 1 4 2.651 93.144 0 0
RAL 444 2 11 1.673 166.711 0 1
RR <500 ≤5 ≤10 ≤5 <140 0 1

Table 1: Drug likeness study of synthesized compounds

Comp. #rot #met LogS CNS Caco-2 LogBB LogKp LogKhsa % HOA
2a 5 2 -4.746 -1 573.585 -0.837 -2.399 0.236 100
2b 5 2 -4.347 -1 572.893 -0.881 -2.365 0.154 95.871
2c 6 3 -4.025 -2 181.524 -1.563 -3.268 0.119 82.585
2d 5 3 -4.564 -2 579.804 -1.014 -2.427 0.282 96.160
2e 6 3 -4.104 -2 590.902 -1.061 -2.306 0.079 95.089
2f 6 3 -4.728 -2 568.606 -1.123 -2.428 0.233 96.737
2g 5 2 -5.417 -1 573.912 -0.716 -2.529 0.358 100.000
2h 7 4 -4.125 -2 585.011 -1.138 -2.367 0.046 95.327
2i 7 4 -4.220 -2 264.441 -1.491 -2.972 0.108 86.378
2j 7 4 -4.335 -2 185.853 -1.669 -3.329 0.131 83.221
2k 8 5 -4.299 -2 577.417 -1.239 -2.449 0.032 95.756
2l 8 5 -4.432 -2 301.893 -1.528 -2.938 0.111 88.225
2m 5 2 -5.073 -2 327.267 -1.280 -2.601 0.466 92.528
2n 5 2 -3.917 -2 383.962 -1.141 -2.725 0.115 88.720
RAL 7 4 -4.629 -2 84.453 -2.04 -4.262 -0.278 58.268
RR 0 to 15 <7 -6.5to0.5 -2to2 <25 poor
>500 good
-3 to1.2 -8to-1 ±1.5 <25 poor

Table 2: In silico ADME profile of synthesized compounds

Comp. Toxicity risks
MUT TUM IRR RPRD
2a Low Low Low Low
2b Low Low Low Low
2c Low Low Low Low
2d Low Low Low Low
2e Low Low High Medium
2f High High Low Low
2g Low Low Low Low
2h Low Low Low Low
2i Low Low Low Low
2j Low Low Low Low
2k Low Low Low Low
2l Low Low Low Low
2m Low Low Low Low
2n Low Low Low Low
RAL Low Low Low Low

Table 3: In silico toxicity risk assessment of synthesized compounds

Cytotoxicity assay showed that all synthesized compounds were devoid of cytotoxicity, as their cell viability count was in the range of 80-100 %, except compound no. 2h, 2i and 2j, which showed cell viability count in the range of 60-79 %. The result of in silico toxicity study of synthesized compounds was in agreement with in vitro toxicity study results. The antiretroviral activity showed that most of synthesized compounds were effective in achieving protection against the cytopathic effect of HIV. Compounds with electron withdrawing groups i.e. 2a, 2g and 2h showed higher activity amongst all synthesized compounds as their IC50 value was in the range of 0.35-4.7 μM. Figure 3 showed that activity of compounds 2a, 2g and 2h was comparable with the activity of antiretroviral drug RAL. Structure activity relationship of synthesized compounds was explained by dividing the structure in two parts i.e. A and B. It was found that part B was crucial for activity as change in substitution resulted in variation of antiHIV activity while part A was kept unsubstituted (Figure 4). Compound with para chloro (Cl) substitution on phenyl ring of part B showed high antiHIV activity. As Cl was replaced with flouro (F) group, activity was reduced due to less electron affinity of F as compared to Cl. Introduction of hydroxyl (OH), methyl (CH3), methoxy (OCH3) and dimethylamino (N-(CH3)2) groups further reduced activity as they are less electronegative as compared to Cl and F. The highest activity was found with 3,4-dimethoxy substituent but it showed cell viability count 60-79 % in cell culture, which was less than the cell viability count of compound 2a and 2g (Table 4). Compound with 3,4-dichloro substitution (i.e. 2 g) was equipotent as 2a. This shows that electronegative substituents were favourable for activity.

IJPS-Antiretroviral-activity

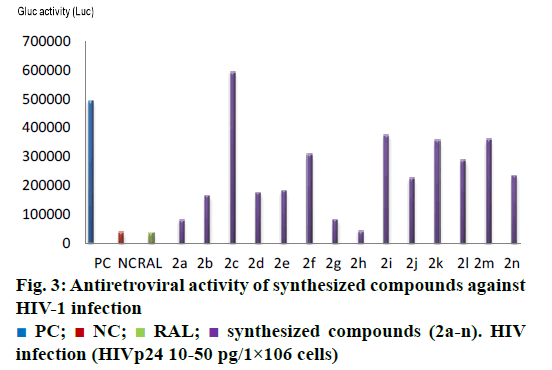

Figure 3: Antiretroviral activity of synthesized compounds against HIV-1 infection
image PC; image NC; image RAL; image synthesized compounds (2a-n). HIV infection (HIVp24 10-50 pg/1×106 cells)

IJPS-Structure-activity

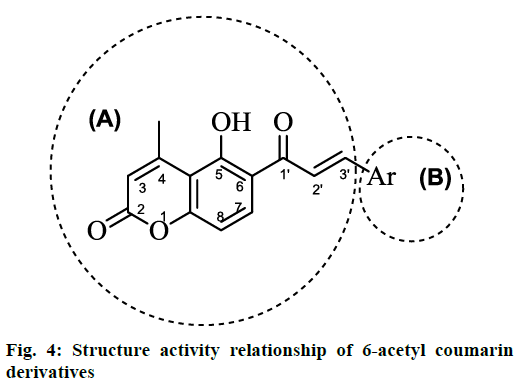

Figure 4: Structure activity relationship of 6-acetyl coumarin derivatives

Comp. Cytotoxicity
0.25-2.0 μg/ml
Mean cell viability
(%)
Anti-HIV activitya
IC50 (µM)
2a - 91±1.5 4.7±0.12
2b - 87±2.1 9.8±1.23
2c - 89±3.6 36.33±2.09
2d - 85±2.2 10.62±1.07
2e - 84±1.9 10.71±1.23
2f - 87±1.7 17.47±2.03
2g - 89±1.3 4.5±0.23
2h + 75±2.1 0.35±0.13
2i + 72±3.9 21.02±1.92
2j + 69±2.8 12.5±1.11
2k - 85±2.1 17.82±2.42
2l - 90±3.2 14.65±1.34
2m - 87±2.4 20.57±2.09
2n - 81 ± 1.6 15.6±1.23
RAL - 95 ± 1.1 0.09±0.03

Table 4: In vitro cytotoxicity and antiretroviral activity of synthesized compounds

In conclusion, the present study indicated that all synthesized compounds (2a-n) have the potential of inhibiting HIV-1 infection in the low micromolar range. It was also found that early prediction of ADME/T properties reduce the risk of failure of compounds in further studies. Still there is a scope of determination of exact mechanism of action, experimental pharmacokinetic profile and subsequent modification in synthesized compounds to improve activity, which is under progress in our laboratory.

Acknowledgements

Authors thank the Director, SGSITS for providing state-of-art facilities and Dr. Zhujun Ao for technique supports, which helped in successful completion of this research work.

Financial support and sponsorship

This work was partly supported by University Grant Commission, New Delhi as Major Research Project to M. Tiwari and the Canadian Institute of Health Research (CIHR) HIV/AIDS Bridge Funding Biomed/ Clini stream (HBF-131553) to X-J. Yao.

Conflicts of interest

There are no conflicts of interest.
